nbf Signature 317-MM3T1C6C1R5 User manual

WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are
securely tightened.
3. Check that all bolts screws and knobs are tight every three months
or as needed.
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic cover as
head covering. It may cause suffocation.
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
8. Use mild detergent only for cleaning.
317-MM3T1C6C1R5 / 317-T11C6C1R5
317-MM4T1C6C1R5
EXECUTIVE VERTICAL MESH BACK CHAIR
OPERATING INSTRUCTIONS
LIMITED WARRANTY
NBF ® Signature Series chairs are warranted from the date of purchase against failure due to material and
workmanship as follows:
• Lifetime on all non-moving metal parts.
• Lifetime on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and
obtain return authorization. At it’s option NBF will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer’s component. The customer must prepay freight on any components returned to the factory. Return
freight on components still in warranty will be paid by NBF.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs.
or less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any
other event beyond the control of NBF. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or consequential
damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a two year warranty
on all parts applies. Fabric and foam is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts
are damaged or missing. Our Parts Department will do everything possible to promptly remedy the problem. Contact our factory
by Fax [phone], or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
317-T11C6C1R5 & 317-MM4T1C6C1R5
(not shown)
Front
Back
1
2
3
4

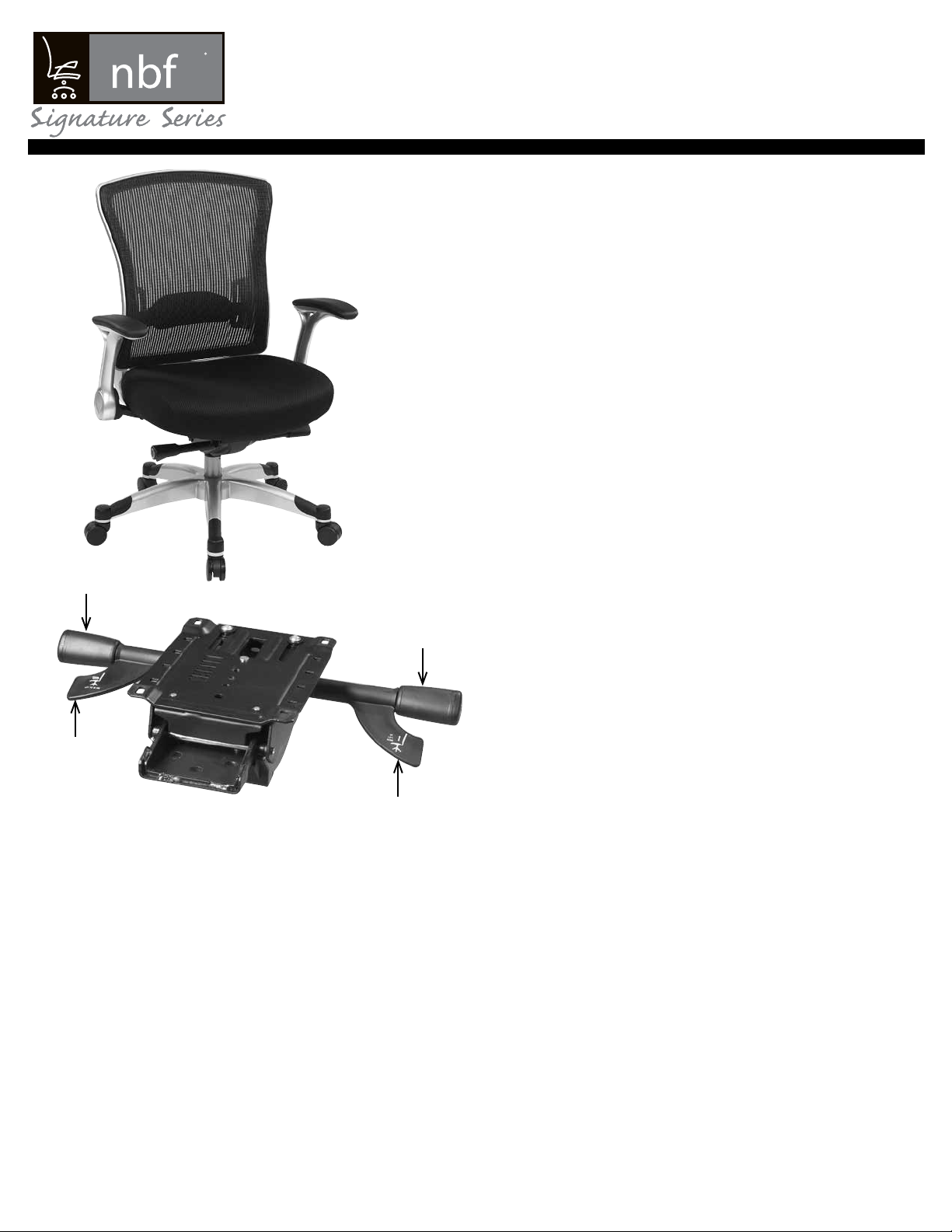

FEATURES
• BACKREST LOCKING ADJUSTMENT
Turn knob (1) clockwise to lock backrest in position, to unlock,
turn knob (1) counter-clockwise and lean back to release
anti-kick back mechanism.
• SEAT SLIDER
Lift lever (2) to slide seat, release lever (2) when desired position
is reached.
• TILT TENSION ADJUSTMENT
Turn knob (3) clockwise to increase tilt tension and turn
knob (3) counter-clockwise to decrease tilt tension.
• SEAT HEIGHT ADJUSTMENT
To raise seat height, remove pressure from seat and lift
lever (4) up. To lower seat height, sit on chair and
lift lever (4) up.
NOTE: It is normal for chair to slightly lower
under body weight.
• ARM FLIP UP AND DOWN
To flip arms up, simply pull up on arm. To lower arm, simply pull
down on arm.
317-MM3T1C6C1R5

317-MM3T1C6C1R5 / 317-T11C6C1R5
317-MM4T1C6C1R5
EXECUTIVE VERTICAL MESH BACK CHAIR
ASSEMBLY INSTRUCTIONS
PART QTY
1. Base ....................1
2. Casters ..................5
3. Pneumatic Cylinder .........1
4. Mechanism ...............1
5. Seat Cushion ..............1
6. Back Assembly ............1
7. Arms (7L & 7R) ............2
8. Flat Washers .............10
9. Arm Screws ...............6
10. Mechanism Screws ........4
11. Back Support Screws ......3
12. Back Support (Pre-Installed) . 1
13. Allen Wrench .............1
1
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
STEP 2 Align the holes in the Arms (7L & 7R) with the holes in the Seat Cushion (5), attach Arms (7L & 7R) to Seat Cushion (5) using three
Flat Washers (8) and three Arm Screws (9) for each arm. FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (13).
STEP 3 Attach Mechanism (4) to Seat Cushion (5) with the arrow towards the front of the chair using four Flat Washers (8) and four
Mechanism Screws (10), FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (13).
STEP 4 Attach Back Support (12) to rear of Mechanism (4) using three Back Support Screws (11),
FULLY TIGHTEN ALL SCREWS USING ALLEN WRENCH (13).
STEP 5 Insert Pneumatic Cylinder (3) into Base (1), Place the assembled seat on top of Pneumatic Cylinder (3) and
apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
STEP 1 STEP 2 STEP 3
STEP 4
2
3
1
7R
9
8
9
13
13
10
4
5
5
7L
X5 X3
X3
X4
X3
X3
8
13
11 X3
STEP 5
4
6
12
8X4
NBF ® Signature Series March 2013
