nbf 529-T11P91F5 User manual

529-MM3T1N1F5 / 529-T11N1F5 / 529-T11P91F5
VERTICAL MESH BACK CHAIR w/ MEMORY FOAM SEAT
OPERATING INSTRUCTIONS

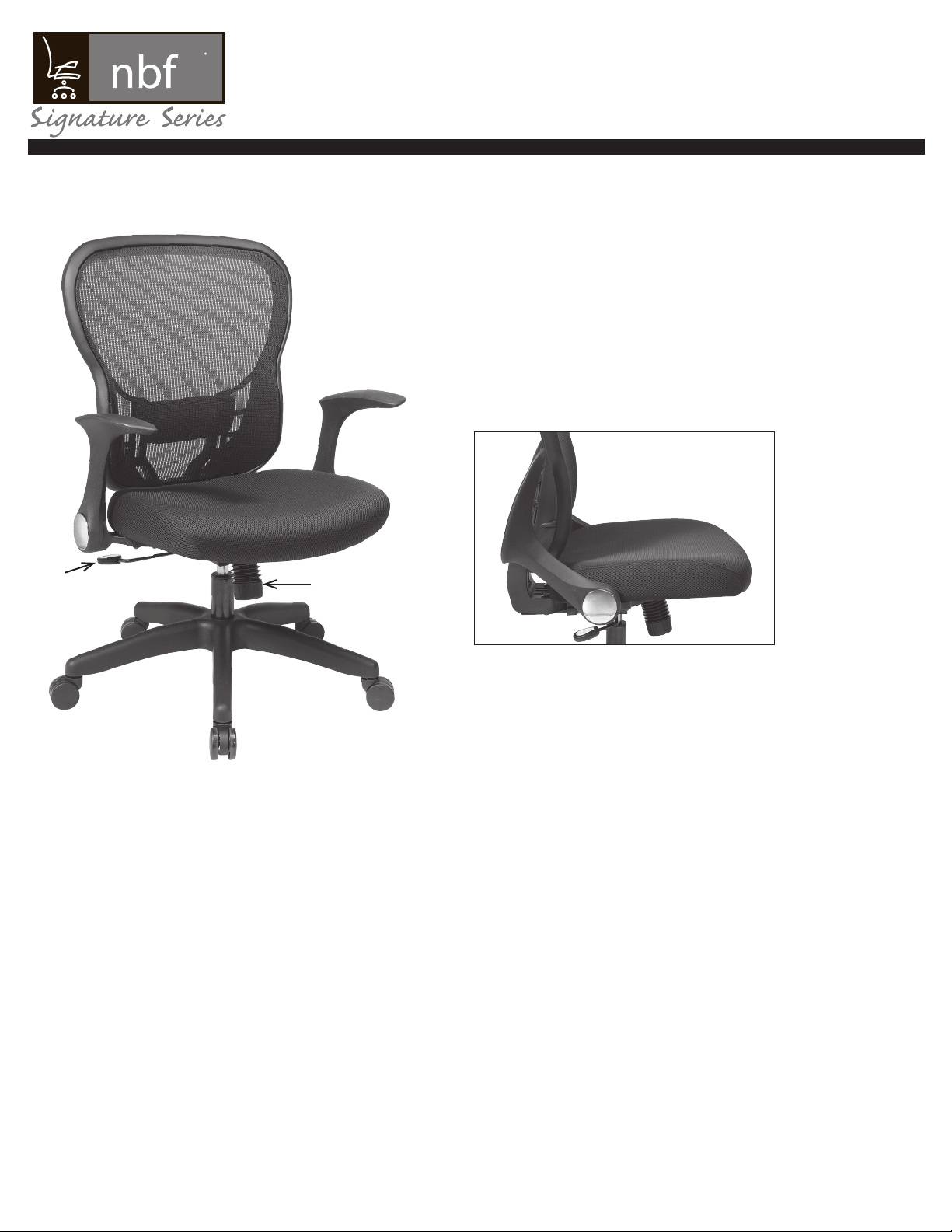

FEATURES
• PNEUMATIC SEAT HEIGHT ADJUSTMENT
To raise seat remove pressure from seat and lift lever (1). To
lower seat height sit on chair and lift lever (1).
NOTE: It is normal for chair to slightly lower under
body weight.
• 2-TO-1 SYNCHRO TILT ADJUSTMENT
For individual comfort, this chair has been equipped with
an adjustment knob that will allow the user to change the
tension of the tilting feature. Turn knob (2) clockwise to
increase tension and counter-clockwise to decrease or ease
the tension. To lock return chair to the upright position and
push lever (1) in. To unlock pull lever (1) out.
NOTE: Be careful not to loosen back tilt adjustment knob completely.
• ARM FLIP UP AND DOWN
To flip arms up, simply pull up on arm. To lower arm, simply
pull down on arm.
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are
securely tightened.
3. Check that all bolts screws and knobs are tight every three
months or as needed.
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic cover
as head covering. It may cause suffocation.
6. Do not use chair as a stepladder.
7. Use this chair for its intended purpose only.
8. Use mild detergent only for cleaning.
12
529-T11N1F5 & 529T11P91F5
(not shown)
Flip-Arm makes it easy to get close to your desk or peform
tasks without chair arms in the way
LIMITED WARRANTY
NBF ® Signature Series chairs are warranted from the date of purchase against failure due to material and
workmanship as follows:
• Lifetime on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and
obtain return authorization. At it’s option NBF will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer’s component. The customer must prepay freight on any components returned to the factory. Return
freight on components still in warranty will be paid by NBF.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs.
or less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any
other event beyond the control of NBF. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or consequential
damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a two year warranty
on all parts applies. Fabric and foam is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts
are damaged or missing. Our Parts Department will do everything possible to promptly remedy the problem. Contact our factory
by Fax [phone], or toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.

4
1
Remove all parts from carton, separate by part numbers indicated on parts list, and verify part quantities.
STEP 1 Insert five Casters (2) into Base (1), push hard until you feel or hear the Caster (2) snap into place.
STEP 2 Attach Arms (7L & 7R) to Seat Cushion (5) using three Flat Washers (8) and three Arm Screws (9) for each arm.
TIGHTEN ALL SCREWS COMPLETELY USING ALLEN WRENCH (13).
STEP 3 Attach Seat Plate (4) to Seat Cushion (5) with the arrow towards the front of the chair, using four Seat Plate Screws (10)
TIGHTEN ALL SCREWS COMPLETELY USING ALLEN WRENCH (13).
STEP 4 Attach Back Support (12) to rear of Seat Plate (4) using three Back Support Screws (11), TIGHTEN ALL SCREWS COMPLETELY
USING ALLEN WRENCH (13).
STEP 5 Insert Pneumatic Cylinder (3) into Base (1), Place the assembled seat on top of Pneumatic Cylinder (3) and apply downward pressure.
ATTENTION: MAKE SURE ALL SCREWS ARE FULLY TIGHTENED BEFORE USING CHAIR.
NBF ® Signature Series November 2015
529-MM3T1N1F5 / 529-T11N1F5 / 529-T11P91F5
VERTICAL MESH BACK CHAIR w/ MEMORY FOAM SEAT
ASSEMBLY INSTRUCTIONS
STEP 1 STEP 2
STEP 4 STEP 5
STEP 3
2
12
7R
1
3
8
9
X3
X3
11
X4
X5
4
5
PA R T QTY
1. Base ..............................1
2. Casters ............................5
3. Pneumatic Cylinder ...................1
4. Seat Plate ..........................1
5. Seat Cushion........................1
6. Back Assembly ......................1
7. Arms (7L & 7R) ......................2
8. Flat Washers ........................6
9. Arm Screws.........................6
10. Seat Plate Screws...................4
11. Back Support Screws ................3
12. Back Support (Pre-Installed) ...........1
13. Allen Wrench .......................1
9
13
8
7L
10
13
5
13
X3
X3
X3
6
