Neatech Job Walker User manual

MANUAL
Rev 2016-08

DECLARATION OF CONFORMITY
The manufacturer
Neatech.it
4/A, A. de Curtis, 80040, Cercola (NA), Italy
under its responsibility, states that
the wheelchair Job Walker
satisfies the conditions laid down by the European Directive 93/42 and its subsequent updates;
according to the criteria for classification of Annex IX of this directive, it is classified as
class I medical device

Index
1PRODUCT PRESENTATION ......................................................................................................1
2PREPARATION FOR FIRST USE ................................................................................................ 2
2.1 Checks to be made on delivery ....................................................................................... 2
2.2 Unpacking ........................................................................................................................ 3
3ADJUSTMENTS ........................................................................................................................ 7
3.1 List of adjustments .......................................................................................................... 7
3.2 Seat depth........................................................................................................................ 8
3.3 Pushbar height................................................................................................................. 9
3.4 Pushbar depth ...............................................................................................................10
4USE OF THE PRODUCT ..........................................................................................................12
4.1 Use of brake...................................................................................................................14
4.2 Use as seat in motor vehicle..........................................................................................15
4.3 Use as a walker aid ........................................................................................................15
4.4 Use as a wheelchair .......................................................................................................16
4.5 Transport and storage ................................................................................................... 17
5MAINTENANCE .....................................................................................................................19
5.1 Maintenance and cleaning ............................................................................................19
5.2 Controls to be performed on the product.....................................................................20
5.2.1 Tire circumference..................................................................................................21
5.3 Tire puncture ................................................................................................................. 22
5.4 Spare part ...................................................................................................................... 23
5.4.1 Footplate................................................................................................................. 24
5.4.2 Front seat padding.................................................................................................. 25
5.4.3 Push bar .................................................................................................................. 26
5.4.4 Armrest ...................................................................................................................27
5.4.1 Upper part of the wheelchair .................................................................................28
5.4.2 Backrest upper bar .................................................................................................29
5.4.1 Front seat bar bar ...................................................................................................30
5.4.2 Backrest sling ..........................................................................................................31
5.4.3 Seat sling.................................................................................................................32

6SPECIFICATIONS ....................................................................................................................33
6.1 Weight ...........................................................................................................................36
6.2 Dimensions .................................................................................................................... 37
7WARRANTY TERMS ...............................................................................................................38
7.1 Serial number ................................................................................................................38
Note .............................................................................................................................................39

Symbols in this manual
WARNING
This symbol means presence of danger for the user or damage for the
product. Always follow instructions when this symbol is present.
ELECTRICAL WARNING
This symbol means presence of danger related to the presence of electrical
energy. Please pay special attention when this symbol is present.
PINCH HAZARD
This symbol means presence of pinch hazard.
INFORMATION
This symbol means general information intended to simplify or best explain
the use of the product.
CONTACT INFORMATION
This symbol means the need of contacting an authorized service center or
the manufacturer.

TEMPERATURE
The temperature of some surfaces may increase when the chair is exposed
to external heat sources as sunlight.
TIPPING HAZARD
Tipping hazard is strongly reduced because of the design of the wheelchair
according to EN 12182.
In any case, please pay special attention during the adjustments and use of
the wheelchair to prevent any damage to the user or objects.
Particularly, pay special attention during tilting operations and opening and
closing of the chassis (if the wheelchair is foldable)
Any transport on a slope greater than the maximum security slope can be
dangerous.
Please don’t seat on armrests
OBSTACLES
Riding over curbs or obstacles can cause tipping and serious bodily harm. If
you have any doubt that you can safely cross any curb or obstacle, ALWAYS
ASK FOR HELP. Be aware of your riding skills and personal limitations.
Develop new driving skills only with the help of a companion.
Center of balance of the wheelchair and so its stability cab be
affected by:
User position
Us of a backpack
Tilting of the seat
PINCH HAZARDS –WARNING
Make sure your feet do not “hang up” or get caught in the space between
the footrests. In general, make sure you have proper space in areas you will
travel through to minimize pinching or entrapment of body parts.

WARNING: It is prohibited to use wheelchair or its parts for any purpose other than
that indicated. For a correct use please follow the instructions given in this manual.
NEATECH.IT disclaims any responsibility for damages caused by improper use of
aids.
NEATECH.IT disclaims any responsibility for inappropriate selections of wheelchair models
The information in this manual may be subject to change without notice. All information, pictures and
specifications are based upon the product information that was available at the time of printing. They are
representative examples and not intended to be exactly as the actual wheelchair
MODIFICATIONS
Any unauthorized modifications to the wheelchair may increase the risk of personal injury and damage to
the wheelchair. All modifications should be done by an authorized service center.
Do not use any unauthorized accessories or spare parts on the wheelchair. Do not use the wheelchair in
combination with other medical devices without first having considered any risk due to combination of
more product.

MANUFACTURER
For any need not expressly explained in this manual, please contact the manufacturer.
Neatech.it SRL
4/A, A. de Curtis, 80040, Cercola (NA), Italy
www.neatech.it –[e-mail] - [phone]
INCIDENT REPORTING
If an incident occurs, please contact an authorized service center. For a list of authorized service center
please contact the manufacturer.
DISPOSING
This product and all its components can not be treated as household waste. For
more detailed information on how recycling and disposal this product contact
your local waste disposal service.

www.neatech.it
1/38
1PRODUCT PRESENTATION
The Job Walker is a walker that allows people with temporary or permanent disabilities to access
harsh environments such as the beach or snow. This is obtained thanks to the use of patented
innovative solutions from Neatech, as the wheels made of plastic material with controlled
deformation that do not sink on soft soils. The frame is made of light aluminum alloy, a material
that guarantees a high resistance both to bending stress caused by the support of the user’s
weight and to the pushing strength, and to the saline environment corrosion. The Job Walker is
a walker for people with physical disabilities or simply with mobility problems due to the age,
who wish to deal with soft and irregular soils on whose it would be impossible to use traditional
supports. The wheels, always ensuring the greatest possible surface for resting on the ground,
allows ambulation not only of sand or snow, but also on other types of non-cohesive soils such
as meadows, all these make this product a valid aid usable in all seasons and in all contexts. The
folding seat allows the user to sit down for a stopover on the way, or to enjoy the sightseen. The
back and seat are made of sturdy fabric characterized by rapid drying that does not incorporate
the grains of the sand.
Total length
Total width
Seat height
380 mm
900 mm
500 mm
Total wheelchair weight
Maximum user weight
20 kg
100 kg
Seat width
Backrest width
Total height
460 mm
460 mm
880 : 960 mm

www.neatech.it
2/38
2PREPARATION FOR FIRST USE
2.1 Checks to be made on delivery
Check for the integrity of the original packaging.
Check for any anomalies on the shipping documents.
Check for the functionality and integrity of the device in all its parts, at the time of
delivery or immediately thereafter, to ensure that no damage has resulted from a
careless transport.
Make sure the surface of the device is not damaged, scratched, bent, etc.
Any fault or damage found must be immediately reported on the shipping documents
and promptly communicated to the carrier. For any other questions, please contact the
manufacturer.

www.neatech.it
3/38
2.2 Unpacking

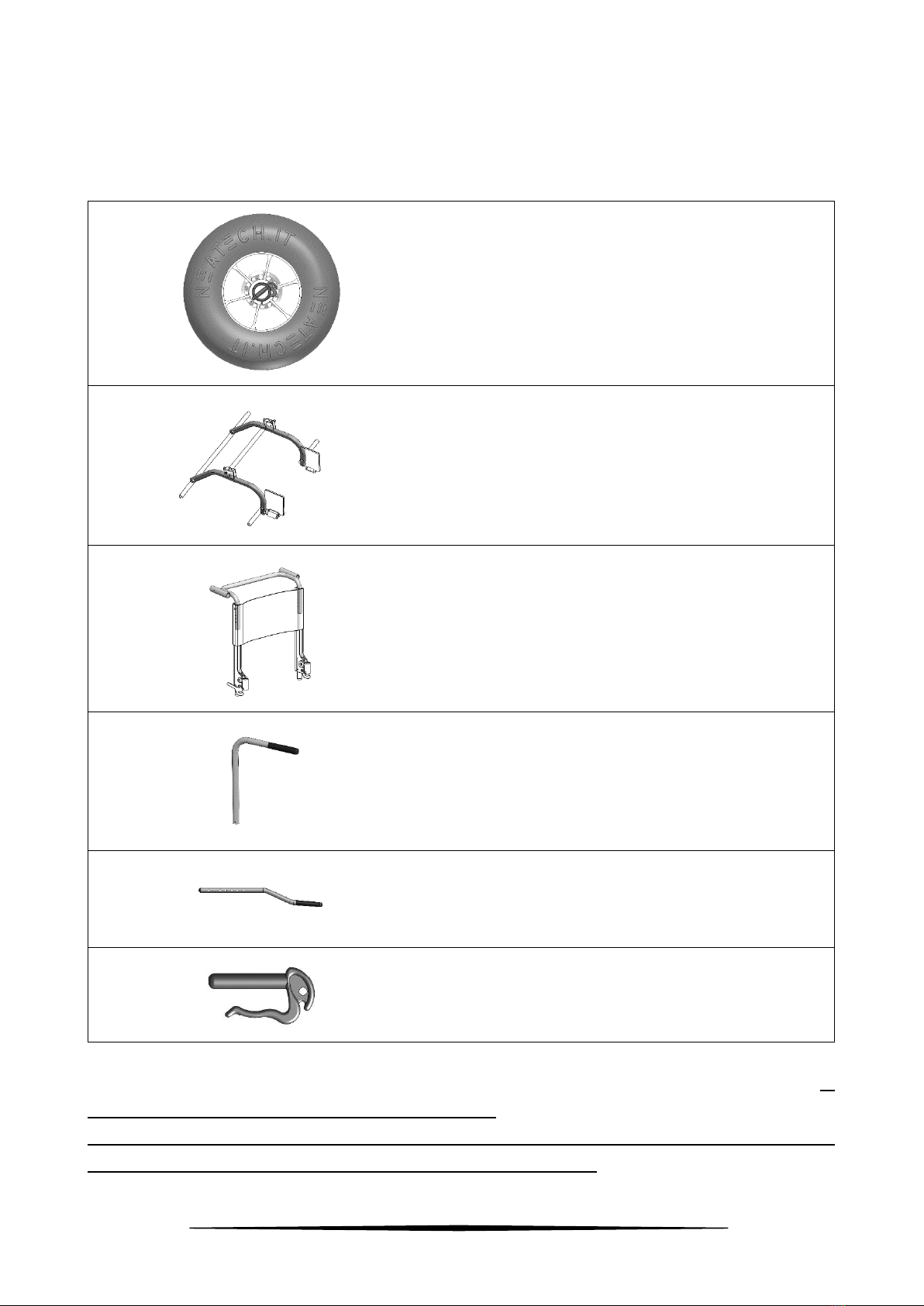

Inside the box there are:
N. 4 wheels
N. 1 Chassis of the wheelchair
N. 1 Upper part of the wheelchair
N. 2 Armrests
N. 2 Pushing bar
N. 6 fixing clips
Before starting to mount the wheelchair please check if all described component are present. If
not, please contact as soon as possible the vendor.
No tools are required to mount the wheelchair. No parts weighted more than 10 kg are
intended to be handled during the unpacking of the wheelchair

www.neatech.it
4/38
Figure 1
Insert the wheel on the axis of the chassis of the wheelchair.
Block the wheel with a fixing clip.
Repeat the operation for all four wheels
Figure 2
Insert the upper part of the wheelchair on the chassis.
Block the upper part acting on the two handles shown in figure.

www.neatech.it
5/38

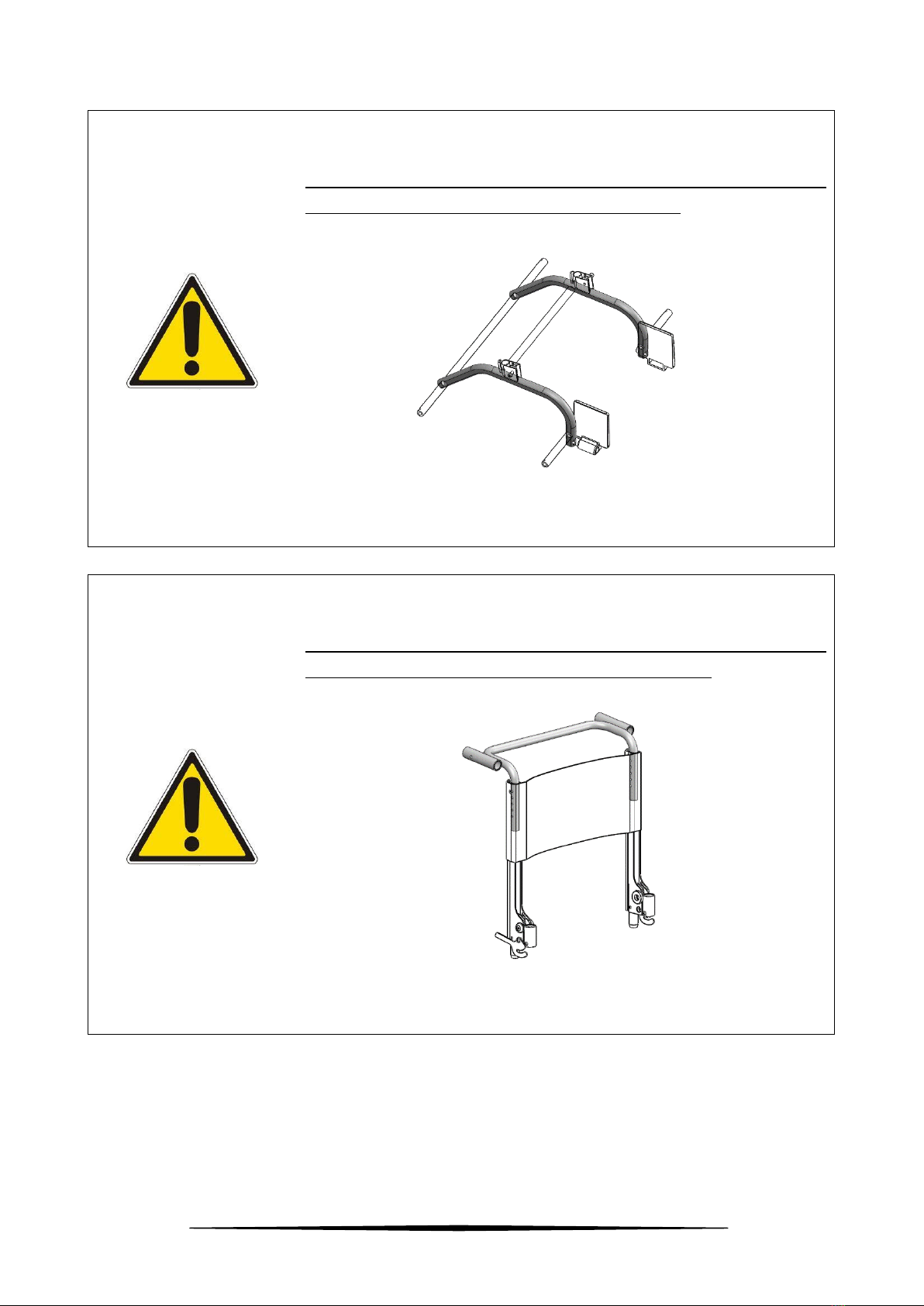

WEIGHT
The weight of the chassis of the wheelchair is about 4 kg. Grab it with two
hands at the same time on the bars shown in Figure 3.
Figure 3
WEIGHT
The weight of the upper part of the wheelchair is about 5 kg. Grab it with
two hands at the same time on the bars shown in Figure 4.
Figure 4

www.neatech.it
6/38

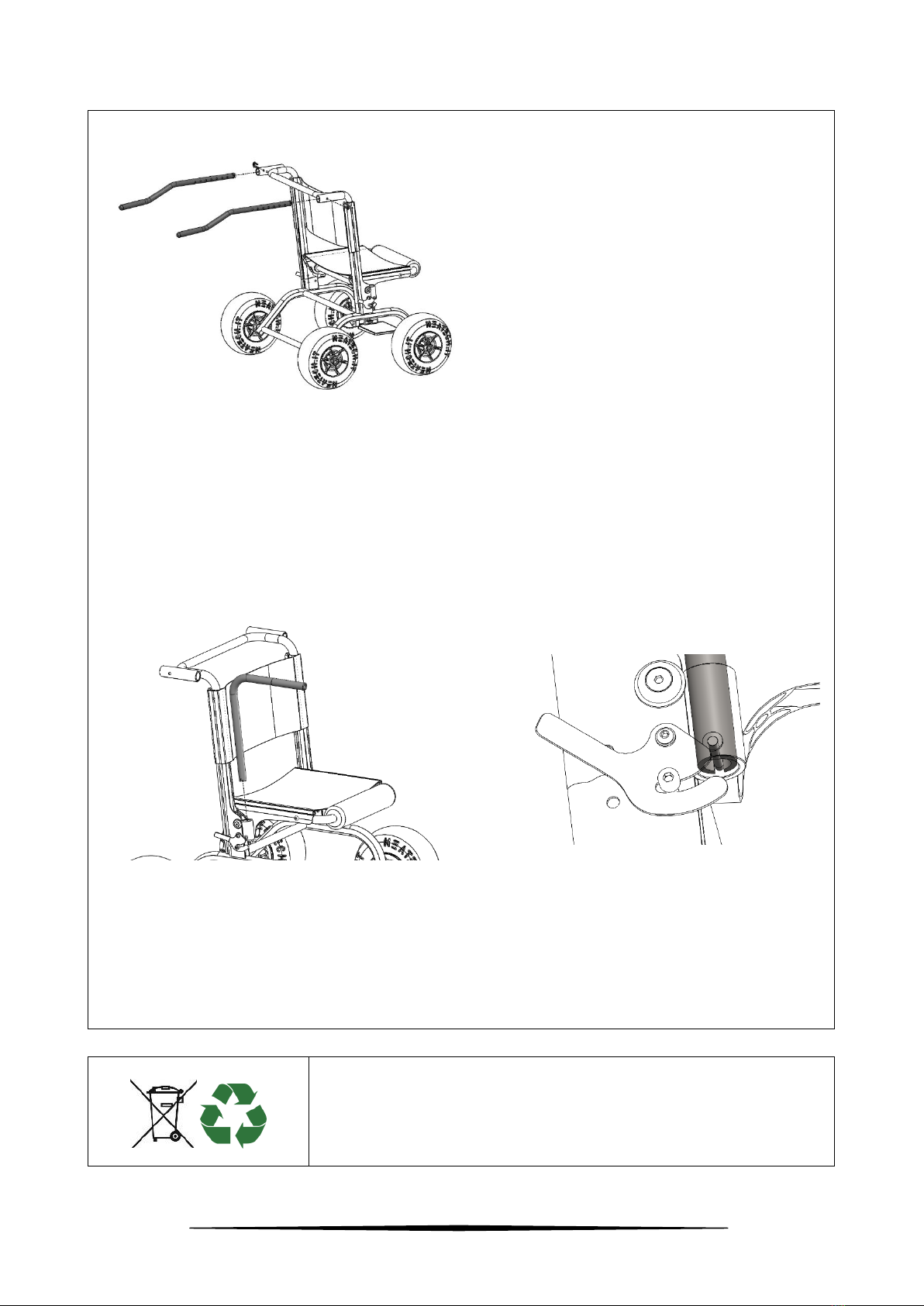

Figure 5
Insert the pushing bar on the upper part of the wheelchair.
Block it with a fixing clip.
Repeat the operation for both left and right side of the wheelchair.
Figure 6
Figure 7
Insert the armrests on the upper part of the wheelchair.
PACKAGING DIASPOSAL
To properly recycle the packaging materials, follow the instructions provided by
your local waste disposal service.

www.neatech.it
7/38
3ADJUSTMENTS
3.1 List of adjustments
Type of operation
A
Operation intended to be performed by the user
B
Operation intended to be performed by an assistant
C
Operation intended to be performed by an authorized
service center
Adjustment
Type of operation
Seat depth
B - Assistant
Pushbar height
B –Assistant
Push bar depth
B –Assistant (if used as wheelchair)
A –User (if used as walker aid)
For more information, see section 4.3 and 4.4.
Table 1

www.neatech.it
8/38

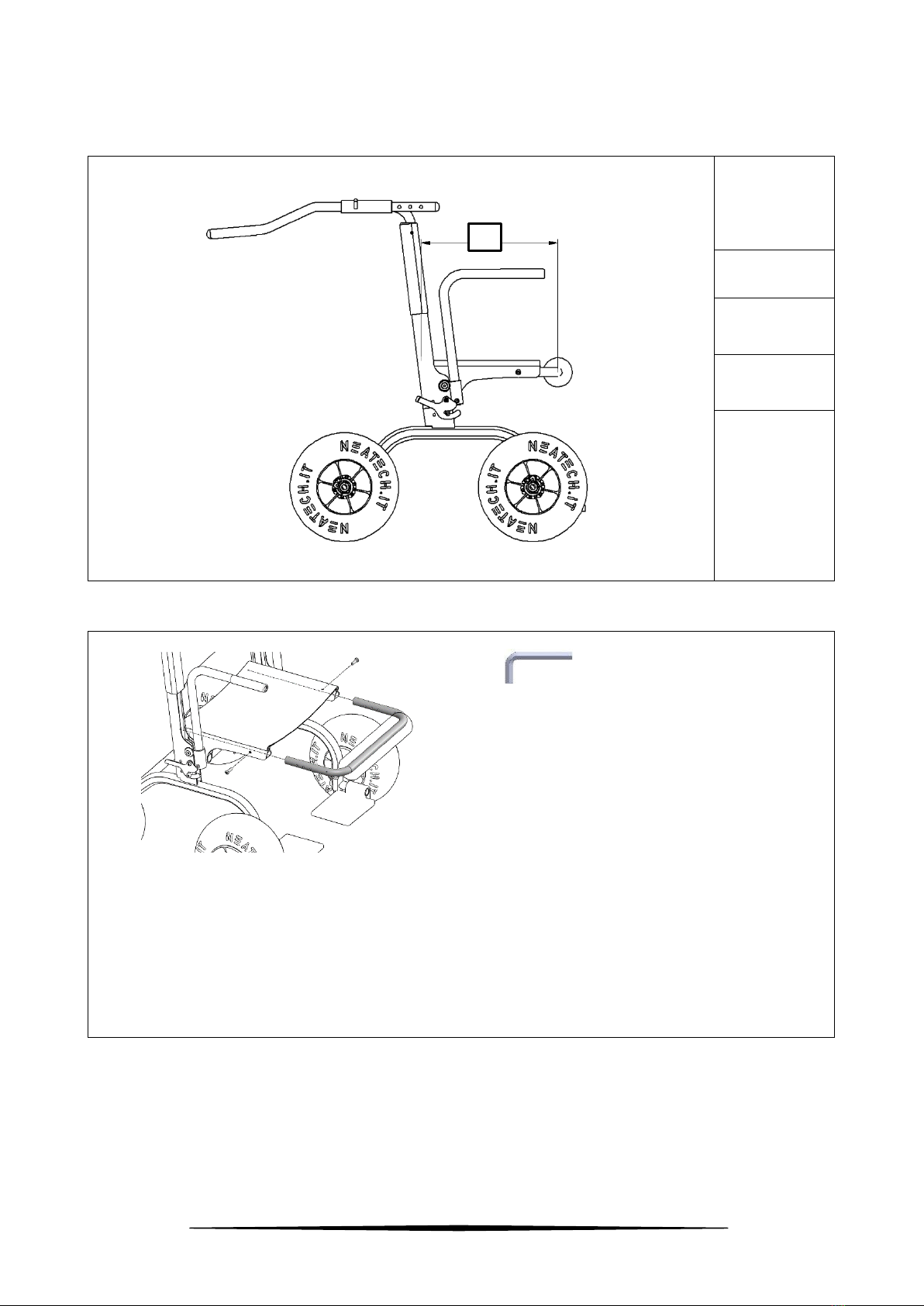

3.2 Seat depth
(A)
POSSIBLE
CHOICES
39.0 cm
41.5 cm
44.0 cm
Table 2
Figure 8
Allen wrench 5 mm
Unscrew the two screws shown in figure.
Pull or push the highlighted bar to adjust the seat depth.
Screw again the two screws.
A

www.neatech.it
9/38

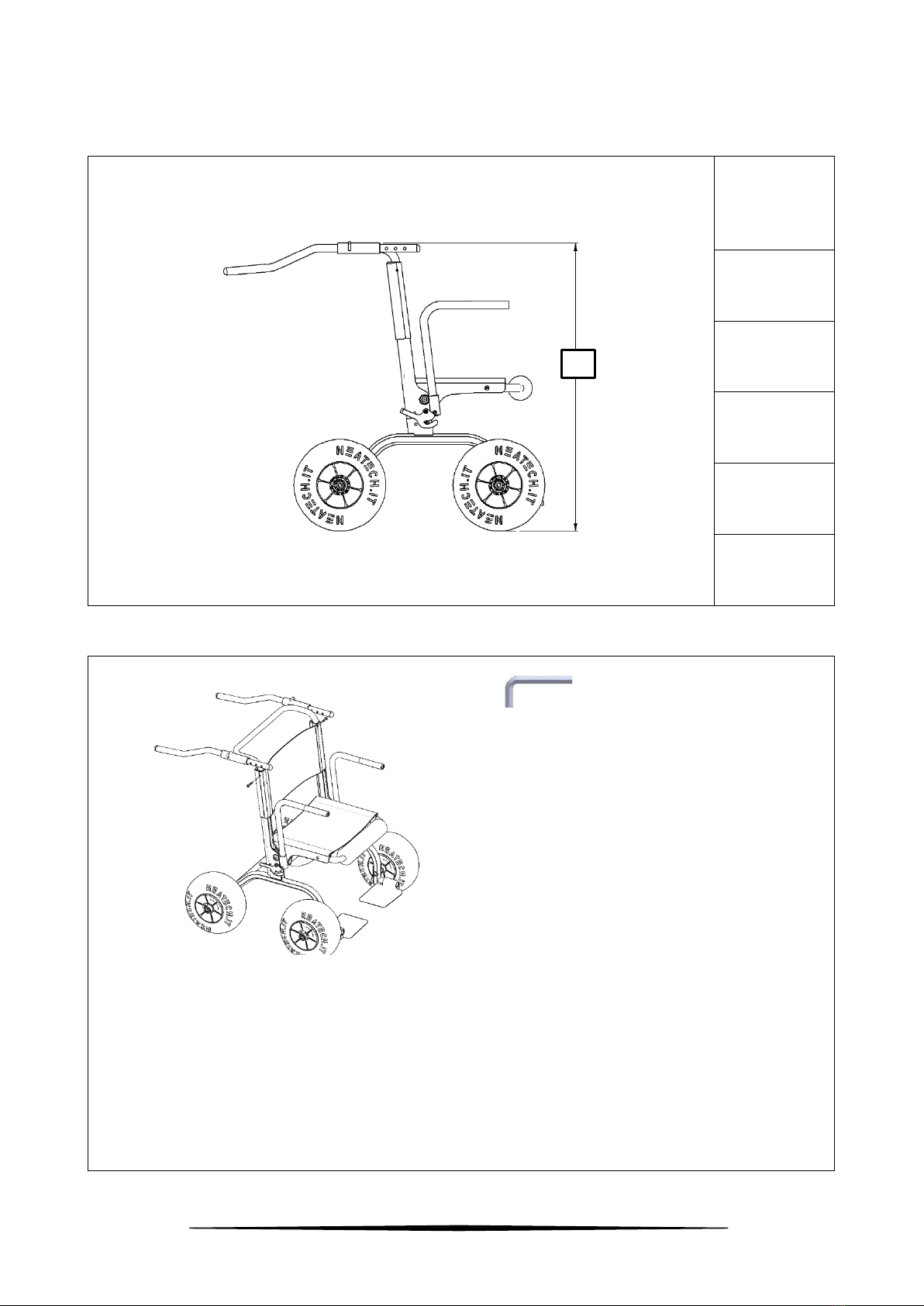

3.3 Pushbar height
(A)
POSSIBLE
CHOICES
94.0 cm
96.0 cm
98.0 cm
100.0 cm
102.0 cm
Table 3
Figure 9
Allen wrench 5 mm
Unscrew the screw shown in figure.
Repeat the operation for both left and right side of the wheelchair.
Adjust the height of the pushbar.
Screw again the two screws.
A

www.neatech.it
10/38
3.4 Pushbar depth
(A)
POSSIBLE CHOICES
37.0 cm
40.0 cm
43.0 cm
46.0 cm
49.0 cm
52.0 cm
55.0 cm
(B)
POSSIBLE CHOICES
31 cm
34 cm
37 cm
40 cm
43 cm
46 cm
49 cm
Table 4
B
A

www.neatech.it
11/38

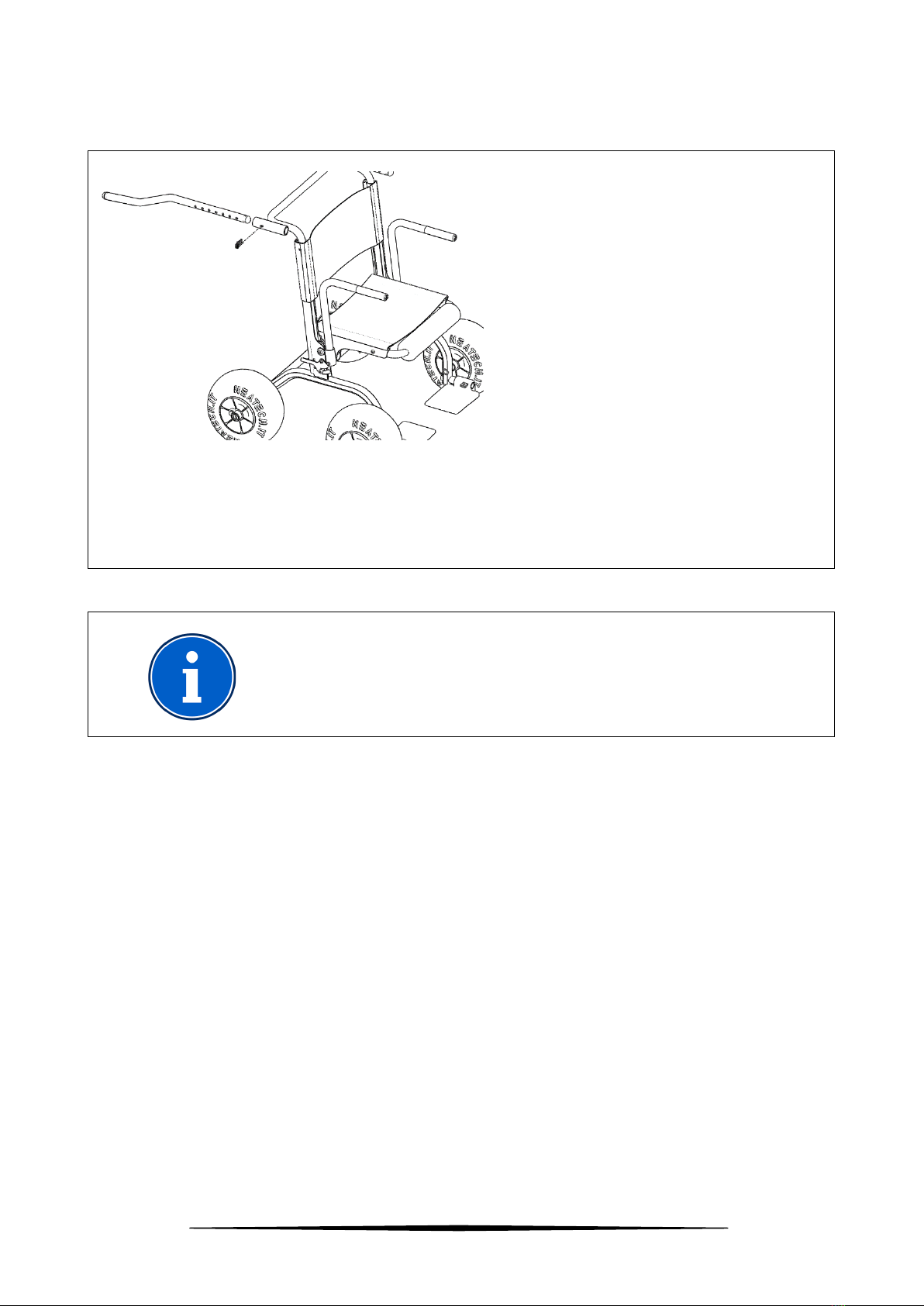

Remove the fixing clip.
Adjust the depth of the push bar.
Block the pushbar with the fixing clip.
INFORMATION
It is possible to adjust the depth of left and right pushbar depth separately.
