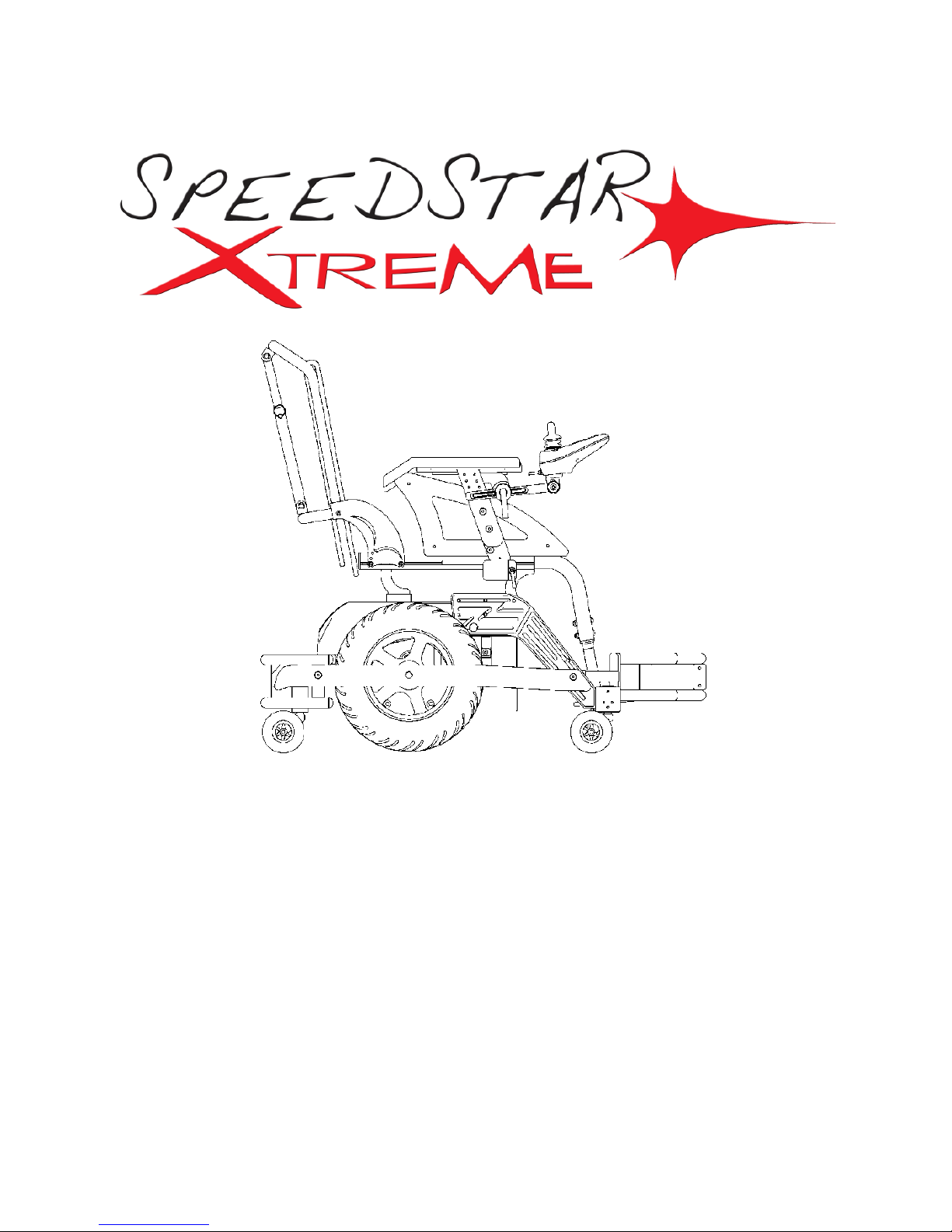

Neatech speedstar xtreme User manual

USER MANUAL
with CE Mark Statement

DECLARATION OF CONFORMITY
The manufacturer
Neatech.it
4/A A. De Curtis St. 80040 Cercola (NA), Italy
under its responsibility, states that
the wheelchair Speedstar Xtreme
satisfies the conditions laid down by European Directive 93/42;
according to the criteria for classification of annex IX of this Directive, the Speedstar
Xtreme is classified as
class I medical device
It also complies with the requirements of the harmonized standards:
UNI EN 12182 Ausili tecnici per persone disabili
UNI EN 12184 Sedie a rotelle a propulsione elettrica, motorette e loro sistemi di
carica

Table of contents
WHEELCHAIR PRESENTATION........................................................................... 1
STARTING UP..................................................................................................... 2
USE OF THE WHEELCHAIR................................................................................. 4
ADJUSTMENTS ................................................................................................ 10
ACCESSORIES................................................................................................... 14
CONTROL AND MAINTENANCE....................................................................... 26
FAULT, REPAIR AND ASSISTANCE.................................................................... 18

TIPPING HAZARD
Any transport on a slope greater than the maximum
security slope can be dangerous.
ELECTROMAGNETIC RADIATION DANGER
The behavior of the wheelchair while driving may be
affected by electromagnetic fields such as mobile
phones and other devices.
It is recommended to avoid the use of the wheelchair
in the presence of such devices.
TEMPERATURE
The temperature of some surfaces may increase
when the chair is exposed to external heat sources as
sunlight.
DISPOSING
This product and all its components can not be
treates as household waste. For more detailed
information on how recycling and disposal this
product contact your local waste disposal service.

1.WHEELCHAIR PRESENTATION
www.neatech.it
1
Thank you for purchasing the electronic wheelchair Speedstar
Xtreme. Speedstar Xtreme is designed to be used mainly for
competition use.
The aeronautical technology, used to manufacture all Neatech.IT
products, made possible to create rigid and foldable frame highly
customizable and reliable. Frame and canvas are available in
different colors.
Characteristic
Pair of engines of 350W
Mechanical electromagnetic
parking brake
Custom colors
Adjustable armrests
Adjustable backrest
Maximum speed 15 km/h
Joystick
360 mm wheel drive with
increased section
Range of 45 km
Fully charged in 7 ore
Maximum slope 22%
WARNING: It is prohibited to use wheelchair or its parts for any
purpose other than that indicated; for a correct use please follow
the instructions given in this manual. NEATECH.IT disclaims any
responsibility for damages caused by improper use of aids

2. STARTING UP
www.neatech.it
2
Checks to be made on delivery
Check the integrity of the original packaging.
Check for any anomalies on the shipping documents.
Check the functionality and integrity of the device in all of its
parts, at the time of or immediately thereafter, to ensure that no
damage is caused by a careless transport.
Make sure the surface of the device is not damaged, scratched,
bended, etc.
Any fault or damage found must be immediately reported on the
shipping documents and promptly communicated to the carrier.
For any other questions, please contact the manufacturer.
If you don’t want to use the Speedstar Xtreme for a long time,
store it in a safe place fre from dust and moisture.
Inside the box there is:
Speedstar Xtreme wheelchair
N. 1 pair of armrests
N. 1 joystick
N. 1 Charger
Documentation and manuals
PACKAGING DIASPOSAL
To properly recycle the packaging materials follow the
instructions provided by your local waste disposal
service.

2. STARTING UP
www.neatech.it
3
Connection of the Joystick
Connect the cable of the joystick as shown in Figure 1. Make sure it
is fully engaged. If it appears difficult to insert the connector try to
invert and reinsert
Figure 1
Trasporto e immagazzinamento
If you don’t use the Speedstar Xtreme for a long time make sure you
set the switch (I) OFF You should keep the Speedstar in a place free
from dust and moisture and away from heat sources.
If you must ship the Speedstar Xtreme, turn off the switch (I),
unplug the joystick and remove the footrests and armrests.
Figure 2

3. USE OF THE WHEELCHAIR
www.neatech.it
4
Checks before use
For a safe use and to avoid any situations of risk
to the user before using the product perform the
following checks .
Checking tire pressure
Verify that the tire pressure is consistent with the values
given in table
Front wheels
3,0 bar
Rear wheels
1,5 bar
Checking battery charge level
Check the battery charge level on the indicator located on
the joystick.
Check of electric cables
Check that the wires don’t constitute a hindrance to the
movements of the wheelchair.

3. USE OF THE WHEELCHAIR
www.neatech.it
5
Consolle di comando
Figure 3
Figure 4
1. On-Off button
2. Beeper
3. MODE button
4. MIN speed selector
5. Display LCD a colori
6. PROFILES button
7. MAX speed selector
8. Controller
NOTE: it is possible that the control console of the Speedstar is different depending
on the accessories chosen. Main controls remain unchanged .

3. USE OF THE WHEELCHAIR
www.neatech.it
6
Powered mode
Set the release engine lever as shown in Figure 5. In this
conFiguretion, wheels are normally brake.
Use the switch (I), see Figure 2, to turn on and turn off the
Speedstar.
Figure 5
Seing Figure 3 and Figure 4 use the button 1 to turn on the
command console. Use button 4 and 7 to select the travel speed.
Use the controller 8 to get in gear. Its proportional functionality
allows you to adjust speed and direction according to the intensity
with which you act on the controller.
By re leasing the lever of the controller automatically starts the
electromagnetic brake that looks the wheels of the Speedstar
Xtreme.
Use button 3 to navigate between the driving modes set during
programming of the console. Use button 6 to navigate between
profiles set during programming of the console.
Don’t turn on or turn off the console while
wheelchair is moving

3. USE OF THE WHEELCHAIR
www.neatech.it
7
Push mode
If you need to use the push mode use switch (I), Figure 2, to turn
off the Speedstar and set the release engine lever as shown in
Figure 6.
Figure 6
In the push mode electromechanical brakes
are off and therefore use of the Speedstar
Xtreme in presence of slopes may be
dangerous.

3. USE OF THE WHEELCHAIR
www.neatech.it
8
Charge of the batteries
To recharge the batteries use only the provided charger. The
manufacturer is not responsible for damage to person or property
resulting from the use of non original product

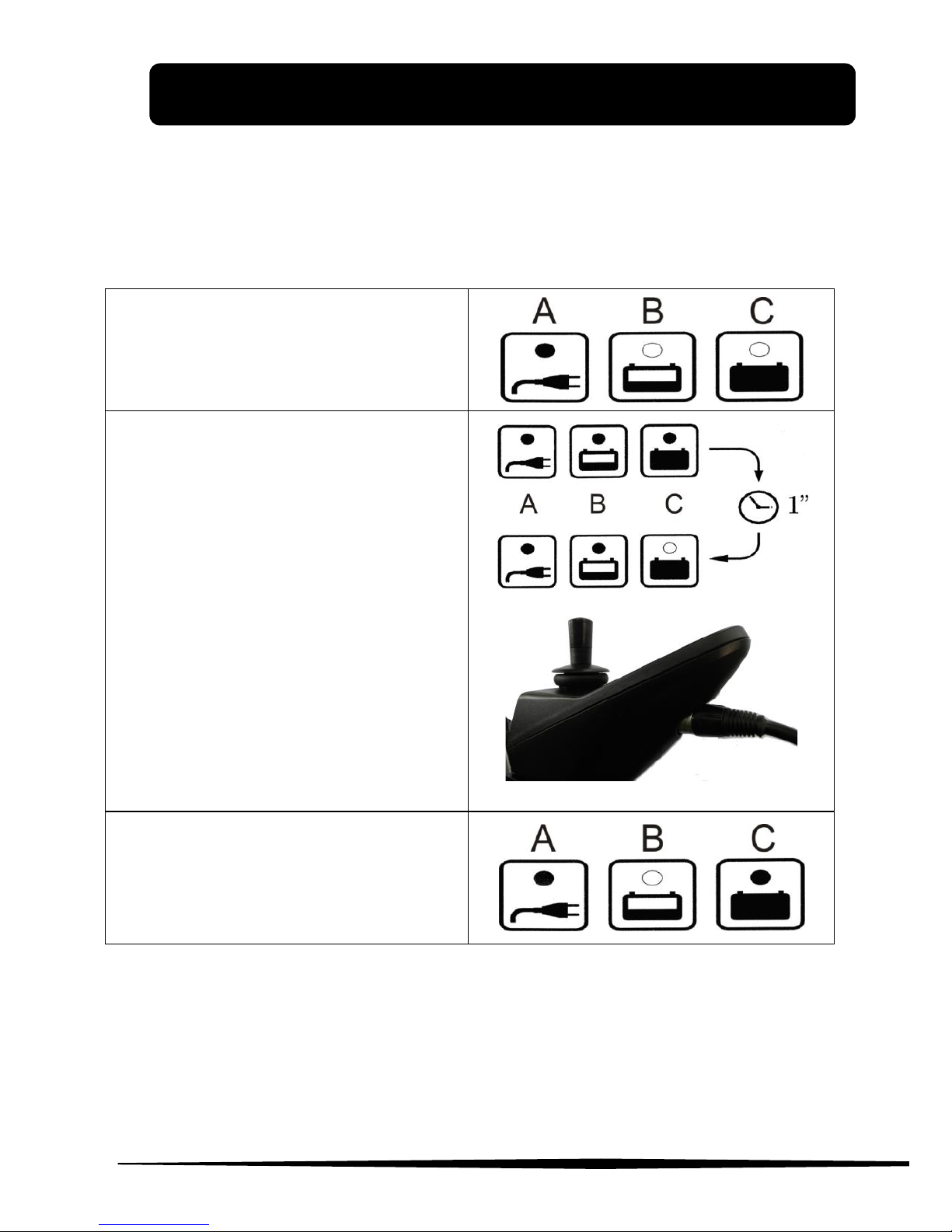

Connect the power cord to a power
supply 230 V.
If the led A doesn’t turn on check the
voltage and the fuse inside the
charger.
Connect the cable to the joystick as
shown in figure.
All led of the charger light up and after
a second led C turns off and the charge
starts. If not, check the connections
made.
Battery correctly loaded.
Unplug the power cord and the
battery cable.

3. USE OF THE WHEELCHAIR
www.neatech.it
9
It is recommend to charge the batteries when the il display
indicates that they are almost discharged. Each battery is subject to
a normal “self discharge”, so batteries that are not used for long
time will discharge by itself.
Charging time is influenced by multiple factors such as remaining
battery power, battery state of aging and temperature. However the
approximate charging time is about 7-9 hours. If the charge
duration was reduced (about 1 hour), that is a sign of failure:
contact the vendor for a possible replacement of batteries.
Don’t use the wheelchair during the charge.
SHOCK HAZARD
Check if charger data sheet matches with the
network power (voltage, frequency).
RELEASE DANGER
Any impact to the batteries could cause a loss of
fluids. Pay attention
ENVIRONMENTAL HAZARD
It is recommended to properly recycle used
batteries. Contact your local agency for waste
disposal for more information.

4. ADJUSTMENTS
www.neatech.it
10
Armrest
It is possible to make several adjustments on the armrests: height,
width and depth of the aid and position of the joystick. Shown
operations can be performed on both armrests.
Height
Figure 7

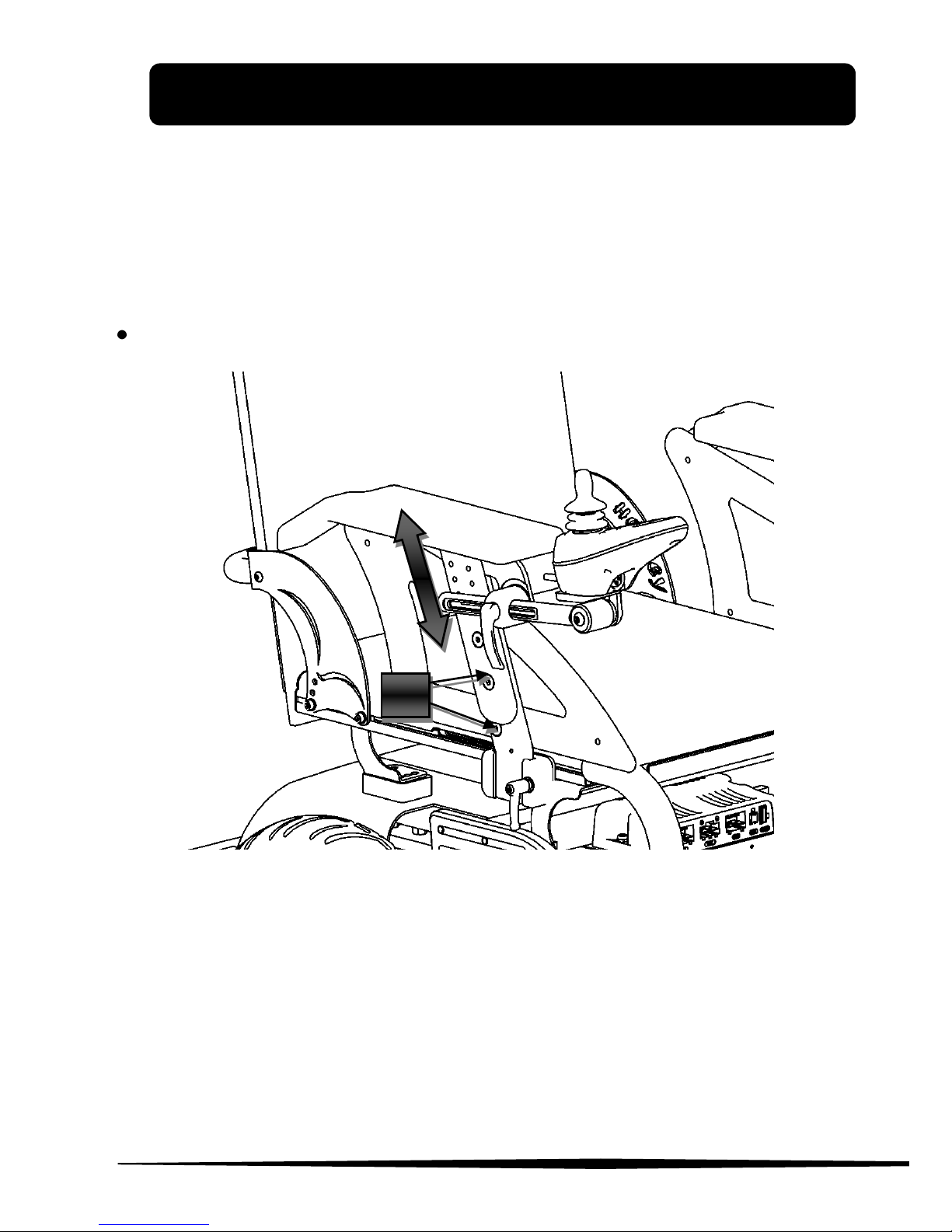

Seeing Figure 7 loosen the screws (A), and set armrests height to
desired value and retighten the screws (A).
NOTE: for this operation use a 6 mm allen wrench.
A

4. ADJUSTMENTS
www.neatech.it
11
Profondità
C
Figure 8

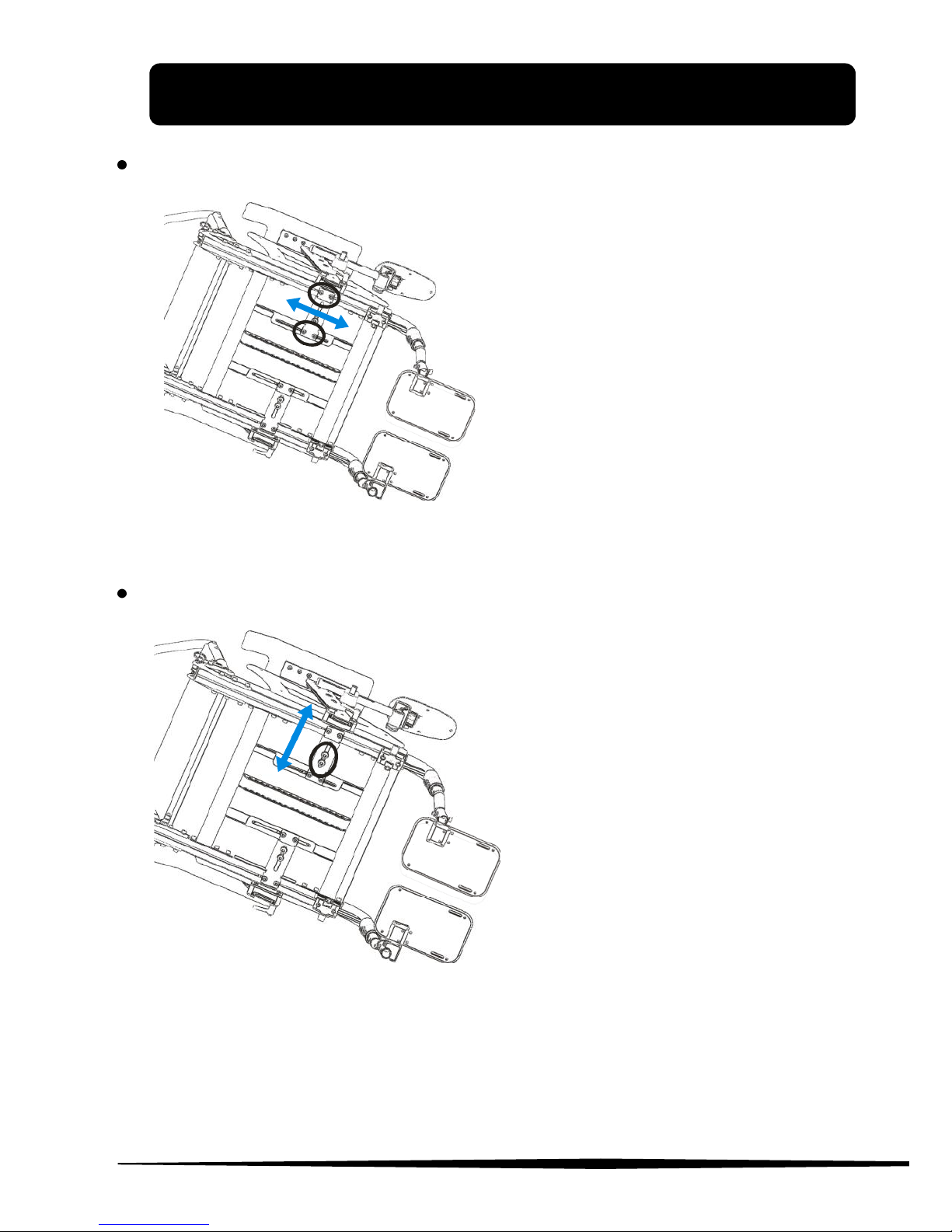

To adjust armrests depth act
under the seating floor.
Loosen the 4 screws indicated
in Errore. L'origine
riferimento non è stata
trovata. and move the
armrest till the desired
position; tighten the screws
again. Be sure that the armrest
can’t move at all.
NOTE: for this operation use a
10 mm open-end wrench.
Width
C
Figure 9
To adjust armrests width act
under the seating floor.
Loosen the 2 screws
indicated in Figure 9 and
move the armrest in
accordance with the
directions indicated to reach
the desired position and
tighten the screws again.
NOTE: for this operation use
a 6 mm allen wrench.

4. ADJUSTMENTS
www.neatech.it
12
Joystick

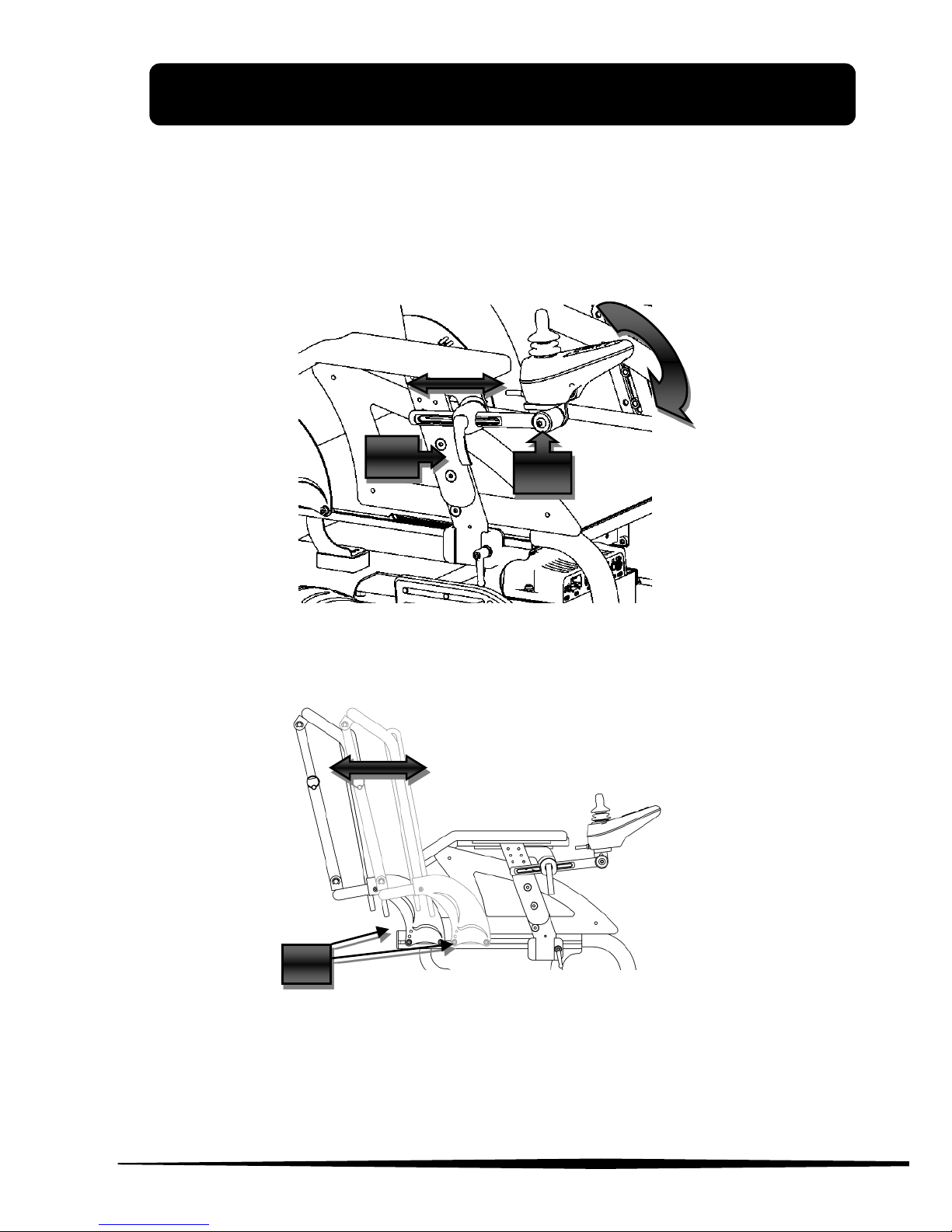

Loosen the lever (L), as shown in Figure 10, so it is possible to move
the joystick in depth to reach the desired position. Retighten the
lever. To adjust the angle of the joystick you must act on the screw
(V)
Figure 10
Backrest depth
Figure 11
Seeing Figure 11 Loosen the screws (V), move back up to the
desired position and retighten the screws
NOTE: for this operation use a 4 mm allen wrench.
L
V
V

4. ADJUSTMENTS
www.neatech.it
13
Backrest inclination

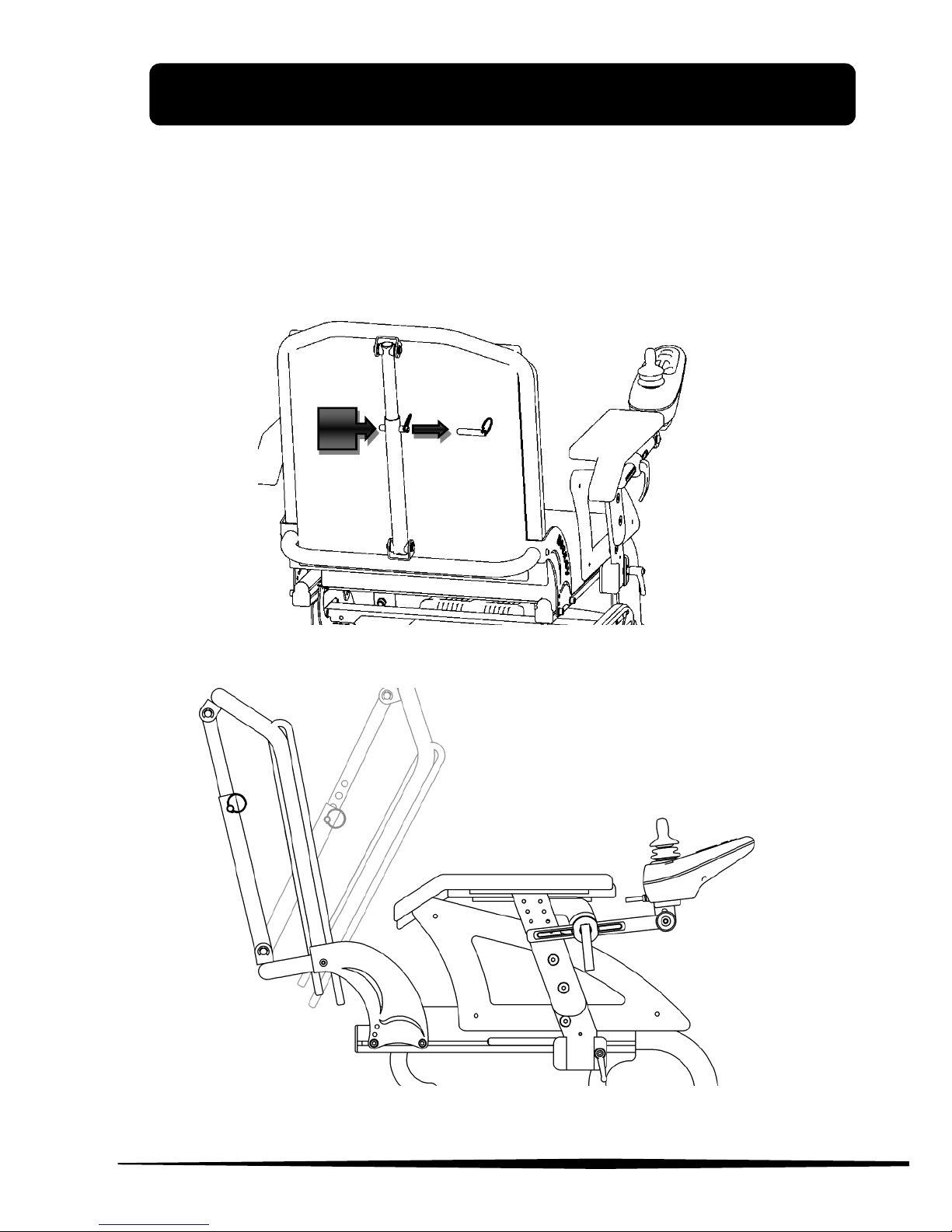

To adjust the backrest angle it is necessary to remove the insert (I)
and replace it once you get the desired angle as shown in Figure 12
Figure 13.
Figure 12
Figure 13
I

5. ACCESSORIES
www.neatech.it
14
Speedstar Xtreme can be equipped with many accessories that
NEATECH make available to meet different customer’s needs. There
is the possibility that the joystick changes depending on desired
accessories.
X
Figure 14

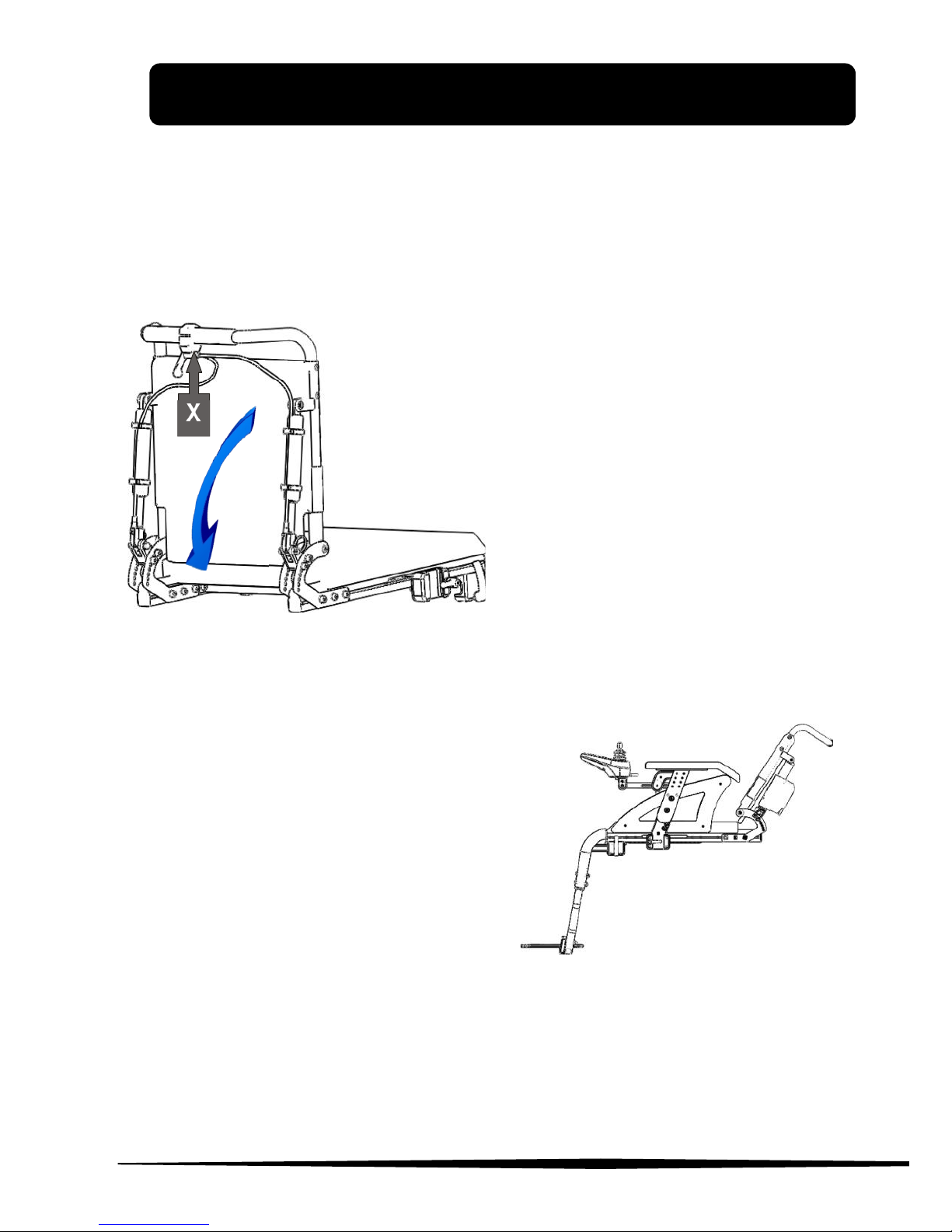

Dynamic reclining backrest
This equipment allows you to
recline the backrest with the
help of a lever installed on
the back. Pull the lever (X)
and recline the backrest to
the desired inclination, so
release the lever (X).
Powered reclining backrest
With the aid of two electronic
pistons user can recline the
backrest with the joystick
Figure 15
