Neatech Pegasus Evo User manual

USER MANUAL
with CE Mark Statement
Supplier: This manual must be given to the user of the wheelchair.
User: Before using this wheelchair read this entire manual and save for
future reference

AUTHORIZED SERVICE AND PARTS
For any problems please contact.
NEATECH.IT s.r.l.
4/A, A. De Curtis St.–80040 –Cercola (NA) - Italy
Tel [phone]
Fax [phone]
From the date of the delivery of the wheelchair, the warranty
period is two years for the chassis and six months for the batteries.
The warranty will expire immediately in the event of:
Negligence
Neglect of use
Tampering
Improper maintenance
Improper transport

DECLARATION OF CONFORMITY
The manufacturer
Neatech.it
4/A, A. De Curtis St. 80040 Cercola (NA), Italy
under its responsibility, states that
the wheelchair Pegasus Evo
satisfies the conditions laid down by European Directive 93/42;
according to the criteria for classification of annex IX of this Directive, the Pegasus
Evo is classified as
class I medical device
It also complies with the requirements of the harmonized standards:
UNI EN 12182 Ausili tecnici per persone disabili
UNI EN 12184 Sedie a rotelle a propulsione elettrica, motorette e loro sistemi di
carica

Table of Contents
WARNINGS........................................................................................................ 1
1. WHEELCHAIR PRESENTATION ................................................................... 4
2. STARTING UP............................................................................................. 5
3. USE OF THE WHEELCHAIR......................................................................... 7
4. ADJUSTMENTS ........................................................................................ 13
5. ACCESSORIES........................................................................................... 18
6. CONTROL AND MAINTENANCE............................................................... 23
7. FAULT, REPAIR AND ASSISTANCE............................................................ 26

www.neatech.it
1
WARNINGS
TIPPING HAZARD
Any transport on a slope greater than the maximum
security slope can be dangerous.
ELECTROMAGNETIC RADIATION DANGER
The behavior of the wheelchair while deriving
may be affected by electromagnetic fields
created by transceivers such as: Citizens band
(CB) radios, walkie-talkies, fire and police
radios, cellular phones, lap-top computers,
two-way radios, and commercial radio and
television broadcast antennas.
PLEASE USE CAUTION in the presence of these
devices.
EMI can cause your chair, without warning, to:
• Release its brakes
• Move by itself
• Move in unintended directions
If any of these occur, it could result in severe injury to you or
others. EMI can damage the control system of your chair.
There is no way to know the effect on EMI if you add accessories or
modify this chair. Any change to your
chair may increase the risk of EMI. Parts from other suppliers have
unknown EMI properties.

www.neatech.it
2
TEMPERATURE
The temperature of some surfaces may increase
when the chair is exposed to external heat sources as
sunlight.
Do not install, maintain or operate your wheelchair without reading
all warnings and this entire user’s manual.
NOTICE TO RIDER—WARNING
The wheelchair should be turned off prior to entering or exiting the
wheelchair
The wheelchair may come to a sudden stop at any time during operation.
Do not operate the wheelchair if it is behaving abnormally or erratically.
Do not operate the wheelchair with low batteries, to minimize risk of
becoming stranded.
The wheelchair is not intended to be used as a seat on motor vehicles.
PINCH HAZARDS –WARNING
Make sure your feet do not “hang up” or get caught in the space between
the footrests. In general, make sure you have proper space in areas you
will travel through to minimize pinching or entrapment of body parts.
WARNING
Do not use an escalator move the wheelchair between floors. Serious
bodily injury may occur
Do not lean over the top of the back upholstery to reach objects from
behind as this may cause the wheelchair to tip over.
Do not shift your weight or sitting position toward the direction you are
reaching as the wheelchair may tip over backwards or sideways
Do not tip or wheel the wheelchair with wheel locks. Wheel locks are not
brakes.
Do not stand on the frame of the wheelchair.

www.neatech.it
3
Always use caution when transferring in or out of the wheelchair. Every
precaution should be taken to reduce the transfer distance. Also be
certain the wheel locks are engaged to prevent the wheels from moving
Caution—Obstacles
Riding over curbs or obstacles can cause tipping and serious bodily harm.
If you have any doubt that you can safely cross any curb or obstacle,
ALWAYS ASK FOR HELP. Be aware of your riding skills and personal
limitations. Develop new driving skills only with the help of a companion.
Caution—Anti-Tippers
Using anti-tippers substantially reduces your risk of falling over
backwards, which can cause serious injury. If you are afraid of tipping
over, use the Anti-Tippers. The Anti-Tippers will keep you from falling
over, but they will limit your ability to be pulled up curbs and some other
maneuvers. WE STRONGLY RECOMMEND THAT YOU USE ANTI-
TIPPERS WHILE YOU ARE LEARNING TO RIDE YOUR WHEELCHAIR.
The wheelchair is not designed for weight training and is unsafe for use as
a seat while weight training. Weight training from the wheelchair
substantially changes the stability of the chair and cause tipping.
DISPOSING
This product and all its components can not be
treated as household waste. For more detailed
information on how recycling and disposal this
product contact your local waste disposal service.

www.neatech.it
4
1.WHEELCHAIR PRESENTATION
Thank you for purchasing the Pegasus Evo. electronic wheelchair.
Pegasus Evo was designed to be used mainly outdoors.
The aeronautical technology used to manufacture all Neatech.IT
products makes it possible to create a rigid and foldable frame
highly customizable and reliable. The frame and canvas are
available in different colors.
Characteristic
Adjustable armrests
Adjustable footrest
Customizable colors
Electronic tilting
Maximum speed 9 km/h
Elevating seat
Reclining backrest
Range of 35 km
Fully charged in 7 hours
Maximum slope 10°
WARNING: It is prohibited to use wheelchair or its parts for any
purpose other than that indicated. For correct use please follow
the instructions given in this manual. NEATECH.IT disclaims any
responsibility for damages caused by improper use of aids

www.neatech.it
5
2. STARTING UP
Checks to be made on delivery
Check the integrity of the original packaging.
Check for any anomalies on the shipping documents.
Check the functionality and integrity of the device in all of its
parts, at the time of delivery or immediately thereafter, to
ensure that no damage has resulted from a careless transport.
Make sure the surface of the device is not damaged, scratched,
bent, etc.
Any fault or damage found must be immediately reported on the
shipping documents and promptly communicated to the carrier.
For any other questions, please contact the manufacturer.
When not using your Pegasus Evo for an extended period of
time, store it in a safe place free from dust and moisture.
Inside the box there is:
Pegasus Evo wheelchair
N. 1 pair of footrests
N. 1 pair of armrests
N. 1 joystick
N. 1 charger
Documentation and manuals
PACKAGING DIASPOSAL
To properly recycle the packaging materials follow the
instructions provided by your local waste disposal
service.

2. STARTING UP
www.neatech.it
6
Connection of the Joystick
Connect the cable of the joystick as shown in Figure 1. Make sure it
is completely connected. If it appears difficult to insert the
connector try to invert and reinsert
Figure 1
Transport and storage
If you do not use your Pegasus Evo for a long time make sure that
you set the switch (I) OFF, as shown in Figure 2. You should keep
the Pegasus Evo in a place free from dust and moisture and away
from heat sources.
If you must ship the Pegasus Evo, turn off the switch (I), unplug the
joystick and remove the footrests and armrests.
Figure 2

www.neatech.it
7
3. USE OF THE WHEELCHAIR
Checks before use
For safe use and to avoid any situations of risk
to the user before using the wheelchair perform
the following checks.
Checking tire pressure
Verify that the tire pressure is consistent with the values
given in the table
Front wheels
3,0 bar
Rear wheels
1,5 bar
Checking battery charge level
Check the battery charge level on the indicator located on
the joystick. (N.1 in Figure 3)
Check of electric cables
Check that the wires do not interfere with the movements of
the wheelchair..

3. USE OF THE WHEELCHAIR
www.neatech.it
8

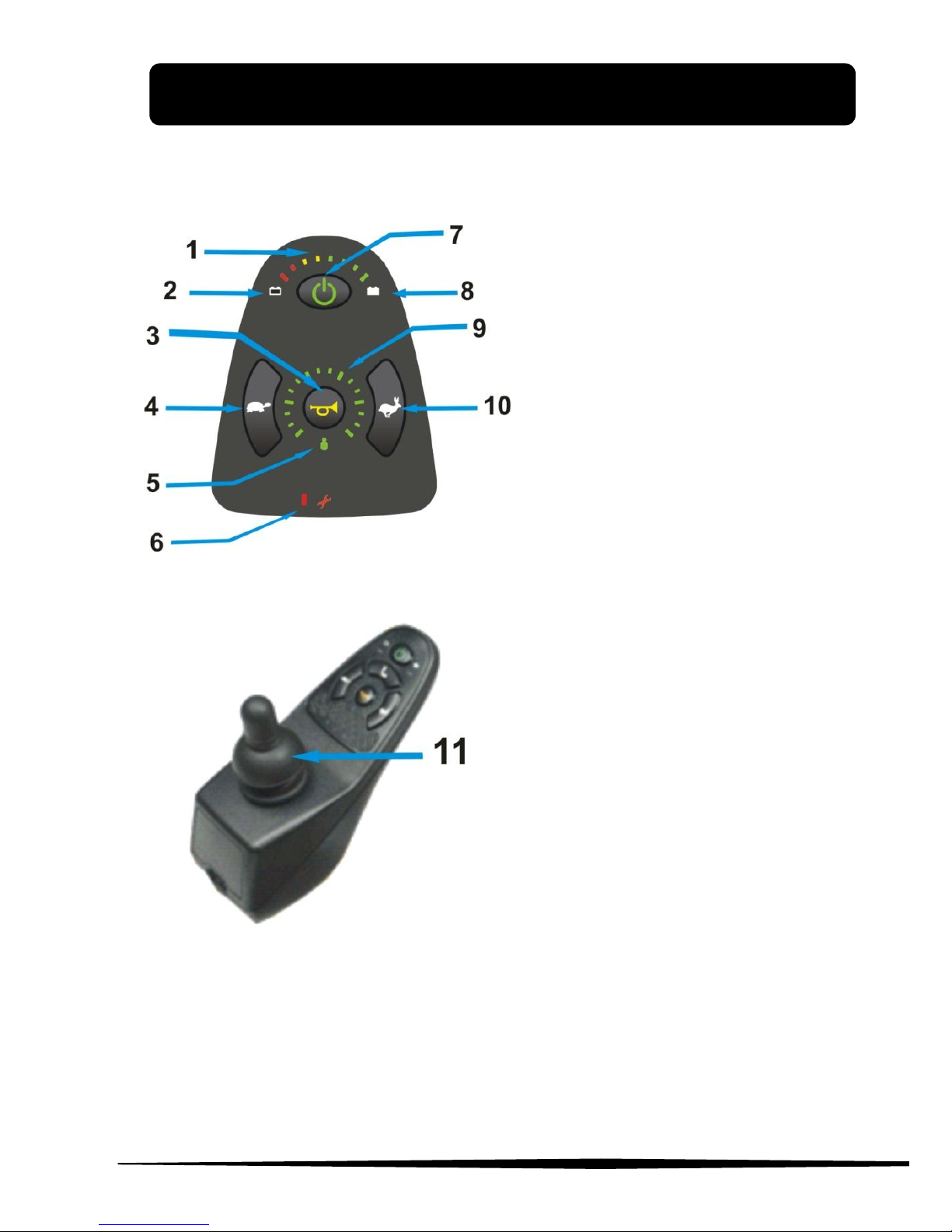

Control console
Figure 3
Figure 4
1. Battery level
2. Low battery indicator
3. Beeper-Horn
4. MIN speed selector
5. Remotely controlled
joystick indicator
6. Error indicator
7. On-off button
8. Fully charged battery
indicator
9. Speedometer
10. MAX speed selector
11. Controller
NOTE: It is possible that the control console of the Pegasus Evo is different
depending on the accessories chosen. Main controls remain unchanged .

3. USE OF THE WHEELCHAIR
www.neatech.it
9
Powered mode
Set the release engine lever located in the back of Pegasus Evo as
shown in Figure 5. In this configuration, the brakes are on and the
wheels will not move.
Use the switch (I), see Figure 2, to turn on and turn off the Pegasus
Evo.
The switch also has the function of protecting the wheelchair from
overloaded current and short circuit. If the powered chair suddenly
stops, use the switch to turn on the chair. If the problem still
continues, please contact technical support.
Figure 5
Seeing Figure 5 use the button 6 to turn on the command console.
Use button 4 and 10 to select the travel speed. Chosen level is
shown by the indicator 9.
Use the controller 11 to adjust the speed and direction of the
Pegasus Evo.
Releasing the lever of the controller automatically activates the
electromagnetic brake that locks the wheels of the Pegasus Evo.
Do not turn on or turn off the command
console while the wheelchair is moving.
L1
L2

3. USE OF THE WHEELCHAIR
www.neatech.it
10
Push mode
If you need to use the push mode, use switch (I), (see Figure 2) to
turn off the Pegasus Evo and set the release engine lever as shown
in Figure 6.
Figure 6
WARNING
In the push mode the electromechanical
brakes are off, so the use of the Pegasus Evo
in the presence of slopes may be dangerous.
L1
L2

3. USE OF THE WHEELCHAIR
www.neatech.it
11
Charge of the batteries
Only use the provided charger to recharge the batteries. The
manufacturer is not responsible for damage to person or property
resulting from the use of other chargers
Charging in
progress
Battery error
Charging 80 %
Wrong
polarity
Charging 100%
Overheating
General Error
SHOCK HAZARD
Always check the voltage setting

3. USE OF THE WHEELCHAIR
www.neatech.it
12
It is recommend to charge the batteries when the indicators 1 in
Figure 3 are red. Each battery is subject to a normal “self
discharge”, so batteries that are not used for long time will
discharge by themselves.
Charging time is influenced by multiple factors such as remaining
battery power, battery state of aging and temperature. However the
approximate charging time is about 7-9 hours. If the charge
duration was reduced (about 1 hour), that is a sign of failure.
Contact the vendor for a possible replacement of batteries.
Don’t use the wheelchair while it is charging.
SHOCK HAZARD
Check if charger data sheet matches with the
network power (voltage, frequency).
RELEASE DANGER
Any impact to the batteries could cause a loss of
fluids. Pay attention
ENVIRONMENTAL HAZARD
It is recommended to properly recycle used
batteries. Contact your local agency for waste
disposal for more information.

www.neatech.it
13
4. ADJUSTMENTS
Armrest
It is possible to make several adjustments on the armrests: height,
width and depth. Shown operations can be performed on both
armrests.
Height
Figure 7
Seeing Figure 7, loosen the screws (A), and set armrests height to
desired value and retighten the screws (A).
NOTE: For this operation use a 6 mm allen wrench.
A
A

4. ADJUSTMENTS
www.neatech.it
14
Depth
To adjust armrests depth and width act under the seating floor as
shown in Figure 8.
Figure 8
Loosen the 4 screws indicated in Figure 8 and move the armrest to
the desired position; tighten the screws again. Be sure that the
armrest can not move at all.
NOTE: For this operation use a 10 mm open-end wrench.

4. ADJUSTMENTS
www.neatech.it
15
Joystick
Loosen the lever (L), as shown in Figure 9, so it is possible to move
the joystick in accordance with the directions indicated to reach the
desired position. Retighten the lever.
Figure 9
Footrests height
Figure 10
Unscrew the pin shown in Figure 10 to release the footrest. Choose the
desired height by aligning the footrest to one of available holes. NOTE: Use a
6 mm allen wrench and a 13 mm open-end wrench for this operation.
L
V
