Vermeiren Forest 3 User manual

VERMEIREN
INSTALLATION MANUAL
Forest 3

Forest 3
2020-03
Content
Installation manual
- 1 -
EN
NL
PL
CS
Content
Preface ........................................................................................................................... 2
1This product .....................................................................................................3
2Scope of delivery .............................................................................................4
3Assembly and adjustments............................................................................5
3.1 Tools ...................................................................................................................5
3.2 Adjusting the wheelchair to the user .................................................................6
3.2.1 Seat depth ..................................................................................................6
3.2.2 Seat inclination ...........................................................................................6
3.2.3 Armrest length ............................................................................................7
3.2.4 Armrest width..............................................................................................7
3.2.5 Footrest B06 ...............................................................................................7
3.2.6 Leg rests BZ7/BZ8 .....................................................................................8
3.2.7 Operating console ....................................................................................10
3.3 Changing battery .............................................................................................10
3.4 Changing wheels or tyres ................................................................................ 11
3.4.1 Driving wheels .......................................................................................... 11
3.4.2 Steering wheels (front wheels).................................................................12

Forest 3
2020-03
Preface
Installation manual
- 2 -
EN
NL
PL
CS
Preface
To support you on the installation and repairs of this electric wheelchair, we provide you with this
installation manual. Please read it carefully. If you still have questions after reading this manual,
do not hesitate to contact Vermeiren.
The information in this manual applies to the following wheelchair(s):
•Forest 3
Important note
Pictures of the product are used to clarify the instructions. Details of the shown product may
deviate from your product.
Available information
On our website http://www.vermeiren.com/ you will always find the most recent version of
the information described in this manual. Please consult this website regularly for possible
updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
User manual
For user and specialist dealer
User manual of applied operating console and battery charger.
For user and specialist dealer
Installation instructions (Instructions for detail adjustments and (dis)assembly)
For specialist dealer
Service manual for wheelchairs
For specialist dealer
Drawings of (spare) parts
For specialist dealer
EC declaration of conformity

Forest 3
2020-03
This product
Installation manual
- 3 -
EN
NL
PL
CS

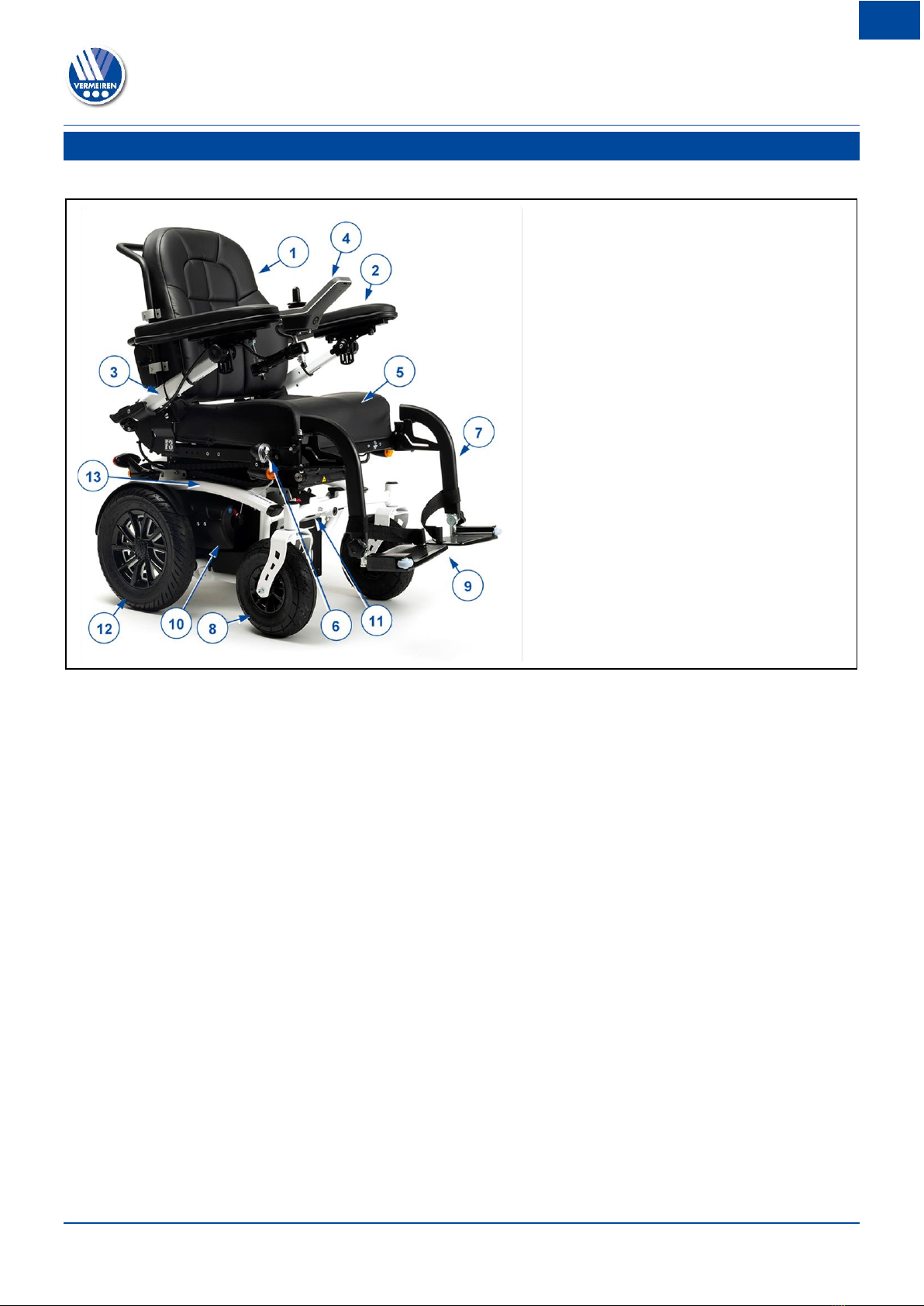

1 This product
1. Backrest
2.
Adjustable armpads
3.
Armrests
4.
Operator control
5.
Seat
6.
Lights (as option)
7.
Legrests
8.
Steering wheels
(Front wheels)
9.
Footplate
10.
Battery cover
11.
Identification plate
12.
Driving wheels
(rear wheels)
13.
Base frame

Forest 3
2020-03
Scope of delivery
Installation manual
- 4 -
EN
NL
PL
CS
2 Scope of delivery
The following items are part of the delivery:
•Framework with armrests, operator control, rear and front wheels, seat and backrest
(optional: electrically adjustable seat, backrest, electrical lift)
•Footrests
•Batteries
•Battery charger
•Tools
•User manual of:
o wheelchair
o operating console
o battery charger
•Accessories (if applicable)
Before use, check if everything is included and that no products are damaged.
Please note that the basic configuration may differ in different countries. Contact your specialist
dealer.

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 5 -
EN
NL
PL
CS
3 Assembly and adjustments
Important remarks
•Read the user manual of this wheelchair.
•Be aware of the technical details and limits of intended use; see the user manual.
•For more information, contact Vermeiren.
3.1 Tools
To (dis)assemble and adjust the wheelchair, the following tools are needed:
•Wrench set no. 10 to no. 13
•Allen keyset n° 4 to n° 6
•Screwdriver
Risk of injuries or damage
•The wheelchair needs to be (dis)assembled and adjusted by a specialist dealer according
to the instructions in this chapter.
•Only use parts and tools described in this manual.
•Prevent bystanders from accessing the (dis)assembling area.
•Keep the (dis)assembling area clean and tidy, to prevent falling.
•Collect all small parts in a box or bag.
•While (dis)assembling and operating the wheelchair, make sure no objects or body parts get
caught between moving parts. In particular, pay attention to the position of the cables.
•Turn the wheelchair off before you perform any mechanical adjustments and make sure that
the free-wheel lever is in braking position.
•Make sure all screws are firmly secured before driving.
•Software changes are only allowed if executed by skilled personnel, taking into account the
user and environment (stability, accellaration, indoor/outdoor, etc.).
CAUTION

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 6 -
EN
NL
PL
CS
3.2 Adjusting the wheelchair to the user
3.2.1 Seat depth
The Vermeiren Forest 3 is adjustable in 6 differentseat
depths over a range of 100 mm (steps of 20 mm).
1. Loosen the two screws (1) on either side of the
frame.
2. Pull the seat (2) more backwards or forewards to
the desired position and until the relevant holes
lie above one another so that the fixing screws
(1) can be inserted through the frame.
3. Retighten the screws (1) firmly by hand.
3.2.2 Seat inclination
Risk of damage
Ask assistance to prevent the mounting frame with seat from falling during adjustment.
1. Remove the footrests.
2. Remove the screw (A) that connects the
seat frame with the lower frame. Fold the
seat frame backwards.
3. Check that the seat frame stays
backwards or ask someone to hold the
seat frame to the back.
4. Remove the screw (B).
5. Move the inner square tube (C) until the
desired seat angle is reached (3
positions).
6. Retighten the screw (B).
7. Fold the seat frame back to the front.
8. Retightenthescrew (A) to attachment (D).
9. Replace the footrests.
10. Check that the seat frame is firmly fixated.
CAUTION
Minimum seat inclination
Maximum seat inclination

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 7 -
EN
NL
PL
CS
3.2.3 Armrest length
Adjust the length of the armrests as follows (stepless,
90 mm):
1. Loosen the screw (1).
2. Adjust the armrest to a comfortable length.
3. Tighten the screw (1) properly.
Check that the armrests are positioned identically on
both sides.
3.2.4 Armrest width
Adjust the width of the armrests as follow (range 25
mm: stepless / on each side):
1. Loosen the screws (1) on the back of the
wheelchair just below the seat frame.
2. Adjust the armrest to a comfortable width.
3. Tighten the screws (1) properly.
Check that the armrests are positioned
identically on both sides.
The minimum and maximum adjustment will be
indicated by the triangle. The triangle must be
completely visible.
3.2.5 Footrest B06
Footrest length
Risk of damage
Avoid that the footrests make any contact with the ground.
Keep a minimum distance of 50 mm above the ground.
1. Remove the screw (A).
2. Adjust the length of the footrest to a comfortable length
(range: 120 mm, steps 20 mm).
3. Tighten the screw (A) properly.
Check that the footrests are positioned identically on both
sides.
CAUTION
MINIMUM
MAXIMUM

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 8 -
EN
NL
PL
CS
Footrest width
1. Loosen the two screws (A) on the front of the seat frame.
2. Move the footrest in an horizontal direction until the correct seat
with, by moving the square tubes (B) and (C) over each other (3
different positions: steps 15 mm on each side).
3. Retighten the screws (A) properly.
4. Repeat instructions above for the other footrest.
3.2.6 Leg rests BZ7/BZ8
Leg rest length
Risk of injuries or damage
The maximum length of the legrest is limited to the length
indicated by a triangle on the front of the legrest tube, see picture.
This maximum length adjustment is not possible in sitting
position; the footplates will touch the ground.
Make sure that the distance to the ground in sitting position is
minimal 60 mm to avoid touching small obstacles and to prevent
damage to the legrest.
To adjust the length of the legrests:
1. Remove the socket screw (24) on the back of the legrest.
2. Adjust the legrest to a comfortable length.
3. Retighten the socket screw firmly.
4. Repeat for the second legrest. Make sure that the legrests are
positioned identically.
CAUTION
24

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 9 -
EN
NL
PL
CS
Footplate angle
To adjust the angle of the foot plate at its toothed clamp:
1. Loosen the socket screw (25) on the footrest (26).
2. Turn the footplate in the desired angle (80°- 100°). The
dashes (27) on the toothed clamp indicate the angular
positions.
3. Retighten the socket screw (25).
4. Repeat for the second footrest.
Calfrest height
1. Turn the calfrest outwards.
2. Loosen the socket screw (30) that clamps the calfrest
support on the footrest.
3. Slide the calfrest up/down to a comfortable position (step
less).
4. Retighten the socket screw (30) with nut.
5. Repeat this for the second calf rest. Make sure that the
calf rests are positioned identically.
Calfrest depth
1. Loosen the socket screw (31) on the calfrest support (32).
2. Adjust the depth of the calfrest to a comfortable position (7
positions available).
3. Retighten the socket screw (31).
4. Repeat for the second calfrest. Make sure that the calfrests
are positioned identically.
25
26
27
30
31
32

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 10 -
EN
NL
PL
CS
Width between calfrests
1. Loosen the two socket screws (33) on the back of the calf rest.
2. Adjust the width to a comfortable position (2 positions available).
Do not use the hole (34) in the middle!
3. Retighten the two socket screws (33).
4. Repeat for the second calfrest. Make sure that the calf rests are
positioned symmetrically.

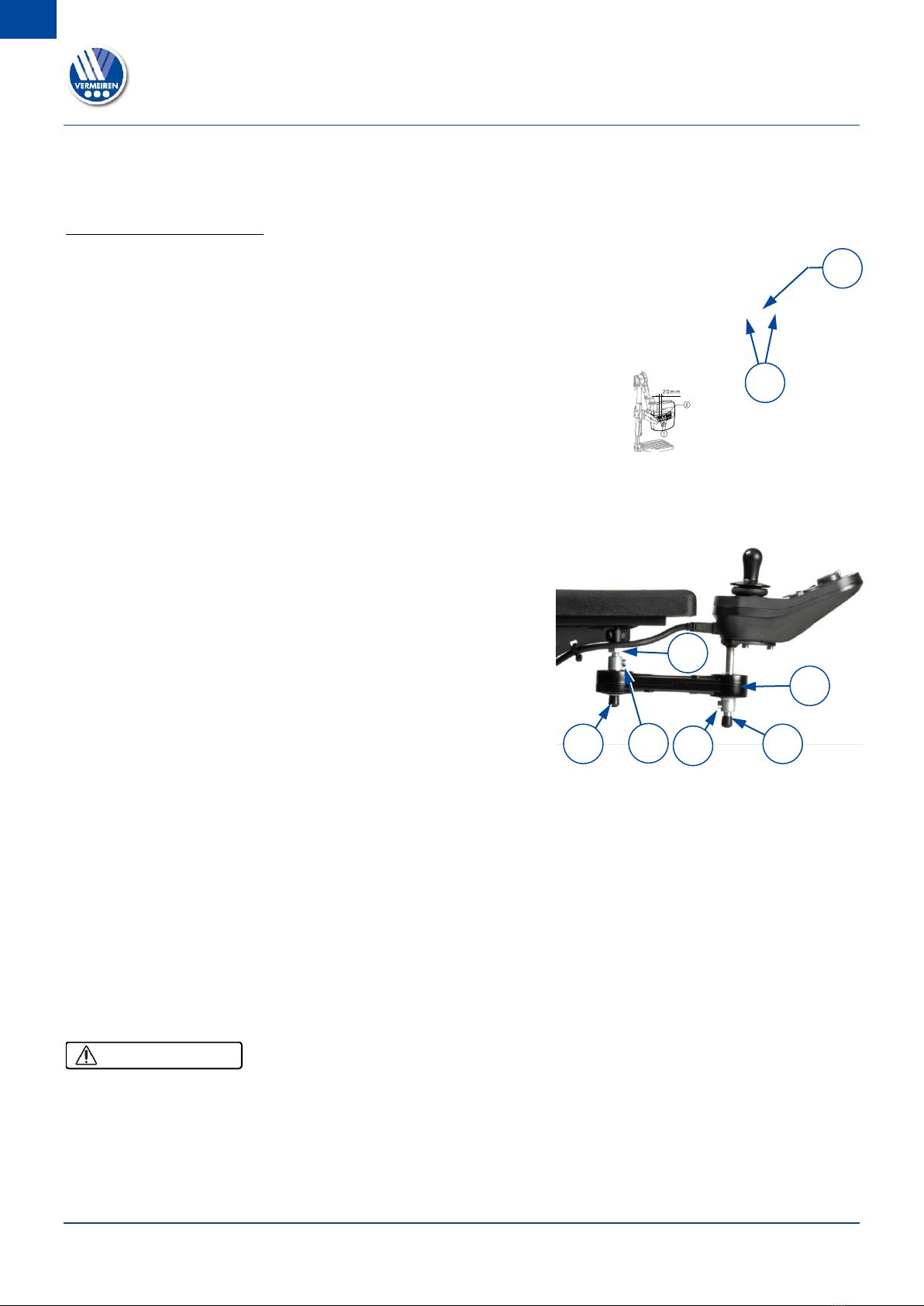

3.2.7 Operating console
Mounting position left or right
1. Hold the control with its support (3) while removing
M6 socket screw (41).
2. Loosen hex nut (42) and demount shaft (43) from the
armrest.
3. Mount shaft (43) in the other armrest and lock it with
hex nut (42).
4. Mount the control support (3) with socket screw (41)
on the shaft (43).
5. Make sure all connections are well secured.
6. Guide the cable and plug the cable in the operating
console.
Operating console - height
The height of the operating console can be adjusted in 2+4 positions, or 6+4 positions depending
on the type of shaft:
1. Hold the control while removing M6 socket screw (41).
2. Move the control support (3) up/down on shaft (43) and mount the socket screw (41).
3. If necessary adjust the height of the console on shaft (45) in the same way and lock it with
socket screw (44).
4. Make sure all connections are well secured.
5. Guide the cable and plug the cable in the operating console.

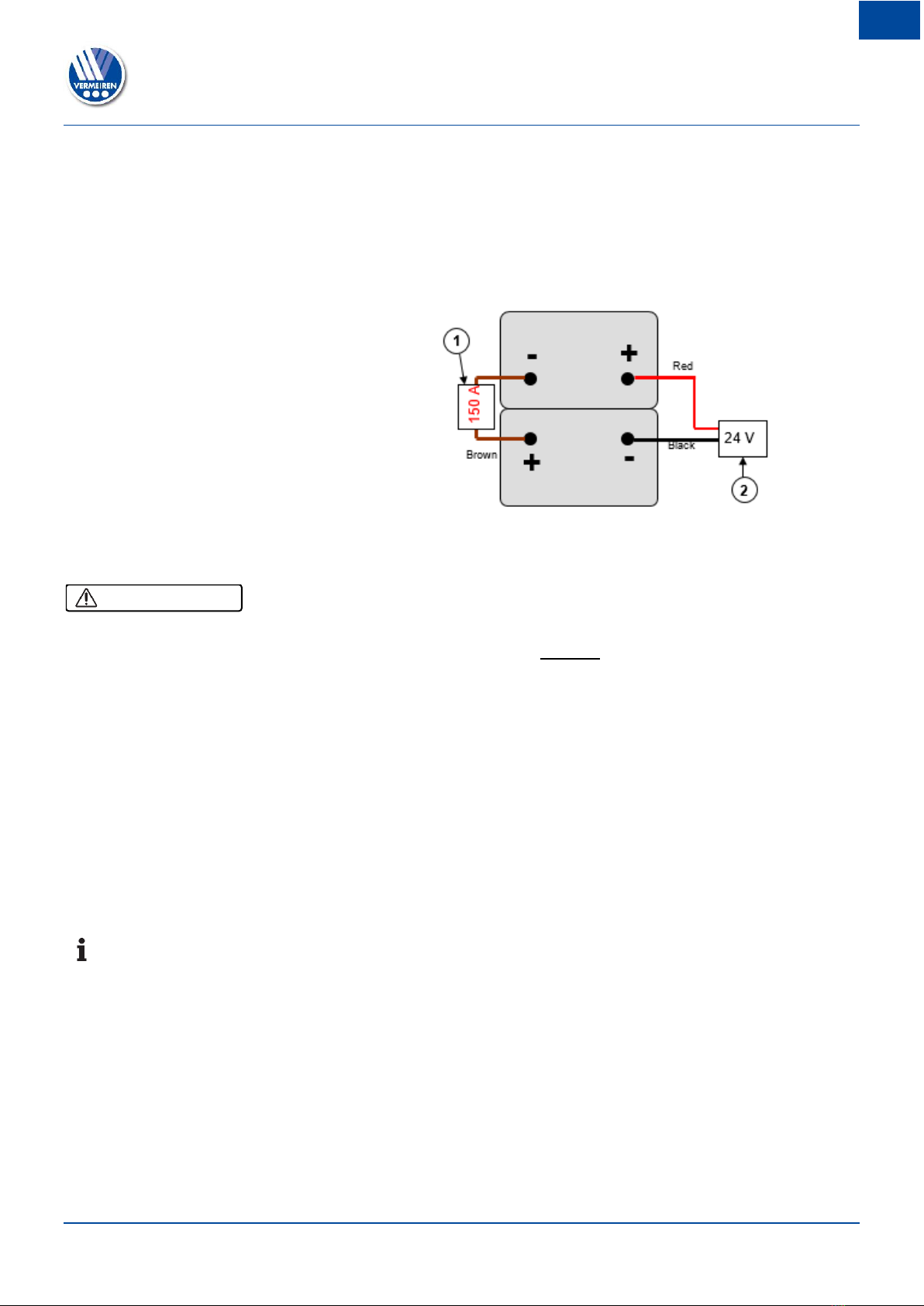

3.3 Changing battery
Risk of injuries and damage
•The batteries must only be replaced by trained personnel.
•Do not come into contact with the acid from the batteries.
•Replace the batteries in a well-ventilated room.
•Make sure that the ventilation holes of the battery housing are free from any contaminations.
•First read the charging instructions in the user manual before charging the batteries.
CAUTION
3
43
42
41
44
45
33
34

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 11 -
EN
NL
PL
CS
1. Take off the front battery cover by removing the two knobs on the top and the knob on the
bottom.
2. Move aside the plate with power module by loosening and removing the screws in the top
corners. You can now reach the batteries.
Replace both batteries at the same time and with the same type as the ones used in the
wheelchair. If this is not possible, contact the nearest Vermeiren facility.
3.4 Changing wheels or tyres
Risk of injuries and damage
•Make sure that all air is released from the tyre, before removing it.
•Use a wooden block and jack to lift the wheelchair. Always place the jack under the lower
frame, never under any other parts.
•Make sure that no body parts, the inner tube nor any other objects are pinched between tyre
and rim.
•Handle carefully to prevent damage to the rim.
•Make sure all screws are firmly secured by hand before driving with the wheelchair.
1. Replace the innertube, and if necessary also the tyre.
2. Inflate the tyre using inflating equipment which complies to regulations and with a pressure
indication in “bar”.
3. Make sure that the pressure is correct, see the pressure indication on the tyres.
3.4.1 Driving wheels
If a tyre needs to be replaced, first check the type of tyre that has been fitted. In case of a
tyre with line profile, do not switch left and right tyre.
CAUTION
Battery connections:
1) Blow fuse
2) Plug (electronic system)

Forest 3
2020-03
Assembly and adjustments
Installation manual
- 12 -
EN
NL
PL
CS

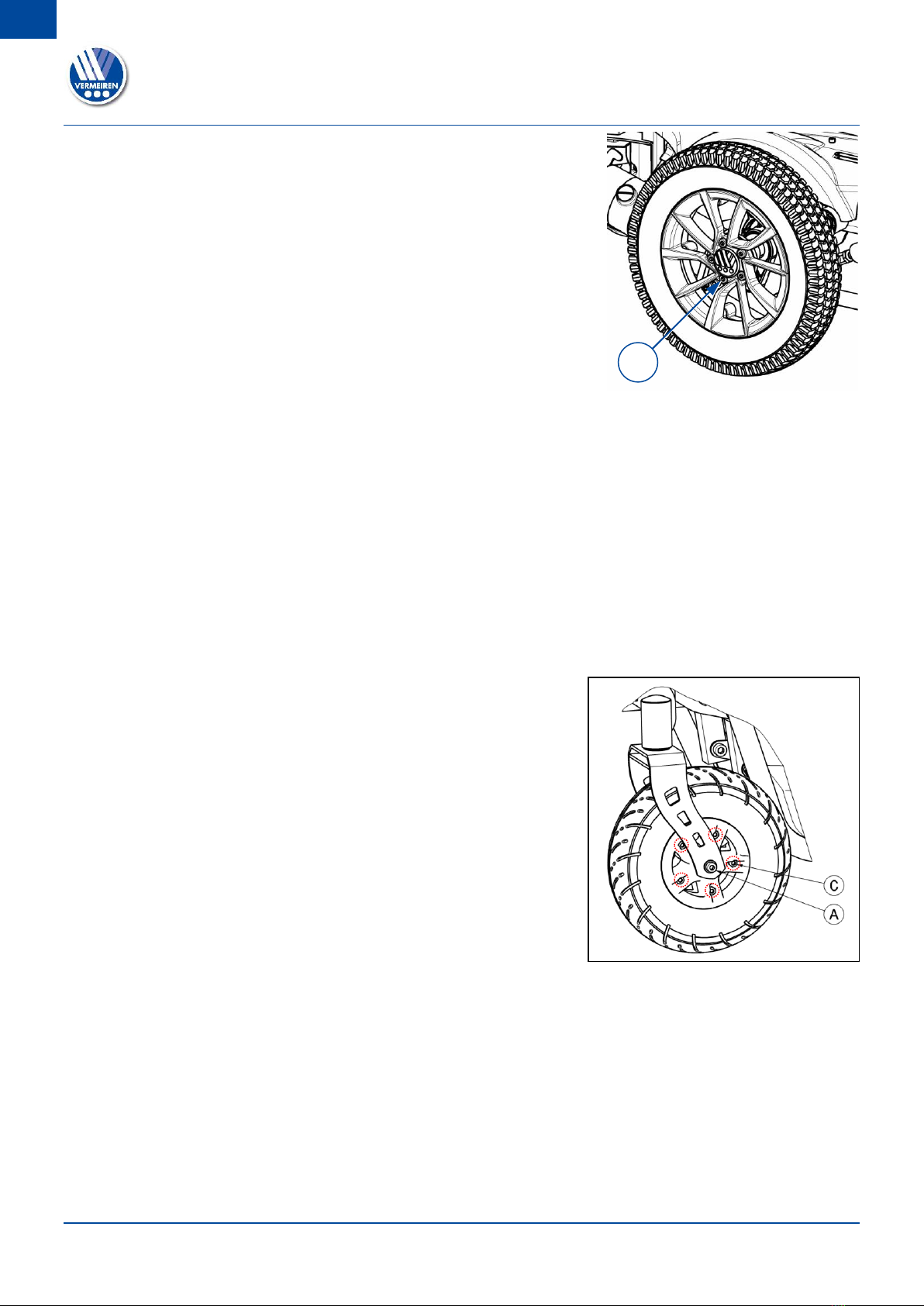

1. Lift the driving wheel from the ground using a jack.
2. Remove the socket screws (50) and take the wheel from the
flange.
3. Open tyre valve and push it gently to release the air.
4. Loosen the 5 screws that connect both rim halves (on the
inner rim half).
5. Separate the rim halves and remove the inner tube from the
tyre.
6. Inflate the new or repaired inner tube partly.
7. Insert the inner tube into the tyre.
8. Place the two rim halves back on the tyre. Make sure that the
tube valve pops out of the opening in the rim.
9. Connect the rim halves with the 5 socket screws. Tighten by hand.
10.Inflate the tyre at the correct pressure, see the indication on the tyre.
11.Remove grease and other contamination from the thread of the 5 flange socket screws (48).
Apply screw adhesive (ex. Loctite) to these screws.
12.Mount the wheel on the flange.
13.Lower the jack.
14.Make sure the socket bolts are firmly secured.
3.4.2 Steering wheels (front wheels)
DISMANTLING
A. Loosen the screw on the steering wheel axle and remove it from the steering wheel fork.
B. Let the air out of the steering wheel by lightly pressing the pressure pin on the valve.
C. Loosen the 5 screws that hold the split rim together.
Now separate the rim sides.
ASSEMBLY
Insert the partly-filled inner tube into the tyre.
C. Connect the two sides of the rim through the tyres and
use the 5 connecting screws to screw the rim together.
B. Make sure that the valve juts out of the valve opening in
the rim.
A. Put the wheel back into the front wheel fork and inflate
the wheel.
50

© Vermeiren Group 2020
Vermeiren GROUP NV
Vermeirenplein 1 / 15
2920 Kalmthout
BE
website: www.vermeiren.com
Instructions for specialist dealer
This instruction manual is part and parcel of the product and must accompany
every product sold.
Version A, 2020-03
All rights reserved, including translation.
No part of this manual may be reproduced in any form what so ever (print,
photocopy, microfilm or any other process) without written permission of the
publisher, or processed, duplicated or distributed by using electronic systems.
R.E.: Vermeiren GROUP, Vermeirenplein 1/15 - 2920 Kalmthout –Belgium
Installation manual - Forest 3_EN_A5_2020-03_A
