High Definition Communication

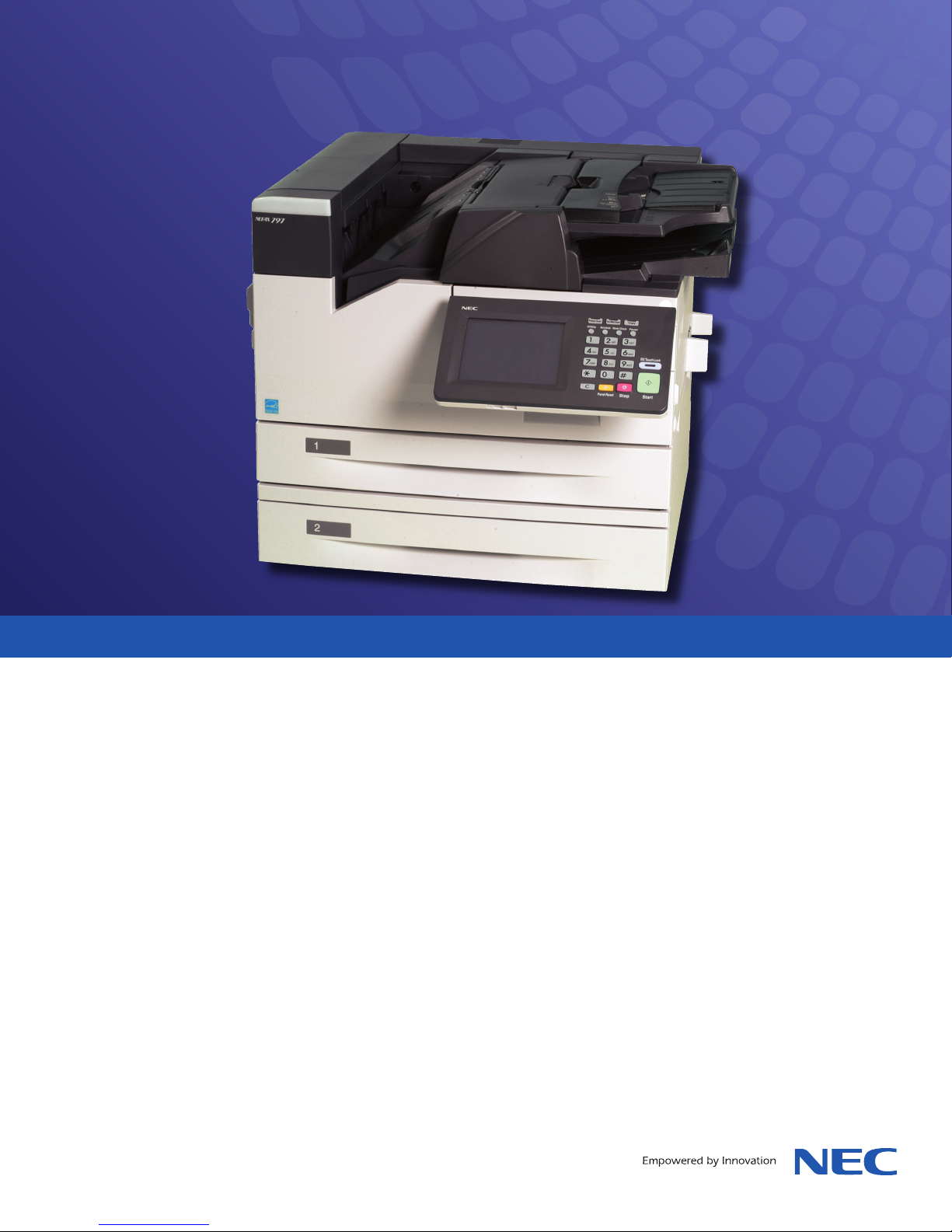

NEC NEFAX®797

High Definition Communications
Why limit yourself to a printer/scanner when the NEFAX 797 enables you send,
receive and store documents on a variety of media?
The NEFAX 797 offers a wide range of capabilities including: digital faxing, printing,
scanning, network faxing, IP, email, and an internet document solution. It is ideally
suited for a corporate workgroup, a satellite office or small office and offers an
18-ppm digital engine and full 11x17 inch (ledger) size capabilities. It is perfect for
users who require high definition images and the ability to send, receive and store
document information via multiple technologies.
The NEFAX 797’s beautiful design provides a large touch screen that makes
operation simple. Its easy access and wingless design offers accessibility and
provides convenient space usage.
Thanks to its large touch screen (a feature normally found only on high-end console
units), the NEFAX 797 is intuitive to operate. Because all of the unit’s features are
available using the touch screen, it has a short learning curve and helps users
make fewer mistakes and be more effective. Also, its unique tilting panel enables
users to customize the panel position for maximum comfort. Additionally, the unit
offers operation features that are quickly accessible and an easy to use QWERTY
keyboard for email addressing and naming functions.
Powerful and Reliable
The automatic duplex document feeder offers fast input and high resolution output,
which provides high-quality image scanning and high resolution documents and
files.
The NEFAX 797 uses self contained consumables to make replacing toner and
consumables easy and clean. Front access and enclosed units enable you to
replace the items quickly and simply.
With up to a 1,750 sheet capacity, the NEC NEFAX 797 includes quick changing
universal cassettes that hold up to 11 x17 inch ledger-sized paper. Change the
paper size, and the unit automatically recognizes the paper size loaded. With
four paper sources, the unit can handle a wide range of paper sizes for your
requirements.
The NEFAX797 at a Glance
• Digital fax/printer/scanner/network fax/IP/email/internet
• Standard paper sources:
-250-sheet multi-purpose cassettes.
-Optional additional paper sources:
-1,750-sheet capacity maximum
• Fast 70-page Automatic Document Feeder
-45-opm @ (200x200 dpi)
-35-opm @ (600x600 dpi)
• Ease-of-use-features:
-Operation panel touch screen
-Tilting control panel
-Simple, touch-screen command interface
• User friendly and mess-free enclosed toner cartridges and drum system
• 18-ppm laser print speed
• Up to 11” x 17” ledger output
• PCL6 and Adobe Systems genuine PostScript availability
• Standard 33.6K fax
• Available dual fax line, simulations fax communications
• Wingless, compact design
• Multiple network applications option
NEFAX797 Key Features
• High Definition 11” x 17” Ledger-Sized
Output
• 18 PPM Laser Output
• Interactive Touch Control Screen
• Standard 70-page Automatic Document
Feeder
• Standard 33.6K JBIG Facsimile
• Available 1,750-sheet Capacity
• Available PCL and PostScript Adobe
Systems Printing
• Available Network Applications
- Scan to File
- Scan to Email
- IP Communication
- Network Fax
- Internet Fax
- SIP Server Interface
Base Unit

Powerful Communications Facsimile Hub
The NEFAX 797 doubles faxing capacity by offering up to two fax ports that can
simultaneously send and receive faxes. It provides the highest fax speeds available through
super G3 at 33.6K bps with JBIG coding and a less than one second per page automatic
document feeder. Fax functions are enhanced by the system’s integration with network
applications. Incoming and outgoing faxes can be automatically archived as .pdf or .tiff files,
and faxes can be routed to a user’s email. Memory lock timers enable users to automatically
set the unit to store incoming faxes in memory at specified times for security purposes.
The NEFAX797 at a Glance
• Digital fax/printer/scanner/network fax/IP/email/internet
• Standard paper sources:
-250-sheet multi-purpose cassettes.
-Optional additional paper sources:
-1,750-sheet capacity maximum
• Fast 70-page Automatic Document Feeder
-45-opm @ (200x200 dpi)
-35-opm @ (600x600 dpi)
• Ease-of-use-features:
-Operation panel touch screen
-Tilting control panel
-Simple, touch-screen command interface
• User friendly and mess-free enclosed toner cartridges and drum system
• 18-ppm laser print speed
• Up to 11” x 17” ledger output
• PCL6 and Adobe Systems genuine PostScript availability
• Standard 33.6K fax
• Available dual fax line, simulations fax communications
• Wingless, compact design
• Multiple network applications option
Print from Anywhere on the Network
Thanks to network integration, everyone in your office can connect to the NEFAX 797 and print. This available printer option comes with
PCL6 networked printing. An additional option provides Adobe Systems genuine PostScript-3 for PC operating systems.
Enjoy Full-featured Network Applications
The optional Ei Network Applications Kit offers a suite of document scanning and communication integration solutions for your
network. It comes complete with network scanning in file formats including TIFF and PDF. Now you can import and convert your paper
documents to digital files and communicate all your information via file data.
Scanning options include:
• Scan-to-Email: Email integration enables you to email a paper document right from the NEFAX 797. The easy to use QWERTY
keyboard provides a way to enter information, and the one touch key makes sending emails easy.
• Scan-to-File (IP): Scan documents to .pdf or .tiff files with the touch of a button. Network file scanning offers another way to
convert documents to file data. With a resolution up to 600x600 dpi and a fast, high volume feeder, importing scanned files is fast
and effective.
Data communication options include:
• Network Fax: Send faxes from your desktop as easily as you print them.
An easy to use pop-up menu offers everyone on your network the ability to
fax directly from their desktops.
• IP Communication: Send your documents over your IP network using high
resolution, high speed and security for your intranet communications.
• Forward/Archive: Save your communications TX/RX as files or emails to
individual PCs or a group of PCs. Automatically archive all communications
for security, validation and storage purposes.
• Internet Fax: Transmit and receive faxes over the internet, eliminating
phone line usage costs.
• SIP-Fax: Send documents on your VoIP network easily using the compatible
NEC SIP Server on the SV7000 and NEC SIP-Fax adaptor. It provides high
speed and low cost alternatives.
• IT Series Agent: This networked management system provides the ability to
program and manage your unit from your desktop.

© 2007 NEC Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. All other brands and product names are registered trademarks or trademarks of their respective owners. Design & specifications are subject to change without
notice. *Some functions may require options, which may or may not be available at time of launch. NEC and the NEC logo are trademarks or registered trademarks of NEC Corporation that may be registered in Japan and other jurisdictions. All trademarks identified with ® or ™ are
registered trademarks or trademarks respectively. Models may vary for each country. Please refer to your local NEC representatives for further details.
About NEC Unified Solutions, Inc. NEC Unified Solutions Inc., a global leader in VoIP and data communications for the enterprise and small-medium business, delivers the industry’s most innovative suite of products, applications and services that help customers achieve
business value through technology. NEC Unified Solutions, a wholly owned subsidiary of NEC Corporation of America, offers a complete portfolio of solutions for wireless, unified communications, voice, data and management services, and an open migration path to protect invest-
ments. NEC Unified Solutions, Inc. serves Fortune 1000 customers across the globe in vertical markets such as hospitality, education, government and healthcare.
CY16952 | v.12.06.07
BASIC SPECIFICATIONS:
TYPE: Laser Digital Fax/Printer/Scanner
MONTHLY DUTY CYCLE: 15,000 pages
PRINT/COPY SPEED:
18 ppm (letter, portrait)
11 ppm (legal)
10 ppm (ledger)
SCAN SPEED:
Up to 35 opm (600x600 dpi)
Up to 45 opm (200x200 dpi)
PRINT/COPY RESOLUTION:
600 x 600 dpi
ORIGINAL SIZE:
ADF: Up to 11” x 17” (copy/fax/scan)
ADF: 5” x 3.9” up to 11.6” x 39.3” (fax)
PRINT SIZE:
5-1/2” x 8-1/2” to 11” x 17”
WARM-UP TIME:
25 seconds or less
FIRST COPY:
Less than 9 seconds (letter)
COPY QUANTITY: 1 - 999
MAGNIFICATION:
Zoom range: 50% – 200%,
1% increments
Preset reduction: 86%, 81%, 70%
Preset enlargement: 115%, 122%,
141%
COPY EXPOSURE MODES:
Text (legible text)
Text/Photo (clear text and halftones)
Photo (optimized for gradations)
PAPER SUPPLY:
250-sheet universal cassette
(16 lb. to 24 lb. bond)
MAXIMUM PAPER CAPACITY:
1,750 sheets (total with options)
(up to 50 lb. in optional 2nd cassette
plus 3rd and 4th cassette option)
FAX :
Super G3 compatibility with ECM
JBIG compression code
33.6 Kbps modem speed
F-Code support
FAX SCAN SPEED:
0.66 second per page
(standard and fine resolutions)
FAX TRANSMISSION SPEED:
Approximately 2 seconds/page1
FAX EXPOSURE MODES:
Text, Text/Photo, Grey Scale
DOCUMENT FEEDER: STANDARD
Paper Capacity: 70 sheets
Paper Size: Single sided
8-1/2” x 11” to 11” x 17” (copy/scan)
5” x 3.9” to 11.6” x 39.3” (fax)
Paper Weight:
Single-sided 9-1/4 lb bond to 34 lb bond
SCAN RESOLUTIONS:
200 x 100 (Standard Fax)
200 x 200 (Fine Fax)
400 x 200 (Super Fine Fax)
600 x 600 (Scan & Copy)
GSR 256 Gradations
SUPPLIES/CONSUMABLES:
Toner: Cartridge 10.1K @ 6% (multi-print)
Drum: Cartridge 44.2K (multi-print)
Stamp: Iridescent ink-cartridge
POWER REQUIREMENTS:
120 V, 50/60 Hz, 12A.
POWER CONSUMPTION:
Min. 5w, Max 1.1Kw
DIMENSIONS (W x D x H):
23-1/2” x 26-1/2” x 15-1/2”
(standard configuration)
WEIGHT:
Approx 86 lbs.
OPTIONS:
KC90PFC ~Paper Cassette (550 sheets)
(one KC90PFC per unit)
KC90PFC2 ~Dual Paper Cassettes (550
sheets x 2)
(requires KC90PFC + KC90SD-S)
KC90SD-S ~Short Stand
(for use with Dual Cassette)
KC90SD-T ~Tall Stand
KU16PI ~Pi Printer Kit (PCL)
(includes NIC., Driver, Print Mgr.)
KC90PS ~PostScript option
(added to Pi Printer Kit)
KC90MP ~128MB Pi Memory
KU16EI ~Scan Ei Network Applications Kit
(Includes: NIC , Scanning, Net Fax, Internet
Fax, Email, IP)
KC90MA ~Optional Memory Board 64MB
KU1601 Second G3 Fax Port
KC90ST ~TX Marker Stamp Unit 2
KU16UP~One touch upgrade
Available Copy/Print Functions*
Auto Reset
Auto Tray Switching
Copy Modes (Simplex, 2-in-1, 4-in-1)
Cover Mode
Energy Save Mode
Image Adjustments
Interrupt
Job List
Mode Check
Auto Paper Size Selection
Secure Print
Sleep Mode
Utility (Reports, Environment Setting,
Copy Program, Usage Data, Administrator
Management)
Watermarks
Zoom Selection
Fax Functions*
2nd Super G3 Port option
Autodialing (300/810-touch keys)
Auto Dial Search
Auto Memory Reception
Auto Reduction Printing
Broadcasting (maximum 300 locations)
Bulletin Board
Density Adjustment
Destination Insertion
Destination Search
Exposure Mode (Text, Text/Photo,
Grey Scale)
Group Dialing
F-Code
2-in1 Transmission
Image Rotation Transmission
Memory Lock
Memory/Quick Dial
Mix Originals Transmission
Original Size Designation
Password Transmission/Reception
Polling Transmission/Reception
Priority Transmission
Program Dialing (30 programs)
Real Time TX
Redial
Relay Broadcasting
Relay Transmission
Scan Area Reduction (Auto, Manual)
Secure Printing
Timer Transmission
PAGE DESCRIPTION LANGUAGE:
PCL 5e Emulation
PCL 6 (XL version 2.1) Emulation
PostScript Level 3
(Adobe Systems genuine)
FONTS:
PCL Resident Fonts: 45 outline + 35 PS
fonts (BitStream)
PostScript Resident Fonts (PS3): 136 outline
PRINT DRIVERS:
PCL 6:
Windows 2000 (Professional, Server)
Windows XP (Home, Professional )
Windows Server 2003,
Windows Vista (Home Basic, Home
Premium, Business, Enterprise, Ultimate)
PS3:
Windows 2000 (Professional, Server)
Windows XP (Home, Professional )
Windows Server 2003,
Windows Vista (Home Basic, Home
Premium, Business, Enterprise, Ultimate)
OPERATING SYSTEMS AND BROWSERS
Windows 2000 (SP2 or later)
Windows XP
Windows Server 2003
Windows Vista
Netscape ver. 4.51 or later
Internet Explorer ver. 4.01 SP2 or later
INTERFACE:
Ethernet 10Base-T / 100Base-TX
USB 2.0
IEEE 1284
PROTOCOLS:
SMB: TCP,NetBEUI
lpd: TCP/ IP
IPP: TCP/IP
Port9100: TCP/IP
Ei NETWORK APPLICATIONS: (option)
Scan to File (IP/One-Touch, Preset Scan)
Protocols: TCP/IP
Document Size : Letter, Legal, Ledger
Resolution: 200x100, 200x200, 400x400,
600x600 dpi
File Format: Tiff, PDF
Coding Method: MH, MMR
Target File: Directory folder specified at PC
Destination: IP address from PC
(Preset Scan),
IP address max. 300/810 (IP/One Touch)
Network Fax
Protocols: Email-MIME
Document Size: Letter, Legal
Resolution: 200x200, 400x400 approx. dpi
File format: attached file format -TIFF-F
Coding Method: MH
Broadcast: destinations Max. 1500
Address Book: 1000 address per address
book, search function, CSV/WAB format
available
TX to Email / Scan to Email
Protocols: TCP/IP, SMTP (IETF RFC2821,
RFC2822)
Document Size : Letter, Legal, Ledger
Resolution: 200x100, 200x200, 400x400,
600x600 dpi
File Format: Email –MIME, attached file-
TiFF, PDF
Coding Method: MH, MMR
Destination: Registration of Email address,
max. 300/810
Internet Fax
Protocols: Email TX-SMTP (IETF RFC2821,
RFC2822), TCP/IP
Email RX- POP3 (IETF RFC1725, RFC1939,
TCP/IP
Document Size : Letter, Legal, Ledger
Resolution: 200x100, 200x200, 400x400,
600x600 dpi
File Format: Email –MIME, attached file-TiFF
Coding Method: MH, MR, MMR
Destination: Registration of Email address,
max. 300/810
IP Communication
Protocols: Email TX-SMTP (IETF RFC2821,
RFC2822), TCP/IP
Document Size : Letter, Legal, Ledger
Resolution: 200x100, 200x200, 400x400,
600x600 dpi
File Format: TiFF
Coding Method: MH, MR, MMR
Destination: Registration of IP address,
max. 300/810
SIP-Fax
Protocols: SIP (RFC3261)
Document Size : Letter, Legal, Ledger
Resolution: 200x100, 200x200, 400x400,
600x600 dpi
Coding Method: MH, MR, MMR
Destination: Registration of IP address,
max. 300/810
IT Series Agent Manager
Protocols: TCP/IP, HTTP
General Specifications
Immediate Nationwide Help: With the purchase of your NEFAX 797 equipment, you gain access to NEC’s National Support Center, where help is
always at your fingertips. NEC will happily answer your questions and help you solve any problems.
For more information, visit our website at necunified.com
*Some functions may require options, which may or may not be available at time of launch.
NEFAX is a registered trademark of NEC Corporation.
1Based on NEC ITU-T Test Chart No. 1, using standard fax resolution in B/W. Actual communication time/speed may vary.
Format: HTTP
Display: Operation Status
(Copy/Printer/Fax/Internet Fax/Scanner)
Device Status (Alarm/Paper Size/Paper
Status/Option Configuration)
Registration/View: One-touch/Index/Bulletin
Board Maintenance: Initial Setting/account
reg./Account total/ Total Page/Power
Save/Network Settings/Scan Settings
Operation Environment for Utilities
CPU: 133 MHz or faster
OS: Windows;Server 2003*/Windows XP/
Windows 2000 / Windows Vista
(*Network Fax does not support Vista and
Windows Server 2003)
Memory: 64 MB or more
(128+MB recommended)
HD Capacity: 50 MB or more of free space
