PC Control Connectors and Cables for NEC Plasma and Projectors v2.1
NEC labels the connector for RS232C serial communication the “PC Control” port.
This PC Control port can be used for the following functions:
• Communication from an AMX, Crestron or Extron control system.
• Communication from a PC using the NEC PC Control Utility for basic projector control.
• Communication from a PC using the NEC Geometric Correction Tool for adjusting a projector to display an image on a
cylindrical, spherical or corner screen.
• Communication from a PC using the NEC Image Express Utility to send images to the projector for presentations as
well as basic projector control, projector lamp and error status or asset management. (These functions can also be
accomplished via LAN or USB with models that have a network interface, optional network PC card or USB interface)
NEC uses two types of connectors for the PC Control port, a D-Sub 9pin for larger projectors and a mini-DIN 8pin for smaller
projectors due to space constraints on those models.
Models with D-Sub 9Pin PC Control port:
GT1150/2150/5000/6000/6000R
LT280/380
MT1060/1065/1075
NP1000/2000/3150/4000/4001
VT770
PX-42VP5/42VM5/42VR5/42XM3/42XM4/42XM5/42XR3/42XR4/42XR5/42XP10/42XC10
PX-50XM4/50XM5/50XM6/50XR4/50XR5/50XR6/50XP10/50XC10
PX-61XM3/61XM4/60XM5/61XR3/61XR4/60XR5/60XP10/60XC10
A standard D-Sub 9P female to D-Sub 9P female “Null Modem” or “Cross” cable can be obtained at a local computer or
electronics store. A “Straight Through” cable will not work.
If you prefer to assemble your own cable, you can use the pin out information below.

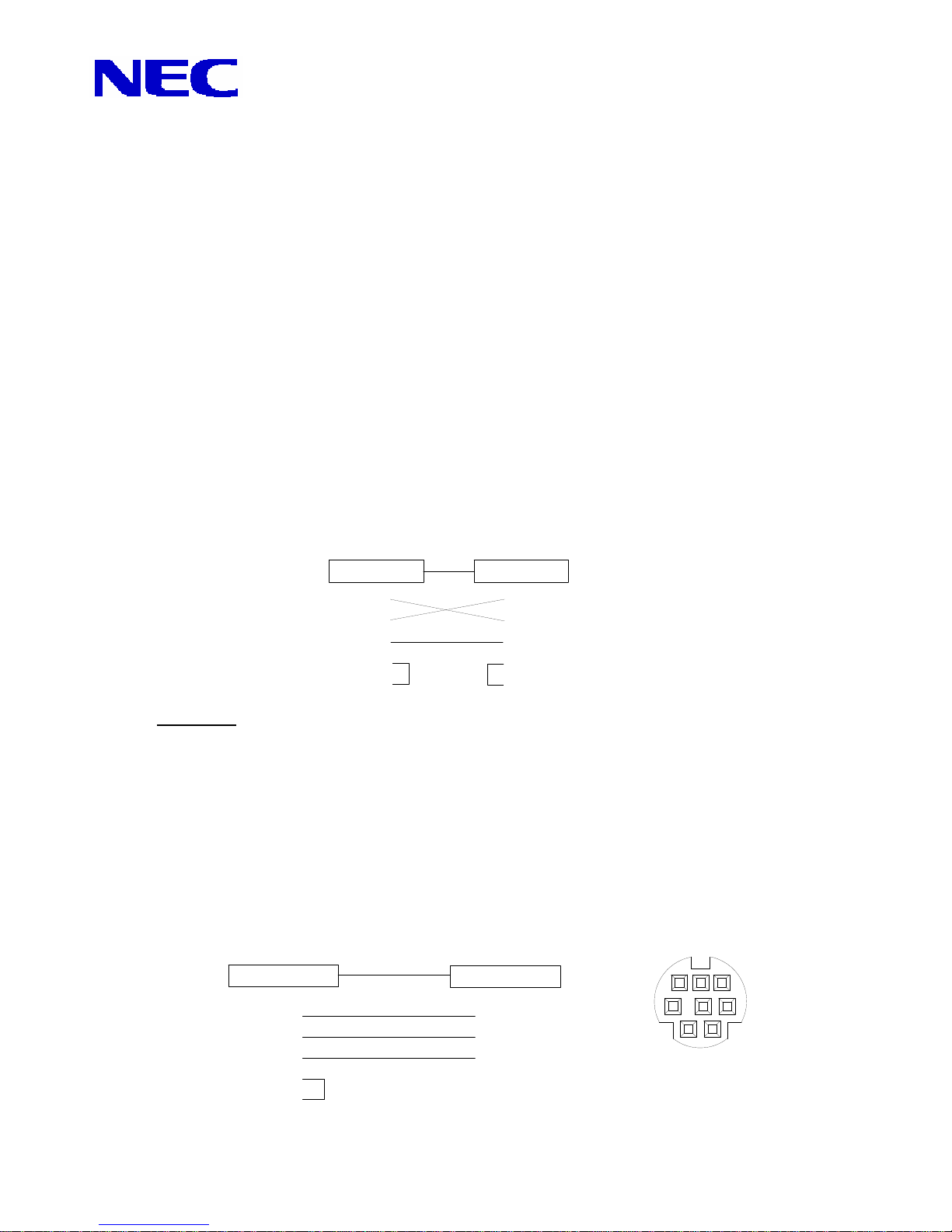

D-Sub 9P Female D-Sub 9P Female
Pin 2 Pin 2
Pin 3 Pin 3
Pin 5 Pin 5
Pin 7
Pin 8
GND GND
*Tie Pin 7 & 8 together at both ends of the cable if desired
TxD
RxD RxD
TxD
Pin 7
Pin 8
Note: The TheaterSync uses a “Straight Through” D-Sub 9P Male to 9P Female cable.
Models with mini-DIN 8Pin PC Control port:
HT410/510/1000/1100
LT180
LT30/35
LT240/260/245/265
NP40/50/60
VT37/47/470/570/575/670/676/48/480/580/49/490/491/590/595/695/700
WT600/610
A cable can be purchased from NEC using the following part number. (Service P/N: 73499390)
If you prefer to assemble your own cable, use the pin out information below and the following tips. Soldering a mini-DIN
connector can be tedious. To simplify the cable assembly, you can purchase a MAC or Sun type keyboard/mouse cable
(mini-DIN 8P) at a local computer store. Cut a DIN connector from one end and attach a D-Sub 9P Female to that end using
the pin out below.
12
34
5
6
7
8
Note: Do not confuse Pins 1 & 2
on the mini-DIN 8P connector.
Pin 1 is below Pins 3 & 4 which
are offset to one side of the
connector.
Pin 2
Pin 3
Pin 5
Pin 7
Pin 8
Pin 7
Pin 1
Pin 4
D-Sub 9P Female
mini-DIN 8P Male
GND GND
RxD
RxDTxD
TxD
*Tie Pin 7 & 8 together if desired
NOTE1: It is recommended to set the projector to “Idle Mode” in the Setup menu for best Power ON response.
NOTE2: For long cable runs it is recommended to set communication speed to 9600 bps in the Setup menu.
