Commercial-Grade LCD Displays for the Cost-Conscious
Large-Screen
LED*LCD
NEC V SERIES
Maximum Message. Minimal Expense.
Commercial-Grade
Promote extended use with a
high-performance design
•LED backlighting delivers both
environmental and economic
benefits*
•Temperature sensors and fans
protect the panel from damage
•High definition, high brightness
and contrast ratio deliver
superior visual quality
•Internal 10W speakers and
built-in handles enable a
simplified installation
* available on select V Series models
Adaptable
Unrivaled flexibility enables
seamless integration of
accessories
•Expanded connectivity with
built-in expansion slot for
maximum versatility
•Protective-glass and touch-
panel ready design provide
opportunities for module
security and interactivity
•Landscape and portrait
orientations allow for flexible
content placement to
maximize audience awareness
Connected
Extensive control and
diagnostic communication
provide the highest level of
remote management
•Comprehensive input panel
connects to latest peripherals
•RS-232 and ethernet
connectivity allow individual
and group-addressable control,
including email diagnostics
•DDC/CI standard allows for PC
control of the display
•Custom input detect for
content protection
42" | 46" | 55" | 65”
Maximum Adaptability with the NEC Option Slot
Future-proof your display with the NEC option slot. This slot provides connectivity for Open Pluggable
Specification (OPS)-compliant devices, creating a seamless integration across a variety of accessories.
• OPS is the first industry-wide standardization of option slot accessories geared to simplify installations,
use and maintenance of digital signage.
• No external connections required – DVI video, stereo audio, RS-232 control and power are all passed
internally from the display to the OPS device
• Simple integration and maintenance results in easier and less expensive installations and operation
Quick-Service Restaurant Applications
Everything you need to complete your order. NEC V Series displays are an integral part of restauranteurs’
digital solutions. Displaying caloric information is easy and dynamic, and in-store advertising can be easily
adapted to match the needs of the business.
• Automatic input detect allows built-in system redundancy to reassure that your menu will always be displayed
• Sealed panel design provides protection against dust particles, grease and steam
• High-definition panels with up to 500 cd/m2brightness and 4000:1 contrast ratio enable superior
images sure to capture customer attention
Maximum Eciency with LED Backlighting*
Not all backlights are created
equal. Loaded with state-of-the-
art innovation, select NEC V Series
displays incorporate LED backlights
that deliver an array of benefits.
• Reduced power consumption
leads to a reduced total cost of
ownership
• Solid state LED backlights
increase durability
• Lighter, thinner products
increase installation options,
and decrease installation and
shipping costs
* available on select V Series models
Retail Applications
Maximize messaging and connect on a new level with in-store customers. Whether its promoting the latest
sale, pointing shoppers in the right direction or communicating the latest price information, the NEC V Series
eectively delivers your message without breaking the bank.
• Landscape and portrait orientations enable design flexibility for seamless in-store installation
• High brightness and contrast ratio deliver stunning imagery
• Built-in text ticker can display valuable information across a user-defined portion of the screen

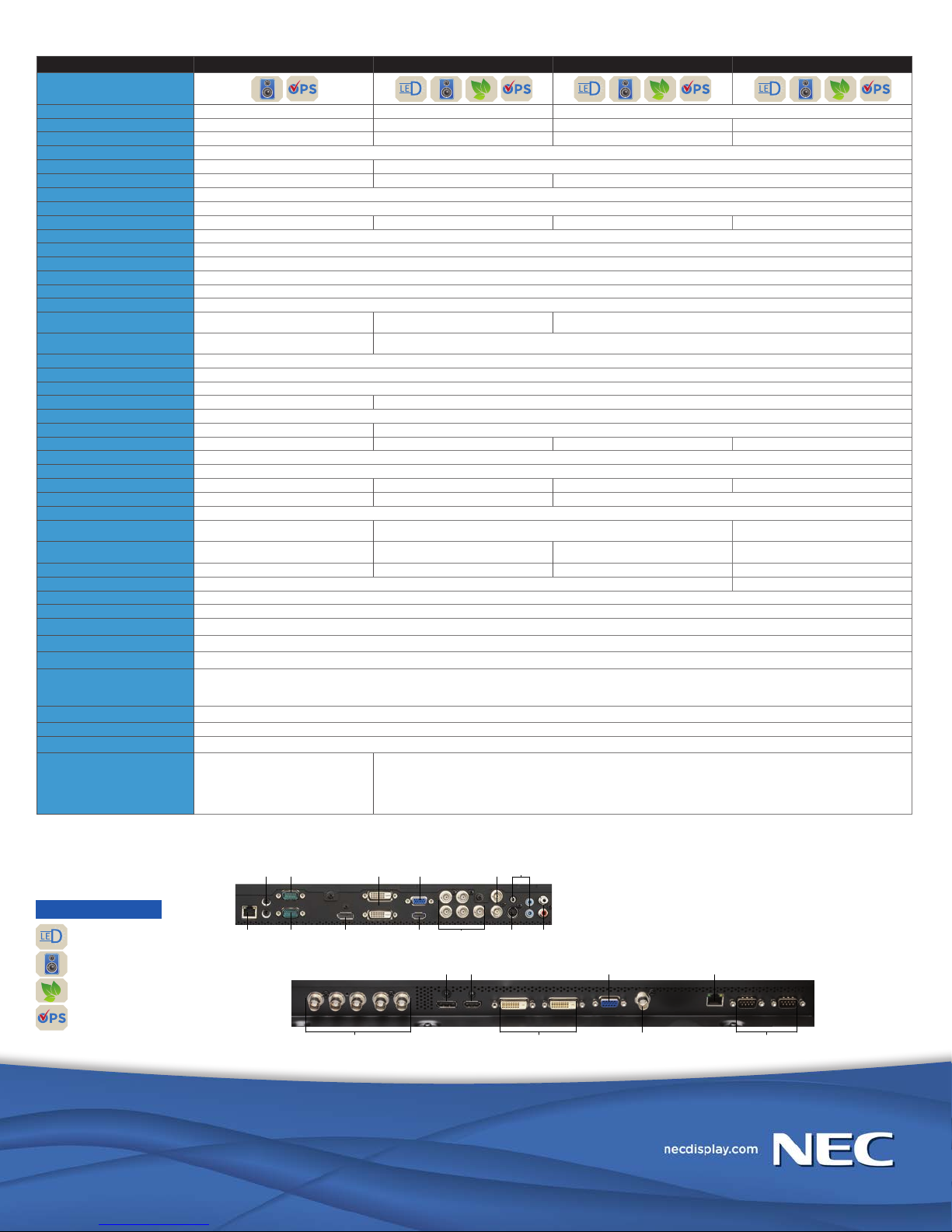

Specifications for V462/V423/V552/V652
* Warranty restrictions apply. Contact your representative for details.
** OPS adapter (SB-02AM) required for use with V462
MODEL V462 V423 V552 V652
QUICK SPECS
LCD MODULE
Panel Technology SPVA S-IPS A-MVA SPVA
Viewable Image Size 46” 42” 55” 65”
Native Resolution 1920 x 1080
Brightness (Typical/Max) 340 cd/m2 / 450 cd/m2320 cd/m2 / 450 cd/m2
Contrast Ratio (Typical) 3000:1 1300:1 4000:1
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Aspect Ratio 16:9
Active Screen Area (W x H) 40.1 x 22.6 in. / 1018.1 x 572.9mm 36.6 x 20.6 in. / 930.2 x 523.3mm 47.6 x 26.8 in. / 1209.6 x 680.4mm 56.2 x 31.6 in. / 1428.5 x 803.5mm
Orientation Landscape/Portrait
Displayable Colors More than 16.7 million
CONNECTIVITY
PC/Mac Signal Compatibility Yes
Input Terminals
Digital DisplayPort, HDMI, DVI-D
Analog VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD
or Video), BNC Composite, S-Video
VGA 15-pin D-sub (shared S-Video, Video,
Component), BNC Composite
VGA 15-pin D-sub, 5 BNC (RGBHV, DVD/HD, S-Video or Video), BNC Composite
Audio RCA Audio, Stereo Mini-Jack (2), HDMI
Audio, DisplayPort Audio
Stereo Mini-Jack, HDMI Audio, DisplayPort Audio
External Control RS-232C, Ethernet (RJ45), IR Remote, DDC/CI
Output Terminals
Digital DVI-D
Analog BNC Composite NA
Audio Stereo Mini-Jack, External Speaker Jack (2)
External Control RS-232C, IR Remote RS-232C
Digital Tuner V462-AVT V423-AVT V552-AVT V652-AVT
Speakers Integrated (10W x 2)
POWER CONSUMPTiON
On (Typical) 165W 88W 100W 185W
ECO Mode Standby <1W <0.5W <2W
PHYSICAL SPECIFICATIONS
Bezel Width (L/R, T/B) 2 in./2 in., 1.8 in./1.8 in. ;
51mm/51mm, 46mm/46mm
0.7 in./0.7 in., 0.7 in./0.7 in. ; 18.3mm/18.3mm, 18.3mm/18.3mm 2.1 in./2.1 in., 2 in./2.1 in. ; 53.5mm/53.5mm,
50.5mm/50.5mm
Net Dimensions
(without stand; WxHxD)
44.2 x 26.2 x 4.2 in. /
1121.5 x 664.7 x 107mm
38.3 x 22.3 x 2.7 in. /
972.5 x 565.4 x 68.3mm
49.2 x 28.4 x 2.5 in. /
1249.7 x 720.5 x 63mm
60.6 x 35.8 x 3.5 in. /
1540.4 x 909.2 x 88.3mm
Net Weight (without stand) 55.8 lbs. / 25.3 kg 37 lbs. / 16.8 kg 58 lbs. / 26.3 kg 114.4 lbs. / 52 kg
VESA Hole Configuration 300 x 300mm (4-hole) 400 x 400mm (4-hole)
ENVIRONMENTAL CONDITIONS
Operating Temperature 41-104°F / 5-40°C
Operating Humidity 20 - 80%
Operating Altitude 9843 ft. / 3000m
LIMITED WARRANTY 3 years parts and labor, including backlight*
ADDITIONAL FEATURES Advanced thermal capabilities; Advanced cooling system; TileMatrix (10x10); TileComp; Separate group/Monitor ID function; Ethernet Control and Communication; RS-232 Control
and Communication; Carbon footprint meter; Plug and Play (DDC/CI, DDC2B); Scheduler (w/ real-time clock); Screen saver function; POP; Side-by-Side; Kensington lock; Handles (for
V552/V652); Touch- and protective screen-ready; Variable picture modes; Advanced video settings (Noise Reduction, Adaptive Contrast); Input labeling; Backlight adjust; Aspect ratio
control; Built-in speakers; OPS-Compliant slot
SHIPS WITH Power cord; VGA cable (Mini 15-pin D-sub); Wireless remote control; Batteries; Main switch cover; CD-ROM (user manual); Clamp; Screws
OPTIONAL ACCESSORIES
Single Board Computers External Single Board Computer (TNETPC-AF-WH); All NEC OPS computers**
Other Speakers (SP-RM1/SP-4046PV); Stand (ST-
4020); OPS Adapter (SB-02AM); Internal
HD-SDI Card (SB-L007KK); DVI Daisychain
(SB-L008WU); Digital IP Tuner (MPD-DTi);
Wall Mount Kit (WMK-3257); Display Wall
Calibrator Kit (KT-LFD-CC); Adapter Mount
Kit (AMK-V462)
Speakers (SP-RM2 for V423/SP-RM1 for V552 & V652); Stand (ST-322 for V423/ST-4620 for V552/ST-651 for V652); Internal HD-SDI Card
(SB-01HC); Internal 3G-SDI Card (SB-04HC); Digital IP Tuner (SB-03TM); Wall Mount Kit (WMK-3257); Display Wall Calibrator Kit (KT-LFD-CC)
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
TileMatrix and TileComp are trademarks of NEC Display
Solutions. All other brand or product names are
trademarks or registered trademarks of their respective
holders. Product specifications subject to change.
©2013 NEC Display Solutions of America, Inc.
All rights reserved. 25.NEC.80.GL.UN.134 rev. 030113
DISPLAYPORT IN
5 BNC IN (RGBHV, DVD/
HD, S-VIDEO OR VIDEO)
(V552/V652 ONLY)
HDMI IN VGA D-SUB IN
BNC COMPOSITE
VIDEO IN
DVI-D IN/OUT RS-232 IN/OUT
LAN PORT
RS-232 OUTIR IN/OUT
RS-232 IN DISPLAYPORT
IN 5 BNC IN
(RGBHV, DVD/HD
OR VIDEO)
HDMI IN
VGA
D-SUB IN
AUDIO MINI-
JACK IN/OUT
BNC
COMPOSITE
VIDEO IN/OUT
DVI-D IN/
OUT
S-VIDEO
IN RCA
AUDIO
LAN PORT
V423/V552/V652
V462
Specifications for the 32” V322 can be found on the V322 Specifcation Brochure
