NEC NEC080538 User manual

As the world’s first automatic projector sporting a footprint smaller than a sheet of paper,
the LT30/35 is bright, powerful and packed with technological innovations.
EVERYTHING IS AUTOMATIC TO MAKE PRESENTING EASY FOR YOU.
°Automatic focus instantly provides sharp focus of projected image.
°Automatic start-up enables projector to be powered on once connected to an outlet.
°Automatic shut-down enables projector to power off automatically once disconnected
from the outlet.
°Automatic vertical keystone correction SquareShot™ technology instantly projects a
square image even when the projector is set up at a steep offset angle to the screen.
°AutoSense™ intuitively syncs the projector with most computer signals and features one-
touch image optimization.
ADAPTABLE TO VIRTUALLY ANY APPLICATION.
°High brightness up to 3,000 lumens packed into a projector with a footprint smaller than
asheet of paper.
°Advancedvideoprocessing with IP conversion and 3-2/2-2 pull down provides error free
interpolation for moving video resulting in a smooth image with greater detail.
°Advanced AccuBlend™ ensures detailed images even when non-native resolution
sources are connected to the projector.
°Built-in wall color correction presets provide for adaptive color tone correction to display
properly on non-white surfaces.
°PCcontrol portenables external control of the projector using a computer or control system.
LOW COST OF OWNERSHIP WHILE EXTENDING THE LIFE OF THE PROJECTOR.
°Extended lamp life with Eco-mode™ technology that increases lamp life by up to 50%.
°Lamp saver technology complete with direct power off protects the lamp when the projector
is turned off. The built-in sensors protect the lamp and projector from overheating.
°Enhanced multi-level security features protect your investment.
•Integrated lock slot - attach security cable to physically lock down the projector
•Cabinet control lock – setting to deactivate buttons on cabinet to prevent unwanted
changes to projector settings.
•Logo lock – restricts changes to logo saved in projector memory
•Password protection restricts unauthorized use of projector
°Quiet operation at <33dB in Eco-Mode.
WORLD’S FIRST AUTOMATIC
PROJECTOR
QUICK SET UP AND COOL DOWN
AUTOMATIC KEYSTONE
CORRECTION
ADVANCED VIDEO PROCESSING
LAMP SAVER TECHNOLOGY
INSTANT SHUT-DOWN
DLP™ TECHNOLOGY
World’s first automatic projectors
LT30 and LT35 digital projectors.
DLP is a registered trademark of
Texas Instruments. The DLPTM
logo and DLPTM medallion are
trademarks of Texas Instruments.

NEC 080538
For more information, call 1.800.NEC.INFO
or visit www.necvisualsystems.com
NEC is a registered trademark of NEC Corporation.
All other trademarks arethe property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
OPTICAL
Display Technology 0.7” DLP™ Chip
Resolution Native: XGA 1024 x 768
Maximum: SXGA+ 1400x1050
Light Output (lumens) LT30 2600 normal, 2200 eco
LT35 3000 normal, 2300 eco
Contrast Ratio 1600:1
Lamp Type LT30 200W AC
LT35 220W AC
Lamp Life (up to) LT30 2000 hours normal, 2500 hours eco
LT35 2000 hours normal, 2500 hours eco
Screen Size (diagonal) 30-300 in, 762-7620 mm
Throw Ratio 1.8-2.2
Projection Distance 3.51 to 43.6 ft, 1.07 to 13.3m
Projection Angle 9.7 to 10º tele/11.6 to 12.1º wide
Lens Zoom Manual
Focus Automatic/manual
F-#, f-# F=2.4 to 2.6 mm, f=25.7 to 30.8mm
Keystone Correction Automatic ± 16º
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate Horizontal 15 to 100 kHz
Vertical 50 to 85 Hz
Supported Video NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
Standards
SD/HD Video Signal 1080i, 720p, 576p, 576i, 480i, 480p,Y/Cb/Cr component (with optional adapter – ADP-CV1)
Compatibility
PCSignal Compatibility VGA, SVGA, XGA, SXGA, SXGA+
Macintosh Compatibility Yes
Input/Output Terminals RGB 1 (analog) 15 pin
Video 1 RCA
Video 2 S-Video
Audio 1 mini
Audio 1W monaural
External Control RS232, IR
Sync Compatibility Separate Sync/Composite Sync/Sync on G
ELECTRICAL
Power Req. 100 - 240VAC, 50/60Hz
Input Current 2.8/1.3A
Power Consumption 260W/230W
MECHANICAL
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 10.2x8.2x3.5 in, 259x208.3x88.9 mm
Net Weight 4.4 lbs, 2.0 kg
Fan Noise LT30 37 dB normal/33 dB eco
LT35 40 dB normal/33 dB eco
Regulations USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM
ENVIRONMENTAL
Operational Temp 41° to 104°F / 5° to 40°C
Humidity 20-80% non-condensing
Storage 14° to 122°F / -10° to 50°C
WARRANTY
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and
one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare
provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
IN THE BOX
Carrying case, remote control, batteries, power cord, RGB signal cable, lens cap, user’s manual on CD-ROM, quick start
guide, product registration card
ACCESSORIES
Order Code Description
LT30 4.4 pound, 2600 lumen, XGA Projector
LT35 4.4 pound, 3000 lumen, XGA Projector
LT30LP Replacement lamp for LT30
LT35LP Replacement lamp for LT35
ADP-CV1 15-pin to component video adapter
LT30CM Ceiling mount
LT30ATA Molded shipping case
SCP100 Suspended ceiling plate
PWRCRD-PJPX Replacement power cable
RGBCBL-PJPX Replacement RGB cable
RMT-PJ20 Replacement remote
IRRCVR Optional IR receiver enables remote mouse control for PC
LEATHERCASE Padded leather briefcase for projector and laptop - designed to fit in most airline overhead compartments
LEATHERROLLER Protective leather rolling case for projector and laptop - designed to fit in most airline overhead compartments
UNIQUE FEATURES
Advanced AccuBlend Ensures detailed images when non-native resolution
sources are connected to the projector.
Autosense Automatically syncs with any computer signal and
features one touch image optimization.
VORTEX™ Technology Plus Breakthrough image processing technology improves
white level, color accuracy, dynamic range and varying
levels of black in an image.
SquareShot™ Instantly project a square image even when the
projector is set up at a steep offset angle to the screen.
Eco-Mode™ Technology Extends lamp life, lowers audible noise and reduces total
cost of ownership.
Built-in Wall Color Correction Presets provide for adaptive color tone correction to
display properly on non-white surfaces.
Direct Power Off Protects the lamp when the projector is turned off using
awall switch or power strip.
Power Management Can be set to automatically shut down the projector
when an incoming signal is not detected.
World’s first automatic projectors
LT30 and LT35 digital projectors.

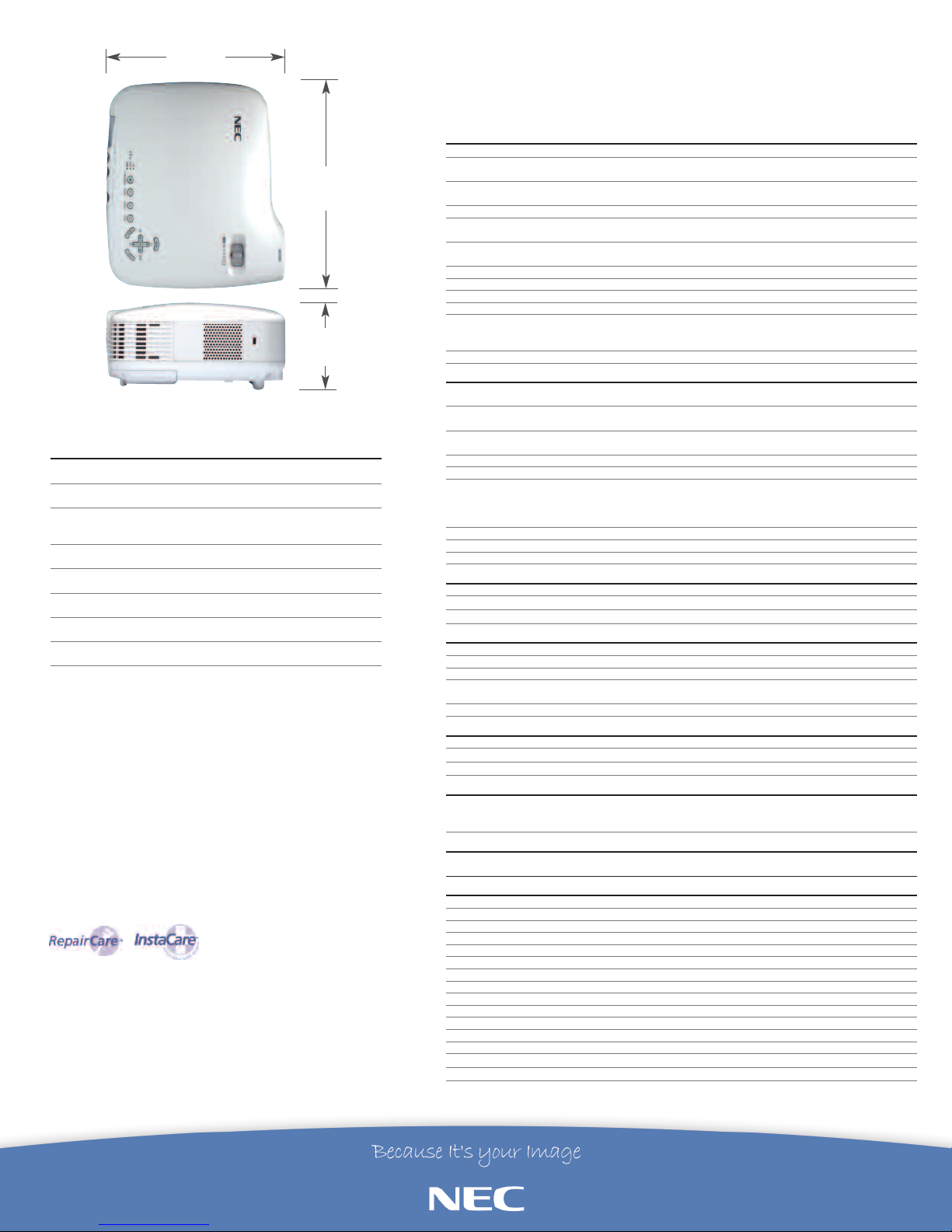

8.2”
(208.3 mm)
10.2”
(259 mm)
3.5”
(88.9 mm)
