Powerful installation projectors equipped to take on the most
demanding integration projects.
FLEXIBILITY ENABLES PERFORMANCE
° Integrated Device Technology HQV™ is a high-performance
video processing/scaling system designed for computer signals
as well as standard or high-definition video. The technology
produces superior video processing using pixel-based, motion-
adaptive de-interlacing to remove undesirable motion artifacts
typical of interlaced signals. This processing creates life-like
images in applications such as video conferencing.
° Bright enough for most applications: 6000 lumens (PA600X), 5500 lumens (PA550W), 5000 lumens (PA500U and PA500X)
° Geometric correction tool allows you to project on spheres, cylinders and more
INTEGRATED NETWORKING AND ASSET MANAGEMENT
° Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability)
° Integrated high-speed wireless LAN IEEE 802.11b/g
° Desktop control allows you to securely transmit information wirelessly to the projector from a docking station or PC in another room
° Image Express Utility (IEU 2.0; compatible with Windows or Mac operating systems) dedicated projector software provides wired
and wireless data transmission via peer-to-peer or over the network
 •Broadcastmodeallowsyoutosendinformationfromonecomputertoseveralprojectors
° Windows Network Projector function within Windows Vista connects directly to networked projectors without the need for
additional proprietary software
° Windows Remote Desktop function allows you to control
a networked computer by connecting a USB mouse and
keyboard directly to the projector’s USB input
° Windows Network Drive Function displays multimedia
files (.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the
Windows shared folder on a local network using the
Viewer function—all without bringing your PC into the
conference room
° Windows Media Connection Function displays
multimedia files (.mpeg2, .jpeg or .wmv9) stored on the
Windows Media Connect server or a local network
using the Viewer function—all without bringing your
PC into the conference room
SECURITY FEATURES PROVIDE PEACE OF MIND
° Cabinet control lock setting enables user to deactivate
buttons on cabinet to prevent unwanted changes to
projector settings
° Logo lock restricts changes to logo saved in projector
memory
° Password protection restricts unauthorized use of
projector
° Email notification informs the system administrator
when the lamp approaches the end of its useful life
www.necdisplay.com
Professional Installation
Projectors
PA Series
PA600X, PA550W, PA500U and PA500X digital projectors

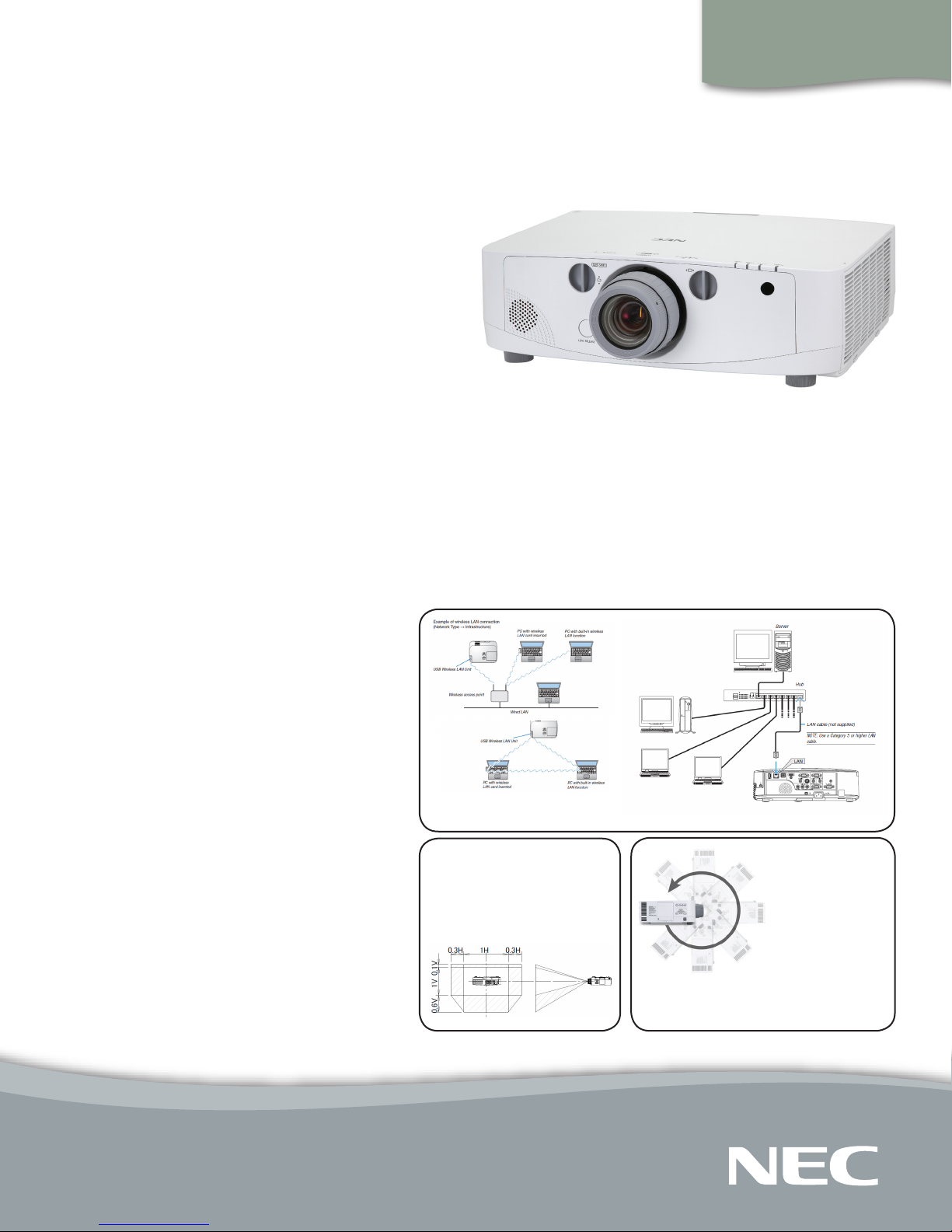

Lens Shift
Enjoy greater installation
flexibility with up to 60%
vertical lens shift and
+/- 30% horizontal lens shift.
Tilt-Free
Installation
PA Series models
can be rotated
freely (360°) in
order to point
up or down
depending on
the installation
requirements.

DICOM SIM
DICOM Simulation
enables users
in medical
environments to
display accurate
diagnostic images.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
Built-in wall color correction presets
These provide for adaptive color tone
correction to display properly on non-
white surfaces.
BUILT-IN SOFTWARE
PIP/Side-by-Side
This function allows two
sources to be displayed
on the screen at one
time in either a picture-
in-picture or side-by-side
configuration.
4000-hour filter life
NEC is committed to designing its products to provide long lifecycles. This commitment even extends to
components within its products, including the improved filter. This virtually maintenance-free filter reduces the
frequency at which cleaning is required, thereby decreasing your total cost of ownership.
DESIGNED WITH THE ENVIRONMENT IN MIND
°Extended lamp life with ECO Mode™ technology increases lamp life up to 4000 hours, while lowering power consumption
°Power management enables projector to automatically turn off when an incoming signal is not detected from any of the inputs
°Auto Power On via the RGB (15-pin) input connector when a signal is detected from a computer
°Carbon savings meter calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional
message at startup. A green ECO Mode button on the remote control makes the switch easy.
°Quick start (3 to 4 seconds) lets you begin presenting in seconds while quick shutdown (immediate power off with
no cooling required after shutdown) ensures efficient energy usage
°Sleep timer can be set to automatically turn off the projector at set countdown times
°Low power consumption (0.2W in stand-by mode) minimizes energy costs
°Direct power off provides instantaneous shutdown of the projector
Edge blending
This function seamlessly
blends multiple projected
images to display a single
high-resolution image.
Built-in stacking correction
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to 24,000
lumens, which is ideal for larger-sized screens and
environments with heavy ambient light. This feature
also prevents the complete loss of an image, which
can happen when using only one projector.

GET CONNECTED WITH A WIDE SELECTION OF INPUTS
°Dual computer inputs ensure quick switching between presentations
°Four audio inputs (two mini stereo [Comp1 & Comp2], R/L [RCA - shared by video sources] and HDMI)make it easy to add sound
to enhance your presentations
USB Viewer
In instances when you’d
prefer to leave your
laptop behind for a
presentation, PA Series
projectors can deliver
a solution. Using the
presentation conversion
software included with your projector, simply place
your file onto a USB drive and plug it into the
projector’s USB port. This allows you to display
images stored as .jpgs from optional USB memory.
Input panel cover
This optional accessory
creates a clean look for
your installation, while
hiding signal cables and
the power cord.
Remote control
Easy control
from remote
allows you to
adjust lamp
mode, aspect
ratio, volume
and image
all with the
touch of a
button.
Variable audio-out
This input enables
the remote control
to be used to
adjust volume
of self-powered
external speakers that are connected to the
projector. In stand-by mode, the audio-out
stays active, allowing the last input used to
pass to the self-powered external speakers.
HDMI input
Among the PA
Series’ wide selection
of inputs is an
HDMI w/HDCP
for connecting to
high-definition
sources such as
Blu-ray players, cable boxes, satellite
receivers and personal computers.
DisplayPort
This input provides PA Series models with
expanded connectivity with advanced
technology.
ADVANCED SOFTWARE FEATURES
Geometric Correction
Projecting an image isn’t confined to
a standard flat screen or wall with the
NEC PA Series. Geometric correction
allows these models to project an im-
age on spheres, cylinders, corner angles
and many more non-standard surfaces.
Cornerstone
Enhanced keystone correction allows for horizontal, vertical and diagonal image
correction for aligned images even when the projector is set up at an angle to the
screen.
Virtual Remote™ (DDC/CI)
Used over the VGA cable, you can control the projector
directly from a computer without the need for additional
control cables.

NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
3D Reform, Advanced AccuBlend, AutoSense and ECO Mode are trade-
marks of NEC Display Solutions. All other brand or product names are
trademarks or registered trademarks of their respective holders.
Product specifications subject to change. 3/11 ver. 2.
©2011 NEC Display Solutions of America, Inc. All rights reserved.
UNIQUE FEATURES
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector can-
not be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when non-
native resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnification with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN
network. Email notification of error messages or lamp end-of-
life can be sent to remote locations.
WARRANTY
Registered owners receive a 3-year parts and labor warranty
including the first year of InstaCare. The lamp is covered for
one year or 500 hours, whichever comes first. InstaCare pro-
vides the original owner one year of either limited 3 business
day repair/return or next business day exchange.
IN THE BOX
Remote control, remote control cable, batteries, power cord,
RGB signal cable, lens cap, user’s manual on CD-ROM, quick
start guide, product registration card, wired and wireless net-
work setup guide, lens anti-theft screw

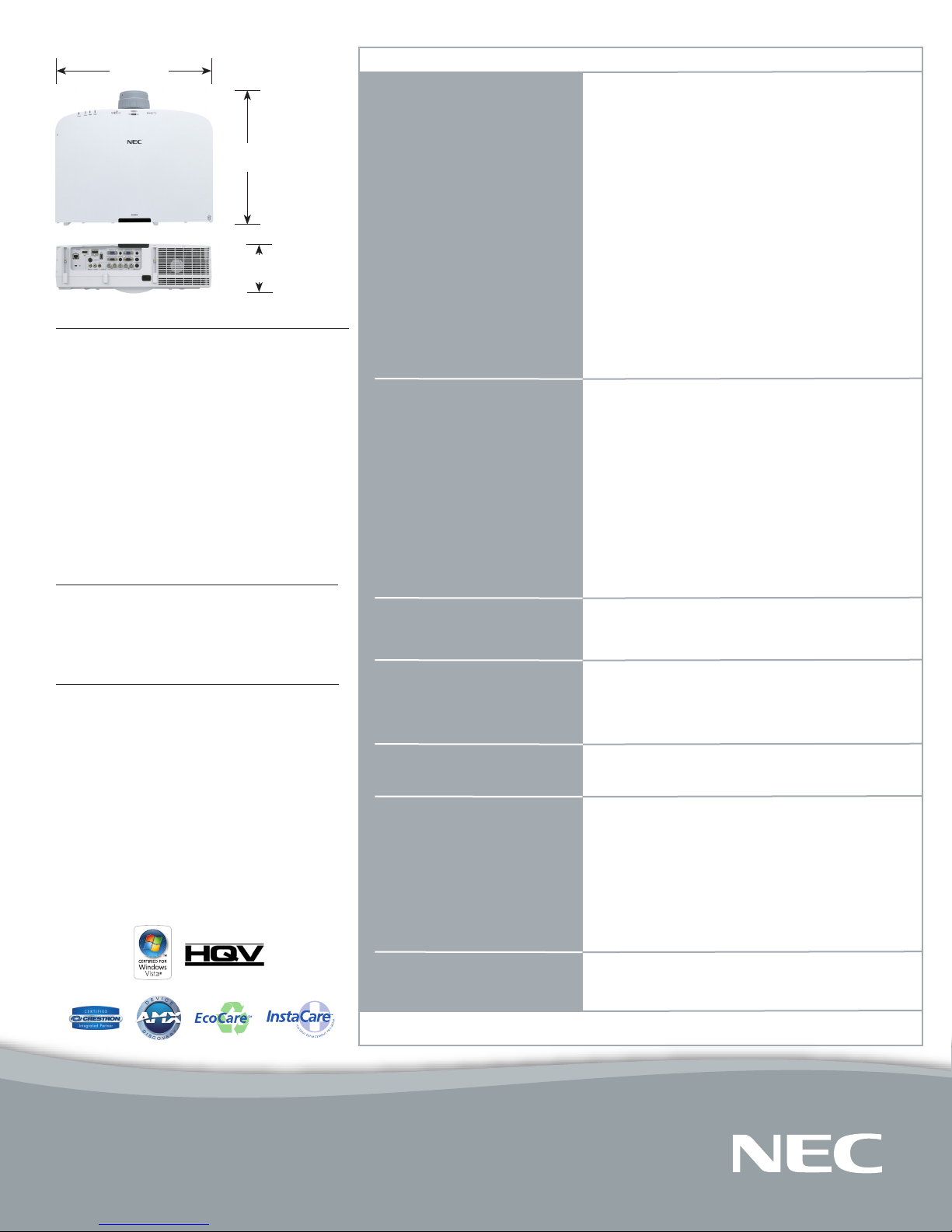

15.7”
(399mm)
14.1”
(358mm)
5.9”
(150mm)
OPTICAL
Display Technology
Resolution
Native
Maximum
Light Output (lumens)
Contrast Ratio
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
Projection Distance
Projection Angle
Lens
Zoom
Focus
F-number
Shift
Keystone Correction
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB 1 (analog)
RGB2 (analog)
RGB3 (analog)
RGB4 (digital)
RGB5 (digital)
Video 1
Video 2
Audio
Audio Out
Monitor Out
Audio
External Control
Sync Compatibility
ELECTRICAL
Power Req.
Input Current
Power Consumption (Normal/Eco Mode/
Standby/Network Standby/Power-Saving)
MECHANICAL
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operational Temp
Humidity
Storage
ACCESSORIES
SCP200
NP3250CM
NP11FL
NP12ZL
NP13ZL
NP14ZL
NP15ZL
NP21LP
NP02CV
NP02LM1
RMT-PJ33
PW RCRD-PJPX
RGBCBL-PJPX
WARRANTY PROGRAMS
NECEW2-I
ADVEXON1-I
ADVEXON2-I
NECECO
PA600X/PA500X: 0.79” LCD with MLA
PA550W: 0.75” LCD with MLA
PA500U: 0.76” LCD with MLA
PA600X/PA500X: XGA 1024 x 768
PA550W: WXGA 1280 x 800
PA500U: WUXGA 1920 x 1200
WUXGA 1920 x 1200
PA600X: 6000 normal
PA550W: 5500 normal
PA500X/PA500U: 5000 normal
2000:1 with auto iris
330W AC
3000 hours normal / 4000 hours eco
25 to 500 in, 635 to 12,700mm
1.5 to 3 (standard lens)
2.5 to 68.5 ft, 0.74 to 20.9 m
10.3 to 10.8º tele / 13.7 to 14.5º wide
1 to 1.33
Manual
F=1.7 to 2.2, f=24.4 to 32.5mm
PA600X/PA500U/PA500X: mechanical -0.1 to +0.5 vertical, +/-0.3
horizontal
PA550W: mechanical -0.1 to +0.6 vertical, +/-0.3 horizontal
PA500X/PX550W/PA600X: +/- 40 degrees horizontal, +/- 30 degrees vertical
PA500U: +/- 35 degrees horizontal, +/- 30 degrees vertical
Horizontal 15 – 108 kHz / Vertical 48 – 120 Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Yes
15 pin
15 pin
5-BNC
HDMI w/ HDCP
DisplayPort
RCA
S-Video
(2) L/R RCA, (3) mini stereo
mini VAO
Yes
10W mono
RS-232, IR
Separate Sync / Composite Sync / Sync on G
100 – 240V AC, 50/60Hz
5.1A
PA500X/PA550W/PA600X: 464W / 372W / 16W / 6W / 0.2W
PA500U: 477W / 384W / 16W / 6W / 0.2W
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
19.6 x 14.1 x 5.7 in. / 499 x 359 x 144mm
17.6 lbs. / 8 kg
PA500X/PA550W/PA600X: 38 dB normal / 31 dB eco
PA500U: 38 dB normal / 32 dB eco
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM
41° – 104°F / 5° – 40°C
20-80% non-condensing
14° – 122°F / -10° – 50°C
Suspended ceiling plate
Ceiling mount
0.8:1 fixed short throw lens
1.19 - 1.56:1 zoom lens
1.5 – 3.0:1 zoom lens
2.97 - 4.79:1 zoom lens
4.7 - 7.2:1 zoom lens
Replacement lamp
Terminal cover
Wireless LAN module
Replacement remote control
Power cable
RGB cable
Extends term of parts and labor warranty to 4 years
Extends term of InstaCare service program to 2 years
Extends term of InstaCare service program to 3 years
Projector recycling program, disposal certificate
Specifications for PA600X/PA550W/PA500U/PA500X
Additional accessories are available, including screens, carts, mount accessories and replacement cables.
Visit www.necdisplay.com for details.
Ordering Model Numbers
NP-PA600X
NP-PA550W
NP-PA500U
NP-PA500X
