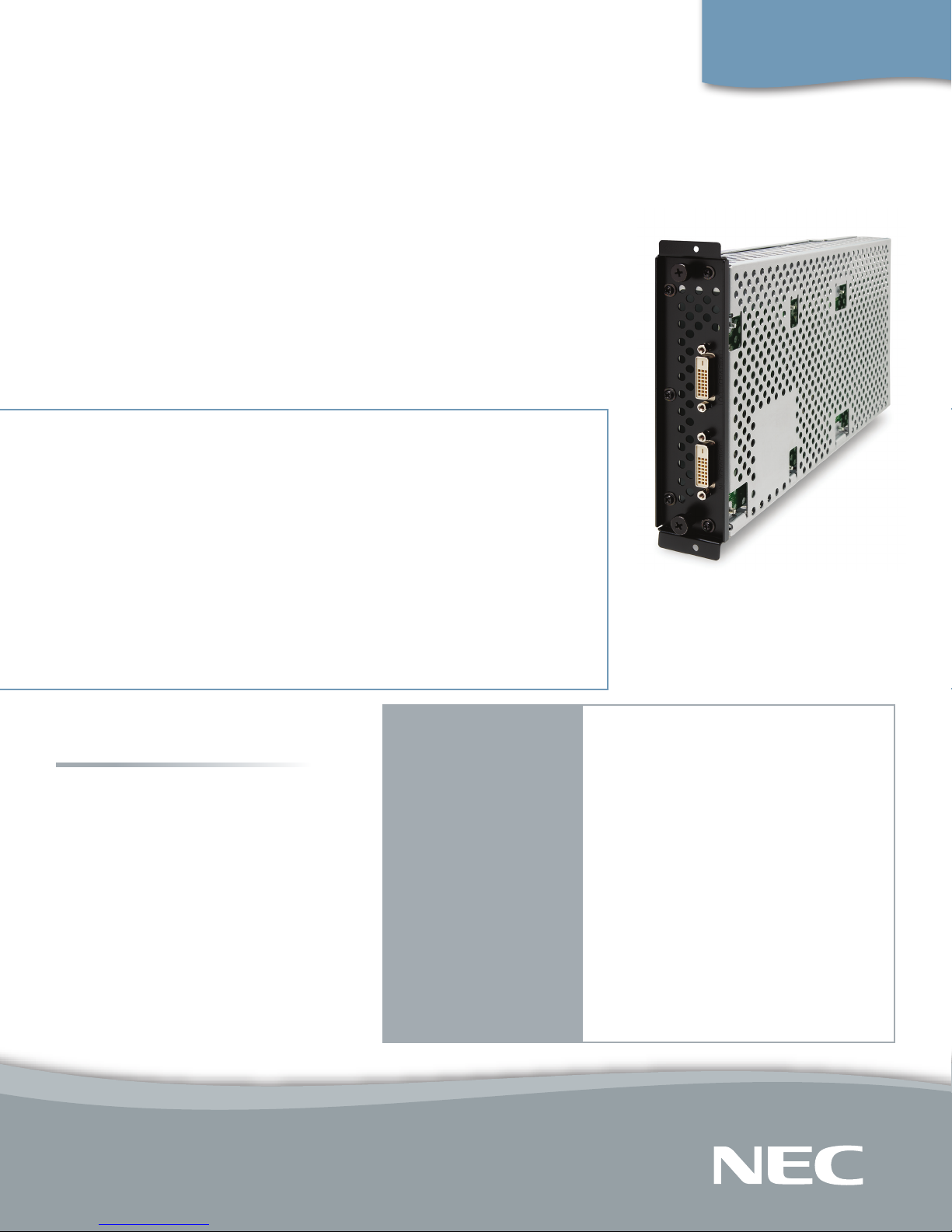

NEC SB-L008WU
DVI Daisy Chain Module for NEC Large-Screen LCD Displays
Multiply your video messaging with ease. An accessory for select NEC MultiSync® 20
Series and M Series large-screen displays, the SB-L008WU DVI daisy chain module is
a cost-effective way for you to loop in and out a single digital video signal to up to
nine displays. The expansion slot option eliminates the need for external distribution
equipment and power supply, thus providing for a clean look that simplifies installation
and reduces maintenance without compromising quality. These benefits make the board
ideal for video banners, ribbons and walls in addition to back-to-back installations in
environments such as transportation, public information and digital signage networks.
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
www.necdisplay.com
MultiSync is a registered trademark of NEC Display Solutions of
America, Inc. Product specifications subject to change. 12/08 ver. 1.
©2008 NEC Display Solutions of America, Inc. All rights reserved.
Input Signal (DVI - no HDCP)
Output Signal
DVI
TMDS
Daisy Chain Connection (max)
Power Supply
Power Consumption
Environmental Conditions
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Net Dimensions (WxHxD)
Weight
Limited Warranty
Compliant with DVI 1.0
1x DVI-D 24-pin connector
VGA60, SVGA60, XGA60, WXGA60, SXGA60,
UXGA60,
1920 x 1080 @ 60Hz
1x DVI-D 24-pin connector
Loop-through signal
Non DDC2B loop
1x M40/46 option slot interface connector
Loop-through signal
9 units
+6VDC@500mA (from internal option slot interface)
2W
5 - 40°C / 41 - 104°F
20- 80% (without condensation)
-20 - 60°C / -4 - 140°F
10 - 90% (without condensation)
6.1 x 1.6 x 10.9 in. / 155.5 x 40.5 x 276.2mm
2.1 lbs. / 0.95 kg
3 years
Features and Benefits
Fully integrated seamless design – Internal solution provides for clean, hidden
integration that eliminates the need for external equipment and power supply
Full HD resolution – The board is capable of supporting crystal-clear, digital video
transmissions up to 1920 x 1080 in resolution
DVI output – Gives users a fast and easy way to simultaneously transmit video content
from a single player to up to nine screens in close proximity. This reduces the cost of
using splitters or connecting monitors to multiple sources, making it ideal for digital
signage configurations such as video tiling and back-to-back installations.
Landscape and portrait orientations – Provides versatility for various digital signage
applications
DVI cable (2m) included – Further reduces installation costs
NEC Displays Supported
NEC M Series
40” M40-AV
40” M40-2-AV
40” M40B-AV
46” M46-AV
46” M46-2-AV
46” M46B-AV
NEC MultiSync® 20 Series
40” LCD4020-2-AV
46” LCD4620-2-AV
52” LCD5220-AV
65” LCD6520L-BK-AV
65” LCD6520P-BK-AV
