Nectar HexaDuo User manual

0
Contents
Page
Safety Information
1
Features
2
Packing List
3
Components
3
Operations
4
Instructions
6
Clean and Maintenance
8
Trouble Shooting
10
Safety Instructions
11
Specification
12
Before operating your Air
Purifier, please read this
user manual carefully and
retain the manual for
future reference.
USER’S GUIDE
AIR PURIFIER
HexaDuo

1
Thank you for purchasing HexaDuo. The HexaDuo is easy to
use, and helps to produce a clean and safe environment. It is
an energy-efficient high performance air purifier with patent
HIRD technology to help build a green life style.
Safety Instructions:
WARNING:
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
The appliance is only to be used with the AC Adapter
unit provided.
Customer Support
Email: [e-mail]
Website: www.nectarsmartliving.com/support/faq

2
Features
Simple to use.
Energy Star compliance –highly efficient air cleaning with
low operating cost.
5 fan speed and mute selections for quiet but high
performance operation.
Remove dust and pollutants in the air.
Sophisticated measures to ensure safe operations; unit
will not operate if the collection array is not installed; or if
the unit is too dirty.
Indicator light up to prompt user when cleaning is needed.
Save money. No disposable filter, an environmental
friendly device.
Specially designed cleaning tool for easy cleaning the
collection array is included.

3

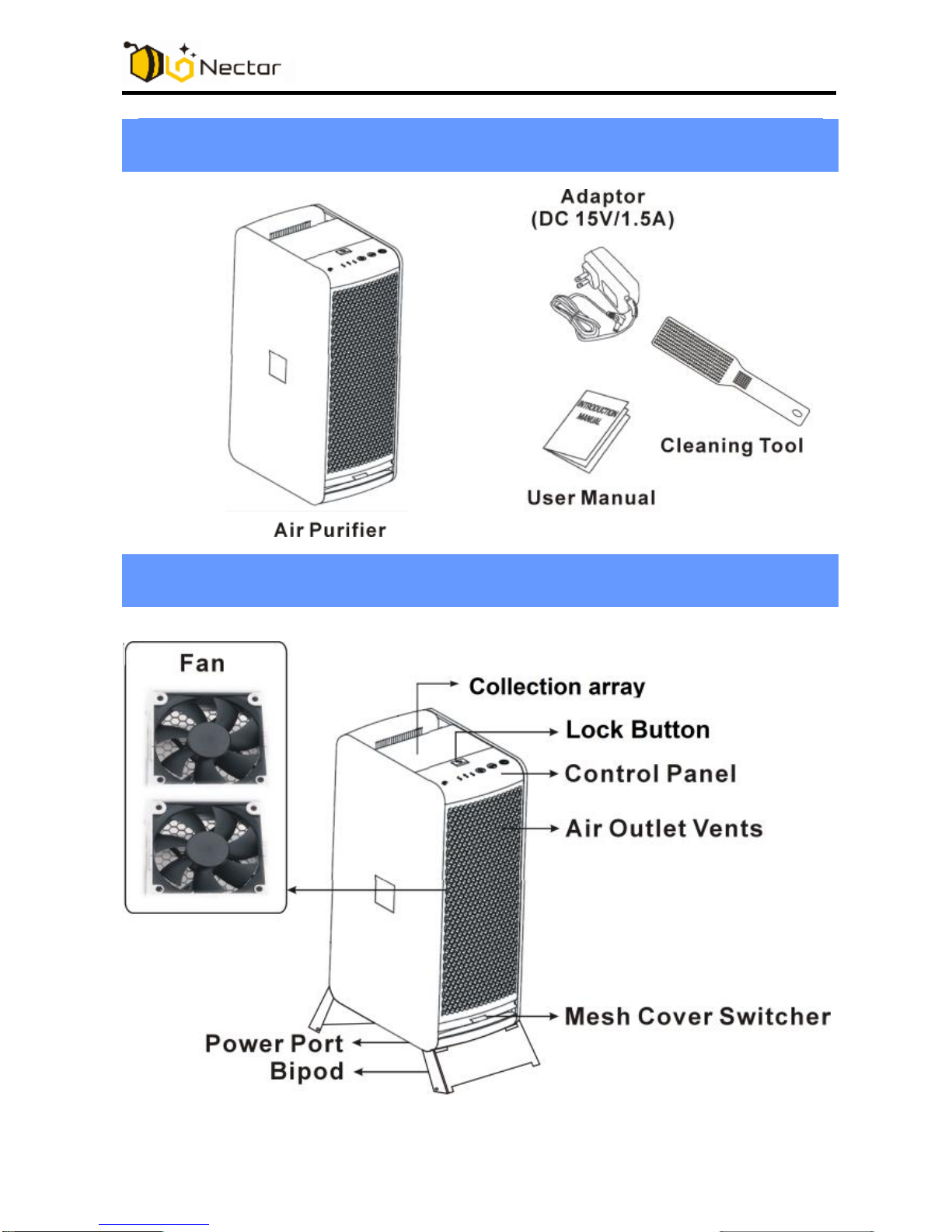

Packing List
Components

4

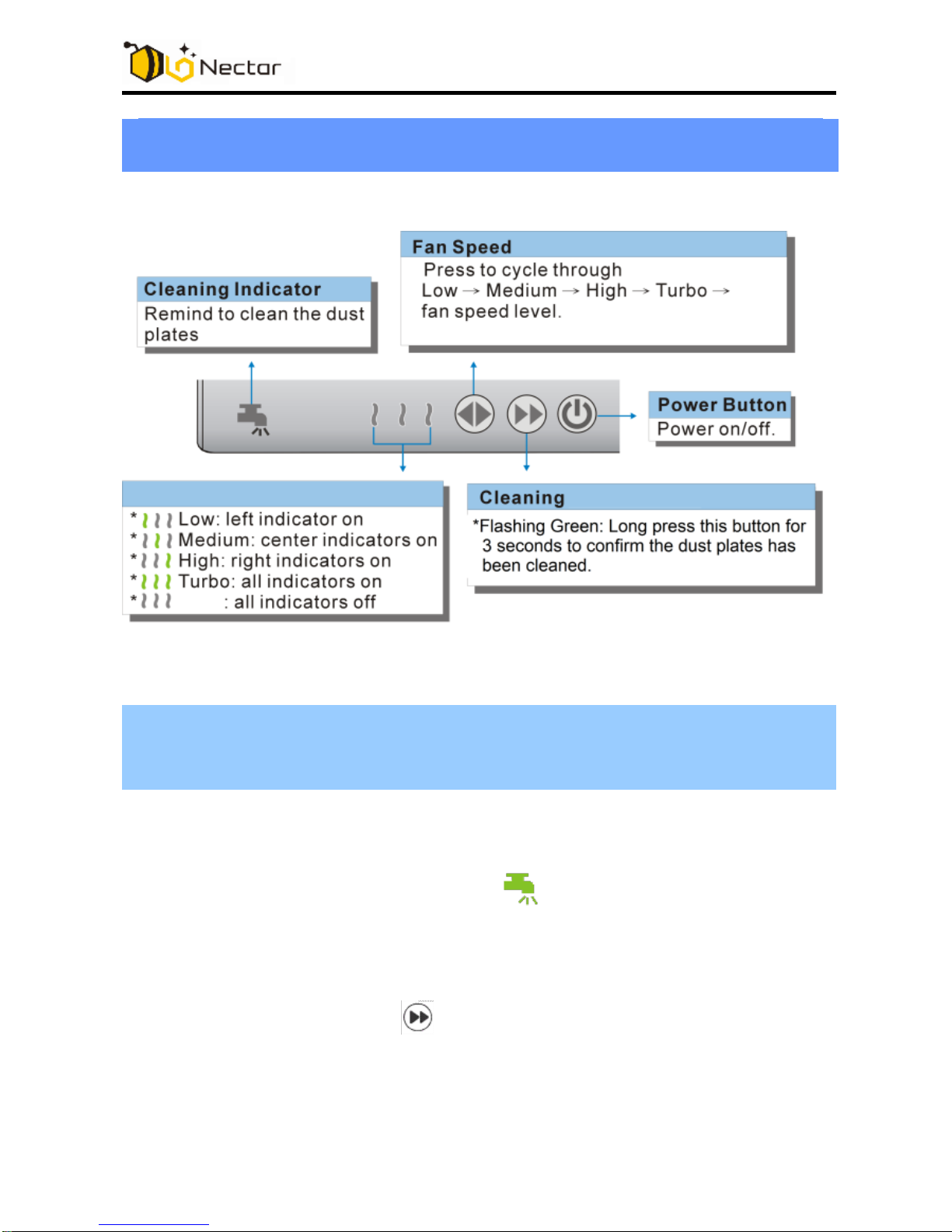

Operations
Buttons / Indicators Descriptions
Operation Modes
Warning
Indication Description
①Cleaning mode
.
Power Off the unit and take out
Button
Silent
Fan Speed Indicators Button
Silent
When the accumulated operation
time reach two weeks, the Cleaning
Indicator will be lights up to
remind the user to clean the
collection array.
Press the flashing
for
Cleaning
3sec
to acknowledge
the cleaning alert Both Cleaning
Indicator and Cleaning
Button will
off.turnedbe
button

5
collection array to clean.
Clean and dry the collection array
before re-install back to the device.
②Protection mode
When the device is operating, and the
collection array is removed suddenly,
then the device will be stop working,
and all Indicators will flash at the
same time as an alert to user.
When the device is powered on
without the collection array, the
device will not work, and all Indicators
will flash at the same time as an alert
to user. The user needs to shuts
down the device, and put the
collection array into the device, and
then the unit will return to normal
operation mode.
③Failure mode
When the collection array
accumulates dust anvil or debris and
over the collection limit, the device
will be stop operation, and all of the
lights will flash at the same time as an
alert to user. The user will need to
shut down the device and clean the
collection array.

6
Instructions
1. Connect the adaptor and manage the power cord.
Note:
Leave about 1ft (0.3m) behind
and a free path way in the front to
allow unobstructed air flow for
best performance.
2. Turn on the unit.

7

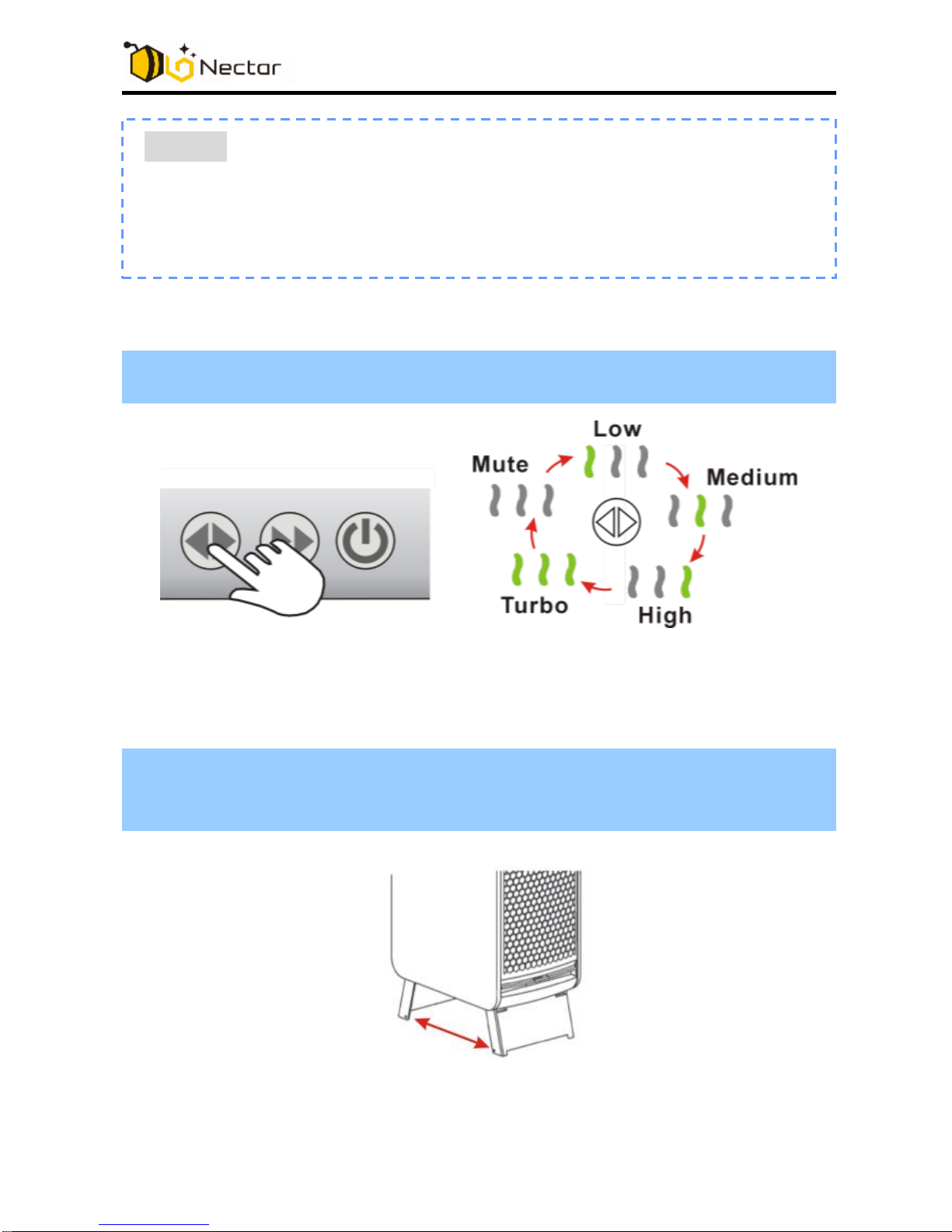

3. Adjust the required speed.
4. Stretch the bipod of the unit and put the unit on a
flat table or floor.
NOTE:
You may hear static noise when the unit is first started.
This is normal due to setting up of the hyper ionic field for
capturing the airborne particles.

8

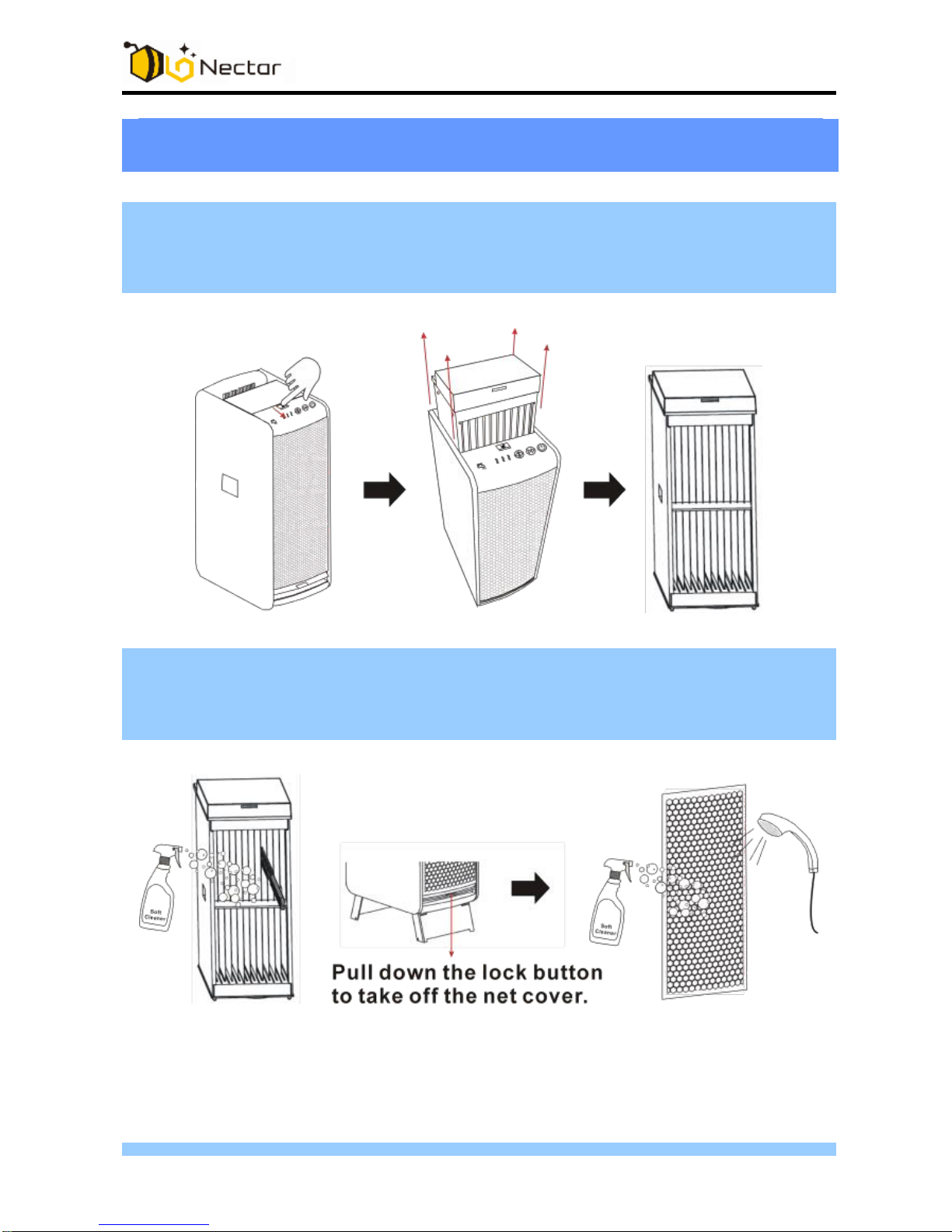

Clean and Maintenance
1. Power off the unit and pull down the lock button to
unlock and then remove the collection array from
the unit.
2. For strong or sticky oil type pollutant, using spray
soft cleaner and use cleaning tool to clean the
individual dust plate and mesh cover.

9
3. Immerse the whole collection array into water or
rinse it thoroughly under running water.
4. Dry the collection array before re-install that to the
unit. Re-install the collection array in vertical
direction down and it will locked by lock button,
HexaDuo will be resume to normal operation.

10
Note:
Continue using the unit for 2 weeks,
the lights up to alert you to clean
the collection array. Press the flashing
button for 3sec to acknowledge
the cleaning alert. Both Cleaning
indicator & cleaning mode indicators
will be turn off. Power Off the unit and
take out collection array to clean.
If the collection array is too dirty, the
unit shut down automatically and flash
all indicators for a warning.
Trouble Shooting
Not operating, no light indication
- Ensure the collection array is connected with the fan
body firmly.
- Ensure the AC adaptor is fully inserted into the AC outlet
and its plug is connected to the DC jack of the air
purifier.
- Press the Power button momentarily to observe that it
lights up.
Not operating, indicator flashing
- Check the collection array for too heavy dirt or any
clotting by hairs or fibers.
- Clean the collection array as needed and install back in
the air purifier.

11
Safety Information
Do not use outdoors.
Do not use as a toy.
Do not use damaged
adaptor or plug.
Do not repair the unit by
yourself.
Do not handle the adaptor
or device with wet hands.
Do not use in wet places.
Do not use water to clean
the unit directly.
Avoid obstructing the air
outlet with anything.
Avoid using the device
near the combustible
materials.
Put unit in a ventilated
place.

12
Specifications
Power Adaptor
Input: 100-240V, 50/60Hz
Output: DC 15V, 1.5A
CADR
180+
Suggested Room Area
450-550sq.ft
Dimensions
9.4” (W) x 5.9” (D) x 15.7” (H)
Weight
9.36 LBS
Operating Temperature
0 to 40 deg.C
Storage Temperature
-10 to 60 deg.C
Operating Humidity
Less than 90%
* The above specifications are only for reference. With more advanced development and
innovation, the specifications will be changed.
Cautions
WARNING - RISK OF ELECTRIC SHOCK –These
servicing instructions are for use by qualified personnel
only. To reduce the risk of electric shock, do not perform
any servicing other than that contained in the operating
instructions unless you are qualified to do so.
This product complies with the maximum allowable
concentration of ozone of 0.050 parts per million by
volume (ppmv) in a 24-hour period. The Health Canada
Guideline 2010 recommends that the maximum exposure
limit, based on an averaging time of 8 hours, is 0.020
ppmv or less when tested in a sealed, controlled room
approximately 30 m³.
Ce produit est conforme avec la concentration maximale
permise d’ozone de 0,050 parties par million par volume
(ppmv) pendant une période de 24 heures. La Ligne

13
directrice (2010) de Santé Canada recommande un niveau
maximal d'exposition, basé sur un moyen de 8 heures, soit
0,020 ppmv ou moins dans une chambre de teste
étanchée et contrôlée de 30 m³.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Manufactured by
Foshan Shunde Alford Electronics Co., Ltd.
Xinjiao Industrial Park, DaLing, ShunDe,
Foshan City, Guangdong Province, China
