Important information
Before using your new appliance, please read these
Instructions for Use carefully. They contain important
information concerning your Personal safety as well
as on use and care of the appliance.
The Instructions for Use apply to several versions of
this appliance. Accordingly, you may find
descriptions of individual features that do not apply
to your specific appliance.
Please keep the operating and installation
instructions in a safe place; this important
documentation may also be of use to a possible
subsequent owner.
Packaging and Your new appliance was protected by suitable
old appliances packaging while it was on its way to you. All materials
used for this purpose are environmentally friendly and
can be recycled. Please make a contribution to
protecting the environment by disposing of the
packaging appropriately.
Old appliances are not worthless rubbish.
Environmentally-conscious recycling can reclaim
valuable raw materials.
Before disposing of your old appliance, please make
sure that it is unusable, or label it with a sticker
stating „Caution, scrap”.
This appliance is labelled in accordance with
European Directive 2002/96/EG concerning used
electrical and electronic appliances (waste electrical
and electronic equipment – WEEE). The guideline
determines the framework for the return and
recycling of used appliances as applicable
throughout the EU.
Up-to-date information on how to dispose of your
old appliance and the packaging from the new one
can be obtained from your retailer or local authority.

5
Before installation
Transport damage Check the appliance after unpacking it. Do not
connect the appliance if it has been damaged in
transport.
Electrical connection The cooker may only be connected by an approved
specialist. Losses resulting from damage caused by
incorrect connection will invalidate warranty claimes.
Safety information Before using your appliance, ensure that it has been
installed properly.
This appliance is intended for domestic use only.
Only use the cooker for food preparation.
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to ensure that
they do not play with the appliance.
Hot oven Open the oven door carefully. Hot steam may escape.
Never touch the internal surfaces of the oven or the
heating elements. There is a risk of burning.
Children must be kept at a safe distance from the
appliance.
Never leave the appliance unattended when
cooking with fat or oil. They can catch fire if
overheated.
Never store combustible items in the oven.
Risk of fire. Never place flammable objects onto the
hot plates. Fire hazard!
Never place cables of electronic devices onto the hot
plates.
Never clamp leads of electrical appliances in the hot
oven door. The insulation on the leads could melt.
There is a risk of short-circuiting.

Remove all packaging remnants, e.g. polystyrene
parts, from the oven.
Caution: The extension rails heat up during oven
operation. Use special care to avoid burns when
extending the rails.
Use only heat-resistant utensils for roasting or grilling.
Repairs Incorrectly done repairs are dangerous. There is a
risk of electrocution.
Repairs may only be carried out by after-sales
service technicians who have been fully trained by
BSH.
If there is a fault, switch off the oven fuse at the fuse
box.
Call the after-sales service.
6

7
Reasons for
damage
Baking tray, aluminium foil Do not place the baking tray on the oven floor.
or dishes on the oven floor Do not cover it with aluminium foil.
Do not place dishes on the oven floor.
This will cause heat accumulation. The baking and
roasting times will no longer be correct and the
enamel will be damaged.
Slide-in accessories To avoid damage, insert slide-in accessories
carefully.
Baking paper If using hot air functions *, do not place
greaseproof paper loosely in the oven (e.g. when
heating the oven).
The hot-air fan could draw in the paper which may
damage the heater and fan.
Water in the oven Never pour water directly into a hot oven.
This could damage the enamel.
Fruit juice When baking very moist fruit cakes, do not put too
much on the baking sheet. Fruit juice dripping from
the baking sheet leaves stains that cannot be
removed.
It is recommended that you use the deeper universal
pan.
Cooling with the oven door Only leave the oven to cool with the door closed. Do
not allow anything to become trapped in the oven
door. Even if you only leave the oven door open
slightly, the fronts of adjacent units may become
damaged over time.
Very dirty oven seal If the oven seal is very dirty, the oven door will no
longer close properly when the oven is in use.
The fronts of adjacent units could be damaged.
Keep the oven seal clean.
Using the oven door as a Do not stand or sit on the oven door.
seat
Care and cleaning Do not use high-pressure cleaners or steam jets.

8
Note
The oven light switches on for every oven function. Exception: EasyClean (main oven).
Rapid heating scan be selected for circotherm or bread baking.
Main oven function Mini oven functionElectronic timer controls
Your new cooker
Here you will learn more about your new oven. The
control panel and its switches and indicators are
explained here. The heating modes and the
accessories included with your oven will be
explained here.

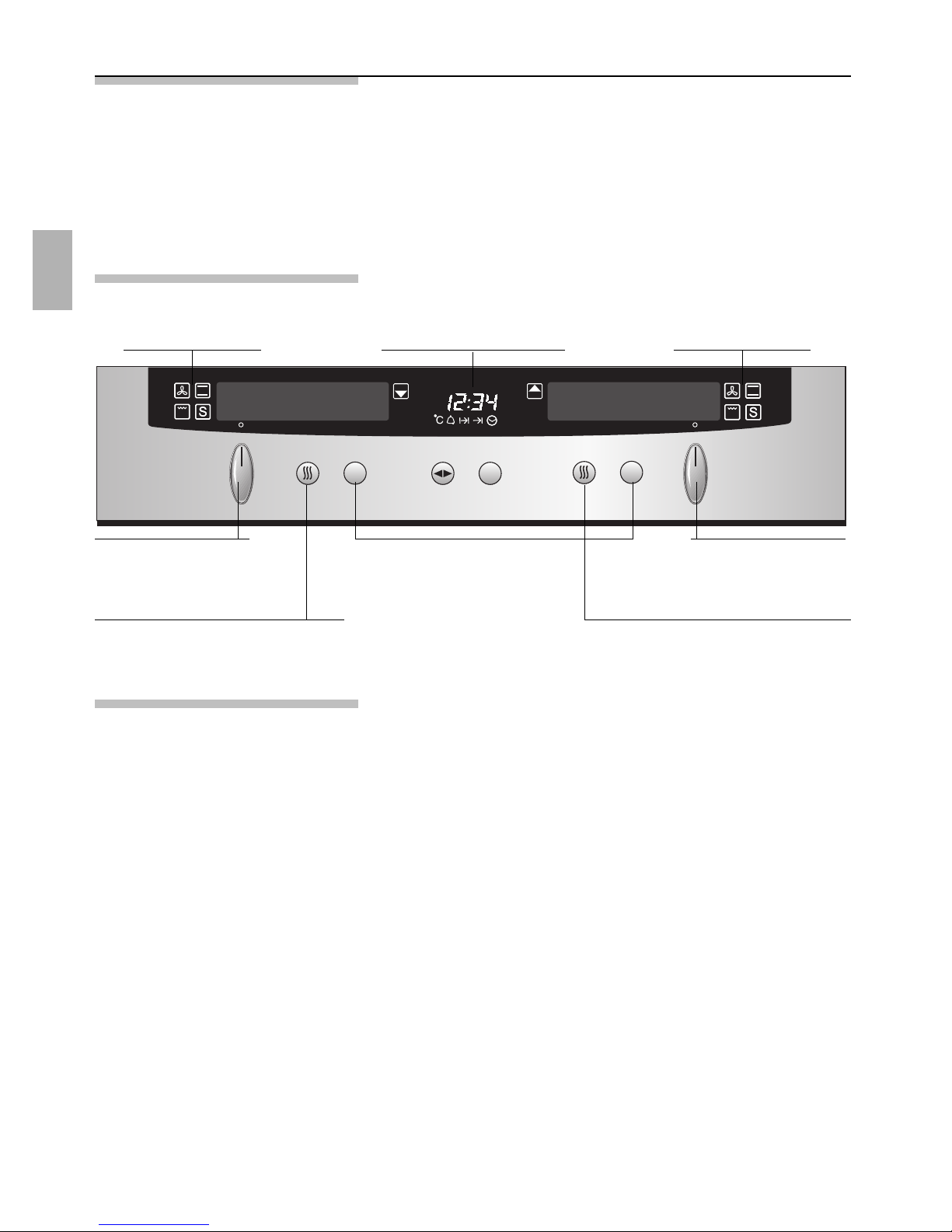

The control panel
Oven operating modes
*Hot air functions
Circotherm
Defrost
Circotherm intensive
Bread baking
) Grill functions
Large area grill
Small area grill
Circo-roasting
Oven functions
/
Conventional functions
Top/bottom heat
Bottom heat
( Special functions
Steam cooking,
for system steam cooker
(option available from specialist dealers)
Dough proving
EasyClean (main oven)
Oven Cleaning (mini oven)
Light
Function selector with
setting for prefered
temperature
Function selector with
setting for prefered
temperature
Rapid heating for Circotherm mode
and Bread baking setting
Rapid heating for Circotherm mode
and Bread baking setting
Temperature selector
with oven temperature
display

9
Press-down To engage and disengage, depress the switch,
switches making sure that it is in OFF position.
2
1

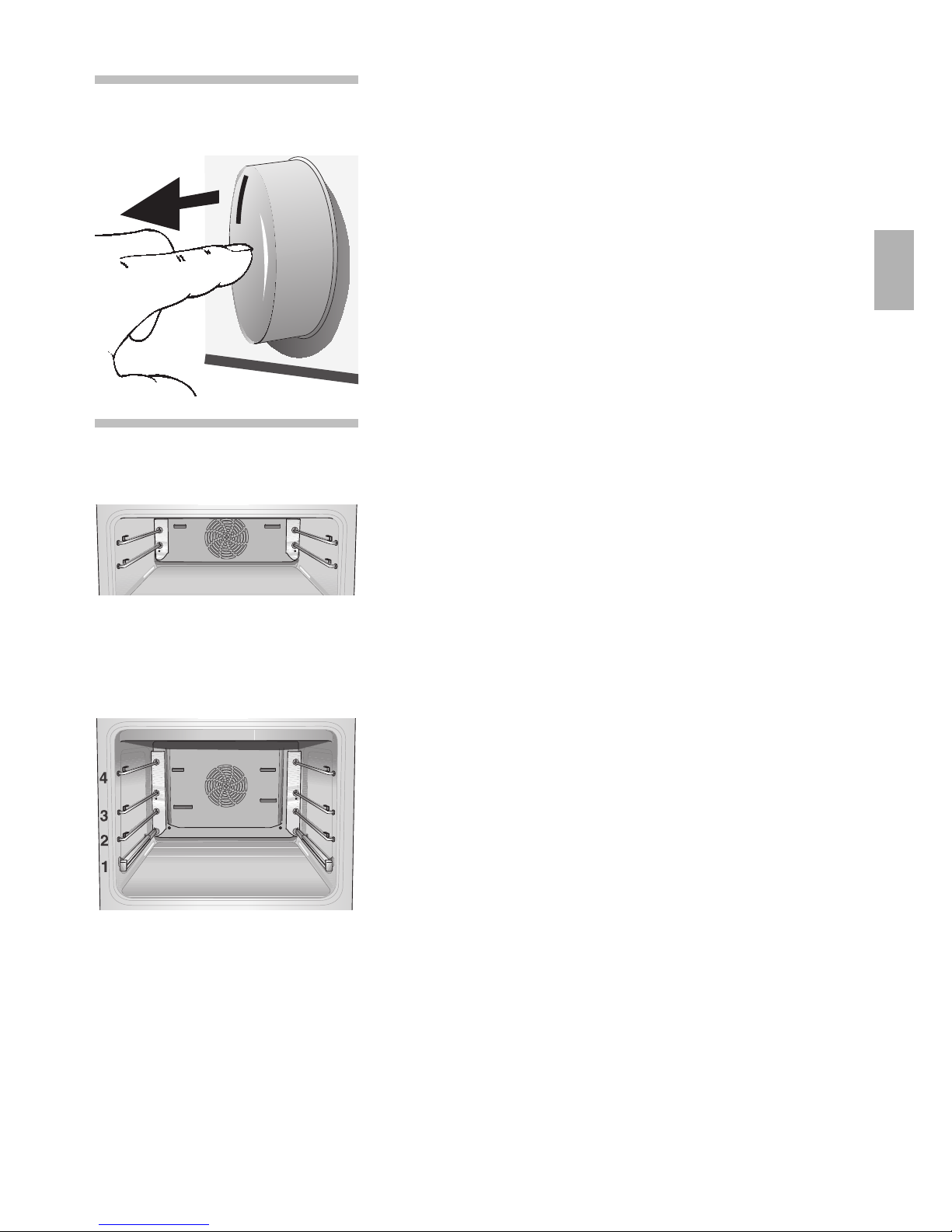

Shelf positions
Mini oven Your oven features 2 shelf positions.
The shelf positions are counted from bottom to
top.
The numbers are marked in the oven.
Main oven Your oven features 4 shelf position. The shelf
position are counted from bottom to top.
The numbers are marked in the oven.
When using hot air functions *, do not use shelf
position »2«, in order not to block air circulation.
The shelf supports and telescopic rails can be
inserted at your preferred shelf position.
The simple plug-in system provides you with flexible
and quick handling when changing the shelf
supports and telescopic rails.

10
NeffLight The oven features the additional lighting
– main oven ”NeffLight”:
Turn the function selector to the position oven light;
NeffLight will be activated.
Advantages:
–Great illumination on all levels.
–Illumination of the food from the front.
–Your eyes will not be blinded by lamps when
looking into the oven.
Door contact switch NeffLight is activated/deactivated automatically
when the oven door is opened/closed.
Saving energy
In order to save energy, you can deactivate
NeffLight. Turn the door contact switch to the
right. If you keep turning it to the right you re-activate
NeffLight.

11

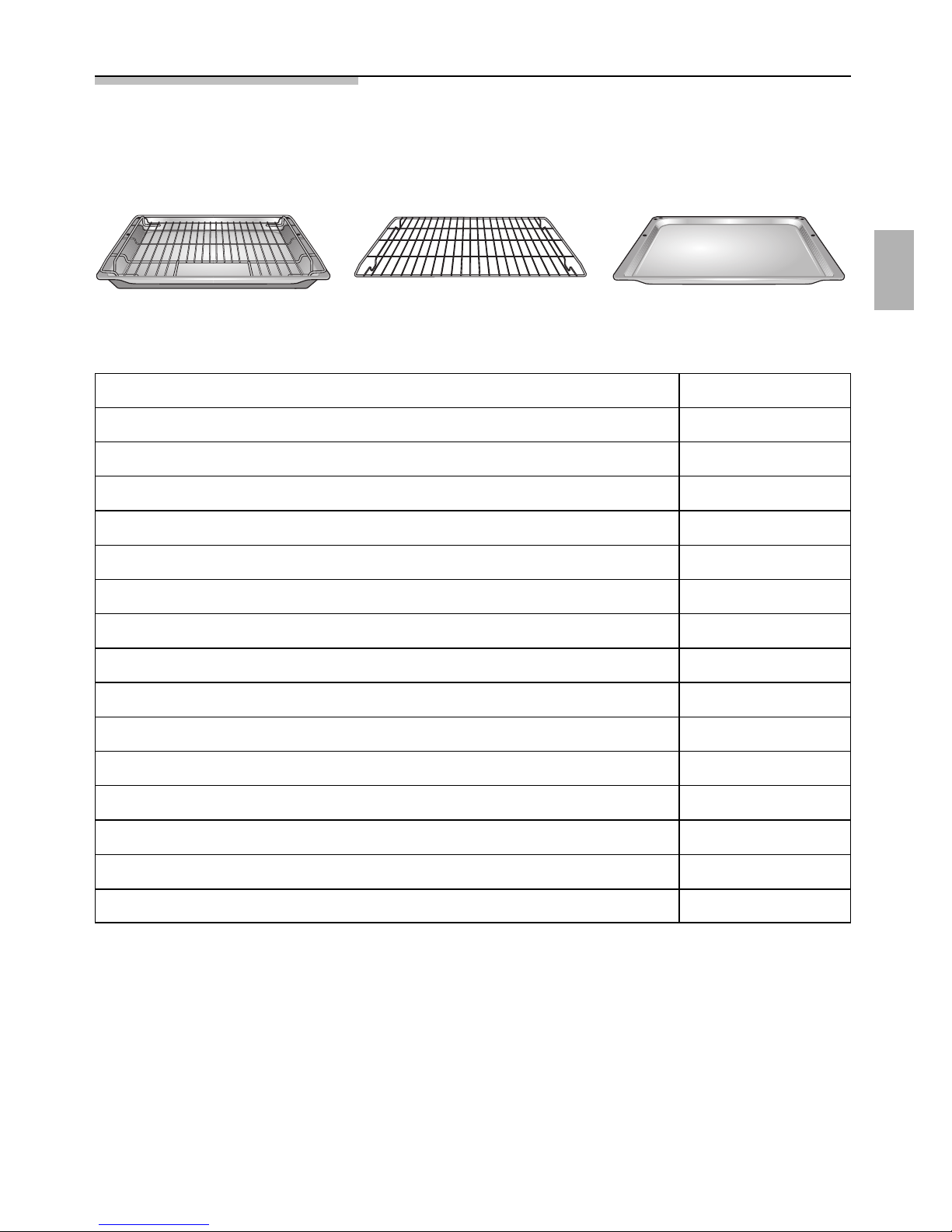

Accessories Your appliance is supplied with:
Universal pan with
wire shelf
Wire shelf 2 Baking tray, enamelled
The following accessories can be obtained from a
specialist dealer: Order no.
Note:
The baking tray or universal pan may distort while the oven is operating. This is cau-
sed by major temperature differences on the utensil. These differences may occur if
only one part of the utensil was covered or if deep-frozen food, e.g. pizza, was placed
on the utensil.
The distortion will subside again during baking, roasting or grilling.
Universal pan, non-stick
Soufflé pan
Baking tray, aluminium
Baking tray, enamelled
Baking tray, non-stick
Wire shelf, high/low
Wire shelf, close mesh
Roasting tray
Upgrade set – Single Telescope
System steam cooker
Pizza stone
Universal pan Z 1232 X0
Z 1233 X0
Glass pan Z 1262 X0
Z 1272 X0
Z 1332 X0
Z 1342 X0
Z 1343 X0
Pizza tray Z 1352 X0
Z 1432 X0
Z 1442 X0
Z 1512 X0
Z 1784 X0
N 8642 X0
Z 1912 X0
Universal oval roaster enamelled Z 9930 X0
Radio antenna for electronic clock Z 1980 X0

12
Change language The default setting for the display text is German.
There are various languages you can choose from.
Example: main oven

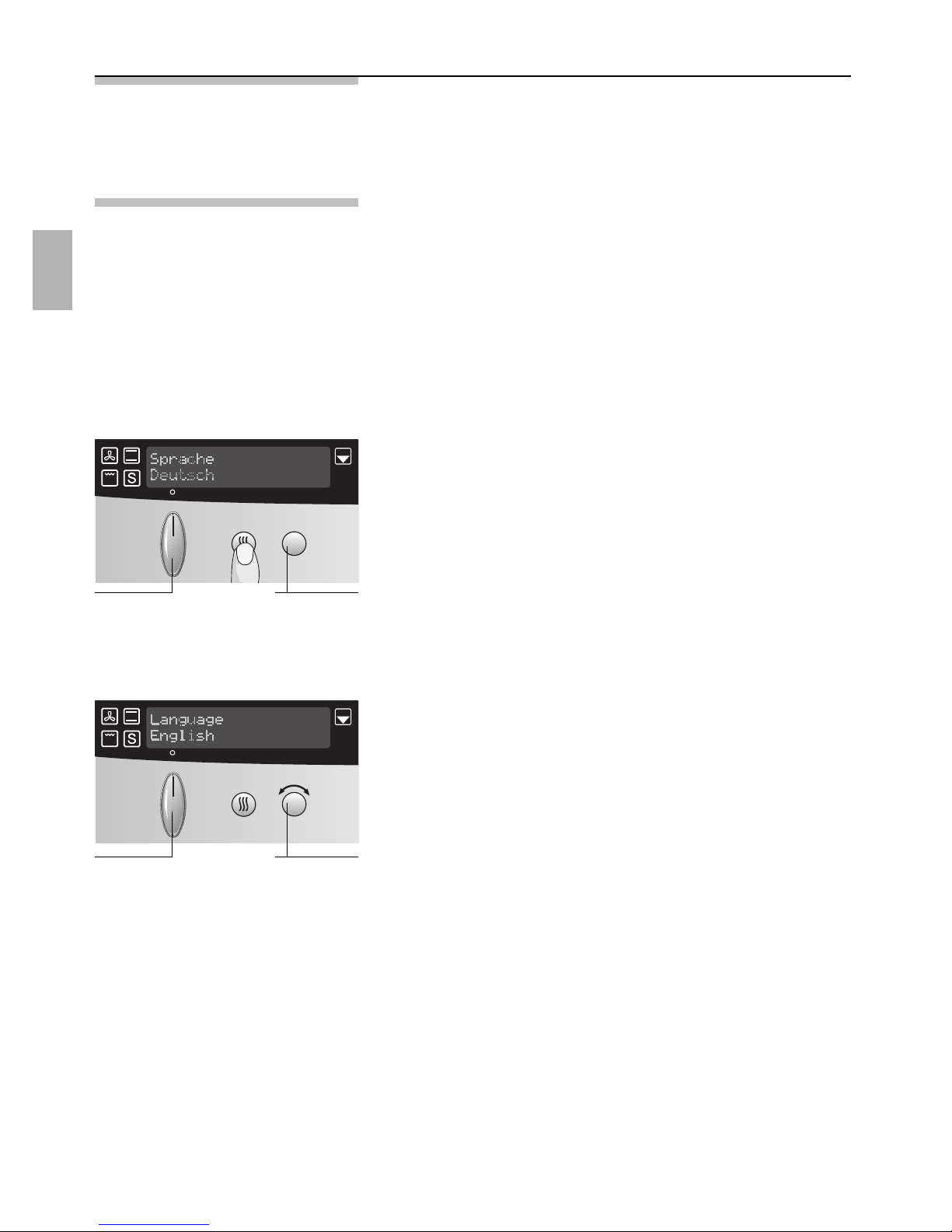

Change standard setting The function selector must be switched OFF.
1. Keep the rapid heating sbutton pressed until
Sprache Deutsch appears on the text display.
Example: english
2. Turn the temperature selector until the language
you want appears.
This language is activated after three seconds.
Before using your appliance
for the first time
Language for the
text display You can choose one of seven languages for the
the display text.
Temperature
selector
Function
selector
Function
selector
Temperature
selector

13
Preliminary Take the accessories out of the oven.
cleaning Remove all packaging remnants, e.g. polystyrene
parts, from the oven.
1. Clean the appliance exterior with a soft
moistened cloth.
2. Remove the shelf supports and telescopic rails
from the oven.
3. Clean the oven and the accessories with a hot
detergent solution.
Please observe the operating instructions
furnished with the hob.
Initial burn-in Before using the appliance for the first time, you
must set the time on the electronic clock.
Heat the empty oven for approx. 30 minutes.
Select top and bottom heat at a setting of 240° C.
Subsequent cleaning Clean the oven with a hot detergent solution.
Install the shelf supports and telescopic rails.

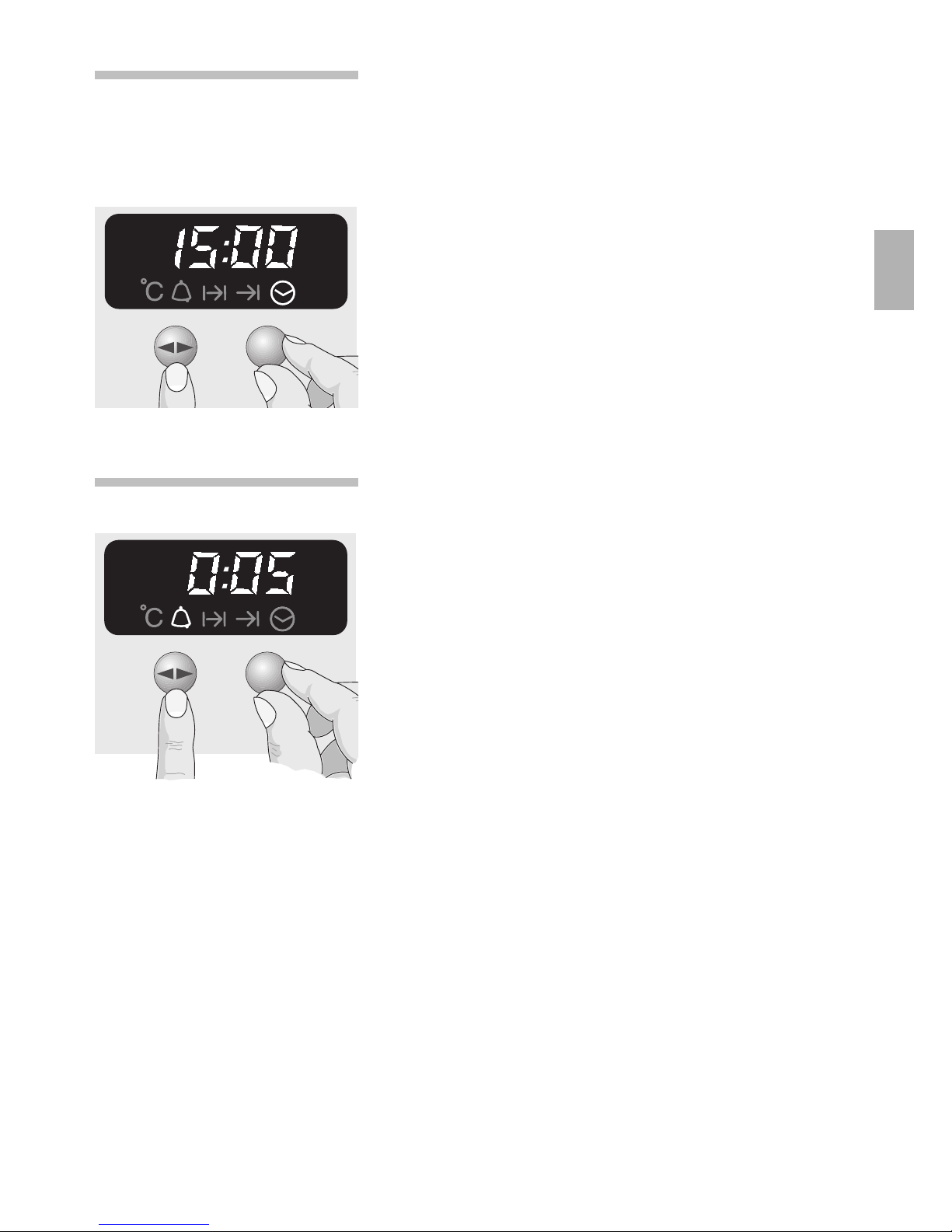

Time of day After connecting to the mains, or after a power
Setting the time failure, the display 0:00 will blink.
Press the >button and set the current time with
the rotary knob (e.g. 15:00 hours).
To correct the time, press the >button until the
symbol flashes.
Then set the time.
Note: The time cannot be corrected if an automatic
function or the timer has been set (to cancel see
”Electronic clock”).

14
Note The current oven temperature is displayed only when
the temperature is checked.
Electronic clock
The electronic clock can be operated with one hand;
after pressing the button, set the time with the rotary
knob. Settings can be made for as long as the
function display flashes (~4 seconds).
The control panel
Minute timer
Current
oven temperature
Set cooking time OFF time
Rotary knob
To engage and
disengage, depress
gently
Time of day
Function selector
Clock functions
Minute timer,Counts down minutes (max. 24 h).
Set cooking time ?Switches off automatically. You set an cooking time
for the current operating mode (max. 6 h) after which
the appliance switches off automatically.
Time preselection !Switches on and off automatically. You specify when
the oven switches on automatically and after how
long it switches off again (max. 24 h).
Time of day#To change the current time of day or reset following
a power failure.
Delete times Delete time settings: Minute timer, Set cooking timer
and Timer preselection.

15
Minute timer
1. Press the >button until the,
symbol flashes, and set the time you want
(e.g. 5minutes).
When the timer switches on, the remaining time
is displayed.
2. When the time has elapsed, a signal is emitted
and the ,symbol flashes. To stop the signal,
press the >button.
Time of day
Setting the time After connecting to the mains, or after a power
failure, the display 0:00 will blink.
Press the >button and set the current time with
the rotary knob (e.g. 15:00 hours).
To correct the time, press the >button until the
symbol flashes.
Then set the time.
Note: The time cannot be corrected if an automatic
function or the timer has been set (to cancel see
”Electronic clock”).

16
Automatic timer You can switch the oven on and off via the electronic
– main oven clock.
The most suitable dishes for automatic timing are
those which require little attention.
Set cooking time

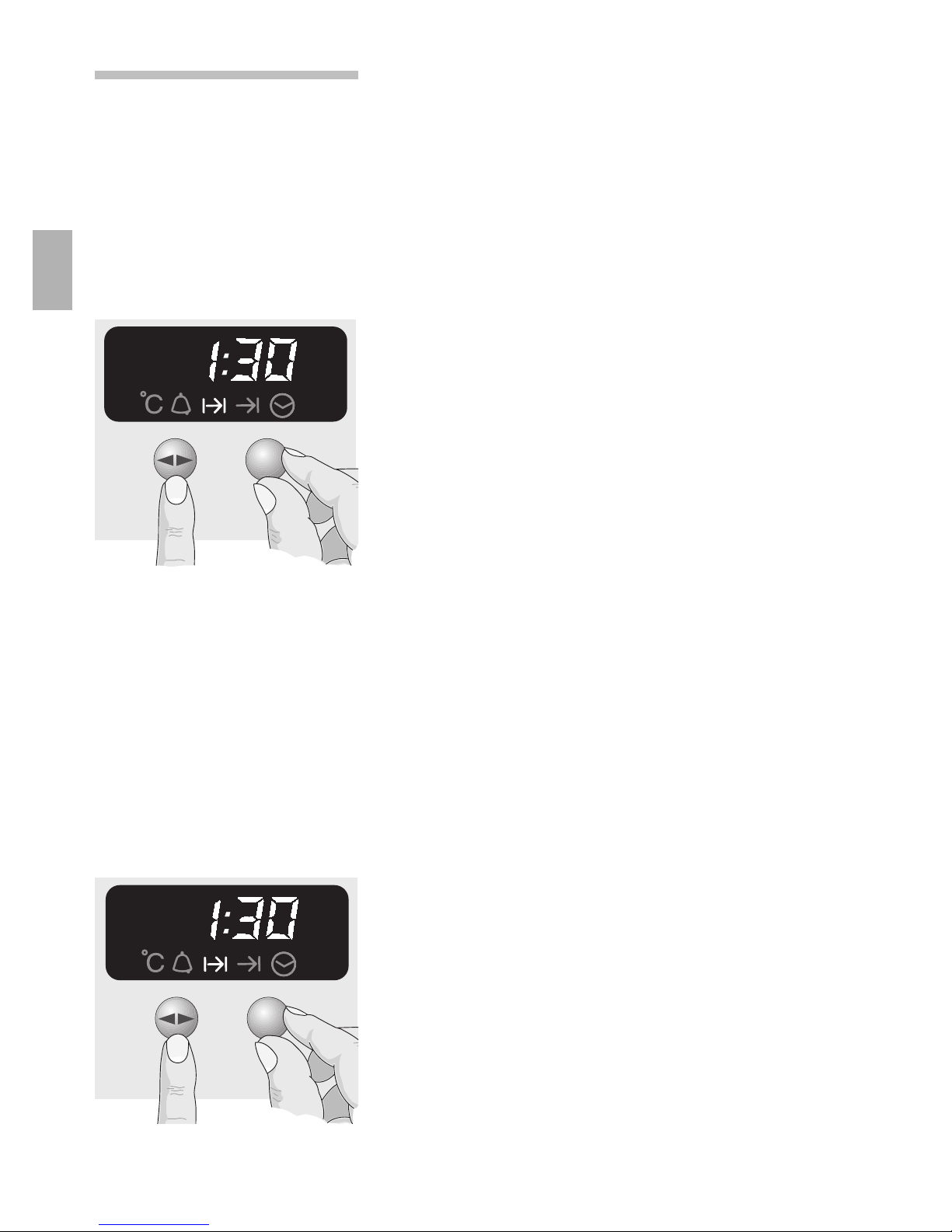

Automatic switch off If you wish to bake or roast food immediately, it is
only necessary to set the cooking time.
1. Select the operating mode and the oven
temperature.
2. Press the >button until the ?
symbol flashes and set the cooking time with the
rotary knob (example: 1hour and 30 minutes).
When the setting has been made, the current
time is displayed after approx. 4 seconds.
The ?symbol signals automatic mode.
3. When the time has elapsed (example: 1hour and
30 minutes), a signal is emitted and the !
display flashes.
The oven switches off automatically.
To stop the signal, press the >button.
4. Switch the oven off.
5. To end automatic mode, press the >button
again.

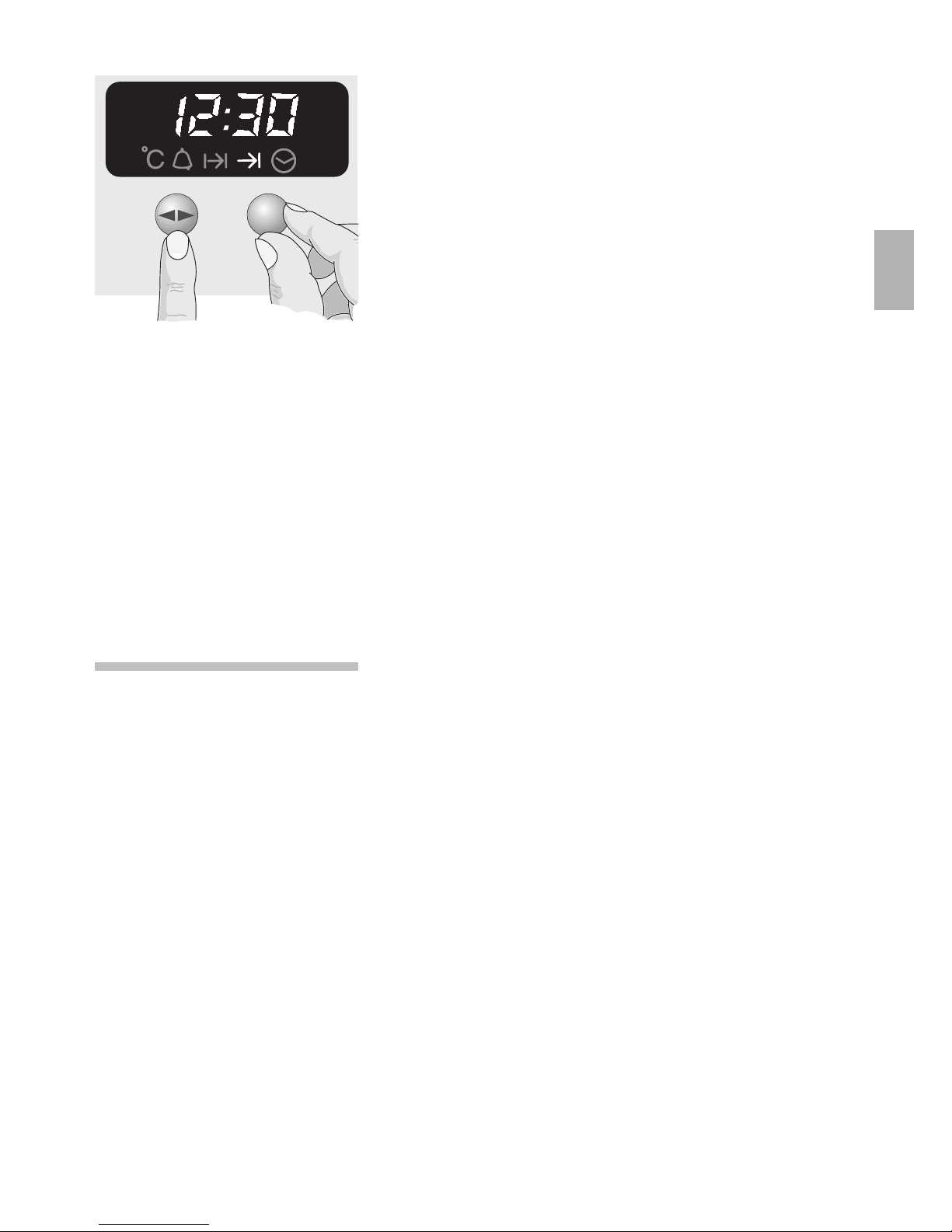

Time preselection If the food is to be baked or roasted later on, both
Automatic switch on the cooking time and OFF time must be set.
and switch off 1. Select the operating mode and the oven
temperature.
2. Press the >button until the ?
symbol flashes and set the cooking time with the
rotary knob (example: 1hour and 30 minutes).
3. Press the >button until the !symbol flashes
and set the OFF time with the rotary knob
(example: 12:30).
When the setting has been made, the current
time is displayed after approx. 4 seconds.
The !symbol signals automatic mode.

17
4. The oven is automatically switched on and off at
the preset times (e.g. 11:00 and 12:30).
5. When the time has elapsed, a signal is emitted
and the !symbol flashes. To stop the signal,
press the >button.
6. Switch the oven off.
7. To end automatic mode, press the >button.
Checking, correcting and 1. To check your settings, press the >button
cancelling settings until the symbol flashes.
2. If required, correct the settings with the rotary
knob.
3. If you want to cancel your settings, turn the set
time back to 0:00 and switch the oven off.
Note The minute timer and OFF time can be pre-
programmed up to a max. 24 hours.
The settings can be displayed at any time by
pressing the >button.
Special functions
Masking out the display 1. Press the >button for 7 seconds.
After this time the display dims, the time and the
display continue running in the background.
2. To switch on the display, briefly press the
>button.
Dimming the display Between 22.00 and 6.00 the display is automatically
dimmed.
Radio antenna optional The electronic clock can be fitted with a radio
accessory antenna (see Optional accessories).

18
Oven operating modes
Here you will receive an overview of the four oven
functions: hot air functions, conventional functions,
grill functions and special functions. The oven
functions are divided into the following operating
modes.
Hot air functions *The hot air functions include:
Circotherm A fan system located in the rear oven wall circulates
the circotherm in the oven, achieving an especially
effective heat transfer to the food being baked or
roasted.
Advantages:
–Simultaneous baking and roasting is possible in
the main oven on up to 3 shelf positions
–Baking and roasting is possible in the mini oven
on one shelf position only
–low soiling of oven interior
–shorter preheating times
–low oven temperatures
–gentle defrosting, see the Defrosting and cooking
section for adjusting the defrost setting.
Circotherm intensive The Circotherm intensive adds the bottom heat to
the circotherm.
Advantages:
–Fresh preparation with a high ”moisture content”,
e.g. pizza and juicy cakes with crisp base.
–Especially suited for frozen products, e.g. pizzas,
chips etc.
Bread baking Bread baking with hot air function.
Adjustable 180 – 220° C.
Note Rapid heat up
Can be selected for Circotherm or bread baking
setting.

19
Conventional
functions /The conventional functions include:
Top/bottom heat The food being baked or roasted is exposed to heat
(Conventional heating system) radiation from heating elements located at the top
and bottom of the oven cavity.
Baking and roasting is possible on one shelf position
only.
Advantages:
–Baking of cake with wet fillings, pizza, quiche.
Bottom heat With this setting, only the heating element at the
bottom of the oven cavity is activated.
Advantage:
–Particularly useful with dishes and baked goods
that require a distinctive bottom crust or
browning.
Use just before the end of the baking or roasting
time.

20
Grill functions )The grill functions include:
Large area grill The food being prepared is exposed to heat radiation
from the heating element at the top of the oven
cavity.
Advantages:
–Particularly effective with flat, small cuts of meat,
i.e., steaks, sausages, fish, vegetables and toast.
–the entire grilling surface heats up
–especially useful with large amounts of food.
Small area grill Advantages:
–only the centre area of the grilling surface heats
up
–especially useful with small amounts of food
–energy-saving operation.
Circo-roasting With circo-roasting, the air circulating fan and the
grilling elements are activated alternataly.
The heat generated by the grilling element is evenly
distributed in the oven cavity.
Advantage:
–Particularly effective with poultry.
