Neilsen CT3656 User manual

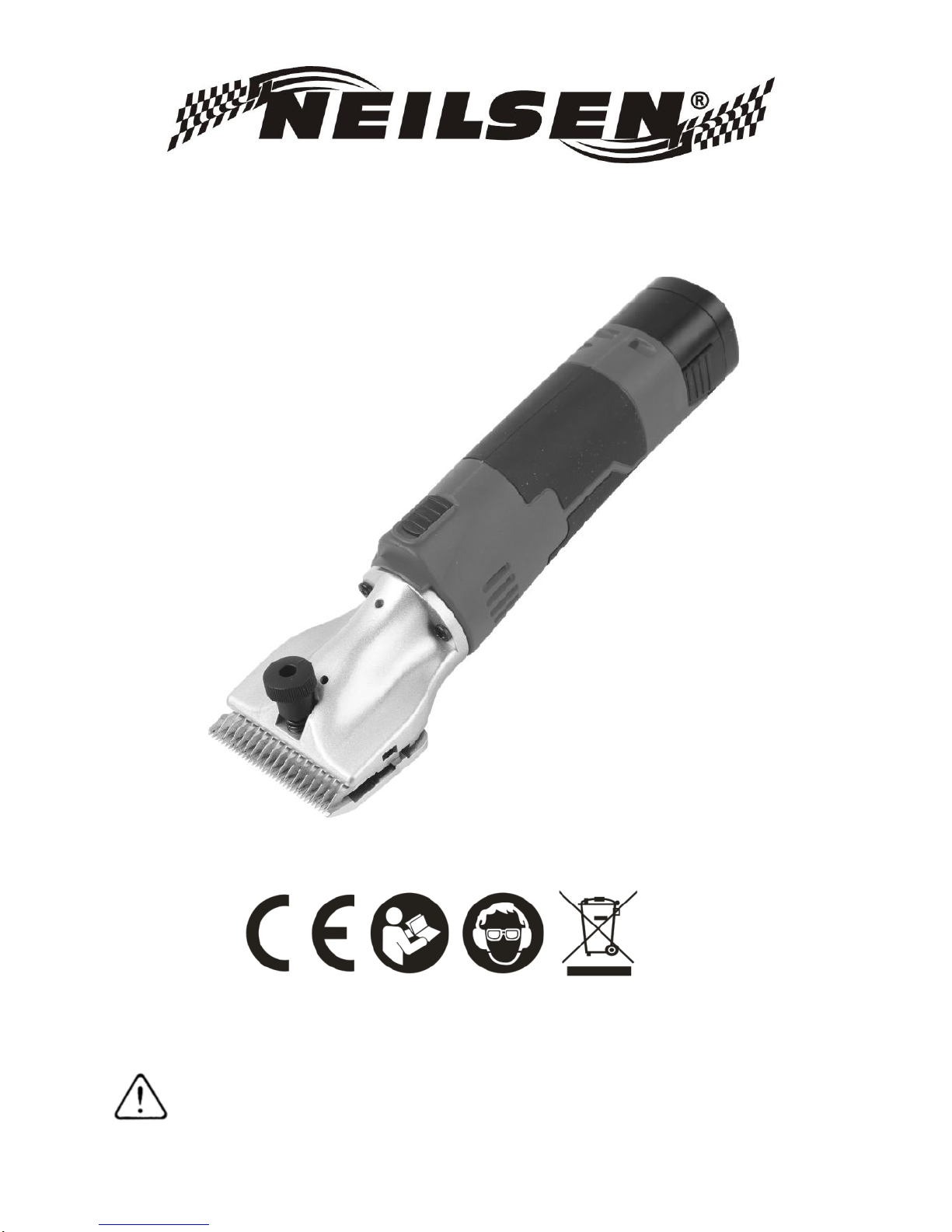

14.4V LI-ION CORDLESS CLIPPER
CT3656
ORIGINAL INSTRUCTIONS
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.

2

3
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety and health
requirements of the EC Directive based on its design and type, as brought into circulation by
us.
In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity.
Product description: 14.4V LI-ION CORDLESS CLIPPER
Model: CT3656
Applicable EC Directives:
EC Low Voltage Directive 2014/35/EU
EC Directive of Electromagnetic Compatibility 2014/30/EU
Harmonized standards
EN 60335-1, EN 60335-2-8, EN 62233
EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3,
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2018-01-01

4
1. Range of application
This CORELESS Clipper is used on cattle and horse. It can also be extended to sheep and
goats, as well as llamas, alpacas and other members of the camel family by changing the
standard shearing head. It is forbidden to use it on people.
Notice: The machine can not be operated unless the blades are fitter.
2. Technical data
2.1 Clipper
Model NO.
CT3656
Voltage
14.4V
Power output
45W
Speed
2300rpm
Amplitude of swing
6.5mm
2.2 Battery pack
Battery Specificaion
14.4V Li-ion battery cells
Voltage
14.4V
Capacity
2000mAh
Overload current
10A
Weight
213g
2.3 Charger
AC input
100-240V~ 50/60Hz
DC output
17V 1500mA
Operating
temperature
-40 to 40℃
Weight
398g
3. Safety regulations
Never connect the clipper directly to the mains supply.
It is dangerous to clip large animals , maybe we should take safety measures.
Wear protective clothing and protective glasses. Tie up long hair and remove jewellery.
Head protection is recommended when clipping large animals.
Regularly check that is the moving parts damaged.
It must be repaired by the qualified repairer and we should use genuine GTS parts to
replace it.
We should use the product strictly according to the ranges of application.
Do not use accessories other than those recommended by GTS.
Do not burn or incinerate the Battery cartridge.

5
3.1 Introduction
This section describes the mandatory safety regulations which must be carried out when we
use the clipping machine. All people should read the operating instructions before using the
product. The operating instructions must be kept safely in the storage case at all times.
3.2 Proper Use
Which the machine is used on is described in Section 2.
The security operation is as follows:
The details is at section 3 “Technical data” and is counted as mandatory operating limits and
ratings. Clipping other animals which is particular dangerous animals such as beasts of prey
and the like, counted as misusing. It maybe cause circumstances dangerous to humans. The
appliance is not intended for using by young children or infirm persons. If it is used ensure that
it not to be subjected to splashing or ingress of moisture.
3.3 Safety Principles
3.3.1 Power Connections
Only insert the plug into undamaged sockets. Defective installations can cause an electrical
shock or a short circuit. Outside sockets must be equipped with a fault current breaker.
Observe the relevant national regulations.
The leaning and servicing should only be done with the mains plug pulled out. Never let a
machine its cable plugged in if it laid around unsupervised .Keep children away from the
working area and store the machine out of their reach.
3.3.2 Servicing and Checking Requirement
Only operate the clipping machine if it is undamaged in a proper condition. Any defects to the
housing or the electrical cable should be rectified by a repair or service agent.
3.3.3 Noise emission/Personal Protective Equipment
3.3.3.1 Wear Ear Protectors
Typical sound emissions are loud when working . We recommend that ear protectors should
always be worn when it is working.
3.3.3.2 Wear Protective Goggles and Gloves
we recommend that you wear protective goggle and gloves when you want to clip something.
Personal protective equipment is to be provided by the operator.
3.3.4 Other Dangers
If a failure occurs during operation in general, not directly clipping animals any more, please
communicate with us.
3.4 Essential Operator Skills
The operation is not good enough to cause damage. So all we have to do is master the
necessary skills. However, it is essential that they are observed and carried out.
The operator must has been trained before operating the machine.
The operator must have read and understood the instructions or have been instructed by
an expert in the machine’s use and have had the potential dangers explained.

6
Children are strictly prohibited to operate the equipment.
3.5 Safety Instructions for charger & battery cartridge
1. SAVE THESE INSTRUCTIONS - This manual contains important safety and operating
instructions for battery charger.
2. Before using battery charger, please read all instructions and cautionary markings on
battery charger、battery、product and how to use the battery.
3. CAUTION - The charge can only use GTS rechargeable batteries which has been marked on
the charger label to reduce risk of injury . Other types of batteries may burst causing personal
injury and damage.
4. Do not expose charger to rain or snow.
5. Do not use an attachment which is not recommended or sold by the battery charger
manufacturer，it may give rise to a risk of fire, electric shock, or injury to ours.
6.Pulled by using plug rather than using cord when you want to disconnect the charger to
reduce risk of damage of the electric plug and cord.
7. Make sure that cord is not stepped on, tripped over, otherwise it causes unnecessary
damage.
8. Do not operate the charger that cord or plug has been damaged and replace them
immediately.
9.Do not operate charger if it has got a sharp blow, been dropped or damaged in any way.
Please take it to a qualified serviceman.
10. Do not disassemble charger or battery cartridge. Take it to a qualified serviceman when it
need to be required. Incorrect reassembly may cause a risk of electric shock or fire.
11. Please switch the machine off to reduce risk of electric shock, unplug charger from outlet
before attempting any maintenance or cleaning.
12. The battery charger is not operated by young children or infirm persons without supervision.
13. If it has been taken too much time to be operated , you should stop operating immediately. It
may cause a risk of overheating, burn and even an explosion.
14. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention
right away. It may result in loss of your eyesight.
3.6 Additional safety rules for charger & battery cartridge
1. Do not charge when temperature is BELOW -40°C or ABOVE 40°C.
2. Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals when the battery cartridge is not used.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins,
etc.
(3) Do not expose battery cartridge to water or rain.A battery short can cause a large current
flow, overheating, possible burnt and even broken down.
6. Do not store the tool and Battery Cartridge in locations where the temperature may reach or

7
exceed 50°C.
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is completely worn
out. The battery cartridge will explode in a fire.
8. Be careful not to drop, shake or strike battery.
9. Do not pack anything in a box or container. The battery should be placed in a well ventilated
area during charging.
4.Operation
4.1 Caution of operation
It is dangerous if the electrical equipment is used improperly, especially stockbreeding
equipment! So you should observe the following accident-prevention measures before using it:
The mains voltage must be the same as that shows on the nameplate. The charger must
be connected to The AC Supply.
Avoid to contact with the moving shearing blades.
Even if the machine is switched off, We do not handle at the area of the clipping blades
as long as the machine is connected to a battery cartridge. We should cut off the power supply
before changing to the shearing blades/shearing head.
Avoid to touch any machine which is contacted with any liquids. Never clip wet animals.
Any liquid which has got into the machine will lower the electrical insulation. The electric shock
or short circuit is dangerous. So we should clean the machine with the cleaning brush and dry
it.
An electric cable lays at the ground .It is easy to cause danger. Before charging, the cable
is laid out carefully and safely. We should avoid kinds of the power cable and prevent it
becoming entangled. We should prevent the animals standing on or walking across the power
cable in case of touch it. The power cable should not be wrapped around the machine and
keep it away from the hot surfaces and objects. Maybe it cause damages of the insulation. The
cable should keep regularly checked from that it is damaged.
Switch the machine to off (Figure 1) before replacing the battery cartridge.
Wear professional clothes. Do not wear any loose clothing or items of jewellery which
could get caught up in moving machine parts. We would recommend in the strongest terms that
protective goggles and ear protectors should be worn.
Do not insert any objects into the machine.
The Noise from the machine can impact on animals. The serious can cause a result of
being kicked by an animal or being crushed by its body weight .We should tether the animal
securely, approach it and switch the machine on within the animals’ range of vision.
Animals should be clipped if the unauthorized person have been excluded from the
clipping area.
Only clip in well-ventilated spaces (dust) and never clip near objects or gases.
Danger of blockage! The machine should not be operated unless the blades are fitted.
These safety notes must be complied in any cases .

8
4.2 Adjust blades pressure with the adjustment cap
Before putting into operation, make adjustment as follows:
Before clipping:
With the machine switched off, we should tighten the adjustment cap (Figure 2, part 5) until it
can clip hair smoothly(Figure 2).
During clipping
Pay attention to that the pressure of the blade should not be set to a value that is too high,
otherwise the clipped hair may gather in the blade. If the adjustment cap is not tightened in
the beginning of operation, clipping will be laborious or even cannot be carried out.
Set the blade pressure properly:
If the adjustment cap is too tight, the blade pressure will be too high which will result in fast
blade heating, fast wear and loud noise. In this case, the adjustment cap should be unscrewed
slowly until the noise reaches a normal level and proper clipping result is achieved. During
unscrewing, feel the pressure and set pressure properly according to need.
Hair can be gathered between the clipper blades if they are insufficiently tensioned at the
beginning of clipping. It is harmful to the further clipping progress. If this happens, the clipper
blades must be disassembled, cleaned, oiled and re-fitted.
The clipping system works with much less pressure in comparision to traditional animal clipping
machines.
4.3 Lubrication
Before and During clipping
A thin layer of oil on the upper and lower blades (Figure 3) is essential for clipping well and so
as to increasing the life of the machine and the clipper blades. All other moving pares should be
well-oiled at the clipping head. Place a few drips oil on the clipper blades and pour some into
the lubricating holes which lies on the clipper head (Figure 3).
It cannot meet the ISO VG15 specification unless using our the special oil or the paraffin oil.
This oil is nontoxic and produces no irritation on contact with the skin or the mucous
membranes .This paraffin oil degrades to 20% after 21 days.
Is the oil good impacts on the clipping result which is satisfied . The clipper blades which was
oiled by improper oil will overheat. It will reduced the life of the clipping blade.
The clipping blades and clipper head must be adequately lubricated at least every 15 minutes
so that they cannot be dried out.
4.4 Switching On/Off
There are two positions on the slide switch (Figure 1).
Position on: Machine switched on
Position off: Machine switched off
We always use the slide switch (Figure 1) when it need to be switched the machine on or off.
Check the switch position before replace battery cartridge.

9
4.5 Replace battery cartridge
1. Please switch off the tool before inserting or removing the battery cartridge.
2. Remove the battery cartridge from the clipper by pressing the buttons on both sides of the
battery cartridge. (Figure 4)
3. Insert the battery cartridge, and push to the end until it locks in place with a little click. If not, it
may accidentally fall out of the tool, causing injury to you or someone around you.
4. Do not use force when you insert the battery cartridge. If the battery cartridge does not slide
easily, it is not inserted correctly.
5. Battery cartridge is automatically stopped when the output power is low ( output voltage is
less than 12V).
Notice:
We should sure that the tool is switched off and the battery cartridge is removed before
adjusting or checking function on the tool.
4.6 Charging
1. Plug the battery charger into the proper AC voltage source. The charging light will flash as
green color.
2. Take off battery cartridge form clipper body , put it into Battery Charger.
3. As soon as battery cartridge get into Battery Charger the red light of battery charger lighting
4. When the light color transform from red to green, the charging cycle is complete.
5. The battery charger will transform into its “trickle charge (maintenance charge)” mode when
the battery content is full.
6. After charging, please push out the charger from the power source.
7. The full charge need to last approximately 2 hours.
Notice:
When you charge a new battery cartridge or a battery cartridge which has not been used
for a long period of time, it may not accept a full charge. This is a normal condition and it does
not indicate a problem. You can recharge the battery cartridge fully after discharging it
completely and recharging a couple of times.
If you charge a battery cartridge from a just operated tool or a battery cartridge which has
been laid in a location exposed to direct sunlight or heated for a long time, the charging light
may flash in red color. If this condition occurs, please you wait for a while. Please charge until
the battery cartridge cools. The battery cartridge will cool faster if you remove the battery
cartridge from the battery charger.
If the charging light flashes alternately in green and red color, charging is not possible.
Maybe the terminals on the charger or battery cartridge are clogged with dust or the battery
cartridge is worn out or damaged.
4.7 Malfunctions
Please refer to the list of malfunction analysis which is section 7 “Repairs” for the rectification of
malfunctions.

10
5. Daily care and maintence
Disconnect the power supply before starting any servicing work . Remove the battery cartridge.
Do not handle the area round the clipper blades as long as the machine is still connected to a
power source even if the machine switched off . We always firstly disconnect the power supply
whenever working on the clipper blades or clipper head .
5.1 Cleaning
cleaning the clipper head and clipper blades
After clipping, remove all oil from the machine by rubbing it down with a dry cloth. Clean the
clipper head and clipper blades with a dry brush .Then oil the parts to prevent rusting, even if
there is a little rust spots on the blades ，it can adversely affect clipping or making it completely
impossible.
5.2 Fitting the clipper blade
Apair of clipper blades consists of a lower blade (Figure 6, part 16)and an upper blade (Figure
6, part 15).When the blades which is adjusted should be taken to ensure that the correct
surfaces come to rest each other. The blades are fitted as follows:
Loosen the adjustment cap and ensure that the new clipper blades are clean and the ground
surfaces are free of dirt. Then put on the blades and tighten the adjustment cap(Figure 2 ) until
it can clip smoothly. If not，we only to change the blades.
After you adjust the blades smoothly ,we should place a few drops of oil on the ground surface
the blades and lubrication hole (Figure3).
5.3 Resharpening the clipper blades
Only work with sharp clipping blades which clip horsehair smoothly. Replace blunt blades or
those with missing teeth. Do not personally resharpen the clipper blades. It can only be done
with a special machine and by someone who has been trained.
5.4 Storing the clipping machine
Lay the machine in a dry place .Do not switch the machine on if you suspect that some liquid
has got into it. There is a risk of an electric shock or short circuit. Please you hand the clipping
machine into a service centre. We should form a good habit to store the machine.

11
6. Malfunction analysis
If there is something you do not understand ,please contact the service center.
MALFUNCTION
CAUSE
RECTIFICATION
No charging indicator.
Not connect with power supply.
Plug into power supply.
Indicator damaged.
It is necessary to repair it if you could still charge the
clipper normally .If you really need to repair this
problem, please return to service center.
Low power (no use for long
time).
Please charge battery continuously for a few minutes,
and it shall work normally.
Charging circuit defect.
Back to service center.
Charging for too long
time.
Not use the original adaptor
attached.
Use the original adaptor for charging.
Reach the life time of battery.
Back to service center.
Charging circuit defect.
Back to service center.
Does not work when
you turn it on.
Low power level of the battery.
Charge battery with the adaptor and power cord.
Power switch damaged .
Back to service center.
Circuit defect.
Back to service center.
Noisy
Low lubrication of the cutting.
Charge battery with the adaptor and power cord.
Hair twisted on cutting head.
Clean the cutting head and clipper.
The clipper head is
too hot.
The pressure on the blades is
too high.
Reduce pressure on blades with the adjustment cap.
There is no lubricating oil on
blades.
Add lubricating oil.
There is no lubricating oil to be
added l at the driving wheel.
Add lubricating oil to the lubrication port on the clipper
head .
Cutting performance
is not good.
Clipper blades are rush out
Have upper and lower blade resharpened by the
service centre.
Clipper blades have not been
correctly contacted.
Clipper blades are not oiled.
Oil clipper blades every 15 minutes.
Clipping tension too low.
Add pressure by tightening the adjustment cap
(Figure 3).
The animal’s hair is wet.
Only clip when dry.
Other
Possible malfunction.
Have clipper checked by a qualifies repairer.

12
7. Environmental protection and disposal
The owner has a duty to disuse of the clipper blades as well as of the clipping machine properly
at the end of service life. Please observe your relevant national regulations.
The only way to dispose of a NEILSEN battery is to recycle it. The law prohibits any other
method of disposal.
8. SYMBOLS
The following symbols are used in this manual and/or on the machine:
In accordance with
essential safety standards
of applicable European
directives
Warning!
Read the instruction
manual
Warning!
Wear ear defenders.
Wear googles.
WEEE
Do not dispose of Waste
Electrical
& Electronic Equipment
in with
domestic rubbish
9. Illustration
Figure1 Figure 2
Figure 3

13
Figure 4
Figure 5
Figure 6
Figure 7

14
10. Product list
1
Batterry Pack
2
Body
3
Clipper Head
4
Screw
Clipper Head （Include Clipping Blades）
5
Adjustment Cap
6
Regulating Spring
7
Aluminum Head
8
Axis Of Deflection
9
Deflection Collar
10
Gear
11
Jump Ring
12
Bow Riece
13
Screw
14
Washer
15
Upper Blade
16
Bottom Blade
17
Regulation Screw
18
Slider
19
Driving Wheel
Body
20
Left body
21
Wire
22
Magnet Ring
23
Wire
24
Capacitance
25
Capacitance
26
Switch
27
EVA
28
Switch Push Button
29
Small Gear
30
Motor
31
Screw
32
Screw
33
Right Body
34
Mesh Enclosure
35
Wire
36
Connector Piece
37
Contact Chip
38
Screw
Charger Set
39
Screw
40
Charging Bottom
41
PCB
42
Charger Base
43
Power Cord

15

16
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in china
