Nelson 75 User manual

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
3
 = Indicates that the gun connection options are available on the gun lower unit (for more detail see corresponding footnote key below).
The dimensions of the connections and the hole threads are shown on the next page.
Ø= Indicates that the connection is not available on the gun
11
11
1The ANSI flange sizes which are available are (2”2”
2”2”
2” for model 75 & 100 guns); (3”3”
3”3”
3” for model 150 guns) and (4”4”
4”4”
4” for model 200 guns). The bolts which
are needed for connecting the ANSI flanged gun must have thread 1/2-13 UNC-2B. This thread is tapped into the holes which are used for
connection of the flange to the riser flange. To get the 4” ANSI flange on the F200, an adapter is required (part #10565). The (8) flange holes are
threaded 1/2-13 UNC-2B. The adapter (part #10565) is sold separately. Bolts for the (8) threaded holes are not shipped with the flange adapter.
22
22
2The Nelson Flange is unique to NIC. The gun can connect to pipe thread by using an adapter (flange-to-thread adapter). These add-on adapters
are available for sizes (2”2”
2”2”
2” FNPT part #6860, FBSP part #7050); (2.5”2.5”
2.5”2.5”
2.5” FNPT part #7040, FBSP part #7051) All adapters are sold separately. The
Nelson flange can also mate to the 2” QC valve key. The bolts which are needed for connecting the Nelson flange must have thread 3.12-18
UNC-2B. This thread is tapped into the holes. Bolts used for the threaded flange holes (6) are included and shipped with the gun.
33
33
3The bolts and nuts are included and shipped with the gun for connecting through the flange holes (6 bolts and nuts).
44
44
4The bolts (no nuts required) are included and shipped with the gun for the metric threaded flange holes (6 bolts).
55
55
5Thread connection for these guns are comprised of the Nelson flange gun plus an add-on adapter (flange-to-thread adapter). Add-on
adapters are available in sizes (3”3”
3”3”
3” FNPT part #8403-001, FBSP part #8820); (3.5”3.5”
3.5”3.5”
3.5” FNPT part #6621, FBSP part #6621-001) and (4”4”
4”4”
4” FNPT
part #9127). All these ‘flange-to-thread adapters’ are sold separately.

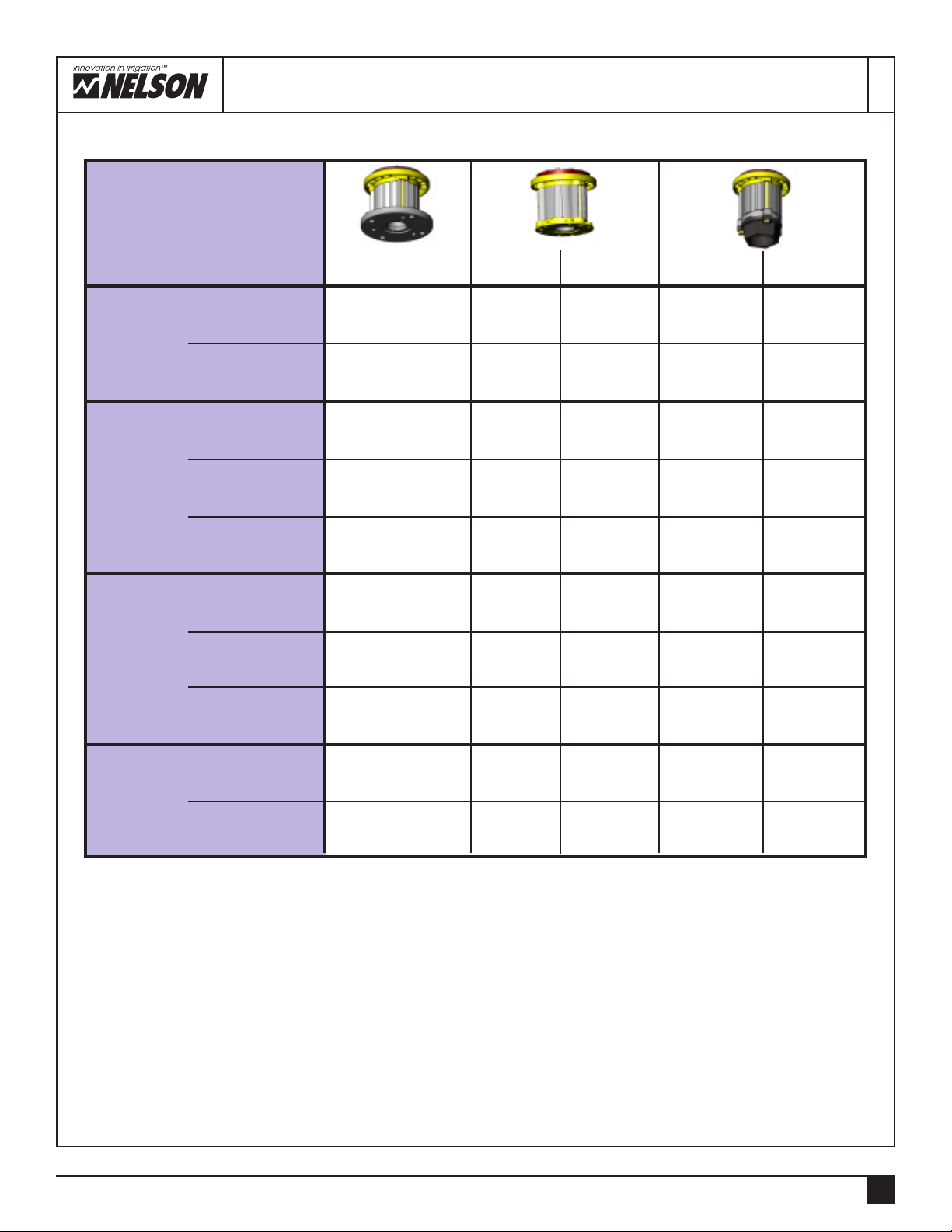

GUN CONNECTION OPTIONS
2/05
(SEE FOOTNOTE NUMBER FOR INFORMATION ON THESE GUN CONNECTIONS)
100
150
200
F100
F150
F200
SR100
SRA150
SR200
SR150
SRNV100
GUN MODEL
SR75
75


2

2









ØØØ

430gun
only

34
4

3
ØØ
Ø
5
5
2
5 


3
4
sizes
1.5” 2”
size
2” 2.5”
size
2” 2.5”
size
2”
size
2”
size
2”
size
2”
sizes
1.5” 2”
5
5
5 5
4

ANSI
FLANGE

F75 sizes
1.5” 2” 

2sizes
1.5” 2”
1NELSON
FLANGE
METRIC
FLANGE
FBSP
THREAD
FNPT
THREAD

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
4
GUN CONNECTION TEMPLATES
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
6

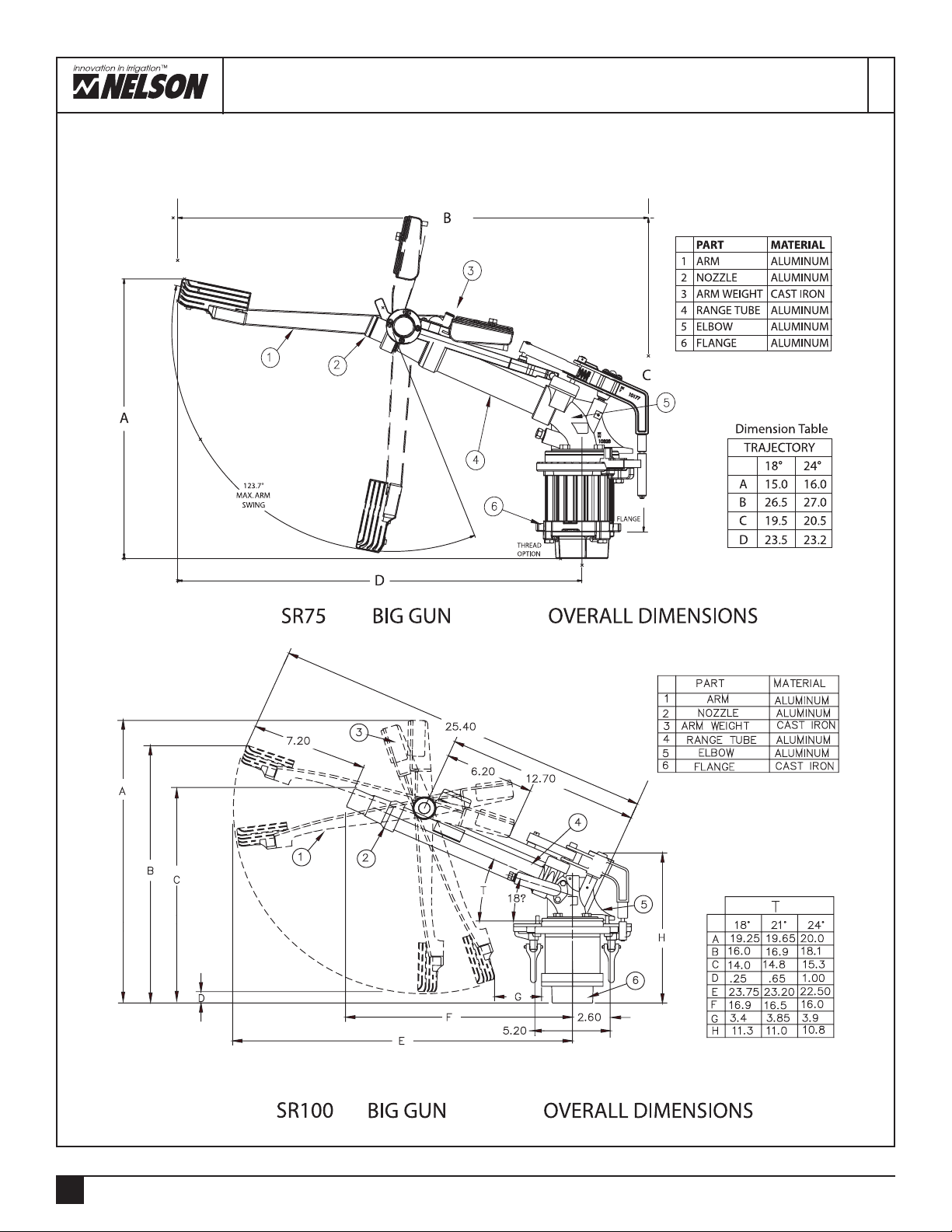

75 SERIES BIG GUN SPECIFICATION
1. GENERAL:
The 75 Series Nelson Big Gun®sprinklers (models SR75 and F75) shall be capable of operating
in a pressure range from 40 PSI through 80 PSI. The nozzle size range is from .4” through 0.7”
for taper bore nozzles. Optional trajectory angles on the SR75 and the F75 shall be 18º and
24º. The gun shall be provided with optional connections at the base consisting of Nelson
Flange, Metric Flange, ANSI/DIN Flange types, 1 ½” 2” or 2 ½” Female NPT cast iron flange
adapters shall be optional accessories.
2. DESIGN
1. The sprinkler bodysprinkler body
sprinkler bodysprinkler body
sprinkler body range tube and drive arm shall be of aluminum construction. The range
tube shall have non-clog straightener vanes extended the full length of the range tube to reduce
turbulence and provide greater diameter of coverage. All wear points or strike areas shall be
constructed of stainless steel or polyurethane for longer life.
2. The drive armdrive arm
drive armdrive arm
drive arm shall be equipped with ball bearings at the pivot point and shall have a
replaceable drive vane. Part circle operation shall be accomplished with dual drive and reverse
drive vane. The ball bearings shall be lubricated and sealed to eliminate the need of grease
zirks and frequent maintenance. The drive spoon shall be vaned for reliable drive power. The
drive arm weight shall be adjustable to increase or decrease the drive power if desired.
3. The lower bearinglower bearing
lower bearinglower bearing
lower bearing assembly shall be constructed with an aluminum upper housing and
bronze lower housing and shall be equipped with dual ball bearing for ease of rotation and
less wear. The bearing assembly shall be sealed and lubricated eliminating the need for grease
zirks and frequent maintenance.
4. The braking systembraking system
braking systembraking system
braking system shall be a constant friction disc brake. It shall have pre-load brake
springs for proper rotation on uneven terrain. It shall be fully shielded to prevent contamination
from outside sources.
5. The part circlepart circle
part circlepart circle
part circle models shall be equipped with engagement and disengagement stops that
are easily set. They shall be provided with easily accessible bolt heads or flex-handle stops as
desired.
6. The sprinkler nozzle optionsnozzle options
nozzle optionsnozzle options
nozzle options shall be available with taper ring nozzles. All nozzle sizes shall
be interchangeable without any adjustment required on the Big Gun®sprinkler.
75 SERIES BIG GUN®SPECIFICATION
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
7
100 SERIES BIG GUN SPECIFICATION
1. GENERAL:
The 100 Series Nelson Big Gun®sprinklers (models SR100 and F100) shall be capable of
operating in a pressure range from 40 PSI through 110 PSI. The nozzle size range is from .5”
through 1.0” for taper bore nozzles, from .71 through .96 for ring type nozzles and from
16mm through 24mm for taper-ring nozzles. Optional trajectory angles on the SR100 and the
F100 shall be 18º 21º 24º and 43º. Materials used shall be acceptable for most irrigation
water conditions. All exposed metal parts shall be stainless steel, brass, or aluminum. Welds
and seals shall be air pressure checked at the factory to assure against water leakage. The gun
shall be provided with optional connections at the base consisting of Nelson Flange, Metric
Flange, ANSI/DIN Flange type, 2” or 2 ½” Female NPT cast iron flange adapters shall be
optional accessories.
2. DESIGN
1. The sprinkler bodysprinkler body
sprinkler bodysprinkler body
sprinkler body range tube and drive arm shall be of aluminum construction. The range
tube shall have non-clog straightener vanes extended the full length of the range tube to
reduce turbulence and provide greater diameter of coverage. All wear points or strike areas
shall be constructed of stainless steel or polyurethane for longer life.
2. The drive armdrive arm
drive armdrive arm
drive arm shall be equipped with ball bearings at the pivot point and shall have a
replaceable vaned self-cleaning drive vane. Self adjusting drive vane to give consistent
drive and arm rate in full operating range. Part circle operation shall be accomplished with
dual drive and reverse drive vane. The ball bearings shall be lubricated and sealed to
eliminate the need of grease zirks and frequent maintenance. The drive spoon shall be
vaned for reliable drive power. The drive arm weight shall be adjustable to increase or
decrease the drive power if desired.
3. The lower bearinglower bearing
lower bearinglower bearing
lower bearing assembly shall be constructed with an aluminum housing and shall be
equipped with dual ball bearing for ease of rotation and less wear. The bearing assembly
shall be sealed and lubricated eliminating the need for grease zirks and frequent maintenance.
4. The braking systembraking system
braking systembraking system
braking system shall be a constant friction disc brake of Delrin plastic material on
brass. It shall have pre-load brake springs for proper rotation on uneven terrain. It shall be
fully shielded to prevent contamination from outside sources.
5. The part circlepart circle
part circlepart circle
part circle models shall be equipped with precise arc control stops that are easily set.
They shall be provided with easily accessible bolt heads or flex-handle stops as desired.
6. The sprinkler nozzle optionsnozzle options
nozzle optionsnozzle options
nozzle options shall be available with taper bore, ring or taper-ring type
nozzles. All nozzle types shall be interchangeable without any adjustment required on the
Big Gun®sprinkler.
100 SERIES BIG GUN®SPECIFICATION
2/05
4
100 SERIES BIG GUN®SPECIFICATION
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
8

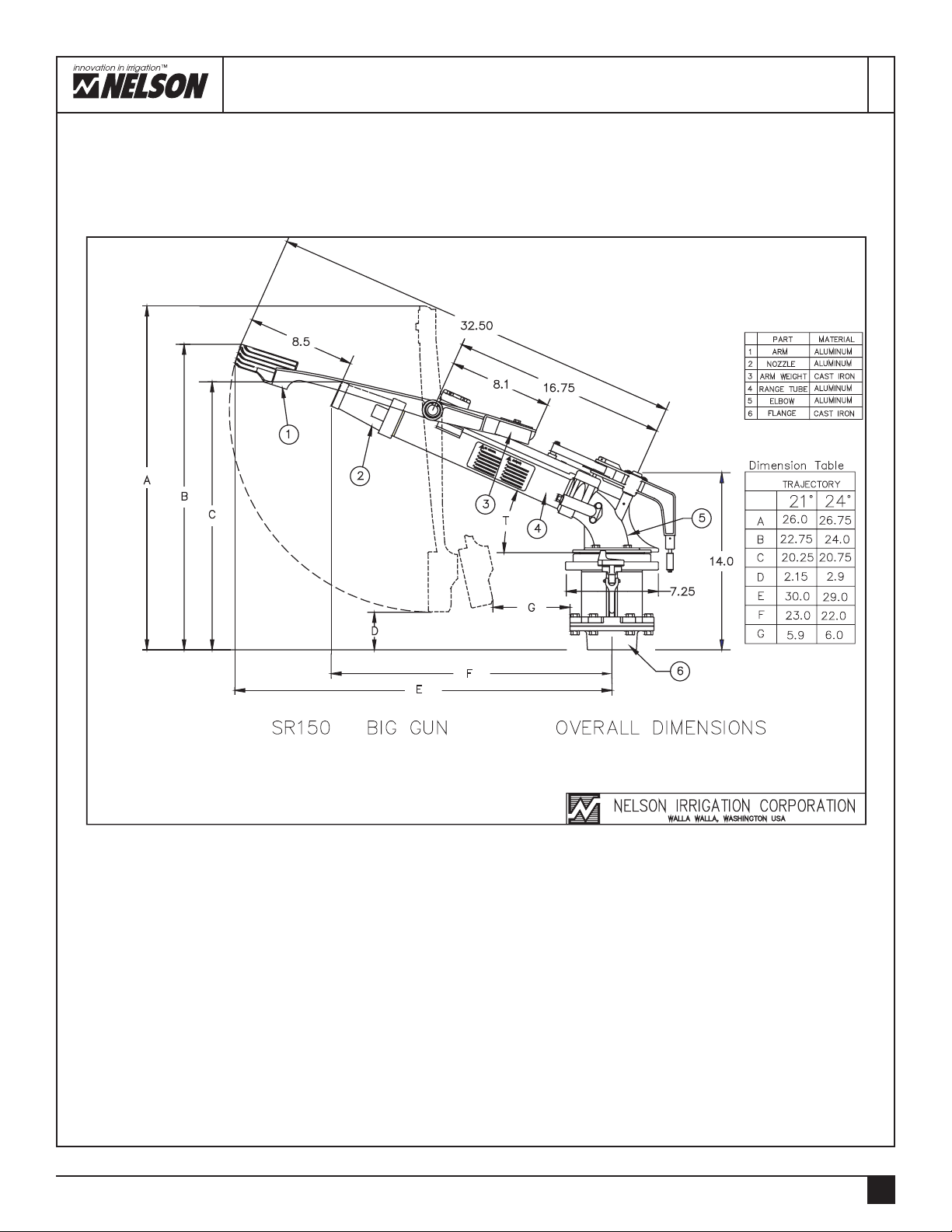

150 SERIES BIG GUN SPECIFICATION
1. GENERAL:
The 150 Series Nelson Big Gun®sprinklers (models SR150, SRA150 and F150) shall be capable
of operating in a pressure range from 50 PSI through 120 PSI. The nozzle size range is from .7”
through 1.3” for taper bore nozzles, from .86 through 1.41 for ring type nozzles and from 22mm
through 34mm for taper-ring nozzles. Optional trajectory angles on the SR150 and the F150
shall be 21º 24º and 43º. The SRA150 shall have an adjustable trajectory from 15º through 45º.
Materials used shall be acceptable for most irrigation water conditions. All exposed metal parts
shall be stainless steel, brass, or aluminum. Welds and seals shall be air pressure checked at the
factory to assure against water leakage. The gun shall be provided with optional connections at
the base consisting of Nelson Flange, Metric Flange, ANSI/DIN Flange type, 3”, 3 ½” or 4”
Female NPT cast iron flange adapters shall be optional accessories.
2. DESIGN
1. The sprinkler bodysprinkler body
sprinkler bodysprinkler body
sprinkler body range tube and drive arm shall be of aluminum construction. The range
tube shall have non-clog straightener vanes extended the full length of the range tube to
reduce turbulence and provide greater diameter of coverage. All wear points or strike areas
shall be constructed of stainless steel or polyurethane for longer life.
2. The drive armdrive arm
drive armdrive arm
drive arm shall be equipped with ball bearings at the pivot point and shall have a
replaceable vaned self-cleaning drive vane. Self-adjusting drive vane to give consistent drive
and arm rate in full operating range. Part circle operation shall be accomplished with dual
drive and reverse drive vane. The ball bearings shall be lubricated and sealed to eliminate the
need of grease zirks and frequent maintenance. The drive spoon shall be vaned for reliable
drive power. The drive arm weight shall be adjustable to increase or decrease the drive power
if desired.
3. The lower bearinglower bearing
lower bearinglower bearing
lower bearing assembly shall be constructed with an aluminum housing and shall be
equipped with dual ball bearing for ease of rotation and less wear. The bearing assembly
shall be sealed and lubricated eliminating the need for grease zirks and frequent maintenance.
4. The braking systembraking system
braking systembraking system
braking system shall be a constant friction disc brake of Delrin plastic material on brass.
It shall have pre-load brake springs for proper rotation on uneven terrain. It shall be fully
shielded to prevent contamination from outside sources.
5. The part circlepart circle
part circlepart circle
part circle models shall be equipped with precise arc control stops that are easily set. They
shall be provided with easily accessible bolt heads or flex-handle stops as desired.
6. The sprinkler nozzle optionsnozzle options
nozzle optionsnozzle options
nozzle options shall be available with taper bore, ring or taper-ring type nozzles.
All nozzle types shall be interchangeable without any adjustment required on the Big Gun®
sprinkler.
150 SERIES BIG GUN®SPECIFICATIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
9
200 SERIES BIG GUN SPECIFICATION
1. GENERAL:
The 200 Series Nelson Big Gun®sprinklers (models SR200 and F200) shall be capable of
operating in a pressure range from 60 PSI through 130 PSI. The nozzle size range is from 1.05”
through 1.9” for taper bore nozzles, from 1.29” through 1.93” for ring type nozzles and from
28 mm through 48 mm for taper-ring nozzles. Optional trajectory angles on the SR200 and the
F200 shall be 21º, 24º and 27º. Materials used shall be acceptable for most irrigation water
conditions. All exposed metal parts shall be stainless steel, brass, or aluminum. Welds and
seals shall be air pressure checked at the factory to assure against water leakage. The gun shall
be provided with optional connections at the base consisting of Nelson Flange, Metric Flange,
ANSI/DIN Flange type, 3 ½” or 4” Female NPT cast iron flange adapters shall be optional
accessories.
2. DESIGN
1. The sprinkler bodysprinkler body
sprinkler bodysprinkler body
sprinkler body range tube and drive arm shall be of aluminum construction. The range
tube shall have non-clog straightener vanes extended the full length of the range tube to
reduce turbulence and provide greater diameter of coverage. All wear points or strike areas
shall be constructed of stainless steel or polyurethane for longer life.
2. The drive armdrive arm
drive armdrive arm
drive arm shall be equipped with ball bearings at the pivot point and shall have a
replaceable vaned self-cleaning drive vane. Self-adjusting drive vane to give consistent
drive and arm rate in full operating range. Part circle operation shall be accomplished with
dual drive and reverse drive vane. The ball bearings shall be lubricated and sealed to
eliminate the need of grease zirks and frequent maintenance. The drive spoon shall be
vaned for reliable drive power. The drive arm weight shall be adjustable to increase or
decrease the drive power if desired.
3. The lower bearinglower bearing
lower bearinglower bearing
lower bearing assembly shall be constructed with an aluminum housing and shall be
equipped with dual ball bearing for ease of rotation and less wear. The bearing assembly
shall be sealed and lubricated eliminating the need for grease zirks and frequent mainte-
nance.
4. The braking systembraking system
braking systembraking system
braking system shall be a constant friction disc brake of Delrin plastic material on
brass. It shall have pre-load brake springs for proper rotation on uneven terrain. It shall be
fully shielded to prevent contamination from outside sources.
5. The part circlepart circle
part circlepart circle
part circle models shall be equipped with precise arc control stops that are easily set.
They shall be provided with easily accessible bolt heads or flex-handle stops as desired.
6. The sprinkler nozzle optionsnozzle options
nozzle optionsnozzle options
nozzle options shall be available with taper bore, ring or taper-ring type nozzles.
All nozzle types shall be interchangeable without any adjustment required on the Big Gun®
sprinkler.
200 SERIES BIG GUN®SPECIFICATIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
10
SR75
SR100
BIG GUN®DIMENSIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
11
SR150 DIMENSIONS
24 DEGREE ANGLE
BIG GUN®DIMENSIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
12

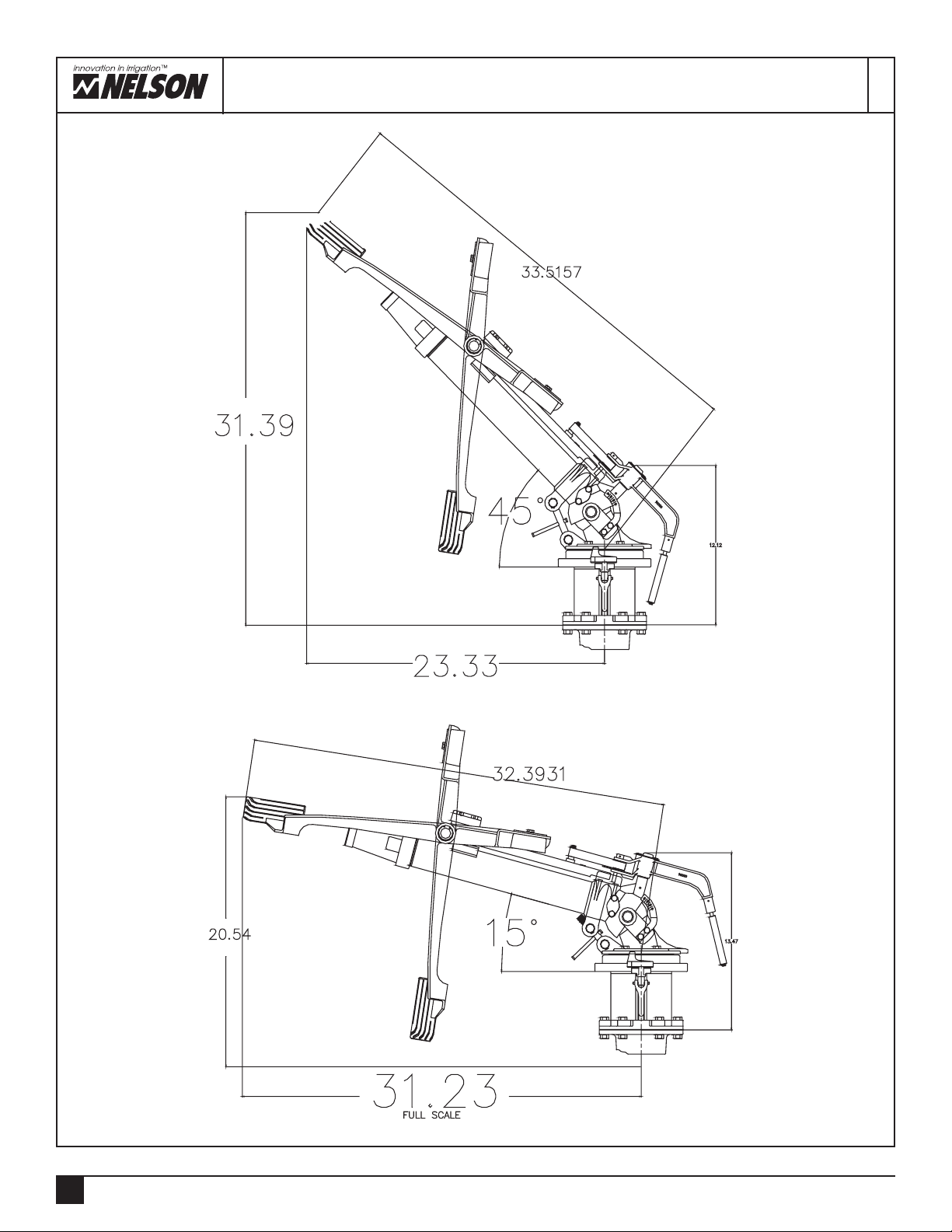

SRA150 DIMENSIONS
HIGHEST AND LOWEST
ANGLE SETTING
BIG GUN®DIMENSIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
13
SR200 DIMENSIONS
24 DEGREE ANGLE
BIG GUN®DIMENSIONS
2/05
1
1
2
2
3
3
4
4
5
5
6
6
S
S
P
P
R
R
E
E
A
A
D
D
E
E
R
R
N
N
O
O
Z
Z
Z
Z
L
L
E
E
T
T
R
R
A
A
J
J
E
E
C
C
T
T
O
O
R
R
Y
Y
I
I
S
S
3
3
°
°
L
L
E
E
S
S
S
S
T
T
H
H
A
A
N
N
G
G
U
U
N
N
T
T
R
R
A
A
J
J
E
E
C
C
T
T
O
O
R
R
Y
Y
S
S
R
R
2
2
0
0
0
0
B
B
I
I
G
G
G
G
U
U
N
N
O
O
V
V
E
E
R
R
A
A
L
L
L
L
D
D
I
I
M
M
E
E
N
N
S
S
I
I
O
O
N
N
S
S
G
G
U
U
N
N
T
T
R
R
A
A
J
J
E
E
C
C
T
T
O
O
R
R
Y
Y
(
(
T
T
)
)
2
2
1
1
°
°
2
2
4
4
°
°
2
2
7
7
°
°
I
I
T
T
E
E
M
M
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
A
A
R
R
M
M
N
N
O
O
Z
Z
Z
Z
L
L
E
E
A
A
R
R
M
M
W
W
E
E
I
I
G
G
H
H
T
T
R
R
A
A
N
N
G
G
E
E
T
T
U
U
B
B
E
E
E
E
L
L
B
B
O
O
W
W
F
F
L
L
A
A
N
N
G
G
E
E
A
A
L
L
U
U
M
M
I
I
N
N
U
U
M
M
C
C
A
A
S
S
T
T
I
I
R
R
O
O
N
N
A
A
N
N
O
O
D
D
.
.
A
A
L
L
U
U
M
M
.
.
A
A
L
L
U
U
M
M
I
I
N
N
U
U
M
M
A
A
L
L
U
U
M
M
I
I
N
N
U
U
M
M
A
A
L
L
U
U
M
M
I
I
N
N
U
U
M
M
1
1
2
2
3
3
4
4
5
5
6
6
I
I
T
T
E
E
M
M
P
P
A
A
R
R
T
T
M
M
A
A
T
T
E
E
R
R
I
I
A
A
L
L
E
E
F
F
A
A
B
B
C
C
D
D
H
H
G
G
T
T
4
4
5
5
.
.
0
0
2
2
3
3
.
.
5
5
R
R
1
1
1
1
.
.
0
0
R
R
2
2
1
1
.
.
5
5
1
1
0
0
.
.
9
9
Ø
Ø
8
8
.
.
8
8
3
3
2
2
.
.
6
6
2
2
7
7
.
.
5
5
2
2
4
4
.
.
4
4
.
.
1
1
4
4
1
1
.
.
4
4
3
3
1
1
.
.
0
0
6
6
.
.
4
4
1
1
5
5
.
.
5
5
3
3
3
3
.
.
3
3
2
2
9
9
.
.
3
3
2
2
5
5
.
.
6
6
.
.
7
7
4
4
0
0
.
.
6
6
3
3
0
0
.
.
2
2
6
6
.
.
5
5
1
1
5
5
.
.
1
1
3
3
4
4
.
.
0
0
3
3
1
1
.
.
0
0
2
2
6
6
.
.
8
8
1
1
.
.
4
4
3
3
9
9
.
.
8
8
2
2
9
9
.
.
3
3
6
6
.
.
6
6
1
1
4
4
.
.
6
6
N
N
E
E
L
L
S
S
O
O
N
N
I
I
R
R
R
R
I
I
G
G
A
A
T
T
I
I
O
O
N
N
C
C
O
O
R
R
P
P
O
O
R
R
A
A
T
T
I
I
O
O
N
N
W
W
A
A
L
L
L
L
A
A
W
W
A
A
L
L
L
L
A
A
,
,
W
W
A
A
S
S
H
H
I
I
N
N
G
G
T
T
O
O
N
N
U
U
S
S
A
A
A
A
L
L
L
L
D
D
I
I
M
M
E
E
N
N
S
S
I
I
O
O
N
N
S
S
A
A
R
R
E
E
I
I
N
N
I
I
N
N
C
C
H
H
E
E
S
S
.
.
D
D
O
O
N
N
O
O
T
T
S
S
C
C
A
A
L
L
E
E
T
T
H
H
I
I
S
S
D
D
R
R
A
A
W
W
I
I
N
N
G
G
F
F
O
O
R
R
D
D
I
I
M
M
E
E
N
N
S
S
I
I
O
O
N
N
S
S
.
.

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
14
GENERAL BIG GUN SPRINKLER SPECIFICATIONS (CONTRACTOR)
GENERAL:
The Contractor shall supply full circle, large diameter gun-type rotating impact drive sprinklers as
shown on the drawings. The sprinkler gun shall be supplied with a (n)_____inch taper bore nozzle.
The BIG GUN®shall be capable of delivering _____ gallons per minute at an operating pressure of
_____ PSI covering an area of _____ feet in diameter. The trajectory angle for the sprinkler shall be
_____ degrees.
MATERIALS AND CONSTRUCTION:
1. BodyBody
BodyBody
Body::
::
:The sprinkler body and arm shall be made of cast aluminum and shall be provided
with a (n) _____ inch female NPT threaded inlet. Vanes shall be provided extending the full
length of the range tube and shall be non-clog design. All wear points or strike areas shall be
made of stainless steel or polyurethane.
2. Drive ArmDrive Arm
Drive ArmDrive Arm
Drive Arm::
::
: The drive arm shall be equipped with ball bearings at the pivot point and have
a replaceable vaned self-cleaning drive vane. The drive vane shall be self-adjusting to give
consistent drive and arm rate in the full operating range. Ball bearings shall be lubricated and
sealed to eliminate the need of grease zirks and frequent maintenance. The drive arm weight
shall be adjustable to increase or decrease the drive power if desired.
3. Bearing AssemblyBearing Assembly
Bearing AssemblyBearing Assembly
Bearing Assembly::
::
: The bearing assembly shall be equipped with twin ball bearings to lessen
the strain and wear of the bearing assembly and shall be sealed and lubricated eliminating the
need for grease zirks and frequent maintenance.
4. Braking SystemBraking System
Braking SystemBraking System
Braking System::
::
:The braking system shall be a constant friction disc brake extending uni-
formly around the breaking surface. It shall be of the self-adjusting type and shall be fully
shielded to prevent contamination.
INSTALLATION:
The contractor shall follow the manufacturer’s instructions and adjustment of equipment.
MANUFACTURER:
Sprinkler BIG GUN®shall be Nelson Model No. _____ .
BIG GUN®MATERIALS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
15
SR150 MATERIALS
BIG GUN®MATERIALS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
16
SR150SS STAINLESS STEEL — MATERIALS
BIG GUN®MATERIALS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
17

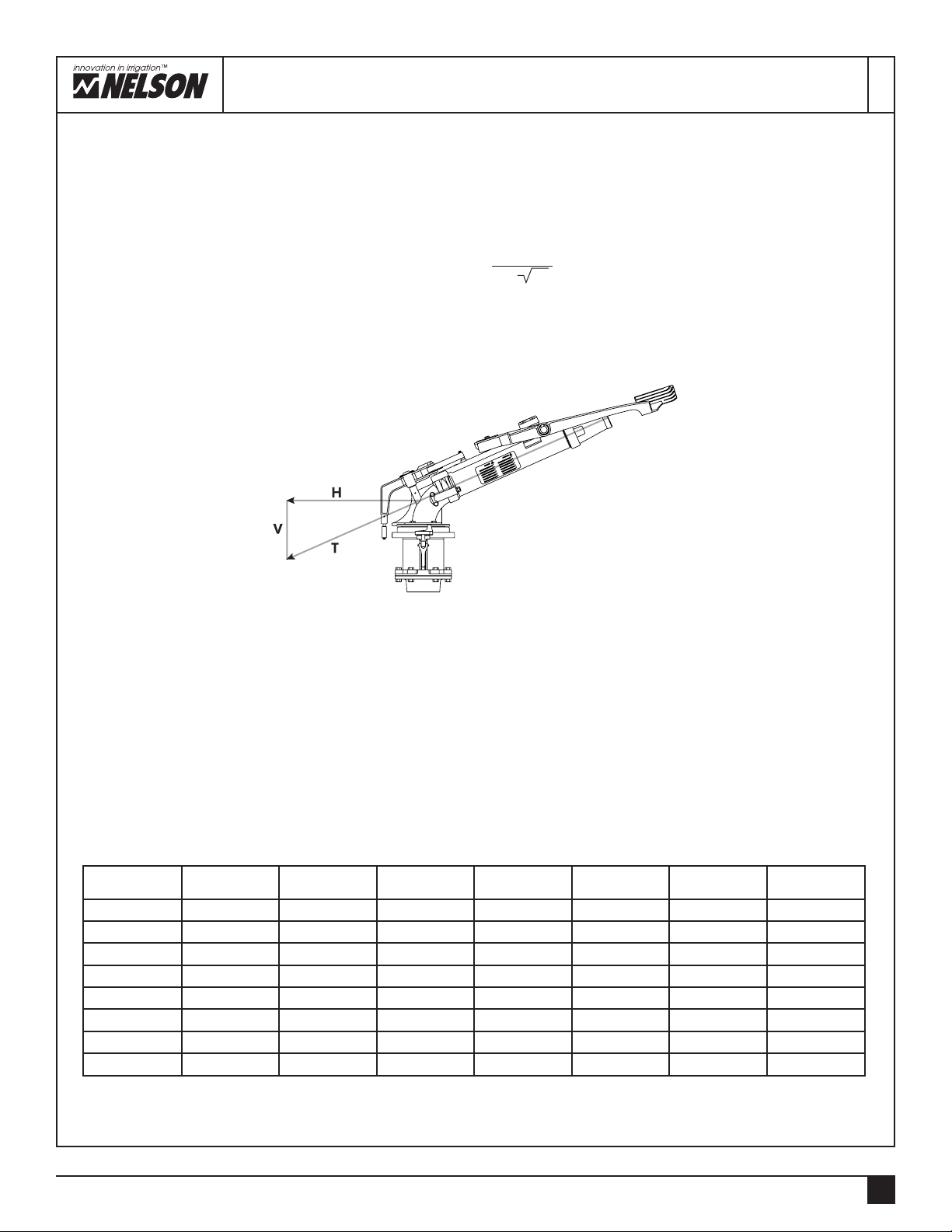

RISER STABILITY AND THRUST FORCE
2/05
The thrust force for the Big Gun can be calculated by knowing the flow rate through the gun and
the nozzle pressure of the gun. The following equation shows the relationship.
(1)
where, T = thrust force of the nozzle (lb.)
P = nozzle pressure (psi)
Q = flow rate (gpm)
As seen in the diagram above, the thrust force is directly opposite the nozzle exit. Since the thrust force
(T) is now know, the horizontal (H) and vertical (V) thrust force can be calculated using trigonometry.
H = T cos (gun angle from horizontal) (2)
V = T sin (gun angle from horizontal) (3)
The tables below show values of thrust force (T) and horizontal thrust force (H) for the 150 and 200
Big Guns of varying pressures and nozzles sizes.
THRUST FORCE OF NELSON BIG GUN®NOZZLES
T = 2P Q
38 P
erusserP
ISP
elzzoN
"7.0
elzzoN
"8.0
elzzoN
"9.0
elzzoN
"0.1
elzzoN
"1.1
elzzoN
"2.1
elzzoN
"3.1
057384266759211031
065485472921153
1751
07358678801031651381
08068799321841971012
098678111731761202732
0015779421351781422362
01138801631861402642092
02119811941581222862413
T — THRUST FORCE OF 150 BIG GUN NOZZLES (LB.)
( )

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
18
erusserP
ISP
elzzoN
"7.0
elzzoN
"8.0
elzzoN
"9.0
elzzoN
"0.1
elzzoN
"1.1
elzzoN
"2.1
elzzoN
"3.1
054344650778201911
061435864830132
1341
0784269799911341761
08551709211631461191
092608201621351581712
0019698311041171402142
0116789521451781422562
02138801631961302542782
H — HORIZONTAL THRUST FORCE OF 150 BIG GUN®NOZZLES
WITH 24° TRAJECTORY (LB.)
erusserP
ISP
elzzoN
50.1
elzzoN
"2.1
elzzoN
"3.1
elzzoN
"4.1
elzzoN
"5.1
elzzoN
"6.1
elzzoN
"57.1
elzzoN
"9.1
elzzoN
"0.
2
0539211031351571991832
06201531751281012932382633963
07911651381212542772333293234
08731971012342872813973744494
09551202732272213753724205455
0011715
22362303843893474855616
011881642092433483634225316976
021502862413363814674865966147
031222192933393354615516627108
T — THRUST FORCE OF 200 BIG GUN®NOZZLES (LB.)
erusserP
ISP
elzzoN
50.1
elzzoN
"2.1
elzzoN
"3.1
elzzoN
"4.1
elzzoN
"5.1
elzzoN
"6.1
elzzoN
"57.1
elzzoN
"9.1
elzzoN
"0.
2
0558201911041061281812
0639321341661291812952703733
07901341761391322352403853493
08521461191222452092643904254
09241581712942582623093954605
00165140
2142772713363334015365
011271522562503153893774065026
021781542782233283534915116776
031302662013953414274265466237
H — HORIZONTAL THRUST FORCE OF 200 BIG GUN®NOZZLES
WITH 24° TRAJECTORY (LB.)
RISER STABILITY AND THRUST FORCE
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
19
RISER STABILITY AND THRUST FORCE
2/05
These are for general guidelines only under normal operating conditions. The manufacturer assumes no liability for
specific purposes or damage. Normal product warranty and disclaimer applies.
24” DIA. X 18” DEPTH OF CONCRETE
26” DIA. X 14” DEPTH OF CONCRETE
28” DIA. X 12” DEPTH OF CONCRETE
30” DIA. X 10” DEPTH OF CONCRETE
32” DIA. X 8” DEPTH OF CONCRETE
TYPICAL CONCRETE THRUST BLOCK
FOR 0.9” NOZZLE AT 60 PSI (69 LBS THRUST)
ON A 10 FT. HIGH RISER.
RISER CONFIGURATION

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
20
Specify gun connection:
ANSI flange
Specify 800 Series valve:
A2”B7C2D1E1H1 for 100 size gun
A3”B1C2D1E1H1 for 150 size gun
A4”B1C2D1E1H1 for 200 size gun

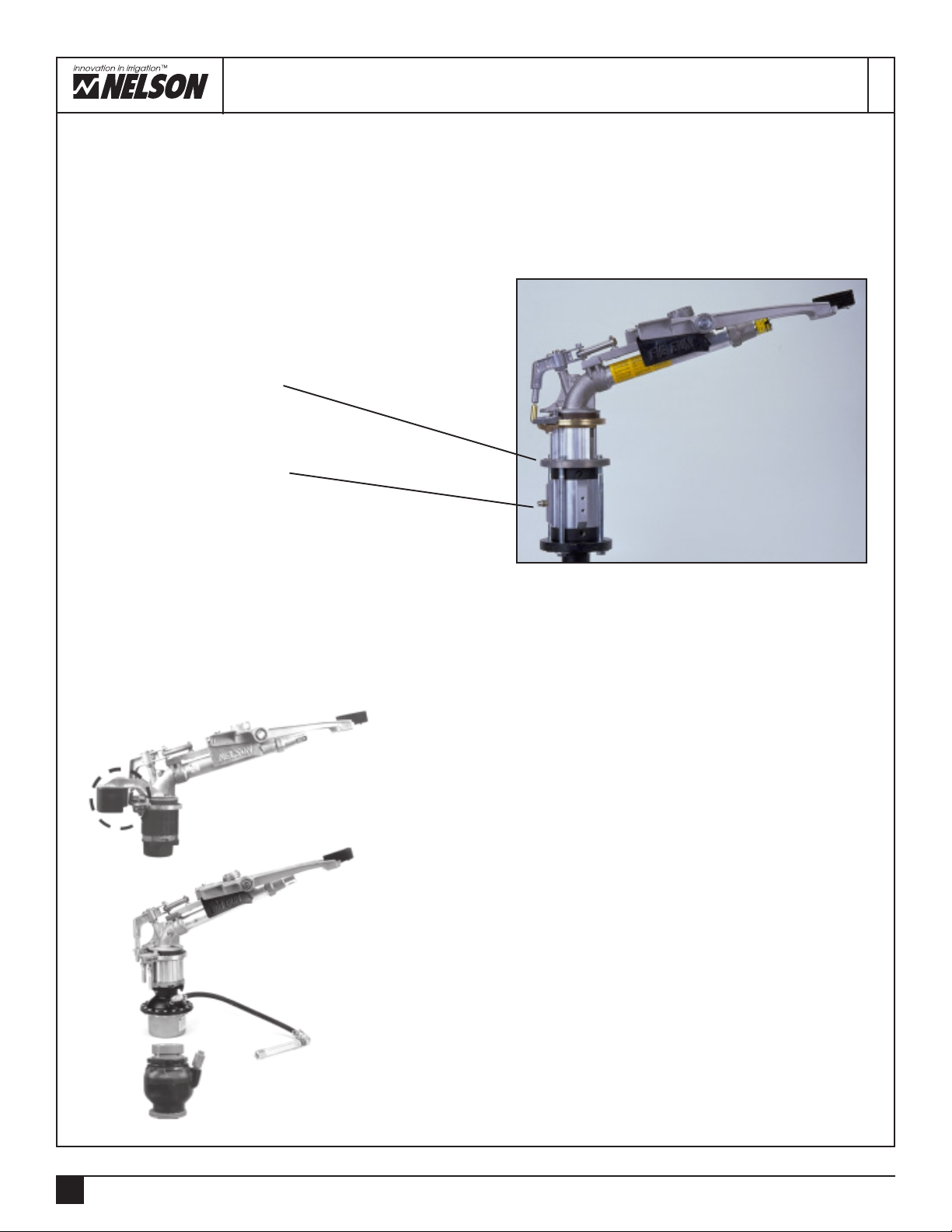

GUN AND VALVE COMBINATION
The Nelson Big Gun®sprinklers are capable of operating in combination with an 800 series control
valve when specified with the ANSI flange connection. The SR75 and SR100 connects with the 2”
size valve. The SR150 connects with the 3” size valve. The SR200 connects with the 4” size valve.
The result is a smooth operating and efficient low pressure loss control. The valves have a fail safe
feature as a normally closed valve.
The control valves are designed for application in harsh environments. High grade corrosion-
resistant materials are used in the manufacturing of the valves. Materials are galvanized steel,
brass, coated ductile iron, anodized aluminum and specially compounded rubber. The valves can
be specified with electric on/off solenoid control and pressure control if needed.
COUNTER BALANCE FOR OPERATION
ON TILTED RISERS
A counter balance kit can be attached to the 100 Series
and the 150 Series gun sprinklers to achieve even rotation
rate when riser is tilted at an angle. It is easy to install and
retrofits existing guns in the field.
OPTIONAL QUICK COUPLING VALVE AND KEY
The SR75, SR100 and F100 guns can be ordered with a
quick coupling key for easy portability. The key is designed
to connect to a 2” or 3” size quick coupling valve. The valve
control can be by manual or electric solenoid.
GUN AND VALVE COMBINATIONS
2/05

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
21
GUN AND VALVE COMBINATIONS
2/05
NELSON QUICK COUPLING VALVE
2" QC SPECIFICATION
The Nelson Quick Coupling (QC) valve and key are designed to be used in conjunction
with the Nelson SR75 and SR100 sprinkler guns. The valve, key and sprinkler are
necessary for operation.
The valve inlet is to be connected to the water supply pipe system. The valve can be installed below ground level in
a 10 inch round valve box or above ground level on a supported riser pipe of 2" or 3" diameter size. The valve outlet
is normally closed to flow and can be opened only with the quick coupling key.
The key is designed in such a manner as to allow direct connection to the sprinkler gun base. The key can also be
connected to the sprinkler gun using a 2 inch diameter male x male nipple (the maximum nipple length approved is
12 inches). The key is designed to connect directly to the valve. The key is easily attached to the valve by a quick one-
quarter turn that locks the key and valve together.
Opening the valve is done by connecting the key hydraulic pilot to the valve. The key operates hydraulically pressing
the valve seat to the open condition. When the valve is opened, the hydraulic pressure locks the valve, key and gun
together to become a very ridged and stable unit
Operating Range
Pressure range: 30 psi minimum, 125 psi maximum
Flow rate: 25 gpm minimum, 250 gpm maximum
Water temperature range: 32oF to 150oF
Materials Specifications
Product Materials:
Valve Body Cast Iron and Brass
Valve trim Brass
Seals (both valve and key) BUNA N
Key body Stainless Steel and Cast iron/aluminum
Key Diaphragm Buna N/Dacron
Internal springs Stainless steel
Pilot hose Buna N
Application fluid: Water only.
Air venting design: The Nelson QC valve is designed to manually vent the air that may be
trapped under the valve. This can be done by using the pilot opening
handle to vent the air before connecting the key.

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
22
GUN AND VALVE COMBINATIONS
2/05
20
NELSON SR75 GUN/800P
VALVE COMBINATION
19

Nelson Irrigation Corp. 848 Airport Rd. Walla Walla, WA 99362-2271 USA Tel: [phone] Fax: [phone] E-mail: [e-mail] Web site: www.nelsonirrigation.com
23
GUN AND VALVE COMBINATIONS
2/05
SR100 43°
