User’s Manual of X-COP 9100
[ X-COP 9100 Introduction]
- X-COP 9100 is high performance GPS Radar Detector with Full HD Black Box specially designed and optimized
for Russian market, which receives the signals of X, K, Ka, Laser, Strelka bands and GPS & Glonass signal
effectively.
- X-COP 9100 uses the Ambarella A7 Chip for Black box which is the up to date technology so that a high resolution
video recording is always available.
- X-COP 9100 uses IMX322 which is an image sensor with high quality made by SONY; especially it shows very
good quality at nighttime video.
- 2.0 inch IPS LCD helps user to see the video easily and the Radar and GPS alert screen effectively.
- The GPS & Glonass module is equipped so that it catches the fixed and moving speed cameras in addition to
Radar signal detection and gives an exact warning to driver effectively.
- X-COP 9100 has a special feature as “Motion Control TM” which controls mute on/off function by hand gesture.
- Before using X-COP 9100, please read the method of use as follows.
Contents
[ Features ] ....................................................................................................................................................................... 2
[ Specifications ] ............................................................................................................................................................. 3
1. Car Blackbox specifications ............................................................................................................................ 3
2. Radar specifications ......................................................................................................................................... 4
3. GPS specifications ......................................................................................................................................... 4
4. Characteristics .................................................................................................................................................. 4
[ Devices & Accessories ]............................................................................................................................................... 5
[ Installation ] ................................................................................................................................................................... 6
1. Mounting ............................................................................................................................................................ 6
2. Power cable installation ................................................................................................................................... 7
[ Operation ] ..................................................................................................................................................................... 8
1. Buttons .............................................................................................................................................................. 8
2. Power On and Off. ............................................................................................................................................ 9
3. All time display (Normal Screen) .................................................................................................................. 91
4. Parking mode ................................................................................................................................................ 134

2
5. Motion Control
TM
operation ........................................................................................................................ 135
6. Mute ................................................................................................................................................................ 146
7. Auto mute ...................................................................................................................................................... 146
8. Voice On/Off .................................................................................................................................................. 146
9. Beep On/Off ................................................................................................................................................... 146
10. Radar band On/Off ........................................................................................................................................ 146

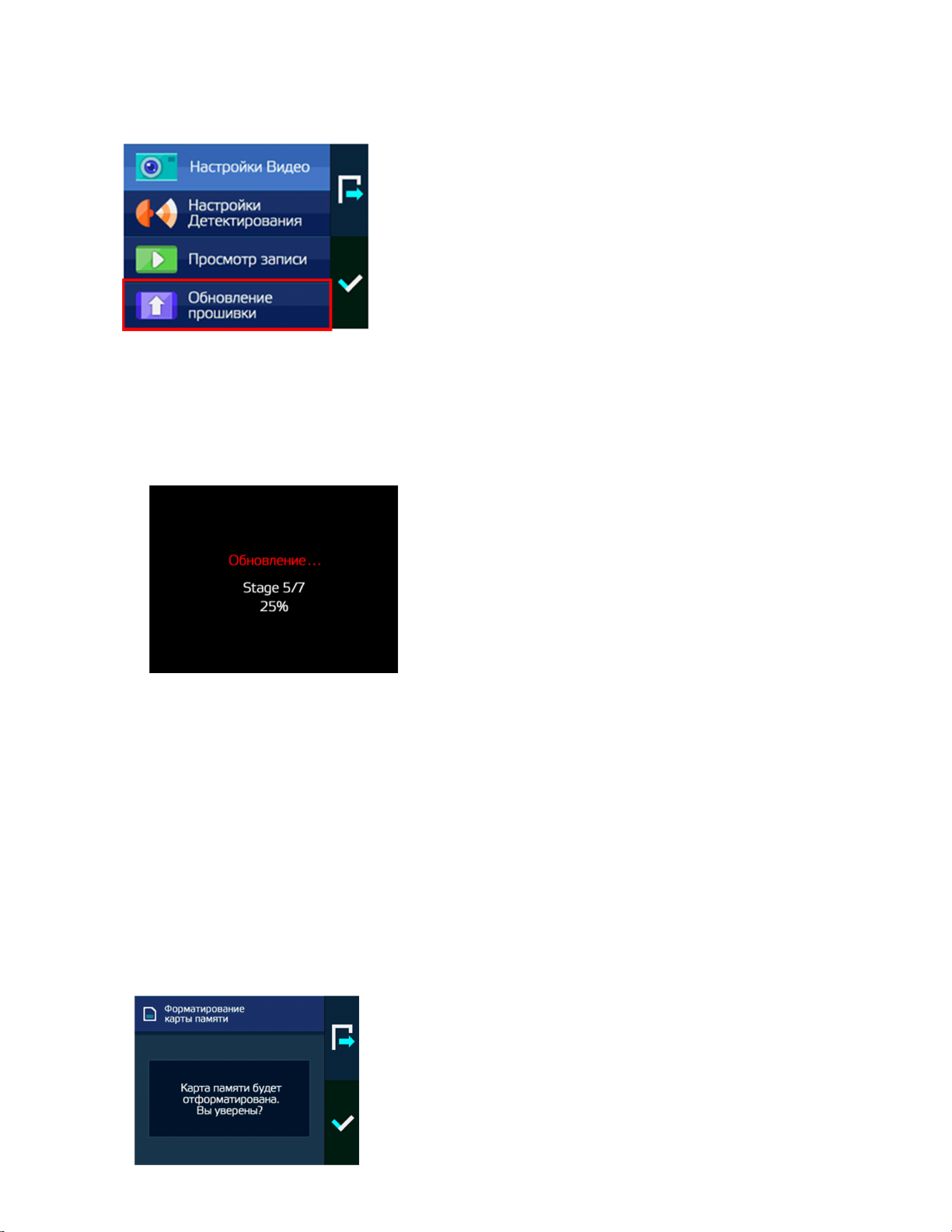

11. Firmware upgrade ..................................................................................... Error! Bookmark not defined.6
12. Sd card format ........................................................................................... Error! Bookmark not defined.8

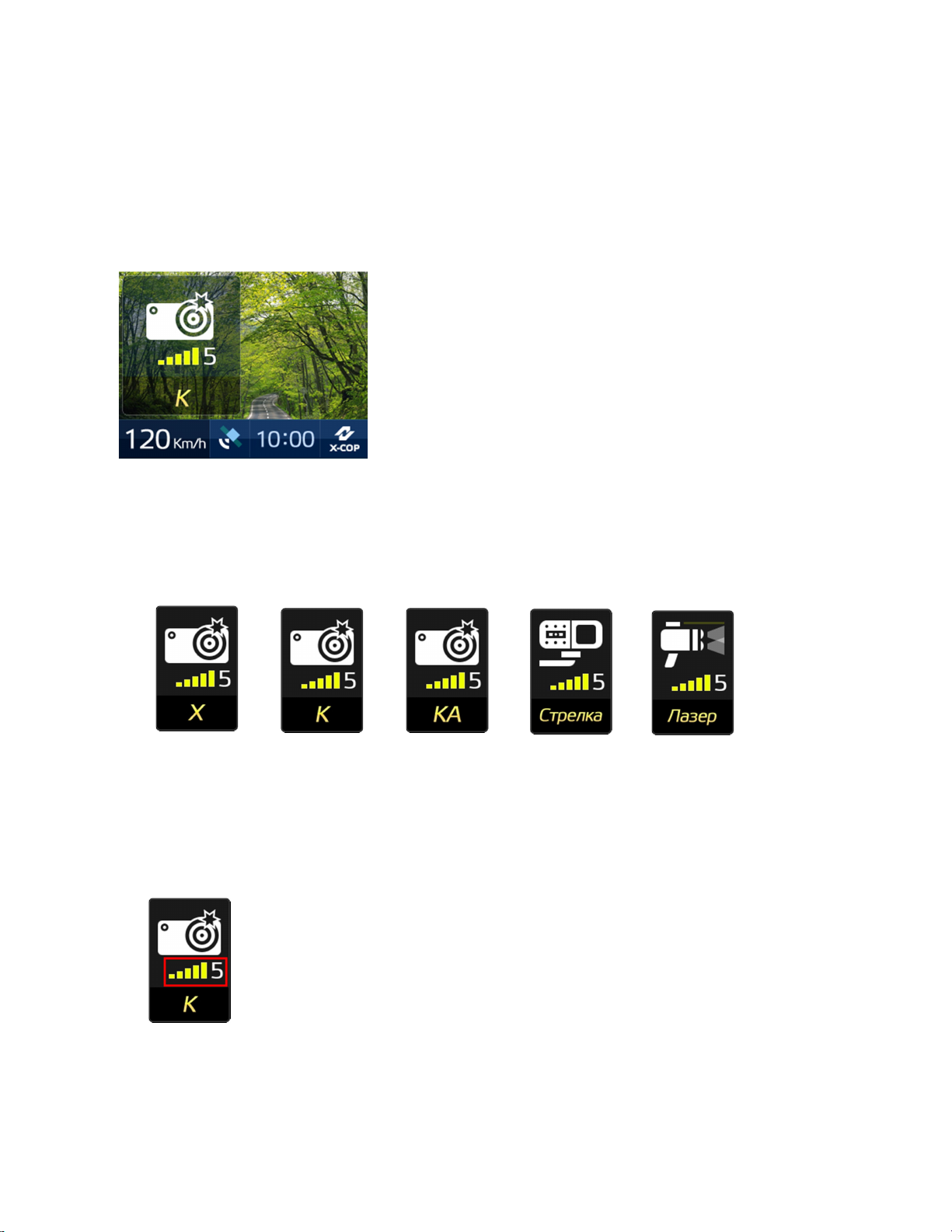

13. Radar alert ................................................................................................................................................... 18

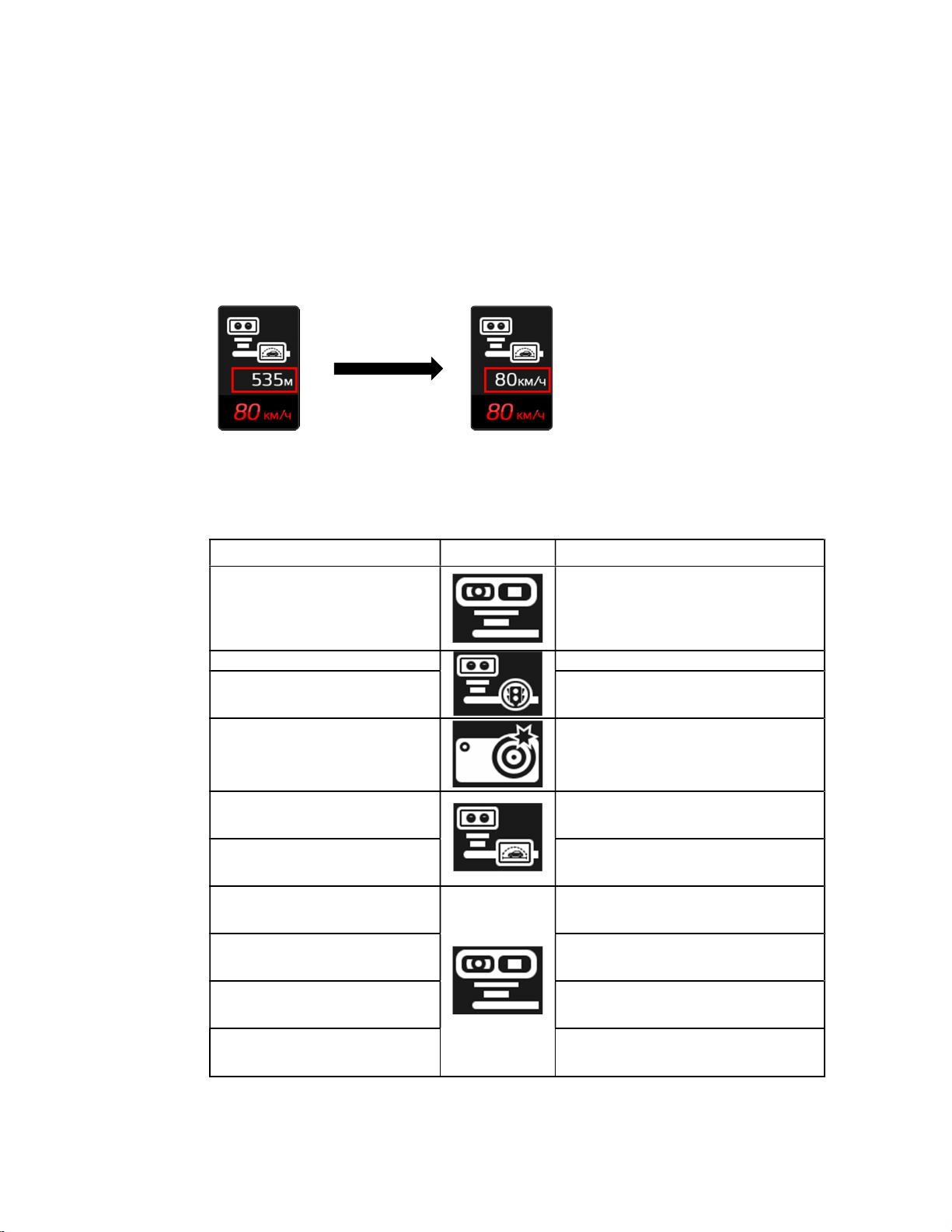

14. GPS alert ...................................................................................................................................................... 19

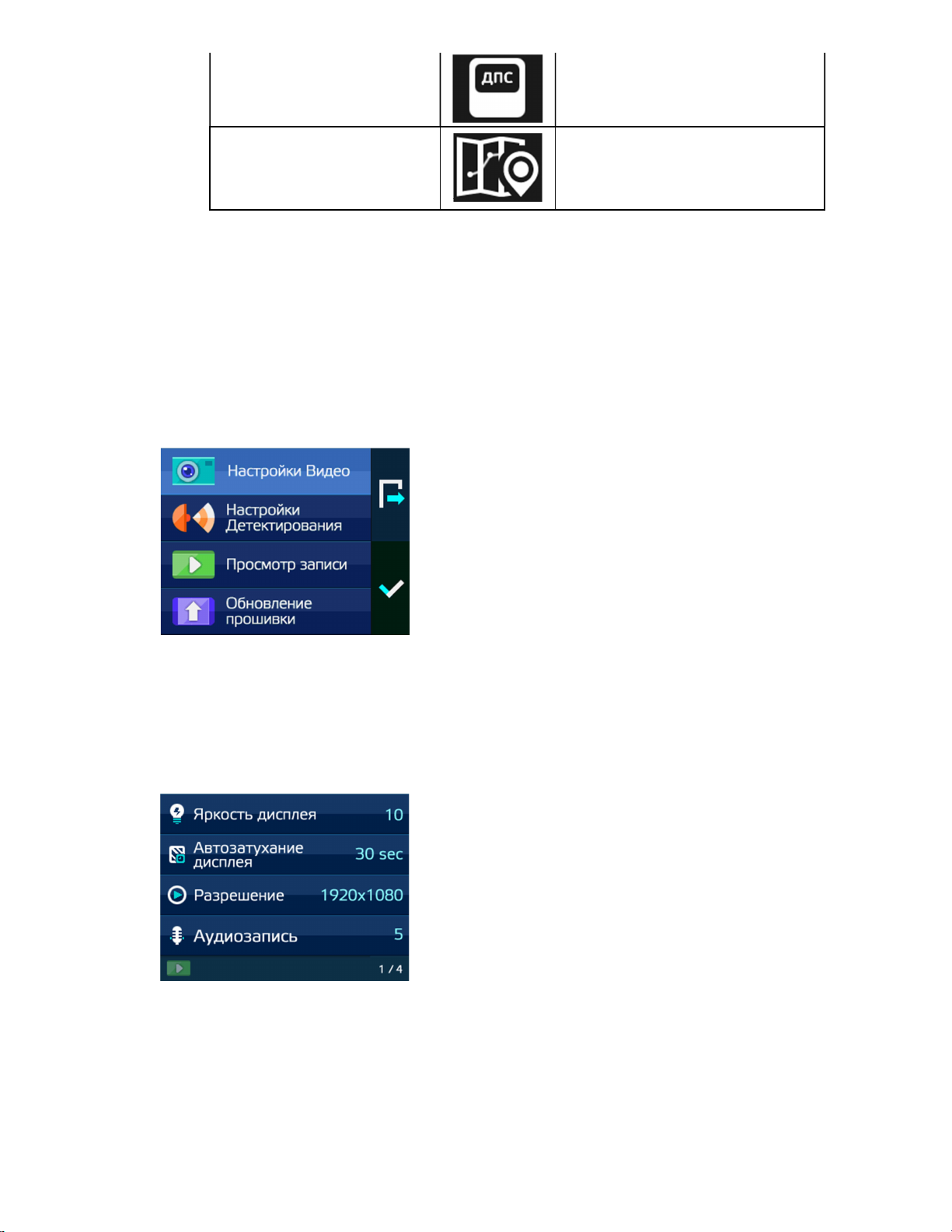

15. Setting mode ............................................................................................................................................ 181
16. X-COP Player ............................................................................................................................................... 30
[ Features ]
- Full HD Car Black-box with Radar & Laser detection and GPS & Glonass Alert
- 2.0 inch IPS LCD display
- Blue LED indication for recording status
- Full HD Image recording
- Audio recording
- 3 Recording modes(Driving/Event/Manual)
- Support recording at parking mode
- Support Image capture at battery mode
- Support Micro SD Card(SDHC : 2GB ~ 32GB)

3
- 5 Buttons (Power On/Off Button, Up, Down, Menu, Select Button)
- Electrical Volume Control(9-Levels)
- 3-Axis G-sensor & Motion detection sensor
- Support Russian and English text
- Support video play on LCD display
- Updateable Blackbox Firmware / Database and Radar Firmware
- “Motion Control TM”
- Silence mode
- Silence zone
- Radius setting for GPS POI alerting
- GPS POI Detection distance setting
- Legal Over speeding setting
- Maximum over speed
- Support PC Viewer
- Detectable X / K / Ka / Laser / Strelka
- Undetectable by VG-2
- 12V~24V usability
[ Specifications ]
1. Car Blackbox specifications
Processor : Ambarella A7LA30
Resolution : 1920*1080 (real Full HD) / 1280*720(HD)
Image Sensor : IMX322LQJ (Sony)
Optical Lens : 57.4º(V) * 108.5º(H) * 129.7º(D), All glass
Display : 2.0 inch IPS LCD (240 * 320 resolution)
Back-up battery : Li-polymer battery (220mA, 5C, 3.7V)
Video format : MP4

4
Recording frame : 30fps
Driving recording time : recording 1 minute, 2 minute, 3 minute, 5 minute
Event recording time : before 10 seconds ~ after 50 seconds, total 1 minutes
Storage : Micro SD Card (SDHC 2GB ~ 32GB, SDXC : 128GB)
3-Axis G-Sensor
2. Radar specifications
Ultra-X and Ultra-K Band
X-Band (10.525GHz +/- 50MHz)
K-Band (24.150GHz +/- 100MHz)
KA-Band (34.70GHz +/- 1300MHz)
Laser Band (800nm ~ 1100nm)
Strelka detection with signal strength level indication (24.150 GHZ)
3. GPS specifications
GPS & Glonass Module : MK-120G (U-BLOX8)
Patch antenna (13mm * 13mm)
Hot start time : < 1 second
Cold start time : < 35 seconds
4. Characteristics
Input voltage : DC 11V ~ 24V
Current consumption : 350mA ~ 450mA
Dimension : 94(L) * 73(W) * 46(H)
Operating Temperature : -20°C ~ 70°C

5
[ Devices & Accessories ]
- The following items are included in the packaging.
①
X-COP 9100 unit
②
Wind-shield mounting holder with suction-cup - Optional
③
Wind-shield mounting Power holder with 3M Tape
④
Cigarette power cord (DC12V ~ 24V)
⑤
All times power cable (DC12V ~ 24V) - Optional
⑥
Cord-clip (8PCS)
⑦
Micro SD card (8GB) with Adapter - Optional

6
[ Installation ]
1.
Mounting
1.1.
Recommended location
-
The location at the following picture is recommended for the best video recording. The location is the
almost of the center of windshield and just behind of room mirror but the display needs to be visible as
like the following picture.
1.2. Mounting method
1.2.1. The holder with suction cup
Attach the suction cup of the holder to windshield and then connect the unit. At this moment, the
camera lens must be directed to the front at horizontal position.
1.2.2. Power holder with 3M Tape
Attach the 3M tape side of the holder to windshield and then connect the unit as like the following
picture. However the adhesiveness of the 3M tape is very strong so that you need to decide the 1
st
attaching
location carefully.
This Power holder is specially designed to have a power circuit inside the holder. So, user can
connect the power jack to the holder directly. That is, user can attach and detach X-COP 9100 unit
itself easily.

7
2.
Power cable installation
2.1. Cigarette power cord
The following installation of Cigarette power cord is recommended for the cable not to disturb driver’s vision.
It is helpful to use the cord clips to fix the cable during installation.
2.2.
All times power cable
Connect the cable to the fuse box as like the following picture.
How to connect it to fuse box is as follows.
Connect the BATT(+) terminal of the cable to the fuse for brake lamp in fuse box.
Connect the ACC terminal of the cable to the fuse of Cigar Lighter in fuse box.
Connect the GND(-) of the cable to ground of the car.

8
[ Operation ]

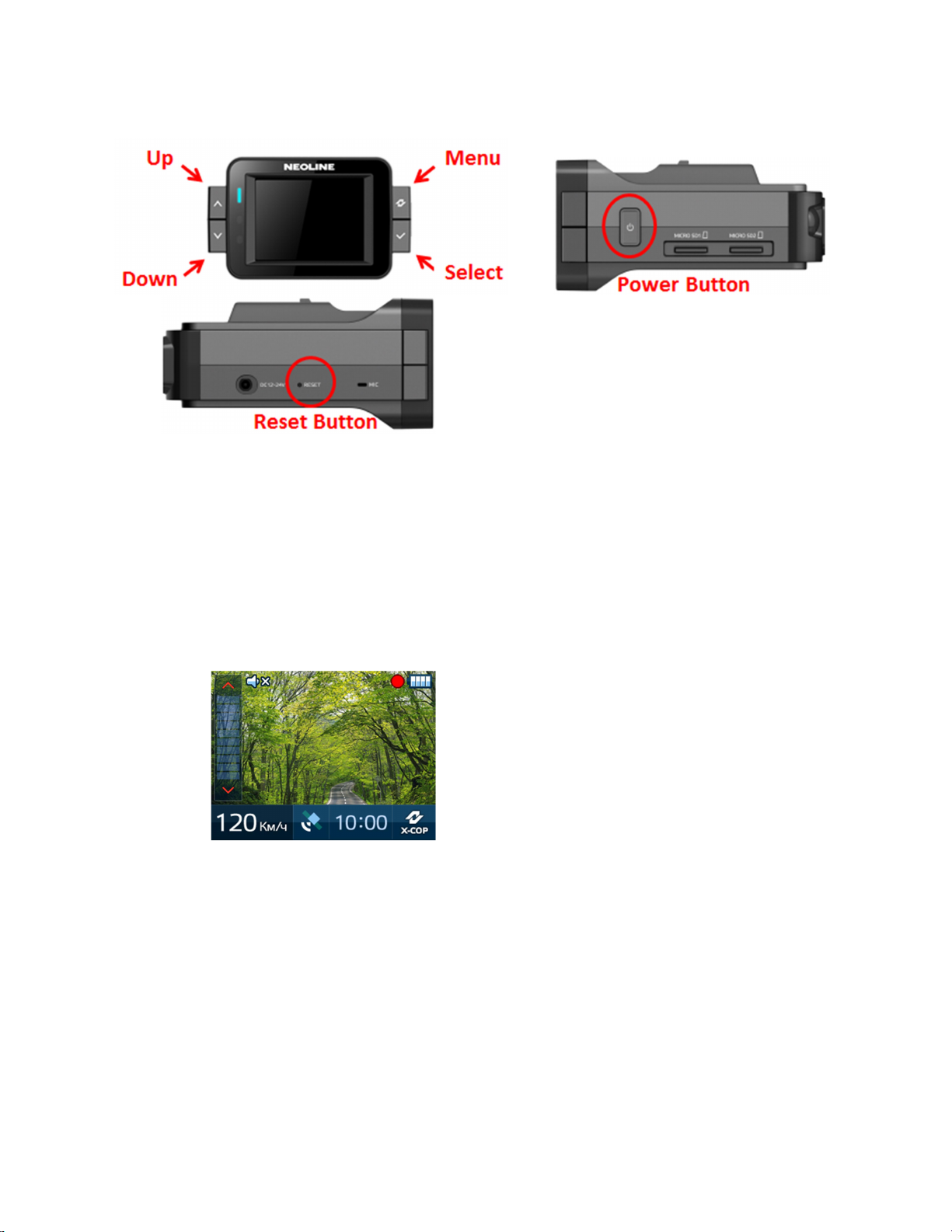

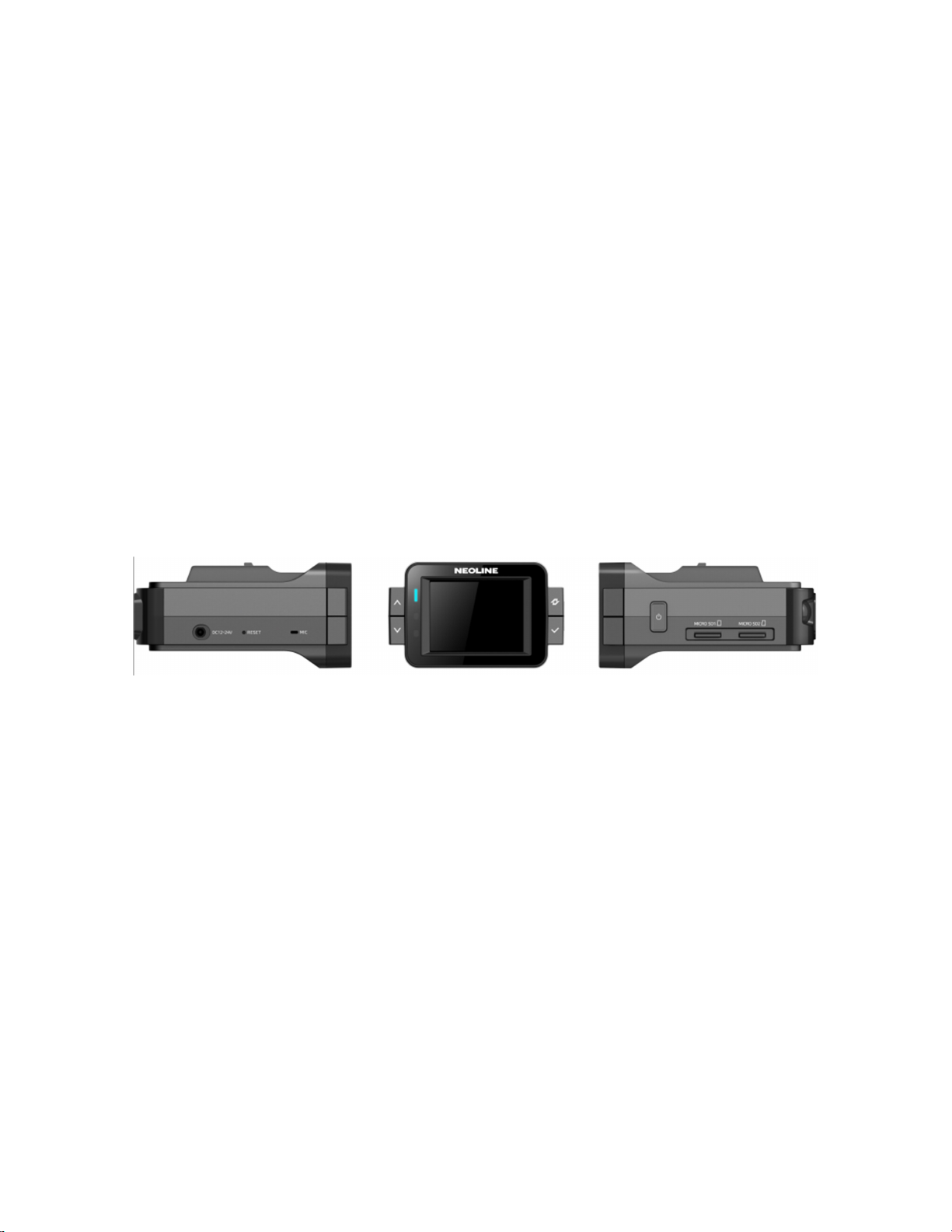

1. Buttons
1.1. Power Button
1.1.1. Press and hold Power button for two seconds at power off condition and it becomes power on.
1.1.2. Press and hold Power button for two seconds at power on condition and it becomes power off.
1.2. Up, Down Button
1.2.1. Press these buttons shortly at power on condition (normal screen), they are operated as volume Up
and Down.
1.2.2. Press these buttons shortly at the Menu, they are operated as move buttons.
1.2.3. Press and hold “Up”, “Down” button for two seconds at the Menu, it moves the next page or the
previous page.
1.3. Menu Button
1.3.1. Press “Menu” button shortly at power On condition and it enters into the Setting mode.
1.3.2. Press and hold “Menu” button for two seconds at power On condition and it enters into the quick
menu.
1.3.3. Press “Menu” button shortly at the Menu and it comes out from the Menu (Exit).

9
1.4. Select Button
1.4.1. Press “Select” button shortly at power On condition and it enters into Radar quick menu.
1.4.2. Press “Select” button shortly at the Menu and it is operated as ‘Select’ function.
1.4.3. Press and hold “Select” button for two seconds at power On condition and Manual recording will be
started. It records before 10 seconds ~ after 50 seconds.
1.4.4. Press and hold “Select” button for two seconds at power On (= power cable is not connected) and
the current screen will be captured. This captured screen will be stored at the “Event” folder of SD
card and the image resolution is 1920*1080 pixels.
1.5. RESET Button
X-COP 9100 uses a battery so that there may be a case of system down unexpectedly.
In this case, you can Re-booting by pressing the RESET button.
2. Power On and Off.

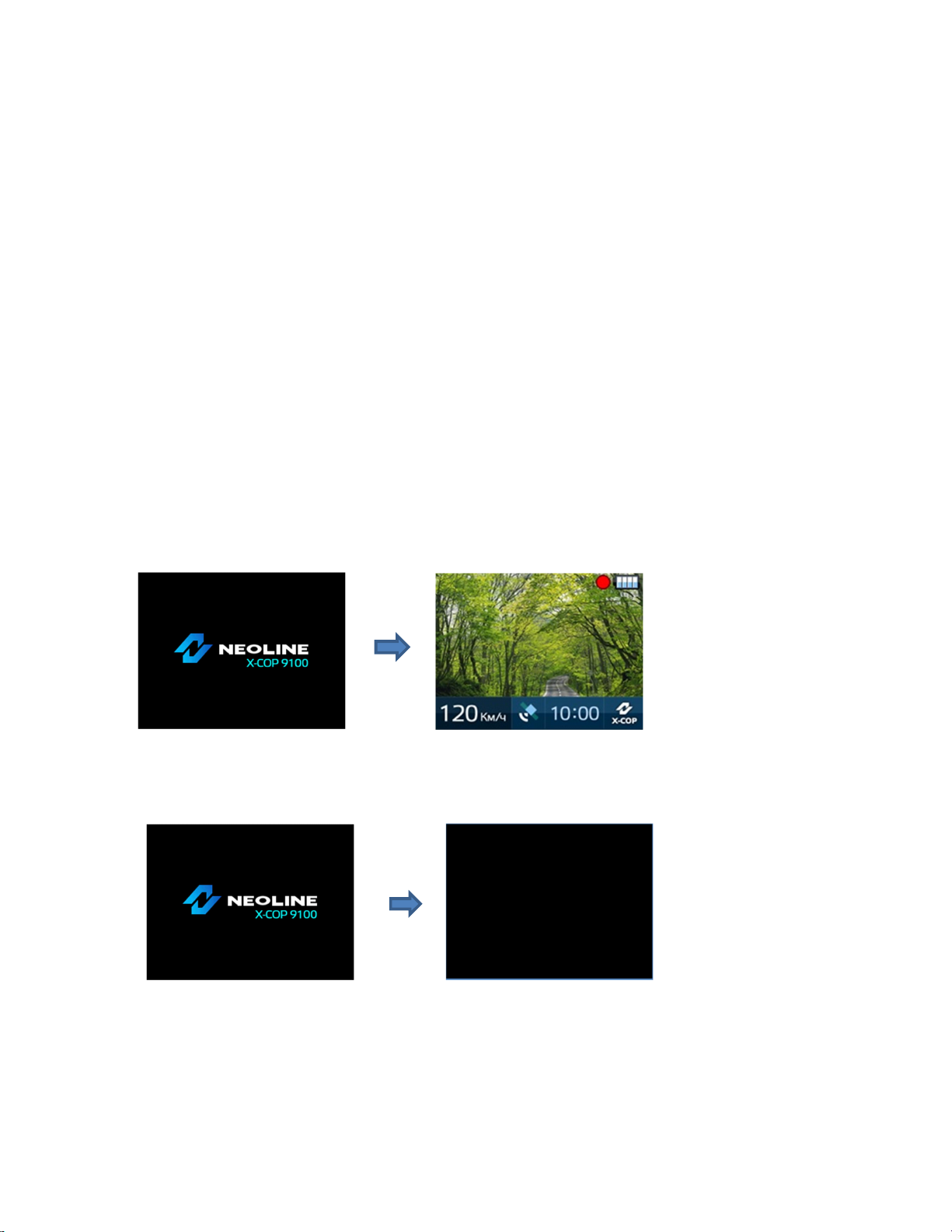

2.1. X-COP 9100 will power On when user starts car engine or presses the power button for two seconds and
will show the following start-up image and then become a normal screen as follows.
(LOGO display) (Normal screen)
2.2. X-COP 9100 will power Off when user turns off the car engine or presses the power button for two seconds.
3. All times display (Normal Screen)

10
Frequently using icons and the status of GPS and Recording are indicated on Normal Screen.
No. ① : Speed display
It shows the current car speed.
No. ② : GPS status
It shows the GPS connection/disconnection status.
(GPS Connection) (GPS Disconnection)
3.1. No. ③ : Time
It shows the current time.
3.2. No. ④ : City/Highway/Turbo/X-COP mode (operation by Select Button)
( X-COP Icon ) ( City Icon ) (Highway Icon) (Turbo Icon)

11
3.2.1.1. Turbo mode : Fullest sensitivity
3.2.1.2. Highway mode : Full sensitivity
3.2.1.3. City mode : Sensitivity 20dBm down from Highway mode
3.2.1.4. X-COP mode
0Km ~ 30Km : City Mode & Radar voice and alert sound Off
31Km ~ 60Km : City Mode
61Km ~ 90Km : Highway Mode
91Km ~ : Turbo Mode
3.3. No. ⑤ : Recording Status and battery Status.
It shows the current recording status and display the battery charge level.
3.3.1. Recording status
During recording, the icon is blinking.
(Blinking)
At no recording status, the icon is not blinking.
If there is no SD Card, the icon is not indicated.

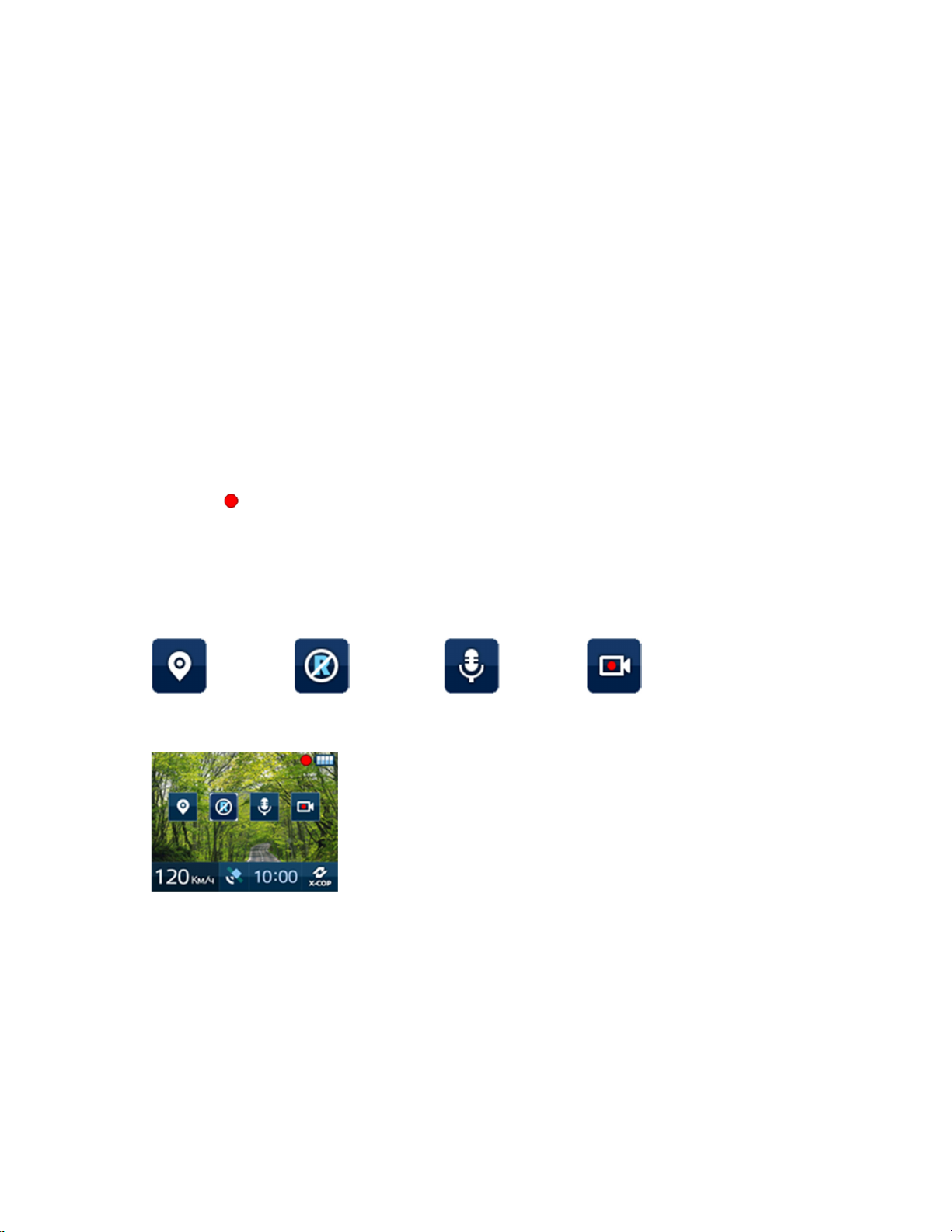

3.4. Quick Menu (Press and hold “Menu” button for two seconds)
(a) (
b
) (
c
) (
d
)
※ Move to each mode (icon) by Up / Down Button
3.4.1. No (a) : User location Add / Delete
3.4.1.1. User location Add
Press menu button and pop up message “Пользовательская зона будет добавлена. Вы уверены?”
will be appeared. And then press again select button “Yes” and the User location will be added. (400
user locations can be stored as maximum.)

12
3.4.1.2. User location Delete
During User location alert, press menu button and the pop-up message “Пользовательская зона
будет удалена. Вы уверены?” will be appeared. And then press again select button “Yes” and the
user location will be deleted.
3.4.2. No (b) : Silence zone
(Silence zone)
- During radar alerts, press Menu button and the pop-up message “Добавить ложную зону?”
will be appeared. And then press select button “Yes” and the silence zone will be added.
- When car is within silence zone, press menu button and the pop up message “Удалить
ложную зону?” will be appeared. And then press select button “Yes” and the silence zone
will be deleted.
- If car is within silence zone, silence icon will be displayed and all radar alarm is not
announced.
- If car is out of silence zone, silence icon will be disappeared and all radar can be detected.
3.4.3. No (c) : MIC On / Off
(Mic On) (Mic Off)
3.4.3.1. Mic On - Audio recording On
3.4.3.2. Mic Off - Audio recording Off
3.4.4. No (d) : Recording ON/OFF
(Recording ON) (Recording OFF)
3.4.4.1. Recording On – Video recording On

13
3.4.4.2. Recording Off - Video recording Off
3.5. In case there is no SD card.
In case there is no SD card in SD slot, “Please insert SD card” text and Beep will be shown and heard.
4. Parking mode
During parking (or stop) condition, if the unit recognizes any shocks with car or any motion in front of car, it starts
recording automatically
4.1. It enters into the parking mode in the following two cases.
4.1.1. Car engine off (at the condition that all time power is connected)
- When Car Engine is Off, it enters into the parking mode immediately.
- When Car engine is On, it gets out of the parking mode.
4.1.2. In case there is no motion for the setting time
- If Car does not move for the setting time, it enters into the parking mode.
- If Car moves, it gets out of the parking mode.
- In case of Parking mode entrance time = 0ff , it does not enter into the parking mode unless there is
a motion.
4.2. Recording time at Parking mode
At Parking mode, when there is any event like any shock or any motion in front of car, the video before 10
seconds and after 50 seconds from the event will be stored at “Event” folder.
4.3. Video resolution and frames at Parking mode
The Video resolution at parking mode will be recorded as you set at Setting mode -> Video settings ->
Resolution.
Resolution to be able to set : 1920*1080 (real Full HD) / 1280*720(HD)
Recording frames: 15fps
4.4. Power saving at Parking mode
When the voltage of car battery becomes lower than 11.3V, X-COP 9100 will be power off even at parking

14
mode to prevent the car battery from being discharged.
5. Motion Control
TM
operation
Motion control
TM
is useful feature as user can easily mute on and off by hand gesture.
Whenever Radar or GPS is alerting, you can sweep (swing) your hand above front side of unit, and then alerting
will be mute (or mute will be released vice versa).
6. Mute
During the Radar or GPS alert, press power button and mute on/off function is operated.
In Mute On, there is no voice alert and beep sound and automatically Mute Off in 4 seconds after finishing the
alert.
7. Auto mute
At Auto mute On, the volume level will be decreased 50% in 6 seconds after starting Radar or GPS Alert.
Auto Mute is automatically off in 10 seconds after finishing the alert.
8. Voice On/Off
Voice is heard at Voice On and no voice at Voice Off mode.
9. Beep On/Off
Beep alert sound is heard at Beep On and no beep sound at Beep Off mode.
10. Radar band On/Off
All Radar bands(X, K, Ka, Laser, Strelka) can be set On/Off separately.

15
10.1. X Band On/Off
10.2. K Band On/Off
10.3. Ka Band On/Off
10.4. Laser Band On/Off
10.5. Strelka On/Off
11. Firmware upgrade
Firmware upgrade can be done by using SD card.
Firmware upgrade order is as follows.
① Download the latest firmware of X-COP 9100 from Neoline homepage.
② Connect SD card to PC.

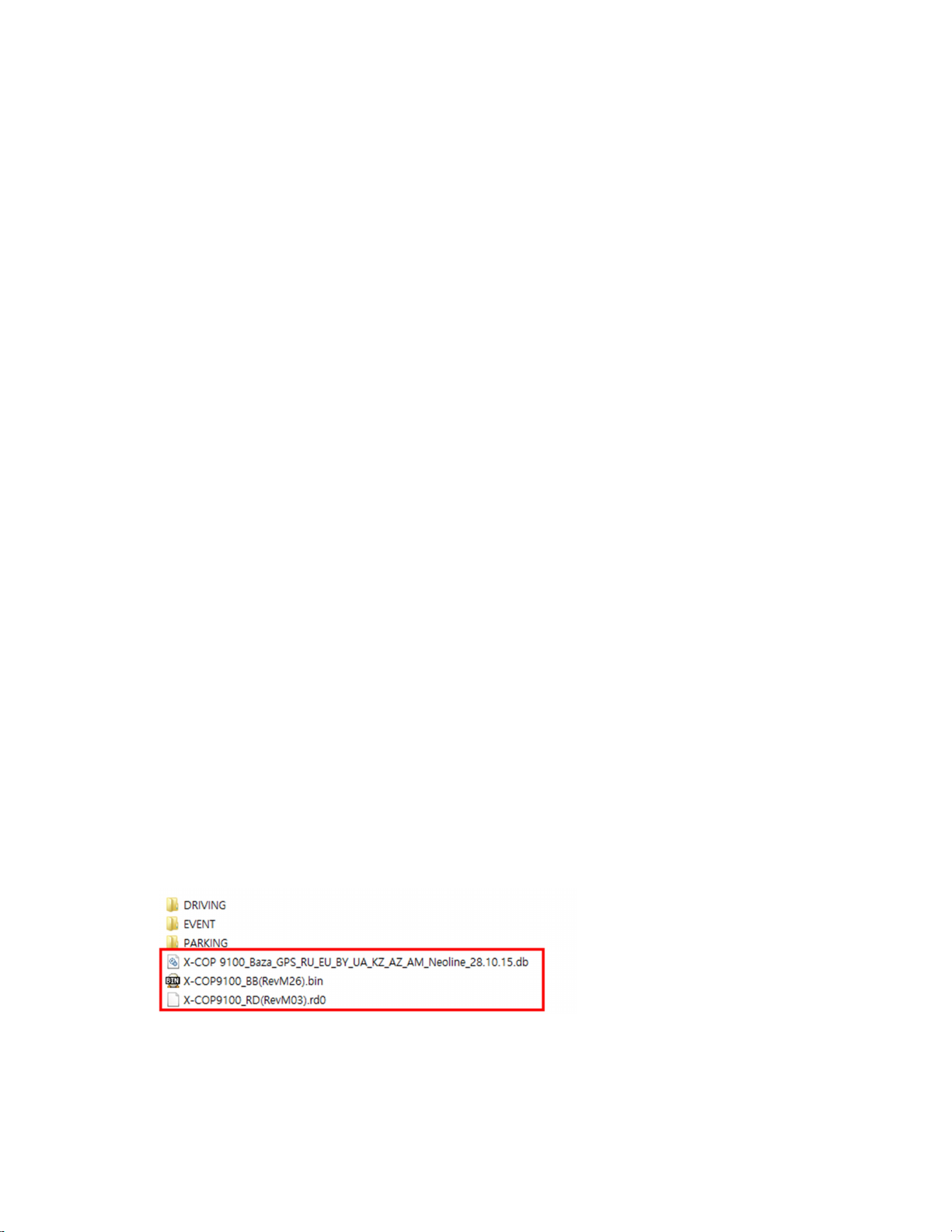

③ Copy the firmware file and paste it to root directory of SD Card.
- BlackBox
The name of the firmware file must start with ”X-COP 9100” and the file format must be “Bin”.
(For example: “X-COP9100(RevM23).bin”)
If the file name and format are not correct, the upgrade is not available.
- Radar
The file name of radar firmware must start with ”X-COP 9100” and finish with ”xxxxxxxx.rd0”.
(For example: “X-COP9100_RD(RevM01).rd0” )
- Database
The file name of the Database file must be “xxxxxx.db.”
(For example: “X-COP Baza_GPS_RU_EU_BY_UA_KZ_AZ_AM_Neoline_08.06.15.db”)
④ Remove the updated SD card from the PC and then insert it into the SD slot 1 of X-COP 9100 unit.

16
⑤ Power On X-COP 9100.
⑥ Press Menu Button  Firmware upgrade
Upgrade order (Automatic process): Radar  Database  BlackBox
Although there is one firmware file among Radar, Database, and BlackBox, Upgrade will be done.
⑦
The screen is changed to the screen for Firmware upgrade and the upgrade starts.
If there is no firmware file, “Файл прошивки не найден” text will be shown on the screen.
⑧
The power of X-COP 9100 will be Off and then On automatically once the Firmware upgrade is completed.
12. SD card format
If you do the SD card format, all data in the SD card memory will be deleted. So, please back-up important data
before formatting.
SD card format process is as follows.
①
Press Menu Button  Video Settings  SD card format and “Карта памяти будет отформатирована. Вы

17
уверены?” is displayed.
②
Press Select button and “Attention! Remove all?” will be pop-up.
③
Press select “Yes” and the format of SD card is completed.
13. Radar alert
The Radar alert display is as follows.
13.1. Band identification
The following each radar band is displayed when any of radar band is detected.
( X Band ) (K Band) (KA Band) (Strelka) (Laser)
13.2. Signal strength meter
The received signal is divided from Level-1 to Level-5 according to the strength.
The higher level has shorter beep sound.
The interval of each strength level is as follows.

18
Level Level-1 Level-2 Level-3 Level-4 Level-5
Interval 1.5 sec 0.9 sec 0.6 sec 0.3 sec 0.15 sec
The Signal strength level will be displayed as like the following picture.
13.3. Voice alert
Voice alert will be announced when the radar signal strength reaches level 3.
The voice for each Radar band is as follows.
13.3.1. Voice message for X or K or Ka or Laser alert
“Speed control”
13.3.2. Voice message for Strelka alertS
“Radar Strelka”
14. GPS alert
The kinds of POI are as follows.
Fixed camera, Redlight camera, Redlight speed camera, Speed camera, Police post, Speed restriction, Ramp,
Dangerous change of the movement direction, Dangerous cross road
14.1. Detection distance
The GPS detection distance of X-COP 9100 is different according to car speed as follows.
Car Speed Distance
0Km ~ 60Km 600 meters
61Km ~ 70Km 650 meters
71Km ~ 80Km 700 meters
81Km ~ 90Km 750 meters
91Km ~ 100Km 800 meters
101Km ~ 110Km 850 meters
110Km ~ 900 meters
14.2. Alert operation

19
14.2.1. X-COP 9100 will give the voice announcement for the detected GPS POI and display the alert on
LCD screen at once.
The Alert display on the LCD screen is composed of the image for each POI, the remaining distance
to the POI, and the speed limit of the road as like the following picture.
14.2.2. Video surveillance alert
In case of Video surveillance alert display, it shows an average speed differently from other types of
POI.
It shows the remaining distance up to Camera start point as like the following picture and then blink
the average speed when it passes through the Camera start point.
(Distance display) (Blinking averaging speed)
14.2.3. The voice messages and Displays for various types of POI are as follows.
(“….Km” means the announcement of speed limit.)
POI Display Voice
Strelka “Radar Strelka” + "… Km"
Red light camera “Red light camera is ahead”
Red light speed camera “Red light speed camera is ahead”
Speed camera
(Fixed and Photo)
“Speed control” + "… Km"
Video surveillance area start "Video surveillance area is started"
Video surveillance area end "Video surveillance area is ended"
Strelka FAKE " Radar Strelka "
Strelka (Only video module) "Traffic video control 1"
Strelka video module controls
public transport
"Video control of the public transport
line"
Strelka video module controls
trucks "Video control of the trucks traffic"

20
Police post “Police post”
User area "User area is ahead"
15. Setting mode
15.1. How to enter into the SET mode
Press “Menu” button shortly at power On condition and it enters into the Setting mode.
At setting mode, settings for Video / Detection / Play / Firmware update are available.
The following is the initial screen of setting mode.
If you want to get out of the setting mode without saving the settings, please press Menu (Exit) button.
15.2. Video Settings
 Select button – choose the sub settings
 Up, Down button – move between the settings
 Menu button – back to the main menu
