Neptune ACKPWSK User manual

TSN18358-1 Rev.1 - Page 1 24th December, 2018
MODELS
ACKPWSK
ACKPWSKWM
NEPTUNE KEYPAD TOUCH EM/HID S/ALONE or WIEGAND IP65 (2x6)
NEPTUNE KEYPAD BUTTON MIFARE S/ALONE or WIEGAND IP65 (3X4)
PROGRAMMING
ENTER PROGRAMMING MODE
* <MASTER CODE> #
CHANGE MASTER CODE
0
<NEW MASTER CODE> # <REPEAT> #
ADD PIN USERS
1
<USER NUMBER (1-2000)> #
<PIN NUMBER> #
1
2
3
1
2
MASTER CODE MUST BE BETWEEN 6-8 DIGITS.
PRESS * TO EXIT PROGRAMMING
ADDITIONAL USERS CAN BE ADDED BY REPEATING STEPS 2 & 3
EXAMPLE
1 1 # 9384 # 2 # 2958 # 3 # 9876 # *
The programming above added 3 users with unique pin numbers
PIN NUMBERS MUST BE BETWEEN 4-6 DIGITS
PRESS * TO EXIT PROGRAMMING
ADD CARD USERS
1
<USER NUMBER (1-2000)> #
<BADGE CARD>
1
2
3
ADDITIONAL USERS CAN BE ADDED BY REPEATING STEPS 2 & 3
EXAMPLE
1 1 # <BADGE CARD> 2 # <BADGE CARD> *
The programming above added 2 users with cards
THE ABOVE METHOD IS PREFERRED FOR CARD PROGRAMMING
SO INSTALLERS CAN NOTE WHICH USER NUMBER EACH CARD
IS ASSIGNED TO.
PRESS * TO EXIT PROGRAMMING
DELETE USERS BY USER NUMBER
2
<USER NUMBER (1-2000)> #
1
2
ALL USERS CAN BE DELETED USING THE FOLLOWING STEPS
PIN NUMBERS MUST BE BETWEEN 4-6 DIGITS
PRESS * TO EXIT PROGRAMMING
2
0000 #
1
2
SET DOOR RELAY TIME
4
0 # (50ms / 5 seconds) DEFAULT
1 - 99 # (Another time in seconds)
1
2
PRESS * TO EXIT PROGRAMMING
DELETE USERS BY CARD
2
<BADGE CARD>
1
2
THSI METHOD REQUIRES EXISTING CARD TO BE PRESENT
PRESS * TO EXIT PROGRAMMING
ADD CARD USERS WITH MANAGER CARDS
<BADGE MANAGER ADD CARD>
<BADGE USER CARD BEING ADDED>
1
2
<BADGE MANAGER ADD CARD>3
THIS METHOD DOES NOT REQUIRE PROGRAMMING MODE
METHOD IS IDENTICAL FOR DELETING USERS WITH MANAGER CARD

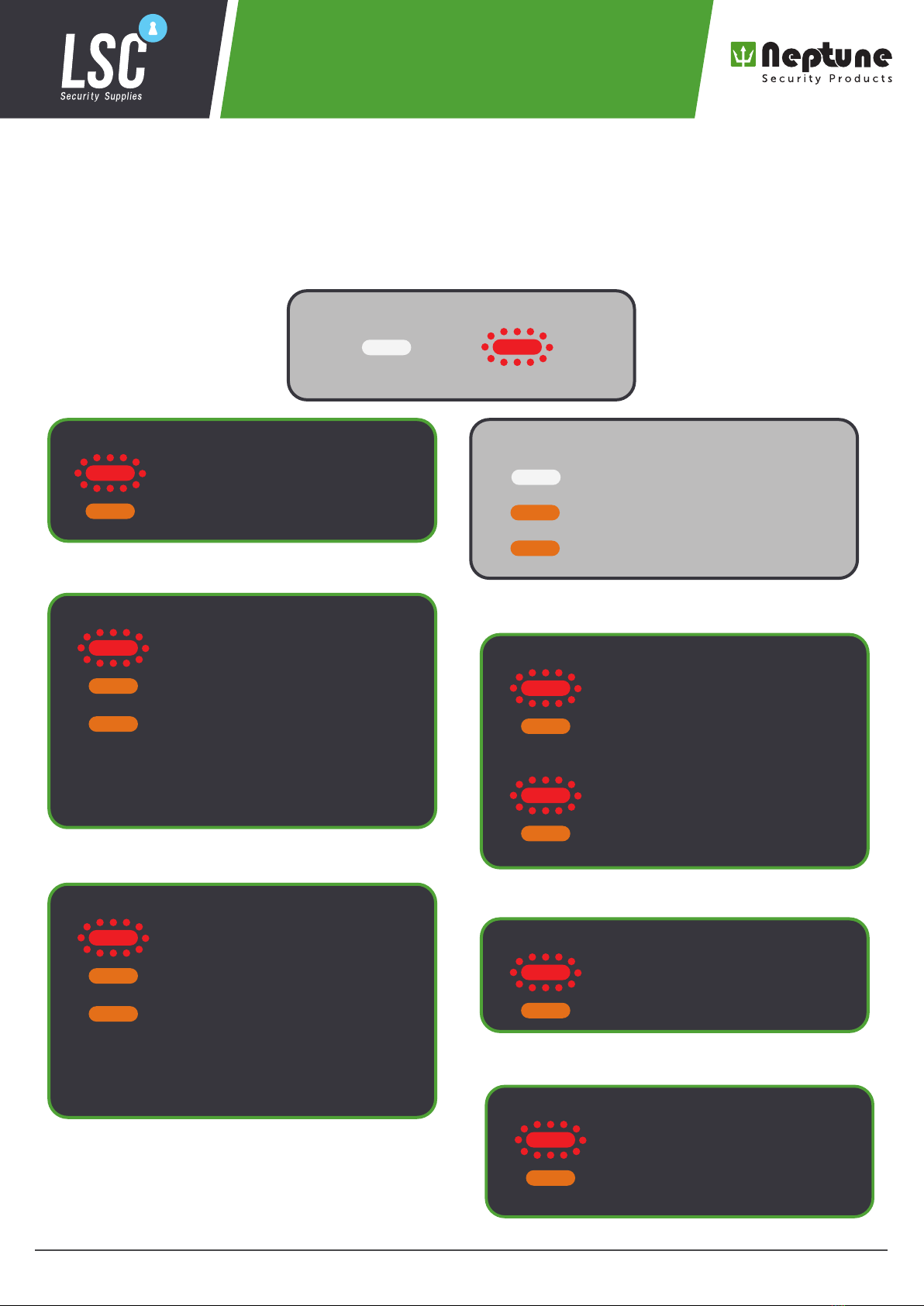

Colour Indicators refer to LED status lights on Keypad
NEPTUNE Quick Reference Guide
DEFAULT MASTER CODE
888888

TSN18358-1 Rev.1 - Page 2 24th December, 2018
NEPTUNE Quick Reference Guide
PROGRAMMING (Advanced)
SET TO WIEGAND/STANDALONE MODE
71
WIEGAND: FOR CONNECTION TO EXTERNAL ACCESS CONTROL SYSTEM
PRESS ** TO EXIT PROGRAMMING
1
0 # (Wiegand)
1 # (Standalone) DEFAULT
2
3
SET WIEGAND FORMAT
71
APPLICABLE WHEN IN WIEGAND MODE
PRESS ** TO EXIT PROGRAMMING
2
26 - 37 # (26bit to 37bit Wiegand Output)
DEFAULT - 26bit Wiegand
2
3
SET KEYPAD TRANMISSION FORMAT
71
APPLICABLE WHEN IN WIEGAND MODE
PRESS ** TO EXIT PROGRAMMING
3
0 # Buffered Output
1 # 4bit Burst DEFAULT
2 # 8bit Burst
2
3
TURN INDICATOR LIGHT ON/OFF
81
THIS IS IN REFERENCE TO THE LED LIGHT ABOVE THE KEYPAD
PRESS ** TO EXIT PROGRAMMING
1
0 # (Off)
1 # (On) DEFAULT
2
3
DISABLE/ENABLE KEYPAD BUZZER
81
KEYPAD BUZZER WILL STILL OCCUR DURING PROGRAMMING MODE
PRESS ** TO EXIT PROGRAMMING
2
0 # (Disable)
1 # (Enable) DEFAULT
2
3
DISABLE/ENABLE KEYPAD BACKLIGHT
81
PRESS ** TO EXIT PROGRAMMING
3
0 # (Disable)
1 # (Enable) DEFAULT
2
3
USER OPERATION
Additional programming options available in User Manual
Successful Command (Long Beep)
Unsuccessful Command (3 Short Beeps)
USER ENTRY
User Presents Card, or
Enters Pin Number #
CHANGING EXISTING USER PIN
* <USER NUMBER> <CURRENT PIN> #
<NEW PIN> # <NEW PIN> #
Valid Access (Long Beep)
LED stays green on for relay time
Access Denied (3 Short Beeps) Successful Command

TSN18358-1 Rev.1 - Page 3 24th December, 2018
NEPTUNE Quick Reference Guide
POWER SUPPLY
+-
+
-
12VDC (Red)
GND (Black)
COM (Purple)
NC (Orange)
OPEN (Yellow)
ACWEL1911
ACKPWSKWM
or
ACKPWSK
12VDC
FEM3500 *
POWER SUPPLY
+-
+
-
12VDC (Red)
GND (Black)
COM (Purple)
NO (Blue)
OPEN (Yellow)
ACWEL1911
ACKPWSKWM
or
ACKPWSK
12VDC
FES20 *
Power to Open (Normally Open)
Power to Lock (Normally Closed)
STANDALONE WIRING EXAMPLES
For connection to Access Control Panel (must be set to Wiegand mode)
WIEGAND WIRING EXAMPLE
12VDC (Red)
GND (Black)
ACKPWSKWM
or
ACKPWSK
D0 (Green)
D1 (White)
LED (Brown)
BUZZER (Yellow)
BUZZER
LED
D1
D0
GND
+12VDC
ACCESS
CONTROL
PANEL
