NETGEAR EX2700 User manual

Quick Start
N300 WiFi Range Extender
Model EX2700

2
Getting Started
The NETGEAR WiFi Range Extender increases the distance of a WiFi
network by boosting the existing WiFi signal and enhancing the overall
signal quality over long distances. An extender repeats the signals from an
existing WiFi router or access point.
Existing WiFi
Sometimes your router
does not provide the WiFi
coverage you need.
WiFi Range
Extender
Boosts the range of your
existing WiFi and creates
a stronger signal in
hard-to-reach areas.

3
Meet Your Extender
Before you install your extender, familiarize yourself with its LEDs,
buttons, and port.
Router
Link
LED
Device
Link
LED
Power LED
WPS button
Power On/O
button
Factory Reset
button
Ethernet port
WPS LED

4
LED Descriptions
Router Link LED This LED indicates the connection between the extender and
the router or access point.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Device Link LED This LED indicates the connection between the extender and
a computer or mobile device.
Solid green. Best connection.
Solid amber. Good connection.
Solid red. Poor connection.
O. No connection.
Power LED Solid amber. The extender is booting.
Solid green. The extender is powered on.
O. The extender is powered o.
WPS LED Solid green. WiFi security is enabled (WPA or WPA2).
Blinking green. A WPS connection is being established.
O. WiFi security is not enabled.

5
Use the Extender
The extender repeats the signals from an existing WiFi router or access
point. Place the extender, apply power, and connect it to your WiFi
network.
Place the Extender and Apply Power
1. Place your extender in the same room as your WiFi router.
Proximity to the WiFi router is required only during the initial setup
process.
2. Plug the extender into an electrical outlet.
Wait for the Power LED to light green.
3. If the Power LED does not light, press the Power On/Off button on
the extender.
Connect to an Existing WiFi Network
To extend the range of your WiFi network, you must connect the extender
to your existing WiFi network. You can do this in one of two ways:
• Connect with WPS. For more information, see Connect with WPS on
page 6.
• Connect with web browser setup. For more information, see
Connect with Web Browser Setup on page 8.

6
Connect with WPS
Wi-Fi Protected Setup (WPS) lets you join a secure WiFi network without
typing the network name and password.
Note: WPS does not support WEP network security. If you are using WEP
security, follow the instructions in Connect with Web Browser Setup on
page 8.
1. Press the WPS button on the side panel of the extender.
The WPS LED blinks.
2. Within two minutes, press the WPS button on your router or access
point.
When the extender connects to your existing WiFi network, the WPS
LED on the extender lights solid green and the Router Link LED lights.
If the Router Link LED does not light, try again. If it still does not light,
see Connect with Web Browser Setup on page 8.
3. Unplug the extender and move it to a new location that is about
halfway between your router and the area with a poor router WiFi
signal.
The location that you choose must be within the range of your
existing WiFi router network.
4. Plug the extender into an electrical outlet and wait for the Power LED
to light green.

7
5. Use the Router Link LED on the front panel to help you choose a spot
where the extender-to-router connection is optimal.
6. If the Router Link LED doesn’t light amber or green, plug the extender
into an outlet closer to the router and try again.
Keep moving the extender to outlets closer to the router until the
Router Link LED lights amber or green.
7. On your computer or WiFi device, find and connect to the new
extended WiFi network.
The extender creates a new extended WiFi network. The extender’s
new WiFi network name is based on your existing WiFi network name,
with _EXT at the end of the name.
For example:
• Existing WiFi network name. MyNetworkName
• New extended WiFi network name. MyNetworkName_EXT.
Use the same WiFi password that you use for your WiFi router.

8
8. Test the extended WiFi range by moving your computer or WiFi device
to the area with a poor router WiFi signal:
a. Leave your computer or WiFi device in the area with a poor router
WiFi signal and return to the extender.
b. Check the Device Link LED on the extender:
• If the Device Link LED is solid green or amber, your extended
WiFi network reaches the area with a poor router WiFi signal
and your network setup is complete.
• If the Device Link LED is red, your extended WiFi network
does not reach the area with a poor router WiFi signal.
You must move the computer or WiFi device closer to the
extender until the Device Link LED turns solid green or
amber.
Connect with Web Browser Setup
1. Use a WiFi network manager on a computer or mobile device to find
and connect to the extender WiFi network NETGEAR_EXT.
Aer the connection with the computer or WiFi device is established,
the Device Link LED lights.
2. Launch a web browser.
3. Enter www.mywifiext.net in the address field of the browser.
The New Extender Setup page displays.

9
4. Click the NEW EXTENDER SETUP button.
The Create Account page displays.
5. Complete the fields on the page to set up your login credentials and
click the NEXT button.
6. Select a WiFi network to extend and click the NEXT button.
7. In the Password (Network Key) field, type the existing WiFi
network password (also called the passphrase or security key) and
click the NEXT button.
8. Set the network name (SSID) and password for your extender and
click the NEXT button.
Wait for the page to display a list of available extended WiFi networks,
which might take up to one minute.
9. Use a WiFi network manager on the computer or WiFi device to
connect to the new extended WiFi network.
You must connect your computer or WiFi device before you click the
Continue button.
10. Click the Continue button.
A message displays confirming that the extender is connected and
ready.
11. Click the Next button.
The registration page displays.

10
12. Complete the registration fields and click the Finish button to
complete the setup.
If you do not want to register your extender, click the Skip
Registration link. Note that you must register your extender before
you can use NETGEAR telephone support.
The Status page displays.
13. Unplug the extender and move it to a new location that is about
halfway between your router and the area with a poor router WiFi
signal.
The location that you choose must be within the range of your
existing WiFi router network.
14. Plug the extender into an electrical outlet and wait for the Power LED
to light green.
15. Use the Router Link LED to help you choose a spot where the
extender-to-router connection is optimal.

11
16. If the Router Link LED doesn’t light amber or green, plug the extender
into an outlet closer to the router and try again.
Keep moving the extender to outlets closer to the router until the
Router Link LED lights amber or green.
17. Reconnect your computer or WiFi device to the new extended WiFi
network.
18. Test the extended WiFi range by moving your computer or WiFi device
to the area with a poor router WiFi signal:
a. Leave your computer or WiFi device in the area with a poor router
WiFi signal and return to the extender.
b. Check the Device Link LED on the extender:
• If the Device Link LED is solid green or amber, your extended
WiFi network reaches the area with a poor router WiFi signal
and your network setup is complete.
• If the Device Link LED is red, your extended WiFi network
does not reach the area with a poor router WiFi signal.
You must move the computer or WiFi device closer to the
extender until the Device Link LED turns solid green or
amber.

12

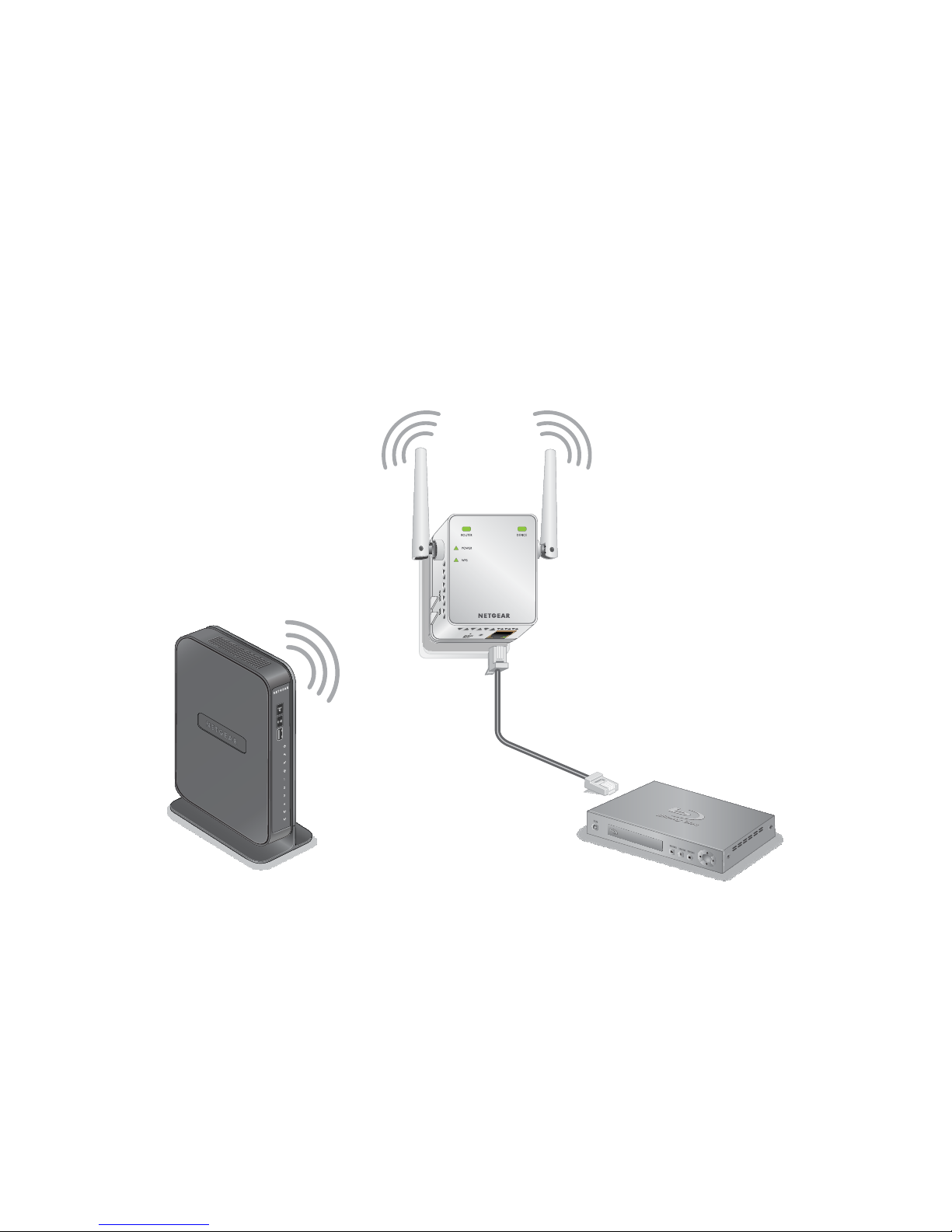

Connect an Ethernet-Enabled Device
Aer the extender is connected to your existing WiFi network, you can
connect a wired device to the extender using an Ethernet cable. That
device can then access your existing network through the WiFi connection.
WiFi Router
Extender

13
Access Extender Settings
Aer installation, you can log in to the extender to view or change the
extender’s settings.
1. Use a WiFi network manager on a computer or WiFi device to find and
connect to the new extended WiFi network.
Aer the connection with the computer or WiFi device is established,
the Device Link LED lights.
2. Launch a web browser.
3. Enter www.mywifiext.net in the address field of the browser.
A login window opens.
4. Type your email address and password and click the LOG IN button.
The Status page displays.
5. Make any needed changes.

14
Frequently Asked Questions
You can find more information about your product in the user manual,
which is available at http://downloadcenter.netgear.com.
I forgot my login email address and password. What can I do?
In the login window, click the Username & Password Help link to answer
the security questions that you set up during the initial setup.
If you forgot the answers to your security questions, do the following to
set up your login credentials again:
1. Restore the extender to its factory default settings.
2. Launch a web browser.
3. Enter www.mywifiext.net in the address field of the browser.
The New Extender Setup page displays.
4. Click the NEW EXTENDER SETUP button.
5. When prompted, complete the fields on the page to set up your login
credentials again.
Can I connect the extender to the router with an Ethernet cable?
No. The extender is designed to connect wirelessly to the router or access
point.

15
The web browser setup guide keeps asking me for my network
password (passphrase) or security key, and I am sure I have entered
the correct password. What can I do?
The extender is probably placed at the borderline of the range covered by
the router or access point. For more information, see Place the Extender
and Apply Power on page 5.
If you are using WEP security, make sure that you are typing the network
password in the correct field.
I am connected to NETGEAR_EXT and launched a browser. Why
can’t I see the web browser setup guide?
Try these troubleshooting steps:
• Make sure that your computer is set up to use DHCP (most are).
• Make sure that the Device Link LED is green and that you are using a
valid IP address.
• Relaunch the web browser and type www.mywifiext.net in the
address field. Type your email address and password and click the LOG
IN button.

16
How do I restore the extender to its factory default settings?
1. Use a sharp object such as a pen or straightened paper clip to press
and hold the Factory Reset button on the extender for at least five
seconds until the Power LED lights amber.
2. Release the Factory Reset button and wait for the extender to
reboot.
The extender resets and returns to the factory default settings.
I enabled a wireless MAC filter, wireless access control, or access
control list (ACL) on my router. What should I do when installing
the extender?
When a device connects through the extender to your router, the MAC
address of the device shown on the router is translated to another MAC
address. If your router’s MAC filter, wireless access control, or ACL is
enabled, the device connects to the extender but cannot get an IP address
from the extender and cannot access the Internet.
To allow your device to receive an IP address from the extender and access
the Internet, you must provide the translated MAC address to the router.
1. Log in to your router and disable the MAC filter, wireless access
control, or ACL.
For more information about how to disable your router’s MAC filter,
wireless access control, or ACL, see your router’s documentation.

17
2. Power on the extender and connect all of your WiFi devices to the
extender network.
3. Make sure that the Router Link LED remains lit.
4. Log in to your extender:
a. Launch a web browser.
b. Enter www.mywifiext.net in the address field of the browser.
A login window opens.
c. Enter your email address and password and click the LOG IN
button.
The Status page displays.
5. Select Settings > Connected Devices.
The Connected Devices section displays the MAC addresses and
virtual MAC addresses for the computers and WiFi devices that are
connected to the extender.
6. On the router, add the extender’s virtual MAC addresses and all of the
virtual MAC addresses of the devices connected to the extender to
your router’s MAC filter table.
7. Enable the router’s MAC filter, wireless access control, or ACL.

July 2015
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
Support
Thank you for purchasing this NETGEAR product. Aer installing your device, locate
the serial number on the label of your product and use it to register your product at
https://my.netgear.com. You must register your product before you can use NETGEAR
telephone support. NETGEAR recommends registering your product through the
NETGEAR website.
For product updates and web support, visit http://support.netgear.com.
NETGEAR recommends that you use only the ocial NETGEAR support resources. You
can get the user manual online at http://downloadcenter.netgear.com or through a link
in the product’s user interface.
Trademarks
© NETGEAR, Inc., NETGEAR and the NETGEAR Logo are trademarks of NETGEAR, Inc.
Any non‑NETGEAR trademarks are used for reference purposes only.
Compliance
For the current EU Declaration of Conformity, visit
http://support.netgear.com/app/answers/detail/a_id/11621/.
For regulatory compliance information, visit
http://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
