NETGEAR EVA9100 - Digital Entertainer Express User manual

202-10574-01
October 2009
v1.0
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
Digital Entertainer
Express EVA9100 User
Manual

ii
v1.0, October 2009
© 2009 by NETGEAR, Inc. All rights reserved.
Trademarks
NETGEAR, the NETGEAR logo and the NETGEAR Digital Entertainer logo are registered trademarks of NETGEAR,
Inc., in the United Sates and/or other countries. Other brand names mentioned here are for identification purposes only
and may be trademarks of their respective holder(s).
Dolby Digital
Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby
Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice. NETGEAR does not assume any liability that
may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Customer Support
Refer to the Support Information card that shipped with your Digital Entertainer Express EVA9100.
World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at:
http://www.netgear.com.
A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.
Product and Publication Details
Model Number: EVA9100
Publication Date: October 2009
Product Family: Digital Media Player
Product Name: Digital Entertainer Express EVA9100
Home or
Business
Product:
Home
Language: English
Publication Part
Number:
202-10574-01
PublicationVersion
Number
1.0

iii
v1.0, October 2009
Contents
Digital Entertainer Express EVA9100 User Manual
About This Manual
Conventions, Formats, and Scope .................................................................................. vii
Version History ................................................................................................................viii
Chapter 1
Custom Installation and Configuraton
Important Safeguards and Notices .................................................................................1-1
Front View ......................................................................................................................1-2
Rear View .......................................................................................................................1-2
Remote Control ..............................................................................................................1-3
Installing the Digital Entertainer Express with Custom Setup .........................................1-4
Connecting the Digital Entertainer Express ....................................................................1-5
Setting Up the Digital Entertainer Express .....................................................................1-6
Installing the Digital Entertainer for Windows Software ...........................................1-8
Installing the Digital Entertainer Software on a Mac ..............................................1-10
Configuring Your Media Library ....................................................................................1-11
Using the Configuration Wizard with a Windows-Based PC ..................................1-12
Using the Configuration Wizard with a Mac ...........................................................1-14
Accessing the Setup Wizard from the Digital Entertainer Express Menu .....................1-15
Playing Protected Media Files ......................................................................................1-17
Protected Media Stored on a Mac ..........................................................................1-17
Protected Media Stored on a PC ...........................................................................1-17
Chapter 2
Getting to Know Your Digital Entertainer Express
Navigating with the Remote Control ...............................................................................2-1
Television Main Menu ..............................................................................................2-3
Tips When Using the Remote Control to Browse or Search ....................................2-4
Parental Control .......................................................................................................2-4

Digital Entertainer Express EVA9100 User Manual
iv
v1.0, October 2009
Digital Entertainer Software for Windows .......................................................................2-5
Accessing the Digital Entertainer Express with Your Browser .......................................2-6
Using Your Browser to Play Media ..........................................................................2-7
Chapter 3
Listening and Viewing
USB Flash Drives or Media Players ...............................................................................3-1
Listening to Music ...........................................................................................................3-2
Viewing Photos ...............................................................................................................3-4
Playing Music and Viewing Photos at the Same Time ...................................................3-7
Viewing Stored Video Files .............................................................................................3-7
Playing Internet Media ....................................................................................................3-9
Viewing YouTube Content .....................................................................................3-10
Playing Internet Radio ............................................................................................3-12
Viewing News and Weather ...................................................................................3-13
Chapter 4
Fine-Tuning Your Experience
Viewing Digital Entertainer Express Status from Your PC .............................................4-1
Improving Media Library Search Results ........................................................................4-2
Using the Tag Tool Application ................................................................................4-3
Adding Cover Art ......................................................................................................4-4
Using the Script Wizard to Automate Tasks .............................................................4-5
Understanding Home Networking ...................................................................................4-6
Assessing Your Speed Requirements .....................................................................4-8
Optimizing the Performance of Your Home Network ......................................................4-8
Wireless Performance (USB Wireless Adapter Required, Sold Separately) ............4-8
Network Bandwidth ..................................................................................................4-9
Media File Performance .........................................................................................4-11
Tips for Streaming Video ........................................................................................4-12
Taking Precautions .......................................................................................................4-12
Access and Network Security ................................................................................4-12
Setting Up Parental Control ...................................................................................4-13
Chapter 5
Advanced Features and More Features
Advanced Settings ..........................................................................................................5-1
Display and Screensaver .........................................................................................5-2

Digital Entertainer Express EVA9100 User Manual
v
v1.0, October 2009
Audio and Slideshow ................................................................................................5-4
Network Connection .................................................................................................5-4
Setting Up Network Shares ......................................................................................5-5
Media Library Management .....................................................................................5-5
More... Settings ..............................................................................................................5-7
System Information ..................................................................................................5-7
Setting Up Hot Keys .................................................................................................5-8
Enabling PC Access .......................................................................................................5-8
Chapter 6
Maintenance and Troubleshooting
Updating the Firmware ...................................................................................................6-1
Changing from Composite Video Cable to HDMI Video Cable ......................................6-3
Supervisor Functions ......................................................................................................6-4
Troubleshooting Tips ......................................................................................................6-5
Media Does Not Play ......................................................................................................6-6
Configuring Your Firewall Port Settings ...................................................................6-6
Accessing Your Digital Media .........................................................................................6-7
Windows System Passwords ...................................................................................6-7
Macintosh OSX ........................................................................................................6-7
Linux .........................................................................................................................6-7
Error Messages ..............................................................................................................6-8
Network Connections .....................................................................................................6-9
Ethernet LAN Connection ........................................................................................6-9
IP Address ..............................................................................................................6-10
Connecting to a Server ..........................................................................................6-10
Appendix A
Default Configuration and Technical Specifications
Restoring Factory Settings ............................................................................................ A-1
Supported Media File Formats ...................................................................................... A-2
Technical Specifications ................................................................................................ A-2
Appendix B
Related Documents
Index
Compliance

Digital Entertainer Express EVA9100 User Manual
vi
v1.0, October 2009

vii
v1.0, October 2009
About This Manual
The Digital Entertainer Express works with a wide variety of digital storage formats and systems,
which you can view can browse and play on your television screen. The NETGEAR®Digital
Entertainer Express EVA9100 User Manual explains custom installation, how to set up and use the
Digital Entertainer Express, and how to troubleshoot if problem occur.
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical Conventions.This manual uses the following typographical conventions:
•Formats.This manual uses the following formats to highlight special messages:
Italic Emphasis, books, CDs, file and server names, extensions
Bold User input, IP addresses, GUI screen text
italic URL links
Note: This format is used to highlight information of importance or special interest.
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note may result in a malfunction or damage to the
equipment.

Digital Entertainer Express EVA9100 User Manual
viii
v1.0, October 2009
•Scope.This manual is written for the Digital Entertainer Express according to these
specifications:
For more information about network, Internet, firewall, and VPN technologies, see the links to the
NETGEAR website in Appendix B, “Related Documents.”
Version History
Danger: This is a safety warning. Failure to take heed of this notice may result in
personal injury or death.
Product Version Digital Entertainer Express EVA9100
Manual Publication Date October 2009
Note: Product updates are available on the NETGEAR, Inc. website at
http://kbserver.netgear.com/products/EVA9000.asp.
Table 1-1. Digital Entertainer Express EVA9100 User Manual Version History
Version Publication Date Description
1.0 October 2009 Original document

1-1
v1.0, October 2009
Chapter 1
Custom Installation and Configuraton
This chapter explains how to install the Digital Entertainer Express with custom setup, or with
cables that are not included in the package.
• For basic installation using the composite video cable included in the package, see the Digital
Entertainer Express EVA9100 Installation Guide.
• For a wireless connection, a USB Wi-Fi adapter (sold separately) is required. See the USB
Wi-Fi Adapter Quick Installation Guide. To change your network connection from Ethernet to
wireless, see “Network Connections” in Chapter 6.
Important Safeguards and Notices
Please observe these precautions, especially those regarding the risk of electric shock or injury to
persons.
Danger: To reduce the risk of electric shock, do not remove the cover. There are no user-
serviceable parts inside. This device should be used only indoors in well-
ventilated areas. To reduce the risk of fire, electric shock, or interference, do
not expose this appliance to moisture or rain, and use only the recommended
accessories.
Warning: Displaying static images can cause burn-in on certain displays. Do not display
static images (such as menus, photos, or paused videos) onscreen for long
periods of time.

Digital Entertainer Express EVA9100 User Manual
1-2 Custom Installation and Configuraton
v1.0, October 2009
Front View
The front view of the of the Digital Entertainer Express is shown in the following figure:
Rear View
The rear view of the Digital Entertainer Express is shown in the following figure:
The rear panel includes the following elements:
•Cable ports. The Digital Entertainer Express works with a wide variety of audio and video
cables. Composite video cable is included in the package. If you wish to use a different cable it
musb be purchased separately. For information about connecting cables, see “Connecting the
Digital Entertainer Express” on page 1-5
Figure 1-1
Figure 1-2
Sensor
USB port
window
Power button
Component
SCARTS-Video Stereo
S/PDIF
Ethernet port
HDMI
S/PDIF optical audio
USB Power
Composite
On/Off
port
video audio
switch
with LEDsvideo (3 ports)
coaxial
(audio)
(2 ports)
(3 ports)
Restore
factory
settings

Digital Entertainer Express EVA9100 User Manual
Custom Installation and Configuraton 1-3
v1.0, October 2009
•USB v2.0 port. Can be used to connect USB mass storage devices such as hard drives, media
players (including Windows- or Mac-formatted Apple iPods), and flash memory devices, or
the optional Wi-Fi USB adapter (sold separately).
•Ethernet port. 10/100 Mbps Ethernet port with LEDs to connect the Digital Entertainer
Express to a wired local area network (LAN).
•Restore factory settings button. Reset the Digital Entertainer Express to its factory default
settings. To reset, press and hold the button down while the unit is powering up. The Power
LED blinks to acknowledge the reset request.
• Power connector for the Digital Entertainer Express power cord.
• On/Off switch.

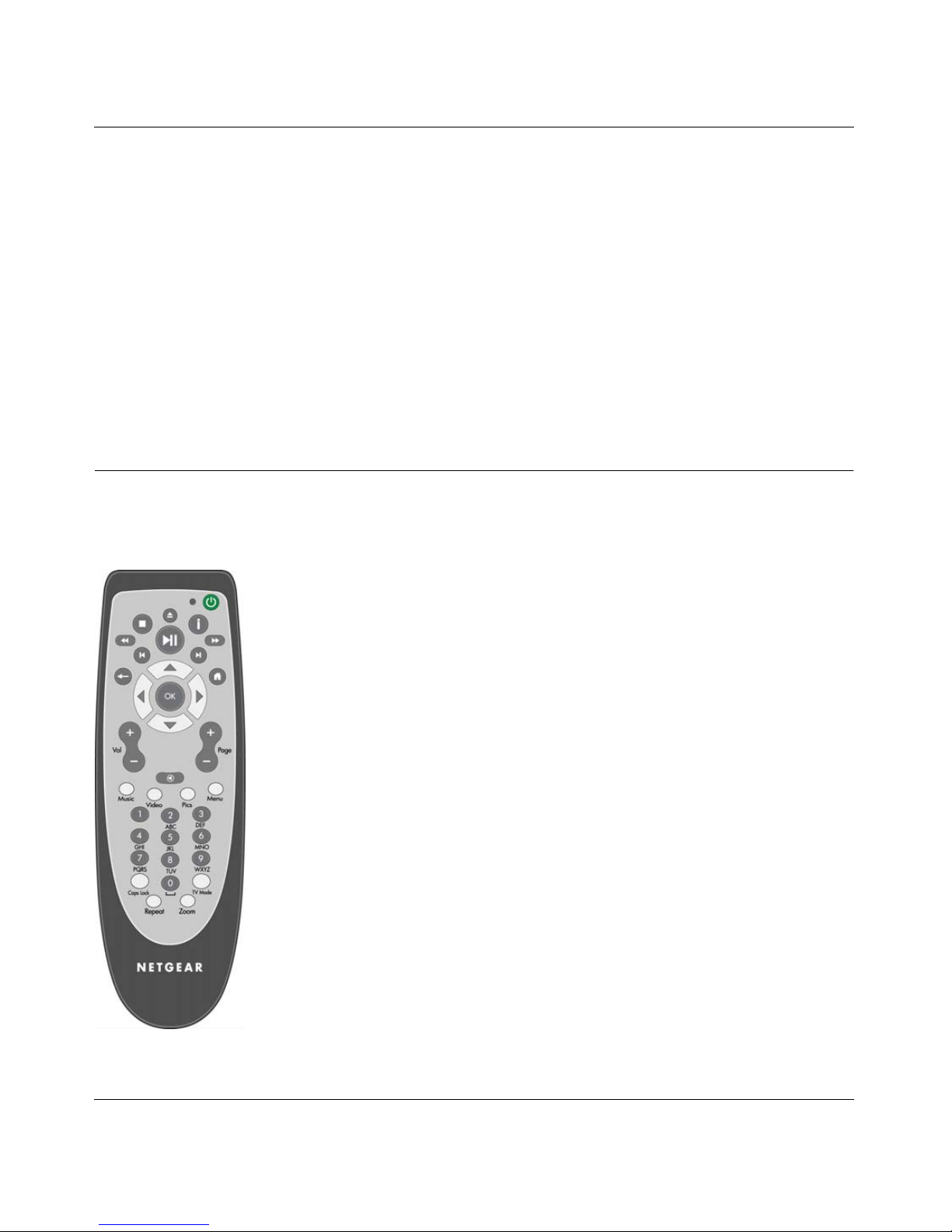

Remote Control
A remote control with batteries is included. For information about navigating with the remote
control, see “Navigating with the Remote Control” on page 2-1.
Figure 1-3

Digital Entertainer Express EVA9100 User Manual
1-4 Custom Installation and Configuraton
v1.0, October 2009
Installing the Digital Entertainer Express with Custom Setup
Before you begin, determine which type of audio and video cables you need. This depends on your
television and audio equipment.
•Video display. The picture display quality is related to the video format you use. If your
television supports multiple formats, choose the format that provides the best picture quality.
HDMI offers the best picture quality video. Component video provides the next best quality,
followed by SCART, S-Video, and composite video. If you are viewing high-definition video,
it will play with whichever video cable you connect, but the video quality will be best with
HDMI.
You can install the Digital Entertainer Express with the composite video cable in the package
and change later to a different cable if your television supports it. See “Changing from
Composite Video Cable to HDMI Video Cable” on page 6-3.
•DTS sound or digital audio/visual (a/v) receiver. If you have a digital receiver or you want
DTS sound, use either a coaxial or optical S/PDIF audio cable (sold separately). You will also
need a video cable. You can use the composite video cable included in the Digital Entertainer
Express package, or you can use component video cable (sold separately) or HDMI cable (sold
separately).
Table 1-1. Audio and Video Cables
Type of Connection Required Cable
SCART SCART television cable (sold separately) is used for both the audio and video
signal.
HDMI High-Definition Multimedia Interface (HDMI) cable (sold separately). If your
television has an HDMI connector, you can use this cable for both the audio and
video signal.
S/PDIF coaxial (audio) Sony/Phillips Digital Interface (S/PDIF) cable, also called standard RCA type
coaxial cable (sold separately). For the video cable you can use the composite
video cable included in the package, or purchase HDMI or component video
cable separately.
S-Video S-Video cable (sold separately) connects video and audio.
Component video Component video cable (sold separately) connects video and audio.
Composite video
(included in the package)
Composite video cable connects video and stereo audio.
S/PDIF optical audio Sony/Phillips Digital Interface (S/PDIF) for optical cable (sold separately). For
the video cable you can use the composite video cable included in the package,
or purchase HDMI or component video cable separately.

Digital Entertainer Express EVA9100 User Manual
Custom Installation and Configuraton 1-5
v1.0, October 2009
Install your Digital Entertainer Express in this order:
1. Connect the Digital Entertainer Express.
2. Set up the Digital Entertainer Express.
3. Install software on your computer with the Resource CD.
4. Configure your media library to work with the Digital Entertainer Express.
Connecting the Digital Entertainer Express
To connect the Digital Entertainer Express:
1. Connect the Digital Entertainer Express to your TV set. The following figure shows the
composite video cable included in the package, and examples of two other video cables:
2. If you use a digital audio/visual (a/v) reciever or you want DTS sound, use either a coaxial or
optical S/PDIF audio cable (sold separately) to connect the Digital Entertainer Express to your
audio system.
Figure 1-4
Composite video cable
HDMI cable (sold separately)
Component video cable (sold separately)

Digital Entertainer Express EVA9100 User Manual
1-6 Custom Installation and Configuraton
v1.0, October 2009
3. Connect the Digital Entertainer Express to your router with an Ethernet cable.
4. Connect the power cord, and plug it into an outlet. Make sure the On/Off switch on the rear
panel is set to on.
The LED on the front of the Digital Entertainer Express lights up when it is powered on.
5. Install the two AA batteries into the remote control that shipped with the product.
Setting Up the Digital Entertainer Express
To set up the Digital Entertainer Express:
1. Turn on the TV.
Figure 1-5
For a wireless connection, you need a wireless USB adapter (sold separately).
Figure 1-6
On/Off
switch

Digital Entertainer Express EVA9100 User Manual
Custom Installation and Configuraton 1-7
v1.0, October 2009
2. Set the video source selector on your TV to match the connection from your Digital
Entertainer Express. For example, if you used HDMI, set the TV to use Digital HD or HDMI
input.
TV brands use different methods to identify their video source selectors. Many use a
numbering system such as Input 1, Input 2 and so on. Others use names that vary according to
the manufacturer. Check the instructions that came with your TV if you are not sure.
3. Check the TV display. If it is not clear, aim the remote control at the Digital Entertainer
Express, and press TV Mode. You can cycle through the TV modes to get the best display. It
can take 3 or 4 seconds for each TV mode change.
4. When prompted, select a language.
5. When you hear the audio welcome tone, press .
If you do not hear the audio welcome tone, check the connections to the Digital Entertainer
Express.
6. Select Custom Setup, and then specify the following settings:
• Select the video mode. The selections that you see on the screen change if you use an
HDMI connection.
Note: If your TV has multiple inputs of a specific type (such as HDMI1 or HDMI2),
make sure that you have selected the correctly numbered input.
Table 1-2. Video Modes
Type of Cable and
Region Available Video Modes
Analog cables Standard TV NTSC 480i (works for most TVs in the US)
Standard TV 480p
HDTV Component 720p
HDTV Component 1080i
HDTV Component 1080p
HDTV Component 720p 50Hz
HDTV Component 1080i 50Hz
HDTV Component 1080p 50Hz

Digital Entertainer Express EVA9100 User Manual
1-8 Custom Installation and Configuraton
v1.0, October 2009
If you are not sure what the video mode should be, check the documentation that came
with your television. If the wrong video mode is selected, the TV displays a blue screen
and you will not see the next prompt to change the room name.
• Change room name. You can enter a room name or select a room name from the list.
• Depending on where you bought your Digital Entertainer Express, you might be prompted
to enter your zip code or to choose your country and nearest city. If you want to receive
weather information, enter your zip code or location. Press the down arrow when you are
finished, and then press .
7. You are prompted to install software.
• If you use a Linux-based computer, you do not need to install the software. See
“Accessing the Setup Wizard from the Digital Entertainer Express Menu” on page 1-15.
• If you use a Windows-based PC or a Mac, see the following section, “Installing the Digital
Entertainer for Windows Software” on page 1-8.
• If you use a Mac, see “Installing the Digital Entertainer Software on a Mac” on page 1-10.
Installing the Digital Entertainer for Windows Software
After connecting the Digital Entertainer Express and completing setup you are prompted to install
software.
To install software on your PC from the Resource CD:
Analog cables for units
sold in Europe and
Australia
Standard TV PAL 576i
Standard TV SCART PAL 576i
Standard TV PAL 576p 50Hz
Standard TV SCART PAL 576p 50Hz
HDMI cables HDTV HDMI 480p
HDTV HDMI 480i
HDTV HDMI 720p
HDTV HDMI 1080i
HDTV HDMI 1080p
HDTV HDMI 720p 50Hz
HDTV HDMI 1080i 50Hz
HDTV HDMI 1080p 50Hz
HDTV HDMI 576i 50Hz
HDTV HDMI 576p 50Hz
Table 1-2. Video Modes
Type of Cable and
Region (continued) Available Video Modes

Digital Entertainer Express EVA9100 User Manual
Custom Installation and Configuraton 1-9
v1.0, October 2009
1. Power on your computer, and log in as needed.
2. Insert the Resource CD into the CD drive on the computer.
The Welcome screen displays. If you do not see the Welcome screen, browse the files on your
Resource CD, and then click Setup.

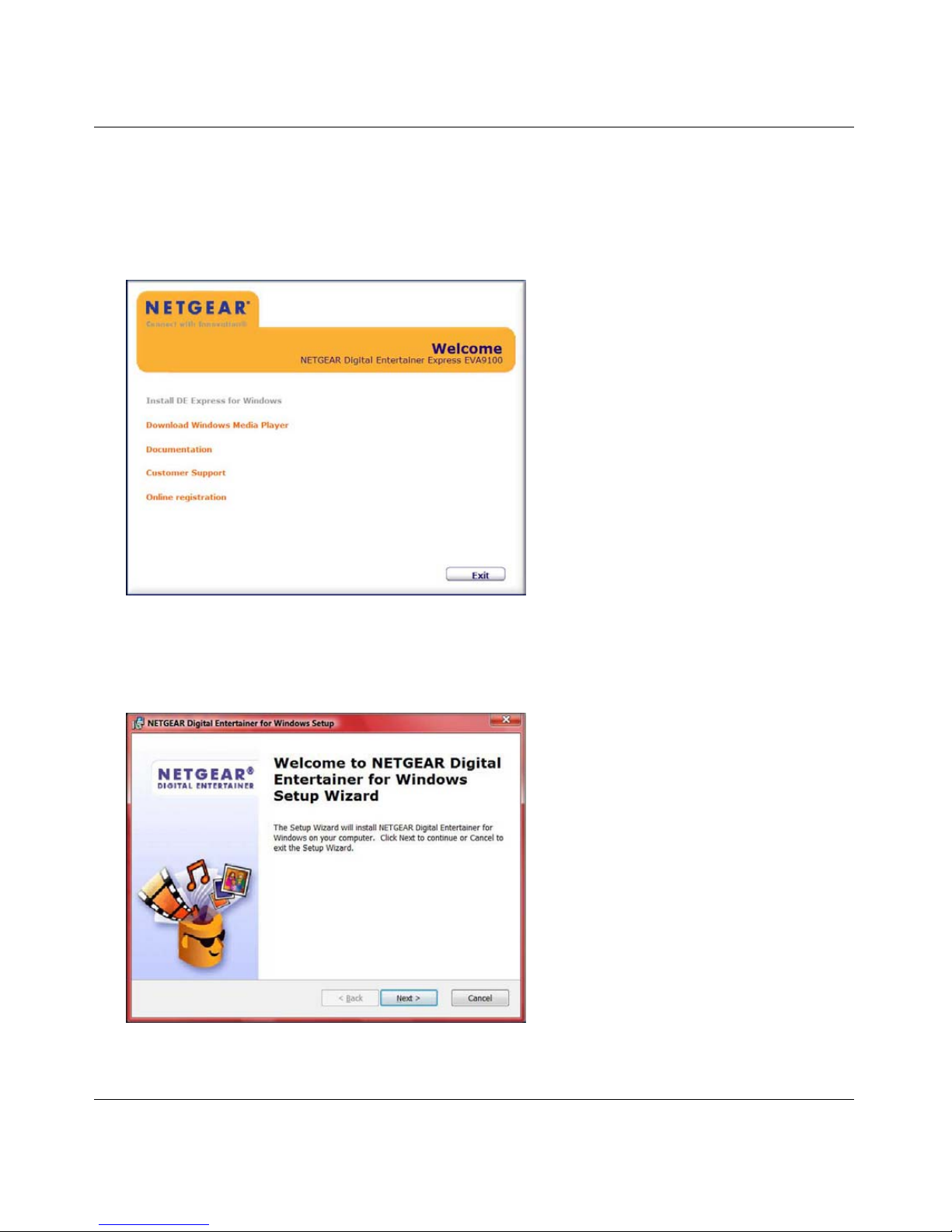

3. Select Install DE Express for Windows.
The Setup Wizard starts.
Figure 1-7
Figure 1-8

Digital Entertainer Express EVA9100 User Manual
1-10 Custom Installation and Configuraton
v1.0, October 2009

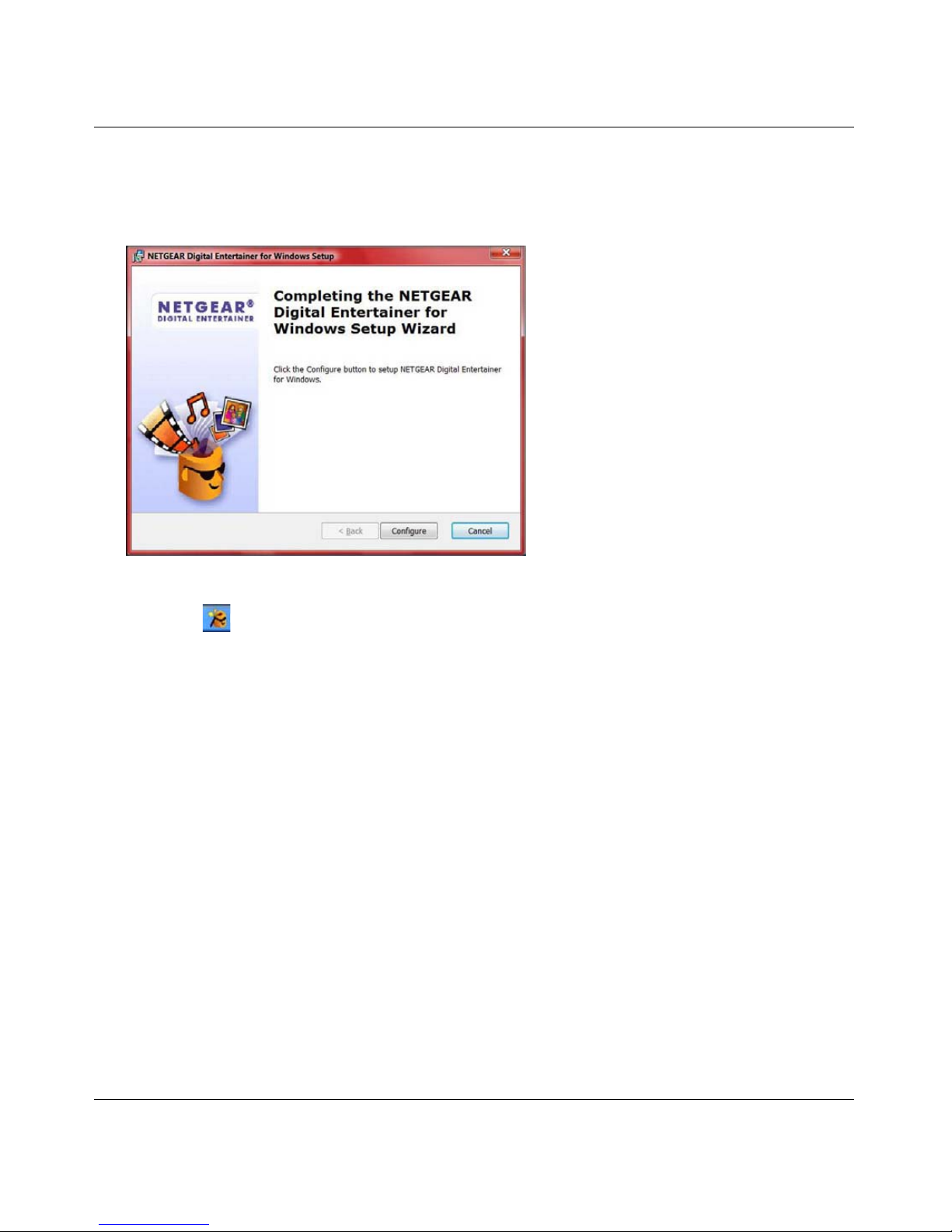

4. Follow the Setup Wizard steps to accept the licence and install the software. For computer
running Windows XP, if a logo testing message appears, click Continue Anyway.
5. After the Setup Wizard steps are finished, click Configure to use the Configuration Wizard.
This icon appears in the system tray when the Digital Entertainer for Windows software is
running.
Installing the Digital Entertainer Software on a Mac
After connecting the Digital Entertainer Express and completing setup you are prompted to install
software.
To install software on your Mac from the Resource CD:
1. Power on your computer, and log in as needed.
2. Insert the Resource CD into the CD drive on the computer.
3. Double-click the file NETGEAR Digital Entertainer for Macintosh.dmg.
Figure 1-9

Digital Entertainer Express EVA9100 User Manual
Custom Installation and Configuraton 1-11
v1.0, October 2009
4. Click NETGEAR Digital Entertainer.pkg. The Welcome screen displays:
5. Follow the Setup Wizard steps to accept the licence and install the software. The following
screen displays:
6. Click Close.
Configuring Your Media Library
You can use the Configuration Wizard with a Windows-based PC or Mac computer to set up your
media library to work with the Digital Entertainer Express.
Figure 1-10
Figure 1-11

Digital Entertainer Express EVA9100 User Manual
1-12 Custom Installation and Configuraton
v1.0, October 2009
Using the Configuration Wizard with a Windows-Based PC
1. Access the Configuration Wizard:
• If you just ran the Setup Wizard, the Configuration Wizard automatically opens.
• After installation you can click the Windows Start menu and select NETGEAR > Digital
Entertainer.
The Configuation Wizard Welcome screen displays:
2. Click Next.
Figure 1-12
Note: For some firewalls, specific ports must be opened so that the Digital
Entertainer Express can access media files on your computer. If prompted,
select Allow or Unblock to allow the access.
