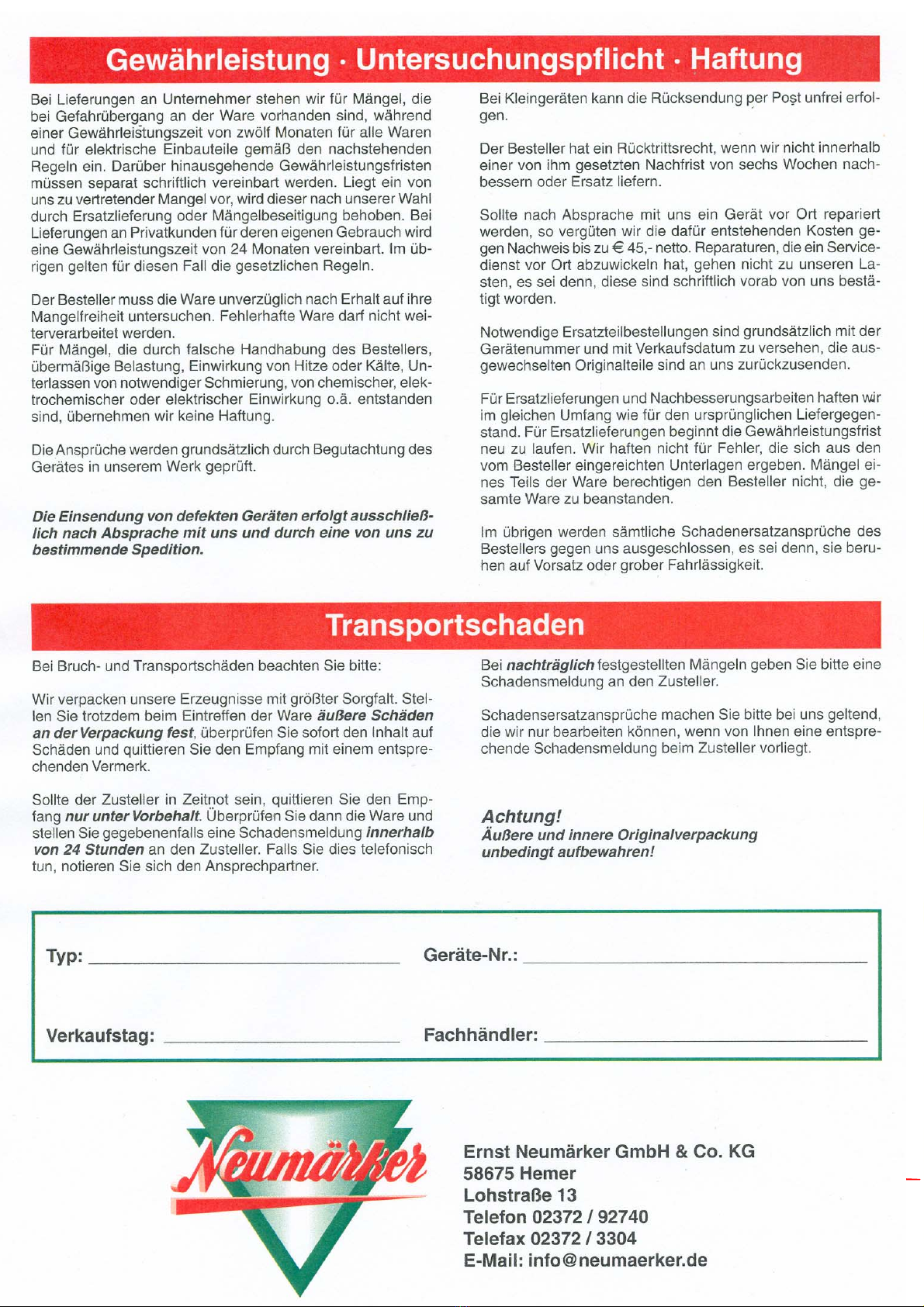

Warranty 12
Postfach 4063 Ust.-Id-Nr.: Märkische Bank eG 170 143 100(BLZ 450 600 09) Amtsgericht Iserlohn HRA 822
58663 Hemer DE 812 45 68 50 Sparkasse Hemer 31 898(BLZ 445 512 10) pers. haft. Gesellschafterin:
Telefon [phone] e-mail: Dresdner Bank AG 704 282 600(BLZ 445 800 70) Wolfgang Hellwinkel Verwaltungs GmbH
Telefax 0049-2372-3304 [email protected] Postbank Dortmund 28 37 – 469(BLZ 440 100 46) Amtsgericht Iserlohn HRB 2088
Geschäftsführer: Wolfgang Hellwinkel

Technical data
Data Plate
The data plate is fitted on the cable outlet side of the unit. The units described in
these operating instructions are provided with the CE-label, and they comply to the
EC regulations no. 73/23/EWG and 89/336/EWG.
Installation
The units with 230 volts are ready to be plugged into sockets which have been
secured with max. 16 A. Important: It is only allowed to connect max. 3,6 kW or 16 A
to each phase. If more than 3,6 kW has been connected, the fuse will immediately
disconnect the power supply.
Mounting
The unit has to be positioned on a place to enable the subsequent electrical
installation and maintenance of the unit. The appliances are neither suitable for
integration into a kitchen unit nor for mounting in line.
If the unit has to be set-up close to walls, partition panels,
kitchen cabinets, decorative edgings, etc. you have to
make sure that these have not been made from inflammable
material. Otherwise they have to be insulated with a heat-resistant
and non-inflammable covering. Please adhere to the fire prevention regulations.
Before first use
•Please read the operation manual carefully.
•Check the unit if any visible damages.
•If any damages found please contact your customer service immediately.
There may not be damages at the power cord or plug. In this case please contact
your customer service to check the unit before using it.
Remove carefully the protective foil from the outside panels in order to avoid glue
residues remaining on the unit. Eventual glue residues may be removed by using an
appropriate thinner.
Postfach 4063 Ust.-Id-Nr.: Märkische Bank eG 170 143 100(BLZ 450 600 09) Amtsgericht Iserlohn HRA 822
58663 Hemer DE 812 45 68 50 Sparkasse Hemer 31 898(BLZ 445 512 10) pers. haft. Gesellschafterin:
Telefon [phone] e-mail: Dresdner Bank AG 704 282 600(BLZ 445 800 70) Wolfgang Hellwinkel Verwaltungs GmbH
Telefax 0049-2372-3304 [email protected] Postbank Dortmund 28 37 – 469(BLZ 440 100 46) Amtsgericht Iserlohn HRB 2088
Geschäftsführer: Wolfgang Hellwinkel

Function check
Switch on the unit according to our following operating instructions. Explain to the
operator how to set the unit into work as well as its function by using our operating
instructions.
Maintenance
Before carrying out any maintenance work, make sure that the unit has been
disconnected from the power supply and wait until the unit has cooled down. We
recommend to let the unit be inspected regularly by a specialist (at least once a
year).
Instructions for the user
Please study carefully our operating instructions as they give you important advices
regarding to your safety during installation, operation and maintenance. Pass on
these operating instructions to any further user of this unit. Contact only an
authorized technical service for carrying-out repairs and insist on using original
spare parts. Failure to observe our above instructions may affect your safety when
operating the unit.
Never clean the unit by a water-jet! The unit is only made for professional use and
may only be operated by qualified staff.
Operating instructions
The baking plates or cast plates become very hot during
operation. Use the unit only for the explicit purposes, i.e. for
baking and cooking cake mixtures (with wheat flour, potato flour
or wholemeal flour). We strictly advise against inappropriate use.
Do not use the baking plate for heating up pots or pans. Never cover the baking
plates with aluminium foil and never place plastic basins onto the baking plate.
Postfach 4063 Ust.-Id-Nr.: Märkische Bank eG 170 143 100(BLZ 450 600 09) Amtsgericht Iserlohn HRA 822
58663 Hemer DE 812 45 68 50 Sparkasse Hemer 31 898(BLZ 445 512 10) pers. haft. Gesellschafterin:
Telefon [phone] e-mail: Dresdner Bank AG 704 282 600(BLZ 445 800 70) Wolfgang Hellwinkel Verwaltungs GmbH
Telefax 0049-2372-3304 [email protected] Postbank Dortmund 28 37 – 469(BLZ 440 100 46) Amtsgericht Iserlohn HRB 2088
Geschäftsführer: Wolfgang Hellwinkel

Important:
The units become very hot although they do not appear to be. Therefore, we advise
you to be very carefully when placing anything onto the cast plate.
Take care at filling the dough into the mould that the upper plate has been opened as
far as the stop. After filling the dough onto the lower plate, the unit is closed by
lowering the upper baking plate. Then adjust the timer to the demanded minutes.
When the timer is over, the timer beeps and the tartlett is ready.
Important:
We advise you to dispend exactly the recommended quantity of dough onto the plate.
Otherwise the residual liquid dough would be pressed out of the sides of the plates
and will smudge your device. During the baking procedure it might happen that
steam escapes from the unit. Avoid close contact with the steam otherwise it might
cause burnings. For this reason the unit should only be opened and closed by
means of the insulated handle. Remove the finished baking products only by using
the appropriate utensils such as long forks or a spatula. Never touch the plates with
bare hands.
Installation of tartlett machines with aluminium coated plates:
Switch on the unit and heat it up with opened plates for approx. 30-45 minutes at
180° C. Smoke might escape during this procedure as the industrial grease cover is
burnt away. After finishing this procedure, grease the plates once again with salad oil
or with anti-adherent spray PRO 100 to remove the industrial grease from the plates.
IMPORTANT:
•remove the tartletts only with a wooden stick
•clean the unit only with the attached brush or a similar one
•NEVER use abrasive detergents or sharp things
There is no guarantee on the coating!
Operating knobs/Temperature setting:
The desired temperature of the baking plates is set by the
regulators. By turning the knob the pilot light will go on which
means that the unit is switched on.
Remember:
the pilot light goes on - the unit is being heated
the pilot light goes off - the selected heat has been reached
Postfach 4063 Ust.-Id-Nr.: Märkische Bank eG 170 143 100(BLZ 450 600 09) Amtsgericht Iserlohn HRA 822
58663 Hemer DE 812 45 68 50 Sparkasse Hemer 31 898(BLZ 445 512 10) pers. haft. Gesellschafterin:
Telefon [phone] e-mail: Dresdner Bank AG 704 282 600(BLZ 445 800 70) Wolfgang Hellwinkel Verwaltungs GmbH
Telefax 0049-2372-3304 [email protected] Postbank Dortmund 28 37 – 469(BLZ 440 100 46) Amtsgericht Iserlohn HRB 2088
Geschäftsführer: Wolfgang Hellwinkel

Safety at work
Always make sure not to touch the hot units with bare fingers or hands. For hygienic
and safety reasons we recommend you to use wrist covering gloves. NEVER touch
the hot food with bare hands. Danger of burnings!
Danger of burnings and injuries:
Even if the upper plate has been opened until the stop, we advise you to use always
one hand for handling with a fork, spatula, etc. while the other hand is holding the
handle of the upper plate. Otherwise, by inattentiveness, the upper plate may happen
to fall down.
Cleaning
Disconnect unit from power supply and wait until the unit has cooled down before you
begin with any maintenance or cleaning procedures.
Food residues or spots on the surfaces have to be cleaned immediately (make sure
not to burn yourself as the units could still be hot) or at the latest before operation.
Use a dry cloth for cleaning if only slight residues have to be removed. If this is not
sufficient, please wait until all parts of the unit have become cold, and clean with an
appropriate, non-abrasive detergent.
The installation (only at not plug-in units) and any maintenance may only be done by
authorized technicians. Never clean the units by a water-jet!
Postfach 4063 Ust.-Id-Nr.: Märkische Bank eG 170 143 100(BLZ 450 600 09) Amtsgericht Iserlohn HRA 822
58663 Hemer DE 812 45 68 50 Sparkasse Hemer 31 898(BLZ 445 512 10) pers. haft. Gesellschafterin:
Telefon [phone] e-mail: Dresdner Bank AG 704 282 600(BLZ 445 800 70) Wolfgang Hellwinkel Verwaltungs GmbH
Telefax 0049-2372-3304 [email protected] Postbank Dortmund 28 37 – 469(BLZ 440 100 46) Amtsgericht Iserlohn HRB 2088
Geschäftsführer: Wolfgang Hellwinkel

Faults - repairs
Thermostat faults:
If the control lamp remains on, the regulator might be defect. In this
case the unit will be heated continuously for a period longer than 30 minutes.
Heating element faults:
The pilot light is switched on for more than 30 minutes, but the unit does not become
hot.
In these two cases, please disconnect the unit from the power supply/pull out the
plug. Contact our service department and never try to repair the unit by yourself.
For your safety
All units described in these operating instructions become hotter than 60 °C. Please
adhere to our following instructions in order to avoid burning yourself.
Baking plates:
Operate the unit at an appropriate distance and make sure that your arm or your
hands do not come into contact with the cast plates.
Make sure to lock or at least to close the plates while the unit is not operated.
Otherwise we advise you to hold the handle of the upper plate with one hand.
Do not pour water onto the hot plates. Never place any pots onto the plates.
General features
Pre-heating times:
To reach the desired temperature, the pre-heating process takes a few minutes
(max. 20 minutes).
Always use protective gloves. Use utensils for example a fork, sausage tongs etc.
Wear an apron and adequate footwear.
Finally
We recommend you to adhere to the safety precautions which are specified by the
law of the respective county.
