Neve BCM10/2 MK2 Technical manual

BCM10/2 MK2
Connector Information Guide
General Maintenance
Issue 1

IMPORTANT SAFETY INSTRUCTIONS
u Read these instructions
u Keep these instructions
u Heed all warnings
u Follow all instructions
u Do not use this apparatus near water
u Clean only with a dry cloth
u Do not block any ventilation openings.
u Install in accordance with the manufacturer s
instructions.
u Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
u Do not defeat the safety purpose of the polarized or
grounding-type plug.
A polarized plug has two blades and a third grounding
prong.
The wide blade or the third prong are provided for your
safety.
If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
As this apparatus is constructed to Class I, it shall be
connected to a MAINS socket outlet with protective
earthing connection.
u Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit the apparatus.
Where the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
u Only use attachments / accessories specified by the
manufacturer.
u Use only with the cart, stand, tripod, bracket or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart /
apparatus combination to avoid injury from tip-over (see
handling video).
u Unplug this apparatus during lightning storms or when
unused for long periods of time.
- 2 -

u Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled, or objects have fallen
into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally or has been
dropped.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
WARNING:
THIS APPARATUS HAS CLASS I CONSTRUCTION AND SHALL
BE CONNECTED TO A MAINS SOCKET OUTLET WITH A
PROTECTIVE EARYTHING CONNECTION.
WARNING:
WHERE THE MAINS PLUG OR AN APPLIANCE COUPLER IS
USED AS THE DISCONNECT DEVICE, THE DISCONNECT
DEVICE SHALL REMAIN READILY OPERABLE.
- 3 -

Symbols used in this manual and on rear of onsole
Please refer to the manual before operating
Danger of electric shock
Disconnect from the MAINS before opening cover
Heavy load
No user serviceable parts inside
Environmental onsiderations
Temperature Operating 5°C to 25°C
(41°F to 80°F)
Non-operating -20°C to 50°C
(-2°F to 122°F)
Max Gradient 15°C/Hour
(59°F/Hour)
Relative Humidity Operating 20% to 80%
Non-operating 5% to 90%
Max wet bulb 28°C non-condensing
(or 57°F non-condensing)
Altitude Operating 0 to 2,000m
Non-operating 0 to 12,000m
Cooling
This console is supplied with a remote rack mounted PSU and
is operated on a customer specified 10/15/20 meter PSU
cable.
Care must be taken not to place any accessories that could
block the ventilation above or below the remote PSU.
The PSU will operate over an ambient temperature range of
-10°C to +25°C (14°F to 80°F).
The console must not be powered up or operated with the
dust cover still in place.
- 4 -

Health & Safety Noti e
FOR YOUR OWN SAFETY AND THE PROTECTION OF
OTHERS, PLEASE OBSERVE THE FOLLOWING SAFETY
HEALTH AND SAFETY INSTRUCTIONS
u READ THESE INSTRUCTIONS AND KEEP THEM HANDY
u HEED ALL SAFETY WARNINGS
u THE CONSOLE MUST BE EARTHED WHEN OPERATED
u DO NOT USE NEAR WATER
u CLEAN ONLY WITH A DRY CLOTH
u DO NOT INSTALL NEAR HEAT SOURCES
u DO NOT BLOCK VENTILATION OPENINGS
u THE AMBIENT ROOM TEMPERATURE SHOULD BE NO GREATER THAN 25°C / 80°F
u PROTECT THE POWER CORDS
u USE ONLY ACCESSORIES SPECIFIED BY THE MANUFACTURER
u UNPLUG WHEN UNUSED FOR LONG PERIODS OF TIME OR DURING LIGHTNING
STORMS
u MODULES AND CARDS SHOULD NOT BE INSERTED OR REMOVED WITH THE POWER
ON
u REFER ALL SERVICING TO QUALIFIED PERSONNEL ONLY
u THE CONSOLE MUST ONLY BE MOVED BY AT LEAST FOUR PEOPLE (see handling
video)
u NO USER SERVICEABLE PARTS INSIDE
- 5 -

IMPORTANT NOTICE
THE BCM10 CONSOLE IS NOT SUPPLIED WITH A GENERIC IEC 3-CORE
AC POWER CABLE BUT IS SUPPLIED WITH THE PSU AC MATING
CONNECTOR ONLY. WHEN WIRED BY A QUALIFIED ELECTRICIAN, THE
EARTH PIN OF THE PSU AC CONNECTOR MUST BE CONNECTED TO A 3-
PIN EARTHED SUPPLY.
IF A REPLACEMENT CABLE IS USED, THEN THE EARTH FROM THE
MAINS SOCKET OR TECHNICAL EARTH TO THE CONSOLE MUST BE
MAINTAINED.
IF ONLY A 2-PIN (NO EARTH) SUPPLY IS AVAILABLE, THEN THE BCM10 CONSOLE
MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN TO ENSURE THAT THE CONSOLE
METALWORK IS PERMANENTLY EARTHED.
THE CONSOLE SHOULD ONLY BE POWERED FROM A SINGLE-PHASE SUPPLY WITH
THE NEUTRAL CONDUCTOR AT EARTH POTENTIAL.
FAILURE TO FOLLOW THESE PROCEDURES AND RECOMMENDATIONS
COULD INVALIDATE THE MANUFACTURER S WARRANTY
NB.
THE CONSOLE +5V PSU SHOULD BE SET TO THE REQUIRED LOCAL AC VOLTAGE.
HOWEVER, IF THE CONSOLE IS MOVED TO A DIFFERENT LOCATION AND THE AC
OPERATING VOLTAGE APPLIED TO THE PSU HAS CHANGED THEN REFER TO THE
REAR OF THE PSU FOR INSTRUCTIONS ON HOW TO CHANGE THE WORKING I/P
VOLTAGE FOR THE +5V PSU.
NB.
ONLY THE +5V PSU NEEDS TO HAVE IT S I/P CHANGED TO ACCOMMODATE
DIFFERENT AC VOLTAGES.
THE CHANGE IS ONLY TO BE MADE WITH THIS UNIT UNPLUGGED FROM THE MAINS
SOURCE, BY A QUALIFIED ELECTRICIAN.
- 6 -

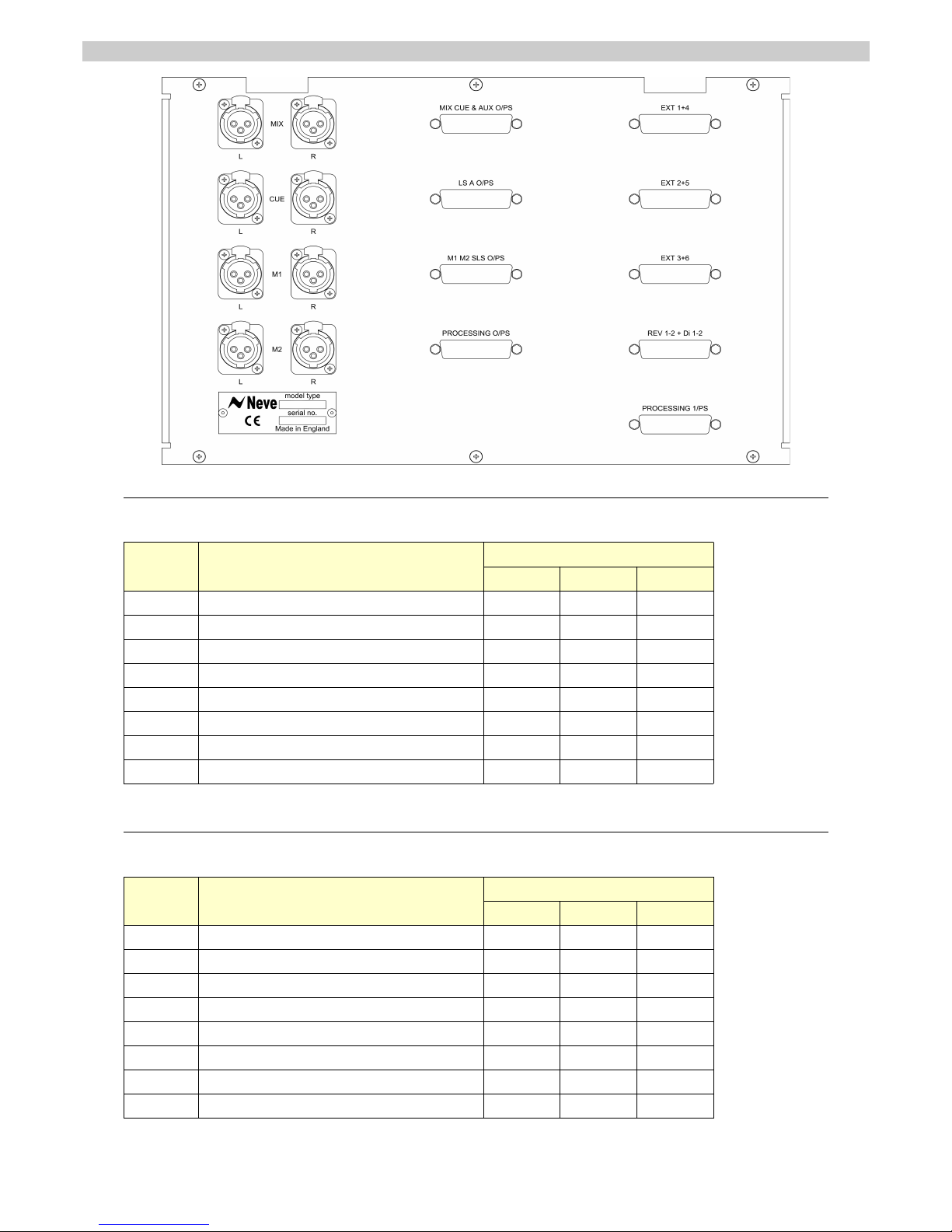

Monitor Se tion Conne tions
XLR O/Ps
(XLR PLG)
Signal Name Pin
Hi Lo Screen
1Mix O/P L 2 3 1
2Mix O/P R 2 3 1
3Cue O/P L 2 3 1
4Cue O/P R 2 3 1
5LS O/P M1 L 2 3 1
6LS O/P M1 R 2 3 1
7LS O/P M2 L 2 3 1
8LS O/P M2 R 2 3 1
Dire t & External Inputs
(25-way D-type SKT) Ext 1 4
Signal Name Pin
Hi Lo Screen
1EXT 1 L 24 12 25
2EXT 1 R 10 23 11
3EXT 1 C 21 9 22
4EXT 1 S 7 20 8
5EXT 1 LS 18 6 19
6EXT 1 RS 4 17 5
7EXT 4 L 15 3 16
8EXT 4 R 1 14 2
- 7 -

(25-way D-type SKT) Ext 2 5
Signal Name Pin
Hi Lo Screen
1EXT 2 L 24 12 25
2EXT 2 R 10 23 11
3EXT 2 C 21 9 22
4EXT 2 S 7 20 8
5EXT 2 LS 18 6 19
6EXT 2 RS 4 17 5
7EXT 5 L 15 3 16
8EXT 5 R 1 14 2
(25-way D-type SKT) Ext 3 6
Signal Name Pin
Hi Lo Screen
1EXT 3 L 24 12 25
2EXT 3 R 10 23 11
3EXT 3 C 21 9 22
4EXT 3 S 7 20 8
5EXT 3 LS 18 6 19
6EXT 3 RS 4 17 5
7EXT 6 L 15 3 16
8EXT 6 R 1 14 2
(25-way D-type SKT) REV 1 - 2 DI 1 - 2
Signal Name Pin
Hi Lo Screen
1REV I/P 1 L 24 12 25
2REV I/P 1 R 10 23 11
3REV I/P 2 L 21 9 22
4REV I/P 2 R 7 20 8
5DI I/P 1 18 6 19
6DI I/P 2 4 17 5
(25-way D-type SKT) Processing I/Ps
Signal Name Pin
Hi Lo Screen
1Mix Insert Ret L 24 12 25
2Mix Insert Ret R 10 23 11
3IMR Insert Ret L 21 9 22
4IMR Insert Ret R 7 20 8
5500 I/P L 18 6 19
6500 I/P R 4 17 5
- 8 -

Console O/Ps
(25-way D-type SKT) Bus O/Ps
Signal Name Pin
Hi Lo Screen
1Mix O/P L 24 12 25
2Mix O/P R 10 23 11
3Cue O/P L 21 9 22
4Cue O/P R 7 20 8
5Aux O/P 1 18 6 19
6Aux O/P 2 4 17 5
7Aux O/P 3 15 3 16
8Aux O/P 4 1 14 2
(25-way D-type SKT) LS A O/Ps
Signal Name Pin
Hi Lo Screen
1LS A O/Ps L 24 12 25
2LS A O/Ps R 10 23 11
3LS A O/Ps C 21 9 22
4LS A O/Ps S 7 20 8
5LS A O/Ps LS 18 6 19
6LS A O/Ps RS 4 17 5
(25-way D-type SKT) M1, M2, SLS O/Ps
Signal Name Pin
Hi Lo Screen
1M1 LS O/Ps L 24 12 25
2M1 LS O/Ps R 10 23 11
3M2 LS O/Ps L 21 9 22
4M2 LS O/Ps R 7 20 8
5SLS O/Ps L 18 6 19
6 SLS O/Ps R 4 17 5
(25-way D-type SKT) Processing O/Ps
Signal Name Pin
Hi Lo Screen
1Mix O/P Ins Send L 24 12 25
2Mix O/P Ins Send R 10 23 11
3IMR O/P Ins Send L 21 9 22
4IMR O/P Ins Send R 7 20 8
5500 O/P L 18 6 19
6 500 O/P R 4 17 5
- 9 -

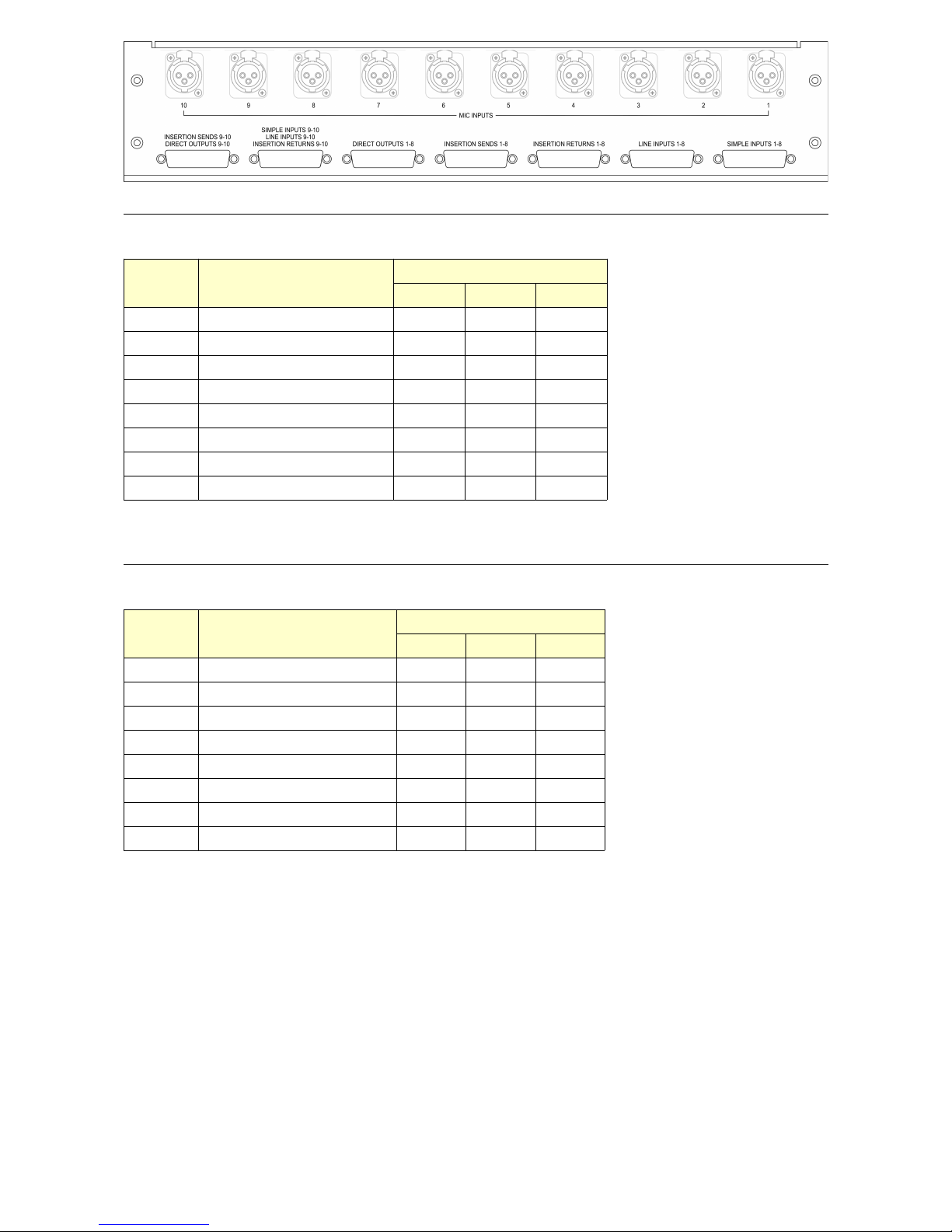

Channel Se tion Conne tions for 10 Channel Consoles
Mi I/Ps
(XLR Socket)
Channel Name Pin
Hi Lo Screen
1Mic I/P 1 2 3 1
2Mic I/P 2 2 3 1
3Mic I/P 3 2 3 1
4Mic I/P 4 2 3 1
5Mic I/P 5 2 3 1
6Mic I/P 6 2 3 1
7Mic I/P 7 2 3 1
8Mic I/P 8 2 3 1
9Mic I/P 9 2 3 1
10 Mic I/P 10 2 3 1
Line I/Ps
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Line I/P 1 24 12 25
2Line I/P 2 10 23 11
3Line I/P 3 21 9 22
4Line I/P 4 7 20 8
5Line I/P 5 18 6 19
6Line I/P 6 4 17 5
7Line I/P 7 15 3 16
8Line I/P 8 1 14 2
- 10 -

Channel Insert Send
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Send 1 24 12 25
2Channel Insert Send 2 10 23 11
3Channel Insert Send 3 21 9 22
4Channel Insert Send 4 7 20 8
5Channel Insert Send 5 18 6 19
6Channel Insert Send 6 4 17 5
7Channel Insert Send 7 15 3 16
8Channel Insert Send 8 1 14 2
Channel Insert Return
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Return 1 24 12 25
2Channel Insert Return 2 10 23 11u
3Channel Insert Return 3 21 9 22
4Channel Insert Return 4 7 20 8
5Channel Insert Return 5 18 6 19
6Channel Insert Return 6 4 17 5
7Channel Insert Return 7 15 3 16
8Channel Insert Return 8 1 14 2
- 11 -

DAW Send (Dire t O/P)
(Sends the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1DAW Send 1 24 12 25
2DAW Send 2 10 23 11
3DAW Send 3 21 9 22
4DAW Send 4 7 20 8
5DAW Send 5 18 6 19
6DAW Send 6 4 17 5
7DAW Send 7 15 3 16
8DAW Send 8 1 14 2
Simple I/Ps
(Channel DAW return to monitor DAW recording/play backs or DAW mixing.)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Simple I/P 1 24 12 25
2Simple I/P 2 10 23 11
3Simple I/P 3 21 9 22
4Simple I/P 4 7 20 8
5Simple I/P 5 18 6 19
6Simple I/P 6 4 17 5
7Simple I/P 7 15 3 16
8Simple I/P 8 1 14 2
- 12 -

Simple I/Ps 9 -10, Line I/Ps 9 -10, Insertion Returns 9 -10
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Return 9 24 12 25
2Channel Insert Return 10 10 23 11
3Line I/P 9 21 9 22
4Line I/P 10 7 20 8
5Simple I/P 9 18 6 19
6Simple I/P 10 4 17 5
Channel Insert Send 9 – 10, DAW Send (Dire t O/P) 9 -10
(Insert sends and the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Send 9 24 12 25
2Channel Insert Send 10 10 23 11
3
4
5
6
7DAW Send 9 15 3 16
8DAW Send 10 1 14 2
- 13 -

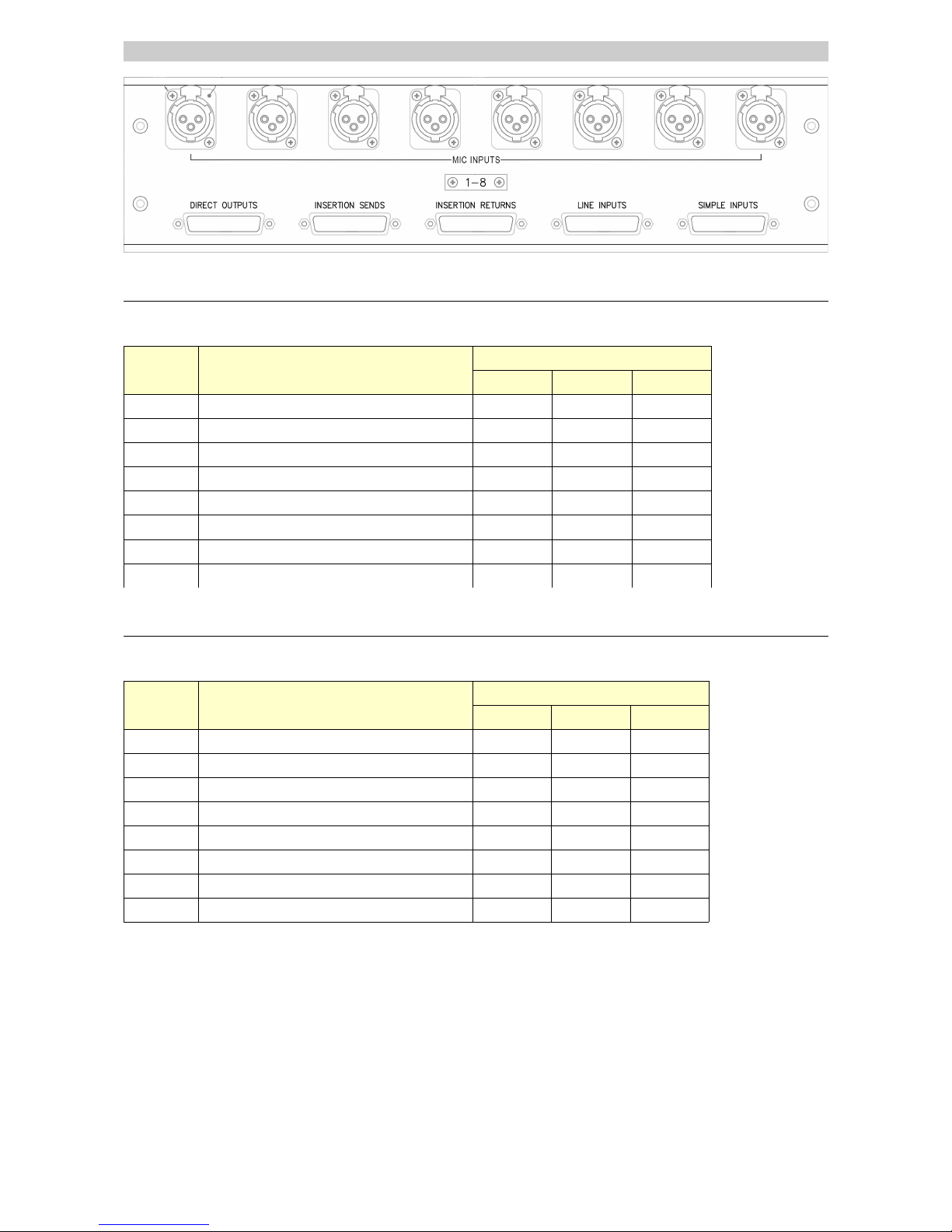

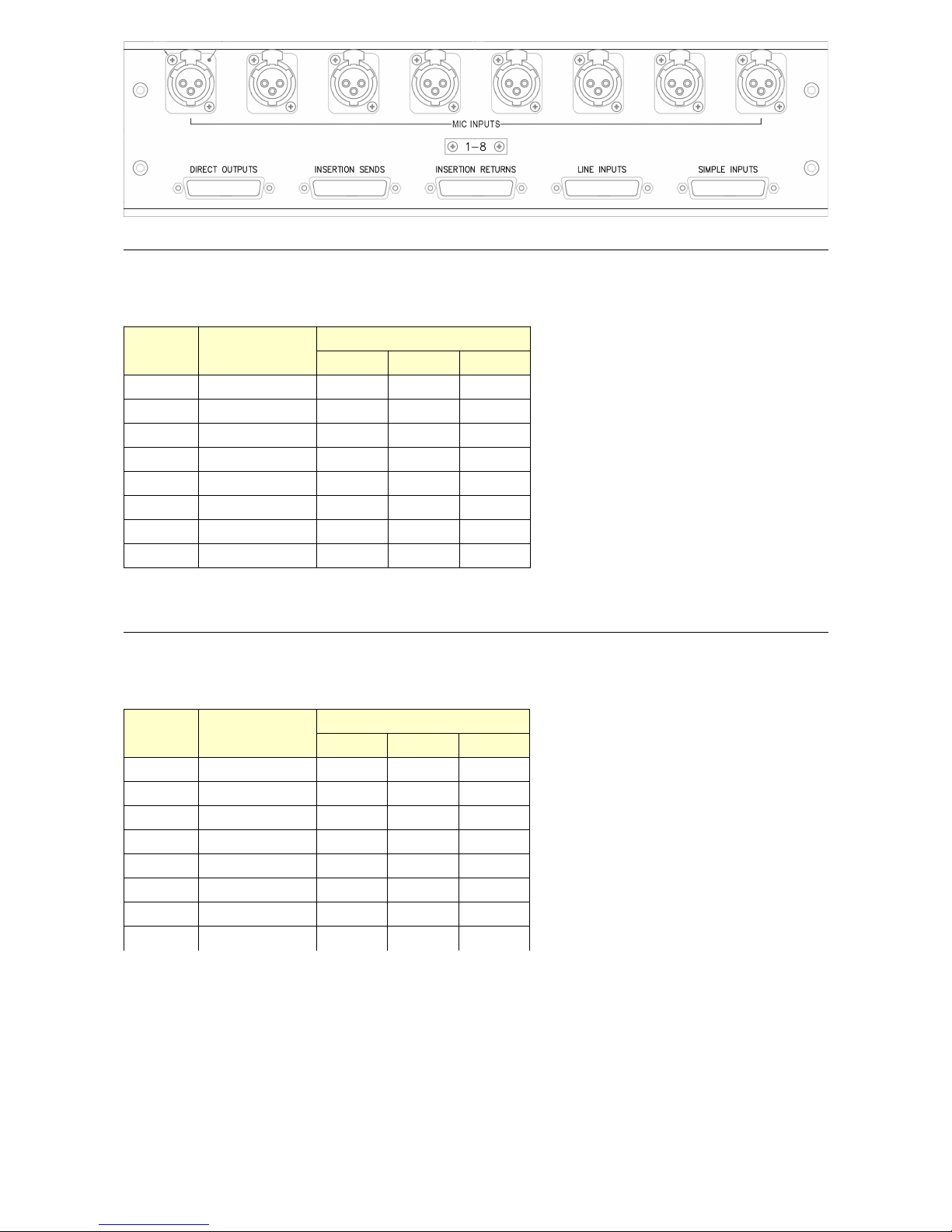

Channel Se tion Conne tions for 16, 24 & 32 Channel Consoles
Mi I/Ps
(XLR Socket)
Channel Name Pin
Hi Lo Screen
1Mic I/P 1 2 3 1
2Mic I/P 2 2 3 1
3Mic I/P 3 2 3 1
4Mic I/P 4 2 3 1
5Mic I/P 5 2 3 1
6Mic I/P 6 2 3 1
7Mic I/P 7 2 3 1
8Mic I/P 8 2 3 1
Line I/Ps
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Line I/P 1 24 12 25
2Line I/P 2 10 23 11
3Line I/P 3 21 9 22
4Line I/P 4 7 20 8
5Line I/P 5 18 6 19
6Line I/P 6 4 17 5
7Line I/P 7 15 3 16
8Line I/P 8 1 14 2
- 14 -

Channel Insert Send
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Send 1 24 12 25
2Channel Insert Send 2 10 23 11
3Channel Insert Send 3 21 9 22
4Channel Insert Send 4 7 20 8
5Channel Insert Send 5 18 6 19
6Channel Insert Send 6 4 17 5
7Channel Insert Send 7 15 3 16
8Channel Insert Send 8 1 14 2
Channel Insert Return
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Channel Insert Return 1 24 12 25
2Channel Insert Return 2 10 23 11u
3Channel Insert Return 3 21 9 22
4Channel Insert Return 4 7 20 8
5Channel Insert Return 5 18 6 19
6Channel Insert Return 6 4 17 5
7Channel Insert Return 7 15 3 16
8Channel Insert Return 8 1 14 2
- 15 -

DAW Send (Dire t O/P)
(Sends the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1DAW Send 1 24 12 25
2DAW Send 2 10 23 11
3DAW Send 3 21 9 22
4DAW Send 4 7 20 8
5DAW Send 5 18 6 19
6DAW Send 6 4 17 5
7DAW Send 7 15 3 16
8DAW Send 8 1 14 2
Simple I/Ps
(Channel DAW return to monitor DAW recording/play backs or DAW mixing.)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
1Simple I/P 1 24 12 25
2Simple I/P 2 10 23 11
3Simple I/P 3 21 9 22
4Simple I/P 4 7 20 8
5Simple I/P 5 18 6 19
6Simple I/P 6 4 17 5
7Simple I/P 7 15 3 16
8Simple I/P 8 1 14 2
- 16 -

Mi I/Ps
(XLR Socket)
Channel Name Pin
Hi Lo Screen
9Mic I/P 9 2 3 1
10 Mic I/P 10 2 3 1
11 Mic I/P 11 2 3 1
12 Mic I/P 12 2 3 1
13 Mic I/P 13 2 3 1
14 Mic I/P 14 2 3 1
15 Mic I/P 15 2 3 1
16 Mic I/P 16 2 3 1
Line I/Ps
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
9Line I/P 9 24 12 25
10 Line I/P 10 10 23 11
11 Line I/P 11 21 9 22
12 Line I/P 12 7 20 8
13 Line I/P 13 18 6 19
14 Line I/P 14 4 17 5
15 Line I/P 15 15 3 16
16 Line I/P 16 1 14 2
- 17 -

Channel Insert Send
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
9Channel Insert Send 9 24 12 25
10 Channel Insert Send 10 10 23 11
11 Channel Insert Send 11 21 9 22
12 Channel Insert Send 12 7 20 8
13 Channel Insert Send 13 18 6 19
14 Channel Insert Send 14 4 17 5
15 Channel Insert Send 15 15 3 16
16 Channel Insert Send 16 1 14 2
Channel Insert Return
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
9Channel Insert Return 9 24 12 25
10 Channel Insert Return 10 10 23 11
11 Channel Insert Return 11 21 9 22
12 Channel Insert Return 12 7 20 8
13 Channel Insert Return 13 18 6 19
14 Channel Insert Return 14 4 17 5
15 Channel Insert Return 15 15 3 16
16 Channel Insert Return 16 1 14 2
- 18 -

DAW Send (Dire t O/P)
(Sends the outputs from the channels to the DAW to be recorded)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
9DAW Send 9 24 12 25
10 DAW Send 10 10 23 11
11 DAW Send 11 21 9 22
12 DAW Send 12 7 20 8
13 DAW Send 13 18 6 19
14 DAW Send 14 4 17 5
15 DAW Send 15 15 3 16
16 DAW Send 16 1 14 2
Simple I/Ps
(Channel DAW return to monitor DAW recording/play backs or DAW mixing.)
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
9Simple I/P 9 24 12 25
10 Simple I/P 10 10 23 11
11 Simple I/P 11 21 9 22
12 Simple I/P 12 7 20 8
13 Simple I/P 13 18 6 19
14 Simple I/P 14 4 17 5
15 Simple I/P 15 15 3 16
16 Simple I/P 16 1 14 2
- 19 -

Mi I/Ps
(XLR Socket)
Channel Name Pin
Hi Lo Screen
17 Mic I/P 17 2 3 1
18 Mic I/P 18 2 3 1
19 Mic I/P 19 2 3 1
20 Mic I/P 20 2 3 1
21 Mic I/P 21 2 3 1
22 Mic I/P 22 2 3 1
23 Mic I/P 23 2 3 1
24 Mic I/P 24 2 3 1
Line I/Ps
(25-way D-type SKT)
Signal Name Pin
Hi Lo Screen
17 Line I/P 17 24 12 25
18 Line I/P 18 10 23 11
19 Line I/P 19 21 9 22
20 Line I/P 20 7 20 8
21 Line I/P 21 18 6 19
22 Line I/P 22 4 17 5
23 Line I/P 23 15 3 16
24 Line I/P 24 1 14 2
- 20 -
