New Age Bold 3.0 User manual

IM-PB3.01A-07
STOP
ATTENTION:
Is your cabinet damaged?
Need help or spare parts? For fastest service, contact
NewAge Products at 1-877-306-8930;
or [e-mail].
Do not return to the retailer.
Use two or more people to move, assemble, or install cabinets and
locker to avoid back injury. Do not leave children unattended near
cabinets. High risk of tipping if cabinets are installed incorrectly:
securely attach cabinets to the wall to avoid serious injury.
For assistance, call 1.877.306.8930;
e-mail at inf[email protected]om.
WARNING: Excessive weight hazard!
Bold 3.0 Series Cabinetry
INSTALLATION GUIDE
!

2
Index
NewAge Products Inc. Garage Series Manufacturer Warranty 3
Unpacking 4
Tools Needed 4
Parts Supplied 5
Worktops, Guidelines and Weight Capacity 6
Installing the Feet 7
Installing the Casters 8
Installing Drawers 9
Installing Corner Cabinet 10
Stacking Cabinets 11
Installing Worktop Side Support Bracket 12
Mounting the Worktop (on Two Cabinets) 13
Mounting the fan onto Extended Lockers (Optional) 14

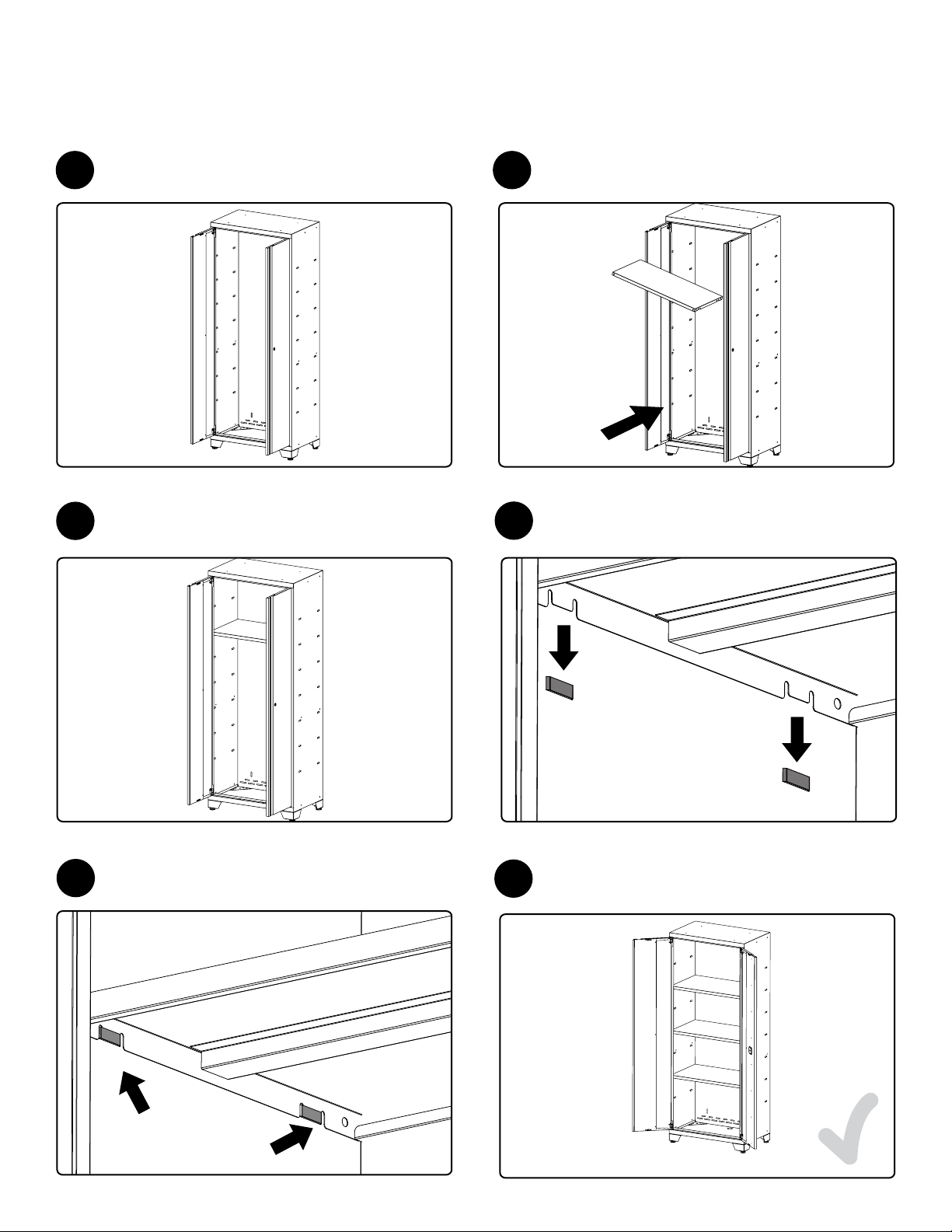

Installing Cabinet Shelves 16
Mounting Cabinets to Drywall/ Stud Wall 17
Hanging Cabinets on Slatwall 18
Fastening Cabinets Together 19

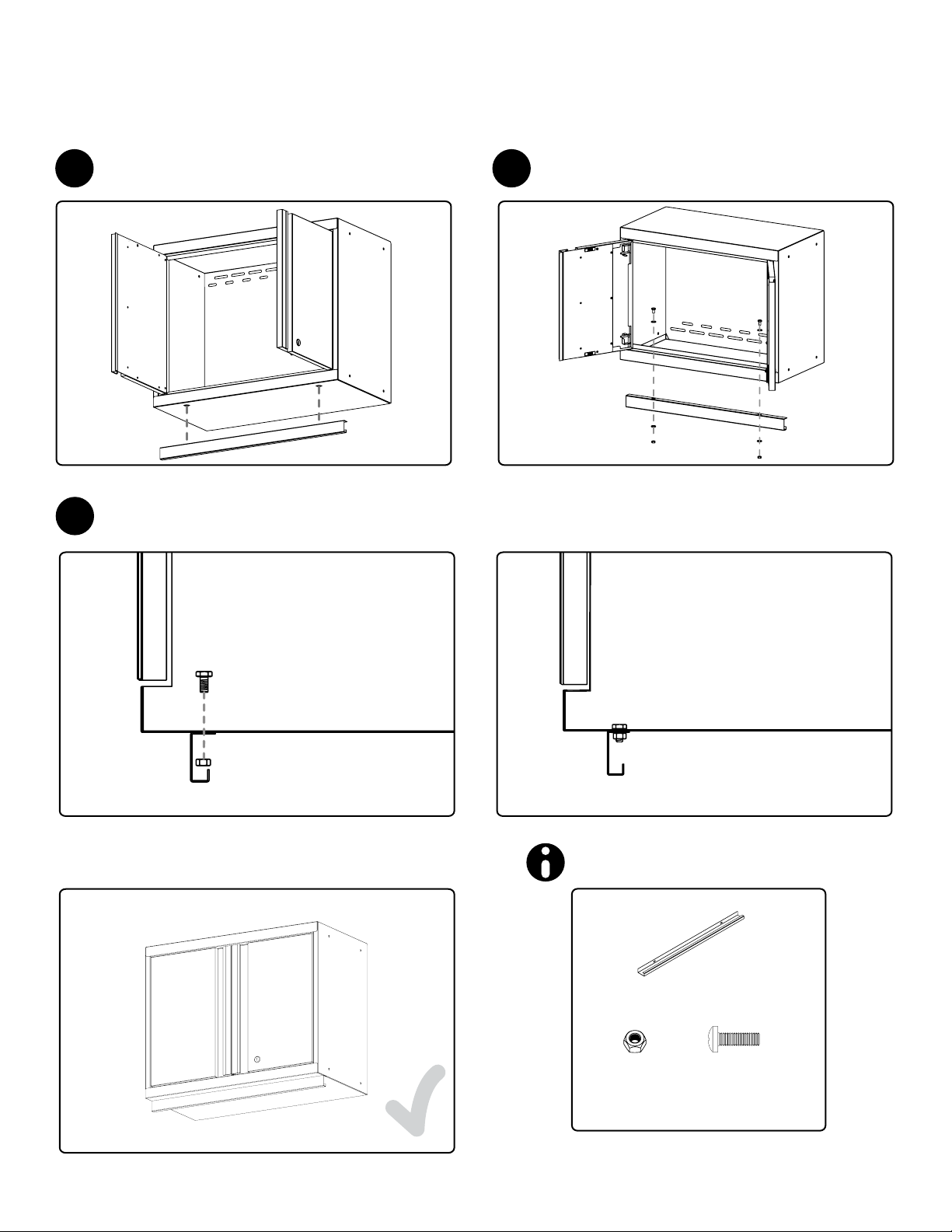

Attaching Light Valance to Wall Cabinets 20
Utility Access 21

Scan this QR code with the camera
on your mobile device to visit the
NewAge Products Support Hub
www.newageproducts.com/support-hub/
Register your NewAge Products purchase online for quicker
customer assistance and access to exclusive benefits
Visit www.newageproducts.com/register/
Warranty Claim
For warranty service please contact NewAge Products at
1-877-306-8930; or [email protected]
Please review all warranty details below, prior to
contacting NewAge Products for a claim.
Scan the QR code on the right to access our support page or
visit www.newageproducts.com/contact-us/
PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available
when you call our customer service team:
• Name, address and telephone number
• Product Name / SKU Number
• A clear, detailed description of the problem
• Proof of purchase including order number
NEWAGE PRODUCTS INC. GARAGE SERIES
MANUFACTURER WARRANTY
LIFETIME LIMITED WARRANTY
WHAT IS COVERED
When this product is installed, operated and maintained according to the instructions attached to or furnished
with the product, NewAge Products Inc. will replace the defective product or parts if the part fails as a result of
defective materials or workmanship for the warranty duration from the purchase date of the product.
1. Service calls to correct the installation of any NewAge products or to instruct you how to use or install them.
2. Damage resulting from products caused by accident, misuse, abuse, fire, flood, improper installation, acts of
God, neglect, modification or mishandling.
3. Products damaged by improperly loading beyond the specified maximum weight capacity outlined in the
instructions provided with the product.
4. Repairs or replacement when your product is used in other than normal, residential use, such as a commercial
environment, or handled in anyway inconsistent with the installation instructions included with the product.
5. Cosmetic damage, including scratches, dings, dents or cracks in paint that do not aect the structural or
functional capability of the product.
6. Surfaces damaged due to improper use of chemicals, and detergents.
7. Replacement parts for NewAge products outside Canada and the United States.
8. Loss due to theft.
9. Damage resulting from use of the product contrary and not in accordance to the instruction manual.
10. Any labor costs during the warranty period.
11. Replacement keys or locking mechanisms.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE
IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. THIS WARRANTY IS LIMITED TO
THE ORIGINAL BUYER. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability
or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights
that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT
OUR DISCRETION AS PROVIDED HEREIN. NEWAGE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and
exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state
to state or province to province.
WHAT IS NOT COVERED

4
Unpacking
• Begin by placing the package on a covered at surface.
• Remove all cardboard, foam packaging material and clear plastic bags.
• Dispose / recycle all packaging materials.
• Verify all the contents in the box and gather the required tools. See “Parts” and “Tools Needed”in the list below.
Tools Needed
1 x 12”Magnetic Leveler
1 x #2 Phillips Bit
1 x Tape Measure
1 x 7/16”socket
1 x Cordless Power Drill
1 x Stud Finder
1 x Pencil1 x Set
Square
1 x Hammer Drill 1 x Masonry Bit
1 x Adjustable wrench
1 x 7/16”Socket driver
wrench
1 x 8mm”Socket driver
wrench
1 x #2 Phillips
head screw driver 1 x #3 Phillips head screw driver [optional for masonry]
1
1 2 3
2
3

5

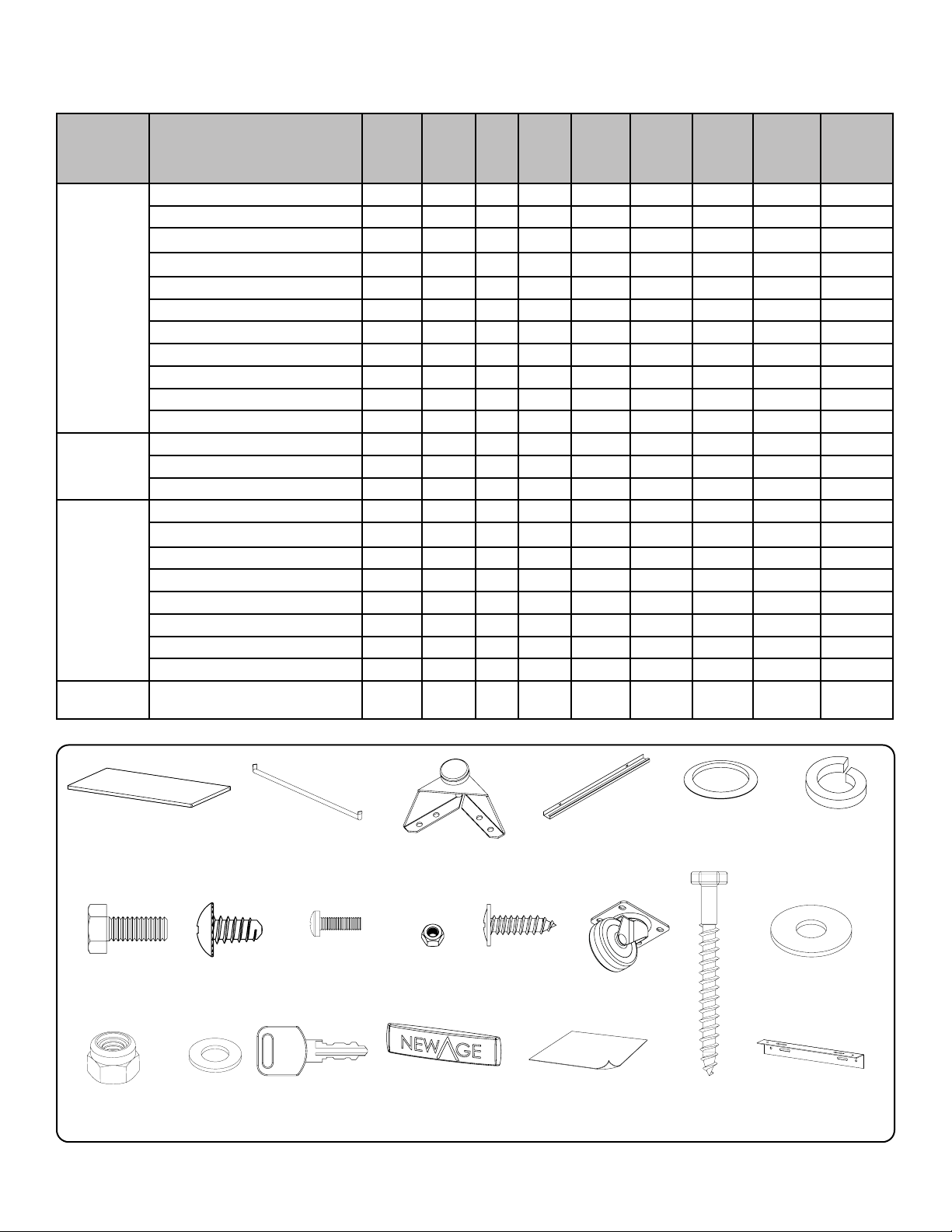

Parts Supplied
Type Hardware 30in
Locker
42in
Locker Wall Corner Wall
Base
Cabinet
Rolling
Tool
Cabinet
Tool
Cabinet
36”
Extended
Lockers
48”
Extended
Lockers
Hardware
Pack
#8 x 5/8”Wood Screw 2 2 0 8 4 0 4 2 2
1/4”ID x 1/2”OD Washer 22 22 8 8 8 17 8 16 16
Spring Washer 0 0 0 0 0 17 0 0 0
1/4”Lock Nut 8 8 4 0 4 0 4 8 8
1/4”x 0.9” Fender Washer 4 6 4 8 4 0 4 4 4
1/4”x 2.5”Wall Screw 4 6 4 8 4 0 4 4 6
1/4”-20 x 5/8”Hex Bolts 10 10 4 8 4 17 4 8 8
Foot Attachment Screws 17 17 0 0 17 0 17 17 17
Keys 2 2 2 2 2 2 2 2 2
Light Valence Bolts 0 0 2 2 0 0 0 0 0
Light Valence Nuts 0 0 2 2 0 0 0 0 0
Additional
Hardware
Plastic Hole Caps 16 16 8 0 0 0 0 16 16
Adjustable Leveling Feet 4 4 0 0 4 0 4 4 4
Power Cord Grommet - 2in 1 1 0 0 1 0 0 2 2
Included
Components
4in Swivel Casters 0 0 0 0 0 2 0 0 0
4in Fixed Casters with Brakes 0 0 0 0 0 2 0 0 0
Adjustable Shelves 3 3 0 0 1 0 0 3 3
Cabinet Leg 4 4 0 0 4 0 4 4 4
Closet Rod 1 1 0 0 0 0 0 1 1
EVA Foam Drawer Liners 0 0 0 0 0 4 4 0 0
Light Valence 0 0 1 1 0 0 0 0 0
NewAge Logo 1 1 0 0 0 0 0 1 1
Included
Brackets Side Support Bracket 1 1 0 2 0 0 0 1 1
Height-Adjustable
Steel Leveling Legs
Light Valance Rubber
Grommet Spring
Washer
Key
Lock Nut
(1/4”)
Washer
(1/4”)
Wood Screw
(#8 x 5/8”)
Wall Screw
(1/4”x 2.5”)
Wall Washer
(1/4”)
Support Bracket
Foot
Attachment
Screws
Full Width
Adjustable
Shelves
Closet Rod
Hex Bolt
(1/4”x 5/8”)
Nut
(M5)
Bolt
(M5 x 12mm)
NewAge Logo
4in Casters
EVA Foam
Drawer Liners

6

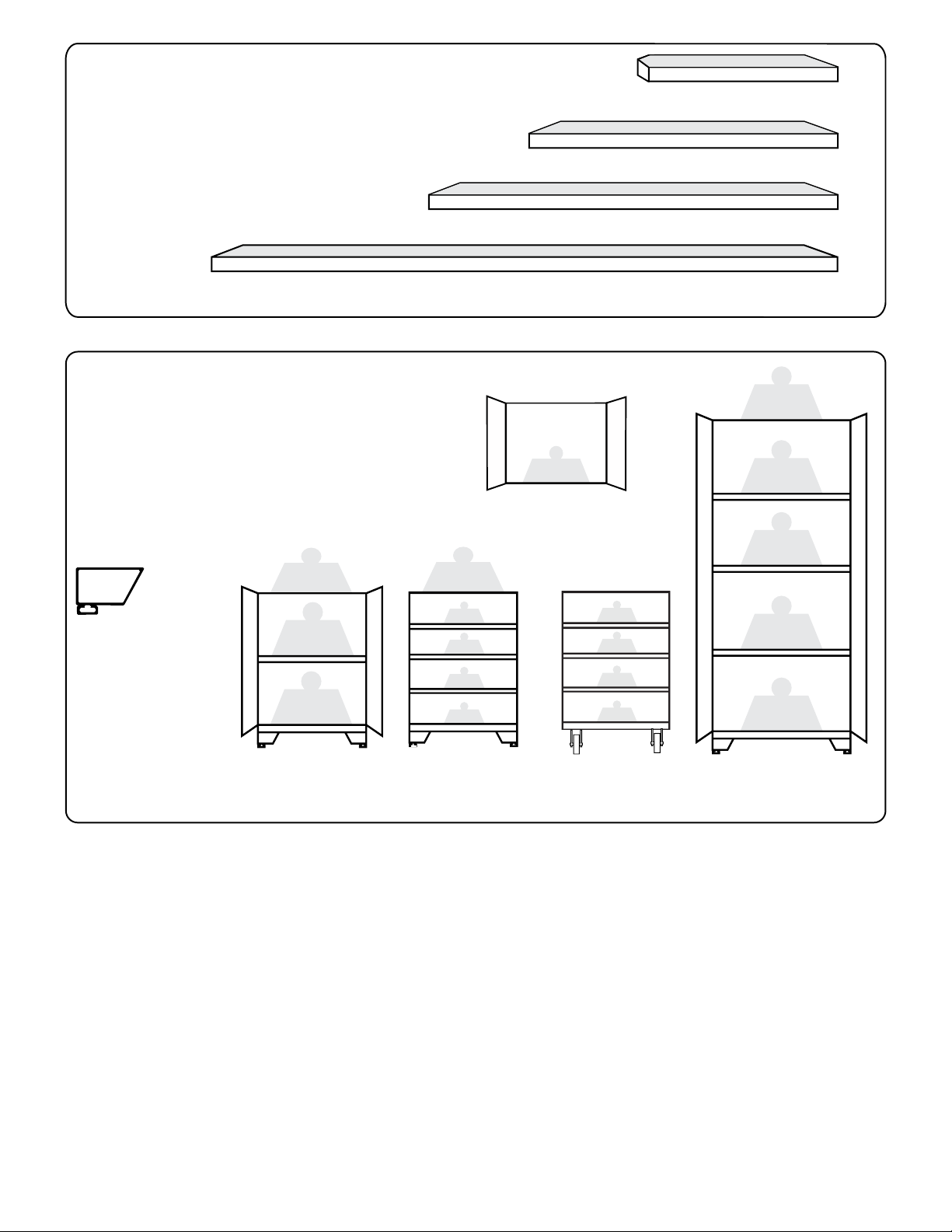

200lbs.
150lbs.
150lbs.
150lbs.
150lbs.
Lockers
Max 800lbs.
72”Worktop. Fits over 3 Cabinets
48”Worktop. Fits over 2 Cabinets
36”Worktop
21”Corner Worktop
Worktop
Weight
Capacity
200lbs.
200lbs.
200lbs.
Base Cabinets
Max 600 lbs.
200lbs.
Tool Cabinets Rolling Tool Cabinet
Max 600 lbs. Max 320 lbs.
100 lbs.
100lbs.
100lbs.
100 lbs.
Wall Cabinets
Max 100 lbs.
100 lbs.
250 lbs per foot.
800 lbs. per Set of 4
NOTE:
Claimed weight capacities are only
with NewAge worktops installed
100lbs.
100lbs.
100lbs.
100lbs.

7
Installing the Feet
1
Flip cabinet upside down,
locate holes at corners.
2
Stand & level feet.
Open cabinet, remove any shelves
or loose items.
Repeat step 3 for each corner. 5
4
Parts Needed.
16 X Foot
Attachment Screws 4 X Foot
Align foot with edge of cabinet. Screw in
4 x foot attachment screws using
#3 philips screwdriver.
3

8
Installing Casters
1
Flip cabinet upside down,
locate holes forming a square.
2
Remove all cabinet drawers. Refer
Page 8.
Repeat steps 3 for each corner.
4
Parts Needed.
16 X Lock Nut
(1/4”)
32 X Washer
(1/4”)
16 X Hex Bolt
(1/4”x 5/8”)
4 x Casters
Align caster holes and bolt to cabinet using
4 Hex bolts and Lock nuts with 8 washers
3
5
Note:
Casters sold separately.

9
Right Side
Left Side
Slide In
Slide Out
Align Rails

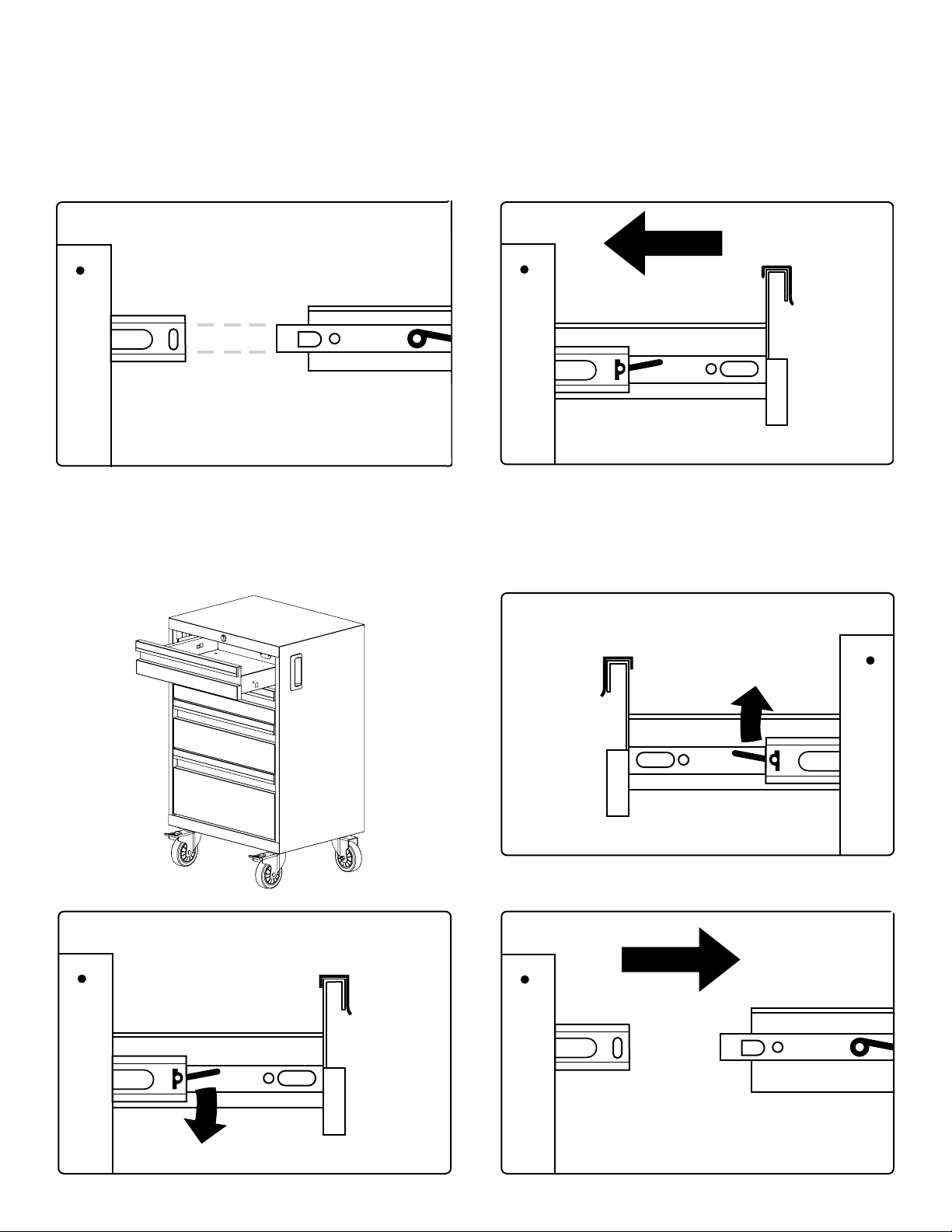

Inserting Drawers.
Removing Drawers.
Installing the Drawers

10
Slide in corner and attach
remaining cabinets.
A
B
Installing Corner Cabinet
1
Attach top to one cabinet using 1/4”x
5/8 hex bolts, nuts, and washers. Attach second cabinet to top.
2
On adjacent edges attach 2 support
brackets to underside of corner top
using the supplied (4) #8 x 5/8”screws.
Parts Needed.
3
Wall Washer
(1/4”)
# 8 x 5/8”
Screw 1/4” x 5/8
Hex Bolt
Lock Nut
(1/4”)
4
1
1 2 3
2
3
Note: Ensure there is enough assembly
room. Cabinets must be assembled away
from corner to access backs of cabinets.
Important: For mounting top ush with back of
cabinet follow step A, for mounting top ush with
front follow step B and ush with edge step C.

11

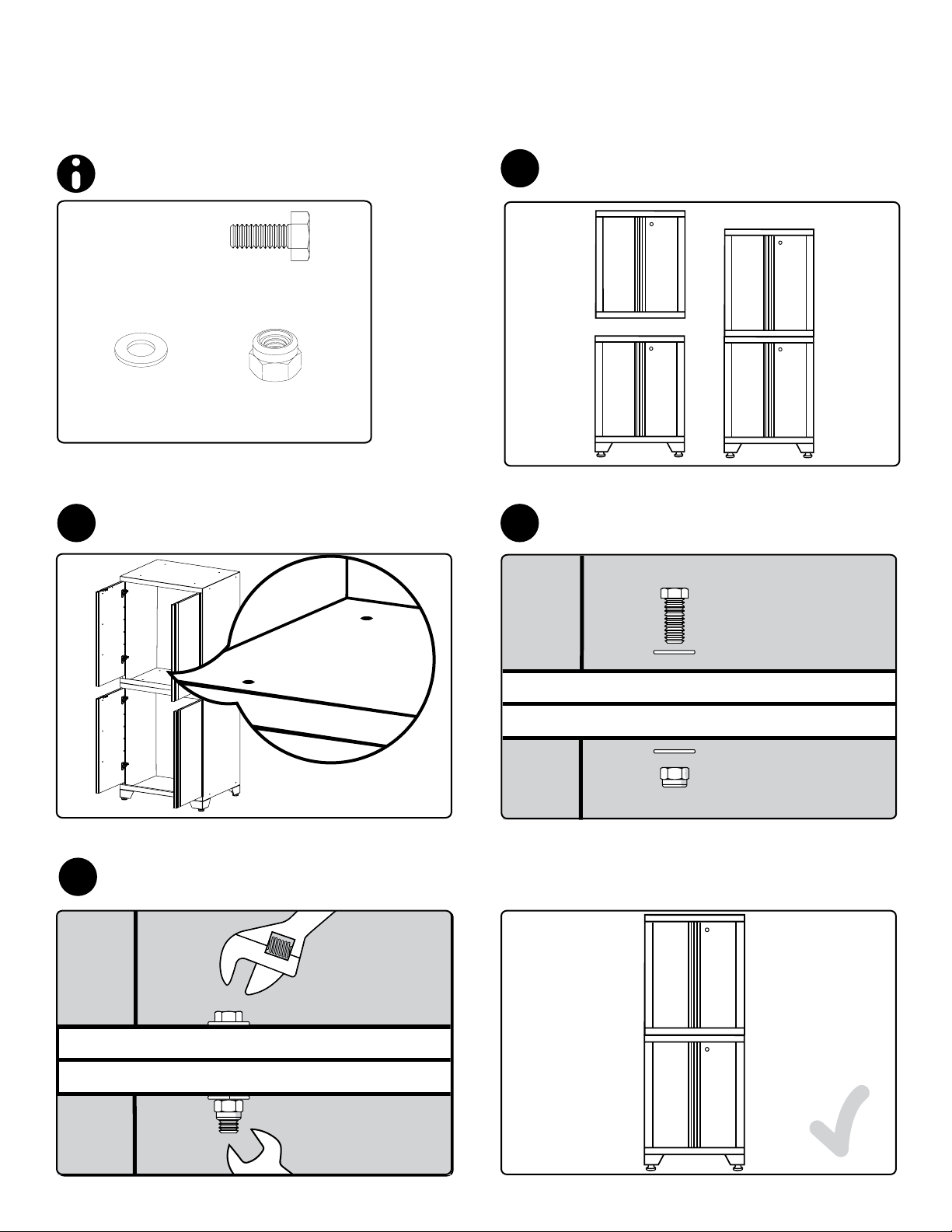

Stacking Cabinets
1
Locate punch holes on adjoining
surface and insert bolts.
Tighten all bolts
2Attach cabinets using the supplied
1/4”x 5/8” hex bolts, washers, and
nuts.
Position a second base cabinet on
top of an existing base cabinet.
3
I
Parts Needed.
4 X Lock Nut
(1/4”)
8 X Washer
(1/4”)
4 X Hex Bolt
(1/4”x 5/8”)
4

12
Installing Worktop
Side Support Bracket
Note: Support Bracket Sold Separately
A support bracket is to be used if the worktop is
added to the set without a secondary supporting
base/tool cabinet.
X2
Fasten nuts, bolts, and lock washers.
2
Tighten nuts & bolts.
Parts Needed.
4
3
5
Align bracket.
Level bracket and ensure it is at the
Same height as the base cabinet.
1Open locker and locate holes on either side.
2 X Lock Nut
(1/4”)
4 X Washer
(1/4”)
2 X Hex Bolt
(1/4”x 5/8”)
Support
Bracket

13
Open locker and locate holes on either side.
Mounting the Worktop (On 2 Cabinets)
1
Optional: For locker support bracket.
X4 X2
X2 X2
Locate 2 punch holes both sides.
2
Drill into the worktop using the #8 x 5/8”wood screws.
X2
Use 2 washers & #8 x 5/8” wood screws.
Provided in the locker packaging.
Place worktop on cabinets.
3
I

14

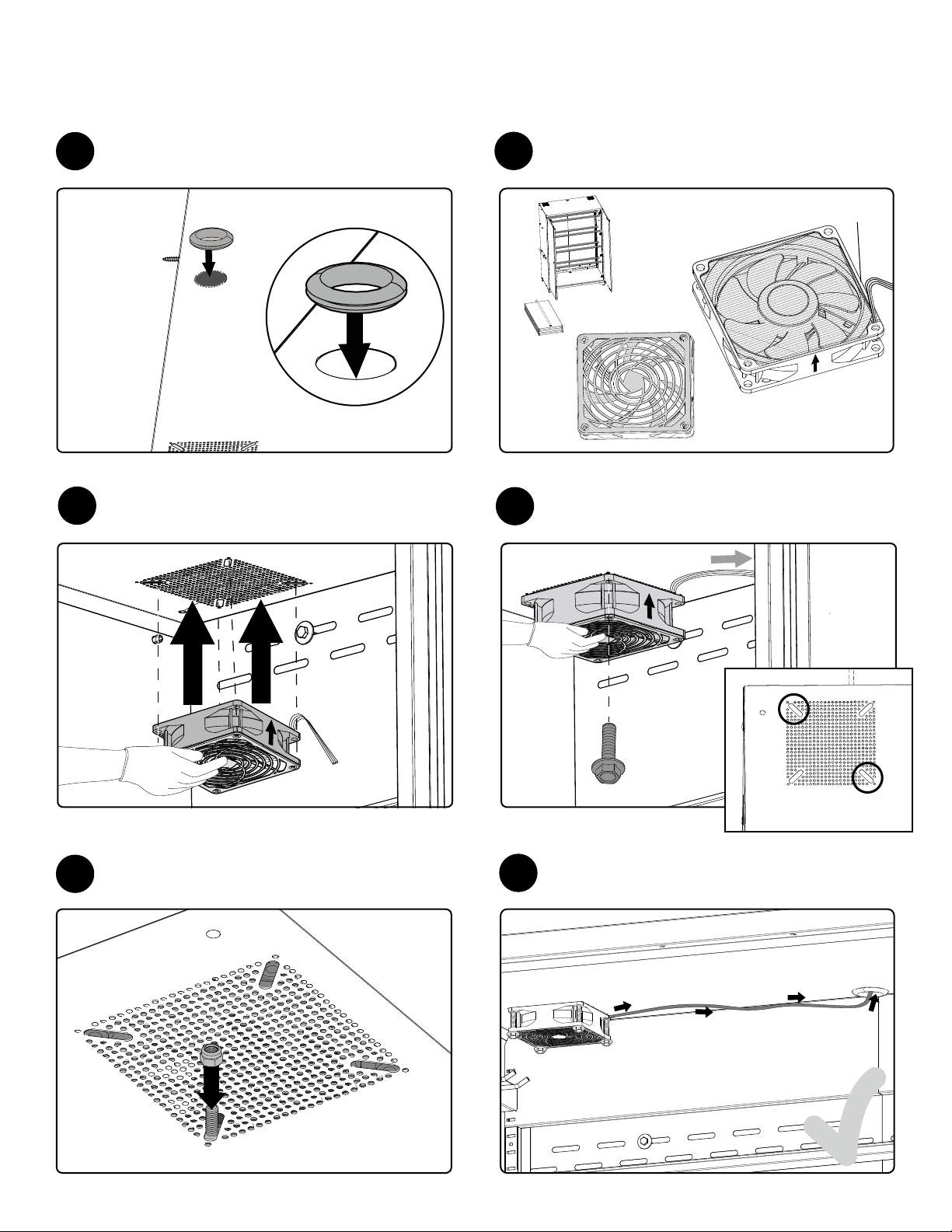

Mounting the Fan onto Lockers (Optional)
Using the pre-dened hole location on
locker, create an opening to feed the wires
that are provided with the fan assembly.
Fan Assembly x2
Filter x2
(RECOMMENDED)
Fan Guard x2 Grommet x1
Bold 3.0
Series
Extension
Lockers
(36”, 48”)
M6 Bolt and Nut
Assembly x8
Parts Required. 1

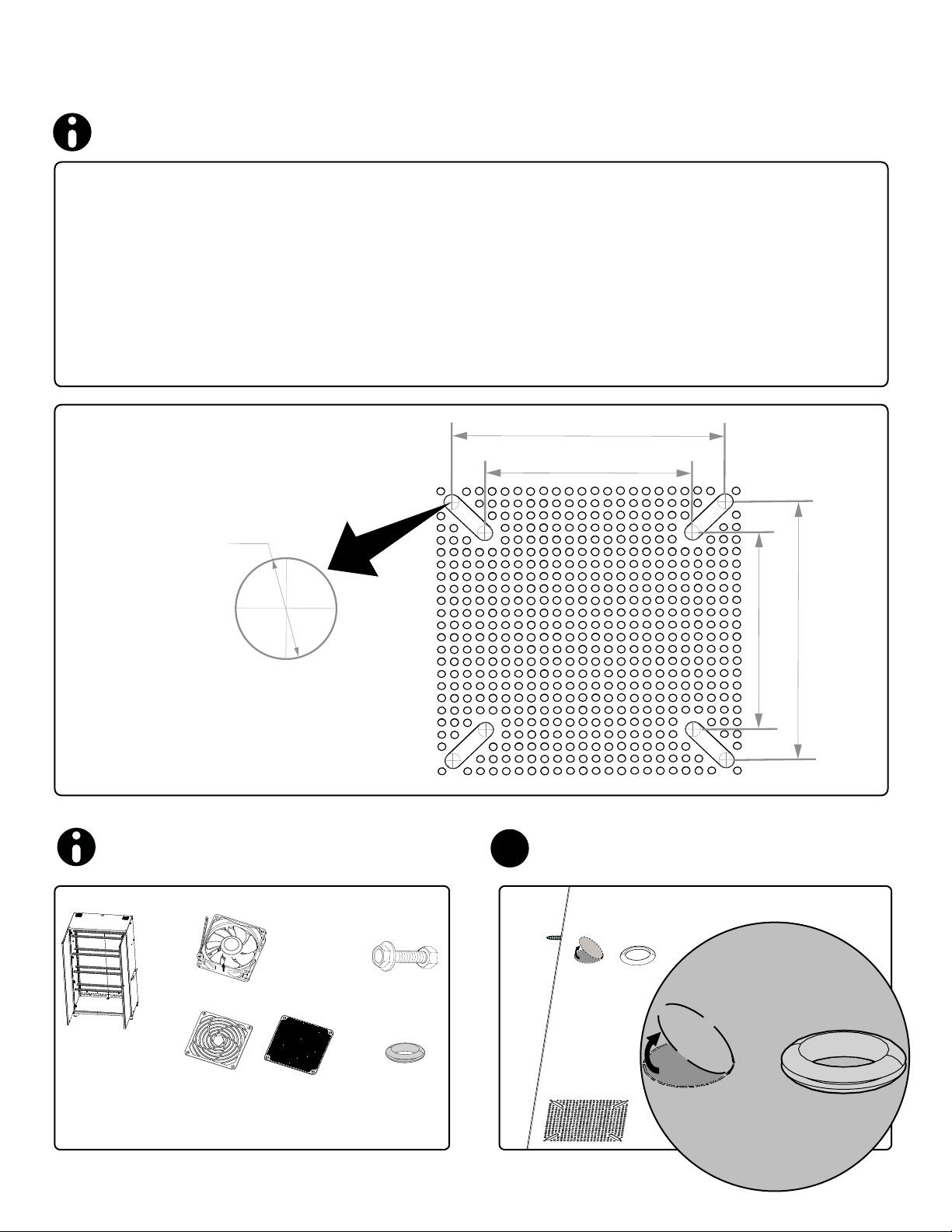

TOP VIEW
Fan installation is optional and any of the fan components are not included in the package. Such fan
can only be installed onto Bold 36” and Bold 48” Extended Lockers.
• DO NOT stand inside the locker during fan installation.
• Its customer’s responsibility that the fan installation meet the National Electrical Code.
• Customer has to purchase aftermarket fan. 90mm to 120mm width (3.5in to 4.72in) are the recommended
fan sizes. Please refer to the minimum and maximum W X H hole locations on the fan to ensure fans are
compatible.
• Refer to the mounting hole diameter below. The outer diameter of the Bolts should be 0.2 in/ 5.08 mm or
smaller.
Warning
4.38 in, 111.4 mm
3.19 in, 81.1 mm
0.2 in, 5.08 mm
Mounting Hole
Diameter
4.38 in, 111.4 mm
3.19 in, 81.1 mm

15
Mounting the Fan onto Lockers (Optional)
Tighten the nuts on the bolts from
outside of the Locker. Repeat step 5
and step 6 for remaining bolts.
Route the wire upto to the power
source through grommet. Follow
similer steps and install second fan.
67
Place the fan assembly from
underneath the Locker and hold as
shown.
From underneath, insert the bolt
into the diagonal mounting holes of
Fan Assembly.
TOP VIEW
45
Attach the Filter and Fan guard onto
the Fan Assembly as per supplier’s
instructions. Remove Locker shelves.
Add a rubber grommet, provided in
the hardware box, around the
opening.
23
Wire

16
Inserting Cabinet Shelves
1
Level shelf.
2
Stand cabinet up. Insert shelf at a slight angle.
4
3
56
Lower shelf onto brackets by sliding
tabs into slots.
Ensure shelf is clipped in position. Insert remaining shelves.

17
Mounting Cabinets (Drywall/Studded Wall)
1
Level cabinet by
adjusting feet
Parts Required
Align cabinet
to stud marks.
• Follow steps 2 to 4.
• Drill 4 pilot holes through the
perforated strip with hammer drill &
masonry bit.
• Follow Step 5 using:
• Use 4 x (2 ¼”x ¼”)Tapcon Concrete
Anchor into wall. (Not Included)
• OR 4 x (#10 x 2”)Screw with 3/16”
masonry plug into wall. (Not Included)
Use stud nder to locate the studs
and mark the wall with a pencil.
4
3
Wall Screw
(1/4”x 2.5”) Wall Washer
(1/4”)
Place cabinet tight
against the wall.
X4
Masonry.
Drill 4 wall screws and washers
through perforated holes into studs.
Wall & Locker: 4 wall screws and 4 washers
Corner Wall: 6 wall screws and 6 washers
Base & Tool Cabinet: 2 wall Screws and 2 washers
2
5

18
Using 1/4”drill socket or 1/4”wrench securely tighten lock
nuts to each wall bracket from inside cabinet .
WALL STUD
LOCKER
Hanging Cabinets on Slatwall
1
Attach bracket to slatwall at desired
height. For Locker cabinet attach
second bracket 65”below rst bracket.
Align bolt with slots on back of cabinet
and hang cabinet.
2
Insert bolts through slatwall bracket.
Parts Needed.
3
3x Wall Washer
(1/4”)
3x Lock Nut
(1/4”)
Slatwall Bracket
4
WALL CABINET
BASE CABINETS
3 X Hex Bolt
(1/4”x 5/8”)
Note: Slatwall Brackets for use with standard 3”slatwall Sold Separately. Check with your
slatwall supplier to determine the rated capacity of your slatwall. DO NOT OVERLOAD.
NewAge Slatwall Brackets are only compatible with standard 3”on center Slatwall.

19
Fastening Cabinets Note:
Fasten additional cabinets to
initial securely mounted cabinet.
1Align bolts, tighten lightly.
Level cabinets and tighten all bolts.
2
Parts Needed.
Lock Nut
(1/4”)
Washer
(1/4”)
Hex Bolt
(1/4”x 5/8”)
X4
X4
Note:
Remove all drawers before
fastening cabinets

20
Attaching Light Valance to Wall Cabinet
1Insert and tighten bolt and nuts.
2
Align holes of valance with cabinet.
3Cross Section View
Parts Needed.
Light Valance
Nut
(M5)
Bolt
(M5 x 12mm)
