Chap.1–PRESENTATION
Dear Customer,
Thank you for having chosen ours, out of the many electrostimulators the market
has to offer. New Age Italia, a company which has been producing and marketing
electromedical appliances since 1985, has met with success both among experts
and among consumers, thanks to the reliability of its products, to the excellent
after sales service and to the technical advisory after sale services on how to use
the products.
New Age Italia s.r.l.
1.1–What is iBeauty Tens ?
iBeauty Tens is the new, complete electrostimulator for everyday fitness. It is
especially suitable for modelling the body and treating the most common kinds of
pain. Its memory contains 16 pre-set programs ready-to-use for every kind of
stimulation; the programs can be used for many different treatments of toning,
localised thinning, analgesic therapy, etc.). IBeauty Tens is equipped with two
independent channels in order to stimulate 2 areas of the body at the same time,
adjusting the intensity according to one’s own sensitivity. The battery feeding
allows you to use it everywhere, also in a trip.
1.2–Who is it for?
iBeauty Tens can be used by all those people who want to carry out specific
treatments directly at home or when travelling. Its ease of use means it can be
applied at any time in order to take full advantage of its effects and obtain
surprising results.
1.3–Fields of use
IBeauty Tens has many different applications which range from modelling of the
body, stiffening of inactive and hypotonic muscles, antalgic therapy for every
kind of acute and chronic pain. With the IBeauty Tens, one can also stimulate
circulation, promoting relaxation and lymphatic drainage. It is an excellent
replacement or support for physical activity, muscular maintenance or
empowerment, especially appreciated by sportsmen and sportswomen for athletic
preparation during the first stage of muscle building.

5/12
Chap.2–SAFETY REGULATIONS
2.1–General rules
Before using the device for the first time, you must read the user manual
carefully. In order to use it properly, before starting it up or connecting it to the
patient, you must:
(1) make a sight check, to identify any signs of damage;
(2) carefully take note of all the notices on the device;
(3) take away any liquid containers since the device is not protected against
entry of liquids (IP 20);
(4) make sure the accessories are available for applying stimulation (see
paragraph on Basic equipment).
2.2–Contraindications
Electrostimulation must not be carried out on:
(1) on pacemaker carriers or on individuals affected by heart trouble or heart
rhythm trouble;
(2) on the front surface of the neck, since this could lead to larynx spasms;
(3) on the side of the neck, due to the sensitivity of the carotid;
(4) in the abdomen and lumbar-sacral region, with pregnant women;
(5) on areas affected by skin lesions, mucose, altered local sensitivity, infective
processes, inflammations, phlebitis, thrombophlebitis;
(6) in case of implanted electronic equipment (e.g. pacemaker) in the area
immediately below the area being stimulated;
(7) on areas affected by tumours and in the abdominal/lumbar area when liver or
kidney stones are present;
(8) Keep it out of the reach of children.
2.3–Precautions during use
We suggest you consult a physician and use the electrostimulator under his or
her control if:
1. you use the neuromuscular stimulation for analgesic purposes on patients
affected by painful syndromes, in order to identify the reason behind their
pathology, especially when the symptoms do not regress within a few days
after the analgesic stimulation has been applied;
2. applying the electrodes on the face (keep off from the eyes at least 3-5 cm);
3. near segments to be treated which host metal synthetic media and intra-tissue
metals (like prostheses, osteosynthesis materials, spirals, screws, plates);
4. patients suffering from epilepsy and Parkinson’s disease, the sensitivity
threshold could be altered;

6/12
5. women who are certainly or supposedly pregnant, applying the stimulation
only in peripheral areas, such as the top or bottom limbs;
6. applying the electrodes in areas affected by tenon or muscle injury;
7. patients affected by spastic paralysis.
We suggest you do not apply the electrodes:
8. above the eye bulb;
9. directly on delicate areas, such as the middle of the breast, the groin or the
armpits, or on sensitive areas;
10. never place the heart muscle between the positive and the negative poles, i.e.
never put one electrode on the front of the torso and the other on the back
near the heart area;
11. on different patients, to avoid the crossed contamination phenomenon.
2.4 –Special notices
1. We suggest you do not use the electrostimulator after a heavy meal.
2. Should any sign of tachychardia, extrasystolia, or failure to tolerate the
stimulation appear during the treatment, you should suspend the treatment
to bring the whole situation back to normal.
3. At the end of the session, the area the electrode was applied on may redden
slightly, or else a capillary may burst in the area. In this case we suggest you
use a lighter frequency or a lower stimulation intensity.

7/12
Chap. 3 –FUNCTIONS

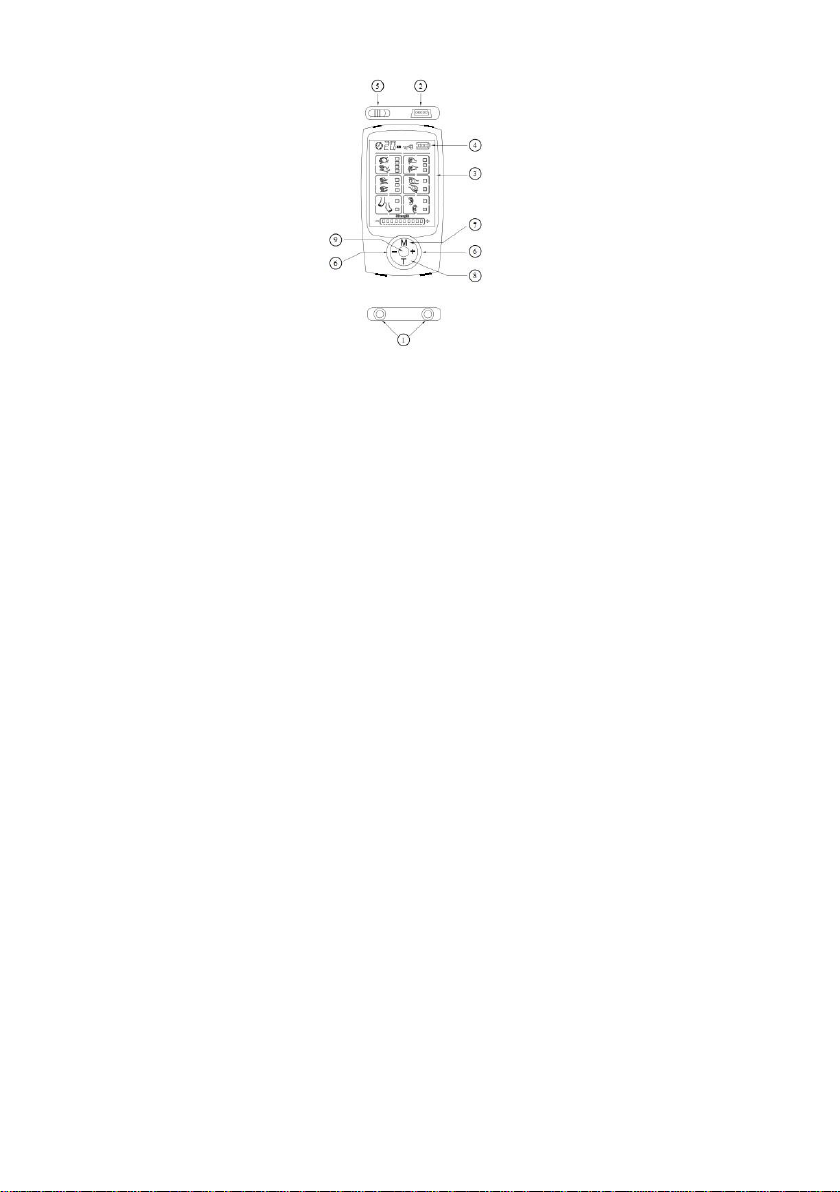

1. Two output connector 4. Battery indicator 7. Mode selector
2. USB port 5. On/ off switch 8. Time adjustment
3. LCD screen 6. Intensity adjustment 9. Pause switch
Chap. 4 –OPERATIONS
1. Clean off the area of application and remove any creams or lotions;
2. fit the batteries into the compartment on the back of the device. Make sure
the polarity is as shown inside;
3. connect the cables you need (1 or 2) with the plugs in the holes located at the
upper part of the device;
4. connect the electrodes in each clip of the connected cables;
5. remove the plastic support lifting the electrode by a flap;
6. apply the electrodes on the zone to be treated, following the pictures at the
end of the manual and the instructions in the Chapter APPLICATIONS (the
polarity of the plugs is not important); press the electrodes for a few seconds
so the gel adheres perfectly, even in the corners;
7. press the ON/OFF button to turn on the device;
8. press M and the central key to look for the desired program (see Programs
Table): with the M key you will get access to 6 macrocategories, each
category consists of two, three or four subcategories that are the programs.
While the indicator flickers when placed on one macrocategory, press the
central key to select the desired subcategory (program). Programs can be set
to run for a preferred duration ranging from 10 to 60 minutes. Upon
completion of the selected treatment duration, the program stops
automatically. You can set the time using the T key;
9. pressing the central key (9) for five seconds the keyboard will be blocked, to
unblock it press it again for 5 seconds.

8/12
Chap.5 - FURTHER INFORMATION ABOUT PROGRAMS
NOTES:
a) as the minutes go by, the stimulation may increase or diminish; in this
case, increase or diminish the intensity so as to keep the stimulation
constant;
b) the intensity of Channel 1 and Channel 2 can be set differently;
1
Muscular workout for upper limbs 50Hz
2
Muscular workout for lower limbs 10Hz
3
Muscular workout for back 2Hz
4
Abdominal muscular workout 50Hz
1
Reactivation blood circulation 1->50Hz
2
Reactivation lymphatic microcirculation 1-20Hz
3
Pinch massage (antalgic) 40Hz
1
Muscular workout high abdominal 60Hz
2
Muscular workout lateral abdominal 20-40Hz
3
Muscular workout low abdominal 20-50Hz
1
Ayurvedic antalgic massage 600Hz
2
Shiatsu antalgic massage 500-600Hz
1
Deep antalgic massage 1-50Hz
2
Deep antalgic localized massage 20-50Hz
1
Reflex therapy massage 600Hz
2
Acupuncture 500-600Hz

9/12
c) for muscular development or to increase the effects increase the intensity
gradually throughout the duration of the program.
ATTENTION: if the stimulation becomes bothersome or painful, decrease
the intensity or press the key 9 to interrupt the session.
10. at the end: you can set another program, repeating the operations from point
7 or else you can turn the device off by pressing ON/OFF;
NOTE: each programs stops automatically after 30 minutes; if the device is
unused for 3 minutes, it shuts down automatically;
11. put the electrodes on their supports and insert them back in their bags;
NOTES:
a) if the adhesive gel does not attach perfectly, wet it with water;
b) if the temperature is high or if not used for a long time store in the fridge;
12. disconnect the cables and store all the components in the case;
13. put in a cool and dry place far from sunlight.
Chap. 6 –PROGRAMS
IBeauty Tens has 16 preset programs. Each program produces different effects,
and can be used for specific purposes. You can also combine different programs
in the same session or week planning. Table 1 shows all the programs and how to
use them (principal effect). Programs Table
N.
PROGRAM
P1
Upper limbs muscular workout
P2
Lower limbs muscular workout
P3
Back muscles workout
P4
Abdominal muscles workout
P5
Blood microcirculation reactivation
P6
Lymphatic microcirculation reactivation
P7
Antalgic pinch massage
P8
Upper abdominal workout
P9
Lateral abdominal workout
P10
Lower abdominal workout
P11
Ayurvedic antalgic massage
P12
Shiatsu antalgic massage
P13
Deep antalgic massage
P14
Deep antalgic localized massage
P15
Reflexology
P16
Acupunture

10/12
6.1 –Programming the sessions
In order to carry out effective treatment using IBeauty Tens, apply the stimulation
on every treating area for 30 minutes, at least twice a week. For the treatment of
diffused and compact cellulitis it can be useful to repeat the treatment (total 60
minutes); for acute pathologies and particularly intense and continuous pains it is
advisable to repeat the specific analgesic program 2 - 3 times in the same day
after some hours.. See the following number of weekly sessions suggested in base
of program type.
Muscle stimulation –2 - 3 applications on alternate days; use P6 program after
the most intense sessions or fatiguing trainings.
Aesthetic treatments –between 3 and 5 sessions (also every day); to get also
the toughening of the treated zones, combine with the muscular stimulation in
the same session or in alternated days.
Analgesic therapy –apply every day (or when it's necessary) until the pain
disappears or decreases considerably. After 10 - 20 applications if the pain
persists, refer to a physician.
Chap. 7 –APPLICATIONS
The centre of the manual shows some possible ways of positioning the electrodes:
on muscles for stimulation, on adipose areas for local thinning and on painful
spots for analgesic therapy.
ATTENTION: READ CAREFULLY THE CONTRAINDICATIONS
BEFORE THE APPLICATION.
7.1 –Positioning the electrodes
Following are some general techniques:
Muscle stimulation–apply 2 electrodes at 1 to 2 cm from the beginning and
the end of the muscle, in a longitudinal direction. For large muscles, use 4
electrodes with 2 Channels (e.g.. quadriceps, glutei).
Beauty treatments –apply 2 or 4 electrodes to the area to be treated in order to
mark off the surface involved, always at 1 to 2 cm from the limit of the area
itself; there are no specific points for positioning.
Analgesic therapy - apply 2 electrodes on sides of painful area delimit the
trigger point. For restricted painful areas, apply the negative electrode on the
point of pain and the positive at 2 to 3 cm of distance. If the pain is diffuse and
deep, apply 4 electrodes around the trigger point.

11/12
Chap. 8 –TECHNICAL SPECIFICATIONS
8.1–Technical characteristics
Power: rechargeable battery Li-ion 1,5V
Wave form: rectangular biphase and TENS
Channels: 2 independent
Intensity: 0-60 mA (20 regulation levels)
Frequency: 1-600 Hz
Impulse width: 40-400 µs
8.2–Basic equipment
Device
N.2 cables
N.4 pre-gelled adhesive electrodes
N.1 battery
User manual
8.3–Accessories
Pre-gelled adhesive electrodes
Splitting cables
Conducting velcro bands
Chap. 9 –MAINTENANCE
Equipment: clean with a damp cloth. Keep the device in a cool and dry place,
far from sunlight.
Batteries: in normal conditions they last for some weeks. Replace the batteries
with some of the same kind, or with rechargeable batteries; do not use different
kinds of batteries at the same time.
Electrodes: under conditions of ordinary use, they last at least 10 to 15
applications or more. After use, put them immediately back on their suports,
and always close them in their bags. When the gel loses adherence, wipe the
pre-gelled part before and/or after application. To ensure longer life, keep the
electrodes in a refrigerator.
After sales service:
New Age Italia s.r.l.
Via De Brozzi, 3 - 48022 Lugo (RA)
Tel:[phone] - Telefax: +39-0545.369028
E-mail: [e-mail]

12/12
Chap. 10 –SYMBOLS
CLASS II DEVICE
EQUIPMENT OF BF TYPE
REFER TO THE ATTACHED DOCUMENTATION
THIS DEVICE HAS BEEN MARKED CE ACCORDING TO THE
DIRECTIVE 93/42EEC ON MEDICAL DEVICES WITH No.
MED26017 BY THE NOTIFIED BODY No. 0476.
WASTE DISPOSAL IN AGREEMENT WITH THE DIRECTIVE
2002/96/EC AND and 2003/108CEE
Chap. 11 - WARNINGS
Disposal: The device must be disposed of in accordance with the local regulations
for disposal of special waste.
The tool works according to its specifications, if the environment is maintained to
an inclusive temperature between the 5° and the 40° Cs and with damp inferior to
80%. The same conditions must be maintained during transport and storing.
Do not use in the immediate proximities of cellular telephones (maintain them to
at least some meter of distance).
Operate in proximity (for instance to 1 meter) of an instrument for waves therapy
short, or microwaves, can produce instability in the exit of the device.
Don't simultaneously connect the patient with the electrostimulator and with a
surgical instrument HF, to avoid dangers for the patient and for the same
stimulator. You recommends to the operator not to contemporarily touch patient
and active parts.
In case of malfunctions and breakdowns, it is opportune to exclusively send the
tool to the house builder. You recommends not to operate in proximity of
inflammable substances
You keeps in mind that the use of the same electrodes and the same envelopes in
sponge or of the same conductive bands on more patients it could favour
phenomenon of cross infection among the same.
