NewAge Products Platinum Dual Side Burner Operating instructions

IM-GL2.05A-01
INSTALLATION AND OPERATION GUIDE
ATTENTION:Is your DSB damaged?
Need help or spare parts? For fastest service,
contact NewAge Products at 1-877-306-8930;
or suppor[email protected].
Do not return to the retailer.
STOP
Use two or more people to move, assemble, or install the side burner to
avoid back injury. Do not leave children unattended near the gas appliance
or cabinets.
THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF
THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN USING THE APPLIANCE. FAILURE TO OPERATE THIS PRODUCT IN A WELL
VENTILATED AREA CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
Warning: Excessive weight hazard!
!
NEWAGE PLATINUM
DUAL SIDE BURNER
NATURAL GAS
NEWAGE PRODUCTS INC, Vaughan, ON, CA L4L9T1
SKU#66285 - NEWAGE PLATINUM DUAL SIDE BURNER - NG
WITH SIDE BURNER CART
SKU#66902 - NEWAGE PLATINUM DUAL SIDE BURNER - NG
The NewAge grill must be installed by a licensed
gas tter, in accordance with the manufacturer’s
instructions and all applicable codes and
requirements of the authority having jurisdiction.
If the information in the grill’s instructions are not
followed exactly, a re, explosion or production
of carbon monoxide may result causing property
damage, personal injury or loss of life. The gas
tter is responsible for the proper installation of
the grill.
WARNING

Read and follow the instructions in this manual fully and completely before installing, servicing or
operating the gas appliance to reduce the risk of :
1. Fire
2. Personal injury or property damage
3. Improper installation
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Do not install or operate indoors, in
a garage, in a screened in porch, gazebo, or any other enclosed area. This outdoor cooking gas
appliance is not intended to be installed in or on recreational vehicles , boats or in a non-ventilated
room. Failure to operate this product in a well ventilated area can cause property damage, injury
or death. Keep the area surrounding the gas appliance clear and free from combustible materials,
gasoline and other ammable vapors and liquids.
DANGER
Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any
other appliance.
The installation must conform with local codes or, in the absence of local codes, with either
the National Fuel Gas code, ANSI Z223.1/NFPA 54 or the National Gas and Propane installation
code, CSA B149.1, or the Propane Storage and Handling Code, CSA B149.2, or the Standard for
Recreational Vehicles, ANSI A119.2/ NFPA, and CSA Z240 RV Series, Recreational Vehicle Code
as applicable.
WARNING
1. The outdoor cooking gas appliance and its individual shuto valve must be disconnected
from the gas supply piping system during any pressure testing of that system at test
pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system
by closing it individual manual shuto valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
DANGER
IF YOU SMELL GAS:
1. Shut o gas to the appliance.
2. Extinguish any open ame.
3. Open the lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or
your re department.
DANGER

WARNING
1. This product can expose you to chemicals including Carbon Monoxide, which is a by-
product of combustion known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
2. California law requires businesses to warn customers of potential exposure to such
substances. To minimize exposure to the substances, always operate this unit according
to the use and care instructions found in this manual. Be certain to provide adequate
ventilation when cooking.
3. California Proposition 65 lists“Silica, crystalline” which is used in one of the components of
the IR burner, as an agent known to the state of California to cause cancer.
CALIFORNIA PROPOSITION 65
WARNING
1. Massachusetts requires all gas be installed using a plumber or gas tter carrying the
appropriate Massachusetts license.
2. All permanently-installed natural gas installations require a“T” handle type manual gas
valve be installed in the gas supply line to this appliance.
STATE OF MASSACHUSETTS
WARNING
1. Always maintain the required clearances from combustible construction as detailed. The side
burner is designed for outdoor use only. Never use in a garage, building, shed, breezeway
or other enclosed area. This side burner shall not be used under any unprotected overhead
combustible construction.
2. NewAge side burner are not design certied for and are not to be installed in or on
recreational vehicles, portable trailers, boats or any other moving installation.
3. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
Electrical cords should be placed away from walkways to avoid creating a tripping hazard.
4. Do not repair or replace any part of the side burner unless specically recommended in this
manual.
5. All gas lines must have a shut-o that is readily and easily accessible. Be sure the owner
knows where the shut-o is located. If you smell gas, check for gas leaks immediately. Check
only with a soap and water solution. Never check for gas leaks with an open ame. (See
INDEX:“Leak Testing”for further details.)

IMPORTANT NOTES
This Gas Barbecue Is Certied Under Canadian And American National Standards, ANSI
Z21.58-2018 and CSA 1.16-2018 respectively for Outdoor Gas Grills and should be installed to
conform with local codes. In absence of local codes, install to the current CAN B149.2 Natural
Fuel Gas Code and the Propane Installation Code, CSA B149.1 Propane Installation Code in
Canada or to the National Fuel Gasa Code, ANSI Z223.1/NFPA 54 the National Fuel Gas Code
the Natural Gas and Propane Installation Code, CSA B149.2.
If a rotisserie motor is used, it must be electrically grounded in accordance with local codes or,
in absence of local codes, with the current CSA C22.1 Canadian Electrical Code in Canada or
the National Electrical Code, ANS/NFPA 70 the Canadian Electrical Code, Part 1, CSA 22.1.

Scan this QR code with the camera
on your mobile device to visit the
NewAge Products Support Hub
www.newageproducts.com/support-hub/
NEWAGE PRODUCTS INC. PLATINUM GRILLS
MANUFACTURER WARRANTY
PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call our
customer service team:
• Name, address and telephone number
• Product Name / SKU Number
• A clear, detailed description of the problem
• Proof of purchase including order number
Register your NewAge Products purchase online for quicker customer
assistance and access to exclusive benefits
Visit www.newageproducts.com/register/
Warranty Claim
For warranty service please contact NewAge Products at
1-877-306-8930; or [email protected]
Please review all warranty details below, prior to contacting NewAge Products for a claim.
Scan the QR code on the right to access our support page or
visit www.newageproducts.com/contact-us/
The 304 stainless steel material used in the construction of NewAge Platinum Grill is highly rust resistant, however, chlorine in the air from
swimming pools or the salt from sea air may cause surface rust to appear and even create some pitting corrosion if left on the product. We suggest
cleaning all stainless steel surfaces at least every two weeks to keep your Grill in prime condition. The chemical reaction from salt is easy to
prevent however it is more dicult when left on the surface.
WHAT IS COVERED
When this product is installed, operated and maintained according to the instructions attached to or furnished with the product, NewAge Products
Inc. will replace the defective product or parts if the part fails as a result of defective materials or workmanship for the warranty duration from the
purchase date of the product.
1. Service calls to correct the installation of any NewAge products or to instruct you how to use or install them.
2. Damage resulting from products caused by accident, misuse, abuse, fire, flood, improper installation, acts of God, neglect, modification or
mishandling, improper maintenance & storage.
3. Products damaged by improperly loading beyond the specified maximum weight capacity outlined in the instructions provided with the
product.
4. Repairs or replacement when your product is used in other than normal, residential use, such as a commercial environment, or handled in
anyway inconsistent with the installation instructions included with the product.
5. Cosmetic damage that occurs after customer purchasing the product, including scratches, dings, dents, corrosion, or stains in the material that
does not aect the structural or functional capability of the product.
6. Surfaces damaged due to improper use of chemicals, and detergents.
7. Discoloration due to the high heat, for example beside a grill, is a trait of stainless steel.
8. Surface rust resulting from acid rain or environmental chemicals
9. Replacement parts for NewAge products outside Canada and the United States.
10. Loss due to theft.
11. Damage resulting from use of the product contrary and not in accordance to the instruction manual.
12. Any labor costs during the warranty period.
WHAT IS NOT COVERED
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR
THE SHORTEST PERIOD ALLOWED BY LAW. THIS WARRANTY IS LIMITED TO THE ORIGINAL BUYER. Some states and provinces do not allow limitations
on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and
you also may have other rights that vary from state to state or province to province.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AT OUR DISCRETION
AS PROVIDED HEREIN. NEWAGE SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not
allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty
gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
NewAge is proud to oer a complete product warranty for a period of (Five years from the date of purchase. ) Subject to the limitations and disclaimers set
forth below or in other product documentation, NewAge provides the following additional warranties to the initial customer;
LIMITED WARRANTY
Length of Warranty Warranty Covered Items Cost to NewAge Cost to Customer
5 Years Rotisserie Forks and Spit, Rotisserie Rollers, Grill grates, Grease Trays, Ceramic
Rotisserie Burner, Ceramic Sear Burner, H shaped Burner and Side Burners
Materials Shipping
10 years Stainless steel grill hood / burner box/ Interior Brackets Materials Shipping

Index
Safe Operating Practices 7
Product Inspection 9
Parts Supplied 9
Tools Needed 9
Product Specications 10
Installing DSB on NewAge DSB Cabinet 11
Installing DSB on NewAge DSB Cart 12
Installing DSB on custom built cabinet 13
Installing DSB on custom built cabinet 14
Assembling the Dual Side Burner parts 17
Gas Connections 18
Leak Testing Instructions 22
Electrical Connections 24
Pre-Cooking Checklist 25
Lighting the Side burner 26
Flame Characteristics 28
Care and Maintenance of your Stainless Steel Side Burner 29
DSB Maintenance and Cleaning 30
Replacing LED Lights 33
Troubleshooting 34
Exploded View and Spare Parts 35
Wiring Diagram 37
NewAge Customer Service 37

7
Safe Operating Practices
1. Newage Gas appliance must be assembled and installed according to the instructions in the manual.
2. Read the entire instruction manual prior to operating the side burner.
3. NewAge Side burner must be used outdoors in a well ventilated area, and cannot be used indoors, in a
enclosed area such as a garage, gazebo, screened in porch or other similar enclosed area.
4. NewAge Gas appliances are not designed or certied for and are not to be installed in or on recreational
vehicles, portable trailers, boats.
5. Never use the side burner in windy conditions. If located in a consistently windy area, oceanfront,
mountaintop, etc., a windbreak will be required. Always adhere to the specied clearances as described
in the INSTALLATION section of this manual.
6. Do not modify the NewAge side burner.
7. Do not operate the NewAge side burner under, or near combustible construction.
8. Maintain proper clearance to combustibles, 18”(457 mm)to rear of unit, 14”(356mm) to sides. Additional
clearance of 32”(810mm) is recommended near vinyl siding or panes of glass.
9. When not in use turn o the gas at the supply valve.
10. Always shut o the main valve on the Natural gas supply after each use.
11. Never attach or disconnect to gas supply, or move or alter gas ttings when the side burner is in
operation or is hot.
12. Natural gas units must be disconnected from the supply when being stored indoors.
13. Inspect the fuel supply hose before each use. If there is evidence of excessive abrasion or wear or
the hose is cut, it must be replaced prior to using the side burner with a replacement hose assembly
specied by the grill manufacturer.
14. Leak test the unit before initial use, annually, and whenever any gas components are replaced.
15. Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
16. Follow lighting instructions carefully when operating the side burner.
17. Burner controls must be o when turning supply valve on.
18. The side burner lid must be fully opened while lighting the side burner. Failure to do so will risk an
explosion, and personal injury or death.
19. Never lean over the side burner and keep face away from the side burner when lighting.
20. Never let the gas hose touch the bottom of the burner box.
21. Don’t push the electrical cable into the side burner enclosure.
22. Do not leave Side burner unattended when operating.
23. Do not use aluminum foil to line drip pans or cooking grate or radiants. This can severely upset
combustion air ow or trap excessive heat in the control area. The result of this can be melted knobs or
damaged ignition components.
24. Adults and children should be instructed on the hazards of high surface temperatures. Never leave
children unsupervised around the NewAge Gas appliance.
25. Never touch the cooking grate, hood or immediate surrounding metal surfaces with your bare hands
while cooking.
26. The NewAge side burner must be cooled before it is covered. Never place the cover on when cooking or
while hot.
27. Keep all electrical cords and gas supply lines away from heated surfaces.

8
Note: THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE
Safe Operating Practices
28. Never cook without the drip pan installed. Hot grease can leak down and produce a re or explosion.
29. Clean grease trays regularly to prevent grease res.
30. Spiders and insects like to nest in the burners, venturis, valves and orices of a side burner, disrupting
the gas ow. This very dangerous condition can cause a re behind the control panel, damaging the side
burner and risking personal injury. If your side burner has been unused for a long time, inspect and clean
the burners, venturis, valves and orices.
31. Clean the side burner with caution. Avoid steam burns; do not use a wet sponge or cloth to clean the
side burner while it is hot. Some cleaners produce noxious fumes or can ignite if applied to a hot surface.
32. Do not locate, store or operate the grill on an inclined plane. If you are using a grill cart, make sure you
lock the castor wheels before operating the side burner.
33. Do not use charcoal or lighter uid on the side burner.
34. Do not move the appliance during use.
35. Do not use a power washer to clean the NewAge Gas appliances.
36. Always have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease re with water
or other liquids.
37. If the side burner is installed by a professional installer or technician, be sure that he/she shows you
where your gas supply shut-o is located. All gas lines must have a shut-o that is readily and easily
accessible. If you smell gas, check for gas leaks immediately. Check only with a soap and water solution.
38. Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong
adapter.
39. For personal safety, wear proper apparel while cooking.

9
Parts Supplied
1 x Natural Gas Hose
(Pre-installed)
1 x SS Grate 4 x M6 Flat Head
Screws
2 x Knobs 2 x Burners
Tools Needed
Product Inspection
• Check to see all parts are received as per the
order placed.
• Contact NewAge Products at 1-877-306-8930;
for any missing parts.
• Inspect the products for any damages before
starting the installation.
• Go through the installation instructions carefully
before starting the installation.
Flashlight
6mm Nut Driver
(Optional)
#2 Phillips Bit
(Optional)
Scissors
Adjustable wrench
Measuring Tape

10
Product Specications
NewAge Dual Side Burner
WD
H
Width (W) 16”
Depth (D) 23.9”
Height (H) 11.3”
Dimensions
Details
Material Stainless Steel Main Cooking Area 205 Square inch
Round Burner BTU 12,000 BTUs x 2 Cutout Width 15.3”
Total Power Output 24,000 BTUs Cutout Depth 22.4”
No. of Main Burners 2Cutout Height 11.3”
Fuel Type Natural Gas Net Weight 37.3 Lbs

11
Installing DSB on NewAge DSB Cabinet
Place DSB onto the cabinet.
Secure DSB to cabinet by inserting four
M6x45mm at head screws that line up
with insert nuts on the side of the DSB re
box. Flat head screws are provided with
the side burner.
1
2
For more detailed instructions on installation steps, refer to the NewAge DSB Cabinet installation
guide.

12
Installing DSB on NewAge DSB Cart
Make sure the rear casters on the cart are
locked. Place the DSB onto the cart.
Secure DSB to cabinet by inserting two
M6x45mm from the bottom. Flat head
screws are provided with the DSB.
1 2
3
For more detailed instructions on installation steps, refer to the NewAge DSB Cart installation guide.

13
Installing DSB on custom built cabinet
The installation must conform with local codes or, in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1. If you are connecting an appliance to a xed fuel piping system specifying the
use of a rigid pipe, semi-rigid tubing, and/ or a connector that complies with the standard for
Connectors for Outdoor Gas Appliances and Manufactured Homes, ANSI Z21.75 CSA 6.27.
WARNING
Cabinet frame, cabinet side
panels and counter top must be
made from non-combustible
material.
DO NOT store or use products with ammable
liquids or vapors in the vicinity of the NewAge
Grill Cabinet,NewAge Outdoor Kitchen
cabinets or any appliances.
WARNING
Note to Installer:
All built-in appliances must use rigid pipe, semi-rigid tubing, or a connector complying with the
standard for Connectors for Gas Appliances, ANSI Z21.24. CSA 6.10, or Standard for Connectors for
Outdoor Gas Appliances and Manufactured homes, ANSI Z21.75. CSA 6.27, for the appliance which
are connected to xed fuel piping system (Natural Gas).
WARNING
This gas appliance is designed for non-combustible enclosures only, and must be installed and
serviced by a licensed gas tter to local codes.
As indicated on the rating plate, this gas grill is designed to operate with supply pressure of 7”
WC for Natural Gas. For installations where the gas supply pressure exceeds these requirements,
a regulator must be installed upstream of the grill’s components. If the gas supply pressure is
lower than these requirements, the unit will be under-red and will not reach the maximum
temperatures. Ensure that the supply line size complies with local and/ or national installation
codes.

14
CLEARANCES:
TO NON-COMBUSTIBLE CONSTRUCTION
A minimum of 4”(10 cm) clearance from the back of the side burner to non-combustible
construction is required to allow the hood to be opened fully.
TO COMBUSTIBLE CONSTRUCTION
This appliance should NOT be installed over, under or next to unprotected combustible
construction. A minimum clearance to vertical and rear combustible material is 18”(45 cm) and 14”
(36cm) on the sides.
VENTILATION OPENINGS
A minimum of three 10 in² (65 cm²) of ventilation openings must be provided at the bottom of both
left and right sides of your enclosure (island), as well as the back side. A minimum of three 20 in²
( 130 cm²) of ventilation openings must be provided at the top of both left, right and back sides of
your enclosure (island) where the top of the opening aligns with the bottom of the side burner cut-
out. These openings are required to safely dissipate gas vapors if there is a leak in your enclosure.
The minimum vertical clearance to combustible materials means that ALL combustible materials
must be outside this 18”(45cm) zone. As an example, if you have an island with a stucco or
tiled surface and wood-frame construction beneath, the wood is considered combustible, even
though the side burner is touching the stucco or tile surface, which is non-combustible. In extreme
circumstances, the wood could potentially get hot enough to burn.
Installing DSB on custom built cabinet
Cutout Dimensions
SKU W D H
33” Grill 66900
66910 31.5” 22.3” 11.2”
36” Grill 66903
66913 34.5 22.3” 11.2”
40” Grill 66901
66911 38.5” 22.3” 11.2”
DSB 66902
66912 15.3” 22.4” 11.3”

15
OUTDOOR GFI ELECTRICAL OULET
RECOMMENDED - LOCATE ON SAME SIDE
OF GRILL AS ROTISSERIE BRACKET.
NON-COMUSTABLE MATERIAL
H
D
W
PARTITION TO ISOLATE
CYLINDER FROM GRILL
MINIMUM 10 SQ IN (65 SQ CM)
OF VENTILATION REQUIRED ON
EACH END OF CABINET.
MINIMUM 20 SQ IN (130 SQ
CM) OF VENTILATION
REQUIRED ON EACH END OF
CABINET.
5"
127mm
MAXIMUM
1"
25.4mm
MAXIMUM
2.375” Dia
0.39"
1.19"
Installing DSB on custom built cabinet
10in
10in
1in
MINIMUM 10 SQ IN (65 SQ CM)
OF VENTILATION REQUIRED
MINIMUM 20 SQ IN (130 SQ
CM) OF VENTILATION
REQUIRED.
Back View
Layout for Non-combustible enclosure
Note: These illustrations are for reference purpose only. Actual built-in cabinets and
installation may dier.
Note: Avoid abrasion of hose against the
opening. It is recommended to use a rubber
grommet at the opening.
Rubber grommet
WARNING
• The upper vent opening must be at least 20
square inches.
• The lower vent opening must be at least 10
square inches.

16

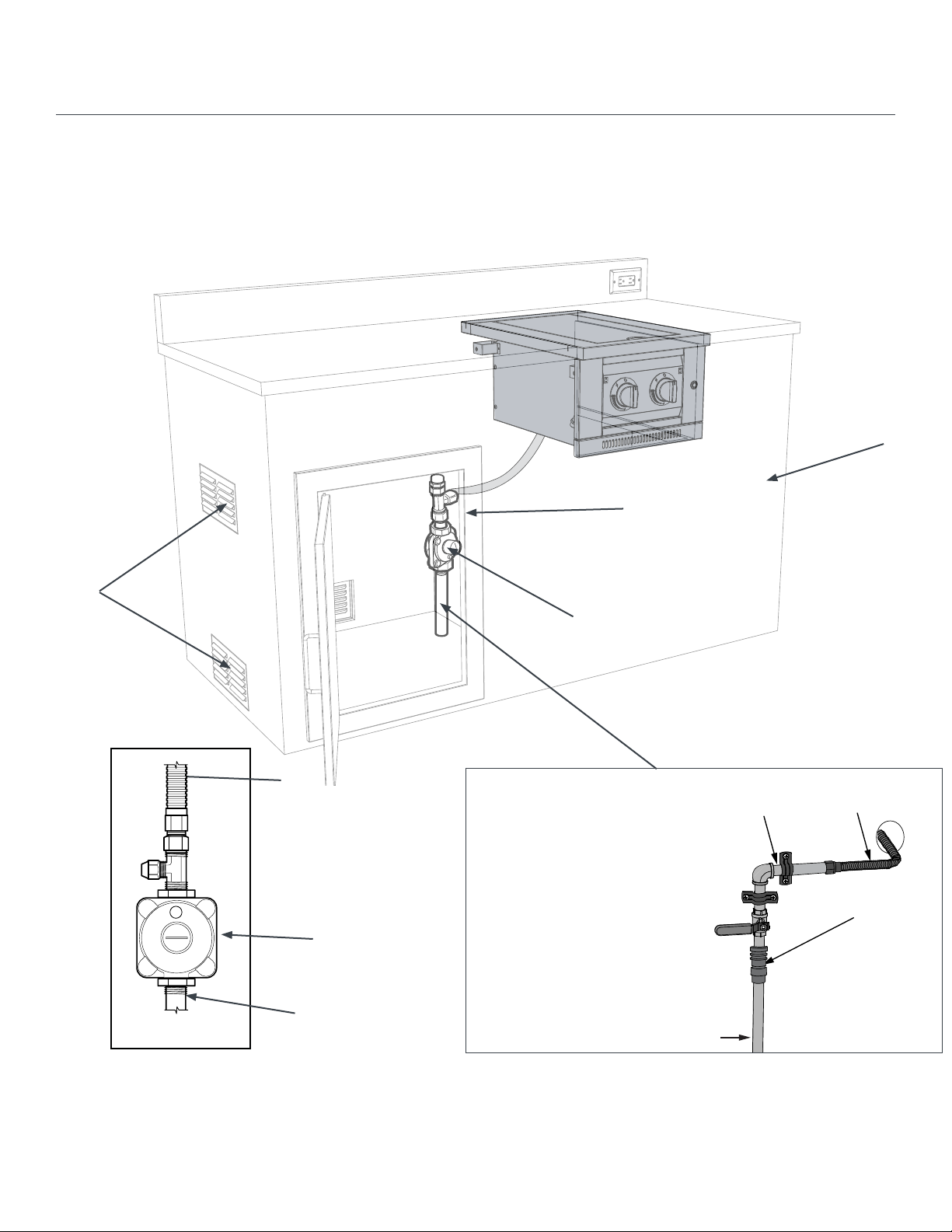

Natural Gas Installation
Ventilation
Natural gas Hose
(Supplied)
Natural gas Supply
Natural gas Supply
Line
Natural Gas
Regulator
Natural gas Hose
(Supplied)
Non - combustible
Construction
Grill Gas line Flexible
corrugated Tubing
(Not Supplied)
Quick
Disconnect
Coupling NG
( Not Supplied)
Rigid Piping for
supply
(Not Supplied)
Flexible Gas Hose
Supply line
Securely mount the gas
supply components to the
non combustionable
structure. This illustration is for
reference only each
installation will be dierent.
All Other Components
Are Not Supplied
Installing DSB on custom built cabinet

17

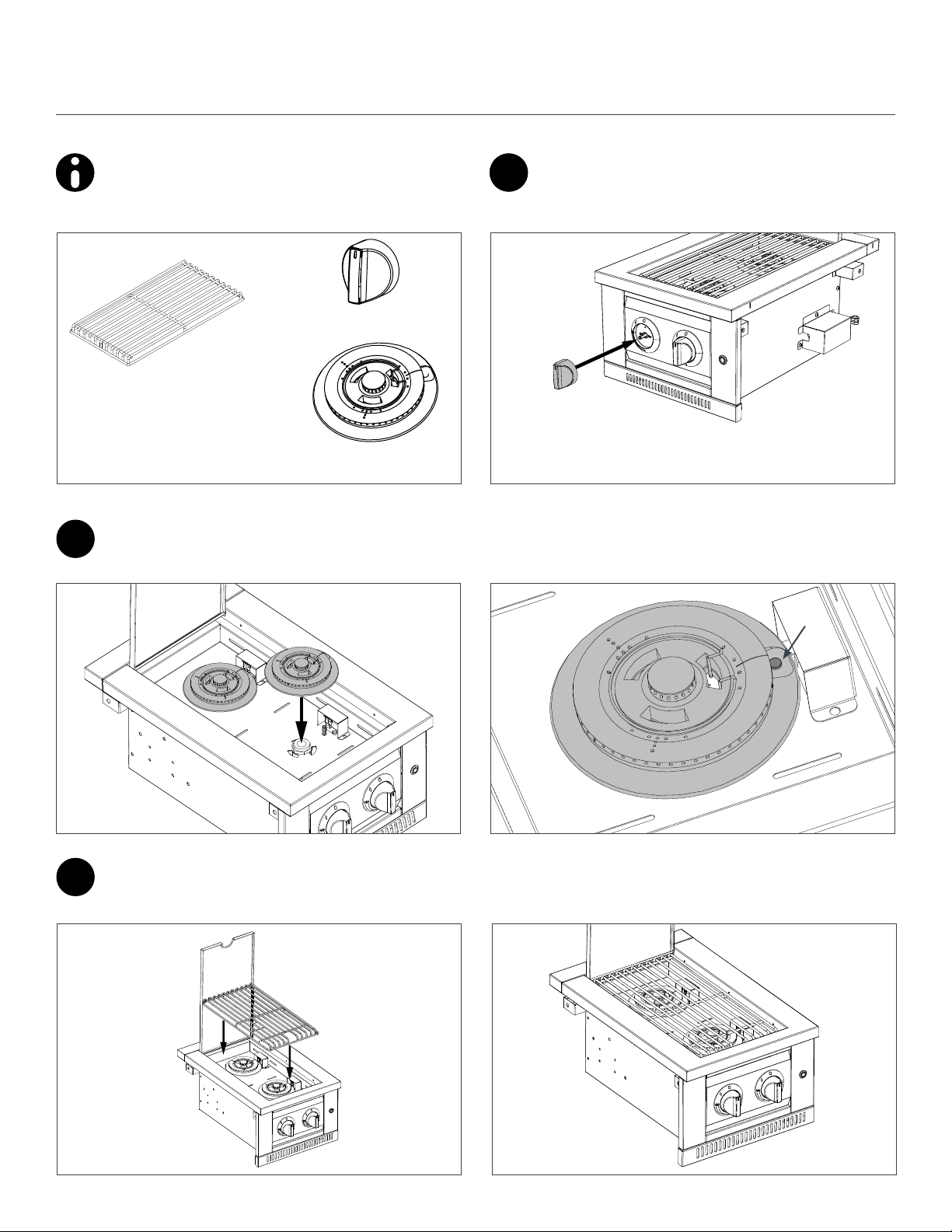

Assembling the Dual Side Burner parts
Parts needed.
1Attach the control knobs by psuhing them
in.
1
Place the burners in position on top of the retention nuts. Make sure the hole on
circumference of burner sits on the pin (A).
2
Place the cooking grate in place on top of
the burners.
3
1 x SS Grate
2 x Knobs
2 x Burners
A

18
Gas Connections
The dual side burner is factory set to use Natural gas. It is critical that the gas you use matches that
which the side burner was set up for. You can verify that by checking the rating plate.
ORIFICE SIZE/ GRANDEUR DES ORIFIC
PROPANE NATURALGAS
GAZ NATURAL
MAIN BURNER/
BRÛLEUR PRINCIPAL 1.1MM 1.46MM
CLASS NO / CATÉGORIE #: 2711 04/84
2 X 12,000 BTU/ POT MAIN BURNERS / BRÛLEUR PRINCIPAL
DSB -ELECTRICAL REQUIREMENTS
:
.CNISTCUDORPEGAWEN
ADANAC,OIRATNO,NAHGUAV
ENIHCNEEUQIRBAF/ANIHCNIEDAM
MINIMUM CLEARANCE TO ADJACENT COMBUSTABLES:
EQUIPPED FOR USE WITH
DÉGAGEMENT MINIMUM AUX COMBUSTIBLES ADJACENTS
INCHES FROM SIDES 14 POUCES DES CÔTÉS
INCHES FROM REAR 18 POUCES DE L’ARRIÈRE
OUTDOOR COOKING APPLIANCE- FOR OUTDOOR USE ONLY. IF STORED INDOORS,
DETACH AND STORE GAS CYLINDER OUTSIDE. DO NOT USE THIS APPLIANCE
UNDER OR CLOSE TO UNPROTECTED OVERHEAD COMBUSTABLE SURFACES.
SEE INSTRUCTIONS FOR CLEARANCES. ONLY FOR INSTALLATIONIN A BUILT-IN
ENCLOSURE CONSTRUCTED OF NON-COMBUSTIONABLE MATERIALS.
MANIFOLD PRESSURE INCHES OF WATER COLUMN 7”NG
PRESSION AU COLLECTEUR (DE POUCES COLONNE \ D’EAU) 7 po GN
MFG DATE DE FABRICATION :
APPAREIL DE CUISINE DE PLEIN AIR- UTILISE À L'EXTÉRIEUR SEULEMENT. SI MAINTENU À
L'INTÉRIEUR, DÉCHARGEZ ET CONSERVEZ LE BONBONNE AU GAZ À L'EXTÉRIEUR.
N'UTILISEZ PAS CET APPAREIL SOUS OU À PROXIMITÉ D’UNE CONSTRUCTION COMBUSTIBLE.
ATTENTION:
AVERTISSEMENT
:
111 CREDITVIEW ROAD, 2nd FLOOR
L4L-9T1
10”/254MM
2 3/4”/69.8 MM
ONLY FOR INSTALLATION IN A BUILT-IN ENCLOSURE
CONSTRUCTED OF NON-COMBUSTIONABLE MATERIALS.
UNIQUEMENT POUR L'INSTALLATION DANS UN BOÎTIER
INTÉGRÉ CONSTRUIT DE MATÉRIAUX NON COMBUSTIBLES
OU POUR BRÛLEUR LATÉRAL. INPUT- 110 VAC 60 Hz .25A
Class IIIA-2
ANS Z21.58-2018•CSA 1.6-2018
Outdoor Cooking Gas Appliances
®
WARNING: GAS SUPPLY MUST BE TURNED OFF AT SOURCE WHEN
APPLIANCE NOT IN USE. IF YOU PURCHASE A CHARCOAL TRAY, DO NOT PUT MORE
THAN 0.7KG (1.5 LBS) OF CHARCOAL IN THE CHARCOAL TRAY. IF THESE
INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE CAUSING DEATH
OR SERIOUS INJURY MAY OCCUR.
CAUTION: THIS APPLIANCE IS ADJUSTED AND SHIPPED FOR USE
WITH NATURAL GAS. THIS BURNER IS DESIGNED TO OPERATE WITH GAS
SUPPLY PRESSURE OF 7”WC FOR NATURAL GAS. IF THE GAS SUPPLY
PRESSURE IS LOWER THAN THESE REQUIREMENTS, THE UNIT WILL BE
UNDER-FIRED AND WILL NOT REACH THE MAXIMUM TEMPERATURES.
ENSURE THAT THE SUPPLY LINE SIZE COMPLIES WITH LOCAL AND/OR
NATIONAL INSTALLATION CODES.
Dual Side Burner Pro 2.0 (Natural Gas)
MODEL / MODÈLE
66902
66285
Dual Side Burner Pro 2.0 (NG)
Dual Side Burner Pro 2.0 (NG)
with Side Burner Cart
X
NATURAL GAS / GAZ NATURAL
SUPPLIER to APPLY
PRODUCTION CODE STICKER
L'ALIMENTATION EN GAZ DOIT ÊTRE COUPÉE À LA SOURCE LORSQUE L'APPAREIL N'EST PAS
UTILISÉ. SI VOUS ACHETEZ UN PLATEAU À CHARBON, NE METTEZ PAS PLUS DE 0,7 kg (1,5
LBS) DE CHARBON DANS LE PLATEAU À CHARBON. SI CES INSTRUCTIONS NE SONT PAS
SUIVIES EXACTEMENT, UN INCENDIE CAUSE LA MORT OU DES BLESSURES GRAVES PEUVENT
SURVENIR.
CET APPAREIL EST RÉGLÉ ET EXPÉDIÉ POUR UTILISATION AVEC DU GAZ NATUREL. CE GRIL À GAZ
EST CONÇU POUR FONCTIONNER AU GAZ PRESSION D'ALIMENTATION DE 7 ”WC POUR GAZ
NATUREL. SI L'ALIMENTATION DE GAZ LA PRESSION EST INFÉRIEURE À CES EXIGENCES, L'UNITÉ
SERA SOUS-CUIT ET N'ATTAQUE PAS LES TEMPÉRATURES MAXIMALES. ASSUREZ-VOUS QUE LA
TAILLE DE LA LIGNE D'ALIMENTATION EST CONFORME AUX CODES D'INSTALLATION NATIONAUX.
WARNING
Never connect a gas line directly to the grill. A pressure regulator must be installed on all gas
equipment. Removing or failing to install the pressure regulator can result in re, and serious
personal injury and will void the warranty. This grill is designed for non-combustible enclosures
only, and must be installed and serviced by a licensed installer to local codes.
As indicated on the rating plate, this gas grill is designed to operate with gas supply pressure of 7”
WC for Natural Gas. For installations where the gas supply pressure exceeds these requirements,
a regulator must be installed upstream of the grill’s components. If the gas supply pressure is
lower than these requirements, the unit will be under-red and will not reach the maximum
temperatures. Ensure that the supply line size complies with local and/or national installation
codes.
Rating Plate - Lists model numbers, and gas type
Water Column Requirements
Fuel WC Min Under
Full Load
NATURAL GAS 7 in wc (NG)
The rating plate is located in one or more of the following places:
• On the underside of the side burner lid
Ensure that the gas supplied meets with the minimum pressure requirements. Do not operate the
grill on any gas other than that for which the grill has been set.
Both the regulator and the manifold orices have been tuned for the type of gas specied on the
rating plate.
All installation and all installation parts must conform to local codes with the National Electrical
Code, ANSI Z223.1/ NFPA 70 latest edition and the National Fuel Gas Code, ANSI Z223.1/NFPA 54
in the U.S. and CGA-B149.1/.2 in Canada. Canadian installations must conform to CGA-B149.1/.2
natural gas/propane installation code. (Canada)

19
Instructions for Installer (Gas Fitter)
Gas Line Purging
Gas Hook-Up Instructions
You should purge the gas line of air before attempting to light the Side burner.
• Make sure all Side burner controls are in the“OFF”position.
• Slowly turn on the main gas supply.
• Open the lid for the entire purging procedure.
• Push in the control knobs (do not turn)for the rotisserie burner and the burner on the furthest
right for about 20 seconds to allow the air in the system to purge. These are furthest from
the fuel source and will completely purge the lines. Release the control knobs. Wait at least 5
minutes after releasing the control before attempting to light the burners.
The piping up to the side burner is the responsibility of the installer and piping should be located as
shown in the built-in instructions. It must be connected with rigid pipe, copper tube or an approved
exible metal connector which complies with ANSI Z21.24/ CSA 6.10 or ANSI Z21.75/CSA 6.27.
The installation must comply with CAN B149.1 Natural Gas and Propane installation code in Canada,
or to the National Fuel Gas code, ANSI Z223.1 in the United States. The gas supply pipe must be
suciently sized to supply the BTU/h specied on the rating plate, based on the length of the piping
run. If installing a side burner, a separate line must be branched o to the side burner unit and enter
the side burner opening at the specied location. The enclosure must be ventilated according to
local codes, and must not have communication with the cavity used to enclose the gas grill.
CUSTOM BUILT IN ENCLOSURE VENTILATION REQUIREMENT
1. At least one unobstructed ventilation opening on the exposed exterior side of the enclosure
located within 5 in (127mm) of the top of the enclosure. The opening must have a total free area
of more than 20 in2 (130 cm2).
2. At least one ventilation opening on the exposed, exterior side of the enclosure located 1 in (25.4
mm) or less from the oor level. The opening must have a total free area of more than 20 in2 (130
cm2). The upper edge must be no more than 5 in (127 mm) above the oor level.
Every opening must be large enough to permit the entrance of a 1/8 in (3.2 mm) rod.
The enclosure must be designed so that the gas hose can be connected, disconnected and the
connections inspected and tested outside the enclosure. All connections must be accessible for
testing inside the enclosure.

20
Natural Gas Installation
• Calculate the total BTU output of all equipment and refer to Gas Supply Line Runs for allowable
run distances for ¾ inch pipe. Failure to meet these minimum requirements may reduce
performance of the side burner and any other appliances running on that supply line.
• Always keep supply line runs as short as possible.
• A gas shut-o valve must be installed in an easily accessible location by a licensed gas tter.
• The outdoor cooking gas appliance and its individual shut-o valve must be disconnected from
the gas supply piping system during any pressure testing of that system at test pressures in
excess of 0.5 psi (3.5 kPa).
• The outdoor cooking gas appliance must be isolated from the gas supply piping system by
closing its individual manual shut-o valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi (3.5 kPa).
• Keep threading compound o of the rst two pipe threads to avoid having any small pieces of
compound break loose and clog a burner valve or orice. Do not use threading compound on
any are ttings.
For built-in installations, it is recommended that any exible pipe used be kept as short as possible.
For freestanding units using natural gas, NewAge strongly recommends using a quick disconnect
kit. This Quick Disconnect kit, is included with purchase.
Note:
This product must be installed by a licensed plumber or gas tter when installed within the State of
Massachusetts.
Side burner Intake
Manifold
Threaded
nipple
Flexible
Corrugated
Gas Hose (Not
Supplied)
Quick
Disconnect
Threaded
nipple
Quick
Disconnect
Coupler
Main shut-off valve
Gas supply line
from meter
Flexible
Gas Hose
This illustration is for reference only
each installation will be different.
WARNING
Only licensed gas tters must perform the required gas tting on NewAge gas appliances.
To ensure satisfactory performance, the gas supply line must be sized to accommodate the total
BTU/h requirements of all the gas-red equipment that will be connected to that line.
In no case should pipe less than 3/4” inside diameter or 1”outside diameter ever be used to
connect this product.
