Newcon Optik LRB 3000PRO User manual

Operation Manual
LRB 3000PRO
LASER RANGE FINDER BINOCULARS
NSN: 1240-20-004-5448
105 Sparks Ave., Toronto, ON M2H 2S5, Canada

ii

iii
IMPORTANT INFORMATION
Read prior to activation
You have just purchased a sophisticated electro-optical device
that emits invisible laser radiation. To operate it properly,
please, read this manual carefully.
NEVER direct laser beam at the eyes of people or animals
NEVER aim the unit at the Sun or bright sources of light
NEVER subject the unit to impacts
NEVER transport the unit without its case
NEVER disassemble the unit. This may be hazardous for
you due to high voltage currents
ALWAYS keep the unit out of the reach of children
ALWAYS remove the battery when the device is not in
use for a long period
ALWAYS store the unit in a dry place
Caution - use of controls or adjustments, or performance
of procedures other than those specified herein may result
in hazardous radiation exposure
Caution - use of optical instruments such as binoculars,
loupes, mirrors, lenses, etc. with this product increases eye
hazard
Avoid eye exposure to direct laser beam or its close
reflection
Prevent bright light from focusing through the eyepieces

iv
Never aim the unit at highly reflective objects like mirrors
and retroreflective surfaces, which are in close proximity
to the laser rangefinder. This can lead to the permanent
damage of the photoreceiver incorporated into the device.

1
TABLE OF CONTENTS
1.BRIEF DESCRIPTION.......................................2
Principle of operation..................................................2
Key Features ...............................................................3
2.DEVICE APPEARANCE ...................................4
3.DELIVERY SET.................................................7
Standard delivery set...................................................7
Optional accessories....................................................7
4.SPECIFICATIONS .............................................7
5.OPERATION INSTRUCTIONS ........................9
Preparing device for operation....................................9
Measurement procedure............................................10
Factors affecting measuring distance ........................11
Target selection logic................................................12
Individual Measurement and Scanning regimes .......12
Operation and service modes ....................................13
Accuracy correction ..................................................15
Compass calibration..................................................16
Data Recall mode......................................................17
6.BEST MEASURING TECHNIQUE.................18
7.STORAGE AND MAINTENANCE.................19
8.TROUBLESHOOTING....................................20
9.WARRANTY....................................................21
10.CUSTOMER SUPPORT...................................22
11.QUALITY CERTIFICATE...............................23

2
CAREFULLY READ ALL THE INSTRUCTIONS
BEFORE USING!
FAILURE TO OBEY THE INSTRUCTIONS WILL
VOID THE WARRANTY!
1. BRIEF DESCRIPTION
The LRB 3000PRO Laser Rangefinder Binoculars
(System) is an advanced laser range finder that enables instant
distance, speed, elevation and azimuth measurements.
The unit complies with CFR 21, Part 1040.10 and Part
1040.11.
An outstanding fully multi-coated optics coupled with an
original circuitry design creates a system that outperforms
any other product in its class and price range.
Principle of operation
The unit sends invisible, eye safe laser beam pulses to the
target. The pulses reflected from the target are captured and
processed by the digital circuitry. The time-of-flight delay
between the sent and received pulses allows calculating the
distance to the target.
A built-in digital compass measures azimuth simultaneously
with ranging.

3
A built-in digital inclinometer measures the elevation
simultaneously with ranging, in its turn elevation
measurement allows height calculation. The unit also
provides azimuth readings.
Key Features
Modern digital circuitry allows targeting through most
types of glass
Speed detector
Selection of the first, last or the most reflective target
Distance is displayed in meters or yards
Original digital circuitry allows ranging through most
types of glass, bushes and other obstacles
Three channel optical solution (optical, laser and
receiver) provides high accuracy
Two reticle shapes: -¦- or
Built-in digital compass and inclinometer
On-board memory keeps results of last 10 measurements,
that can be recalled to the LCD
The unit automatically turns off when no button is
pressed for 16 seconds

4
2. DEVICE APPEARANCE

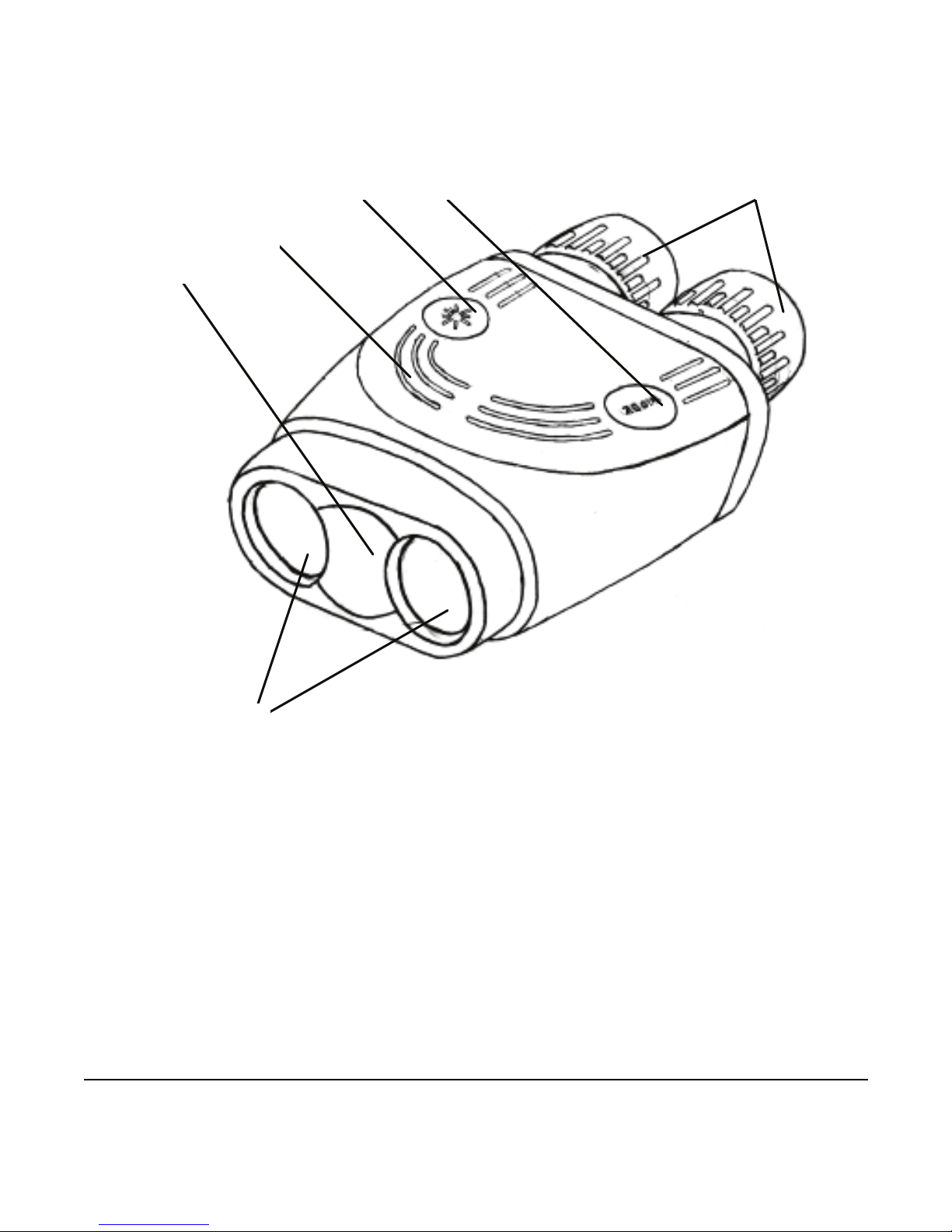

Fig. 1. Front view
1 – Eyepieces 2 – Objective lens
3 – Mode button 4 – Action button
5 – Battery compartment cover 6 – Rubber grip
5
4 13
2
6

5

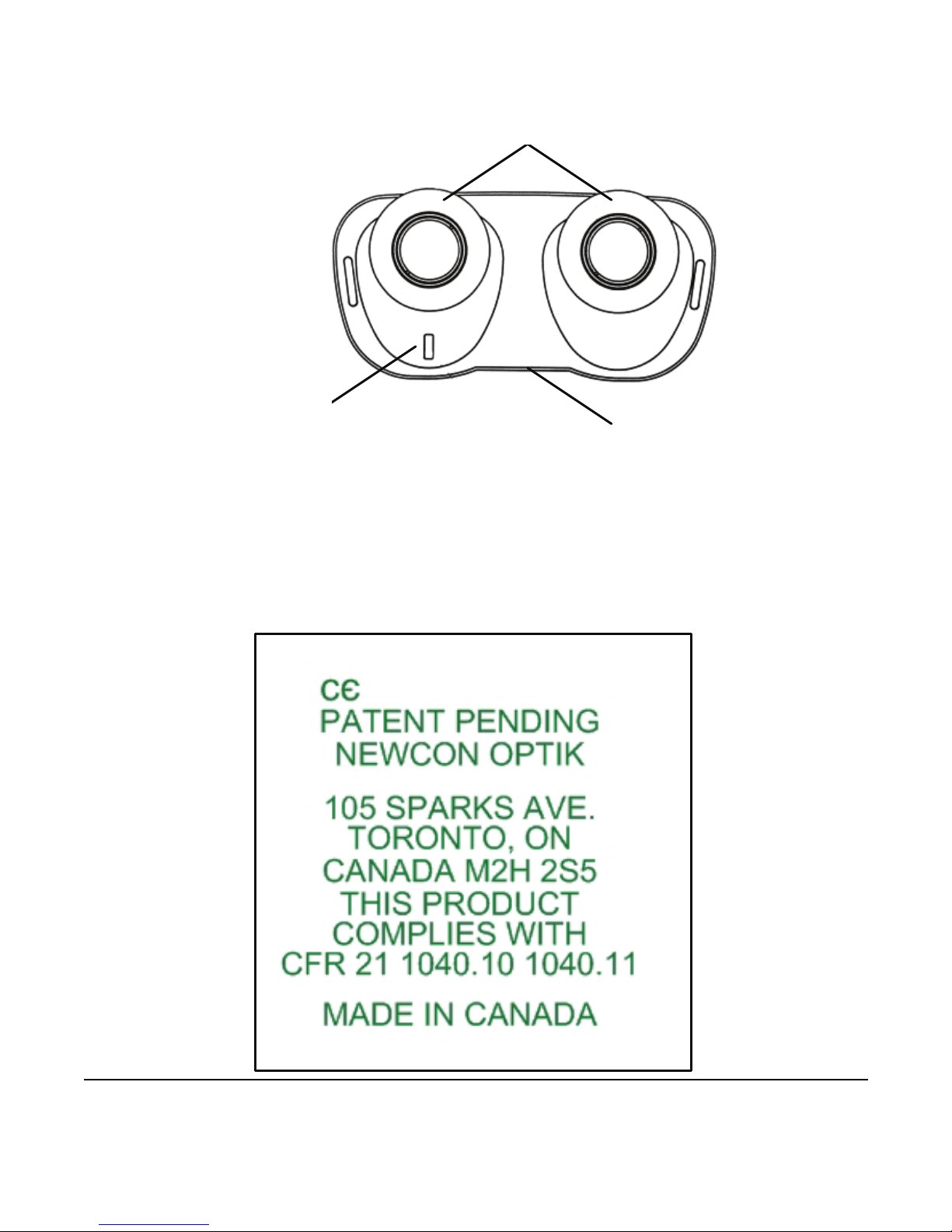

Fig. 2. Rear view
1 – Eyepieces;
7 – Interpupillary distance adjustment lever;
8 – Identification and certification label (located at the
bottom):
1
78

6

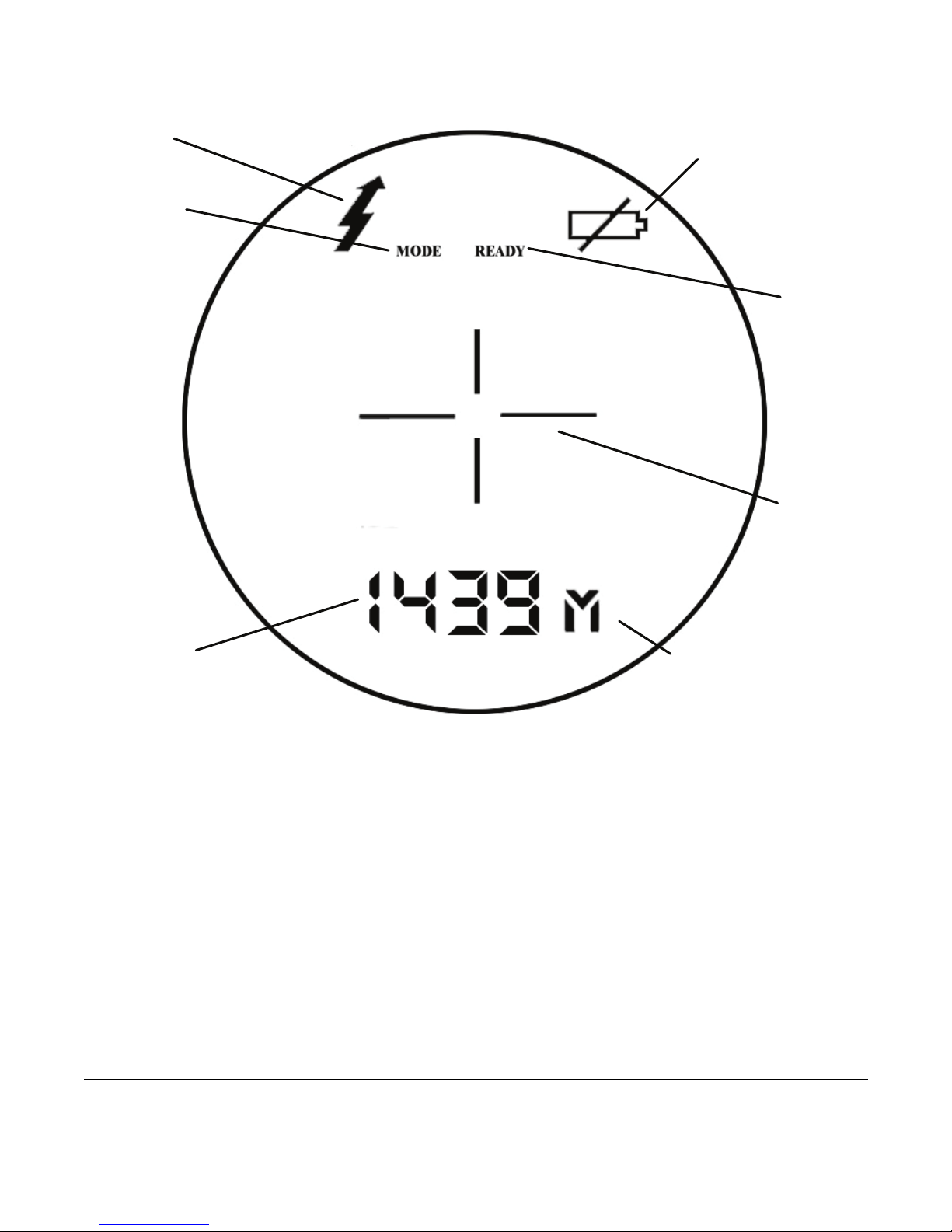

Fig. 3 Display
1 – Low battery indicator 2 – Reticle (either -¦- or )
3 – Units of measurement 4 – Measurement result
5 – Laser active indicator 6 – Ready mode indicator
7 – Setup mode indicator
4
5
2
1
3
6
7
