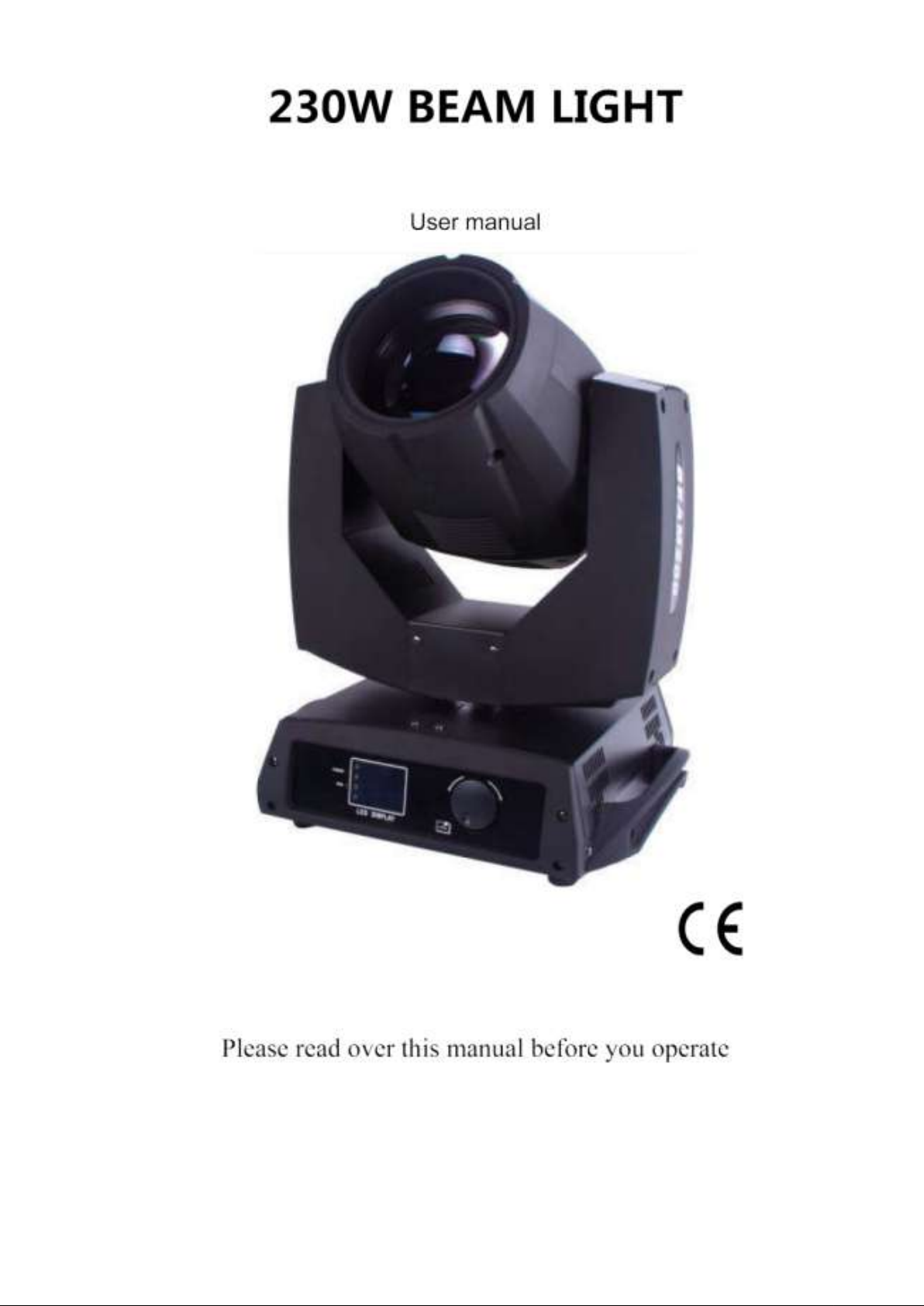

Newfeellight Beam 230 User manual

Beam230 User Manual
2
Catalogue
1. Installation of computer light.
2. Installation of lamp.
3. Power supply.
4. Connection of control signal line.
5. Corrective maintenance.
6. Cleanly maintenance
7. Warning.
8. Difficulty disposal.
9. Qualification.
10.Channel Function
Notice: because the policy of improve the products quality of our company. Maybe
some data in the instructions will change in future. By that time, we won’t inform you
about the changed matters. Marten company reserve the right of changing correlative
specification when improve the products. Publisher of the instruction will not
responsible for veracity of information and some correlative results caused by this
information.
1. Installation of computer light.
Using eight M10 size bolts, through making use of bracket that owned by
computer light install. Make sure the firmness of installation, in case swing or
glide happen when it works. Each weight of computer light is 20.5KG more or
less. Before installation, it should be ensure if frame can support the weight. For
safety, a safe chain should be through the side handle of lighting body.
Notice: please don’t use the die down yoke of computer light to rise, to lower, and
move it.
2. Installation of lamp.
loosen plastic body which locate in luffing structure of computer lighting body,
and strengthen screw of right-and-left cover shell, then open the cover forth
gently, at the tail of shine lamp, screw off four coppery screw and move metallic
gobo flag and heat guard of two sides, then can replace lamp. When install it,
please use 7R 230W lamp. Pay attention to screw down the screw of two sides of
lamp, or it cause high voltage short circuit and discharge for poor contact. It

Beam230 User Manual
3
L=Brown
E=Yellow/Green
N=Blue
influence service life of lamp, and damage components of circuit board. After
finish it, please strengthen the metallic gobo flag and heat guard of two sides of
lamp firstly. Then using adhesive tape to fold covering shell, and strengthen
screws of right-and-left of it.
NSK light products are provided with high voltage modulator tube what has
exterior igniter. When operate these modulator tubes, it must be careful, and
should read the instruction of modulator tube that offer by manufacturer before
operation.
Warning 1: Don’t forget install metallic gobo flag and heat guard that beside
the lamp or thermal radiation is easy to bake the plastic shell distortion. Seriously,
it will raise fire alarm. Manufacturer will not responsible for these losses.
Warning 2: Modulator tube will reach to a high temperature when it works,
and the trait of gas discharge lamp can not intermittent power supply. It must cool
at least 15 minutes to work again after power supply cut off, or it will induce high
pressure discharge, short
circuit, and even burn out parts of computer control panel.
3. Power supply.
Using appropriative plug connect computer light and power main lead. Pay
attention to consistent of voltage, frequency and supply source of backboard of
computer light. Suggest each computer light to use a separate power supply, so
each light can be turn on and turn off at will.
Important matters:
Each computer light should be earthed and whole electro assembling must
accord with standard demand.
The power consumption of computer light is 300W.
Monitoring restoration system:
After computer light switch on power, circuitry will be install. This function
makes lamp cobra moving to a limiting position, and it will turn interior color and
superimposed wheel of pattern. Thus the control system of microprocessor can

Beam230 User Manual
4
The connection of DMX terminal connect a 120 Ωresistance
between two-legged and three-legged of XLR plug, and connect it to
DIGITAL THRU socket of the last computer light of computer light
chain.
login all place of electrical machines which controlled by it. It will bring electric
noise in computer interior, when modulator tube damage or burnout. Maybe it
will disturb normal operation of MPU. computer light has an electronic
monitoring system that can watch operation of MPU, and ensure that will start up
reinstallation function when it is disturbed. After it finish, computer light can
accept new control instruction and operate without a hitch.
4. Connection of control communication wire
Connection of controller and computer light or connection between each
computer light should use two-core shielded cable, and diameter of each core
should be o.5MM at least. When it joined in or come out, it should be used
cylindrical three-legged XLR plug and outlet which supplied along with
computer light. Connection of XLR can refer to the list below. Attention: every
line should not touch each other or touch plug. computer light can accept data
control signal of DMX512 (1990) format. Control signal connect with panel
which earmarked “DIGITAL IN”, then connect socket which earmarked
“DIGITAL THRU” with socket of next computer light which earmarked
“DIGITAL IN”. After receive signal of DMX512, the status lamps close to switch
of address code will fulgurate. Or it will extinguish. If it always in shine, it means
DMX signal is false.
DMX512
PIN FUNCTION
1 GND
2 DATA-
3 DATA+
Suggest to use DMX signal terminal, it can avoid the breakage of data control
signal. Cause by electric noise. In simple terms, DMX terminal is a XLR linker in
which has a 120Ωresistance between two-legged and three-legged plug. And the
resistance should be connected with “DIGITAL THRU” socket of the last
computer light of computer light chain. The connection can refer to table below.

Beam230 User Manual
5
5. Corrective maintenance
If lens of computer light be damaged or broken, please replace a new one, and
the same to modulator tube. If light turn dark, it means service life of modulator
tube is up, should be replaced in time. The old modulator tube can explode. When
computer light works out of order, fuse in back panel should be checked. Notice:
If it need replace, using same spec fuse that earmarked in back panel. In the
computer light, circuit board has a 3AT fuse. If the fuse has blown, it need
replaced by professional. Computer light also have two heat protectors, they
should cut off power supply when the temperature is too high. If it happened, fan
should be checked whether there is a barrage or not. If fan is dirty, please switch
on the power supply after clean it. Examine operation of fans, if it doesn’t work,
please mend it by professional.
6. Cleanly maintenance
In order to computer light operate steadily, it should keep clean. Suggest clean
lighting body and fan every 15 days. Lens and dichroic filter should be cleaned at
stated time to assure the best light effect. Don’t use any deliquescent cleaner to
clean dichroic filter.
7. Warning
Don’t dismounting or refit computer light.
Don’t touch water and other kind of liquid and metal substance (IP20).
Don’t install in a high wettest condition.
Don’t illuminate on tinderbox, computer light must keep 5M away from
tinderbox.
Computer light should keep 0.5M away the surface of adjacent object.
Don’t look beam in the face, or it may injure your eyes.
Notice: modulator tube will reach to a high temperature when it works. It must
be completely cool at least 15 minutes before operate again.
8. Difficulty disposal

Beam230 User Manual
6
Problem
The way to solve
Computer light can’t start.
Check fuse of back-panel.
Though it shine, computer light don’t
accept dictate of control.
Check data startup address (see
section 5), and check connection of
communication control line (see
section 4).
Computer light works only in
intermittence.
Check fan, if it operate normally.
Shadow has halo.
Check the number of electro-focus
channels if it suit current range of the
projection.
Beam looks gray.
Maybe service life of modulator tube
is over, it must be replaced. Check
optical component if it is clean.
Lamp is not bright.
1. Because of improper operation,
lamp not completely cool. The fan
in the lighting body must be cool
10 minutes, cut off power supply
at least 5 minutes, makes internal
inductor renew completely, then
switch on power supply.
2. Check if service life of lamp is
over.
3. Check lamp and trigger line if it is
creepage, desquamation or poor
contact.
Replace a new trigger.
9. Qualification
Power: 220V/50~60Hz (110V version is available upon request.)
Power consumption: 300W
Lamp: Osram 7R 230W
Motors:15 step motors

Beam230 User Manual
7
Channels: 16
Inputs: DMX512
Pan/Tilt: 540°/270°
Resolution: Pan = 2.11°, Pan Fine = 0.008°, Tilt = 0.98°, Tilt Fine =0.004°
IP rating: IP20
Cooling: Forced ventilation with axial fans.
10. Channels Function
No.
Channel
DMX value
Description
1
Pan
0-255
2
Pan fine
0-255
3
Tilt
0-255
4
Tilt fine
0-255
5
X/Y Speed
0-255
6
Dimmer
0-255
7
Strobe
0-2
3-50
51-240
241-255
Off
On
Slow-Fast
On
8
Frost
0-255
9
Color
0
1-7
8-15
16-23
24-31
32-39
40-47
48-55
56-63
64-71
72-79
80-87
88-95
96-103
104-111
112-127
128-190
191-255
White
Color1
Color2
Color3
Color4
Color5
Color6
Color7
Color8
Color9
Color10
Color11
Color12
Color13
Color14
No function
(Inverted water) Color rotation:
Slow-Fast
(Downstream) water Color rotation:
Slow-Fast
10
Color effect
0-255

Beam230 User Manual
8
11
Gobo
0
1-7
8-14
15-21
22-28
29-35
36-42
43-49
50-56
57-63
64-70
71-77
78-84
85-91
92-98
99-105
106-112
113-119
120-126
127-190
191-225
White
Gobo1
Gobo2
Gobo3
Gobo4
Gobo5
Gobo6
Gobo7
Gobo8
Gobo9
Gobo10
Gobo11
Gobo12
Gobo13
Gobo14
Gobo15
Gobo16
Gobo17
Gobo18
(Inverted water) Gobo rotation:
Slow-Fast
(Downstream) water Cobo rotation:
Slow-Fast
12
Prism
0-255
13
Prism
Rotation
0-127
128-190
191-255
Prism fine
Invert: Fast-Slow
Veer: Slow-Fast
14
Focus
0-255
15
Lamp
0-99
100-105
106-199
200-205
206-255
No function
Lamp OFF
No function
Lamp ON
No function
16
Reset
0-255
