ADJ POCKET PRO User manual

User Manual
POCKET PRO

©2020 ADJ Products, LLC all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying
product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by
statutory or judicial law or hereinafter granted. Product names used in this document may be trade-
marks or registered trademarks of their respective companies and are hereby acknowledged. All
non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 2
DOCUMENT VERSION
Please check www.adj.com for the latest revision/update of this guide.
Date Document
Version
Software
Version
DMX Channel
Mode Notes
07/24/17 1 1.1 11 / 13 Ch. Initial Release
10/27/20 2 1.3 11 / 13 Ch. Primary/Secondary Mode Update

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 3
Unpacking: Thank you for purchasing the Pocket Pro by ADJ Prod-ucts, LLC. Every Pocket Pro has
been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship-
ping carton for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your xture for any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are missing, please contact our toll
free customer support number for further instructions. Please do not return this unit to your dealer
without contacting customer support rst.
Introduction: The Pocket Pro is a DMX intelligent, moving head, mini LED xture. The Pocket Pro can
operate as a stand alone xture or in a Primary/Secondary conguration. The Pocket Pro has three
operating modes; a sound active, show mode, DMX controlled. This xture is suitable for theaters,
studios, retail stores, and other similar locations. For best results use fog or special eects smoke to
enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help and
to answer any question should you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are
Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or
moisture.
Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!
Pocket Pro General Information

Pocket Pro General Instructions
To optimize the performance of this product, please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit, for
future reference.
Pocket Pro Warranty Registration
The Pocket Pro carries a 2 year (730 days) limited warranty. Please fill out the enclosed warranty card
to validate your purchase and warranty. You may also register your product online at www.adj.com.
All returned service items whether under warranty or not, must be freight pre-paid and accompany a
return authorization (R.A.) number. If the unit is under warranty you must provide a copy of your proof
of purchase invoice. Please contact ADJ Products, LLC customer support for a R.A. number
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 4
Pocket Pro Features
• DMX-512 Protocol Compatible (11 DMX Channels or 13 Channels)
• 7 Colors + White
• Gobo Wheel with 7 Replaceable Gobos + Spot
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• Internal Microphone
• Digital Display for Address and Function Setting
• 4 Preprogrammed Shows
• UC IR Compatible (Not Included) & Airstream App Compatible
Pocket Pro Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service
please contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid touching the unit with bare hands
while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-
vance of this manual or any unauthorized modification to this unit.

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 5
Pocket Pro Safety Precautions
For Your Own Personal Safety, Please Read and Understand This Manual Completely Before
You Attempt To Install Or Operate This Unit!
• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is
used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”
(15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product outdoors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the appliance.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the fixture.
B. The fixture has been exposed to rain or water.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or subjected to extreme handling.

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 6
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 390NM -
410NM.
WEAR PROPER EYE AND SKIN PROTECTION.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE
LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH
OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE
DISORDERS, OR INDIVIDUALS USING PHOTO-SENSITIVE MEDICATION, MAY RECEIVE
DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
Pocket Pro Safety Precautions

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 7
When installing the unit, the trussing or area of installation must be able to hold 10 times the weight
without any deformation. When installing the unit must be secured with a secondary safety attach-
ment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, remov-
ing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installa-
tion material being used, and perodic safety inspection of all installation material and unit. If you lack
these qualications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.
Pocket Pro Mounting
The Pocket Pro is fully operational in three dierent mounting posi-tions, hanging upside-down from
a ceiling, mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at
least 0.5m away from any ammable materials (decoration etc.). Always use and install the supplied
safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp
fails (see next page).

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 8
Pocket Pro Mounting
NOTICE: The suitable enviromental temperature for this lighting xture is between -25˚ C to 45˚ C.
Do not place this lighting xture in an enviroment where the temperatures are under or above the
temperatures stated above. This will allow the xture to run at its best and help prolong the xture
life.

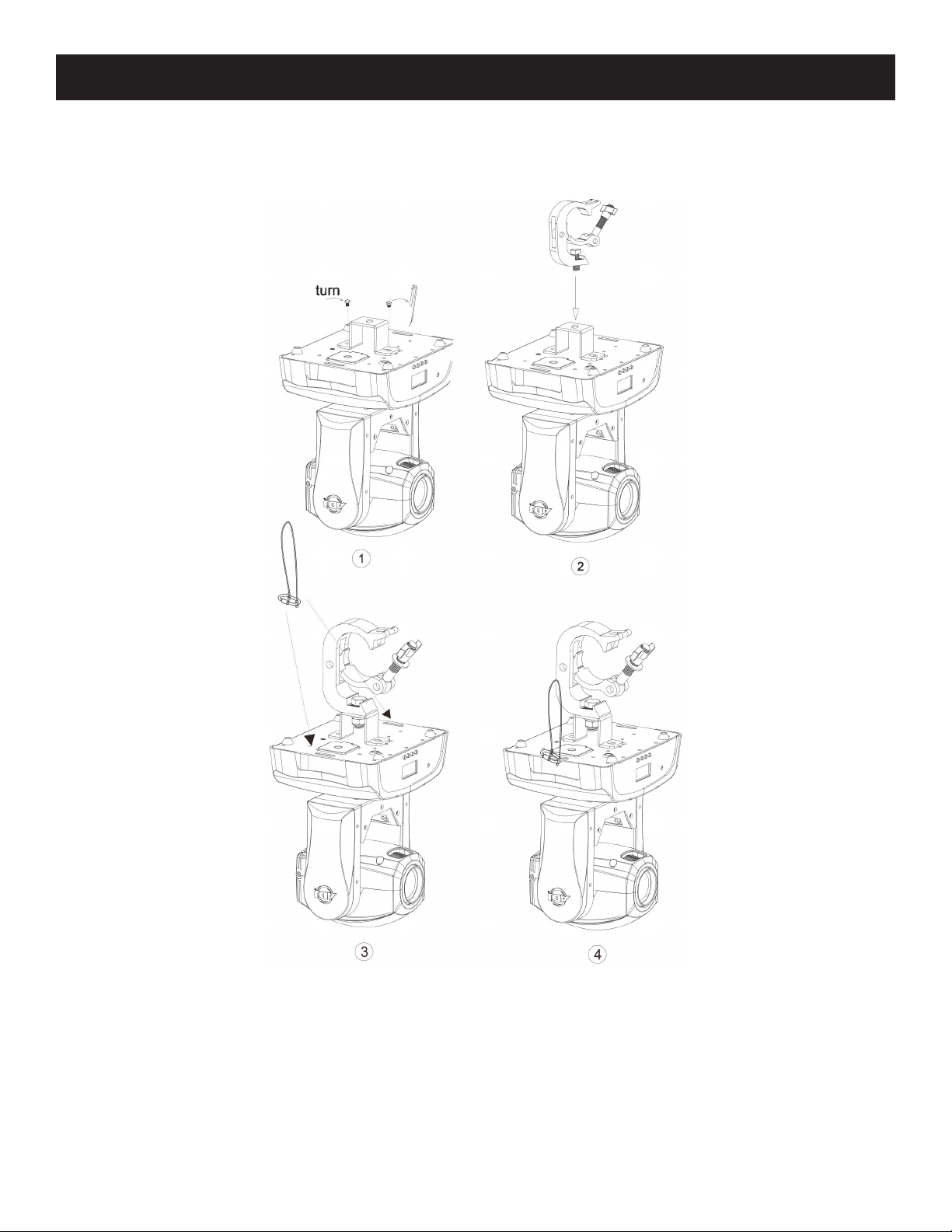

Screw one clamp via a M12 screw and nut to the included bracket. Attach the bracket using the in-
cluded screws to the bottom of the Pocket Pro. Pull the safety-cable through the side holes located
underneath the handles. Run the safety cable over the trussing system or a safe xation spot. Insert
the end in the carabine and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 9
Pocket Pro DMX Set Up
Power Supply: The ADJ Pocket Pro contains a automatic voltage switch, which will auto sense the
voltage when it is plugged into the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and
controller manufactures as a form of communication between intelligent xtures and controllers. A
DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as
serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-
ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be
linked together and operate from a single controller, as long as all xtures and the controller are DMX
compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest
cable path possible. The order in which xtures are connected in a DMX line does not inuence the
DMX addressing. For example; a xture assigned a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the rst xture con-
trolled by the controller could be the last xture in the chain. When a xture is assigned a DMX ad-
dress of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter
where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The
Pocket Pro can be controlled via DMX-512 protocol. The Pocket Pro two DMX channel modes; 11
channel mode & 13 channel mode. The DMX address is set using the controls on the front panel of
the unit. Your unit and your DMX controller require a approved DMX-512 110 Ohm Data cable for

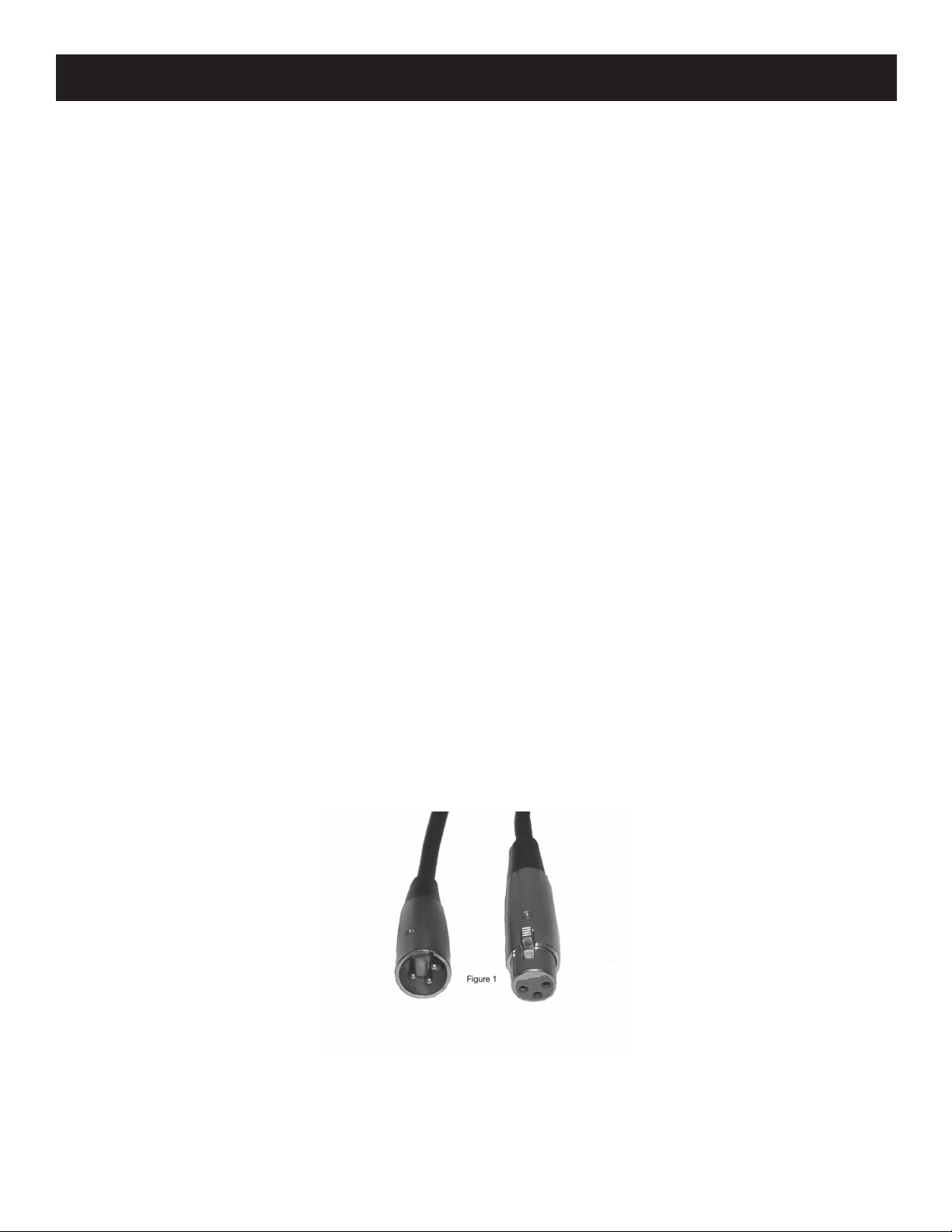

data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making
your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be pur-
chased at almost all professional sound and lighting stores). Your cables should be made with a
male and female XLR connector on either end of the cable. Also remember that DMX cable must be
daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 10
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission
in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting
standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used, these adaptors are
readily available at most electric stores. The chart below details a proper cable conversion.
3-pin XLR to 5-pin XLR Conversion
Conductor 3-pin XLR Female (out) 5-pin XLR Male (In)
Ground/Shield Pin 1 Pin 1
Data Compliment (- signal) Pin 2 Pin 2
Data True (+ signal) Pin 3 Pin 3
Not Used Pin 4 - Do Not Use
Not Use Pin 5 - Do Not Use

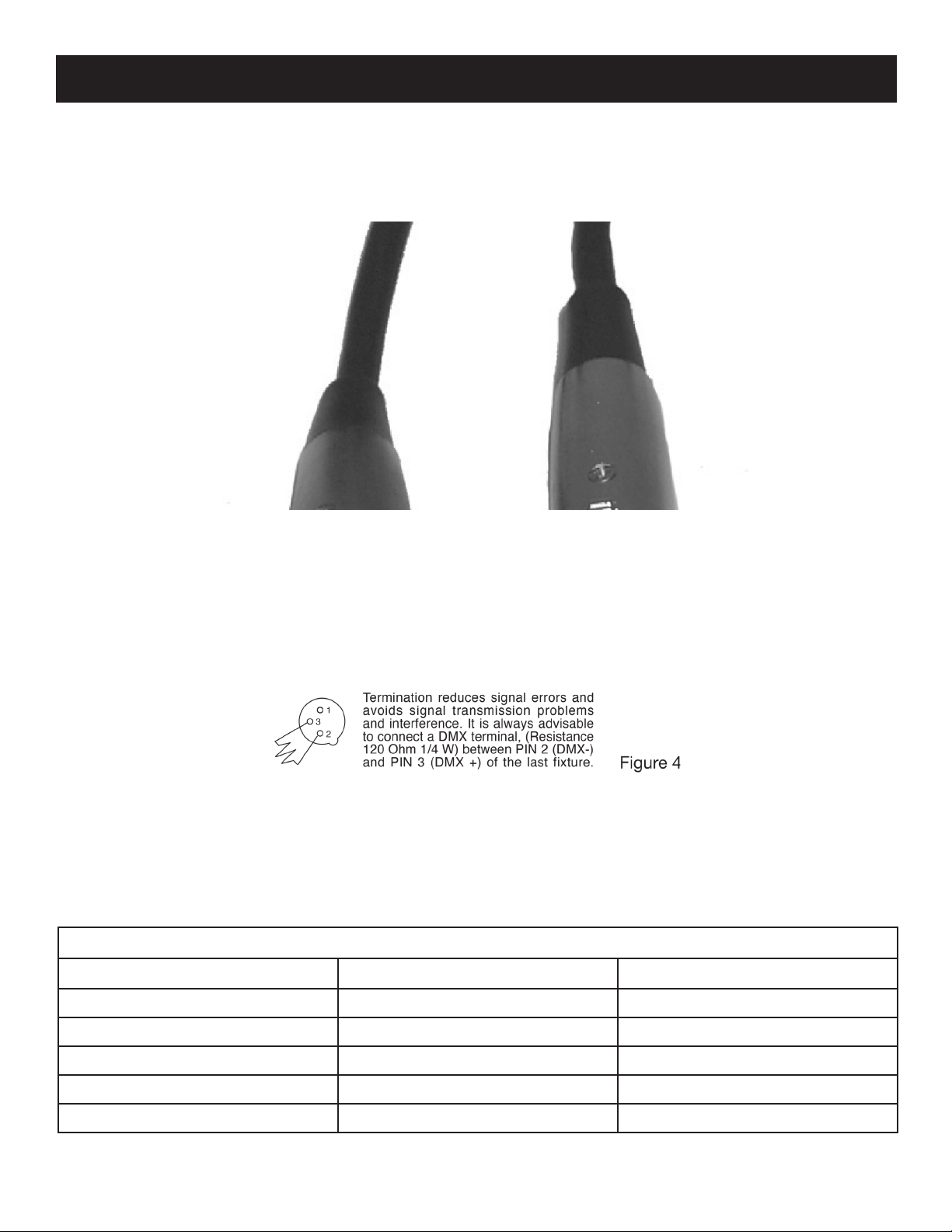

Notice: Be sure to follow gures two and three when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug
or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-
minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor
which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is
inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a
cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.
Pocket Pro DMX Set Up

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 11
Pocket Pro System Menu

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 12
System Menu: When making adjustments press ENTER to conrm your setup then press and
hold the MENU button for at least 3 seconds. To exit without making any adjustments press
the MENU button. The display will lock after 30 seconds, press the MENU button for 3 seconds
to unlock.
DMX Address - DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until “DMX Address” is displayed, press
ENTER.
2. The current address will now be displayed and ashing. Press the UP or DOWN buttons to nd
your desired address. Press ENTER to set your desired DMX address.
Channel Mode - This will let select your desired DMX channel mode.
1. Press the either the MENU button until “Channel Mode” is displayed, press ENTER. Either
“11Chan” or “13Chan” will be displayed
2. Press the UP or DOWN buttons to nd your desired DMX channel mode and press ENTER to
conm and exit.
Pri/Sec Mode - This will let you set unit as a primary or secondary in a primary/secondary con-
guration.
1. Press the MENU button until “Pri/Sec” is displayed, press ENTER. Either “Pri”, “Sec 1”, or “Sec 2”
will be displayed.
2. Press the UP or DOWN buttons until your desired setting is displayed, press ENTER to conm.
NOTE: In a Primary/Secondary conguration you can set one xture to Primary and then set the
next xture to “Sec. 2”, the xtures will now have contrast movement to each other.
Show Mode - Show modes 0-4 (Factory programs). Show mode can run with or without sound
active mode active.
1. Press the MENU button until “Show Mode” is displayed, press ENTER.
2. “Show X” will now be displayed, “X” representing a number between 0-4. Shows 1-4 are factory
programs, while show “0” is random mode. Use the UP or DOWN buttons to nd your desired
show.
3. When you have found your desired show press ENTER, then press and hold the MENU button for
at least 3 seconds to activate. After you have set your desired show, it can be changed at any
time using the UP or DOWN buttons.
Target Mode - Target mode is a restrictive pan/tilt control limiting the movement to a certain
degree.
1. Press the MENU button until “Target Mode” is displayed, press ENTER. One of 5 target modes will
be displayed. Note: Target Mode will only work with Shows 3 & 4.
• Mode 1 - 0° - 180°
• Mode 2 - 90° - 270°
• Mode 3 - 180° - 360°
• Mode 4 - 270° - 540°
• Mode 0 - Random Mode
2. Press the UP or DOWN buttons to nd your desired Target mode.
3. Press ENTER to conrm.
Pocket Pro System Menu

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 13
Pocket Pro System Menu
Sound Mode - Sound Active mode.
1. Press the MENU button until “Sound Mode” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to
activate sound active mode, or “OFF” to deactivate sound active mode.
3. Press ENTER to conrm.
Sound Sense - In this mode you can adjust the sound sensitivity.
1. Press the MENU button until “Sound Sense” is displayed, press ENTER.
2. A number between 0-100 will be displayed. Press the UP or DOWN buttons to adjust the sound
sensitivity, 0 being the least sensitive, and 100 being the most sensitive.
3. When you have found your desired setting press ENTER to conrm.
DMX Last - In the event that the DMX signal is lost, interrupted, or power is lost, the operating
mode chosen in the setup is the running mode the xture will revert to. You can also set this
as the operating mode you would like the unit to return to when power is restored.
1. Press the MENU button until “DMX Last” is displayed, and either “Pri/Sec”, “Blackout”, or “Last
State” will be displayed beneath.
2. Press ENTER and the bottom choice will begin to ash. Use the UP or DOWN buttons to choose
an operating mode you would like the unit to start up in when power is applied or the DMX signal
is lost.
• Last State - If the DMX signal is lost the xture will stay in the last DMX setting. If power is
applied and this mode is set, the unit will automatically go into the last DMX set up.
• Pri/Sec (Show Mode) - If the DMX signal is lost, interrupted, the unit will automatically go
into show mode.
• Blackout - If the DMX signal is lost or interrupted, the unit will automatically go into stand
by mode.
3. Press ENTER to conrm your desired set up.
Dimmer Curve - This will let select your desired dimmer curve. See the dimmer curve chart for
more information.
1. Press the either the MENU button until “Dimmer Curve” is displayed, press ENTER. 1 of 5
dimmer curves will be displayed.
2. Press the UP or DOWN buttons to nd your desired dimmer curve and press ENTER to conm
and exit.
Pan Invert
1. Press the MENU button until “Pan Invert” is displayed, press ENTER. Either “Yes” or “No” will be
displayed.
2. To activate the Pan inversion press the UP or DOWN buttons until “Yes” is displayed, press
ENTER to conm. To deactivate Pan inversion, select “No” and press Enter.
Tilt Invert
1. Press the MENU button until “Tilt Invert” is displayed, press ENTER. Either “Yes” or “No” will be
displayed.
2. To activate the tilt inversion press the UP or DOWN buttons until “Yes” is displayed, press ENTER
to conm. To deactivate tilt inversion, select “No” and press Enter.

Back Light - With this function you can have the LED display turn o after 10 seconds.
1. Press the MENU button until “Back Light” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or DOWN buttons to select “ON” to
keep the LED display on at all times, or “OFF” to switch to have the LED display switch o after
10 seconds.
3. Press ENTER to conrm. To make you LED display reappear again press any button.
Auto Test - This function will run a self test program.
1. Press the MENU button until “Auto Test” is displayed, press ENTER.
2. The xture will now run a self test.
LED Temp - Use this function to display the LED temperature.
1. Press the either the MENU button until “LED Temp” is displayed, press ENTER.
2. The display will show the LED temperature.
Fixture Time - With this function you can display the running time of the unit.
1. Press the MENU button until “Fixture Time” is displayed, press ENTER.
2. The running time of the xture will now be displayed. Press MENU to exit.
Firmware Version - Use this function to display the Software version of the unit.
1. Press the either the MENU button until “Firmware Version” is displayed, press ENTER.
2. The display will show the software version.
Pro Default - This function will allow you to reset the unit to its default functions.
1. Press the either the MENU button until “Pro Default” is displayed, press ENTER. Either “Yes” or
“No” will be displayed.
2. To reset back to default functions press the UP or DOWN buttons until “Yes” is displayed, and
press ENTER to conm. To leave this menu without reseting to default functions, select “No” and
press Enter.
Reset - Use this function to reset the unit.
1. Press the MENU button until “Reset” is displayed, press ENTER.
2. The xture will now reset.
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 14
Pocket Pro System Menu

ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 15

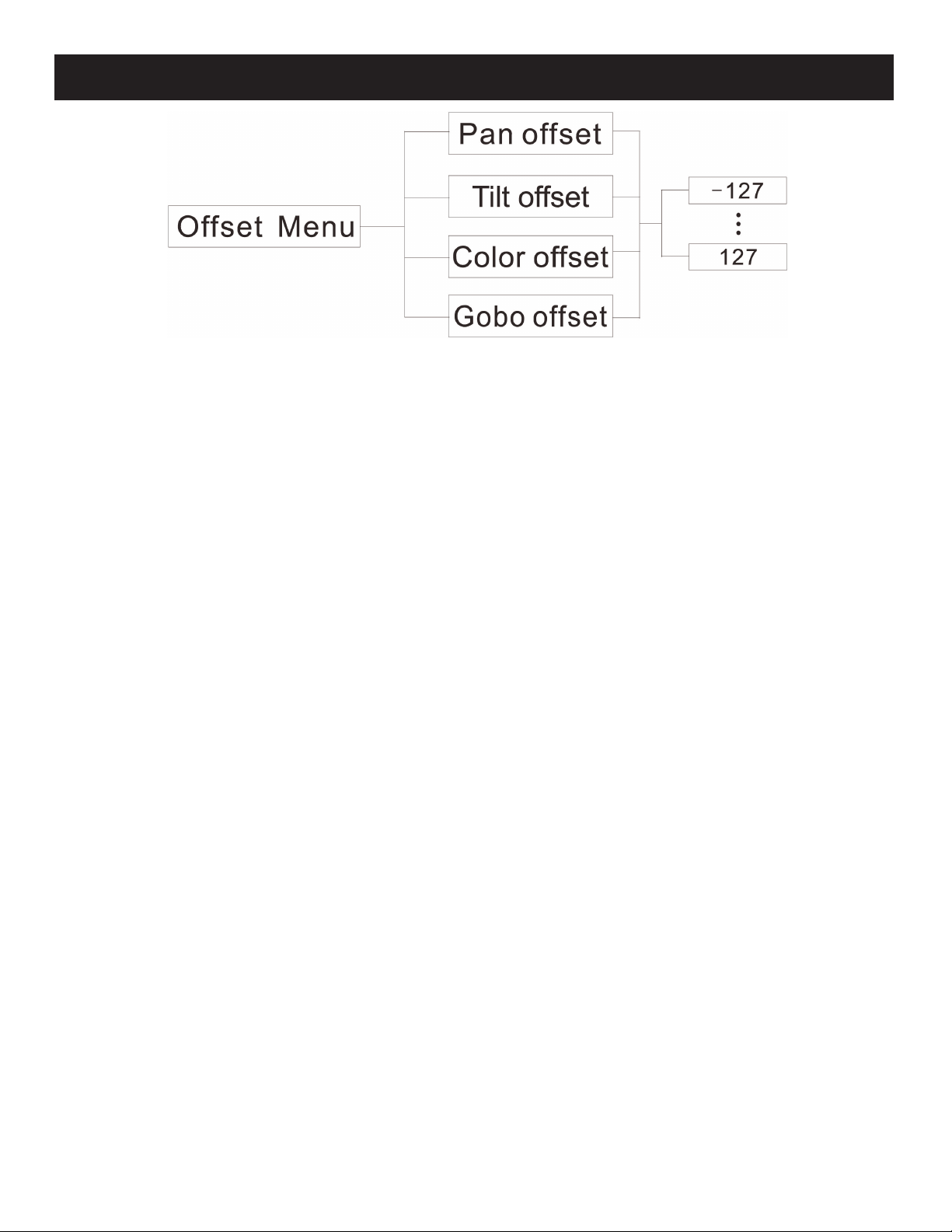

To enter the home position adjustment menu, press the ENTER button for at least 5 seconds. In this
submenu you are able to adjust the original position of the pan position, tilt position, color wheel
position, and gobo wheel position.
Pan Oset - Adjustment of the pan position.
1. Press the ENTER button for at least 5 seconds, then press the UP or DOWN buttons so that “Pan
Oset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to conrm.
Press the MENU button for one second to exit.
Tilt Oset - Adjustment of the tilt position.
1. Press the ENTER button for at least 5 seconds, then press the UP or DOWN buttons so that “Tilt
Oset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to conrm.
Press the MENU button for one second to exit.
Color Oset - Adjustment for the color wheel.
1. Press the ENTER button for at least 3 seconds, then press the UP or DOWN buttons so that
“Color Oset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to conrm.
Press the MENU button for one second to exit.
Gobo Oset - Adjustment of the gobo wheel.
1. Press the ENTER button for at least 5 seconds, then press the UP or DOWN buttons so that
“Gobo Oset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and then press ENTER to conrm.
Press the MENU button for one second to exit.
Pocket Pro Home Adjustment Menu

Universal DMX Control: This function allows you to use a universal DMX-512 controller to control
the colors, gobos, dimmer and strobe. A DMX controller allows you to create unique programs tai-
lored to your individual needs.
1. The Pocket Pro has 2 DMX channel modes; 11 channel mode or 13 channel mode.
2. To control your xture in DMX mode, follow the set-up procedures on pages 8-10 as well as the
set-up specications that are included with your DMX controller.
3. Use the controller’s faders to control the various DMX xture traits.
4. This will allow you to create your own programs.
5. Follow the instruction on page 12 to select your desired DMX channel mode and set the DMX
address.
6. For longer cable runs (more than a 100 feet) use a terminator on the last xture.
7. For help operating in DMX mode consult the manual included with your DMX controller.
Sound Active Mode: This mode allows either single unit or several units linked together, to run to
the beat of the music.
1. Press the MENU button until “Sound Mode” is displayed, and press ENTER. Press the UP or
DOWN buttons so that “ON” is displayed and press ENTER.
2. Press the MENU button until “Sound Sense” is displayed, and press ENTER. Use the UP and
DOWN buttons to adjust the sound sensitivity. Press ENTER when you have found your desired
sensitivity level.
Show Mode: This mode allows either a single unit or several units linked together, to run one of four
shows that you choose.
1. Press the MENU button until “Show Mode” is displayed, and press ENTER.
2. Press the UP or DOWN buttons until you nd your desired show, and press ENTER.
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 16
Pocket Pro Operation

Pocket Pro Primary-Secondary Set Up
Primary-Secondary Operation. This function will allow you to link up to 16 units together and oper-
ate without a controller. The units will be sound activated. In Primary-Secondary operation one unit
will act as the controlling unit and the others will react to the controlling units programs. Any unit can
act as a Primary or as a Secondary.
1. Using approved DMX data cables, daisy chain your units together via the XLR connector on the
rear of the units. Remember the male XLR connector is the input and the Female XLR
connector is the output. The rst unit in the chain (Primary) will use the female XLR connector
only. The last unit in the chain will use the male XLR connector only. For longer cable runs we
suggest the use of a terminator on the last unit.
2. On the Primary unit press the MENU button until “Pri/Sec Mode” is displayed, and press ENTER.
Use the UP and DOWN buttons to scroll to the “Pri” setting and press ENTER.
3. After setting the Primary unit to the primary setting nd your desired operating mode.
4. On the secondary units press the MENU button until “Pri/Sec Mode” is displayed, and press
ENTER. Choose either “Sec 1” or “Sec 2” and press ENTER. See page 9 for more info.
5. The secondary units will now follow the Primary unit.
Pocket Pro Manual Focus
The focus can manually focused using the focus wheel located on the bottom front of the moving
head. Rotate the focus wheel back and forth until you get your perfect focus.
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 17

Pocket Pro Remote Operation
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 18
The UC IR (sold separately) infrared remote gives you control of various functions. To control the
xture you must aim the remote at the front of the xture and be no more than 30 feet away.
The Airstream IR Transmitter (sold separately) remote transmitter plugs into the headphone jack
of your iOS phone or tablet. To control your IR xture you must raise the volume to the maximum on
your iOS phone or tablet and aim the transmitter at the xture sensor and be no more than 15 feet
away. After you have purchased the Airstream IR transmitters, the app is a free download from the
app store for your iOS phone or tablet. The app comes with 3 pages of control depending on the
xture you are using. Please see below for IR functions including the corresponding app page.
Works with App page 1.
STAND BY - Pressing this button will blackout the xture.
FULL ON - This button is invalid for this xture.

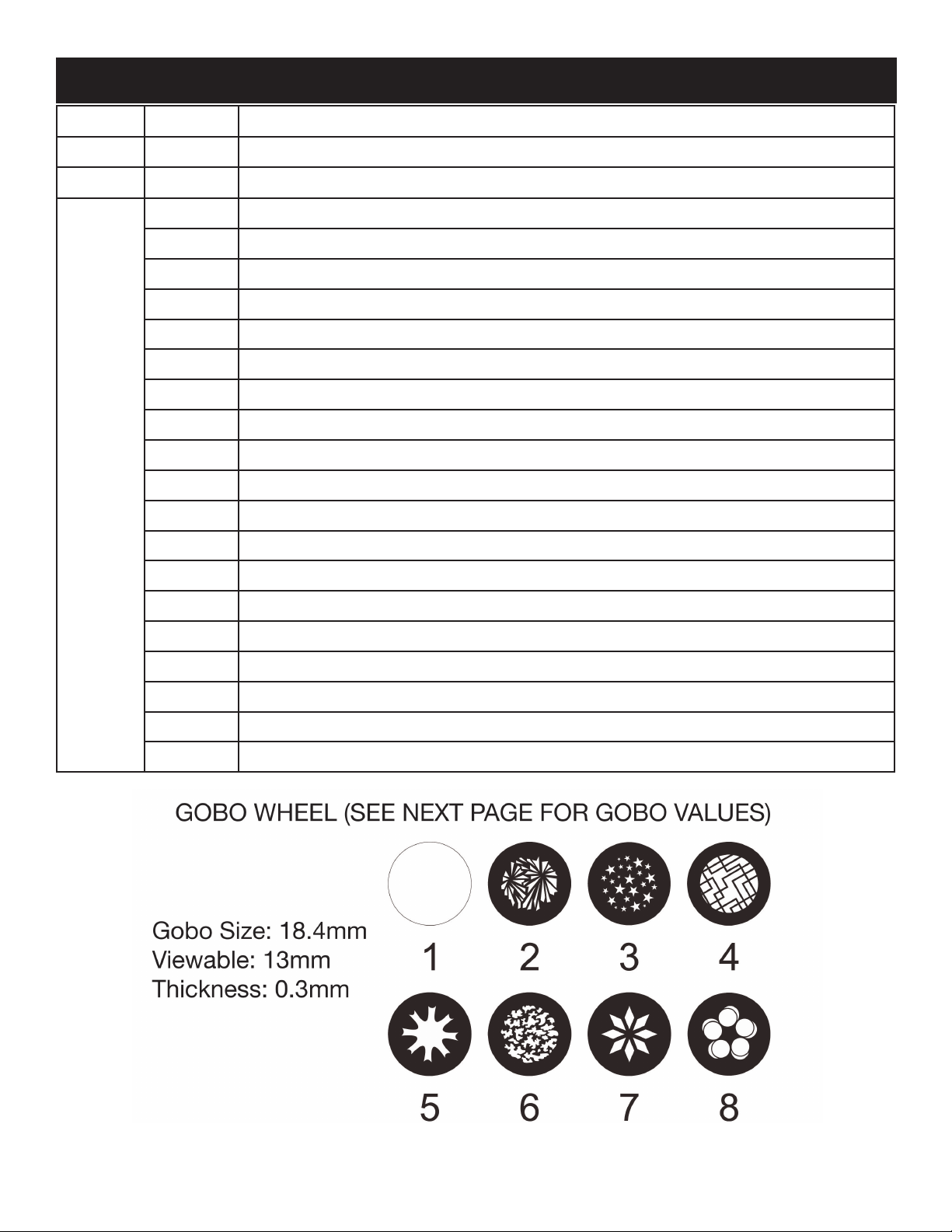

FADE/GOBO - Press this button to enter Gobo mode. Use the 1-8 buttons to select your desired
gobo. See gobos on the next page, then number buttons correspond to the gobo.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity and to adjust the
strobe speed.
STROBE - Press and hold this button to activate strobe mode. Release the button and press and
hold this button again to activate random strobe.
COLOR - Press this button to enter Dimmer mode. Use the 1-8 buttons to select your desired color.
See the DMX colors on the next page. Adjust the output intensity using the “DIMMER +” and
“DIMMER -” buttons.
1-8 - When in either Gobo mode or Color mode, these buttons will allow you to select either a gobo
or color.
SOUND ON & OFF - These buttons activate and deactivate the sound active mode.
SHOW 0 - Press this button to activate show mode. Use buttons 1-9 to nd your desired show.

Pocket Pro 11 Channel Mode
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 19
Channel Value Function
1 000 - 255 Pan Movement, 8bit
2 000 - 255 Tilt Movement, 8bit
3
Colors
000 - 007 White
008 - 014 Red
015 - 021 Orange
022 - 028 Yellow
029 - 035 Green
036 - 042 UV
043 - 049 Light Blue
050 - 056 Pink
057 - 066 White & Red
067 - 076 Red & Orange
077 - 086 Orange & Yellow
087 - 096 Yellow & Green
097 - 106 Green & UV
107 - 116 UV & Light Blue
117 - 127 Light Blue & Pink
128 - 189 Color Scroll, Fast to Slow
190 - 193 Stop
194 - 255 Color Scroll, Slow to Fast

Pocket Pro 11 Channel Mode
ADJ Products, LLC - www.adj.com - Pocket Pro User Manual Page 20
Channel Value Function
4
Gobo Wheel
000 - 007 Open
008 - 015 Gobo 2
015 - 023 Gobo 3
024 - 031 Gobo 4
032 - 039 Gobo 5
040 - 047 Gobo 6
048 - 055 Gobo 7
056 - 063 Gobo 8
064 - 071 Open Shake, Slow to Fast
072 - 079 Gobo 2 Shake, Slow to Fast
080 - 087 Gobo 3 Shake, Slow to Fast
088 - 095 Gobo 4 Shake, Slow to Fast
096 - 103 Gobo 5 Shake, Slow to Fast
104 - 111 Gobo 6 Shake, Slow to Fast
112 - 119 Gobo 7 Shake, Slow to Fast
120 - 127 Gobo 8 Shake, Slow to Fast
128 - 189 Gobo Scroll, Fast to Slow
190 - 193 Open/Stop
194 - 255 Gobo Scroll, Slow to Fast
5
Shutter/Strobe
000 - 007 Blackout
008 - 015 Shutter Open
016 - 131 Strobing, Slow to Fast
132 - 139 Shutter Open
140 - 181 Shutter: Slow Open, Fast Close
182 - 189 Shutter Open
190 - 231 Shutter: Fast Open, Slow Close
232 - 239 Shutter Open
240 - 247 Random Strobe
248 - 255 Shutter Open
6 000 - 255 Dimmer, 0 to 100%
