Newlab L403MA04T1A01 User manual

User Manual L403MA04T1A01
USER MANUAL L403MA04T1A01
SUBJECT INDEX:
DESCRIPTION
TECHNICAL SPECIFICATION
PUSH OPERATION
BLUETOOTH MODE + PUSH
1 NEWLAB - User Manual L403MA04T1A01

User Manual L403MA04T1A01

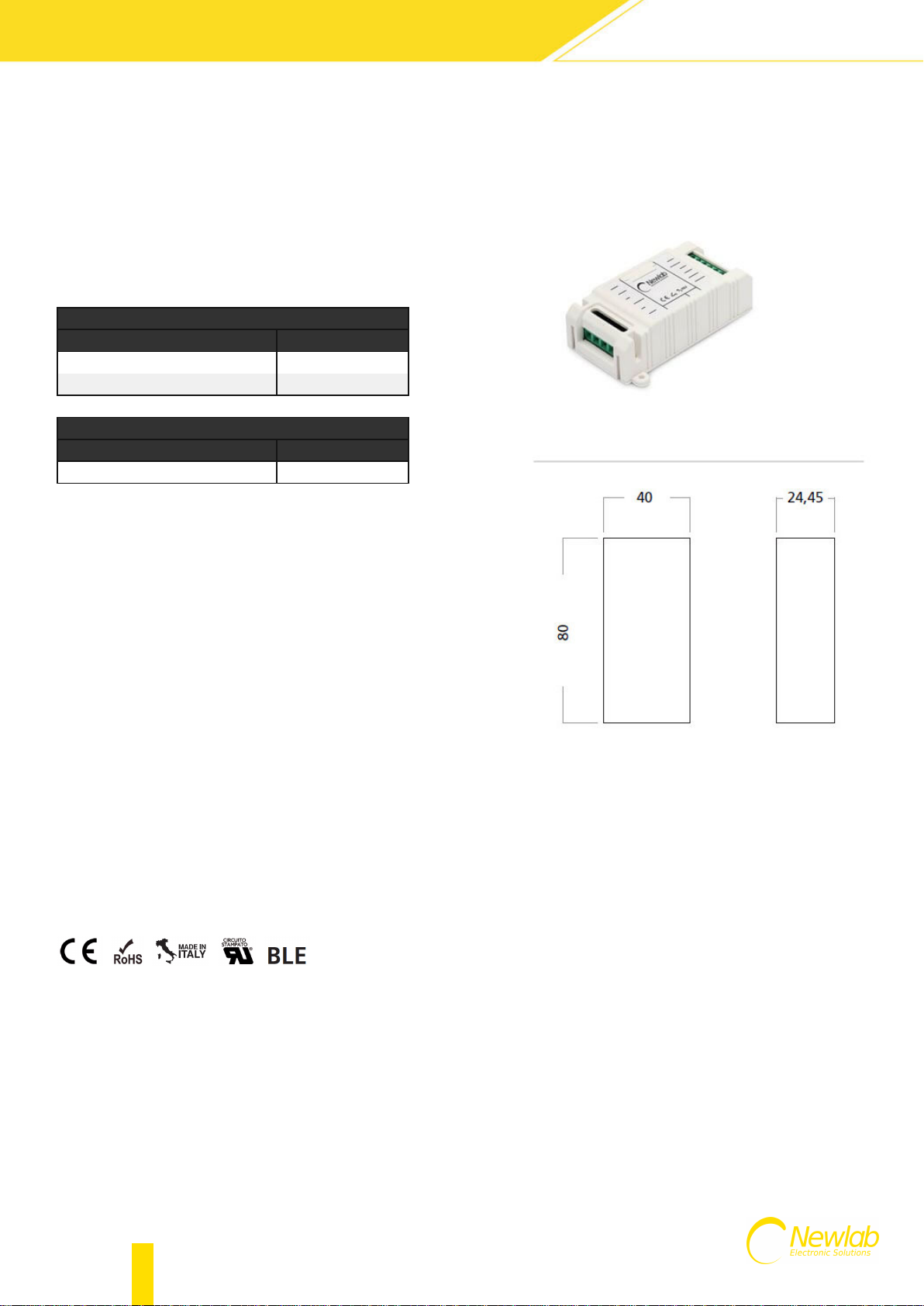

L403MA04T1A01
PUSH/BLE interface for dimmable PWM power supply
Digital interface for dimming of generic AC/DC power supplies with PWM
control input.
The interface is equipped with a relè system for galvanic separation
between mains and AC/DC power supply primary circuit.
Input Range: 85-265V AC 50/60Hz.
Controllable with Android/iOS app Newlab Go.
Input Controls
Type Qty
Insulated Push button85-265V AC 1
Bluetooth LE 1
Output Sync
Type Qty
PWM 1
TECHNICAL NOTES
- Digital interface for dimming of generic AC/DC power supplies with PWM
control input.
- The interface is equipped with a relè system for galvanic separation
between mains and AC/DC power supply primary circuit.
- Input Range: 85-265V AC 50/60Hz.
- Power .
- Input Controls: Insulated Push button
85-265V AC x1, Bluetooth LE x1.
- Output Sync: PWM x1.
- PWM Frequency: 390 Hz.
- Thermal foldback: 150 C. Degrees on uC.
- Storage Temperature Min: -40 Max: 60 C. Degrees.
- Working Temperature Min: -20 Max: 50 C. Degrees.
- Printed Circuit UL.
- Protection Class: IP20.
- Weight: 44 gr.
- Standard Dimension 40x80x24.45 mm.
- Dimension with accessories 40x100x24.45 mm.
- Reverse polarity protection.
- Open circuit protection.
- Surge voltage protection.
- Use only in dry conditions.
2 NEWLAB - User Manual L403MA04T1A01

User Manual L403MA04T1A01
CODE INPUT
VOLTAGE
OUTPUT PWM
FREQUENCY
N. OUTPUT
CHANNELS
MAX RELEASE
POWER
MAX RELEASE
CURRENT
CONTROL
INPUTS
CASE DIMENSION
mm
L403MA04T1A01 85-265V AC 390Hz (0.02A) 1 600W @ 220AC 5A Insulated Push button
85-265V AC x1
Bluetooth LE x1
YES 40x80
h 24.45
3 NEWLAB - User Manual L403MA04T1A01

User Manual L403MA04T1A01
PUSH OPERATION
WIRING DIAGRAM L403MA04T1A01 - FIGURE N. 1
L403MA04T1A01 device can be driven by PUSH interface
Figure n. 1 shows the electrical connections necessary to make the device operate.
Connect the dimmable power supply input (primary power supply) to LOAD terminals and connect D+ and D-
terminals to power supply dimming interface.
Pay attention to the polarity.
ATTENTION: THE DEVICE WORKS WITH MAINS VOLTAGE, IT IS RECOMMENDED TO FOLLOW
CAREFULLY THE SAFETY PRECAUTIONS DURING INSTALLATION
PUSH interface operation
Single Click (rapid press (<1sec))
- Turns on or off the output (ON/OFF).
Double Click (rapid press (<1sec))
- Sets maximum brightness (output= 100%)
Long Press (long press (>1sec))
- If the dimmer is in OFF position, it sets the output to the minimum value (default= 1%)
- If the dimmer is in ON position, the long press enables the output dimming (up/down).
4 NEWLAB - User Manual L403MA04T1A01

User Manual L403MA04T1A01
BLUETOOTH MODE + PUSH
BLE L403MA04T1A01 WIRING - FIGURE N. 2
In order to activate this mode of control/operation it is necessary to install the Newlab Go App on the Android or
iOS device that you want to use for the L403MA04T1A01 dimmer control and disconnect any 0-10V (1-10V) inputs
or potentiometer connected to the dimmer.
The implemented features are:
Switching on and off and the brightness level control of each individual light point.
Ability to group together and control several light points with just a simple command.
Creation and recall of your favourite lighting sceneries.
The system management from a single simplified user interface.
THE BLUETOOTH LE CONNECTION DOES NOT REQUIRE PAIRING PROCEDURE
Newlab Go App features (* depending on the device only some functions may be available)
Dimmer management at 1 or 4 channels with different modes of operation:
- Mono channel
- 4 synchronized channels
- RGB (3 channels or 3 zones)
- RGB + White (4 channels or 4 zones)
- Dynamic White
5 NEWLAB - User Manual L403MA04T1A01

User Manual L403MA04T1A01
In order to install the app on your Apple or Android device you need to scan the desired QRCode to be
automatically redirected to the product data sheet of the Newlab Go application.
As an alternative you can download the app by clicking on one of two links below:
Apple:
https://itunes.apple.com/it/app/newlab-go/id1151044984?mt=8
Android:
https://play.google.com/store/apps/details?id=com.newlablight.newlabgo
There is also a video guide on YouTube at the following link:
https://www.youtube.com/watch?v=R0c7MLK7Cbc
