Building the Digital Infrastructure
PEAK 8920VL2 User Manual
Version 1.01
Nov 29, 2006

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 2PEAK 8920VL2 User Manual
Preface
Packing Materials Checklist
Item Description Q’ty
1 PEAK8920VL2 BOARD SET 1
2 CPU COOLER 2
3 PS/2 KB/Mouse Y CABLE 1
4 CABLE SET (SIO+PIO P2.00)/(SIO P2.00)/IDE66 1
5 QUICK REFERENCE GUIDE 1
6 CD DRIVER 1
Copyright Notice
Copyright © 2006 NEXCOM
All rights reserved. No part of this manual may be reproduced, trans-
mitted, transcribed, stored in a retrieval system, or translated into any
language or computer language, in any form or by any means (elec-
tronic, mechanical, photocopying, recording, or otherwise), without
the express written permission of NEXCOM Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties that may result from
such use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows® is a registered trademark of Microsoft Corp.
All other product names or trademarks are properties of their respec-
tive owners.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 3
PEAK 8920VL2 User Manual
Table of Contents
Declaration of Conformity
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend
the use of shielded cables. Please contact your local supplier for
ordering information.
This product has passed the CE test for environmental specifications.
Test conditions for passing included the equipment being operated
within an industrial enclosure. In order to protect the product from
being damaged by ESD (Electrostatic Discharge) and EMI leakage,
we strongly recommend the use of CE-compliant industrial enclosure
products.
FCC Class A
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commer-
cial environment.
This equipment generates, uses, and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
Installation Suggestions
Ensure you have a stable, clean working environment. Dust and dirt
can get into components and cause a malfunction. Use containers to
keep small components separated.
Adequate lighting and proper tools can prevent you from acciden-
tally damaging the internal components. Most of the procedures that
follow require only a few simple tools, including the following:
A Philips screwdriver
A flat-tipped screwdriver
A grounding strap
An anti-static pad
Using your fingers can disconnect most of the connections. It is
recommended that you do not use needlenose pliers to disconnect
connections as these can damage the soft metal or plastic parts of
the connectors.
Handling Precautions
1. Always disconnect the unit from the power outlet whenever you
are installing or fixing a component inside the chassis.
2. If possible, always wear a grounded wrist strap when you are
installing or fixing a component inside the chassis. Alternatively,
discharge any static electricity by touching the bare metal chas-
sis of the unit case, or the bare metal body of any other grounded
appliance.
3. Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Do not
flex or stress the circuit board.
4. Use the correct screws and do not overly tighten them.
5. Keep the original packaging and static-protective bag in case the
unit has to be returned.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 4
PEAK 8920VL2 User Manual
Table of Contents
NEXCOM RMA Policy
1. Warranty Period
NEXCOM manufactures products that are new or equivalent to new in
accordance with industry standard. NEXCOM warrants that products
will be free from defect in material and workmanship for 24 months
beginning on the date of invoice by NEXCOM. HCP series products
(Blade Server) which are manufactured by NEXCOM are covered by
a three year warranty period.
2. RMA (Return Merchandise Authorization)
2.1 Customers shall enclose the “NEXCOM RMA Service Form” with
the returned packages.
2.2 Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen
messages, and describe the problems on the “NEXCOM RMA Ser-
vice Form” for the RMA number apply process.
2.3 Customers can send back the faulty products with or, without ac-
cessories (manuals, cable, etc.) and any unnecessary components
from the card, such as CPU and DRAM. If the components were
suspected as part of the problems, please note clearly that which
components are included. Otherwise, NEXCOM is not responsible for
the devices/parts.
2.4 Customers are responsible to for the safe packaging of defective
products are durable enough to be resistant against further damage
and deterioration during transportation. In case of damages occurred
during the transportation, the repair is treated as “Out of Warranty.”
2.5 Any products returned by NEXCOM to other locations besides
the customers’ site will bear an extra charge and will be billed to the
customer.
3. Repair service charges for out of warranty products
NEXCOM will charge for out of warranty products in two categories,
one is basic diagnostic fee and another is component (product) fee.
3.1 System level
a. Component fee: NEXCOM will only charge for main components,
such as SMD chip, BGA chip, etc. Passive components will be re-
paired for free, ex: resistor, capacitor.
b. Items will be replaced with NEXCOM products if the original one is
not able to be repaired. Ex: motherboard, power supply, etc.
c. Replaced with 3rd party products if needed.
d. If RMA goods can not be repaired, NEXCOM will return it to cus-
tomer without any charge.
3.2 Board level
a. Component fee: NEXCOM will only charge for main components,
such as SMD chip, BGA chip, etc. Passive components will be re-
paired for free, ex: resistors, capacitors.
b. If RMA goods can not be repaired, NEXCOM will return it to cus-
tomer without any charge.

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 5
PEAK 8920VL2 User Manual
Table of Contents
Global Service Contact Information
Headquarters
NEXCOM International Co, Ltd.
18F, No. 716, Chung-Cheng Road,
Chung-Ho City, Taipei County, 235
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
www.nexcom.com.tw
Email: [email protected]
USA
NEXCOM USA
3758 Spinnaker Court
Fremont, CA 94538 USA
Tel: [phone]
Fax: [phone]
www.nexcom.com
Email: [email protected]
United Kingdom
NEXCOM UK
10 Vincent Avenue. Crownhill
Milton Keynes, Buckinghamshire
MK8 OAB, United Kingdom
Tel: [phone]
Fax: [phone]
www.nexcomuk.co.uk
Email: [email protected]
Japan
NEXCOM Japan
1OF, Nakagin-Shiroyama Building,
8-16-13. Ginza Chuou-KU,
Tokyo 104-0061, Japan
Tel: [phone]
Fax: [phone]
www.nexcom-Jp.com
Email: [email protected]
China
NEXCOM China
Room 301, Block E,
Power Creative Building,
No. 1 Shangdi East Rd.
Haidian District,
Beijing, 100085, China
Tel: [phone]
Fax: [phone]
www.nexcom.cn
Email: [email protected]

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 6
PEAK 8920VL2 User Manual
Table of Contents
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
Nexcom is a global citizen for building the digital infrastructure. We
are committed to providing green products and services, which are
compliant with European Union RoHS (Restriction on Use of Hazard-
ous Substance in Electronic Equipment) directive 2002/95/EU, to be
your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury
(Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm,
Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated
biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl
Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has estab-
lished an engineering and manufacturing task force in to implement
the introduction of green products. The task force will ensure that we
follow the standard NEXCOM development procedure and that all the
new RoHS components and new manufacturing processes maintain
the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Ven-
dors and suppliers will ensure that all designed components will be
RoHS compliant.
How do you recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS ver-
sions, the suffix “(LF)” will be added to the compliant product name.
For example, PEAK 7220VL2G RoHS version will become PEAK
7220VL2G(LF).
All new product models launched after January 2006 will be RoHS
compliant. They will use the usual NEXCOM naming convention. For
example, PEAK 870VL2, NBP14570, EBC 420 etc.
All RoHS compliant model and component manufacturing part num-
bers will be suffixed “XO”. For Example:
73AI064M03X0 CF CARD INDUSTRY, 64MB, T: 0-70°C, PQI:AC47-
0640-0442, PBFREE
71A5500301X0 CPU+NB, AMD LX800, 500MHz/128K ,BGU481,
AMD:ALXC800EETJ2VD
1E00042001X0 EBC420-LX8
Manual Revision History
Revision Date Description
1.01 Nov 29, 2006 Initial Draft

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 7
PEAK 8920VL2 User Manual
Table of Contents
Table of Contents
Packing Materials Checklist........................................................2
Copyright Notice.........................................................................2
Acknowledgements ....................................................................2
Declaration of Conformity...........................................................3
Installation Suggestions .............................................................3
Handling Precautions .................................................................3
NEXCOM RMA Policy ................................................................4
Global Service Contact Information............................................5
RoHS Compliance......................................................................6
Manual Revision History.............................................................6
Chapter 1 Product Introduction.............................................9
1.1 Main Feature ......................................................................10
1.2 Block Diagram ....................................................................10
Figure 1.1: Block Diagram of PEAK 8920VL2 .............................10
1.3 Electrical Specifications .....................................................11
1.4 Board Layout ......................................................................12
Figure 1.2 Board Layout view of the PEAK 8920VL2 ..................12
1.5 Board Dimensions ..............................................................13
Figure 1.3 Top View of the PEAK 8920VL2..................................13
Figure 1.4 CPU Board Dimensions of the PEAK 8920VL2 ..........13
Figure 1.5 I/O Board Dimensions of the PEAK 8920VL2.............14
1.6 Ordering Information ..........................................................14
Chapter 2 Jumper Setting....................................................15
2.1 Setting Jumpers .................................................................16
Table 2-1: Setting Jumpers..........................................................16
2.2 Location of Jumpers ...........................................................17
Figure 2-1: Jumper Location ......................................................17
2.3 PCI Routing ........................................................................18
2.4 Pin Definition ......................................................................18
2.5 POWER Consumption........................................................31
Chapter 3 Expansion ...........................................................32
3.1 System Memory .................................................................33
Table 3-1: DIMM Configurations of the PEAK 8920VL2 ..............33
3.2 Installing FB-DIMM.............................................................33
Figure 3-1: How to Install FB-DIMM ............................................33
3.3 Tested Memory Reference List...........................................34
3.4 Installing CPU and CPU Cooler .........................................34
Figure 3-3: Installing CPU ...........................................................34
3.5 CPU support list .................................................................35
3.6 Passive Backplane Support List.........................................35
Chapter 4 AMI BIOS Setup ..................................................36
4.1 About the BIOS .................................................................37
4.2 When to Run BIOS .............................................................37
4.3 Entering Setup....................................................................38
4.4 The Main Menu...................................................................38
Figure 4-1: BIOS Setup Utility Main Menu................................... 38
4.5 Advanced BIOS Features ..................................................39
Figure 4-2: BIOS – Advanced BIOS Features ............................. 39
4.6 Chipset Features ...............................................................39
Figure 4-3: BIOS –Chipset Features............................................39
4.7 Power Management Setup/APM ........................................40
Figure 4-4: BIOS – Power Management Setup ...........................40

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 8
PEAK 8920VL2 User Manual
Table of Contents
4.8 PnP/PCI Configurations ....................................................40
Figure 4-5: BIOS – PnP/PCI Configurations ................................40
4.9 Advanced PC Health / Hardware Health Status.................41
Figure 4-6: Advanced PC Health / Hardware Health Status .......41
4.10 Set Password/Security .....................................................41
4.11 Save & Exit Setup ............................................................42
Appendix A Watchdog Timer ...............................................43
A.1 Watchdog Timer Working Procedure .................................44
Table A-1: Watchdog Timer Character and Function..................44
A.2 Watchdog Timer Control Register ......................................44
Table A-2: Control Register Bit Definition ....................................44
A.3 Watchdog Timer Programming Procedure.........................45
Table A-3: WDT Control Register Initial Value .............................45
Appendix B GP I/O Programming ......................................47

Chapter 1 Product Introduction
PEAK 8920VL2 User Manual

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 10
Chapter 1 Product Introduction
PEAK 8920VL2 User Manual
1.1 Main Feature
The PEAK 8920VL2 has dual LGA771 sockets support up to two
Quad-Core / Dual-Core Intel®Xeon®Processor 5100 series with 4 MB
L2 cache and the Intel®Core™ microarchitecture supports up to 2.33
GHz with 1333 MHz FSB. Featuring an Intel®5000P Chipset + Intel®
ESB2, the PEAK 8920VL2 delivers higher throughput with dual point-
to-point system buses, faster memory for I/O bandwidth, and Fully
Buffered DIMM (FBDIMM) support.
The SBC PEAK 8920VL2 is successor to flagship PEAK 7220 SBC,
which complied with PICMG 1.3 to ensure easy configuration, high-
est quality standard, and seamless compatibility with products from
other manufactures.
PEAK 8920VL2 Main Feature Highlights:
Dual LGA771 sockets support up to two Quad-Core / Dual-Core
Intel Xeon processor
Intel 5000P embedded chipset with longevity support.
Robust mechanism design for enhanced product reliability.
Up to 8 GB ECC/Register FBDIMM DDR 2 memory
Dual PCI Express Gigabit Ethernet for high networking bandwidth.
Four USB 2.0 directly output from bracket to save the cabling cost.
Flexible design option for single or dual processors.
Dedicated CPU cooler design for the thermal solution.
•
•
•
•
•
•
•
•
1.2 Block Diagram
Figure 1.1: Block Diagram of PEAK 8920VL2
Branch 0
IDE
DDR2 533/667MHz
FB-DIMM Channel 0
Intel 5000P
IDE ATA-100
PIO
RS232
GPIO
PCI-32bit/33MHz
6 x USB 2.0
STAT *2
PCIE X4
PCIE X4
PCIE X4
PCIE X4
FSB1
FSB0
ESI PCIEX4
PCIE X8
PCIE X4
FSB 1066/1333MHz
PICMG1.3
GOLD FINGER
B
PICMG1.3
GOLD FINGER
D
PICMG1.3
GOLD FINGER
C
GPI x4 / GPO x4
FB-DIMM Channel 1
FB-DIMM Channel 2
FB-DIMM Channel 3
Branch 1
USB 2.0
PIO
COM1 / COM2
Dual / Quad Core Xeon Processor
LGA 771
Dual / Quad Core Xeon Processor
LGA 771
F/W HUB
GAL
W83627
Super IO
Intel 6321 ESB
LPC BUS
PCIE X1
PCIE X1
LAN1(82573L)
LAN2(82573L)
RJ45
RJ45
PCI- 32bit/33MHz
ATI
ES1000 VGA
DDR 32M
PICMG1.3
GOLD FINGER
A

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 11
Chapter 1 Product Introduction
PEAK 8920VL2 User Manual
1.3 Electrical Specifications
CPU Support
Support Dual-Core Intel®Xeon®processor 5000 series and Quad-Core Intel®
Xeon®Processor 5300 series (80W)
Intel Embedded Processor List ( Intel®Longevity CPU):
Dual Core Intel®Xeon®Processor (5130 & 5140)
Dual Core Intel®Xeon®Processor LV (5128, 5138, 5148)
1066/1333 MHz FSB support
Main Memory
4 x 240-pin four channel DDR 2 FB-DIMM
Support ECC / Register DDR2 memory up to 8GB
Chipset
Intel®5000P memory controller Hub
Intel®6321ESB I/O controller Hub
BIOS
AMI BIOS
Plug & Play support
8M-bit flash ROM
Support Soft off, Wake on LAN, Power On by PS2 Keyboard Function Key, RTC
alarm Power On
Power on after power failure
On-board LAN
2 x Intel®82573L PCI Express Gigabit Ethernet
Support Boot From LAN (PXE)














Support Wake On LAN (When 5Vsb power available)
2 x RJ45 with LED
Display
ATI ES1000 PCI graphic Controller
32MB DDR2 SDRAM VGA Memory
1 x DB15 VGA port
I/O Interface
USB 2.0: 4 ports through I/O bracket
USB 2.0: 2 ports, with 1x6 JST (2.5mm )
Serial port: 2 ports, with 2x5 box-header (2.0mm) support RS-232 only
Parallel port: 1 port , with 2x13 box-header (2.0mm), Bi-directional, EPP/ECP
PS/2: 1 x Mini-Din Keyboard/Mouse
GPIO: Support 4 sets of general purpose I/O each with TTL level (5V) interface
FAN: 2 x 4-pin FAN JST connectors (for CPU coolers )
1 x on board buzzer
1 x 2-pin power on switch
1 x SMBus 2.0 to Backplane
1 x 2-pin header for reset
1 x 5-pin header for key lock
2 x 2-pin headers for power LED / HDD LED
Storage
SATA: 2 ports, support RAID 0,1 through Backplane
IDE: 1 x 40-pin IDE connector, support Ultra ATA 66/100/133
1 x 2-pin JST (2.5mm) power connector for DOM (Disk On Module)






















Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 12
Chapter 1 Product Introduction
PEAK 8920VL2 User Manual
Watchdog Timer
Watchdog Timer is programmable by software from 0 to 255 seconds
(Tolerance 15% under room temperature 25°C)
On-board RTC
On-chip RTC with battery back up
1 x External Li-Lon battery
Power Input
Power source from backplane through PICMG 1.3 Golden Finger, support ATX mode
CPU Type
(2 x Dual Core Xeon 3.0G)
(4 x FBD DDR2 2.0GB)
+12 V +5 V +3.3 V +5 Vsb
Full-Loading Mode 21.4 A 2.07 A 3.85 A 0.04 A
Light-Loading Mode 10.59 A 1.69 A 3.63 A 0.04 A
NOTE:
1. Full Loading: Utilize CPU 100% with Burn-in test running
2. Light Loading: Utilize CPU loading below 5% without data or application running.
Dimensions
PICMG 1.3 form factor
338.58 mm (L) x 122 mm (W) (13.3” x 4.8”)
Environment
Operating Temperature: 0°C ~ 60°C (for Board Level Only)
Storage Temperature: -20˚C to 85˚C
Relative Humidity:
Operating: 10%~90% (non-condensing)
Non-Operating: 5%~95% (non-condensing)
Certifications
CE approval
FCC Class A










1.4 Board Layout
Figure 1.2 Board Layout view of the PEAK 8920VL2

Copyright © 2006 NEXCOM International Co., LTD. All rights reserved 13
Chapter 1 Product Introduction
PEAK 8920VL2 User Manual

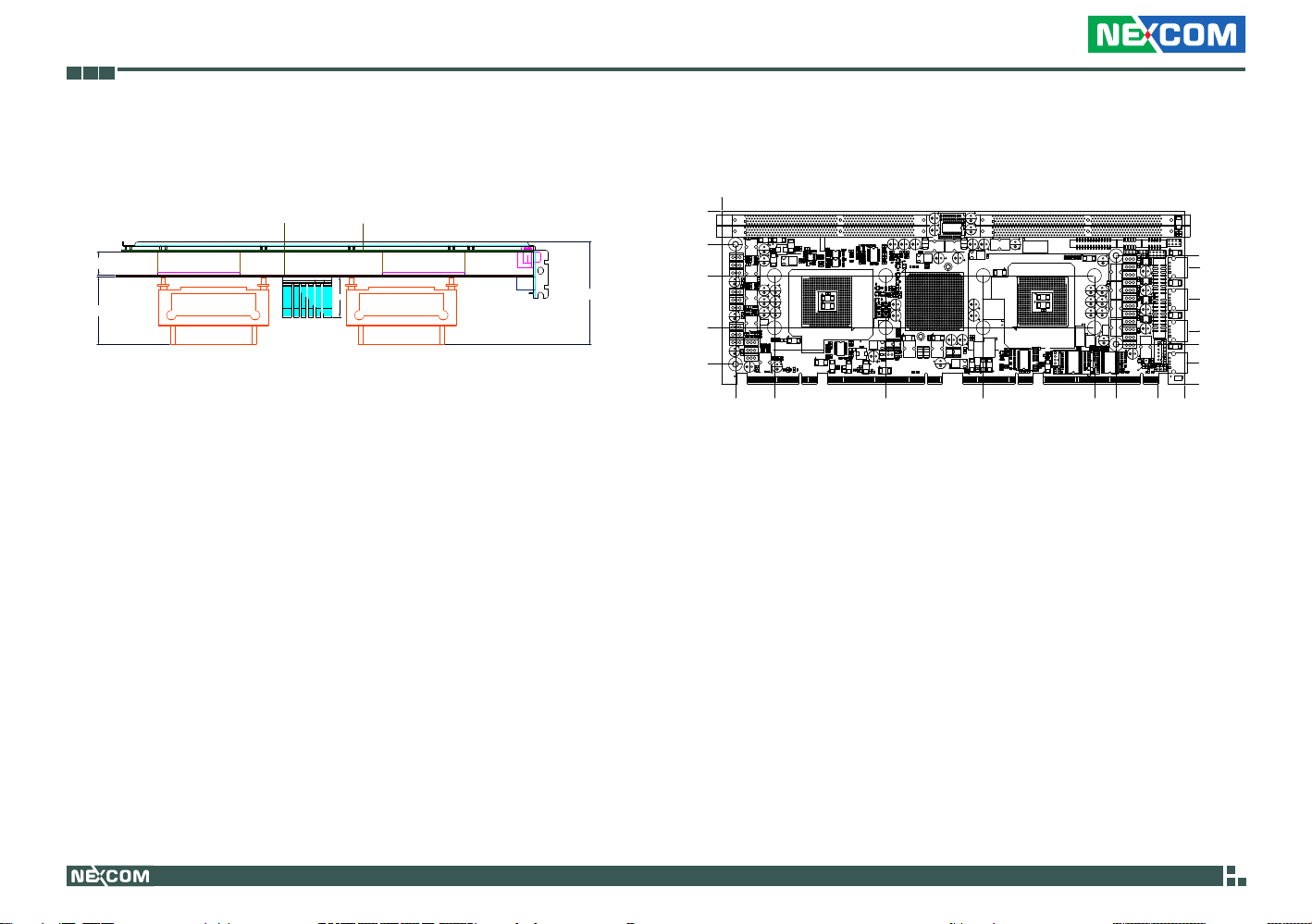

1.5 Board Dimensions

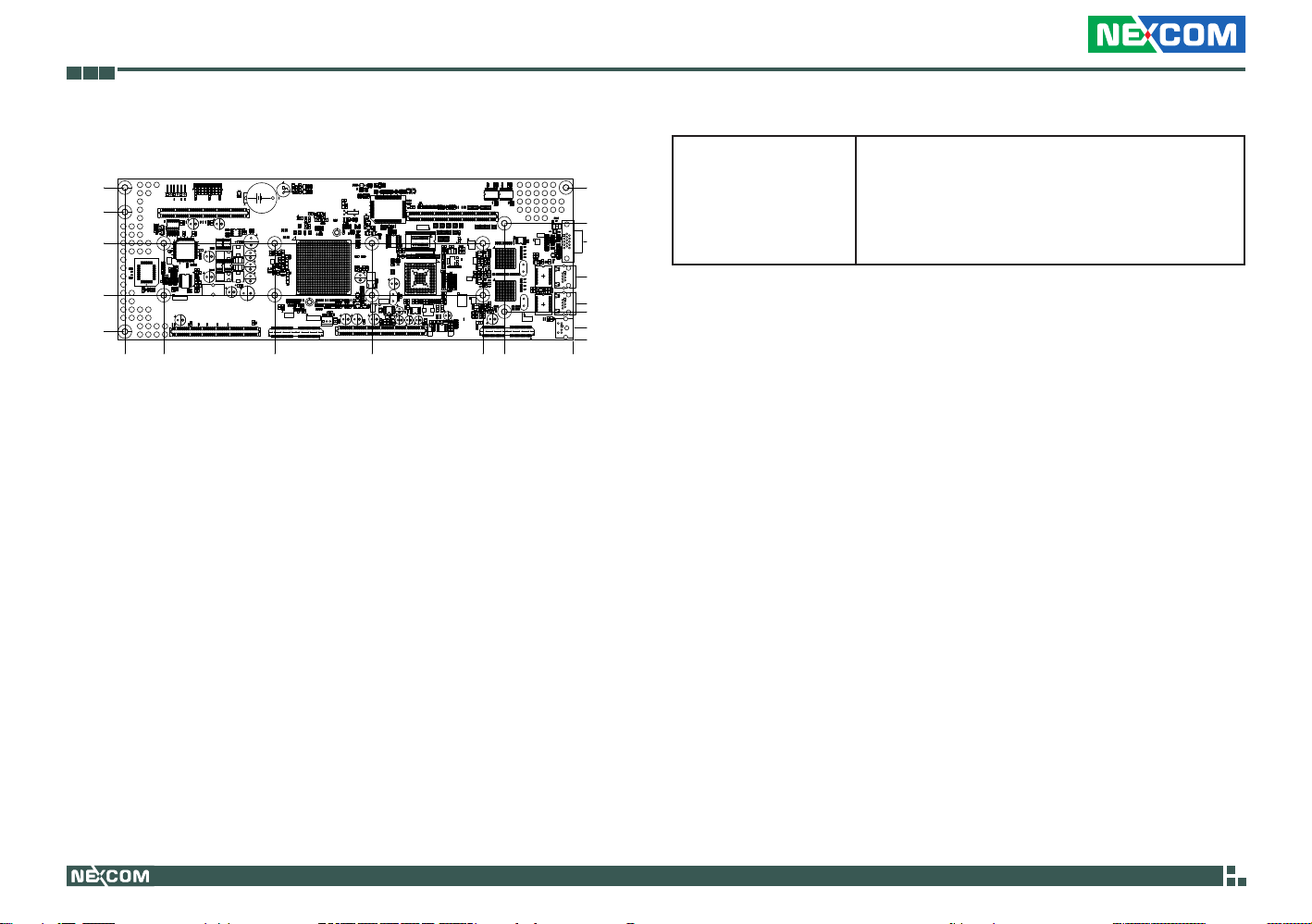

Figure 1.4 CPU Board Dimensions of the PEAK 8920VL2
83.2mm
19m
54.5mm CPU Cooler
CPU Cooler 32.5mm
CPU Board I/O Board
5000P Heatsink
Figure 1.3 Top View of the PEAK 8920VL2
0.00
0.00
15.63
38.85
85.29
62.07
20.00
338.58
126.39
14.61
102.24
328.41
299.93
218.65
147.36
66.08
79.39
41.29
50.28
29.21
93.98
CN4
21
40
39
B
A
H
F D
G E
C
R
N L
T P
M K
J
AA
W
U
AB
Y
V
AH
AF
AD
AJ
AG
AE
AC
AM AN
AL
AK
1
8
7
6
5
4
3
2
14
13
12
11
10
9
17
18
19
20
21
16
15
22
23
24
25
26
27
28
29
30
U20
B
A
H
F
D
G
E
C
R
N
L
T
P
M
K
J
AA
W
U
AB
Y
V
AH
AF
AD
AJ
AG
AE
AC
AM
AN
AL
AK
1 8
7
6
5
4 3 2
14 13
12
11
10
9
17 18 19 20 21 16 15 22 23 24 25 26 27 28 29 30
U19
U8
RN1
U12
U6
U27
U26
RN2
PEAK8920VL2 REV:B
4BP08920B1X1
MADE IN TAIWAN
B
C
E
Q13
B
C
E
Q19
B
C
E
Q26
B
C
E
Q23
B
C
E
Q18
B
C
E
Q25
B
C
E
Q22
B
C
E
Q11
LED1
C89
