Nexcom nROK 500 User manual

NEXCOM International Co., Ltd.
Published March 2014 www.nexcom.com
NEXCOM International Co., Ltd.
Mobile Computing Solutions
Fanless Railway Computer
nROK 500
User Manual

Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved ii nROK 500 User Manual
Contents
Contents
Preface
Copyright .................................................................................................... iv
Disclaimer .................................................................................................... iv
Acknowledgements ...................................................................................... iv
Regulatory Compliance Statements .............................................................. iv
Declaration of Conformity............................................................................. iv
RoHS Compliance .......................................................................................... v
Warranty and RMA ....................................................................................... vi
Safety Information .......................................................................................vii
Installation Recommendations.......................................................................vii
Safety Precautions........................................................................................viii
Technical Support and Assistance.................................................................. ix
Conventions Used in this Manual.................................................................. ix
Global Service Contact Information................................................................ x
Package Contents.........................................................................................xii
Ordering Information ...................................................................................xiii
Chapter 1: Quick Reference Guide 1
Chapter 2: Product Introduction
Overview .......................................................................................................3
Key Features................................................................................................3
Hardware Specifications.................................................................................5
Chapter 3: Jumpers and Connectors
Before You Begin ..........................................................................................8
Precautions ...................................................................................................8
Jumper ..........................................................................................................9

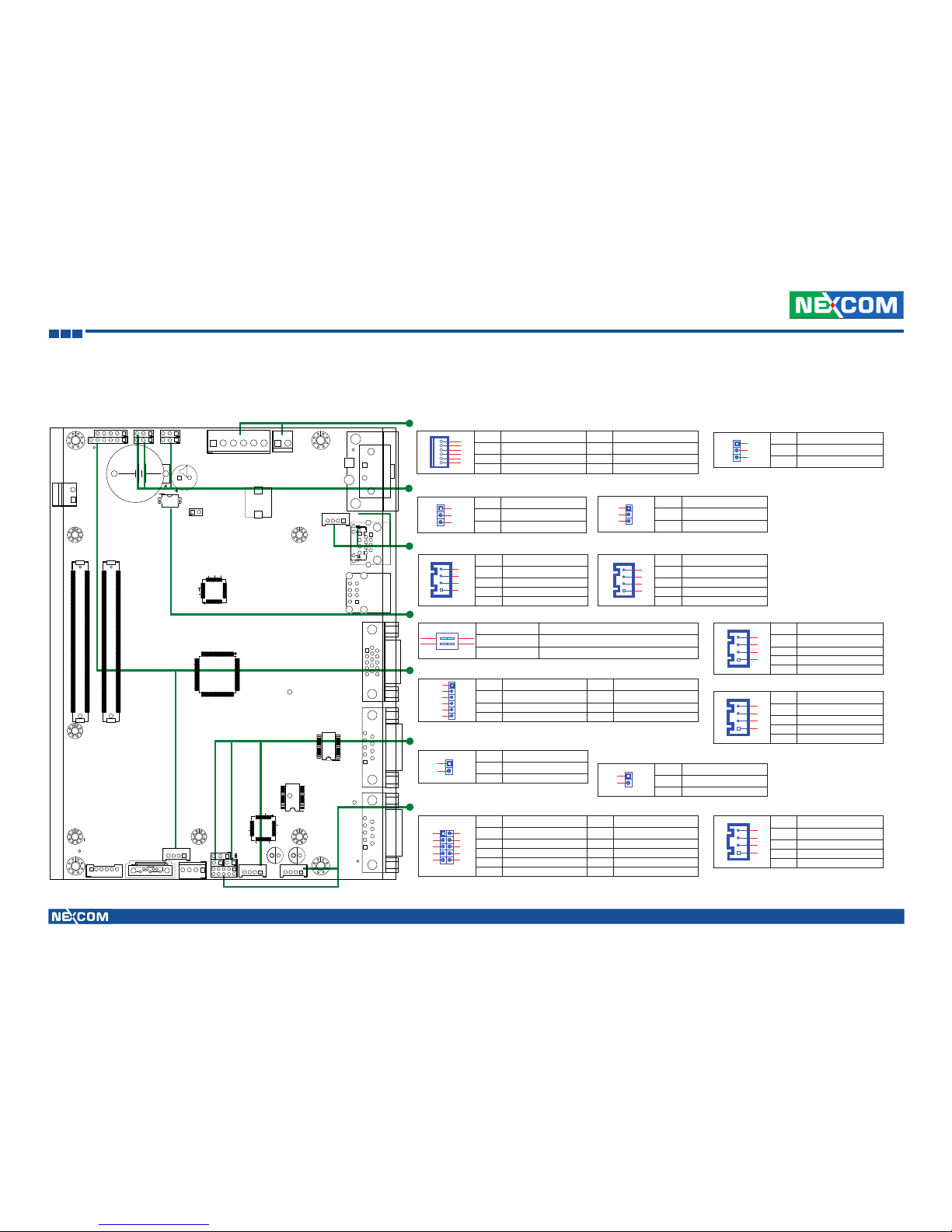

Locations of the Jumpers and Connectors....................................................10
Connectors..................................................................................................11
LAN Connector (J8) ..................................................................................11
LAN LINK / ACT LED (J9) ............................................................................11
Power / HDD ACCESS LED (J6) ..................................................................12
Mic-in Pin Header (J3) ...............................................................................12
Line-out Pin Header (J4).............................................................................13
DC Input Connector (CON1)......................................................................13
VGA Power Input Connector (CON2).........................................................14
USB 2/3 Connector (J2)..............................................................................14
REAR USB connector (USB1) .....................................................................15
SATA Power Connector (CN1)....................................................................15
SATA Connector (CN2) ..............................................................................16
GPIO Pin Header (J1)..................................................................................16
Clear CMOS Pin Header (J12).....................................................................17
SMBus Pin Header (J5) ...............................................................................17
System RESET Pin Header (JP1)...................................................................18
Disable EEPROM Write Protection (JP2) ......................................................18
Thermal Sensor (Reserved Function) (JP3)...................................................19
Power Up Signal Detection Pin Header (JP7) (Reserved Feature)..................19
Power Up Manner Pin Header (JP8) (Reserved Feature)...............................20

Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved iii nROK 500 User Manual
Contents
MCU Debugging Pin Header (JP5)............................................................. 20
MCU Download Port (JP6) ........................................................................ 21
Input Voltage Selection (SW1)................................................................... 21
GAL Download Port (JP4).......................................................................... 22
CF Connector (IDE1) ................................................................................. 23
COM Port Connector (COM1 / COM2) ..................................................... 24
VGA connector (VGA1) ............................................................................ 24
Monitor Power Connector (J11)................................................................ 25
LED Status ................................................................................................ 25
Appendix A: GPI/O Programming Guide 26
I/O Address Function....................................................................................26
Appendix B: Watchdog Timer 27

iv
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Preface
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and
describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for
a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which
case the user will be required to correct the interference (take adequate
measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable
European Union (CE) directives if it has a CE marking. For computer systems
to remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques.
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. No
part of this manual may be reproduced, copied, translated or transmitted
in any form or by any means without the prior written consent from
NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice
and does not represent commitment from NEXCOM International Co.,
Ltd. However, users may update their knowledge of any product in use by
constantly checking its manual posted on our website: http://www.nexcom.
com. NEXCOM shall not be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use of any product, nor for any
infringements upon the rights of third parties, which may result from such
use. Any implied warranties of merchantability or fitness for any particular
purpose is also disclaimed.
Acknowledgements
nROK 500 is a trademark of NEXCOM International Co., Ltd. All other product
names mentioned herein are registered trademarks of their respective owners.

v
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the
suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2013 will be RoHS compliant.
They will use the usual NEXCOM naming convention.
NEXCOM is a global citizen for building the digital
infrastructure. We are committed to providing green
products and services, which are compliant with
European Union RoHS (Restriction on Use of Hazardous
Substance in Electronic Equipment) directive 2011/65/
EU, to be your trusted green partner and to protect
our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg)
< 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent
Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or
1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an
engineering and manufacturing task force in to implement the introduction
of green products. The task force will ensure that we follow the standard
NEXCOM development procedure and that all the new RoHS components
and new manufacturing processes maintain the highest industry quality
levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and
suppliers will ensure that all designed components will be RoHS compliant.

vi
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in
accordance with industry standard. NEXCOM warrants that products will
be free from defect in material and workmanship for 2 years, beginning on
the date of invoice by NEXCOM. HCP series products (Blade Server) which
are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
?Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
?Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen
messages, and describe the problems on the “NEXCOM RMA Service
Form” for the RMA number apply process.
?Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU
and RAM. If the components were suspected as part of the problems,
please note clearly which components are included. Otherwise, NEXCOM
is not responsible for the devices/parts.
?Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage
and deterioration during transportation. In case of damages occurred
during transportation, the repair is treated as “Out of Warranty.”
?Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is
basic diagnostic fee and another is component (product) fee.
System Level
?Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistor, capacitor.
?Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
?Replace with 3rd party products if needed.
?If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.

vii
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Board Level
?Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistors, capacitors.
If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to find out how you can ensure that your computer meets
safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
?Read all instructions carefully.
?Do not place the unit on an unstable surface, cart, or stand.
?Follow all warnings and cautions in this manual.
▪When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪Avoid using the system near water, in direct sunlight, or near a heating
device.
▪The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly
necessary in order to provide balance stability.
The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get
into components and cause a malfunction. Use containers to keep small
components separated.
Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended
that you do not use needlenose pliers to disconnect connections as these
can damage the soft metal or plastic parts of the connectors.

viii
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it
or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40oC storage temperature as this may damage the
equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that
has been approved for use with the product and that it matches the
voltage and current marked on the product’s electrical range label.
The voltage and current rating of the cord must be greater than the
voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electrical
shock.
14. Never open the equipment. For safety reasons, the equipment should
be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the
purpose of this pin. If your outlet does not support this kind of plug,
contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the
appropriate safety standards including IEC 60825.

ix
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s
website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or
sales representative, please have the following information ready before
calling:
– Product name and serial number
– Detailed information of the peripheral devices
– Detailed information of the installed software (operating system,
version, application software, etc.)
– A complete description of the problem
– The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with
care.
2. Maintenance: to keep the unit clean, use only approved cleaning
products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a
CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not
observed, can cause personal injury. This will prevent injury to
yourself when performing a task.
Caution: Information to avoid damaging components or losing
data.
Note: Provides additional information to complete a task easily.
CAUTION!
CAUTION!CAUTION!
Battery - Safety Measures
Caution
• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
Safety Warning
This equipment is intended for installation in a Restricted Access
Location only.
Note: Remember to reset the date and time upon receiving the
product. You can set them in the AMI BIOS. Refer to chapter 4
for more information.
Resetting the Date and Time

x
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd.,
ZhongHe District, New Taipei City, 23586,
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
www.nexcom.com
America
USA
NEXCOM USA
2883 Bayview Drive,
Fremont CA 94538, USA
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.com
Asia
Taiwan
Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd.,
Beitun Dist., Taichung City 406, R.O.C.
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.com.tw
Japan
NEXCOM Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku,
Tokyo, 108-0014, Japan
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom-jp.com
China
NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21,
ZhongGuanCun Software Park, No. 8,
Dongbeiwang West Rd., Haidian District,
Beijing, 100193, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1,
No.609, Yunlin East Rd.,
Shanghai, 200062, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn

xi
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Europe
Italy
NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29,
21047 Saronno (VA), Italia
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcomitalia.it
United Kingdom
NEXCOM EUROPE
10 Vincent Avenue,
Crownhill Business Centre,
Milton Keynes, Buckinghamshire MK8 0AB,
United Kingdom
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.eu
Shenzhen Office
Room1707, North Block, Pines Bldg.,
No.7 Tairan Rd., Futian Area,
Shenzhen, 518040, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan,
No. 519 South Luoshi Rd.,
Hongshan District,
Wuhan, 430070, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn
Chengdu Office
9F, Shuxiangxie, Xuefu Garden,
No.12 Section 1, South Yihuan Rd.,
Chengdu, 610061, China
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.nexcom.cn

xii
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Package Contents
Before continuing, verify that the package that you received is complete. Your package should have all the items listed in the following table.
Item P/N Name Specification Qty
1 50311F0110X00 FLAT HEAD SCREW F3x5 NI NYLOK 4
2 60233SAM17X00 GSM/UMTS/HSDPA ANTENNA ETEK:EEN-501 53.5(H)x16.8(W)mm 1
3 602DCD0375X00 CD DRIVER 1
4 60233PW237X00 POWER CABLE 3W3 FEMALE TO CABLE 18 AWG L=1000mm 1

xiii
Preface
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Ordering Information
The following provides ordering information.

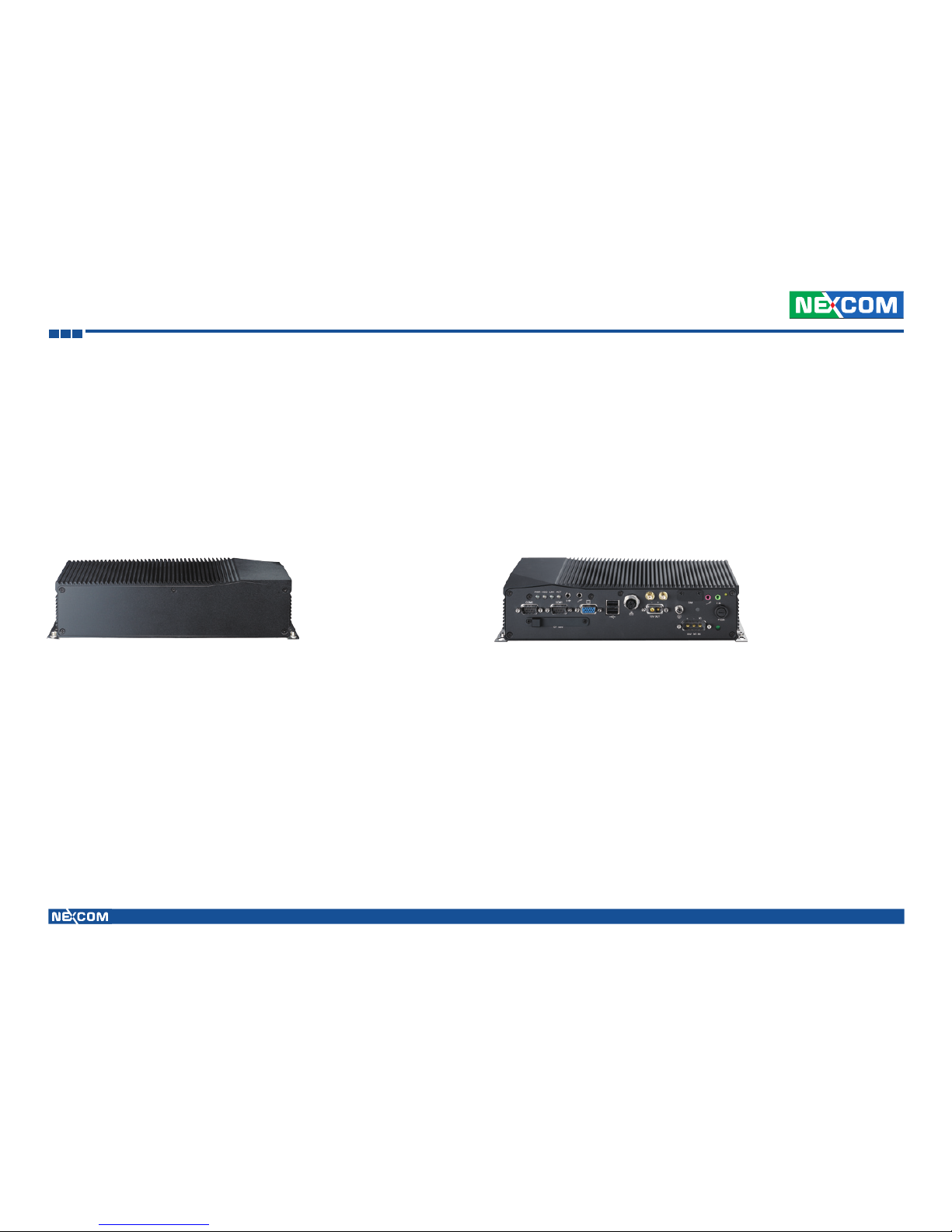

• nROK 500 (P/N: 10A00050000X0)
- Intel®Atom™ D525 1.8GHz Fanless Railway Computer with 2G
memory pre-installed and Isolated 24VDC Input

1
Chapter 1: Quick Reference Guide
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Chapter 1: Quick Reference Guide
CON1: DC INPUT
1
2
3
4
5
6
Pin Denition Pin Denition
1 +12VS 2 +12VS
3 GND 4 GND
5 GND 6 IGNITION
JP1: Reset
1
2
Pin Denition
* 1-2 Normal
2-3 Clear CMOS
JP2: Disable EEPROM
Write Protection
1
2
Pin Denition
1EEPROM_WP
2 GND
J12: Clear CMOS
1
2
3
Pin Denition
* 1-2 Normal
2-3 Clear CMOS
JP7: Power up Signal Detection
1
2
3
Pin Denition
* 1-2 Ignition detection
2-3 Power in detection
JP8: Power up manner
1
2
3
Pin Denition
* 1-2 Ignition & Push button
2-3 Push button only
SW1: Input Voltage Selection
ON
1
2 3
4
Pin Denition
* 1-2 ( Default) 12V input voltage level
3-4 not recommend
JP4: GAL Download Port
1
2
3
4
5
6
Pin Denition Pin Denition
1 +3.3V 2 GND
3 TCK 4 TDO
5 TDI 6 TMS
J8: 10/100 Ethernet LAN
1
2
3
4
Pin Denition
1LAN1_M0P
2LAN1_M0N
3LAN1_M1P
4LAN1_M1N
J9: LAN LINK / ACT LED
1
2
3
4
Pin Denition
1LED_LINK#
2 +3.3V
3LED_ACT#
4 +3.3V
J1: GPIO pin head
1 2
3 4
5
7
6
8
9 10
Pin Denition Pin Denition
1 +5V 2 GND
3GPIO20(Pin84)Out0 4GPIO24(Pin36)In0
5GPIO21(Pin70)Out1 6GPIO25(Pin34)In1
7GPIO22(Pin66)Out2 8 GPIO26(Pin33)In2
9GPIO23(Pin48)Out3 10 GPIO27(Pin32)In3
J6: Power / HDD Status LED
1
2
3
4
Pin Denition
1Power ON#
2 +5V
3HDD ACCESS#
4 +5V
J4: Line out pin head
1
2
3
4
Pin Denition
1FRONT_OUT_LC
2 GND
3 GND
4FRONT_OUT_RC
J3: MIC in pin head
1
2
3
4
Pin Denition
1MIC1-L
2 GND
3 GND
4MIC1-R
J11
A1
A2
1
2
CON2
+ +
CE1
1
2
9
10
J1
4
1
CN1
1
CN2
1
6
J2
15
69
COM1
15
69
COM2
U11
U14
B1
A1
A110
B110
J7
D110 C110
D1
C1
15 11
51
VGA1
100
76
75
51
50
25
1
U16
8
5
14
USB1
48
37
36 25
24 13
12
1
U4
48 37
3625
13
1
FB3
17
82
9
12
LAN1
41
J8
C6
C9
C27
H3
H5
H4
H6
H8
H7
4
1
J4
4 1
J3
4
1
J6
4
1
J9
CT4
1
2
CN3
L6
21
JP2
21
JP1
2
JP3
SW1
12
J10
B
B
E
M5
C10
C54
1
6
CON1
C2
R14
R33
R65
R70
R293
6
1
JP4
H2
H1
H10
H9
1
J5
3
1
JP5
3
1
JP8
3
J12
3
1
JP7
5
1
JP6

2
Chapter 1: Quick Reference Guide
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual

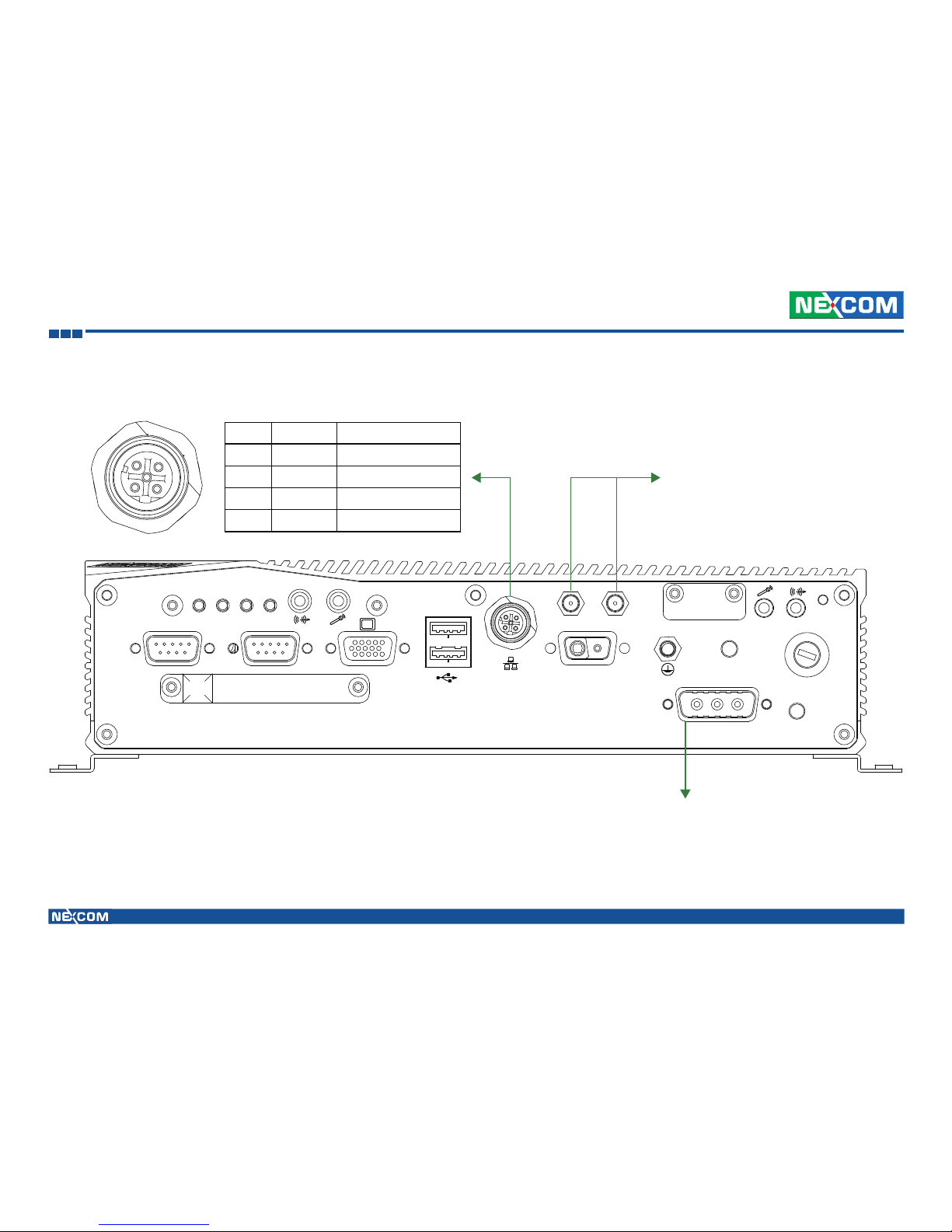

PWR HDD LNK ACT
COM2 COM1
FUSE
24V DC IN
CF card
SIM
+-IG
12V OUT
+
-
DC Input: 24V DC output (range:16.8V~30V)
Pin-out:
A1: + input (24V nominal)
A2: - GND
A3: Ignition Signal Input (24V,nominal;0~10.5V=off,test=on)
1
2
34
Pin No Wire Color Pin Out (10/100 LAN)
1 Yellow Tx+
2 White Rx+
3 Orange Tx-
4 Blue Rx-
1
2
34
2X Antenna

3
Chapter 2: Product Introduction
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Chapter 2: Product Introduction
Overview
Key Features
• Built-in Intel®Atom™ D525 Dual Core 1.8GHz processor
• Fanless and rugged design
• 1x M12 LAN port
• 1x external CF socket and one external SIM card holder
Front View Rear View
• DC power input with 500V isolated protection
• Support ignition signal for delay-time control
• Support WoL & PXE function
• Certified by EN50155

4
Chapter 2: Product Introduction
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
nROK 500 fanless computer with EN50155 certified is specially designed for
transportation computing solution especially in railway related applications.
Based on Intel® Atom™ D525 processor, nROK 500 is designed with isolated
DC input protection to ensure stable operation in harsh environments.
Adopting lock concept, all connectors, for example M12 Ethernet connector,
on nROK 500 are designed against vibration. Equipped with a SIM card
holder, CF socket and mini-PCIe socket for optional 3G wireless module,
nROK 500 allows data to be transmitted over network and stored in a
convenient SSD (Solid-State Drive) or CF card for better vibration and shock
protection. EN50155 certified nROK 500 is a reliable accredited solution for
railway applications.

5
Chapter 2: Product Introduction
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Hardware Specifications
CPU
• Intel®Atom™ D525 Dual Core 1.8GHz
Main Chipset
• Intel®ICH-8M
Memory
• 2GB DDR2 667MHz SODIMM (up to 2GB)
Storage
• CF Card socket: External accessible type, screwed with CF card cover
• 1x 2.5” SSD drive bay
Expansion
• 1x Mini-PCIe socket (for 3.5G module option)
I/O Interface-Front
• 1x VGA Output
- DB15 x 1, support analog monitor with pixel resolution up to 2048 x
1536@75 Hz
• 2x RS-232 COM Port
- DB9 x 2, support 115.2 Kbps baud rate
• 2x USB Port
- 2x USB 2.0 ports, 500mA per port, covered with plastic cover to
against the dust
• 1x Mic-in & 1 x Speaker-out
- Audio controller: High definition audio controller, Realtek: ALC888-GR
- 1x Speaker-out, Dia. 3.5mm phone jack, covered with plastic cover to
against the dust
- 1x Mic-in, Dia. 3.5mm phone jack, covered with plastic cover to
against the dust
• 1x 10/ 100 M12 LAN Port
- LAN Controller: Intel®WG82574L LAN controller x 1
- Support wake on LAN and boot from LAN function
• Wireless communication
- 1x External accessible SIM card socket
- 1x Mic-in for wireless communication use
- 1x Speaker-out for wireless communication use
- 2x Antenna holes (for 3G/ 3.5G mobile wireless module)
• LEDs
- 1x LED for power status
- 1x LED for HDD status
- 1x LED for 10/ 100 LAN link
- 1x LED for 10/ 100 LAN active
• DC Input
- Nominal Voltage: 24V (Range: 16.8V ~ 30V)
- Ignition signal input (24V, nominal; 0~10.5V = off, rest = on)
- 500V Isolated design on DC Input
- 1x External fuse
Operating System
• Windows Embedded Standard 2009
• Windows Embedded Standard 7
System Dimension
• 264mm (W) x 142mm (D) x 65.5mm (H)

6
Chapter 2: Product Introduction
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
Environment
• Operating temperature
• Ambient with air: -25°C to 55°C (EN50155 Class T1)
• Storage temperature: -40°C to 80°C
• Damp heat test: 95% at 55 °C, compliance with EN50155
• Relative humidity: 0% to 90% (non-condensing)
• Vibration (Random): Compliance with EN61373 Category 1, Class B
• Shock: Compliance with EN61373 Category 1, Class B
Ingress Protection
• IP52
Certifications
• CE
• EN50155

7
Chapter 2: Product Introduction
Copyright © 2013 NEXCOM International Co., Ltd. All rights reserved nROK 500 User Manual
PWR HDD LNK ACT
COM2 COM1
FUSE
24V DC IN
CF card
SIM
+-IG
263.50
275.60
287.60
25.00 60.00 94.00
115.00 142.00
65.50 62.60 71.50 68.60
nROK 500
