Nexo P12-TIS User manual
DP3946-02-DI
P12 / P12-TIS
User manual
TABLE OF CONTENTS
Page 2/ 18 P12
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 6
PRESET_______________________________________________________________________________ 7
HF DIRECTIVITY________________________________________________________________________ 9
CROSSOVER FREQUENCY_______________________________________________________________ 9
ACCESSORIES ________________________________________________________________________ 10
ARRAY EQ____________________________________________________________________________ 12
MAINTENANCE________________________________________________________________________ 13
TECHNICAL SPECIFICATIONS ___________________________________________________________ 15
USER NOTES _________________________________________________________________________ 16
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Loudspeaker
P12
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, June 12th, 2019
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director
WARNINGS
P12 Page 3/ 18
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- If cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.
EQUIPMENT
Page 4/ 18 P12
EQUIPMENT
3 locations for rigging accessories, 1 at the back and one per side.
WARNING: The depth of the M10 thread is 22mm (0.84 inch).
On both sides, you’ll find a print for speaker stand.
3 locations for connecting, one at the back and one per side.
EQUIPMENT
P12 Page 5/ 18
Assembly with pole stand or speaker stand
Fix the pole stand on the connector plate (M20) of the Sub.
Mount P12 on the pole stand / speaker stand (diameter of
35mm),
IMPORTANT
Speaker stand must be rated for P12 weight.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.
DESCRIPTION
Page 6/ 18 P12
DESCRIPTION
→The P12 is a compact full-range coaxial speaker
→Versions:
•P12: for Touring Application; black, white
•P12-TIS: for Touring Application, with Grille Installation; black, white
→P12 HF Dispersion:
•60° - 60° with standard horn
•90° 40° with PNT-P12FLG9040
•PS with PNT-P12FLGPS (Asymmetrical Dispersion)
→P12 can be used alone or with L15 subwoofer
→The speaker is equipped with four Speakon NL4 connectors with parallel-wired pins, one on each side and two on the back.
On the back a switch allows to choose between ACTIVE MODE/PASSIVE MODE.
•PASSIVE MODE: 2+/2-. The 1+/1- pins are used by the sub.
•ACTIVE MODE: LF (1+/1-) HF (2+/2-)
→Amplification
•The P12 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker. There are two NEXO processor series supporting the P12
speakers: NXAMP (4 channels) amplified processors and DTD processors (stereo + sub). DTD processors ensure
optimal performances when used with DTDAMP power amplifiers.
•The following table shows the number of P12 speakers and L15 subwoofers usable with each solution.
NXAMP4X1 mk2 (BRIDGED)
NXAMP4X2mk2
NXAMP4X4mk2
P12
Up to 2 per channel
Up to 2 per channel
Up to 4 per channel
L15
1 per channel
Up to 2 per channel
Up to 2 per channel
PRESET
P12 Page 7/ 18
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For the P12, the following setups are available:
→MAIN is the recommended setup for most FOH application, similar to previous firmware setup.
→MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not
compatible with other NEXO cabinets, including subs.
Passive Mode
•P12 MON PA 6060, with high-pass at 60, 85 or 120 Hz.
•P12 MON PA 9040, with high-pass at 60, 85 or 120 Hz.
•P12 MON PA PSguide, with high-pass at 60, 85 or 120 Hz
•P12 MAIN PA 6060, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN PA 9040, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN PA PSguide, with high-pass at 60, 85 or 120 Hz.
Active Mode
WARNING: Do not mix directivity and/or modes
P12 MON HF 6060 with P12 MON LF 6060 =====> OK
P12 MAIN HF 6060 with P12 MON LF 6060 =====> NOT OK
P12 MON HF 9040 with P12 MON LF 6060 =====> NOT OK
•P12 MON HF 6060, with high-pass at 60, 85 or 120 Hz.
•P12 MON HF 9040, with high-pass at 60, 85 or 120 Hz.
•P12 MON HF PSguide, with high-pass at 60, 85 or 120 Hz.
•P12 MON LF, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN HF 6060, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN HF 9040, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN HF PSguide, with high-pass at 60, 85 or 120 Hz.
•P12 MAIN LF, with high-pass at 60, 85 or 120 Hz.
P12
Front of house and stage monitor applications
PRESET
Page 8/ 18 P12
P12 + Sub
Stage monitor applications with Subs (OMNI or CARDIO modes)
Front of house applications with Subs (OMNI or CARDIO modes)
HF DIRECTIVITY
P12 Page 9/ 18
HF DIRECTIVITY
→The P12 speaker can be used in horizontal or vertical position.
→The standard horn is a 60° - ersion by adding a specific flange. Different
mounting possibilities and flange rotation allow to deal with every request.
1
P12 Unlock the 2 quarter-turn screws, Remove the grille.
2
P12-TIS Loosen the 2 screws. Remove the grille.
3
Remove the 4 HF Cap and store them.
4
Place the flange, if necessary, rotate it.
5
Magnets keep the flange in place.
6
Replacing the grille
When replacing the grille, ensure it is well positioned in the top
blade.
CROSSOVER FREQUENCY
→60 Hz: Full range application.
→85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L15.
→120 Hz: Long throw application.
ACCESSORIES
Page 10 / 18 P12
ACCESSORIES
WARNINGS
All P12 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling P12 cabinets than the ones provided by NEXO: NEXO
will decline responsibility over the entire P12 accessory range if any component is purchased from different supplier.
PROHIBITED: P12 below P12 or P12 below L15 without dedicated accessory
PNT-BUMP
LiftBar for P12, use with P12, WMADAPT.
PNT-HBRK12
Horizontal Cradle, use with CLADAPT, PLADAPT.
PNT-PLADAPT
Pole Adapter, use with P12, HBRK12, VBRK12.
PNT-VBRK12
Vertical Cradle, use with CLADAPT, PLADAPT
ACCESSORIES
P12 Page 11 / 18
PNT-WMADAPT
With PNI-WMxxx & PNT-BUMP
With PNT-BUMP
PNI-P12TOL15 / PNI-P12TO2L15
P12 Under 1x L15
P12 under 2x L15 (Omni or Cardio)
PNI-CLADAPT
Ceiling Adapter, use with HBRK12, VBRK12.
PNI-WM330
Wallmount for P12, with WMADAPT
ARRAY EQ
Page 12 / 18 P12
PNT-P12FLGPS
Flange dispersion adapter PS
PNT-P12FLG9040
Flange dispersion adapter 90° - 40°
PNT-2CASE12: FLIGHT CASE FOR 2X P12
PNT-ACC12: FLIGHT CASE FOR P12 ACCESSORIES
PNT-COV12: COVER FOR P12

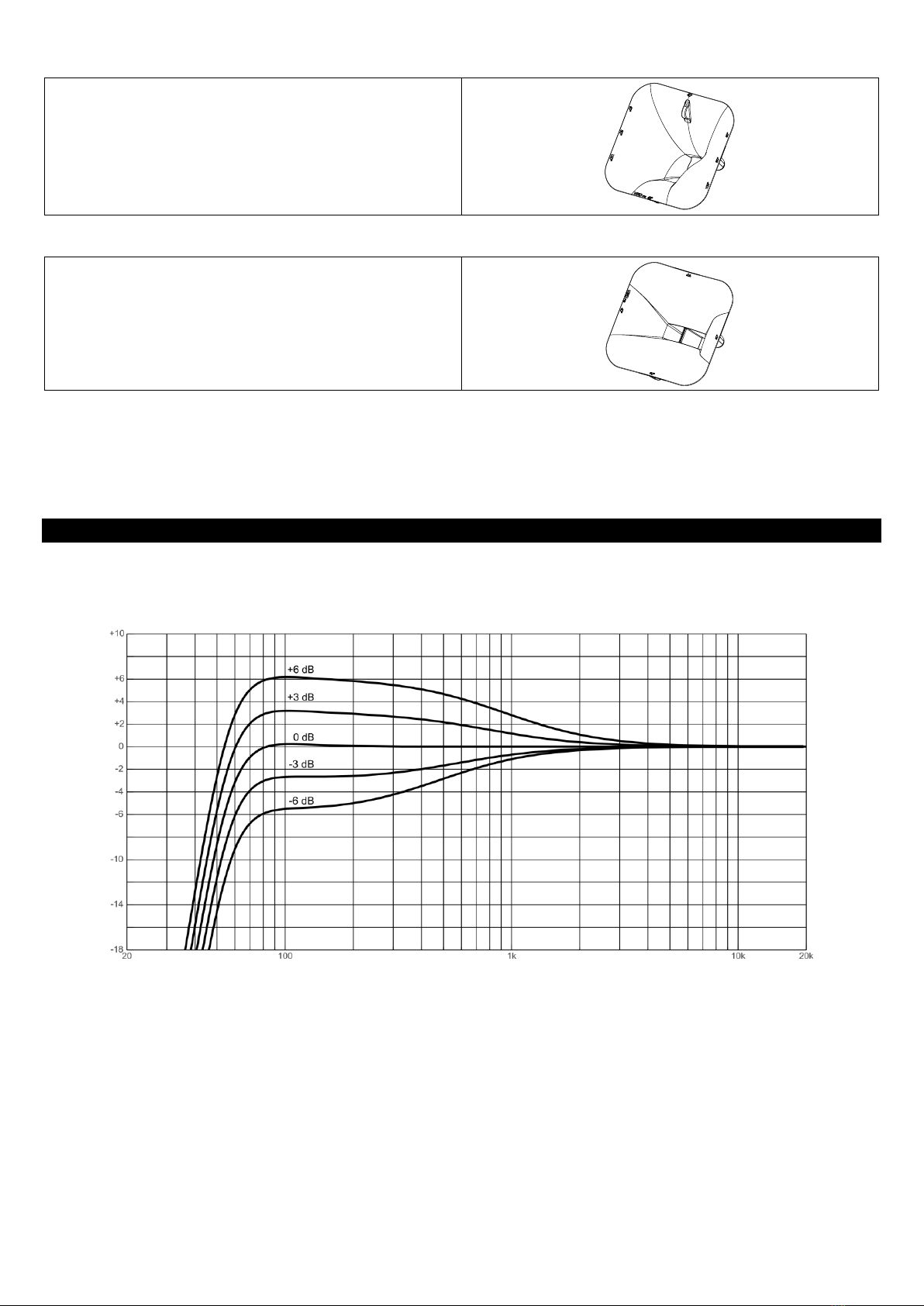

ARRAY EQ
The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):
MAINTENANCE
P12 Page 13 / 18
MAINTENANCE
Driver access
1
P12 Unlock the 2 quarter-turn screws, Remove the grille.
(P12-TIS See above)
2
Remove 8 screws.
Tightening torque: 3.5 Nm (Thread Locker: Loctite 242)
3
Remove the stickers.
4
Remove the 2 screws.
Tightening torque: 2.5 Nm (Thread Locker: Loctite 222)
5
Remove the horn.
6
To access to the HF diaphragm, remove 4 screws.
Tightening torque: 2 Nm
MAINTENANCE
Page 14 / 18 P12
Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
4
05CAPB01
HF cap black
4
05CAPB01-PW
HF cap White
2
1
05P12UA
Complete grille Touring Black (with fasteners)
1
05P12UA-PW
Complete grille Touring White (with fasteners)
1
05P12UA-I
Complete grille Instal Black (with fasteners)
1
05P12UA-IPW
Complete grille Instal White (with fasteners)
3
2
05SPK01
Speakon NL4 complete (with screws)
4
6
05RUBGRD01
Plastic Pad Black
6
05RUBGRD01-PW
Plastic Pad White
5
1
05NHP12R/K
HF diaphragm (with screws)
6
1
05HPC12
P12 driver complete (with screws)
1
05HPC12R/K
(with screws)
NOTE:
Speakers and Grills can be sent back to NEXO for recycling
TECHNICAL SPECIFICATIONS
P12 Page 15 / 18
TECHNICAL SPECIFICATIONS
P12 WITH NEXO ELECTRONICS
Model
P12
Frequency range (±6dB)
60 Hz 20 kHz
Peak SPL Level (1m)
138dB Peak (Passive mode) / 140dB Peak (Active mode)
Operating voltage
55Vrms (150Vpeak)
HF dispersion
(according to horns)
60°x60° - 90°x40° - Asymmetrical Dispersion 60° to 100°x40°
Crossover Frequency
60Hz 85 Hz 120 Hz
Nominal Impedance
SPECIFICATIONS
Model
P12
Components
1 x Coaxial Neodymium LF - - long excursion & -
Material
Custom made bent plywood of Baltic birch and poplar
Finish
Black or white structural paint
Front finish
P12: Magnelis® steel front grille + Back mesh
P12-TIS: Black or white acoustic fabric fitted front Magnelis® steel grille
Fittings
Handle on both sides
Threated inserts at the back and one on each side for connection of mounting
accessories
Stand fitting on both sides
Connector
4x NL4, 4 poles connectors; 2 at the back and one on each side
Weight
20 kg / 44 lb
Dimensions
USER NOTES
Page 16 / 18 P12
USER NOTES
USER NOTES
P12 Page 17 / 18
This manual suits for next models
1
Table of contents
Other Nexo Speakers manuals
