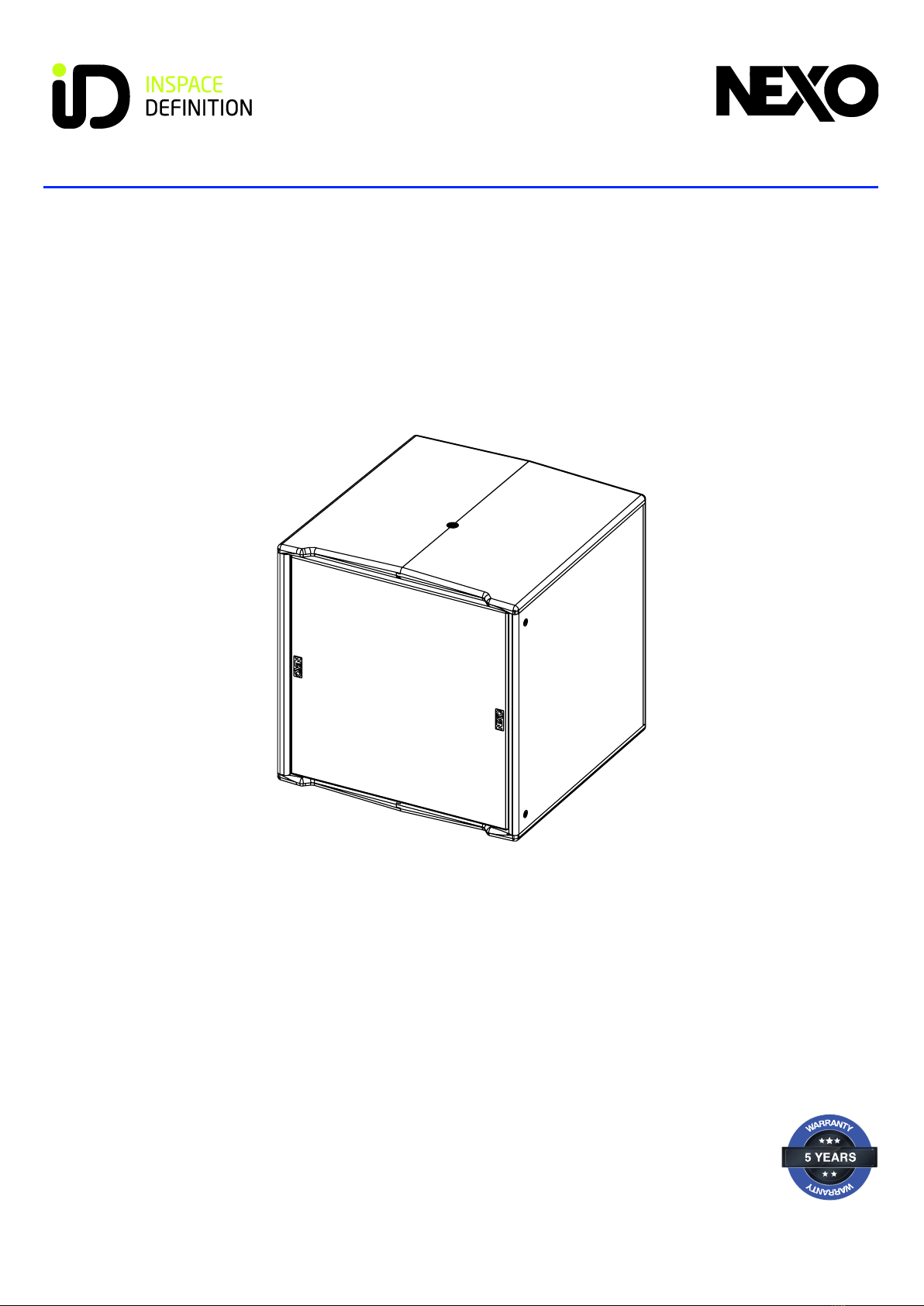

Nexo IDS108 User manual

DP4983-01b-DI
IDS108 / IDS108-I
User manual

TABLE OF CONTENTS
Page 2/ 14 IDS108
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 6
SETTING RANGE _______________________________________________________________________ 7
ACCESSORIES _________________________________________________________________________ 8
ARRAY EQ_____________________________________________________________________________ 9
MAINTENANCE________________________________________________________________________ 10
TECHNICAL SPECIFICATIONS ___________________________________________________________ 12
USER NOTES _________________________________________________________________________ 13
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Loudspeaker
IDS108
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, August 2020
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director

WARNINGS
IDS108 Page 3/ 14
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.

EQUIPMENT
Page 4/ 14 IDS108
EQUIPMENT
3 locations for hanging, 1 on each side (M10) and 1 on the top (M10) to place IDI-14TO108.

EQUIPMENT
IDS108 Page 5/ 14
Assembly on distance rod
Fix the pole stand on the connector plate (M10) of the Sub.
Mount the main cabinet on the pole stand / speaker stand
IMPORTANT
Speaker stand must be rated for the weight of the main cabinet.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.

DESCRIPTION
Page 6/ 14 IDS108
DESCRIPTION
→The IDS108 is a compact and powerful subwoofer, ideal complementing ID14 speaker
→Versions:
•IDS108: Touring version, black, white
•IDS108-I: Installation version, black, white
→The IDS108 subwoofer is equipped with two Speakon NL4 connectors with parallel-wired pins, IDS108 uses the 1+/1- pins,
(2+/2- through).
→The IDS108-I is supplied with a fixed cable (HO7ZZ-F), 2x 0.75mm2 section, length 2m, outside diameter 6.1mm ± 1mm.
(+): Brown / Red; (-): Blue / Black
→Amplification
•The ID108 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker.
•The following table shows the number of ID14 speakers and IDS108 subwoofers usable with each solution.
DTD + DTDAMP4X0.7
DTD + DTDAMP4X1.3
NXAMP4X1mk2
NXAMP4X2mk2
NXAMP4X4mk2
ID14
Up to 4 per channel
Up to 4 per channel
Up to 8 per channel
Up to 8 per channel
Up to 8 per channel
IDS108
Up to 2 per channel
Up to 2 per channel
Up to 3 per channel
Up to 4 per channel
Up to 4 per channel
Recommended


SETTING RANGE
IDS108 Page 7/ 14

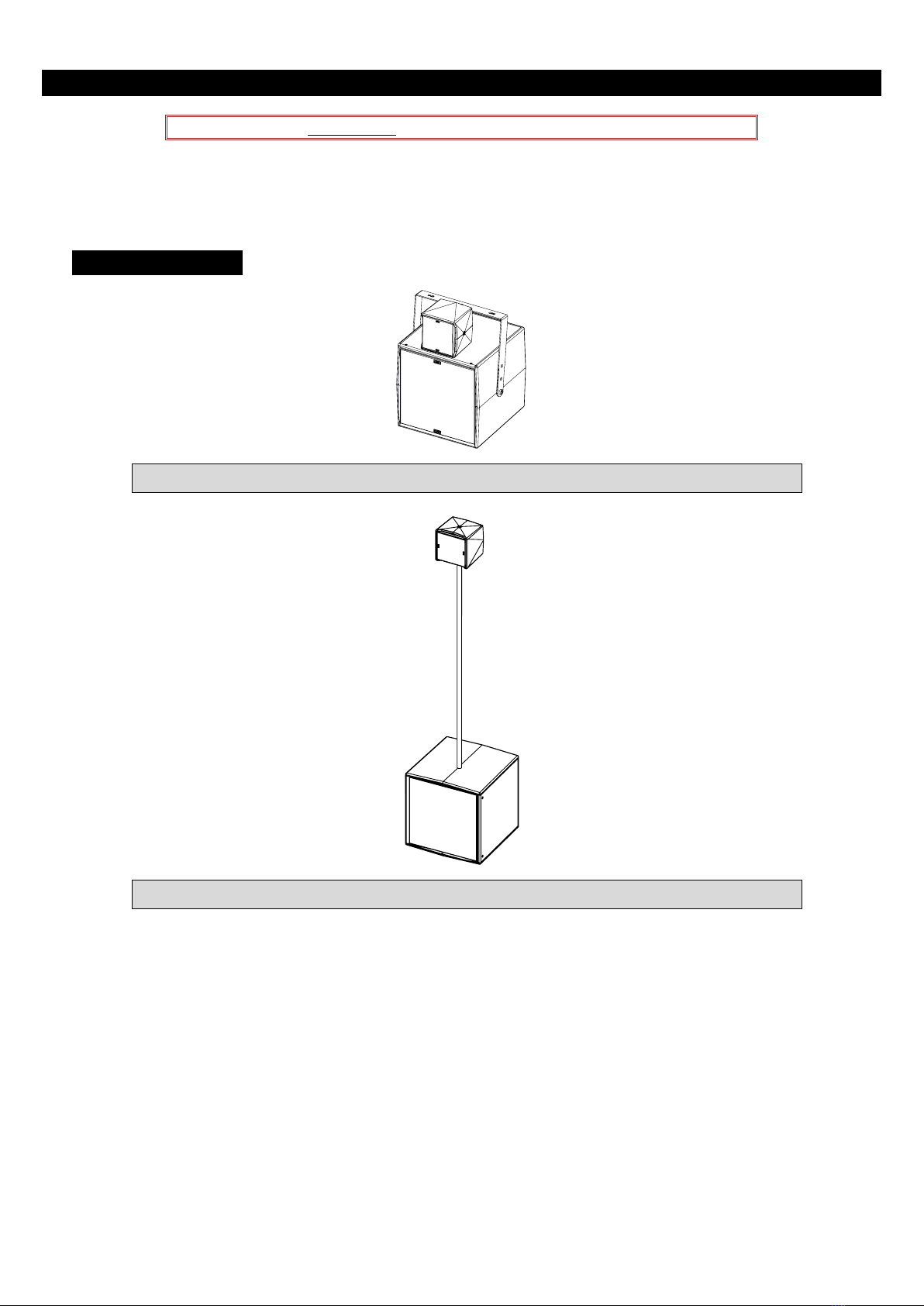

SETTING RANGE
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For a traditional use of the subwoofer, there are two setups for IDS108:
•50 120 Hz
•50 150 Hz
IDS108 + ID14
Front of house and stage monitor applications
Front of house applications with Subs

ACCESSORIES
Page 8/ 14 IDS108
ACCESSORIES
WARNINGS
All IDS108 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling P8 cabinets than the ones provided by NEXO: NEXO
will decline responsibility over the entire P8 accessory range if any component is purchased from different supplier.
PROHIBITED: IDS108 below IDS1088 or ID14 below IDS108 without dedicated accessory
IDT-HBRK108
Bracket for Touring or fixed use.
IDI-14TO108
Adapter for ID14 on IDS108.
IDT-2CASE108
Flight case for 2x IDS108 and 2x HBRK108

ARRAY EQ
IDS108 Page 9/ 14
ARRAY EQ

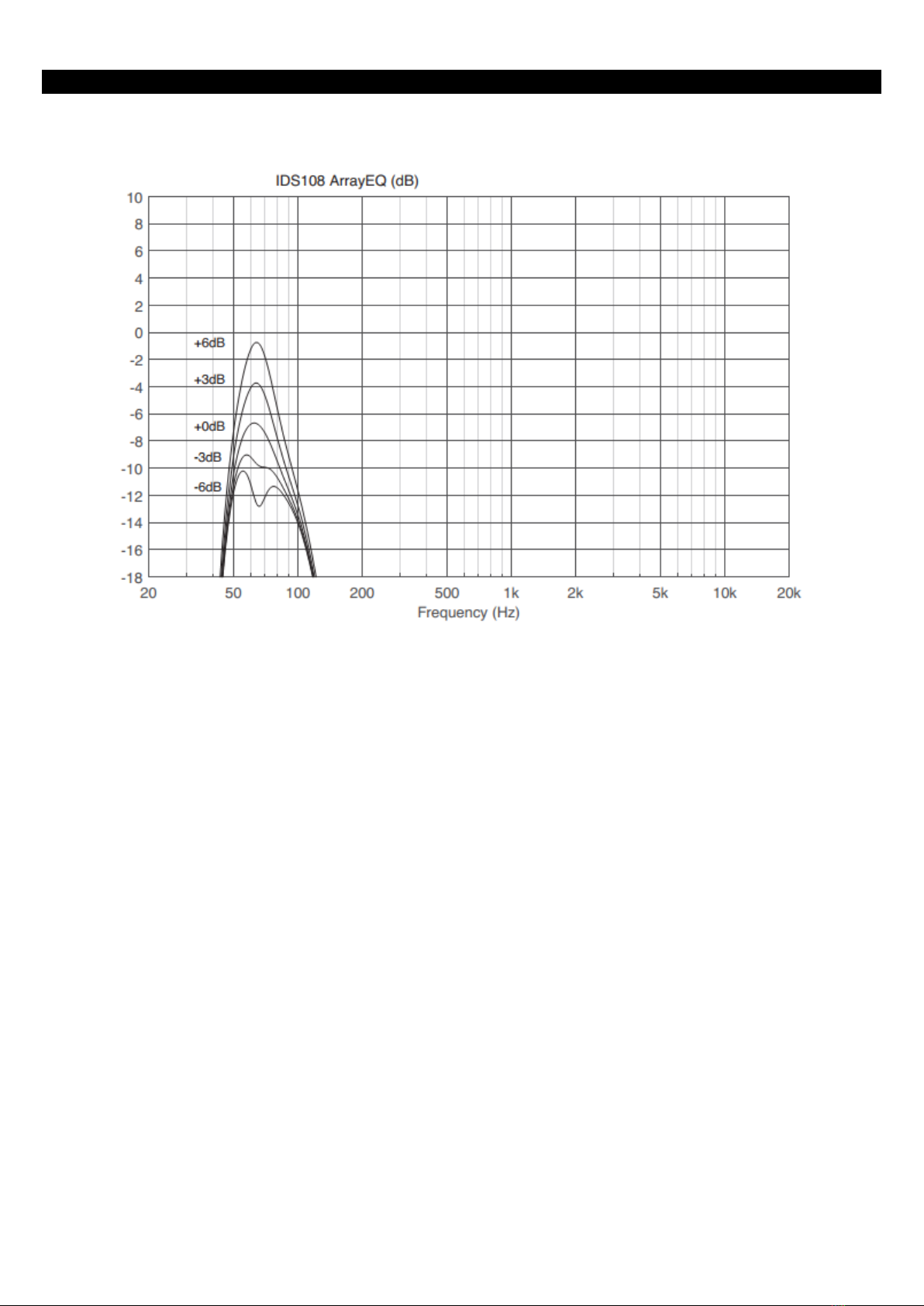

The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):

MAINTENANCE
Page 10 / 14 IDS108
MAINTENANCE
NOTE:
Speakers and Grills can be sent back to NEXO for recycling

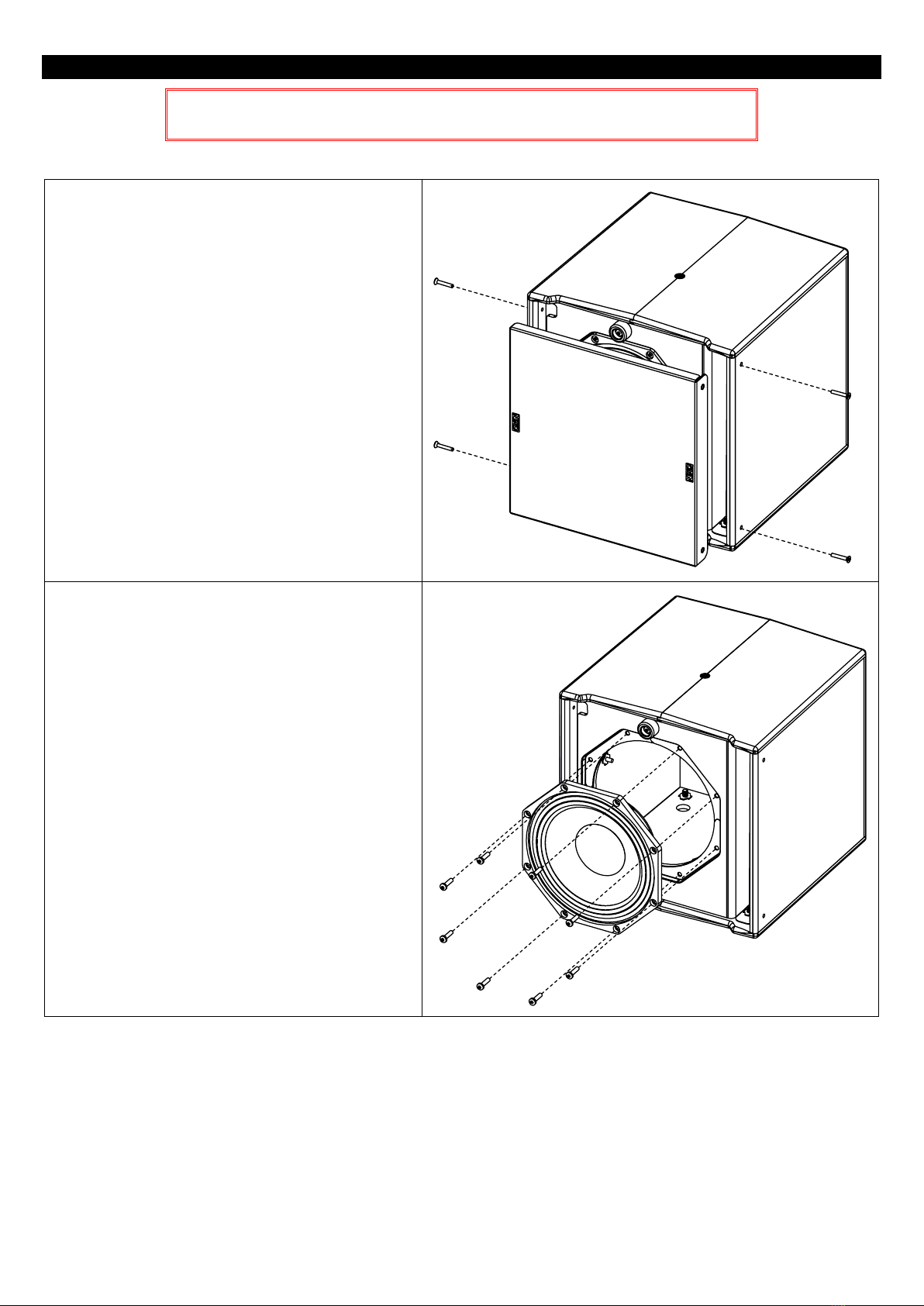

Driver access
Remove the 4 screws.
Remove the 8 screws.

MAINTENANCE
IDS108 Page 11 / 14

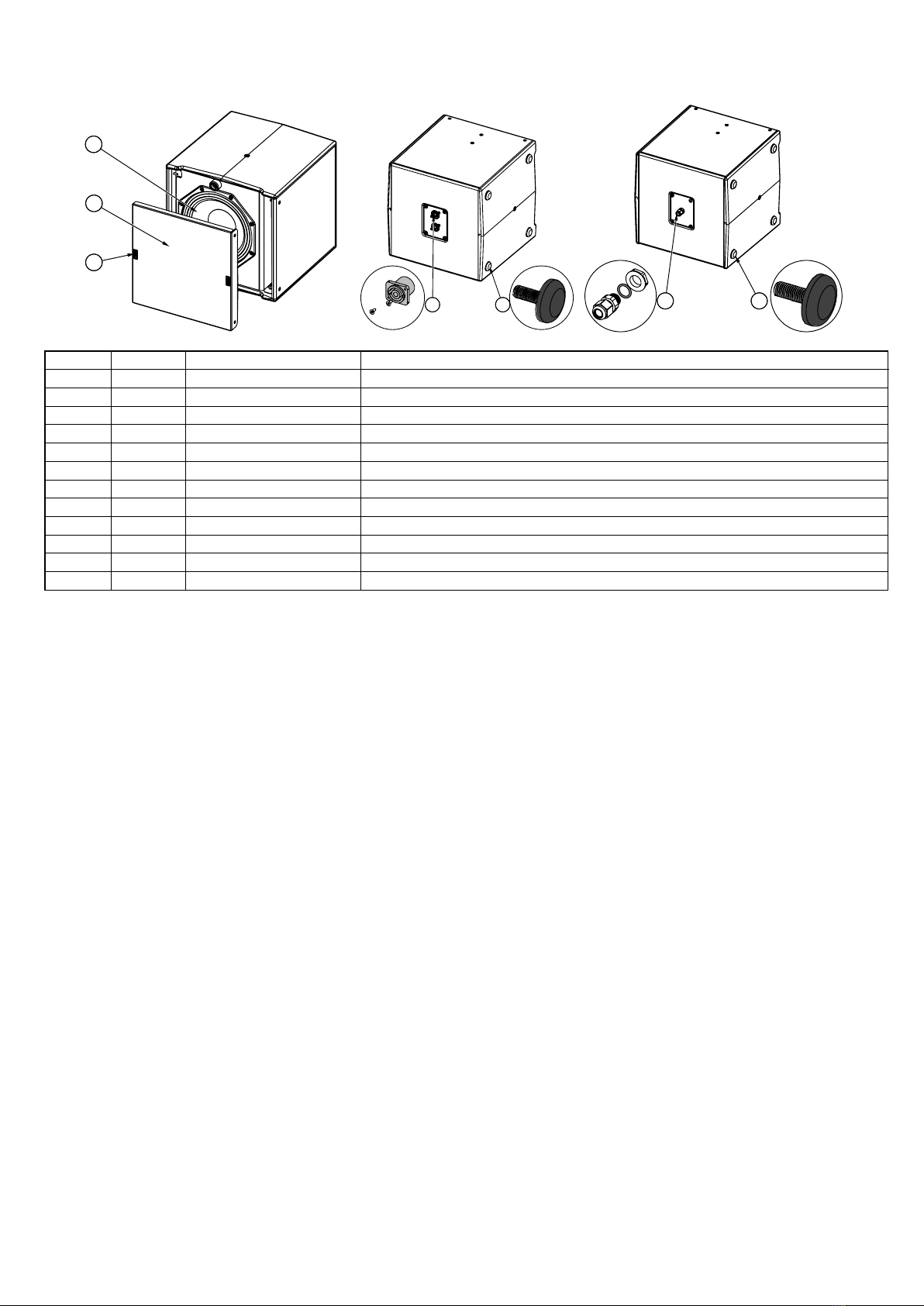

Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
1
05HPB8-ND
HP 8 
05N8ND1.0R/K
Recone Kit HPB8
2
1
05IDS108UA
Complete grille Touring Black
1
05IDS108UA-PW
Complete grille Touring White
1
05IDS108UA-I
Complete grille Installation Black
1
05IDS108UA-IPW
Complete grille Installation White
3
2
05LOGNEXO3
Adhesive Logo
4
2
05CNXNL4MDV-1
SpeakON with screws
5
1
05PREPM12
Cable-gland with O-ring; Black
1
05PREPM12-PW
Cable-gland with O-ring; White
6
4
05RUBGRID01
Plastic foot Black
4
05RUBGRD01-PW
Plastic foot Grey






TECHNICAL SPECIFICATIONS
Page 12 / 14 IDS108
TECHNICAL SPECIFICATIONS
IDS108 WITH NEXO ELECTRONICS
Model
IDS108
Frequency range (±6dB)
50 Hz 150 kHz
Peak SPL Level (1m)
122dB Peak
Operating voltage
30Vrms
Crossover Frequency
50 120 Hz / 50 150 Hz
Nominal Impedance

SPECIFICATIONS
Model
IDS108
Components
LF: 1x8- ; Long excursion- Neodymium driver
Material
Baltic birch plywood
Finish
Black or white structural paint
Front finish
Magnelis® front grille with back mesh (Touring version)
UV resistant acoustic fabric fitted front grille (Install version)
Fittings
2x M10 threated inserts on the sides
2x M6 threated inserts on the top
Connector
2x NL4, 4 poles connectors (Touring version)
1x cable gland with 2 cores cables
Weight
8 kg / 17.6 lb
Dimensions















USER NOTES
IDS108 Page 13 / 14
USER NOTES
