WARNINGS
P10-I Page 3/ 16
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- If the cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.

EQUIPMENT
Page 4/ 16 P10-I
EQUIPMENT

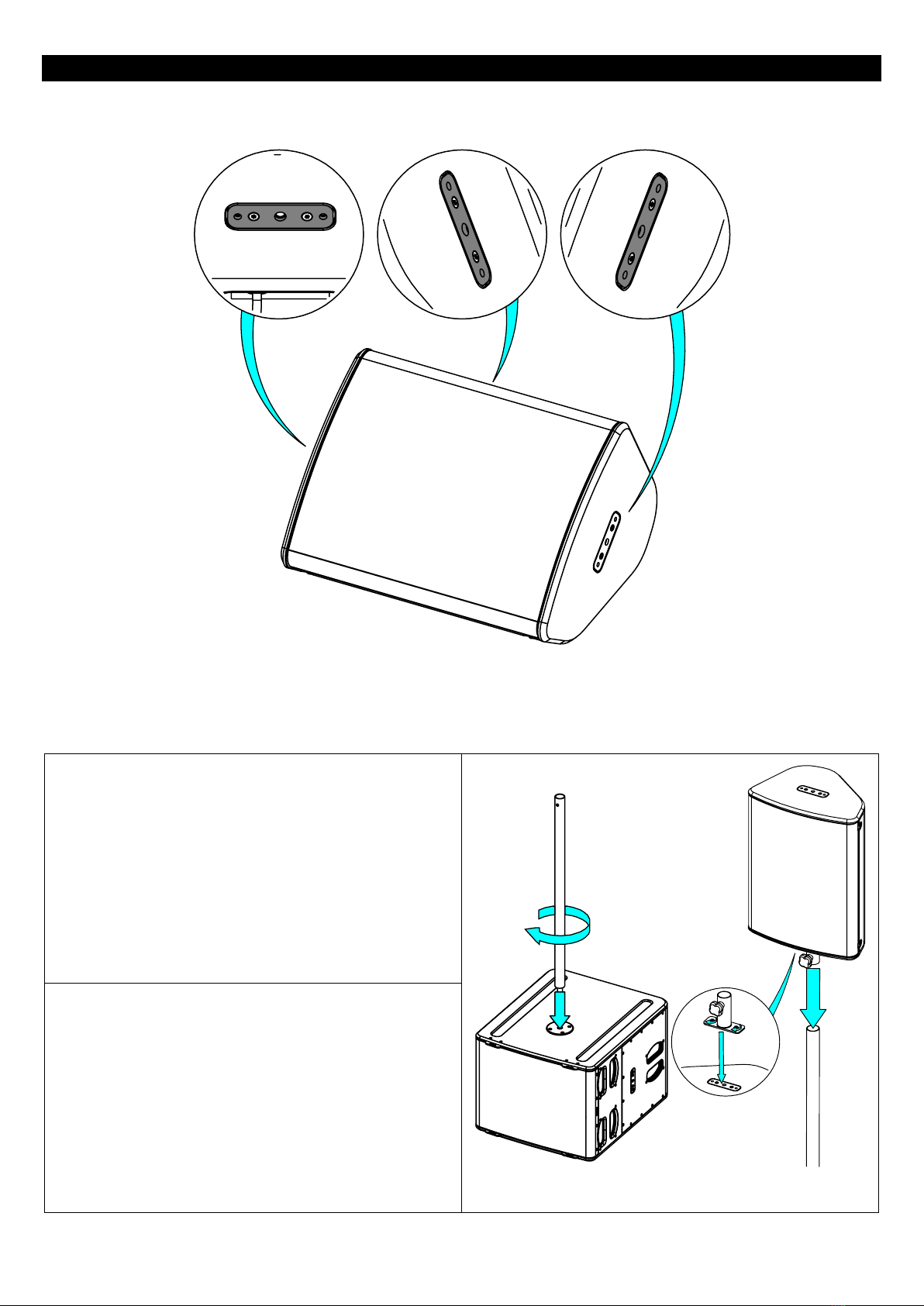

3 locations for hanging, 1 on the back and on both sides.
WARNING: The depth of the M10 thread is 13mm (0.5 inch).
Assembly on distance rod or speaker stand
Place distance rod on the connector plate (M20) of the Sub.
Place PLADAPT on P10-I.
Put the assembly on the distance rod / monitor stand (diameter
of 35mm),
IMPORTANT
Speaker stand must be rated for P10 weight.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.

DESCRIPTION
P10-I Page 5/ 16
DESCRIPTION
→The P10 is a compact full-range coaxial speaker
→P10 HF Dispersion:
•100° 100° with standard horn
•110° 60° with PNT-P10FLG11060
→P10 can be used alone or with L15 subwoofer

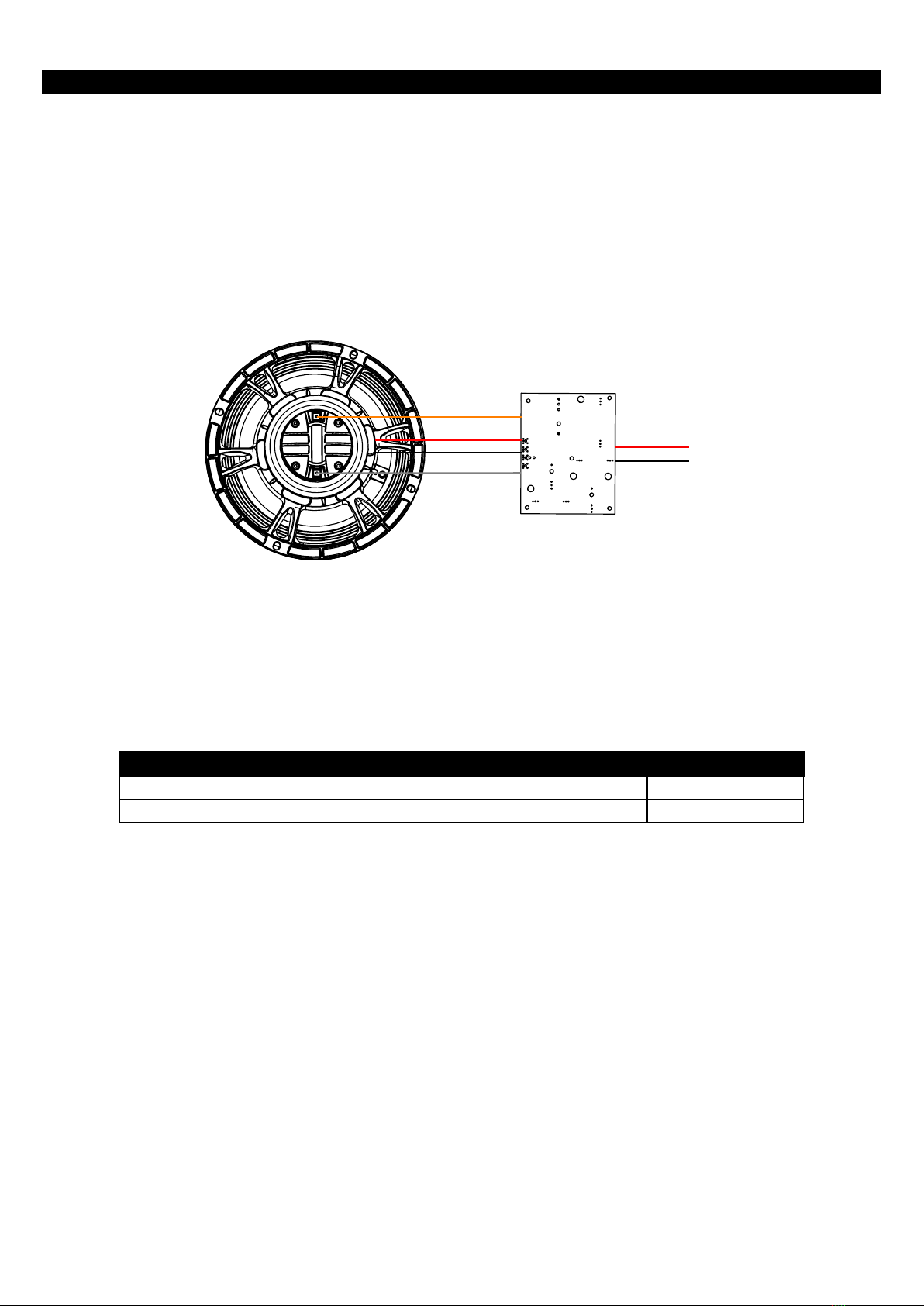

→The speaker is equipped with a cable gland (clamping range, ø5 to 12 mm), supplied with a fixed cable (HO7ZZ-F), 2 x
1.5mm2section, length 4m, outside diameter 8mm ±1mm.
→(+) Red/Brown / (-) Black/Blue
→Amplification
•The P10 speakers must be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeaker. There are two NEXO processor series supporting the P12
speakers: NXAMP (4 channels) amplified processors and DTD processors (stereo + sub). DTD processors ensure
optimal performances when used with DTDAMP power amplifiers.
•The following table shows the number of P10 speakers and L15 subwoofers usable with each solution.
DTD + DTDAMP4X1.3
NXAMP4X1mk2
NXAMP4X2mk2
NXAMP4X4mk2
P10
Up to 2 per channel
1 per channel
Up to 4 per channel
Up to 4 per channel
L15
1 per channel
1 per channel
Up to 2 per channel
Up to 2 per channel

PRESET
Page 6/ 16 P10-I
PRESET
Please consult nexo-sa.com for NEXO TD Controllers firmware information.
For the P10, the following setups are available:
→MAIN is the recommended setup for most FOH application, similar to previous firmware setup.
→MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is not
compatible with other NEXO cabinets, including subs.
Preset
•P10 MON PA 100100, with high-pass at 63, 85 or 120 Hz.
•P10 MON PA 11060, with high-pass at 63, 85 or 120 Hz.
•P10 MAIN PA 100100, with high-pass at 63, 85 or 120 Hz.
•P10 MAIN PA 11060, with high-pass at 63, 85 or 120 Hz.
P10
Front of house and stage monitor applications

PRESET
P10-I Page 7/ 16
P10 + Sub
Stage monitor applications with Subs (OMNI or CARDIO modes)
Front of house applications with Subs (OMNI or CARDIO modes)

HF DIRECTIVITY
Page 8/ 16 P10-I
HF DIRECTIVITY

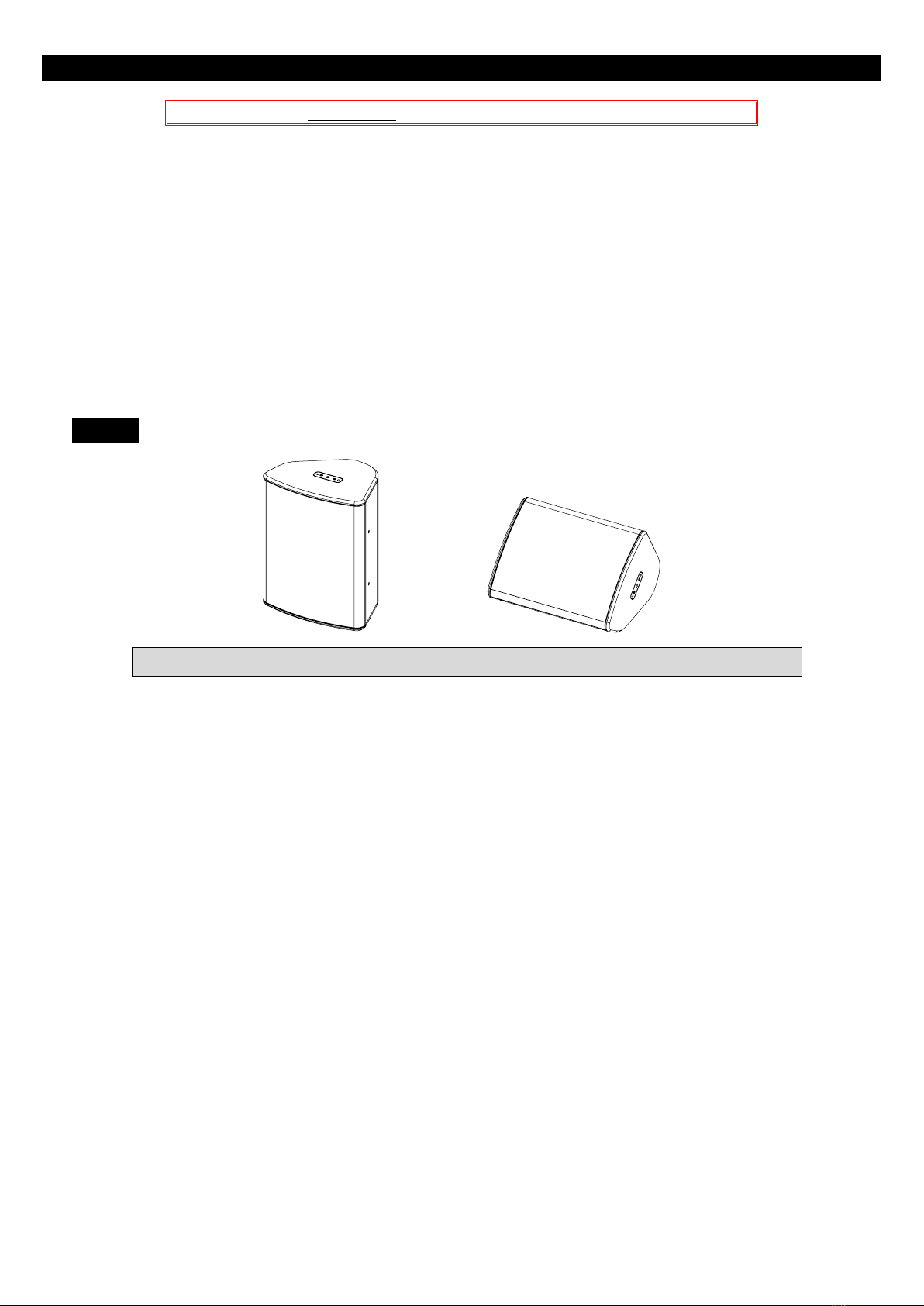

→The P10 speaker can be used in horizontal or vertical position.
→The standard horn is a 100° - 10ersion by changing the horn. Different
mounting possibilities and horn rotation allow to deal with every request.
1
Loosen the 2 screws, Remove the grille.
2
Remove the horn to place PNT-P10FLG11060.
3
Place the horn, if necessary, rotate it.
4
Magnets keep the horn in place.
When replacing the grille, ensure it is well positioned in the top blade before fasten the hooks with the screws.
CROSSOVER FREQUENCY
→63 Hz: Full range application.
→85 Hz: Use as « front fill » on stage, complementing a main system. Use with a NEXO subwoofer, e.g. L15.
→120 Hz: Long throw application.


ACCESSORIES
P10-I Page 9/ 16
ACCESSORIES
WARNINGS
All P10 accessories are specifically rated in agreement with structural computations.
Never use other accessories –including push-pins –when assembling P10 cabinets than the ones provided by NEXO: NEXO
will decline responsibility over the entire P10 accessory range if any component is purchased from different supplier.
PROHIBITED: P10 below P10 or P10 below L15 without dedicated accessory

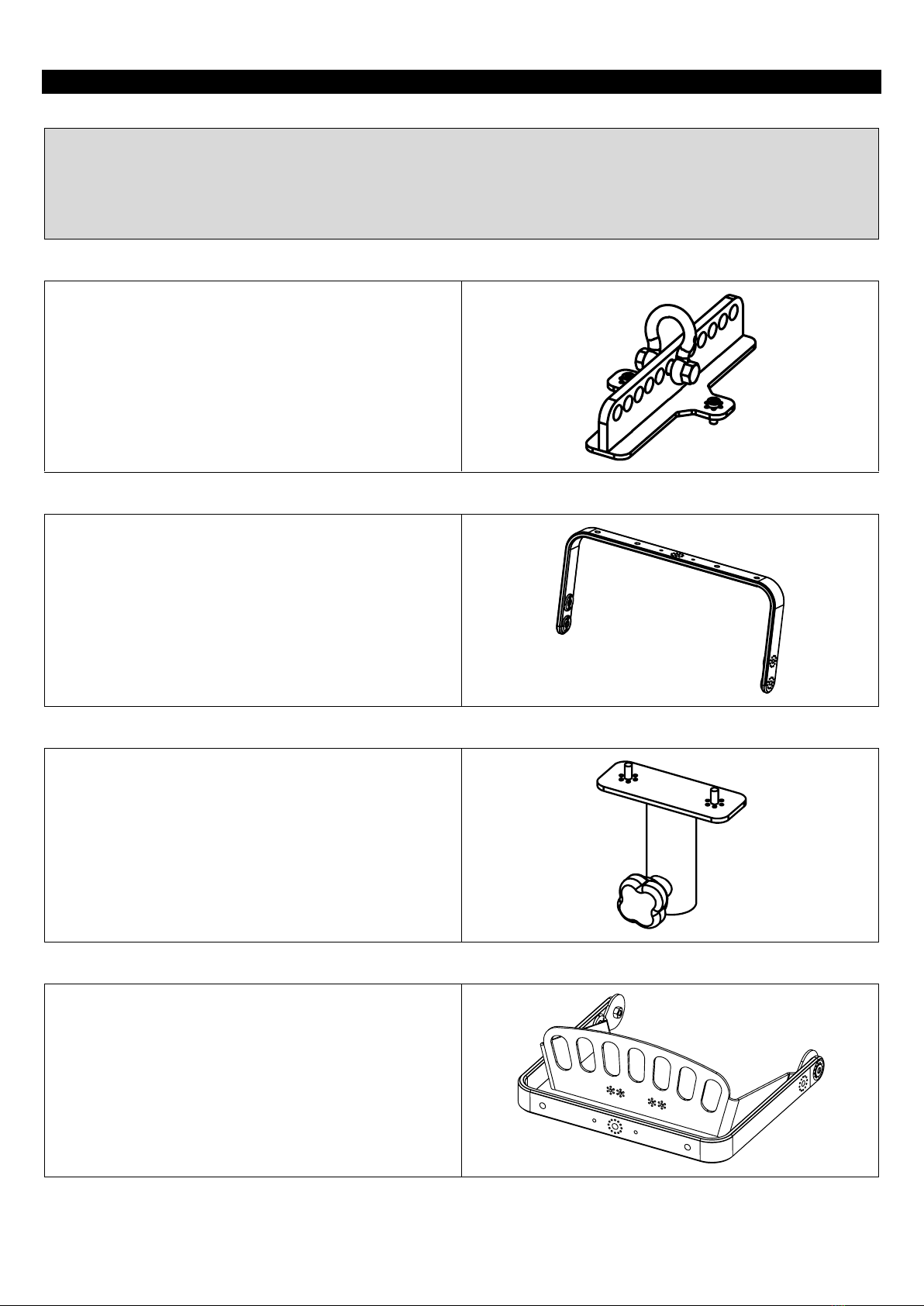

PNT-BUMP
LiftBar for PLUS serie, use with P10, WMADAPT.
PNT-HBRK10
Horizontal Cradle, use with CLADAPT, PLADAPT.
PNT-PLADAPT
Pole Adapter, use with P10, HBRK10, VBRK10.
PNT-VBRK10
Vertical Cradle, use with CLADAPT, PLADAPT

ACCESSORIES
Page 10 / 16 P10-I
PNT-WMADAPT
With PNI-WMxxx & PNT-BUMP
With PNT-BUMP
PNI-CLADAPT
Ceiling Adapter, use with HBRK10, VBRK10.
PNI-WM280
Wallmount for P10, with WMADAPT
PNT-P10FLG11060
Horn dispersion 110° - 60°

ARRAY EQ
P10-I Page 11 / 16
ARRAY EQ

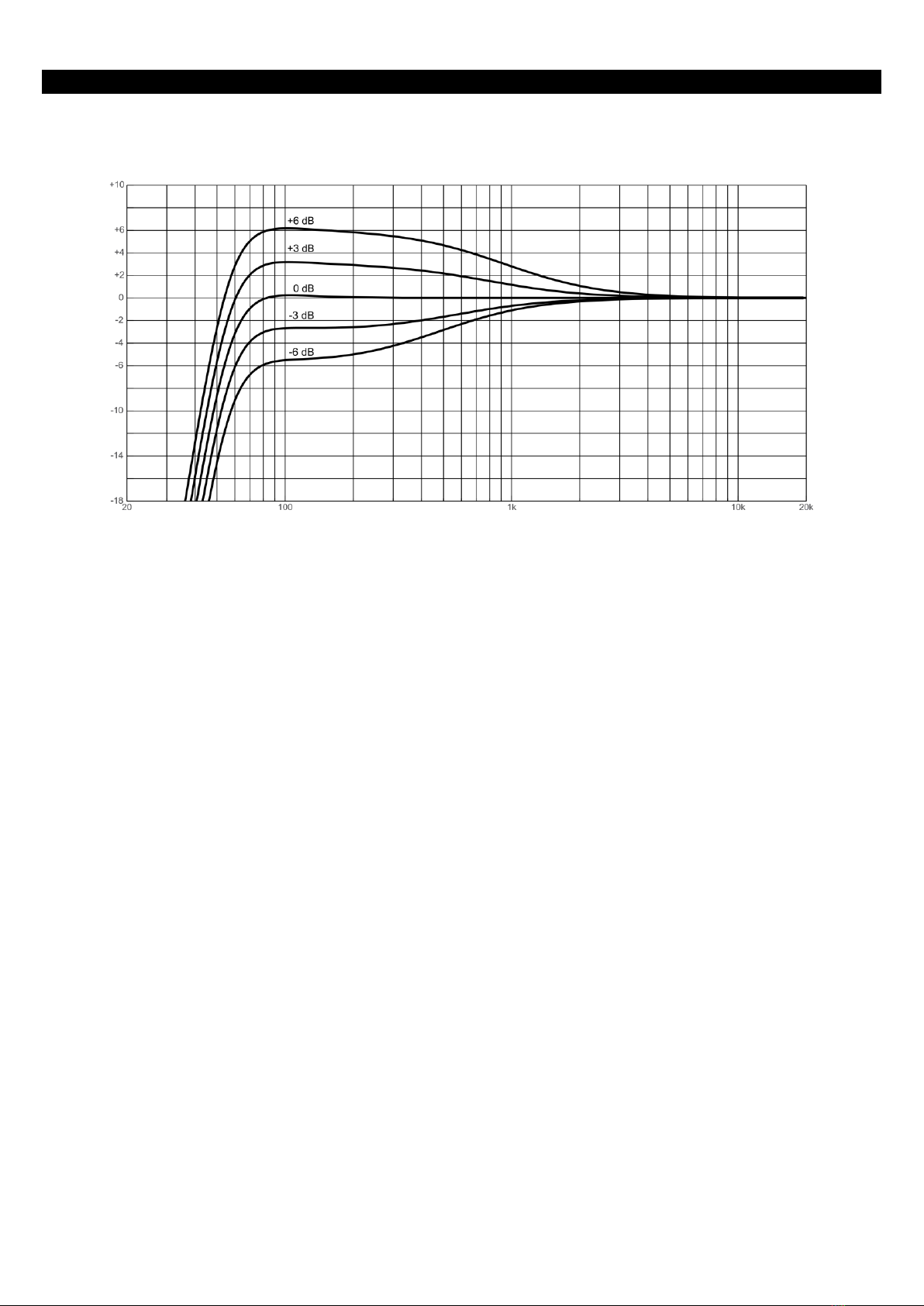

The ArrayEQ allows to adjust the system frequency response in its lower range
(see curves below, with different ArrayEq values):

MAINTENANCE
Page 12 / 16 P10-I
MAINTENANCE
NOTE:
Speakers and Grills can be sent back to NEXO for recycling
Driver access
1
Loosen the 2 screws, Remove the grille.
2
Remove 4 screws.
Tightening torque: 3.5 Nm (Thread Locker: Loctite 242)
3
Remove the horn.
4
To access to the HF diaphragm, remove 4 screws.
Tightening torque: 2 Nm


MAINTENANCE
P10-I Page 13 / 16
Spare parts
MARK
QUANTITY
REFERENCE
DESIGNATION
1
2
05GRIDFIX1
Grid Hook Black
2
05GRIDFIX1-PW
Grid Hook White
2
1
05HPC10
P10 driver complete (with screws)
1
05HPC10R/K
Recone Kit 10(with screws)
3
1
05PAV10-100-100
HORN 100°-100°
1
04PNT-P1011060
HORN 110°-60°
4
1
05NHP10R/K
HF diaphragm (with screws)
5
2
05RUBGRD01
Plastic Pad Black
2
05RUBGRD01-PW
Plastic Pad White
6
1
05P10UA-I
Complete grille Instal Black (with fasteners)
1
05P10UA-IPW
Complete grille Instal White (with fasteners)





TECHNICAL SPECIFICATIONS
Page 14 / 16 P10-I
TECHNICAL SPECIFICATIONS
P10-I WITH NEXO ELECTRONICS
Model
P10-I
Frequency range (±6dB)
63 Hz 20 kHz
Peak SPL Level (1m)
136dB Peak
Operating voltage
50Vrms (180Vpeak)
HF dispersion
(according to horns)
100°x100° (Default) - 110°x60° (Optional)
Crossover Frequency
63Hz 85Hz 120Hz
Nominal Impedance

SPECIFICATIONS
Model
P10-I
Components
LF: 1x10- ; HF: 1x 1.7 - - Neodymium driver
Material
Custom made bent plywood of Baltic birch and Poplar
Finish
Black or white structural paint
Front finish
Black or white acoustic fabric fitted front steel Magnelis® grille
Fittings
Threated inserts on the back and on both sides for connection of mounting
accessories
Connector
Cable gland, supplied with a fixed cable 2 x 1.5mm2section, length 4m.
Weight
15 kg / 33 lb
Dimensions

 


 





