Nexo INSPACE DEFINITION ID24 Series User manual
DP2117 –08a - DI
ID24 ID24-I
User manual
TABLE OF CONTENTS
Page 2/ 16 ID24
TABLE OF CONTENTS
TABLE OF CONTENTS___________________________________________________________________ 2
WARNINGS ____________________________________________________________________________ 3
EQUIPMENT ___________________________________________________________________________ 4
DESCRIPTION__________________________________________________________________________ 6
PRESET_______________________________________________________________________________ 7
HORN ROTATION_______________________________________________________________________ 8
CROSSOVER FREQUENCY_______________________________________________________________ 8
ACCESSORIES _________________________________________________________________________ 9
ARRAY EQ____________________________________________________________________________ 10
MAINTENANCE________________________________________________________________________ 11
TECHNICAL SPECIFICATIONS ___________________________________________________________ 15
USER NOTES _________________________________________________________________________ 16
EU Conformity declaration
We,
NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY –France
Declare under our sole responsibility that the product
Type
Serial number
Loudspeaker
ID24
On the product
Is in conformity with the provisions of the following directive
including all applicable amendments:
2014/35/UE (Low Voltage Directive)
Applied rules and standards:
Plailly, December, 2015
EN 13155, EN 62368
Joseph CARCOPINO, R&D Director
WARNINGS
ID24 Page 3/ 16
WARNINGS
PRECAUTIONS
-
repairable part.
If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.
Do not expose the system directly to the sun or to the rain, do not immerse it into fluids, do not place objects filled with liquid on the
system. If a liquid gets into the system, please have it inspected by a NEXO qualified technician.
The connection should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate: 0°C to +40°C (+32°F to +104); -20°C à +60°C (-4°F to +140°F) for storage.
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site nexo-sa.com to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe
these rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting 4 times the system weight.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of
damaging components.
- Do not place the system in an unstable position: it could fall accidentally.
- cations are adapted and that its height does not exceed
.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH SOUND PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different
from one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of
time. The OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number of Hours
Sound Pressure Level (dBA),
Slow Response
8
90
6
92
4
95
3
97
2
100
1 ½
102
1
105
½
110
¼ or less
115
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENT
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.
EQUIPMENT
Page 4/ 16 ID24
EQUIPMENT
ID24
- Safety slot on the back to secure ID24.
- Kensington Security Slot on the back.
- 5 prints (top, bottom, rear and each sides) for IDT-QRA / IDT-TCBRK
- Rear panel plate for IDT-GSTK
- 1 M10 threaded insert for IDT-TVP (WARNING, for other fasteners, the length of thread must be less than 12mm).
- 2x M10 threaded insert on ID24 with the last 6 digits of the serial number ≥200 000 for IDT-TVP –IDT-HBRK24
(WARNING, for other fasteners, the length of thread must be less than 12mm).
ID24-I
- Safety slot on the back to secure ID24.
- Kensington Security Slot on the back.
- 6 x M6 threaded inserts on the speaker belt for mounting accessories.
- 2x M8 threaded insert on ID24 with the last 6 digits of the serial number ≥200 000 for IDI-HBRK24 (WARNING, for other
fasteners, the length of thread must be less than 12mm).
EQUIPMENT
ID24 Page 5/ 16
Assembly on distance rod or speaker stand
Place distance rod on the connector plate (M20) of the Sub.
Place ID24 on the distance rod / monitor stand
IMPORTANT
Speaker stand must be rated for ID24 weight.
Speaker stand must always be installed on a horizontal surface.
Stand height and footprint must be defined to prevent assembly
from collapsing.
Ensure that audience is not allowed within a safety area which
radius is equal or higher than assembly height.
Test steadiness of the assembly by pushing in all directions.
DESCRIPTION
Page 6/ 16 ID24
DESCRIPTION
- The ID24 is a compact full-range 2--shape arrangement) and a rotatable HF
horn. The horn can be rotated easily, without tools, to choose the HF covering angle.
- ID24 HF Dispersion:
•60° - 60°: ID.24-I6060 / ID.24-I6060PW / ID.24T6060 / ID.24-C
•90° - 40°: ID.24-I9040 / ID.24-I9040PW / ID.24T9040 / ID.24-C
•120° - 60°: ID.24-I12060 / ID.24-I12060PW / ID.24T12060 / ID.24-C
•120° - 40°: ID.24-I12040 / ID.24-I12040PW / ID.24T12040 / ID.24-C
- The ID24 can be used alone or with a IDS110 or IDS210 subwoofer.
•1x ID24 for 1x IDS110
•2x ID24 for 1x IDS210
- Versions:
•ID24t : for « Touring » applications.
•ID24i : for fixed installations.
•ID24c : A la carte.
- Connections:
•ID24t: The speaker is equipped with two Speakon NL4 connectors, with parallel-wired pins the ID24t uses the 2+/2-
pins. The 1+/1- pins are used by the subs.
•ID24i: The speaker is supplied with a fixed cable (HO7ZZ-F), 2x1.5mm2 section, length 1m, outside diameter 9mm
±1mm.
•(+): brown ; (-) : blue
- Amplification:
•The ID24 speakers MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and
excursion/thermal protection for the system loudspeakers. There are two NEXO processor series supporting the ID24
speakers: NXAMP (4-channel) amplified processors and DTD processors DTD (stereo + sub). DTD processors ensure
optimal performances when used with DTDAMP power amplifiers.
•The following table shows the number of ID24 speakers and IDS110 / IDS210 subwoofers usable with each solution.
NXAMP4x1MK2
NXAMP4x2MK2
NXAMP4x4
DTD + DTDAMP 4x0.7
DTD + DTDAMP 4x1.3
ID24
1 to4 per channel
1 to 8 perchannel
1 to 8 perchannel
1 to3 perchannel
1 to4 per channel
IDS110
1 or 2 perchannel
1 or 2 perchannel
1 or 2 perchannel
1 perchannel
1 perchannel
IDS210
1 perchannel
1 perchannel
1 perchannel
Recommended
PRESET
ID24 Page 7/ 16
PRESET
ID24 setups are available for each directivity with four different kind of setups targeted for specific applications. Please take some
time to listen to these different setups and select the one that matches your needs best. Each setup can be used with three different
crossover frequency (total is 4 directivities x 4 kind of setups x 3 crossovers = 48 different setups).
•MAIN is the recommended setup for most FOH application, similar to previous firmware setup.
•FRONT FILL is recommended when used as a front fill in a complement of a larger system.
•MONITOR is recommended for monitor applications. Warning: this setup is a low latency setup and therefore its phase is
not compatible with other Nexo cabinets, including subs.
•LOUNGE is recommended for Club and Lounge applications.
•ID24
Front of house and stage monitor applications
•ID24+ Sub
Front of house applications with Sub
HORN ROTATION
Page 8/ 16 ID24
HORN ROTATION
•The ID24 speaker can be used in horizontal or vertical position.
•The horn can be rotated without tools:
•Different mounting possibilities and horn rotation allow to deal with every request (e.g. with a 120°x40° horn, below).
CROSSOVER FREQUENCY
Please choose the crossover frequency value according to application:
•95Hz Full range application.
•120Hz Use with a NEXO subwoofer, e.g. IDS110 or IDS210.
•150Hz Use as « front fill » on stage, complementing a main system.
ACCESSORIES
ID24 Page 9/ 16
ACCESSORIES
ID24t
IDT-GSTK
IDT-TCBRK2538-V2 / TCBRK3851-V2 / QRA-V2
IDT-TVP
IDT-HBRK24 (only used on ID24 with the last 6 digits of the serial
number ≥200 000).
IDT-POLE32x1400
ID24i
IDI-WB02
IDI-WM01
IDI-HBRK24 (only used on ID24 with the last
6 digits of the serial number ≥ 200 000).
ARRAY EQ
Page 10 / 16 ID24
ARRAY EQ
The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEQ values):
MAINTENANCE
ID24 Page 11 / 16
MAINTENANCE
NOTE:
Speakers and Grills can be sent back to NEXO for recycling
1.1 Grille
ID24t
Removethe4 screws and the 2Fixgrill.
Tightening torque: 1 Nm
Remove the grille from the 4 plastic bolts
(2 onthe top and 2 onthe bottom).
Pullforward.
ID24i
Removethe4 screws and the 2Trifix.
Tightening torque: 1 Nm
Remove the grille from the 4 plastic bolts
(2 onthe top and 2 onthe bottom).
Pullforward.
1.2 Horn (remove the grille before)
Remove the screw and the knob (take care with
the spring). Slide the horn forward (be careful
with the cables).
Tightening torque: 1.7 Nm
Remove the 2 screws to change the horn.
Tightening torque: 1 Nm
Align the marks to reassemble.
MAINTENANCE
Page 12 / 16 ID24

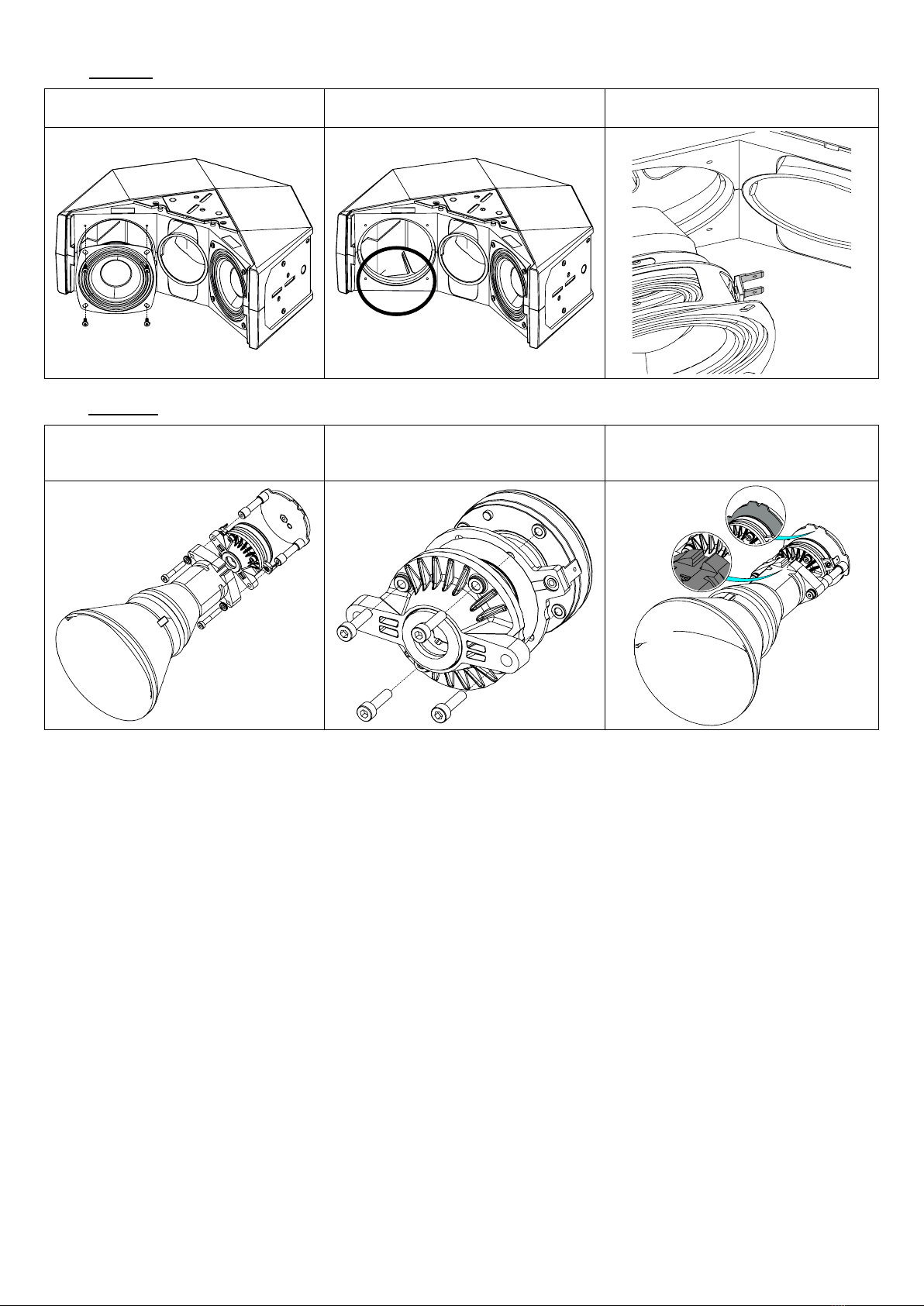

1.3 4” driver
Remove the 4 screws and the driver.
Tightening torque: 1.5 Nm
Remove the gasket.
Reassemble the driver with the plug facing
towards the horn.
1.4 HF Driver
Remove the 2 screws.
Remote the 4 screws for changing the
diaphragm.
Tightening torque: 0.5 Nm
Align the marks to reassemble.
Tightening torque: 1 Nm
MAINTENANCE
ID24 Page 13 / 16

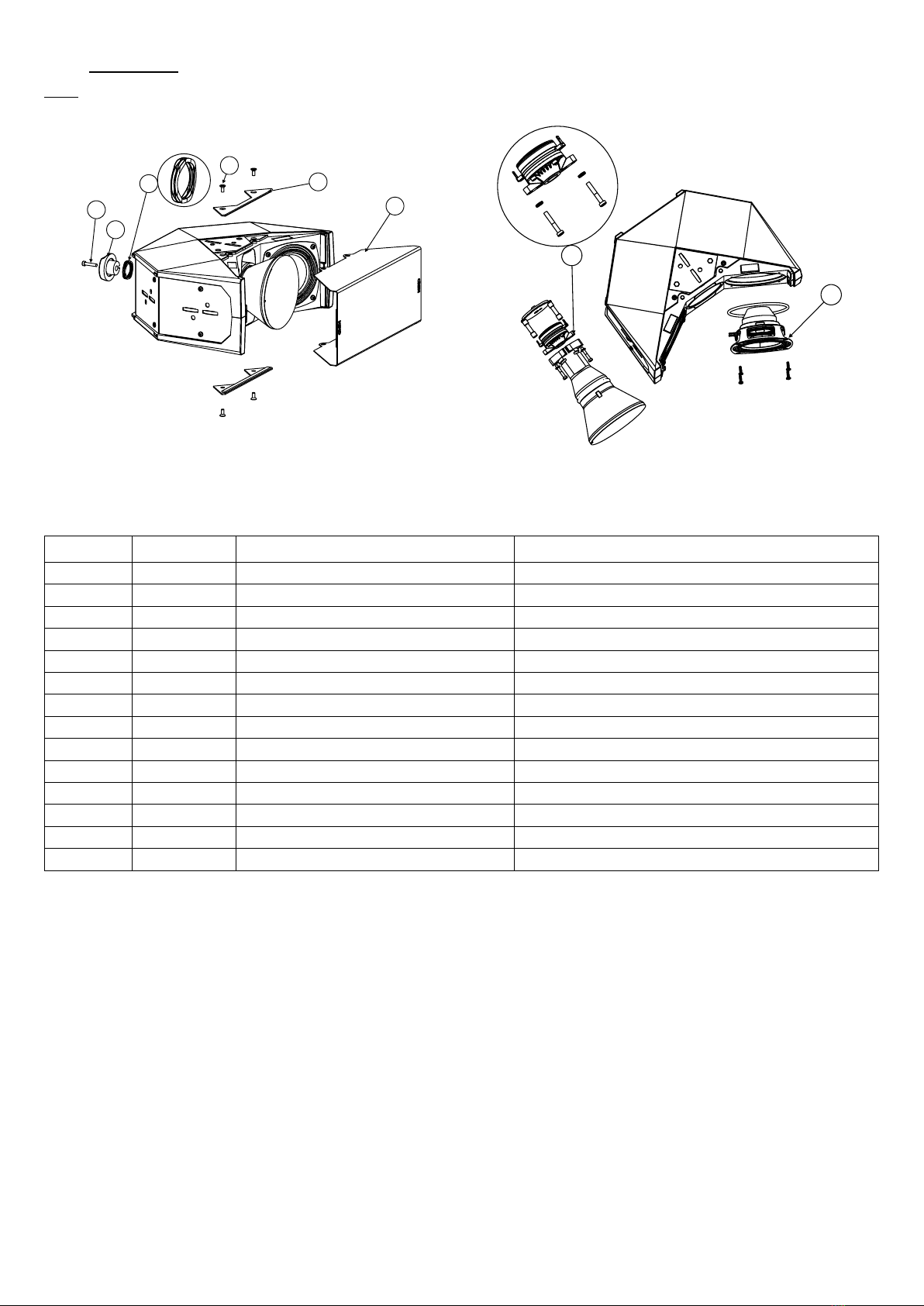

1.5 Spare parts.
ID24t
MARK
QUANTITY
PART REFERENCE
DESIGNATION
1
1
05VXTCX420N
Screw VXTCX M4x20 black (x10)
1
05VXTCX420
Screw VXTCX M4x20 white (x10)
2
1
05KNOB24
Push Button black (with 1 3, wIthout Lexan)
1
05KNOB24W
Push Button white (with 1 3, wIthout Lexan)
3
1
05RESOND2822
Wave Spring
4
4
05VXTCFX410N-EL
Screw VXFX M4x10 black (x10)
4
05VXTCFX410-EL
Screw VXFX M4x10 white (x10)
5
2
05AMIDTRMOT
ID24t Fix grid plate black (with 4)
2
05AMIDTRMOT-PW
ID24t Fix grid plate white (with 4)
6
1
05ID24T-A
ID24t Grid complete black
1
05ID24T-AW
ID24t Grid complete white
7
1
05HPADE5-16
HF Driver DE5-16 (with screws and washers)
1
05NH5-16R/K
DE5-16 Diaphragme (with screws and washers)
8
2
05HPB4-8
MAINTENANCE
Page 14 / 16 ID24
ID24i
REPERE
QUANTITE
PREFERENCE
DESIGNATION
1
1
05VXTCX420N
Screw VXTCX M4x20 black (x10)
1
05VXTCX420
Screw VXTCX M4x20 white (x10)
2
1
05KNOB24
Push Button (with 1 3, wIthout Lexan)
1
05KNOB24W
Push Button white (with 1 3, wIthout Lexan)
3
1
05RESOND2822
Wave Spring
4
4
05VXTCFX410N-EL
Screw VXFX M4x10 black (x10)
4
05VXTCFX410-EL
Screw VXFX M4x10 white (x10)
5
2
05AMIDTRFX
ID24i Fix Grid Plate Black (with screw4 Bk)
2
05AMIDTRFXPW
ID24i Fix Grid Plate White(with screw4 W)
6
1
05ID24I-A
ID24i Black Grille (with Logo)
1
05ID24I-APW
ID24i White Grille (with Logo)
7
1
05HPADE5-16
HF Driver DE5-16 (with screws and washers)
1
05NH5-16R/K
DE5-16 Diaphragme (with screws and washers)
8
2
05HPB4-8
TECHNICAL SPECIFICATIONS
ID24 Page 15 / 16
TECHNICAL SPECIFICATIONS
ID24 WITH NEXO ELECTRONICS
Model
ID24i
ID24t
ID24c
Frequency Range
95Hz 20kHz (+/- 6dB)
Sensitivity (1W / 1m)
100dB SPL Nominal
Operating voltage
35Vrms (180 Vpeak)
Peak SPL Level (1m)
126dB Peak
HF Dispersion (according to horns)
60°x60° - 90°x40° - 120°x40° - 120°x60°
Nominal Impedance
Recommended Amplification per box
200 to 500W
SPECIFICATIONS
Model
ID24i
ID24t
ID24c
Components
Long excursionNeodymium Magnet
Neodymium Magnet
Material
Water-resistant Polyurethane
Finition
White: Structural paint
Black: Raw sandblasted polyurethane
A la carte
Grid
Stainless steel
Acoustical fabric, black or white
Stainless steel
Black paint
A la carte
Rigging
6x 6mm
threaded inserts
2x M8 threaded insert
(last 6 digits of the serial
number ≥200 000)
6x prints for
quick rigging
M10 threaded insert
2x M10 threaded insert
(last 6 digits of the serial
number ≥200 000)
A la carte, among:
6x Inserts 6mm
2x M8 threaded insert (from
serial number 10000)
6x prints for
quick rigging
M10 threaded insert
2x M10 threaded insert
(last 6 digits of the serial
number ≥200 000)
Weight
6 kg 13 lb
Dimensions
Application Notes are available on the NEXO Web site, nexo-sa.com
This manual suits for next models
3
Table of contents
Other Nexo Speakers manuals
