1. NextLight Plus Pro - 320W LED Grow Light
WARNING: Please read and follow the instructions before installing and
using your NextLight Plus Pro.
Table of Contents
The NextLight Plus Pro is a high efciency - bright white LED grow light
designed for supplemental greenhouse use. The thin prole design
minimizes shadows in the greenhouse and can also be used in various indoor
applications.
At a lower operating cost than traditional technology, NextLight Plus Pro
ensures vigorous production throughout the entire year, without bulb changes
and maintenance.
• 2.6 PPF/W (μmol/J)
• DLC Hort Listed
• UL 8800
• IP65 Wet Rated
• 5 Year Full Warranty - All Components -
Down to the Diode
• Passively Cooled
• Designed for supplemental greenhouse and
various indoor applications
• External Dimming (Controller NOT INCLUDED)
• NextLight’s Full Spectrum is recommended
from seed to harvest
• Plug & Play - contains power & dimming cords,
power supply and mounting hardware
Please scan the QR code to access our online product listing for
the NextLight Plus Pro. There you can access more info, digital
versions of this User Manual, Spec Sheets and more!
NextLight Plus Pro
Safety Recommendations and Warnings
Package Contents
Technical Specications
Product Dimensions
Driver Connections
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Product Installation
Use with a Controller
Connecting Multiple Fixtures
Proper Use and General Care
NextLight Support
Five (5) Year Full Manufacturer’s Warranty
1
2
2
3
3
3
4
5
5
6
6
6
........................................ ...........................................
......................................... ..........................
............................... .........................
..................................... ............................................
...................................... ...
.. ........................................
2
2. Safety Recommendations and Warnings 3. Package Contents
Fixture with Attached DC Out Power Cord (2') x1
Driver x1
NextLight Pro Series Power Cord (10') x1
(see available Power Cord Voltage Options)
Fixture Hooks x2
Driver Hooks x2
NextLight Pro Series Control Cable (20') x1
1
2
3
4
5
6
1
2 3 4 5 6
120V 240V 277V 277V
(NEMA 5-15P) (NEMA 6-15P) (TWIST LOCK) (OPEN-END/WHIP)
Power Cord Voltage Options
WARNING: Please read and follow all Safety Recommendations and
Warnings before installing your NextLight Plus Pro.
• Please check and adhere to all local rules, regulations and zoning codes when installing.
• The installer is responsible for correct and safe installation of light system.
• Prevent eye damage by avoiding direct eye contact with LEDs.
• Operate the light system within the temperature range of -4°F and 104°F.
• Mount the light system to something that can support the weight of the Fixture and Driver.
• Always allow for adequate ventilation of light system. Minimum 3" from walls/ceiling.
• Do NOT hang Fixture or Driver by Power Cords.
• Ensure the local cabling can support the voltage and current of the light system.
• Only use Power Cords that were supplied with your light system.
• Do NOT use the Fixture or Driver with damaged Power Cords.
• Do NOT plug in AC power prior to connecting the Fixture to the Driver.
• Do NOT connect or disconnect the Fixture from the Driver under load.
• Do NOT attempt to open, rewire or recongure any components of the light system. It will
void the warranty and could cause serious injury or death.
• Disconnect the light system from power before performing any maintenance or repairs.
• Always disconnect power from the light system before moving or cleaning it.
• Do NOT clean the light system with detergents, abrasives or other aggressive substances.
• Do NOT use the light system near ammable, explosive or reactive substances.
• Do NOT use any Volatile Organic Compounds (VOCs) on or near the light system. VOCs
can cause damage to LEDs (including insect foggers).
• The light system is certied for use in damp locations and is protected against water
projected from a nozzle. Do NOT submerge light system.
• Avoid any contact or force with LED array that may damage LEDs.
3
AC IN
(120-277V)
DC OUT
DIM OUT
DIM IN
6. Driver Connections
AC IN
(120-277V)
DIM IN
DIM OUT
DC OUT
AC IN
(120-277V)
DIM IN
DIM OUT
DC OUT
Driver Dimensions
Fixture Dimensions
5. Product Dimensions4. Technical Specications
14.75"
14.25" Distance
between Hooks 2.25"
9.5"
Height from
Hook to
Driver base
2.25"
5"
28.75"
4.25" 4.25"
20.25" Distance between Hooks
9.5"
Height from
Hook to
Fixture base
2.25"
3.5"
4.5"
3.5"
14.75"
14.25" Distance
between Hooks 2.25"
9.5"
Height from
Hook to
Driver base
2.25"
5"
28.75"
4.25" 4.25"
20.25" Distance between Hooks
9.5"
Height from
Hook to
Fixture base
2.25"
3.5"
4.5"
3.5"
120-277 VACOperating Voltage
50/60 HzOperating Frequency
2.67A @ 120V, 1.34A @ 240V, 1.16A @ 277VInput Current
800PPF
320 Watts (305W @ 277V)Energy Use
2.6PPF/Watt
-4°F to 104°F (-20°C to 40°C)Operating Temperature
1100BTU Output
28.75 x 3.5 x 4.5 / 726.7 x 85.9 x 111.7Fixture Dimensions (in/mm)
14.75 x 5 x 2.25 / 374 x 124.4 x 54.5Driver Dimensions (in/mm)
17 lbs (7.71 kg)Weight
5 Year FullWarranty
Q90 > 50,000 HoursLife Rating
DLC Hort, CE, UL 8800Certifications
IP65, Wet RatedEnvironment
NEXTLIGHT PLUS PRO
SPECIFICATION
4

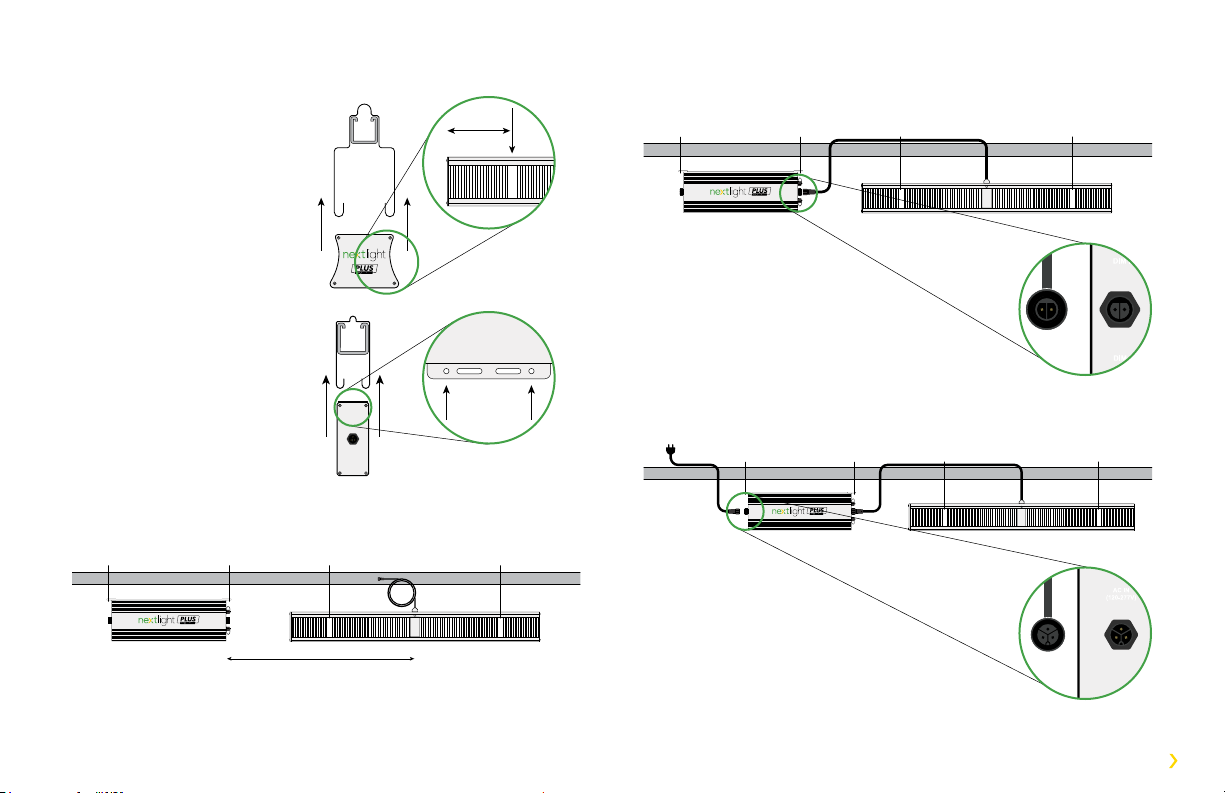

7. Product Installation
• Mount the Fixture in a location based on your lighting needs.
• Mount the Driver adjacent to the Fixture to allow ease of power connection.
• Connect the attached DC Out Power Cord to the DC Out on the Driver.
• Insert DC Out Power Cord into
DC Out connection until an audible
click is heard to ensure proper connection.
• To remove connection, twist the locking ring
counter clockwise and pull.
• Insert Power Cord into AC In
connection until an audible click is
heard to ensure proper connection.
• To remove connection, twist the locking ring
counter clockwise and pull.
• Connect the NextLight Pro Series Power Cord to the AC In on the Driver.
1
3
4
5
2
≤ 24"
≤ 24"
≤ 24"
Driver DC OUT
Driver AC IN
Side View
Side View
• Hang both Driver Hooks over
the support structure.
• Lift Driver into place.
• Insert Hook ends through holes
on Driver Hanging Bracket at
ends of Driver.
Driver Hanging Bracket
Top View
AC–INPUT
(100–277V)
Side View
Heat Sink Fin Gaps
4.25"
• Hang both Fixture Hooks over
the support structure.
• Lift Fixture into place.
• Insert Hook ends in designated
Heat Sink Fin Gaps. Designated
Gaps are approximately 4.25"
from Fixture ends.
5
To enable Dimming Control and Programming on your NextLight Plus Pro, you will
need either a NextLight Control Pro or NextLight Adapt Pro.
A. NextLight Control Pro enables Dimming Control, On/Off Timing, Sunrise/Sunset
Programming and more. The NextLight Control Pro can control up to 500
NextLight Pro Series xtures per controller (250 per Channel).
B. NextLight Adapt Pro enables integration with most third party 0-10V controllers.
This product adapts your third party 0-10V signal to NextLight’s proprietary
signal ow.
8. Use with a Controller 9. Connecting Multiple Fixtures
DC OUT DC OUT DC OUT
• Insert NextLight Pro Series Control Cable into Channel A/B of your NextLight
Control Pro or 485 Output of your NextLight Adapt Pro. Then screw the
locking ring clockwise to ensure proper connection.
• Insert other end of Control Cable into Dim In connection on Driver of rst
Fixture in lighting system chain.
• Connect Control Cable from Dim Out on Driver of rst Fixture to Dim In on
Driver of next Fixture in the lighting system chain.
• Repeat until all Drivers/Fixtures are connected.
Driver DIM IN
and DIM OUT
Side View
NextLight Control Pro Lighting System Chain
NextLight Adapt Pro Lighting System Chain
All NextLight products carry a Five (5) Year Full
Manufacturer’s Warranty from date of purchase. Please
follow all instructions and guidelines to ensure warranty
is not voided. This warranty does not apply to any
product which has been damaged, defaced, subjected to
misuse, abnormal service or handling (including shipping
damage) or which has been altered in design or construction.
To le a Warranty Claim, visit nextlight.com/warranty
This product is for horticulture use only.
Not suitable for room illumination.
12. Five (5) Year Full Manufacturer’s Warranty
6
10. Proper Use and General Care
Legal Disclaimer
NextLight products are to be used for lawful purposes only. It is the responsibility of
you as the purchaser to know and abide by all laws pertaining to the use of NextLight
products. NextLight, LLC will NOT be held liable for any unlawful state or federal
activity arising out of the use of our products. By purchasing a NextLight product, you
are agreeing to these terms and conditions, conrming that you as the purchaser are
attesting to the lawful use of our product and are thereby solely responsible for acting
in conformance with all applicable regulations.
Follow steps below to help your light system retain peak performance.
• Hang Fixture and Driver using supplied Fixture and Driver Hooks.
• Hang Fixture at a minimum of 24" from bottom of Fixture to top of plant
canopy. Less than 24" distance may burn plants.
• Always allow for adequate ventilation of Fixtures and Drivers to ensure
your lighting system can properly cool. Failure to do so may shorten the
lighting system’s lifespan.
• Wipe down outside of Fixture and Driver with a damp rag. Dry thoroughly
with a chamois or moist cellulose sponge to prevent water spots. All cleaning
should be done with the light system unplugged from its power source.
• Avoid touching diodes with your hands, even if powered off.
• Never clean light system with detergents or abrasives.
11. NextLight Support
Please scan the QR code to access our online Support page, which includes the
User Manual, FAQ and additional Warranty Claim information.
nextlight.com/support
