RAB Lighting ALED POST TOP User manual

ALED POST TOP INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
R
FIXTURE ASSEMBLY
1. Feed the (3) Housing wires through one of the three
Rods.
2. Clip the (3) Rods onto the Housing. Be sure the Housing
clips are properly engaged onto the Rods.
3. Feed Fixture Wires through the Tenon Pole Adaptor.
4. Slide Tenon Pole Adaptor on three Rods. Be sure the
notches face the inside of the Tenon Pole Adaptor.
5. Tighten the (3) Set Screws at the Tenon Pole Adaptor to
secure Rods.
6. For 3” tenon use shorter tenon Set Screw 5/8” and for
2-3/8”tenon use ALED sleeve and hardware to secure the
Housing to tenon.
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAINTHESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
Housing
Rods (3)
Tenon Pole
Adaptor
Set Screw
(to secure Rods)
Set Screw 5/8”
(to secure
3”Tenon)
POLE MOUNTING
1. Make the wiring connections with UL approved
connectors knot the wires for strain relief.
2. Tenon Pole Adaptor can t tenon with 3”or 2 /”
diameter. Use ALED Sleeve if necessary for better t.
ALED sleeve

ALED POST TOP INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [e-mail]
R
TROUBLESHOOTING
1. Check that the line voltage at xture is correct. Refer to
wiring directions.
2. Is the xture grounded properly?
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Clean glass lens with non-abrasive glass cleaning
solution.
2. Do not open xture to clean the LED. Do not touch the
LED.
LIGHT
FIXTURE
(+)LINE BLACK
(-)COMMON WHITE
GROUND GROUND
WIRING
Universal voltage driver permits operation at 120V thru
277V, 50 or 60 Hz, except xtures factory ordered with 480V
twistlock photocell (/PCT4). Units ordered with (/480) sux
are 480V.
1. Connect the black xture lead to the (+) LINE supply lead.
2. Connect the white xture lead to the (-) COMMON supply
lead.
3. Connect the GROUND wire from xture to supply ground.
ALED5T IN-0517

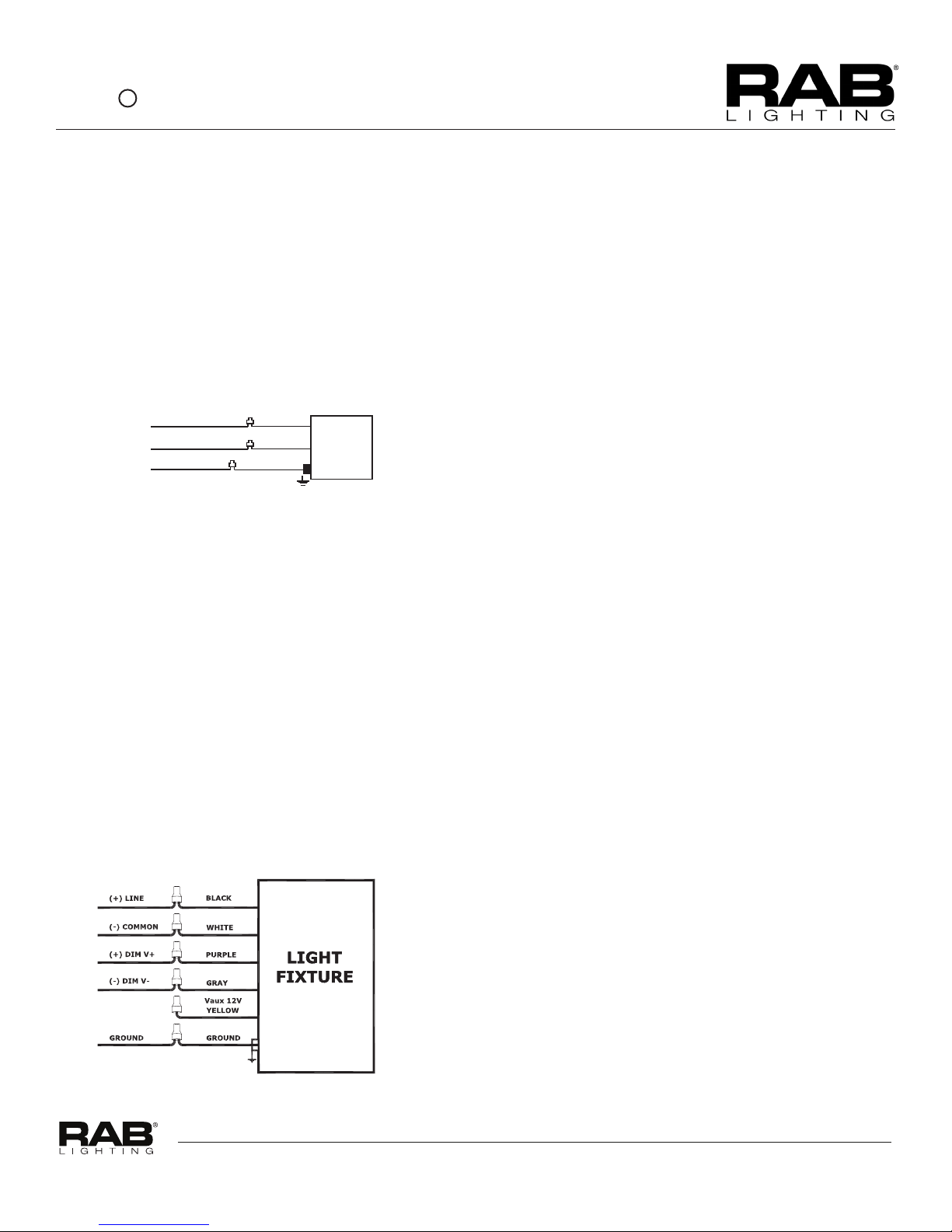

0-10V DIMMABLE WIRING
Universal voltage driver permits operation at 120V thru
277V, 50 or 60 Hz. 0-10V control wires must be rated for 300V
minimum. For 0-10V Dimming, follow the wiring directions as
shown below.
1. Connect the black xture lead to the (+) LINE supply lead.
2. Connect the white xture lead to the (-) COMMON supply
lead.
3. Connect the GROUND wire from xture to supply ground.
Do NOT connect the GROUND of the dimming xture to
the output.
4. Connect the purple xture lead to the (V+) DIM lead.
5. Connect the gray xture lead to the (V-) DIM lead.
6. Cap the yellow xture lead. Do NOT connect.
Easy Answers
rabweb.com
Visit our website for product info
Tech Help Line
Call our experts - 888 722-1000
e-mail
Answered promptly - [e-mail]
Free Lighting Layouts
Answered online or by request
© 2017 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation operation or
maintenance.
