Nexus NX1000 User manual

Installation and Operation Manual
English
Installation and Operation Manual
English
NX1000
- Handheld VHF Radio -

VHF NX1000
1

VHF NX1000
2
IN CASE OF EMERGENCY
If your vessel requires assistance, contact other vessels or the Coast
Guard by sending a distress call on Channel 16.
USE CHANNEL 16!
EMERGENCY CALL PROCEDURE
1. MAYDAY MAYDAY MAYDAY.
2. THIS IS “Name of vessel”, followed by:
3. Your call sign or other indication of the vessel.
4. LOCATED AT “Your location”
5. The nature of the distress and assistance required.
RECOMMENDATION
CLEAN THE TRANSCEIVER THOROUGHLY WITH FRESH WATER
after exposure to saltwater, air dry it before operation. Otherwise, the
transceiver’s keys, switches and controllers may become inoperable
due to salt crystallization.
IMPORTANT
READ ALL INSTRUCTIONS carefully and completely before using the
transceiver.
SAVE THIS INSTRUCTION MANUAL, This manual contains
important operating instructions for the NX1000.
FEATURES
•Waterproof construction
Built to a high standard to withstand the punishing marine
environment, the NX1000 meets the IPX7 standard.
•Dual watch function
A convenient function that allows you to monitor the distress channel
(Ch 16) while receiving a second channel of your choice—dual watch.

VHF NX1000
3
•Large LCD, easy-to-read
With dimensions of 32(H) × 39(W) mm, the NX1000’s function display
is easy to read and shows operating conditions at a glance. Backlight
can be adjusted to suit your preference.
•Easy-to-use
8 large buttons on the front panel provide convenient operation. The
independent volume and channel buttons are located on the front
panel for convenient one-hand operation.
PRECAUTION
•WARNING! NEVER hold the transceiver in such a
way that the antenna is very close to, or touching exposed
parts of the body, especially the face or eyes, while
transmitting. The transceiver will perform best if the
microphone is 5 to 10 cm away from the lips and the
transceiver is vertical.
•AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below –15°C or above +55°C.
•KEEP the transceiver out of the reach of children.
•KEEP the transceiver at least 1 metre away from your
vessel’s magnetic navigation compass.
•BE CAREFUL! The NX1000 is built to be fully
waterproof, corresponding to the IPX7 industry standard, (1
m depth for 30 min.). However, once the transceiver has
been dropped, waterproofing cannot be guaranteed due to
the fact that the transceiver may be cracked, or the
waterproof seal may have been damaged, etc.
•MAKE SURE the flexible antenna and battery pack are
securely attached to the transceiver, and that the antenna
and battery pack are dry before attachment. Exposing the
inside of the transceiver to water may result in serious
damage to the transceiver.

VHF NX1000
4
Contents
RECOMMENDATION................................................................................ 2
IMPORTANT.............................................................................................. 2
FEATURES................................................................................................ 2
PRECAUTION ........................................................................................... 3
1OPERATION RULES................................................................... 5
1.1 Priorities.................................................................................. 5
1.2 Privacy.................................................................................... 5
1.3 Radio licenses ........................................................................ 5
1.3.1 Ship station license ............................................................ 5
1.3.2 Operator’s license .............................................................. 5
2INSTALLATION AND ATTACHMENTS ......................................6
2.1 Installation............................................................................... 6
2.2 Accessories ............................................................................ 6
2.3 Attachments............................................................................ 7
2.3.1 Flexible antenna................................................................. 7
2.3.2 Hand strap.......................................................................... 7
3PANEL DESCRIPTION................................................................ 8
3.1 Front, top and side panels ...................................................... 8
4FUNCTION DISPLAY ................................................................ 10
5BASIC OPERATION.................................................................. 11
5.1 Channel selection ................................................................. 11
5.1.1 Channel 16....................................................................... 11
5.1.2 Specific channels ............................................................. 11

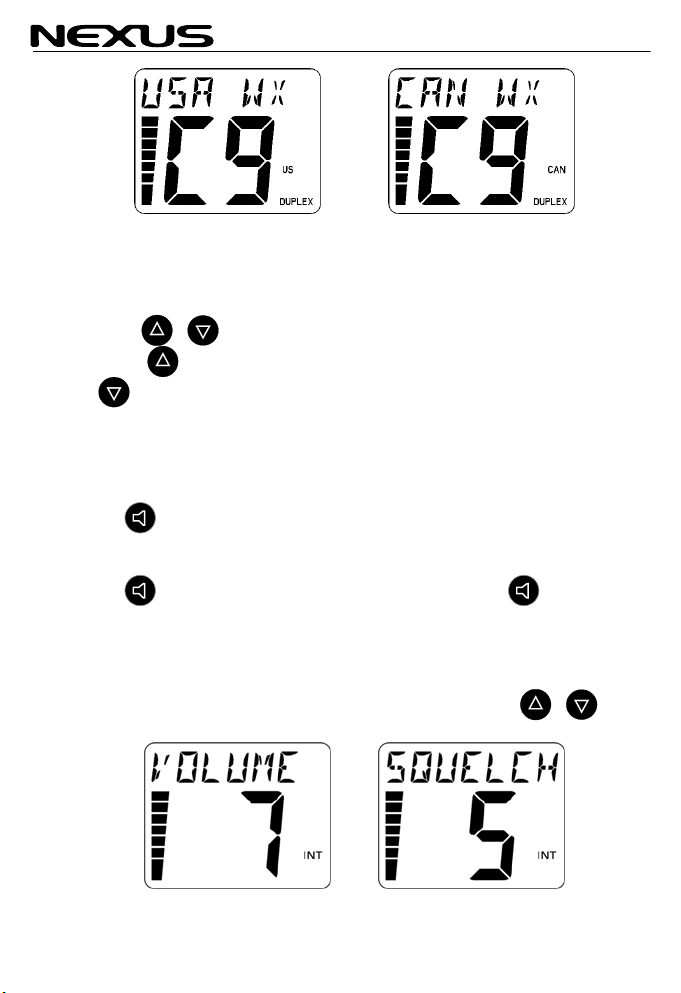

5.1.3 Weather channels for USA and Canada .......................... 11
5.2 Normal channel selection ..................................................... 12
5.3 Adjusting the volume and squelch levels.............................. 12
5.4 Receiving and transmitting ................................................... 13
5.4.1 Receiving ......................................................................... 13

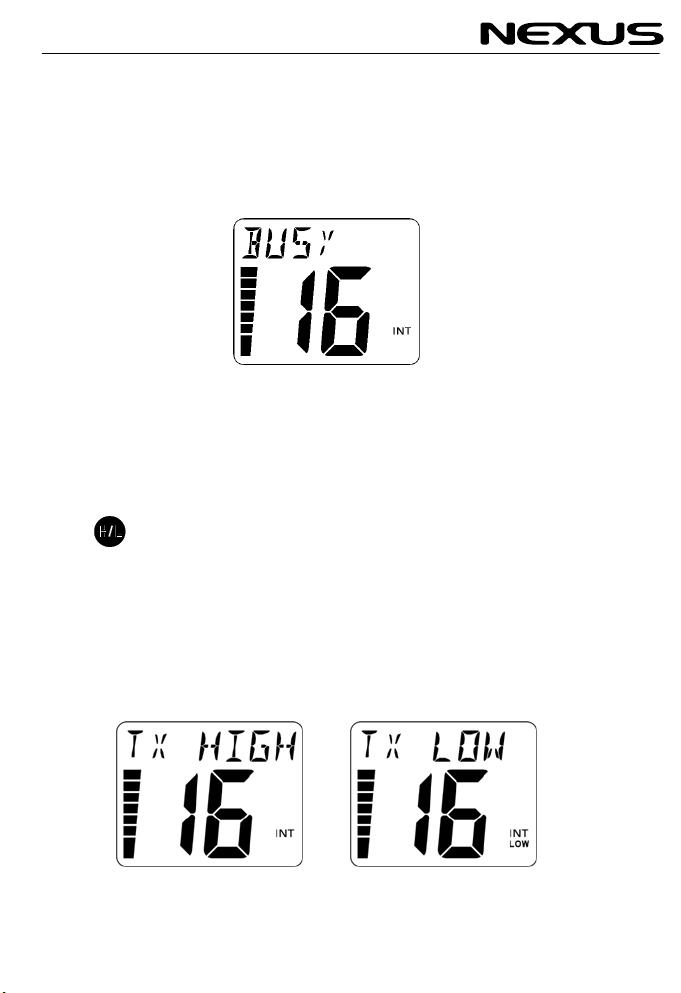

5.4.2 Adjust transmitter power .................................................. 13
5.4.3 Transmitting ..................................................................... 13
6MENU......................................................................................... 14

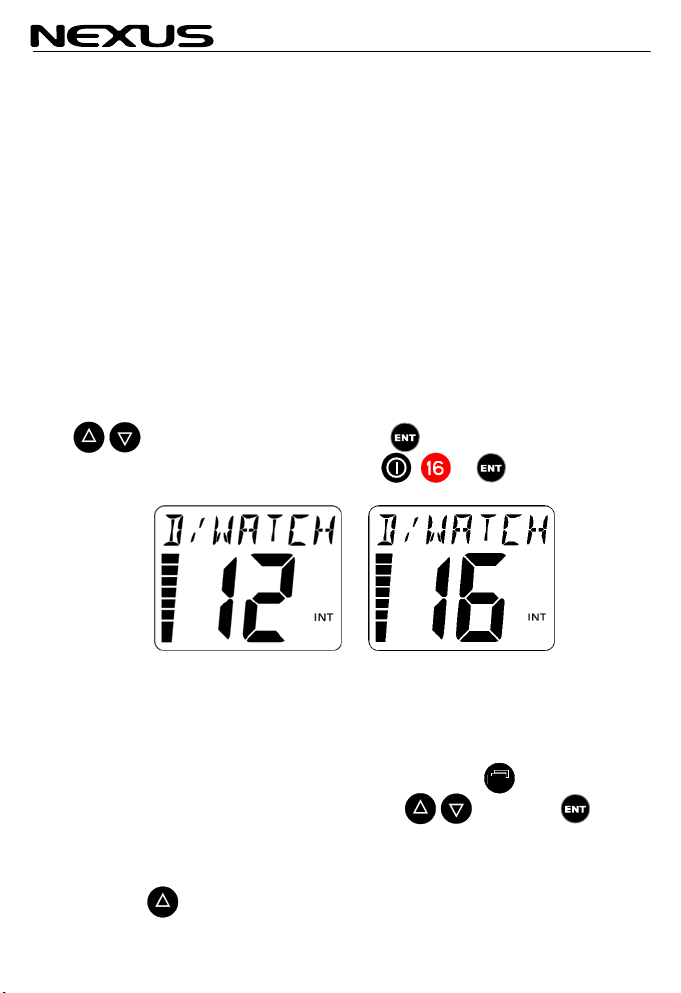

6.1 Dual watch ............................................................................ 14

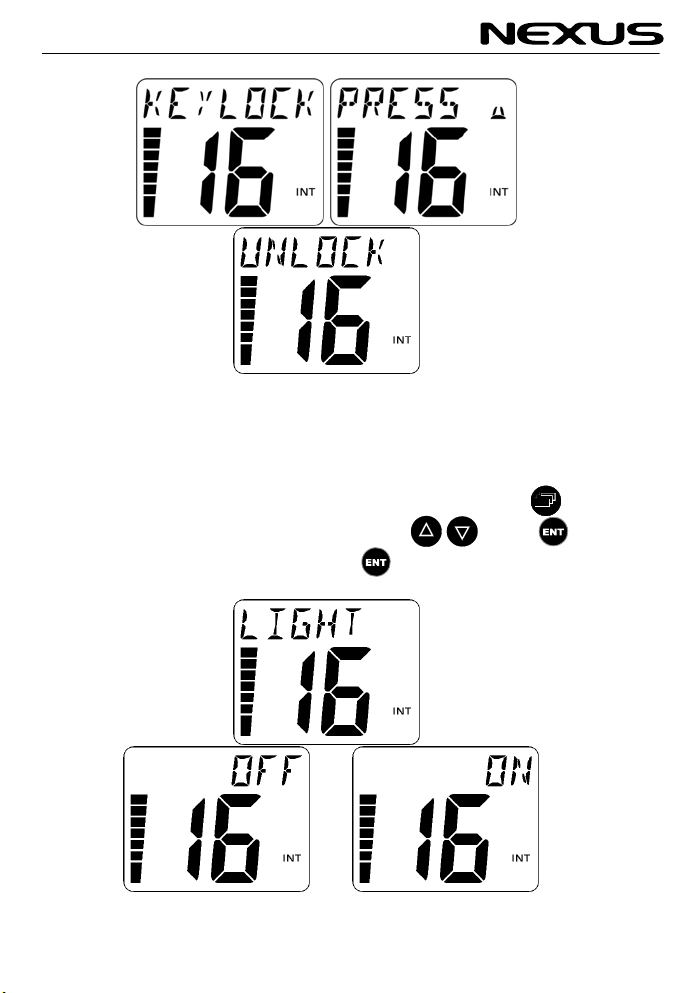

6.2 Automatic KEYLOCK function .............................................. 14
6.3 Automatic backlight function................................................. 15
7TROUBLE SHOOTING.............................................................. 16
8SPECIFICATIONS ..................................................................... 16
8.1 General ................................................................................. 16
8.2 Transmitter............................................................................ 16
8.3 Receiver • ............................................................................. 17

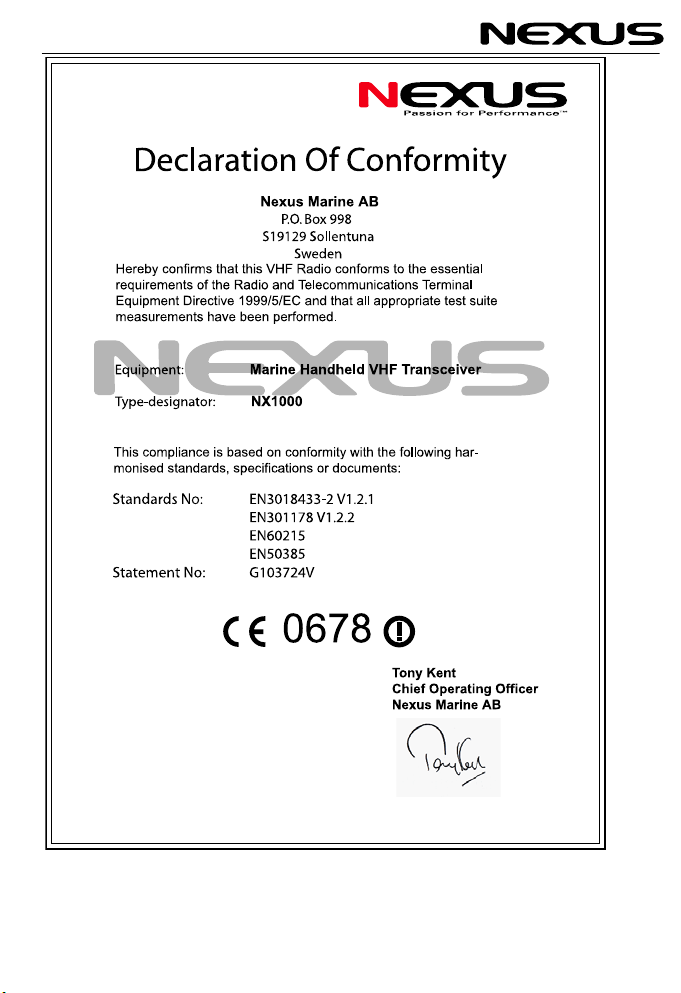

9DECLARATION OF CONFORMITY .......................................... 18
10 WARRANTY............................................................................... 20

VHF NX1000
5
1 OPERATION RULES
1.1 Priorities
• Read all rules and regulations pertaining to priorities and keep an up-
to-date copy handy. Safety and distress calls take priority over all
others.
• You must monitor Channel 16 when you are not operating on
another channel.
• False or fraudulent distress calls are prohibited under law.
1.2 Privacy
• Information overheard but not intended for you cannot lawfully be
used in any way.
• Indecent or profane language is forbidden.
1.3 Radio licenses
1.3.1 Ship station license
When your craft is equipped with a VHF FM transceiver you must be
in possession of a current radio station license before using the
transceiver. It is unlawful to operate a ship station which is not
licensed. Inquire through your dealer or the appropriate government
agency for a Ship-Radiotelephone license. This license includes the
call sign that is your craft’s identification for radio purposes.
1.3.2 Operator’s license
A restricted Radiotelephone Operator Permit is the license most often
held by small vessel radio operators when a radio is not required for
safety purposes. The Restricted Radiotelephone Operator Permit must
be posted near the transceiver or be kept with the operator. Only a
licensed radio operator may operate a transceiver. However, non-
licensed individuals may talk over a transceiver if a licensed operator
starts, supervises, ends the call and makes the necessary log entries.
A current copy of the applicable government rules and regulations is
only required to be on hand for vessels in which a radio telephone is
compulsory. However, even if you are not required to have these on
hand it is your responsibility to be thoroughly acquainted with all
pertinent rules and regulations.

VHF NX1000
6
2 INSTALLATION AND ATTACHMENTS
2.1 Installation

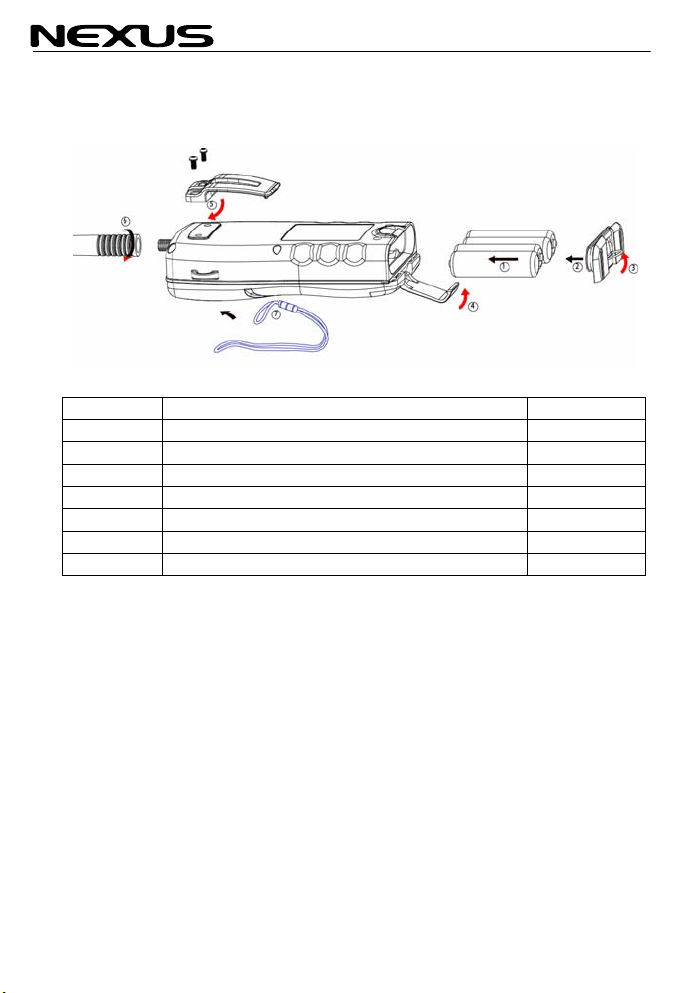

Follow the picture below to install a complete transceiver:
2.2 Accessories
Number Supplied accessories Qty.
(1) 4 pcs. AA Batteries (not supplied) 4
(2) Battery lid 1
(3) Pull ring 1
(4) Battery fixer 1
(5) Belt clip 1
(6) Flexible antenna 1
(7) Hand strap 1

VHF NX1000
7
2.3 Attachments
2.3.1 Flexible antenna
Connect the supplied flexible antenna to the antenna connector.
• NEVER HOLD by the antenna when carrying the transceiver.
• Transmitting without an antenna may damage the transceiver.

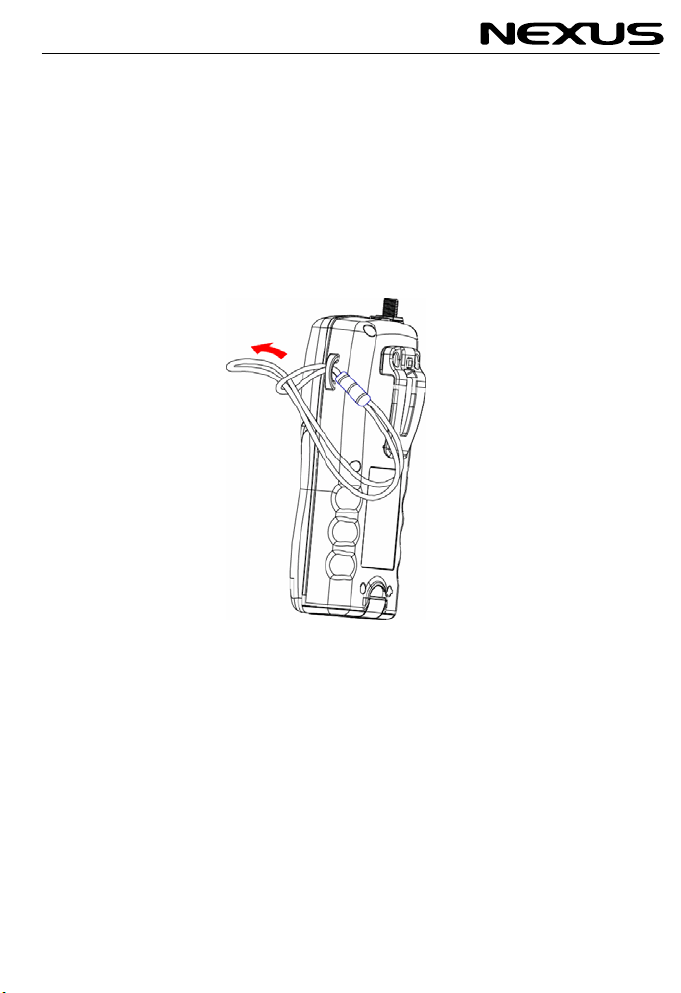

2.3.2 Hand strap
Pass the hand strap through the loop on the side of the transceiver as
illustrated below for easy carrying.

VHF NX1000
8

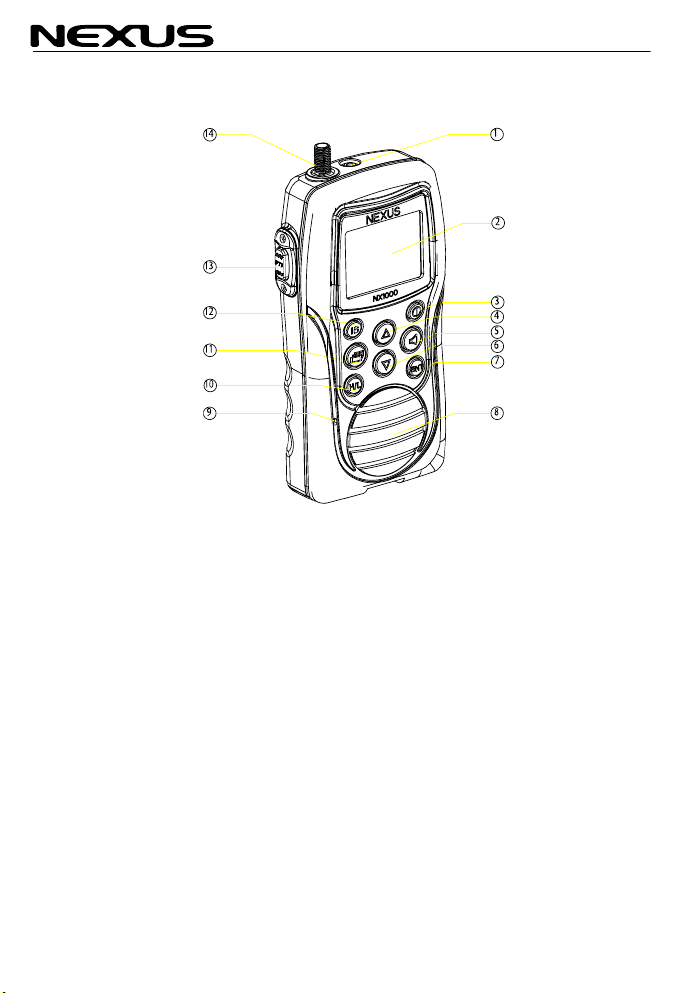

3 PANEL DESCRIPTION
3.1 Front, top and side panels
1. External audio jack
2. LCD display
3. POWER SWITCH/CANCEL button. Press and hold to turn power
ON and OFF. Cancel current task with a short press on this button.
4. UP button select an operation channel.
5. VOLUME and SQUELCH button A short press on this button and
the display will show a number corresponding to the VOLUME level
that was set initially or before by the user. A second press on this
button and the display will show a number corresponding to the
SQUELCH level that was set initially or before by the user. Adjust
VOLUME and SQUELCH levels with the UP or DOWN buttons. After
5 SEC (without action) the display will return to showing the main
screen. Enable the MONITOR function with a long press.
6. DOWN button. Select an operation channel. Select a preference
function in MENU mode.
7. ENT button. • Set the current channel as a tag channel when short
pressed. Clear current tag channel’s tag with a second short press.
Confirm a preference selection in MENU mode with a short press.
8. SPEAKER
9. MICROPHONE
10. H/L button. Used to alternate power output between 2W and 1W
transmission power

VHF NX1000
9
11. .MENU button.Press MENU to access more functions and the
preference settings. Display shows D/WATCH, Use UP or DOWN
button to select a preference function. Press to confirm you
selection. To exit current menu mode, press the CANCEL button or
press CH16 button.
12. CHANNEL 16 button. Press the button for instant access to
CHANNEL 16.This is also the “HOME” button, enabling the user to
return to channel 16 from any other function. In HUNTS channels,
this button enables the return to the main screen but not channel 16
when pressed.
13. PTT button. Push and hold to transmit; release to receive.
14. ANTENNA CONNECTOR Connects the supplied antenna.

VHF NX1000
10

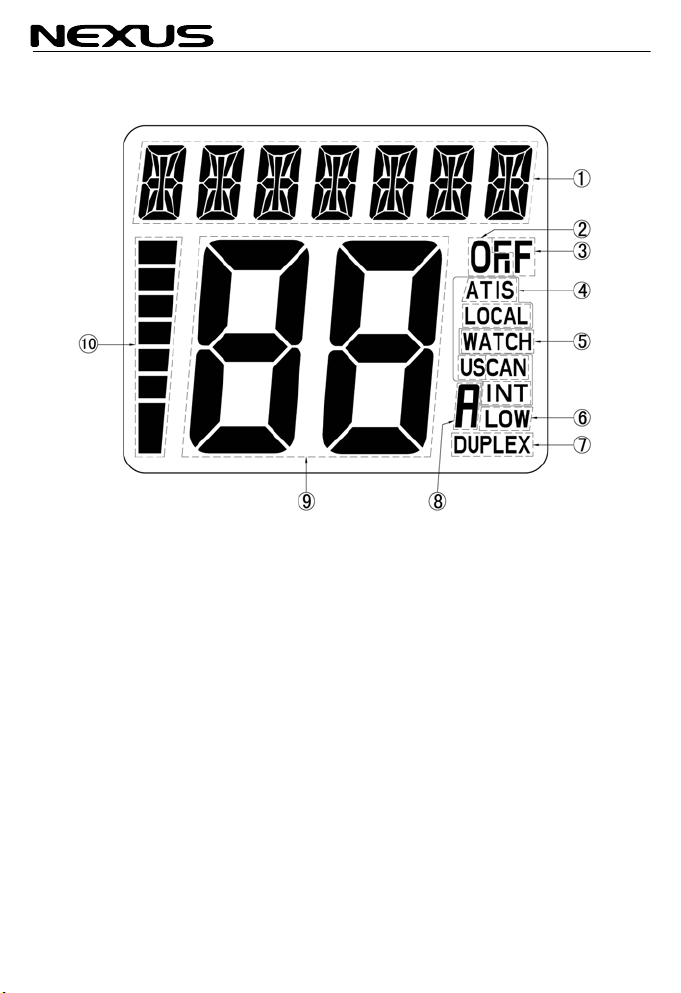

4 FUNCTION DISPLAY
1. TEXT AREA All the menus or settings are displayed when it is under
the menu. Also show the status of this transceiver.
2. Not used.
3. Not used
4. CHANNEL GROUP INDICATOR. “INT” appears when International
is selected; “US” appears when USA is selected; “CAN” appears
when CANADA is selected;
5. DUAL WATCH INDICATOR Appears during dual watch (not used in
this version)
6. LOW POWER INDICATOR. “LOW” appears when 1W transmission
power is selected.
7. DUPLEX INDICATOR. Appears when a duplex channel is selected.
8. Indication of “A” channels.
9. CHANNEL NUMBER READOUT. Indicates the selected operating
channel number.
10. BATTERY INDICATOR.Indicates remaining battery power.

VHF NX1000
11
5 BASIC OPERATION
5.1 Channel selection
5.1.1 Channel 16
Channel 16 (the distress and hailing channel) is used for establishing
initial contact with other stations and for emergency communications.
Channel 16 is automatically monitored during both dual-watch.

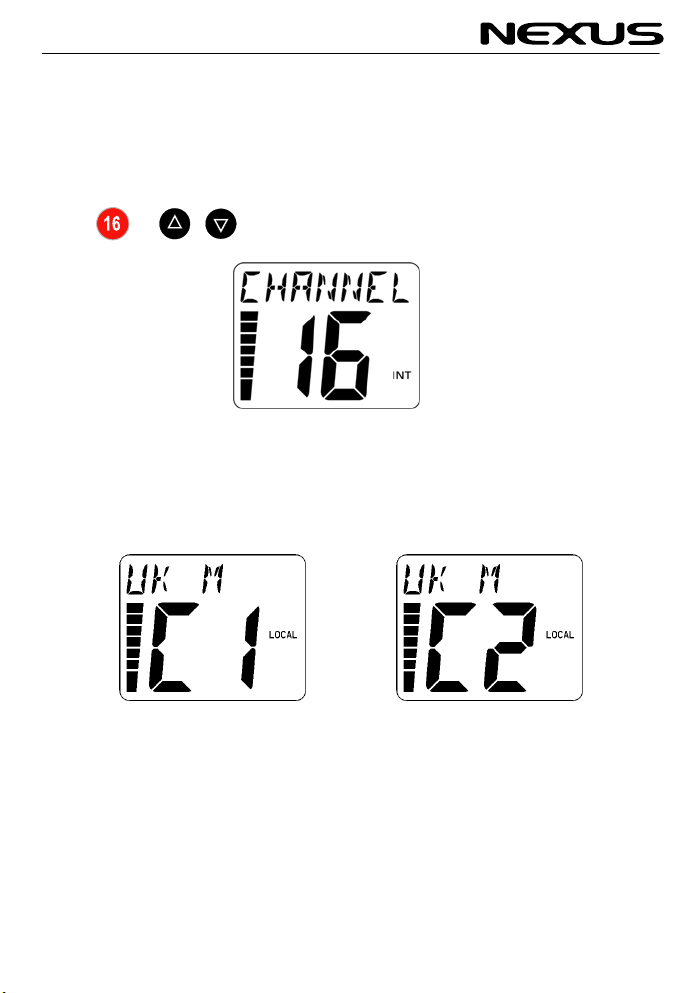

Press or / to select Channel 16, LCD will be displayed
as below:
Channel 16
5.1.2 Specific channels
UK M1 and M2 channels
These appear between channels 88 and 01 when the U.K. or other channel
group / Country is selected. The LCD will show UK M at top with C1 or C2 on
main screen.
U.K. M1 U.K. M2
5.1.3 Weather channels for USA and Canada
These appear between channels 88 and 01 when the USA or Canada
channel group is selected. The LCD will show USA WX or CAN WX at
top.

VHF NX1000
12
Weather channels for USA Weather channels for
Canada
5.2 Normal channel selection
Press / to select the operating channel. Each
press on selects the next higher channel number. Each presses
on selects the next lower channel number. When the key is held
down, the channel changes at the rate of 12 channels per second.
5.3 Adjusting the volume and squelch levels
Press to access volume control mode. “VOLUME” will appear at
the top of LCD. The volume level displays on the main screen. In
volume control mode, press will access SQUELCH control mode.
Press will access SQUELCH control mode. Press again
and it will toggle between VOLUME and SQUELCH control mode. In
SQUELCH control mode, “SQUELCH” appears at the top of the
LCD, and the figure indicating the squelch level is displayed on the
main screen. In the two modes if no operation is made within 5
seconds it will return to the main screen where pressing /
will adjust the levels of VOLUME and SQUELCH.
VOLUME Control SQUELCH Control

VHF NX1000
13
5.4 Receiving and transmitting
Turn on the radio and set the VOLUME and SQUELCH at suitable
levels.
5.4.1 Receiving
When radio is receiving signals, “BUSY” appears at the top of the
LCD.
Receiving
5.4.2 Adjust transmitter power
According to the regulations, some channels only have high power,
some channels only have low power and some channels offer the
choice of either high power or low power. If selected channel has both
high and low power, to switch between high power and low power,
press . It will save power if low power is selected, but the
communication range will extend if high power is selected.
5.4.3 Transmitting
Press and hold the PTT when transmitting and speak into the
MICROPHONE. If the current selected channel is at high power, “TX
HIGH” will appear at the top of LCD; instead, “TX LOW” will appear if it
is at low power. Release the PTT returns the transceiver to at
receiving mode.
High Power Transmitting Low Power Transmitting

VHF NX1000
14
IMPORTANT: To maximize the readability of your transmitted signal,
pause a few seconds after pushing [PTT], hold the microphone 5 to 10
cm from your mouth and speak into the microphone at a normal voice
level.
NOTE: The transceiver has a power save function to conserve the
battery power. The power save function activates automatically when
no signal is received for 3seconds.
6 MENU
6.1 Dual watch
Dual watch monitors Channel 16 while you are receiving another
channel. If a signal is received on Channel 16, dual watch pauses on
Channel 16 until the signal disappears.
When accessing the main menu in non-private channel mode, press
/to select D/WATCH and press to confirm. Then the
D/WATCH function is activated. Press , or to cancel
D/WATCH function.
Dual Watch
6.2 Automatic KEYLOCK function
This function will lock the keys automatically. Press to access the
MENU and select KEYLOCK by pressing /and press to
access the KEYLOCK list. There are two options in the list: OFF and
ON. If select OFF, the key lock function doesn’t work. If OFF IS select,
the key lock is activated if no key is pressed within 10 seconds. Press
and hold for 3 seconds to temporary unlock.

VHF NX1000
15
Locked How to unlock
Unlocked
6.3 Automatic backlight function
If backlight is set to ON, a press on any key, will activate the backlight
for 5 seconds. To turn the backlight continuously OFF, press to
access MENU, and select LIGHT by pressing /. Press to
enter LIGHT list. Select OFF and press .

VHF NX1000
16
7 TROUBLE SHOOTING
Problem Possible Cause Solution
The transceiver does
not turn ON.
1. The battery is
exhausted.
1. exchange the
batteries.
No sound from speaker. 1. Squelch level is too
deep.
2. Volume level is too
low.
3. Speaker has been
exposed to water.
1. Set squelch to the
threshold point.
2. Set volume to a
suitable level.
3. Drain water from the
speaker.
The displayed channel
cannot be changed.
• Automatic keypad Lock
function is activated.
• Refer to Automatic
Keypad Lock function to
unlock the keys
The transceiver returns to
receiving mode during a
long transmission.
The transmission time
limit function is activated.
Release the PTT, and re-
push to talk.
8 SPECIFICATIONS
8.1 General
• Frequency coverage: Transmit 156.025-161.425 MHz
Receive 156.025-163.275 MHz
• Mode: FM (16K0G3E)
• Channel spacing: 25 kHz
• Current drain (at 6.0 V DC): TX at 2 W 0.7A typical
TX at 1 W 0.5 A typical
Max. Audio 110 mA typical
Power save 20 mA typical
• Frequency stability: ±1.5 kHz (–15°C to +55°C)
• Useable temperature range: –15°C to +55°C
• Dimensions: 73(W) × 135(H) × 34(D) mm
(Antenna and belt clip not included)
Weight; no Battery: 287 g
Weight; with Battery: 378 g
Battery life (example 2400mAh) 28 hours – Based on duty cycle 90%
Standby,5% Receive, 5% Transmit (full power).
8.2 Transmitter
• Max Output power (at 6.0 V DC): 2W (Hi), 1 W (Low)

VHF NX1000
17
• Modulation system: Variable reactance frequency modulation
• Adjacent channel power: 70 dB
• Spurious emissions: Less than 0.25 μW
• Frequency Deviation: 5 KHz max peak
• Audio Frequency Response: +1/ -3dB of +6dB/octave Pre-
emphasis 300-3000Hz
8.3 Receiver •
• Receive system: Double-conversion super-heterodyne •
• IF Frequency Used: 21.7MHz; 450 KHz •
• Sensitivity (20 dB SINAD): +6 dBμEMF (typical) •
• Squelch sensitivity (at threshold): 0 dBμEMF (typical) •
• Inter-modulation rejection ratio: ≥68 dB •
• Spurious response rejection ratio:≥ 70 dB •
•Adjacent channel selectivity: ≥70 dB •
• Audio Frequency Response: +1/ -3dB of +6dB/octave Pre -
emphasis 300-3000Hz •
• Audio output power: 0.2 W at 10% distortion with An 8 Ωload

VHF NX1000
18
9 DECLARATION OF CONFORMITY

VHF NX1000
19
