Nexxt NOVA300 AML02304U1 User manual

ADSL modem and 300Mbps wireless router with USB port
AML02304U1 · AML02304U2
Nova300

32
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Chapter 1. Get to know your wireless router
Product features
Package contents
Chapter 2. Hardware installation
Front panel
Back panel
Chapter 3. Quick internet setup
3.1 Log in to Web Manager
3.2 Internet setup
3.3 Quick wireless security setup
Chapter 4. Advanced settings
4.1 Device info
4.2 Advanced setup
4.2.1 Layer2 interface
4.2.2 WAN service
4.2.3 LAN setup
4.2.4 NAT
4.2.5 Security
4.2.6 Parental control
4.2.7 Routing
4.2.8 DNS
4.2.9 DSL
4.2.10 Upnp
4.2.11 Print server
4.2.12 Storage Service
4.2.13 Interface grouping
4.2.14 IP tunnel
4.2.15 Certificate
4.2.16 Multicast
4.2.17 IPTV
4.3 Wireless
4.3.1 Basic
4.3.2 Security
4.3.3 MAC filter
4.3.4 Wireless bridge
4.3.5 Station info
4.4 Diagnostics
Copyright statement
Nexxt Solutions™ is a registered trademark. Other trademarks or brand names contai-
ned herein are the trademarks or registered brand names of their respective owners.
Copyright of the whole product as integration, including its accessories and software,
belongs to Nexxt Solutions Ltd. No individual or third party is allowed to copy, plagiarize,
reproduce, or translate it into other languages, without express consent from Nexxt
Solutions, Ltd. All of the photos and product specifications mentioned in this manual are
used as reference only. Upgrades of software and hardware may occur, and should
there be any changes, Nexxt Solutions shall not be responsible for notifying about any
such modifications in advance. If you would like to know more about our products, please
visit our website at www.NexxtSolutions.com.
About this manual
This user manual describes how to install, configure, operate, and troubleshoot the
modem router in a simple and easy-to-understand way.
Table of content

54
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Chapter 1. Get to know your wireless router
4.5 Management
4.5.1 Settings
4.5.2 System logs
4.5.3 SNMP agent
4.5.4 TR-069 client
4.5.5 Internet time
4.5.6 Access control
4.5.7 Update software
4.5.8 Reboot
Appendix 1. Configure your PC
Windows 7
MAC
Appendix 2. Join your wireless network
Windows XP
Windows 7
MAC
iPhone/iPad
Appendix 3. FAQs
Appendix 4. VPI/VCI List
Appendix 5. Regulatory compliance information
What it does
The Wireless ADSL2+ Modem Router provides you with an easy and secure way to set up a wireless
home network with fast access to the Internet over a high-speed digital subscriber line (DSL). Complete
with a built-in ADSL modem, it is compatible with all major ADSL Internet service providers. It offers
wireless speeds of up to 300 Mbps needed for demanding applications, such as large file transfers,
streaming HD video, and multiplayer gaming. The unit comes with a wide range of premium features and
applications such as IPv6, TR069, SNMP, Multicast, IP tunnel, ready share USB, IPTV service and
parental controls, etc. Plus, with the router, you can access Internet via the ATM interface or Ethernet
interface.
Wireless N: speeds up to 300 Mbps for streaming HD videos and online gaming in addition to basic
Internet applications.
All-in-one device: combines a built-in ADSL2+ modem, wired router, wireless router and switch.
Sharable USB: lets you access and share files on an attached USB hard drive.
Sharable printer: lets you print from your Windows computer to a connected USB printer.
Advanced QoS: helps prioritize media streaming and gaming applications for best entertainment
experience.
Parental control: keeps your kids Internet experience safe using flexible and customizable filter
settings.
One-touch WPS: ensures a quick and secure network connection.
WEP and WPA/WPA2 are supported for advanced encryptions.
Compatibility: Works with all major ADSL Internet service providers (ISPs). Backward compatible with
802.11b/g Wi-Fi devices.
Interchangeable LAN/WAN: ports to schedule the Ethernet port to function either as a LAN or a
WAN port.
Interchangeable LAN/IPTV: to schedule the Ethernet port to function either as a LAN or an IPTV port.
Optional Ethernet and ADSL Uplinks: Access Internet via ADSL2+ Broadband Internet Service or an
interchangeable LAN/WAN RJ-45 port.
Multiple Internet Connection Types: Bridging, PPPoE, IPoE, PPPoA, IPoA, dynamic IP and static IP.
IPTV service: lets the user surf the Internet while watching TV online.
6000V lightning-proof design: helps your device to avoid damage in lightning-intensive environments.
Strong driving capability: up to 6.5km transmission distance.
High speed ADSL speed: up to 24Mbps downstream 1Mbps upstream.
Built-in firewall: prevents hacker attacks.
Channel auto-select for optimum performance.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Product features

76
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
FDM technology: enables telephoning, faxing and surfing activities to proceed simultaneously without
mutual interference.
Other advanced features: IPv6, DDNS, virtual server, DMZ, port triggering, IP filter, MAC filter and
UPnP, etc.
Nexxt Solutions Setup: Wizard for easy and fast installation and configuration.
Nexxt Solutions Green: Use hardware Power On/Off and software Wi-Fi On/Off buttons to turn on
and off power and Wi-Fi to save energy when not in use.
•
•
•
•
Wireless Modem Router
Phone cable
Ethernet cable
ADSL2+ filter
Quick install guide
Power adapter
Resource CD
•
•
•
•
•
•
•
Package contents
Your box should contain the following items:
If any of the parts are incorrect, missing, or damaged, keep the carton, including the original packing
materials and contact your Nexxt Solutions dealer for immediate replacement.
• ON/OFF: Power button to turn the router on or off.
Note:Please use the included power adapter. Use of a power adapter with different voltage rating
may damage the device.
Chapter 2. Hardware installation
If you have not already set up your new router using the Quick Install Guide that comes in the box, this
chapter walks you through the hardware installation. To set up your Internet connection, see Chapter 3
Quick Internet Setup.
Front panel
The LEDs on the device are described below:
LED
SYS
WLAN
ADSL
LAN 1/2/3/4
Status
Solid
Off
Blinking
Solid/Off
Blinking
Off
Solid
Slow blink
Fast blink
Solid
Off
Blinking
Solid
Solid
Blinking
Off
Solid
Off
Description
Power is supplied to the device.
Power is not supplied to the device.
System is functioning correctly.
System is functioning incorrectly.
Transferring data
Wireless is disabled.
Wireless is enabled.
Physical connection failure.
Synchronizing...
ADSL connection is established.
No connection established.
Transferring data
Connection is established.
Client connected successfully.
The WPS LED starts blinking if you pressed the WPS
button on the device or interface.
If there is no wireless clients connected, the WPS LED
turns off after blinking for 2 minutes.
Connection is successfully established on the USB
port.
Connection is not established on the USB port.
Back panel
Power
WPS
USB

98
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
WPS/RESET: Press it for 1-3 seconds to enable WPS connection or 7 seconds to restore all configu-
rations to factory defaults.
LAN: Ethernet RJ-45 LAN ports to cable the device to the local network devices such as
computers.
DSL: RJ-11 Asynchronous DSL (ADSL) port for connecting the device to a DSL line. Follow the diagram
below to install the device.
Enter admin in both the login User Name and Password boxes if you first time access the router
and then click the Login button to enter the screen below.
3.
•
•
•
Power
Power
Adapter Shared USB storage or
printer port
USB
Line
RJ-11 RJ-45
A/V
TV TV receiver
Phone
Jack Cable/xDSL Modem
Chapter 3. Quick internet setup
3.1 Log in to Web Manager
Using the browser
This chapter instructs you to quickly set up your Internet connection.
The Quick Internet Setup applies only to ADSL Uplink mode. If you are not directly connecting to the ADSL
line via a phone cable, please click the Advanced button on the home page and then select Advanced
Setup -> Layer2 Interface -> ETH Interface. For more information, see To set up the ETH interface
and To setup WAN Service for ETH Interface.
You can log in to the modem router’s web manager using a web browser. 3.2 Internet setup
a. Select your country.
b. Select your ISP.
c. VPI and VCI fields will be populated automatically if you select a correct country and ISP.
d. Select your Internet connection type.
1. Set your PC to Obtain an IP address automatically. For more information, see Appendix 1.
Configure Your PC.
2. Launch a web browser and enter 192.168.1.1 to display the login window.
Tip:If you changed the login user name and password and forget them, press the Reset button on
the device and then enter the default settings: admin.

1110
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
3.3 Quick wireless security setup
For security purposes, we strongly recommend you to customize a new security key. Simply enter 8-63
ASCII or 64 hex characters.
Depending on the type of connection, you are prompted to enter your ISP settings, as shown in the
following table:
Tip:
1. If you customize a new security key, write it on a sticky label and attach it to the bottom of the
unit. You will need the new security key if you wish to connect to the device wirelessly in the future.
2. To join your secured wireless network, see Appendix 2. Join Your Wireless Network.
PPPoE
PPPoA
IPoE
IPoA
Dynamic IP
Static (Fixed) IP
Static (Fixed) IP
Enter the ISP login user name and password. If you cannot locate this
information, ask your ISP to provide it.
No entries are needed.
Enter the assigned IP address, subnet mask, and the IP address of
your ISP’s primary DNS
server. This information should have been provided to you by your ISP.
If a secondary DNS server address is available, enter it also.
Enter the assigned IP address, subnet mask, and the IP address of
your ISP’s primary DNS server. This information should have been
provided to you by your ISP. If a secondary DNS server address is
available, enter it also.
Internet Connection Type ISP Information
Note:If your country and/or your ISP are not covered on the home page, please click the
button on the home page and then select Advanced Setup -> Layer2 Interface -> ATM Interface
and then click Add there to manually configure the VPI and VCI. If you cannot locate this information,
refer to Appendix 4 VPI/VCI List or ask your ISP to provide it. For more information, see To set up
the ATM interface and To setup WAN Service for ATM Interface.
e. After you configure all the above settings, click OK to save and apply them.
f. Test internet connectivity.
Launch a web browser and enter www.NexxtSolutions.com. If the webpage is opened, you are connec-
ted to Internet.
Chapter 4 Advanced settings
This chapter describes the advanced features of your router.
The information is for users with a solid understanding of networking concepts who want to configure the
router for unique situations.
This chapter includes the following sections:
• Device Info
• Advanced setup
• Wireless
• Diagnostics
• Management
Click Advanced on the home page to enter the screen below.

1312
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
4.1 Device info
Summary
This section includes the following information:
• Summary
• WAN
• Statistics
• Route
• ARP
• DHCP
Here you can view system information and current status of your WAN connection as seen in the
screenshot.
WAN
Here you can view the WAN Information including Interface, Description, Type, IGMP, NAT, Firewall,
Status, IPv4 Address and VLAN ID as seen in the screenshot.
Statistics
Here you can view the packets received and transmitted on LAN/WAN ports.
Statistics--LAN: Displays the packets received and transmitted on the LAN ports as seen in the screens-
hot below.
Tip:eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN
port4 of the device.

1514
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Displays the packets received and transmitted on the WAN ports as seen in the screenshot below.
Route
Here you can view the route table as seen in the screenshot:
ARP
Here you can view the IP and MAC addresses of the PCs that attach to the device either via a wired or
wireless connection as seen in the screenshot:
DHCP
Here you can view the DHCP leases, including IP and MAC addresses of the PCs, host names and
remaining lease time, as seen in the screenshot:
Statistics--WAN

1716
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
4.2 Advanced setup
This section explains the following information:
4.2.1 Layer2 interface
To set up the ATM interface
Click Advanced Setup -> Layer2 Interface to enter the Layer2 Interface screen. This router provides two
Layer2 Interfaces:
- ATM Interface for ADSL broadband Internet service
- ETH Interface for connecting to Internet via an Ethernet cable.
By default, system applies the ATM Interface (ADSL uplink).
If you directly connect to the ADSL line via a phone cable, first refer to To set up the ATM interface and
then skip to To setup WAN Service for ATM Interface.
Or if you connect to Internet via a fiber/cable modem using an Ethernet cable, first refer to To set up
the ETH interface and then skip to To setup WAN Service for ETH Interface.
Select ATM Interface and click Add to configure it.
• Layer2 Interface
• WAN service
• LAN
• NAT
• Security
• Parental control
• Quality of Service
• Routing
• DNS
• DSL
• UPnP
• Print server
• Storage service
• Interface grouping
• IP tunnel
• Certificate
• Multicast
• IPTV

18 19
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Enter the VPI and VCI values, select a DSL Link Type (Internet connection type): EoA (EoA is for PPPoE,
IPoE, and Bridge.), PPPoA or IPoA, leave other options unchanged from factory defaults and click Apply/-
Save and then refer to the section titled: To setup WAN Service for ATM Interface in order to config-
ure the WAN service for Internet access.
Tip:If you are unsure about the VPI/VCI parameters, see Appendix 4. VPI/VCI List. Or if your ISP
and the VPI/VCI information is not covered there, ask your ISP to provide it.

20 21
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
The Ethernet port configured here is to function as a WAN port. Only one LAN port can be configured as
the WAN port at a time. After you finish your settings, click the Apply/Save button and then refer to To
setup WAN Service for ETH Interface to configure the WAN service for Internet access.
Tip:eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN
port4 of the device.
To set up the ETH interface
To setup WAN service for ATM interface
Select ETH Interface and click Add to configure it.
4.2.2 WAN service
This router provides two WAN services:
- WAN Service for ATM Interface (ADSL uplink)
- WAN Service for ETH Interface (Ethernet uplink)
If you configured the ATM Interface (ADSL uplink), follow steps below to configure the WAN service:
Click Advanced Setup -> WAN Service and then click the Add button. Select the interface you have
configured. Depending on the type of connection, you will come to different screens and be prompted to
enter your ISP settings accordingly. Select one connection type from the five internet connection types as
shown in the following table (If you are unsure, consult your ISP).
Internet connection type ISP Information
Enter the ISP login user name and password.
If you cannot locate this information, ask your ISP
to provide it.
No entries are needed.
Enter the assigned IP address, subnet mask, and the IP
address of your ISP’s primary DNS server. This informa-
tion should have been provided to you by your ISP. If a
secondary DNS server address is available, enter it
also.
Enter the assigned IP address, subnet mask, and the IP
address of your ISP’s primary DNS server. This informa-
tion should have been provided to you by your ISP. If a
secondary DNS server address is available, enter it
also.
If you wish to initiate a dialup directly from your PC for
internet access or enjoy the entire Internet connection
(instead of sharing it with others), you can select the
Bridging and then click Next.
Dynamic IP
Static (Fixed) IP
Static (Fixed) IP
PPPoE PPPoA
IPoE
(If your ISP uses DHCP to
assign your IP address or
if your ISP assigns you a
static (fixed) IP address, IP
subnet mask and the
gateway IP address, you
need to select the IP over
Ethernet (IPoE).
IPoA
Bridging

22 23
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Tip:For PPPoE, IPoE, and Bridging Internet connection types, you must first select EoA on the ATM
Interface Screen, for more information, see To set up the ATM interface.
PPP User Name: This is for logging in to your ISP. If you cannot locate this information, ask your ISP
to provide it.
PPP Password: This is for logging in to your ISP. If you cannot locate this information, ask your ISP to
provide it.
PPPoE Service Name: This information is provided by your ISP. Only enter it if instructed by your ISP.
Authentication Method: This is used by ISP to authenticate the client that attempts to connect. If you
are not sure, consult your ISP or select Auto.
Clone MAC: Clicking this button copies the MAC address of your PC to the router. Many broadband
ISPs restrict access by allowing traffic only from the MAC address of your broadband modem, but
some ISPs additionally register the MAC address of the network interface card in your computer when
your account is first opened. They then accept traffic only from the MAC address of that computer. If
so, configure your router to “clone” the MAC address from the authorized computer.
Dial on demand: Connect to ISP only when there is traffic transmission. This saves your broadband
Internet service bill.
PPP IP extension: If enabled, all the IP addresses in outgoing packets including management packets
on the WAN port will be changed to the device's WAN IP address. Only change the default settings if
necessary.
Enable PPP Debug Mode: Only enable this feature if supported by your ISP.
Bridge PPPoE Frames Between WAN and Local Ports: If enabled, PPPoE dialup frame from LAN
side will directly egress the WAN port without modification.
Multicast Proxy: If enabled, the router will use multicast proxy.
•
•
•
•
•
•
•
•
•
•
PPP over Ethernet (PPPoE)
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen
below when you click the WAN Service tab, select the configured interface and click Next.
1. Select PPPoE.
2. Edit the Enter Service Description. This field is optional. We recommend that you keep
the default.
3. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
4. Click Next.
Note:If you select IPv6 or IPv4 & IPv6 (dual stack), skip to IPv6.

24 25
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
IPv6
If you select IPv4 as the network protocol, skip this section.
Here you can configure the WAN gateway address. After you configure it click Next. The default setting
is recommended.
WAN gateway
1. Check Launch Dhcp6c for Prefix Delegation (IAPD).
2. If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment
(IANA) also. Or configure a static IP address.
3. Click Next -> Next -> Apply/Save.
Note:Default gateway interface list can have multiple WAN interfaces served as system default
gateways but only one will be used according to the priority with the first being the highest and the
last one the lowest priority if the WAN interface is connected. Priority order can be changed by
removing all and adding them back in again.

26 27
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
WAN DNS
Here you can configure the WAN DNS address:
- Click the Select DNS Server Interface from available WAN interfaces option,
- OR select the Use the following Static DNS IP address option and enter static DNS server IP
addresses for the system, and then click Next.
Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly
set.
When the PPPoE connection is successful, you can access Internet.
DNS Server Interfaces can have multiple WAN interfaces served as system DNS servers but
only one will be used according to the priority with the first being the highest and the last one
the lowest priority if the WAN interface is connected. Priority order can be changed by removing
all and adding them back in again.
In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS
server IP addresses
must be entered.
If you cannot locate the static DNS server IP information, ask your ISP to provide it.
1.
2.
3.
Note:

28 29
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
IP over Ethernet (IPoE)
If your ISP uses DHCP to assign your IP address or if your ISP assigns you a static (fixed) IP address, IP
subnet mask and the gateway IP address, you need to select the IP over Ethernet (IPoE).
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen
below when you click the WAN Service tab, select the configured interface and click Next.
• Obtain an IP address automatically: This allows the router to automatically acquire IP information
from your ISP or your existing networking equipment.
• Use the following Static IP address: This allows you to specify the Static IP information provided by
your ISP or that corresponds with your existing networking equipment.
• WAN IP Address: The Internet IP address provided by your ISP for accessing Internet.
• WAN Subnet Mask: The subnet mask address provided by your ISP for accessing Internet.
• WAN gateway IP Address: The gateway IP address provided by your ISP for accessing Internet.
1. Select IPoE.
2. Edit the Enter Service Description. This field is optional. We recommend that you keep
the default.
3. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
4. Click Next.
Note:If you select IPv6 or IPv4 & IPv6 (dual stack), skip to IPv6.

30 31
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
IPv6
If you select IPv4 as the network protocol, skip this section.
To obtain an IP address automatically:
1. Select Obtain an IP address automatically.
2. Check Launch Dhcp6c for Prefix Delegation (IAPD).
3. If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address
Assignment (IANA) also.
4. Click Next -> Next -> Apply/Save.
To configure a static IPv6 address:
1. Select Use the following Static IPv6 address.
2. Configure WAN IPv6 Address/Prefix Length and WAN Next-Hop IPv6 Address.

32 33
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
3. Click Next -> Next to enter the screen below.
4. Select Use the following Static IPv6 DNS address and manually enter the DNS server address.
If you have two DNS server addresses, enter the second also.
5. Click Next -> Apply/Save.
Note:If "Obtain an IP address automatically" is chosen, DHCP will be enabled for PVC in IPoE mode.

34 35
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Here you can configure the NAT settings. If you are unsure about the options, please keep the default
settings and then click Next.
Here you can configure the WAN gateway address. Default gateway interface list can have multiple WAN
interfaces served as system default gateways but only one will be used according to the priority with the
first being the highest and the last one the lowest priority if the WAN interface is connected. Priority
order can be changed by removing all and adding them back in again.
If you are unsure about the options, please keep the default settings and then click Next.

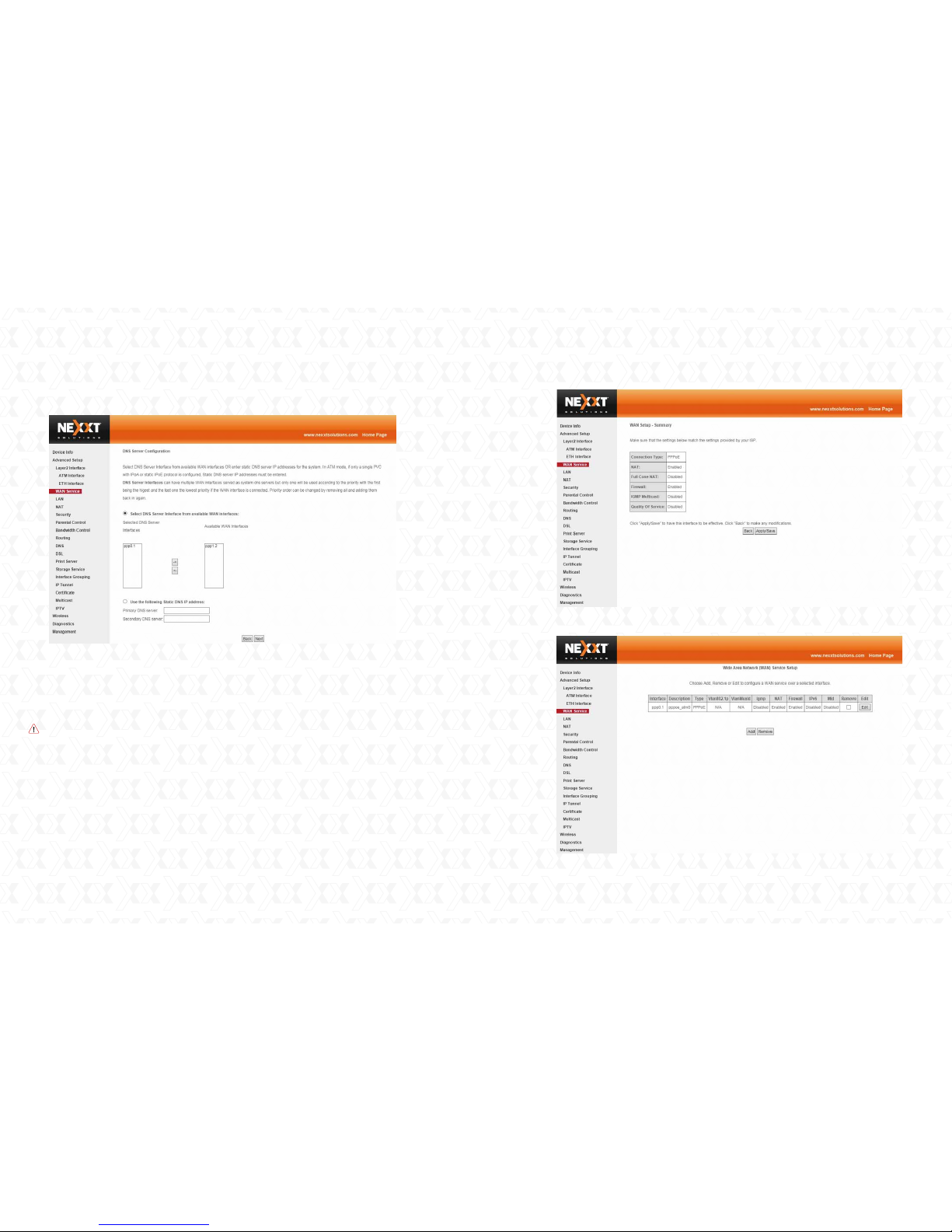

Here you can configure the WAN DNS address:
- Click the Select DNS Server Interface from available WAN interfaces option.
- OR select the Use the following Static DNS IP address option and enter static DNS server IP
addresses for the system And then click Next.
Note:
DNS Server Interfaces can have multiple WAN interfaces served as system DNS servers but only
one will be used according to the priority with the first being the highest and the last one the lowest
priority if the WAN interface is connected. Priority order can be changed by removing all and
adding them back in again.
In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server
IP addresses must be entered.
If you cannot locate the static DNS server IP information, ask your ISP to provide it.
1.
2.
3.

36 37
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly
set.
When the IPoE connection is successful, you can access Internet.
Bridging
If you wish to initiate a dialup directly from your PC for Internet access or enjoy the entire Internet
connection (instead of sharing it with others), you can use the Bridging DSL link type and create a dialup
program on your PC.
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen
below when you click the WAN Service tab, select the configured interface and click Next.
The Enter Service Description field is optional. We recommend that you keep it unchanged from default
and click Next.

38 39
Nova300 - ADSL wireless modem router Nova300 - ADSL wireless modem router
Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly
set.
When the bridging connection is successful, you can access Internet.
Note:To configure multiple WAN connections, simply configure multiple ATM interfaces and then
follow the instructions above.
PPPoA
If you have selected the PPPoA from the ATM Interface screen in Layer2 Interface, you will see the
screen below when you click the WAN Service tab, select the configured interface and click Next.
1. Edit the Enter Service Description. This field is optional. We recommend that you keep
the default.
2. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
3. Click Next.
