Nibe F1145 series User manual

IHB EN 2004-1
531613
INSTALLATION MANUAL
Ground source heat pump
NIBE F1145

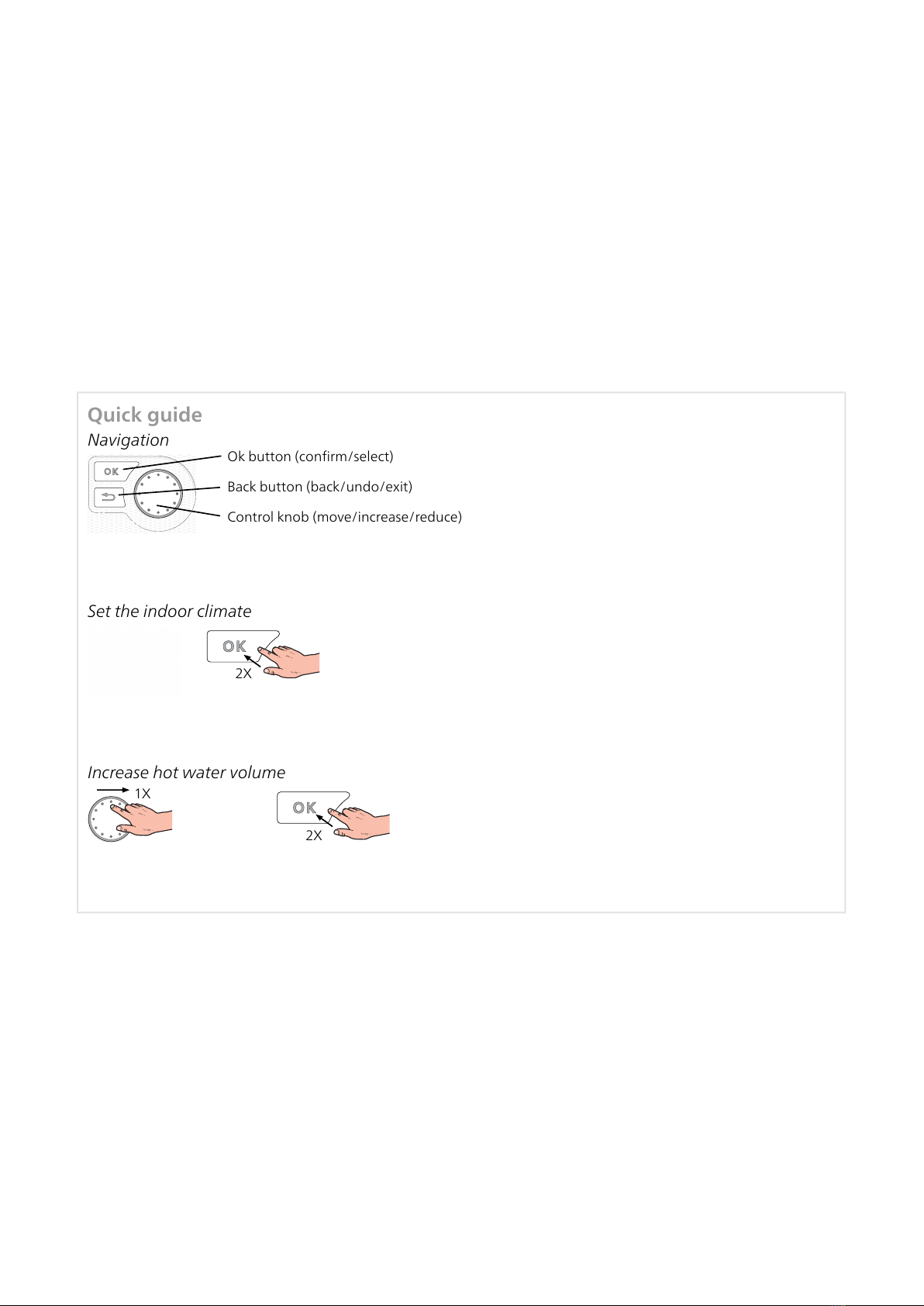

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 37.
How to scroll through menus and make different settings is described on page 40.
Set the indoor climate
2X
INDOOR CLIMATE
HEAT PUMP INFO
HOT WATER
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start
mode in the main menu.
Increase hot water volume
2X
1X
To temporarily increase the amount of hot water (if a hot water heater is installed to your F1145), first turn the
control knob to mark menu 2 (water droplet) and then press the OK button twice.

41 Important information
4Safety information
4Symbols
4Marking
5Serial number
5Recovery
5Environmental information
6Inspection of the installation
72 Delivery and handling
7Transport
7Assembly
8Supplied components
8Removing the covers
93 The heat pump design
9General
11Distribution boxes

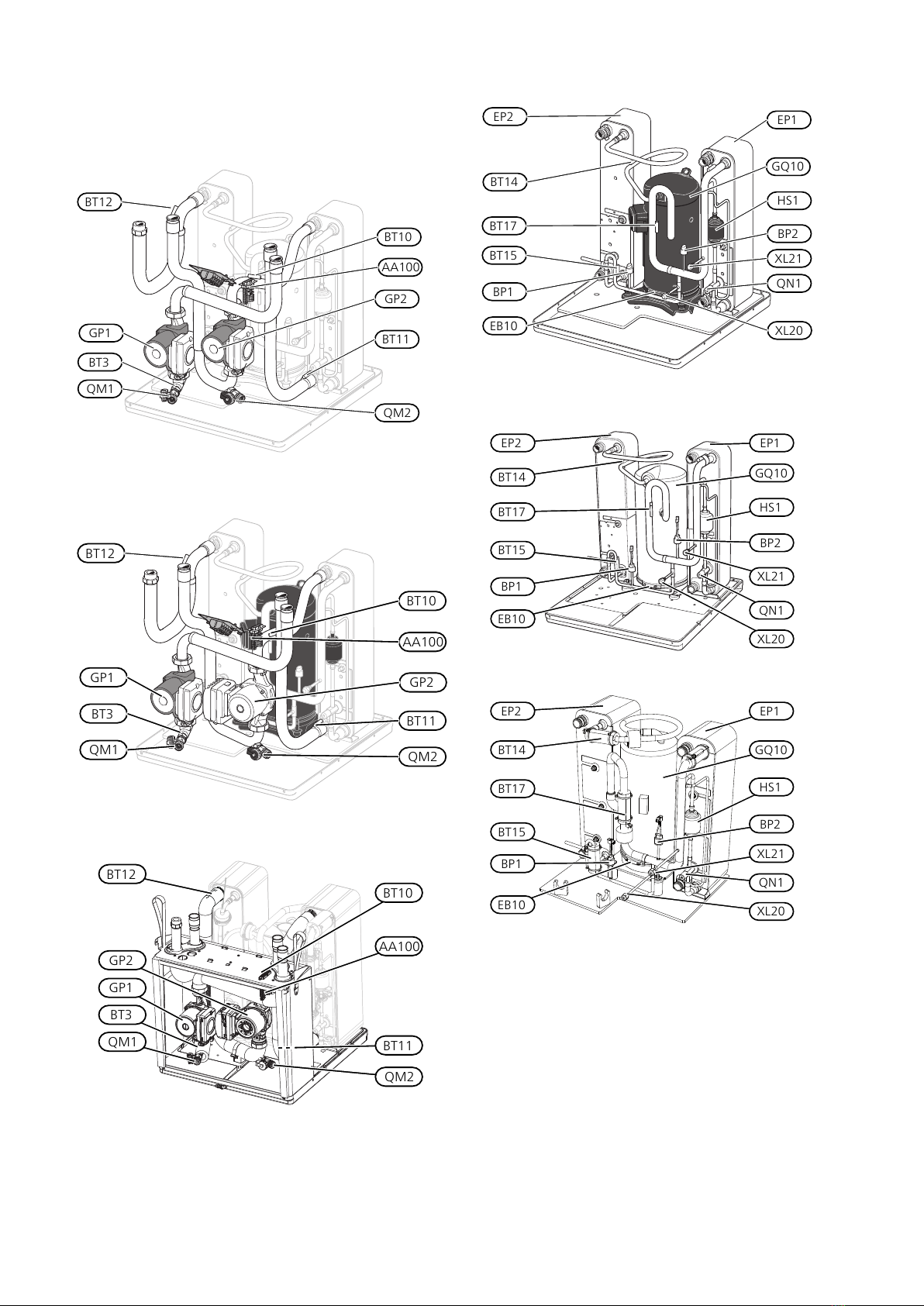

13Cooling section (EP14)
154 Pipe connections
15General

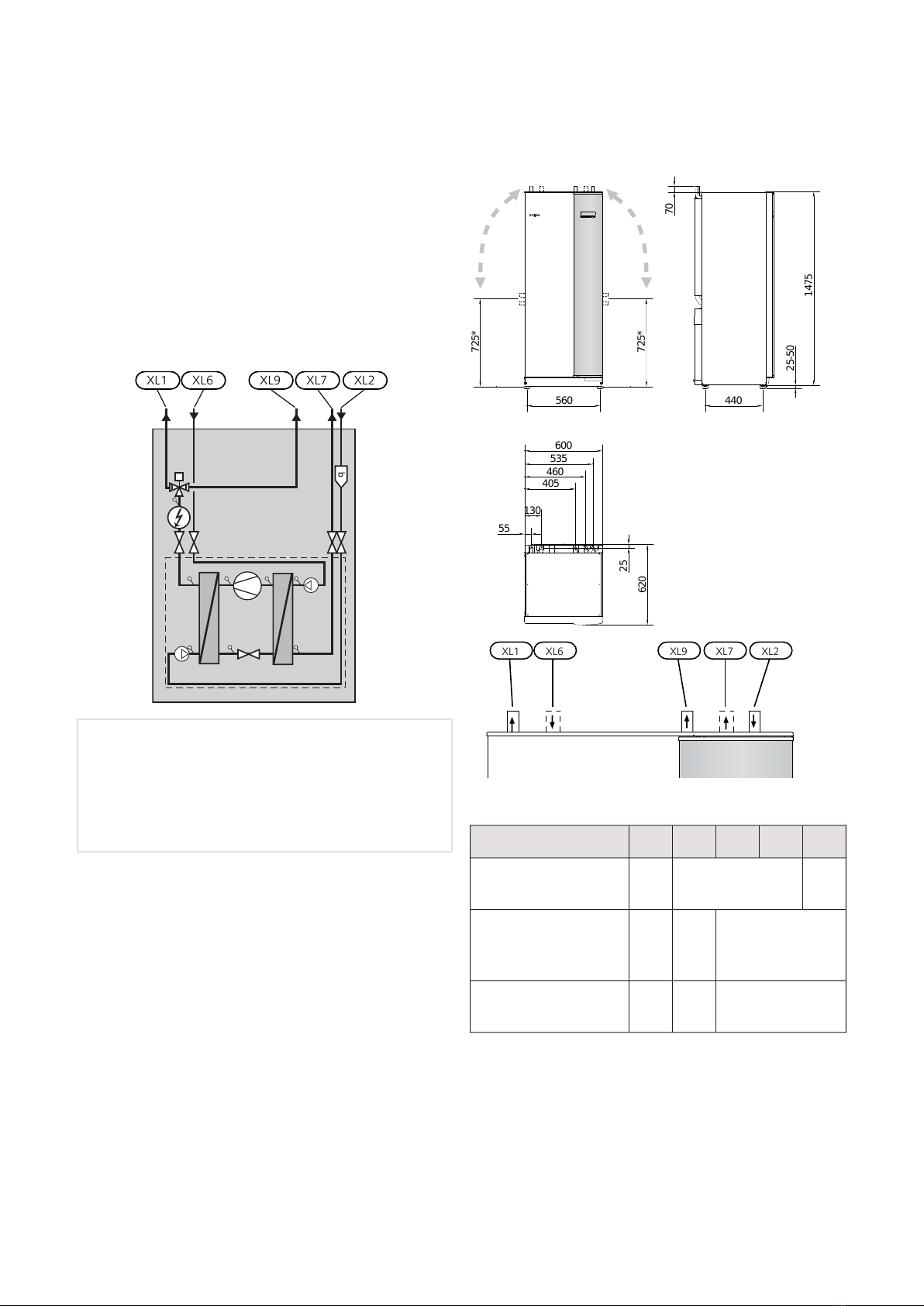

16Dimensions and pipe connections
17Brine side
17Heating medium side
18Cold and hot water

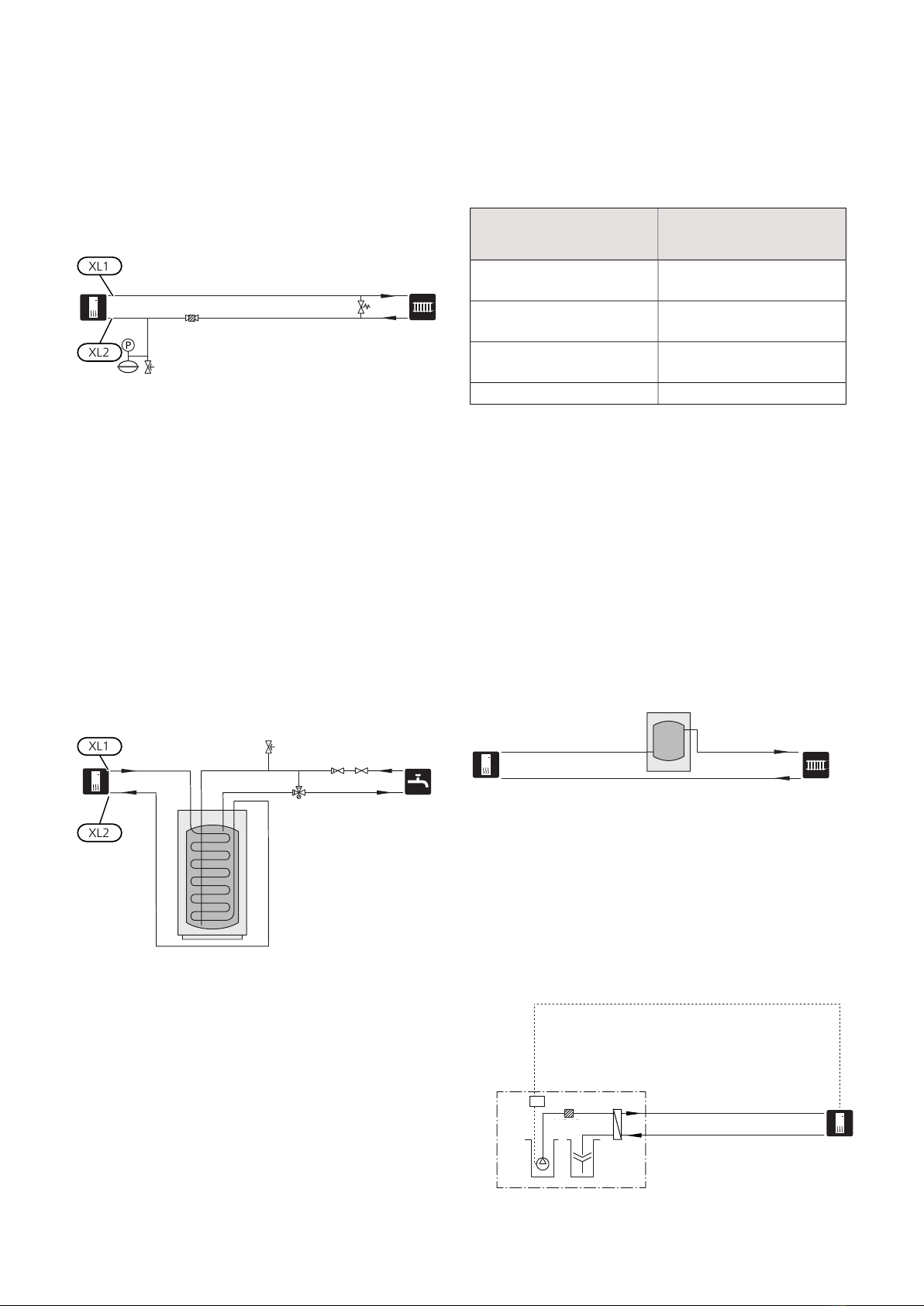

18Docking alternatives
205 Electrical connections
20General
22Connections
24Settings
26Optional connections
30Connecting accessories
316 Commissioning and adjusting
31Preparations
31Filling and venting
32Start-up and inspection
35Setting the heating curve
377 Control - Introduction
37Display unit
38Menu system
428 Control - Menus
42Menu 1 - INDOOR CLIMATE
42Menu 2 - HOT WATER
42Menu 3 - INFO
44Menu 4 - HEAT PUMP
45Menu 5 - SERVICE
589 Service
58Service actions
6510 Disturbances in comfort
65Manage alarm
6811 Accessories
7112 Technical data
71Dimensions and setting-out coordinates
72Electrical data
75Technical specifications
78Energy labelling
88Item register
91Contact information
3Table of ContentsNIBE F1145
Table of Contents

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2020.
Water may drip from the safety valve’s
overflow pipe. The entire length of the over-
flow water pipe must be routed to a suitable
drain and be inclined to prevent water pock-
ets, and must also be frost-proof. The over-
flow pipe must be at least the same size as
the safety valve. The overflow pipe must be
visible and its mouth must be open and not
located close to electrical components.
F1145 must be installed via an isolator
switch. The cable area has to be dimensioned
based on the fuse rating used.

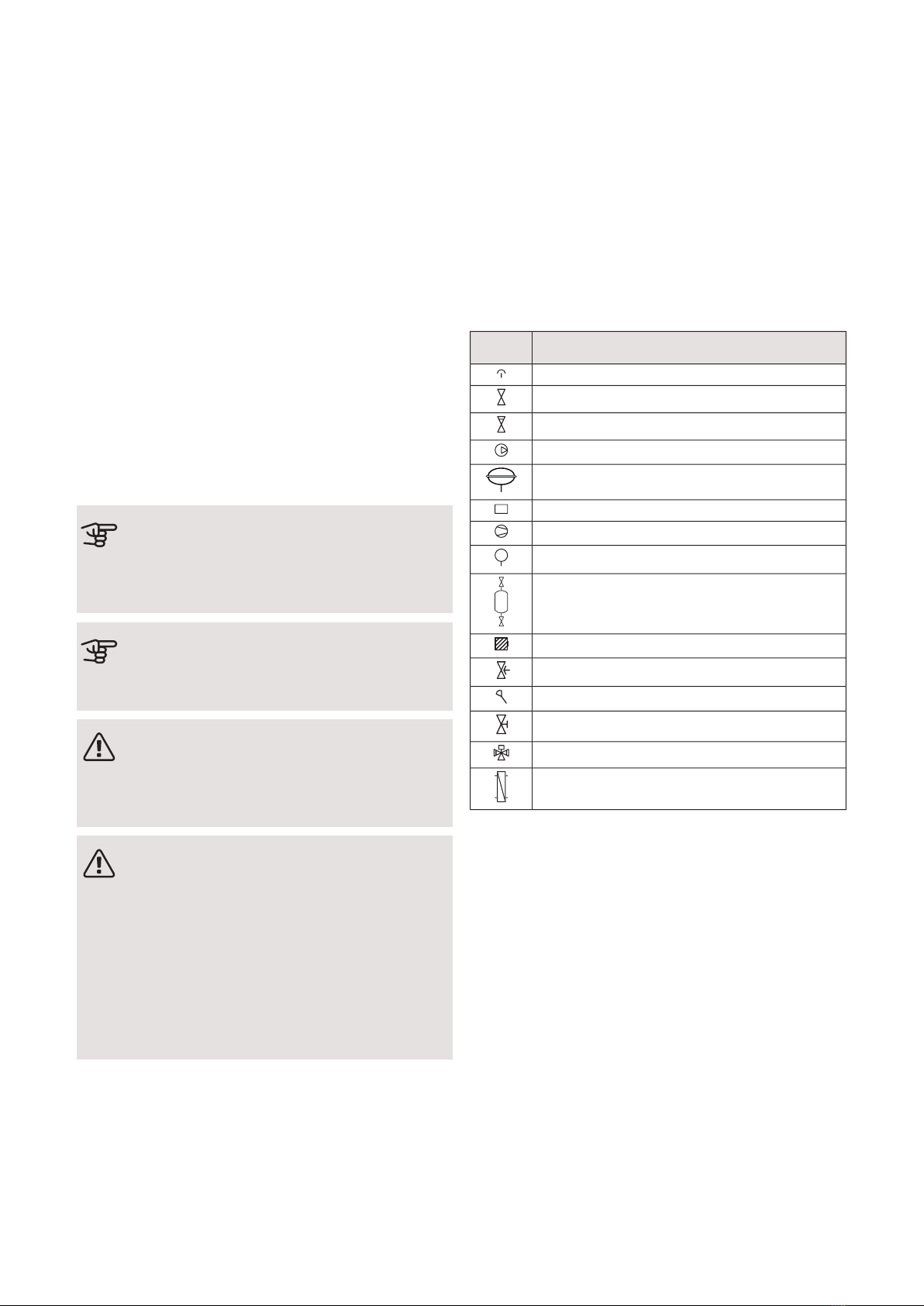

Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should consider when installing
or servicing the installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IPX1B
Danger to person or machine.
!
Read the User Manual.
NIBE F1145Chapter 1 | Important information4
1 Important information

Serial number
The serial number can be found at the bottom right of
the front cover, in the info menu (menu 3.1) and on the
type plate (PZ1).
Serial number
Caution
You need the product's ((14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current le-
gislation.
Environmental
information
F-GAS REGULATION (EU) NO. 517/2014
This unit contains a fluorinated greenhouse gas that is
covered by the Kyoto agreement.
The equipment contains R407C, a fluorinated green-
house gas with a GWP value (Global Warming Potential)
of 1,774. Do not release R407C into the atmosphere.
5Chapter 1 | Important informationNIBE F1145

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
In addition, fill in the page for the installation data in the User Manual.
DateSigna-
ture
NotesDescription
✔
Brine (page 17)
System flushed
System vented
Antifreeze
Level/Expansion vessel
Particle filter
Safety valve
Shut off valves
Circulation pump setting
Heating medium (page 17)
System flushed
System vented
Expansion vessel
Particle filter
Safety valve
Shut off valves
Circulation pump setting
Electricity (page 20)
Connections
Main voltage
Phase voltage
Fuses heat pump
Fuses property
Outside sensor
Room sensor
Current sensor
Safety breaker
Earth circuit-breaker
Setting of emergency mode thermo-
stat
NIBE F1145Chapter 1 | Important information6

Transport
F1145 should be transported and stored vertically in a
dry place. When being moved into a building, F1145
may be leant back 45 °.
Ensure that F1145 has not been damaged during trans-
port.
Caution
The product can be tail heavy.
If the cooling module is pulled out and transported up-
right, F1145 can be transported on its back.
Remove the outer panels in order to protect them when
moving in confined spaces inside buildings.
R
0
R
0
EXTRACTING THE COOLING MODULE
To simplify transport and service, the heat pump can be
separated by pulling the cooling module out from the
cabinet.
See page 61 for instructions about the separation.
Assembly
• Place F1145 on a solid foundation indoors that can
take the heat pump's weight. Use the product's ad-
justable feet to obtain a horizontal and stable set-up.
30 - 50 mm
30 - 50 mm
15 - 40 mm
20-55 mm
• Because water comes from F1145, the area where
the heating pump is located must be equipped with
floor drainage.
•Install with its back to an outside wall, ideally in a room
where noise does not matter, in order to eliminate
noise problems. If this is not possible, avoid placing
it against a wall behind a bedroom or other room
where noise may be a problem.
• Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
• Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.
INSTALLATION AREA
Leave a free space of 800 mm in front of the product.
Approx. 50 mm free space is required on each side, to
remove the side panels (see image). The panels do not
need to be removed during service. All service on F1145
can be carried out from the front. Leave space between
the heat pump and the wall behind (and any routing of
supply cables and pipes) to reduce the risk of any vibra-
tion being propagated.
(50) (50)
800
*
*
* A normal installation needs 300 – 400 mm (any side) for connection
equipment, i.e. level vessel, valves and electrical equipment.
7Chapter 2 | Delivery and handlingNIBE F1145
2 Delivery and handling

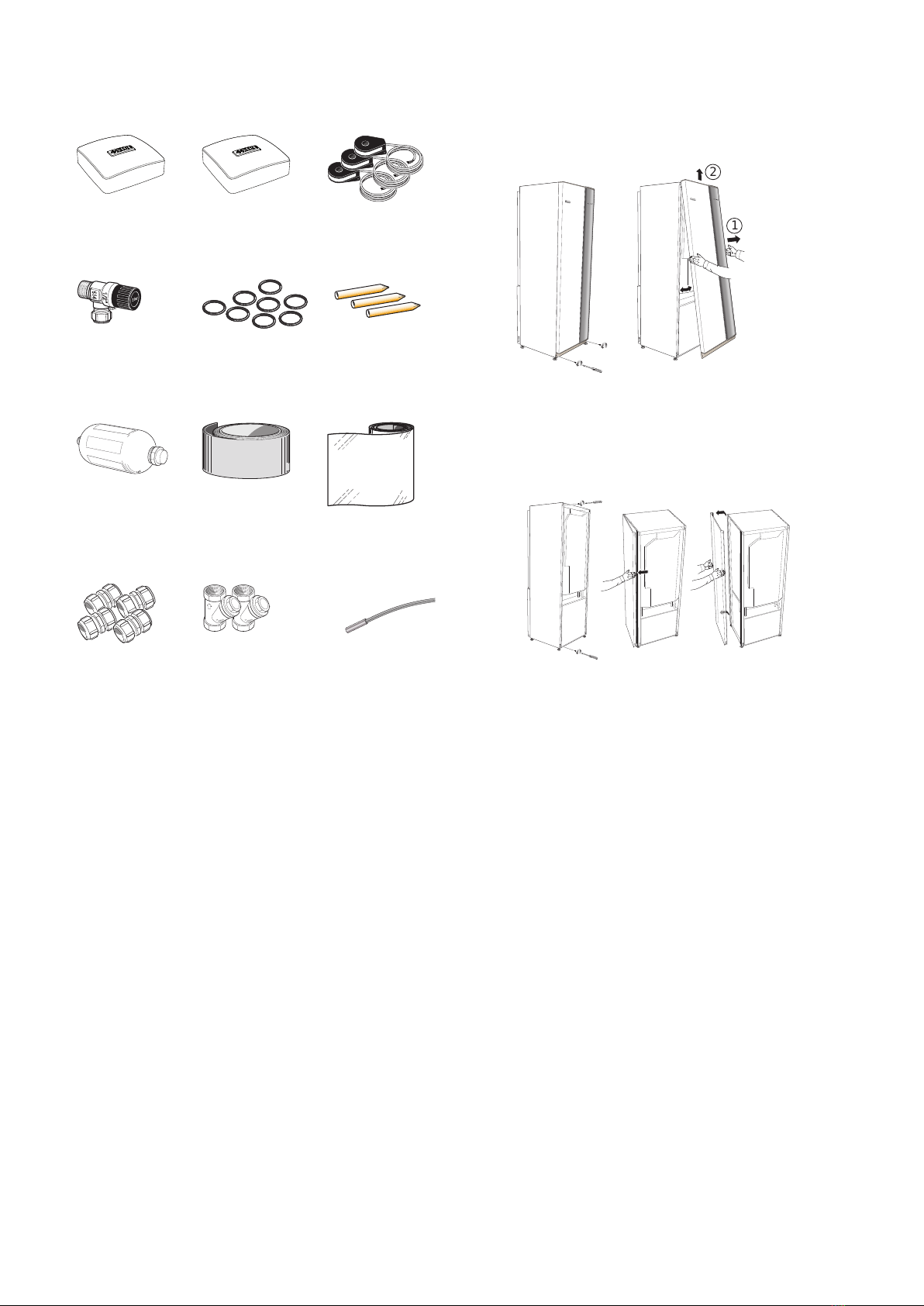

Supplied components
LEK
LEK
LEK
Current sensor
3 x
Room sensor
1 x
Outside sensor
1 x
Tubes for sensors
3 x
O-rings
8 x
LEK
Safety valve
0.3 MPa (3 bar)
1 x
LEK
Aluminium tape
1 x
LEK
Insulation tape
1 x
LEK
Level vessel
1 x
Temperature
sensor
3
WILO
LEK
LEK
WILO
WILO
2,5(22)
H- 50 - 2,5
TUV-SV-97-525
WILO
LEK
LEK
WILO
WILO
2,5(22)
H- 50 - 2,5
TUV-SV-97-525
Particle filter
6 – 10 kW
1 x G1
1 x G3/4
12 – 17 kW
1 x G1
1 pcs G1 1/4
Compression ring
couplings
6-10 kW
2 x (ø28 x G25)
3 x (ø22 x G20)
12 – 15 kW
5 x (ø28 x G25)
17 kW
3 x (ø28 x G25)
2 x (ø35 x G32)
LOCATION
The kit of supplied items is placed in packaging on top
of the heat pump.
Removing the covers
FRONT COVER
1
2
LEK
LEK
LEK
LEK
LEK
1. Remove the screws from the lower edge of the
front panel.
2. Lift the panel out at the bottom edge and up.
SIDE COVERS
LEK
LEK
LEK
The side covers can be removed to facilitate the install-
ation.
1. Remove the screws from the upper and lower
edges.
2. Twist the cover slightly outward.
3. Move the hatch outwards and backwards.
4. Assembly takes place in the reverse order.
NIBE F1145Chapter 2 | Delivery and handling8

General
F1145
PF1
QN10
BT2
EB1
UB1
QM34
QM31
XL1
XL6
XL9
XL7
XL2
UB3
AA4
W130
SF1
AA4-XJ4
AA4-XJ3
UB2
QM32
QM33
PF2
EP14-AA11
EP14
VIEW FROM BEHIND
BF1
BF1
9Chapter 3 | The heat pump designNIBE F1145
3 The heat pump design

PIPE CONNECTIONS
Connection, heating medium flowXL1
Connection, heating medium returnXL2
Connection, brine inXL6
Connection, brine outXL7
Connection, hot water heaterXL9
HVAC COMPONENTS
Shut-off valve, heating medium flowQM31
Shut off valve, heating medium returnQM32
Shut off valve, brine outQM33
Shut-off valve, brine inQM34
Shuttle valve, climate system/water heaterQN10
SENSORS ETC.
Flow meter**BF1
Outdoor temperature sensor*BT1
Temperature sensors, heating medium flowBT2
**Only heat pumps with energy meter
* Not illustrated
ELECTRICAL COMPONENTS
Display unit
AA4-XJ3 USB socket
AA4-XJ4 Service outlet (No function)
AA4
Motor moduleAA11
Immersion heaterEB1
SwitchSF1
Network cable for NIBE UplinkW130
MISCELLANEOUS
Cooling sectionEP14
Rating platePF1
Type plate, cooling sectionPF2
Cable gland, incoming electricityUB1
Cable glandUB2
Cable gland, rear side, sensorUB3
Designations according to standard EN 81346-2.
NIBE F1145Chapter 3 | The heat pump design10

Distribution boxes
F1145
AA1 AA3
AA2FQ10FC1 AA7
ELECTRICAL COMPONENTS
Immersion heater cardAA1
Base cardAA2
Input circuit boardAA3
Extra relay circuit board1 AA7
Miniature circuit-breakerFC1
Temperature limiter/Emergency mode thermostatFQ10
1Only for F1145PC and F1245PC
11Chapter 3 | The heat pump designNIBE F1145

MOTOR MODULE (AA11)
3X400 V 6-10 kW
LEK
LEK
LEK
FC1
AA10
3x400V 12 kW
FC10 AA10
3x400V 15 & 17 kW
QA10 QA11
FC10 AA10
3x230V 15-17 kW
BE4
X302 RF1
QA10
FC10
ELECTRICAL COMPONENTS
Soft-start cardAA10
Phase sequence monitorBE4
Miniature circuit-breakerFC1
Motor cut-outFC10
Contactor, compressorQA10
Contactor, compressorQA11
Suppression capacitorRF1
Terminal blockX302
* 1x230 V and 3X230V has auxiliary switch for motor cut-out.
NIBE F1145Chapter 3 | The heat pump design12

Cooling section (EP14)
6-8kW
GP1
BT3
QM1
BT10
GP2
BT11
QM2
AA100
BT12
10 kW
GP2
GP1
BT3
QM1
BT10
BT11
QM2
AA100
BT12
12 - 17 kW
BT12
GP2
GP1
BT3
QM1
BT10
AA100
BT11
QM2
6-10 kW
EP2
BT17
BT14
BT15
BP1
XL20
EP1
GQ10
HS1
BP2
XL21
QN1
EB10
12 kW
UN
EP2
BT14
BT17
BP2
BT15
BP1
EB10
EP1
GQ10
HS1
XL21
QN1
XL20
15 & 17 kW
Växlare är tunnare i Light
versioner
Kyldel 15, 17 kW
BT14
BT17
BP2
BT15
BP1
EB10
EP1
GQ10
HS1
XL21
QN1
XL20
EP2
13Chapter 3 | The heat pump designNIBE F1145

PIPE CONNECTIONS
Service connection, high pressureXL20
Service connection, low pressureXL21
HVAC COMPONENTS
Circulation pumpGP1
Brine pumpGP2
Drainage, climate systemQM1
Draining, brine sideQM2
SENSORS ETC.
High pressure pressostatBP1
Low pressure pressostatBP2
Temperature sensors, heating medium returnBT3
Temperature sensor, brine inBT10
Temperature sensor, brine outBT11
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, suction gasBT17
ELECTRICAL COMPONENTS
Joint cardAA100
Compressor heaterEB10
COOLING COMPONENTS
EvaporatorEP1
CondenserEP2
CompressorGQ10
Drying filterHS1
Expansion valveQN1
NIBE F1145Chapter 3 | The heat pump design14

General
Pipe installation must be carried out in accordance with
current norms and directives. F1145 can operate with
a return temperature of up to 58 °C and an outgoing
temperature from the heat pump of 70 (65 °C with only
the compressor).
F1145 is not equipped with external shut off valves;
these must be installed to facilitate any future servicing.
Caution
Ensure that incoming water is clean. When
using a private well, it may be necessary to
supplement with an extra water filter.
Caution
Any high points in the climate system, must
be equipped with air vents.
NOTE
The pipe systems need to be flushed out be-
fore the heat pump is connected so debris
cannot damage component parts.
NOTE
Water may drip from the safety valve’s over-
flow pipe. The entire length of the overflow
water pipe must be routed to a suitable drain
and be inclined to prevent water pockets, and
must also be frost-proof. The overflow pipe
must be at least the same size as the safety
valve. The overflow pipe must be visible and
its mouth must be open and not located close
to electrical components.
SYMBOL KEY
MeaningSymbol
Venting valve
Shut-off valve
Non-return valve
Circulation pump
Expansion vessel
Auxiliary relay
Compressor
Pressure gauge
Level vessel
Particle filter
Safety valve
Temperature sensor
Trim valve
Reversing valve/shunt
Heat exchanger
15Chapter 4 | Pipe connectionsNIBE F1145
4 Pipe connections

SYSTEM DIAGRAM
F1145 consists of heat pump, immersion heater, circu-
lation pumps and control system. F1145 is connected
to the brine and heating medium circuits.
In the heat pump evaporator, the brine (water mixed
with anti-freeze, glycol or ethanol) releases its energy
to the refrigerant, which is vaporised in order to be
compressed in the compressor. The refrigerant, of which
the temperature has now been raised, is passed to the
condenser where it gives off its energy to the heating
medium circuit and, if necessary, to any docked water
heater. If there is a greater need for heating/hot water
than the compressor can provide there is an integrated
immersion heater.
KBinVBf VBrVV KBut
XL1 XL6 XL7 XL2XL9
Connection, heating medium flowXL1
Connection, heating medium returnXL2
Connection, brine inXL6
Connection, brine outXL7
Connection, hot water heaterXL9
Dimensions and pipe
connections
620
600
560
70
1475
725* 725*
25-50
25
55
130
460
535
405
440
620
600
560
70
1475
725* 725*
25-50
25
55
130
460
535
405
440
XL1 XL6 XL7XL9 XL2
PIPE DIMENSIONS
1715126-10(kW)Connection
3528(mm)(XL6)/(XL7) Brine
in/out ext Ø
2822(mm)(XL1)/(XL2) Heating
medium flow/return
ext Ø
2822(mm)(XL9) Connection, hot
water heater ext Ø
* Can be angled for side connection.
NIBE F1145Chapter 4 | Pipe connections16

Brine side
COLLECTOR
Caution
The length of the collector hose varies depend-
ing on the rock/soil conditions, climate zone
and on the climate system (radiators or under-
floor heating) and the heating requirement of
the building Each installation must be sized in-
dividually.
Max. length per coil for the collector should not exceed
400 m.
In those cases where it is necessary to have several
collectors, these should be connected in parallel with
the possibility for adjusting the flow of the relevant coil.
For surface soil heat, the hose should be buried at a
depth determined by local conditions and the distance
between the hoses should be at least 1 metre.
For several bore holes, the distance between the holes
must be determined according to local conditions.
Ensure the collector hose rises constantly towards the
heat pump to avoid air pockets. If this is not possible,
airvents should be used.
Because the temperature of the brine system can fall
below 0 °C, it must be protected against freezing down
to -15 °C. When making the volume calculation, use 1
litres of ready mixed brine per metre of collector hose
(applies when using PEM-hose 40x2.4 PN 6.3) as a guide
value.
SIDE CONNECTION
It is possible to angle the brine connections, for connec-
tion to the side instead of top connection.
To angle out a connection:
1. Disconnect the pipe at the top connection.
2. Angle the pipe in the desired direction.
3. If necessary, cut the pipe to the desired length.
CONNECTING THE BRINE SIDE
• Insulate all indoor brine pipes against condensation.
•The level vessel must be installed as the highest point
in the brine system on the incoming pipe before the
brine pump (Alt. 1).
If the level vessel cannot be placed at the highest
point, an expansion vessel must be used (Alt. 2).
NOTE
Note that condensation may drip from the level
vessel. Position the vessel so that this does
not harm other equipment.
• Details of the antifreeze used must be shown on the
level vessel.
•Install the enclosed safety valve below the level vessel
as illustrated.
• Install shut off valves as close to the heat pump as
possible.
• Fit the enclosed particle filter on the incoming brine.
TIP
If filling connection KB25/KB32 is used, the
enclosed filterball does not need to be fitted.
In the case of connection to an open groundwater sys-
tem, an intermediate frost-protected circuit must be
provided, because of the risk of dirt and freezing in the
evaporator. This requires an extra heat exchanger.
P
-QZ20
Alt. 1 Alt. 2
XL6
XL7
Heating medium side
CONNECTING THE CLIMATE SYSTEM
A climate system is a system that regulates indoor
comfort with the help of the control system in F1145
and for example radiators, underfloor heating/cooling,
fan convectors etc.
• Install all required safety devices, shut-off valves (as
close to the heat pump as possible), and supplied
particle filter.
17Chapter 4 | Pipe connectionsNIBE F1145

• Fit safety valve on heating medium return as illus-
trated. Recommended opening pressure is 0.25 MPa
(2.5 bar). For information about max opening pressure,
see technical specifications.
• When connecting to a system with thermostats on all
radiators (or underfloor heating coils), either a bypass
valve must be fitted or some of the thermostats must
be removed to ensure there is sufficient flow.
P
XL1
XL2
Cold and hot water
CONNECTING THE HOT WATER HEATER
• Fit shut-off valve, non-return valve and safety valve as
illustrated.
•The safety valve must have a maximum 1.0 MPa (10.0
bar) opening pressure and be installed on the incoming
domestic water line as shown.
• A mixer valve must also be installed, if the factory
setting for hot water is changed. National regulations
must be observed.
• Hot water production is activated in the start guide or
in menu 5.2.
XL1
XL2
FIXED CONDENSING
If F1145 is to work towards a water heater with fixed
condensing, you must connect external supply temper-
ature sensor (BT25) according to the description on page
24. In addition, you must make the following menu
settings.
Menu setting (local vari-
ations may be required)
Menu
Desired temperature in the
tank.
1.9.3 - min. flow line temp.
Desired temperature in the
tank.
5.1.2 - max flow line temper-
ature
intermittent5.1.10 - op. mod heat med
pump
manual4.2 - op. mode
Docking alternatives
F1145 can be connected in several different ways, some
of which are shown below.
Further option information is available at nibe.eu and in
the respective assembly instructions for the accessories
used. See page 68 for a list of the accessories that can
be used with F1145.
BUFFER VESSEL
If the climate system volume is too small for the heat
pump output, the radiator system can be supplemented
with a buffer vessel, for example NIBE UKV.
GROUND WATER SYSTEM
An intermediate heat exchanger is used to protect the
heat pump's exchanger from dirt. The water is released
into a buried filtration unit or a drilled well. See page 29
for more information about connecting a ground water
pump.
If this docking alternative is used, "min. brine out" in
menu 5.1.7 "br pmp al set." must be changed to a suit-
able value to prevent freezing of the heat exchanger.
-EP12-GP3
-EP12-HQ40
-EP12-EP4
-EP12-AA25
-EP12
NIBE F1145Chapter 4 | Pipe connections18

VENTILATION RECOVERY
The installation can be supplemented with the exhaust
air module NIBE FLM to provide ventilation recovery.
• Pipes and other cold surfaces must be insulated with
diffusion-proof material to prevent condensation.
• The brine system must be supplied with a pressure
expansion vessel. If there is a level vessel this should
be replaced.
P
FREE COOLING
The accessory PCS 44 allows the connection of passive
cooling, for example with fan coils. The cooling system
is connected to the heat pump brine circuit, whereby
cooling is supplied from the collector via a circulation
pump and shunt valve.
• Pipes and other cold surfaces must be insulated with
diffusion-proof material to prevent condensation.
• Where the cooling demand is high, fan convectors
with drip trays and drain connection are needed.
• The brine system must be supplied with a pressure
expansion vessel. If there is a level vessel this should
be replaced.
-EP25-AA25
-EP25-QN18-EP25-BT64
-EP25-GP13
-EP25-BT65 -EP25-RM1
-EP25
TWO OR MORE CLIMATE SYSTEMS
In buildings with several climate systems that require
different supply temperatures, the accessory
ECS 40/ECS 41 can be connected. A shunt valve then
lowers the temperature to the underfloor heating sys-
tem, for example.
-EP21-RM1
-EP21-GP10-EP21-BT2
-EP21-AA25
-EP21-BT3
-EP21-QN25
-EP21
POOL
With the POOL 40 accessory, you can heat the pool
with your heat pump.
During pool heating, the heating medium circulates
between the F1145 and the pool exchanger using the
heat pump’s internal circulation pump.
-CL11-HQ4-CL11-BT51-CL11-GP9
-CL11-EP5-CL11-QN19
-CL11-AA25
-CL11
19Chapter 4 | Pipe connectionsNIBE F1145

General
All electrical equipment, except the outdoor sensors,
room sensors and the current sensors are ready connec-
ted at the factory.
• Disconnect the heat pump before insulation testing
the house wiring.
• If the building is equipped with an earth-fault breaker,
F1145 should be equipped with a separate one.
• If a miniature circuit breaker is used this should have
at least motor characteristic “C”. See page 72 for fuse
size.
• Electrical wiring diagrams for the heat pump, see
separate installation handbook for electrical wiring
diagrams.
•Communication and sensor cables to external connec-
tions must not be laid close to high current cables.
• The minimum area of communication and sensor
cables to external connections must be 0.5 mm² up
to 50 m, for example EKKX or LiYY or equivalent.
• When cable routing in F1145, cable grommets (e.g.
UB1-UB3, marked in image) must be used. In
UB1-UB3 the cables are inserted through the heat
pump from the back to the front.
NOTE
The switch (SF1) must not be moved to "" or
" " until the boiler has been filled with water.
Components in the product could be damaged.
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Cut the current with the circuit
breaker before carrying out any servicing.
Electrical installation and wiring must be carried
out in accordance with the stipulations in force.
NOTE
Check the connections, main voltage and phase
voltage before the machine is started, to pre-
vent damage to the heat pump electronics.
F1145
FC1
FQ10 FQ10-SF2
AA11-FC10/FC1
UB1
UB3
UB2
MINIATURE CIRCUIT-BREAKER
The heat pump operating circuit and some of its internal
components are internally fused by a miniature circuit
breaker (FC1).
TEMPERATURE LIMITER
The temperature limiter (FQ10) cuts the power to the
electric additional heat if the temperature exceeds 89°C
and is reset manually.
Resetting
The temperature limiter (FQ10) is accessed behind the
front cover. Reset the temperature limiter by pressing
the button (FQ10-SF2) using a small screwdriver.
NIBE F1145Chapter 5 | Electrical connections20
5 Electrical connections
