Nibe F1245PC User guide

Installer manual
LEK
NIBE™ F1245PC
Ground source heat pump
IHB GB 1602-1
331528

Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 40.
How to scroll through menus and make different settings is described on page 42.
Set the indoor climate
2X
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode
in the main menu.
Increase hot water volume
2X
1X
To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and
then press the OK button twice.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to
contact your installer. See page 62 for instructions.

Table of Contents
41 Important information
4Safety information
72 Delivery and handling
7Transport
7Assembly
8Supplied components
8Removing the covers
9Removing parts of the insulation
103 The heat pump design
10General
12Distribution boxes
14Cooling section
164 Pipe connections
16General
17Dimensions and pipe connections
17Brine side
18Heating medium side
18Water heater
18Docking alternatives
215 Electrical connections
21General
23Connections
25Settings
26Optional connections
30Connecting accessories
326 Commissioning and adjusting
32Preparations
32Filling and venting
33Start guide
34Post adjustment and venting
38Setting the cooling/heating curve
407 Control - Introduction
40Display unit
41Menu system
448 Control - Menus
44Menu 1 - INDOOR CLIMATE
44Menu 2 - HOT WATER
44Menu 3 - INFO
45Menu 4 - HEAT PUMP
46Menu 5 - SERVICE
569 Service
56Service actions
6210 Disturbances in comfort
62Info menu
62Manage alarm
62Troubleshooting
6411 Accessories
6612 Technical data
66Dimensions and setting-out coordinates
67Technical specifications
72Energy labelling
80Index
3Table of Contents |NIBE™ F1245PC

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2016.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
Serial number
The serial number can be found at the bottom right of
the front cover and in the info menu (menu 3.1).
You can also find the serial number on the type plate
PF1, for location see the section for the Heat pump
design in the installer manual.
Serial number
Caution
Always give the product's serial number (14
digits) when reporting a fault.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current
legislation.
Country specific information
Installer manual
This installer manual must be left with the customer.
NIBE™ F1245PCChapter 1 | Important information4
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.
DateSignatureNotesDescription
✔
Brine (page 17)
System flushed
System vented
Antifreeze
Level/Expansion vessel
Particle filter
Safety valve
Shut off valves
Circulation pump setting
Heating medium (page 18)
System flushed
System vented
Expansion vessel
Particle filter
Safety valve
Shut off valves
Circulation pump setting
Electricity (page 21)
Connections
Main voltage
Phase voltage
Fuses heat pump
Fuses property
Outside sensor
Room sensor
Current sensor
Safety breaker
Earth circuit-breaker
Setting of emergency mode thermostat
Miscellaneous
5Chapter 1 | Important informationNIBE™ F1245PC

DateSignatureNotesDescription
✔
Guarantee submitted
Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: inf[email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: inf[email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
NIBE™ F1245PCChapter 1 | Important information6

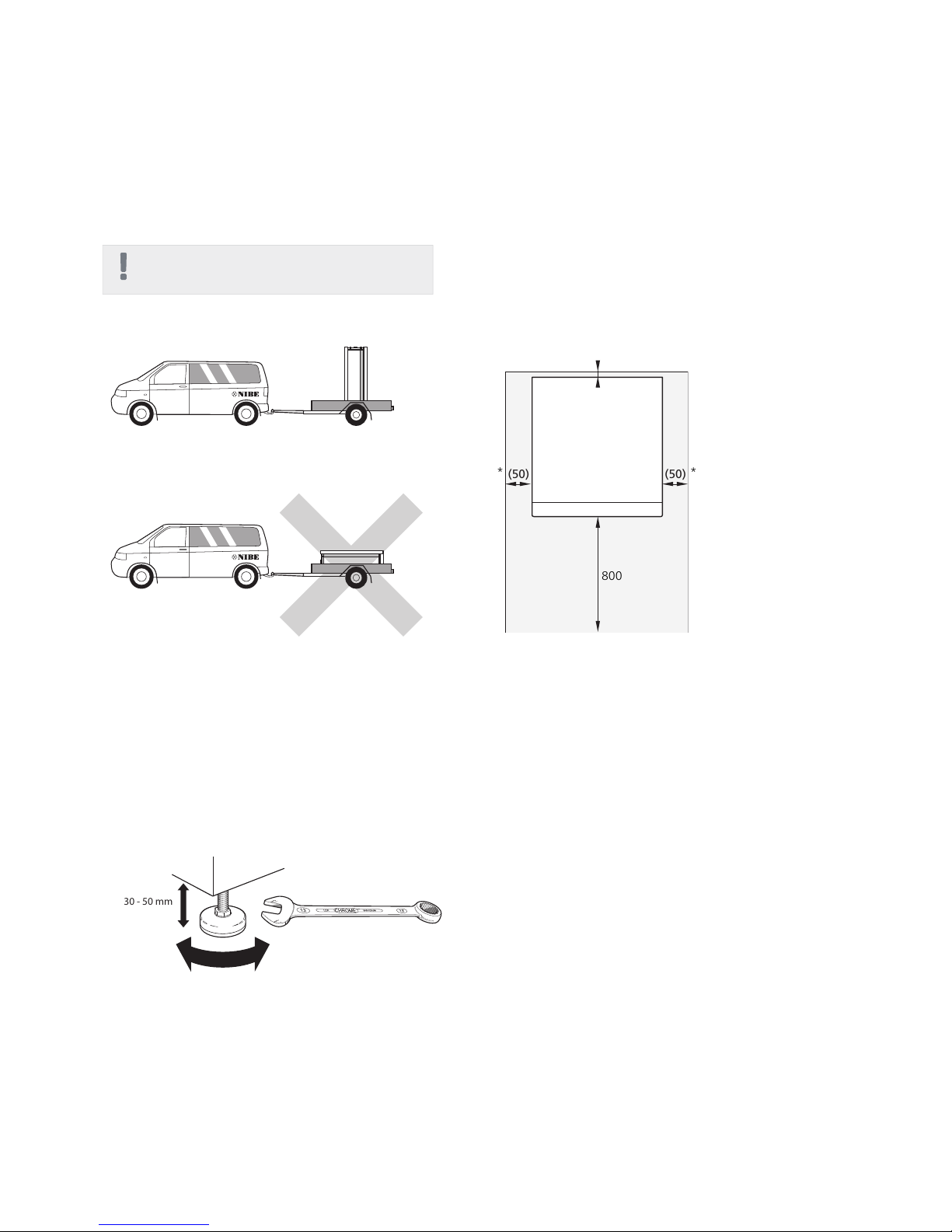

Transport
F1245PC should be transported and stored vertically
in a dry place. When being moved into a building,
F1245PC may be leant back 45 °.
NOTE
The product can be tail heavy!
Remove the outer panels in order to protect them when
moving in confined spaces inside buildings.
R
0
+2
0
-2
1
R
0
HMflow 49(50)°C
Hotwater
51°C
+2
0
-2
1
R
0
HMflow
49(50)°C
Hotwater
51°C
R
0
Pulling out the cooling module
To simplify transport and service, the heat pump can
be separated by pulling the cooling module out from
the cabinet.
See page 58 for instructions about the separation.
Assembly
■Position F1245PC on a firm base that can take the
weight, preferably on a concrete floor or foundation.
Use the product's adjustable feet to obtain a horizont-
al and stable set-up.
30 - 50 mm
30 - 50 mm
15 - 40 mm
■The area where F1245PC is located must be equipped
with floor drainage.
■Install with its back to an outside wall, ideally in a
room where noise does not matter, in order to elim-
inate noise problems. If this is not possible, avoid
placing it against a wall behind a bedroom or other
room where noise may be a problem.
■Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
■Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.
Installation area
Leave a free space of 800 mm in front of the product.
Approx. 50 mm free space is required on each side, to
remove the side panels. The panels do not need to be
removed during service, all service on F1245PC can be
carried out from the front. Leave space between the
heat pump and the wall behind (and any routing of
supply cables and pipes), to reduce the risk of any
transmission of vibrations.
(50) (50)
800
*
*
* A normal installation needs 300 - 400 mm (any side) for connec-
tion equipment, i.e. level vessel, valves and electrical equipment.
7Chapter 2 | Delivery and handlingNIBE™ F1245PC
2 Delivery and handling

Supplied components
LEK
LEK
LEK
Room sensorCurrent sensorOutside sensor
1 x3 x1 x
(not 1x230V)
LEK
LEK
O-ringsSafety valve
(0.3 MPa) (3 bar)
Level vessel
1 x 8 x
1 x
22 28
22 28
WILO
LEK
LEK
WILO
WILO
2,5(22)
H-50 - 2,5
TUV-SV-97-525
WILO
LEK
LEK
WILO
WILO
2,5(22)
H-50 - 2,5
TUV-SV-97-525
Compression ring couplingsParticle filter
2 x (ø28 x G25)5 - 10 kW
2 x (ø22 x G20)1 x G1
1 x G3/4
LEK
LEK
Installation kit for
external brine
pump (only for 10
kW)
External brine
pump (only for
10kW)
1 x
1 x
Location
The kit of supplied items is placed in packaging on top
of the heat pump.
Removing the covers
Front cover
1
2
LEK
LEK
LEK
LEK
LEK
1. Remove the screws from the lower edge of the
front cover.
2. Lift the cover out at the bottom edge and up.
LEK
LEK
LEK
The side covers can be removed to facilitate the install-
ation.
1. Remove the screws from the upper and lower
edges.
2. Twist the cover slightly outward.
3. Move the hatch outwards and backwards.
4. Assembly takes place in the reverse order.
NIBE™ F1245PCChapter 2 | Delivery and handling8

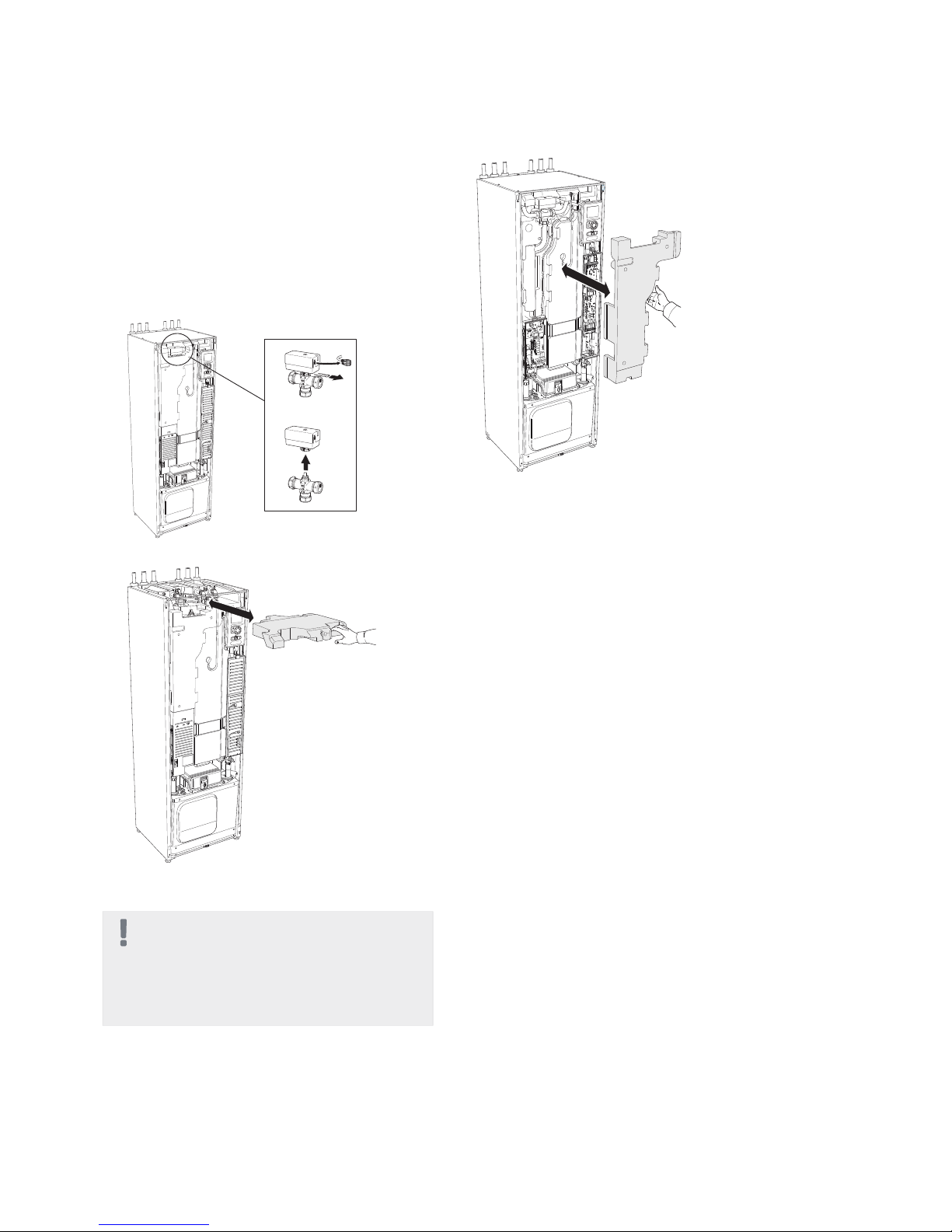

Removing parts of the
insulation
Parts of the insulation can be removed to facilitate the
installation.
Insulation, top
1. Disconnect the cable from the motor and remove
the motor from the shuttle valve as illustrated.
LEK
LEK
A
B
LEK
2. Grip the handle and pull straight out as illustrated.
LEK
Insulation, immersion heater
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
1. Remove the cover for the junction box according
to the description on page 21.
2. Grip the handle and pull the insulation carefully
towards you as illustrated.
LEK
9Chapter 2 | Delivery and handlingNIBE™ F1245PC

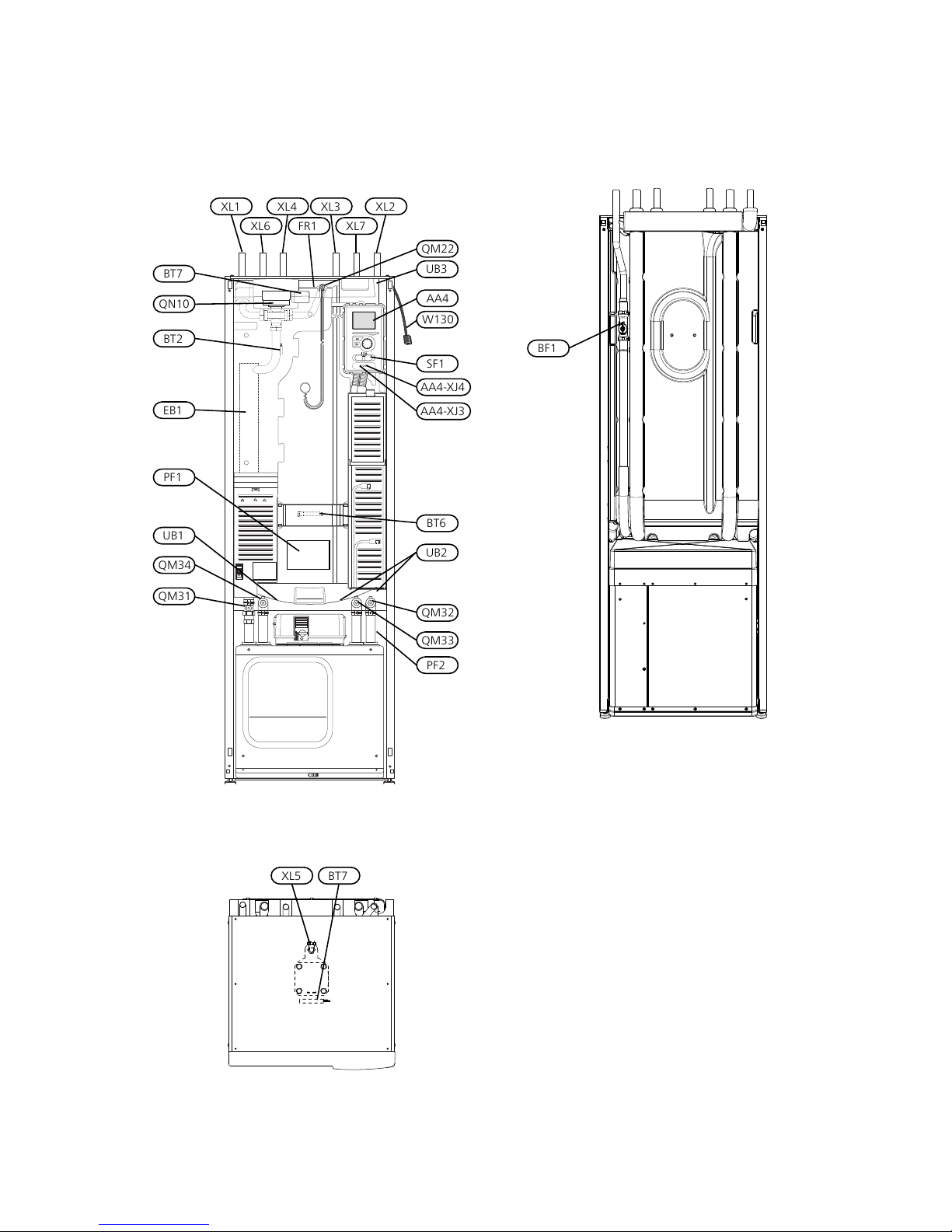

General
F1245
BT7
QN10
BT2
EB1
UB1
QM34
XL1
XL6 XL7
XL4 XL3 XL2
FR1
PF1
BT6
UB2
QM32
QM33
PF2
QM22
UB3
AA4
W130
QM31
AA4-XJ3
AA4-XJ4
SF1
View from above
XL5 BT7
View from behind
BF1
NIBE™ F1245PCChapter 3 | The heat pump design10
3 The heat pump design

Pipe connections
Connection, heating medium flowXL1
Connection, heating medium returnXL2
Connection, cold waterXL3
Connection, hot waterXL4
Connection, HWCXL5
Connection, brine inXL6
Connection, brine outXL7
HVAC components
Venting, coilQM22
Shut-off valve, heating medium flowQM31
Shut off valve, heating medium returnQM32
Shut off valve, brine outQM33
Shut-off valve, brine inQM34
Shuttle valve, climate system/water heaterQN10
Sensors etc.
Flow meter**BF1
Outdoor temperature sensor*BT1
Temperature sensors, heating medium flowBT2
Temperature sensor, hot water chargingBT6
Temperature sensor, hot water topBT7
**Only heat pumps with energy meter
* Not illustrated
Electrical components
Display unitAA4
AA4-XJ3 USB socket
AA4-XJ4 Service outlet (No function)
Immersion heaterEB1
Sacrificial anode*FR1
SwitchSF1
Network cable for NIBE UplinkTM W130
* Only heat pump with enamelled vessel.
Miscellaneous
Rating platePF1
Type plate, cooling sectionPF2
Cable gland, incoming electricityUB1
Cable glandUB2
Cable gland, rear side, sensorUB3
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
11Chapter 3 | The heat pump designNIBE™ F1245PC

Distribution boxes
F1245
FD1
AA8
AA1
FA1
FB1
AA3
AA2
AA7
AA23
Electrical components
Immersion heater cardAA1
Base cardAA2
Input circuit boardAA3
Extra relay circuit boardAA7
Sacrificial anode card*AA8
Miniature circuit-breakerFA1
Motor cut-out**FB1
Temperature limiter/Emergency mode thermo-
stat
FD1
* Only heat pump with enamelled vessel.
** 5 kW has auxiliary switch for motor cut-out.
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
NIBE™ F1245PCChapter 3 | The heat pump design12

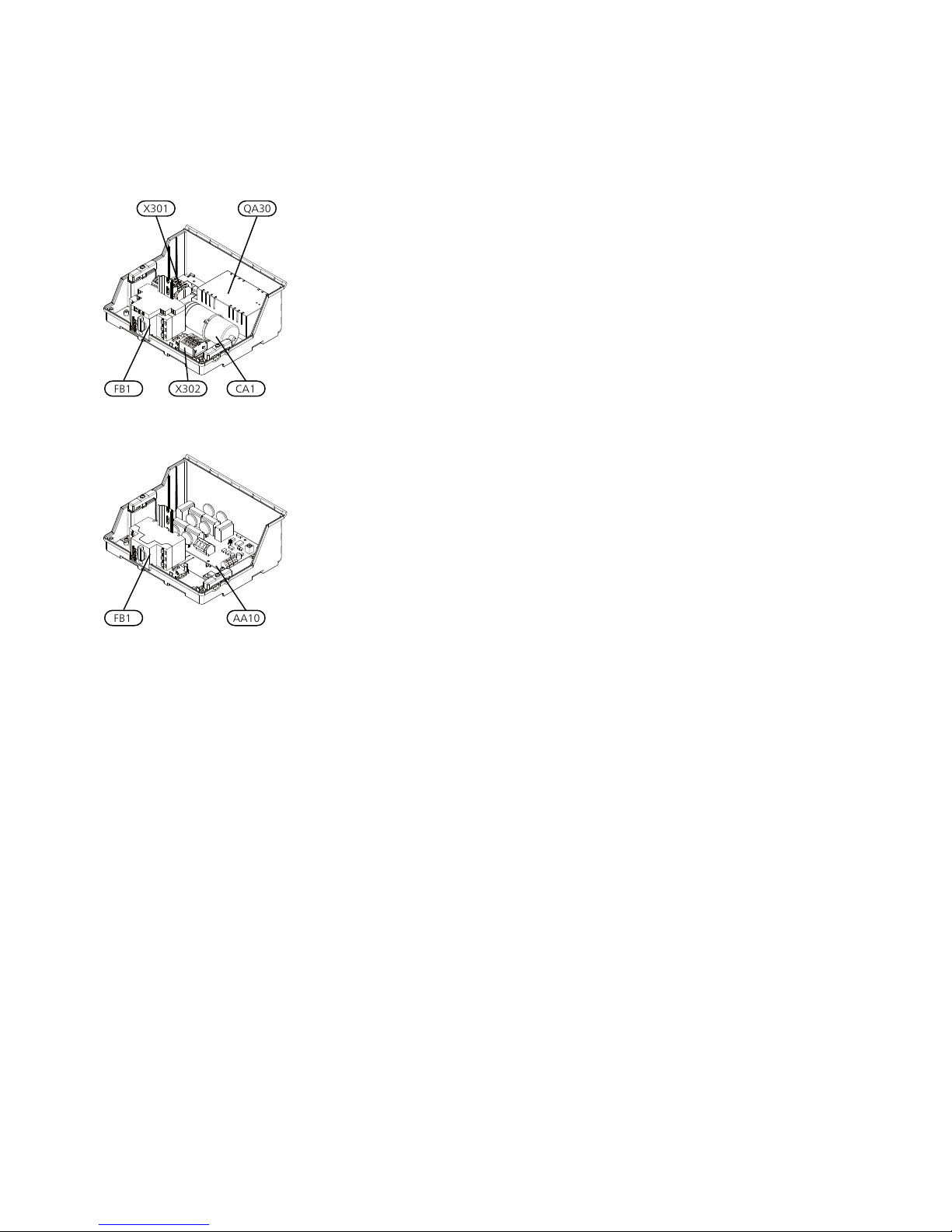

1x230V 5kW
3x400V 5 kW
QA30
FB1 X302 CA1
X301
3x400V 6-10 kW
FB1 AA10
Electrical components
Soft-start cardAA10
CapacitorCA1
Motor cut-out**FB1
Soft-starterQA30
Terminal blockX301
Terminal blockX302
** 5 kW has auxiliary switch for motor cut-out.
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
13Chapter 3 | The heat pump designNIBE™ F1245PC

Cooling section
5–8kW
LEK
BT10
AA100
QN18
QM2
BT3
GP1
GP2
QM1
BT11
BT12
EP6
10 kW
LEK
BT10
AA100
QN18
QM2
BT3
GP1
QM1
BT11
BT12
EP6
1x230V 5 kW
3x400V 5 kW
EP2
BT14
BT17
EP1
BP2
BT15
BP1
GQ10
HS1
XL21
QN1
EB10 XL20
3x400V 6 – 10 kW
Kyldel 6,8,10 kW
Växlare är tunnare i Light
versioner
EP2
BT17
BT14
EP1
BP2
BT15
BP1
GQ10
HS1
XL21
QN1
XL20 EB10
NIBE™ F1245PCChapter 3 | The heat pump design14

Pipe connections
Service connection, high pressureXL20
Service connection, low pressureXL21
HVAC components
Circulation pumpGP1
Brine pumpGP2
Drainage, climate systemQM1
Draining, brine sideQM2
Sensors etc.
High pressure pressostatBP1
Low pressure pressostatBP2
Temperature sensors, heating medium returnBT3
Temperature sensor, brine inBT10
Temperature sensor, brine outBT11
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, suction gasBT17
Electrical components
Joint cardAA100
Compressor heaterEB 10
Cooling components
EvaporatorEP1
CondenserEP2
Heat exchanger, coolingEP6
CompressorGQ10
Drying filterHS1
Expansion valveQN1
Mixing valve, coolingQN18
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
15Chapter 3 | The heat pump designNIBE™ F1245PC

General
Pipe installation must be carried out in accordance with
current norms and directives. F1245PC can operate
with a return temperature of up to 58 °C and an outgo-
ing temperature from the heat pump of 70(65 °C with
only the compressor).
F1245PC is not equipped with external shut off valves;
these must be installed to facilitate any future servicing.
Caution
Any high points in the climate system, must
be equipped with air vents.
NOTE
The pipe system needs to be flushed out be-
fore the heat pump is connected so that debris
cannot damage component parts.
NOTE
The climate system must be adjusted for both
heating and cooling operation.

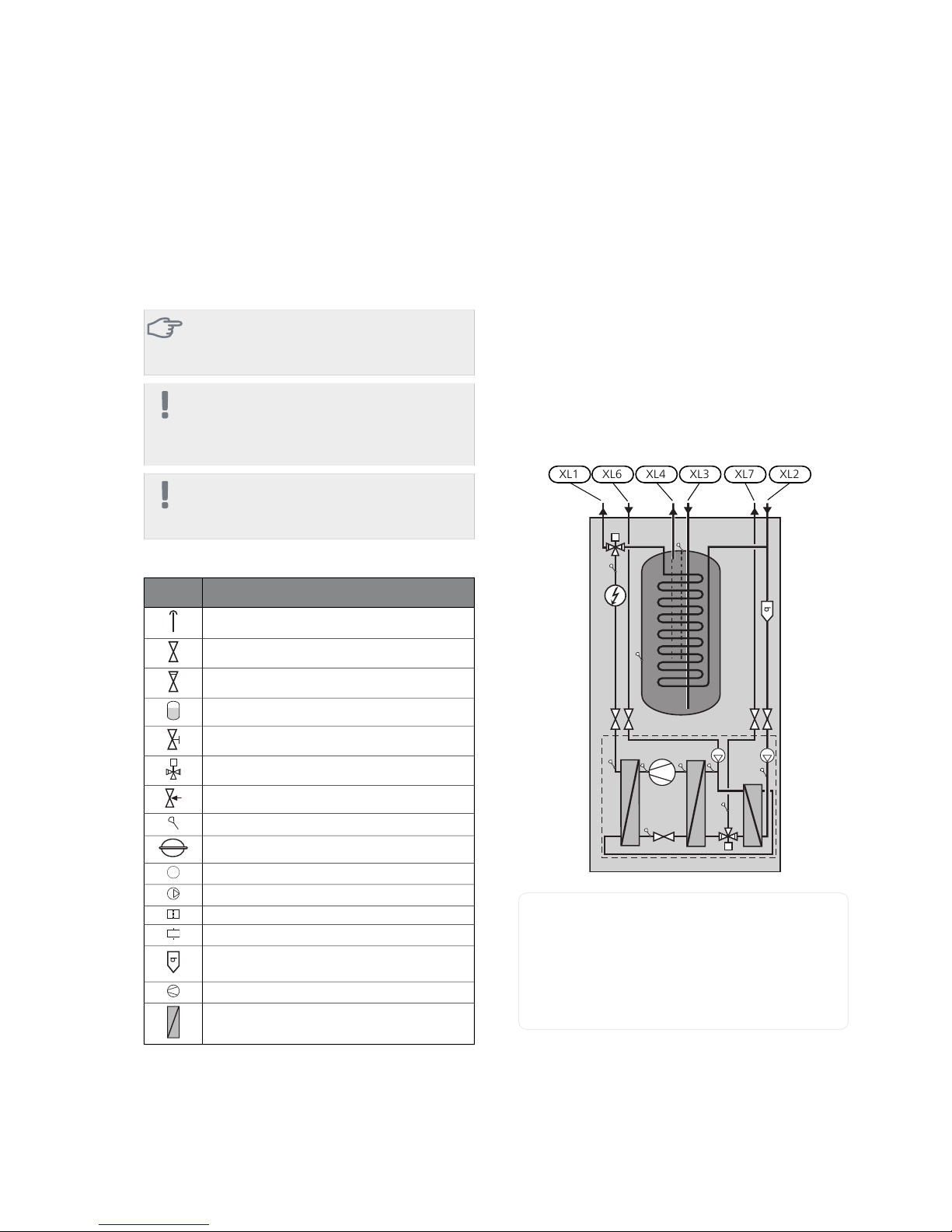

Symbol key
MeaningSymbol
Venting valve
Shut-off valve
Non-return valve
Level vessel
Trim valve
Shunt / shuttle valve
Safety valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
Auxiliary relay
Flow meter (only heat pumps with energy
meter)
Compressor
Heat exchanger
System diagram
F1245PC consists of a heat pump, water heater, elec-
trical module, circulation pumps and a control system.
F1245PC is connected to the brine and heating medium
circuits.
In the heat pump evaporator, the brine (water mixed
with anti-freeze, glycol or ethanol) releases its energy
to the refrigerant, which is vaporised in order to be
compressed in the compressor. The refrigerant, of
which the temperature has now been raised, is passed
to the condenser where it gives off its energy to the
heating medium circuit and, if necessary, to the water
heater. If there is a greater need for heating/hot water
than the compressor can provide there is an integrated
immersion heater.
The brine can also be circulated via a mixing valve to a
heat exchanger. There the brine cools the heating sys-
tem's water so that comfort cooling can be maintained
during the hotter periods of the year.
VV KV
KBinVBf VBr KBut
XL1 XL6 XL7XL4 XL3 XL2
VV KV
KBinVBf VBr KBut
Connection, heating medium flowXL 1
Connection, heating medium returnXL 2
Connection, cold waterXL 3
Connection, hot waterXL 4
Connection, brine inXL 6
Connection, brine outXL 7
NIBE™ F1245PCChapter 4 | Pipe connections16
4 Pipe connections

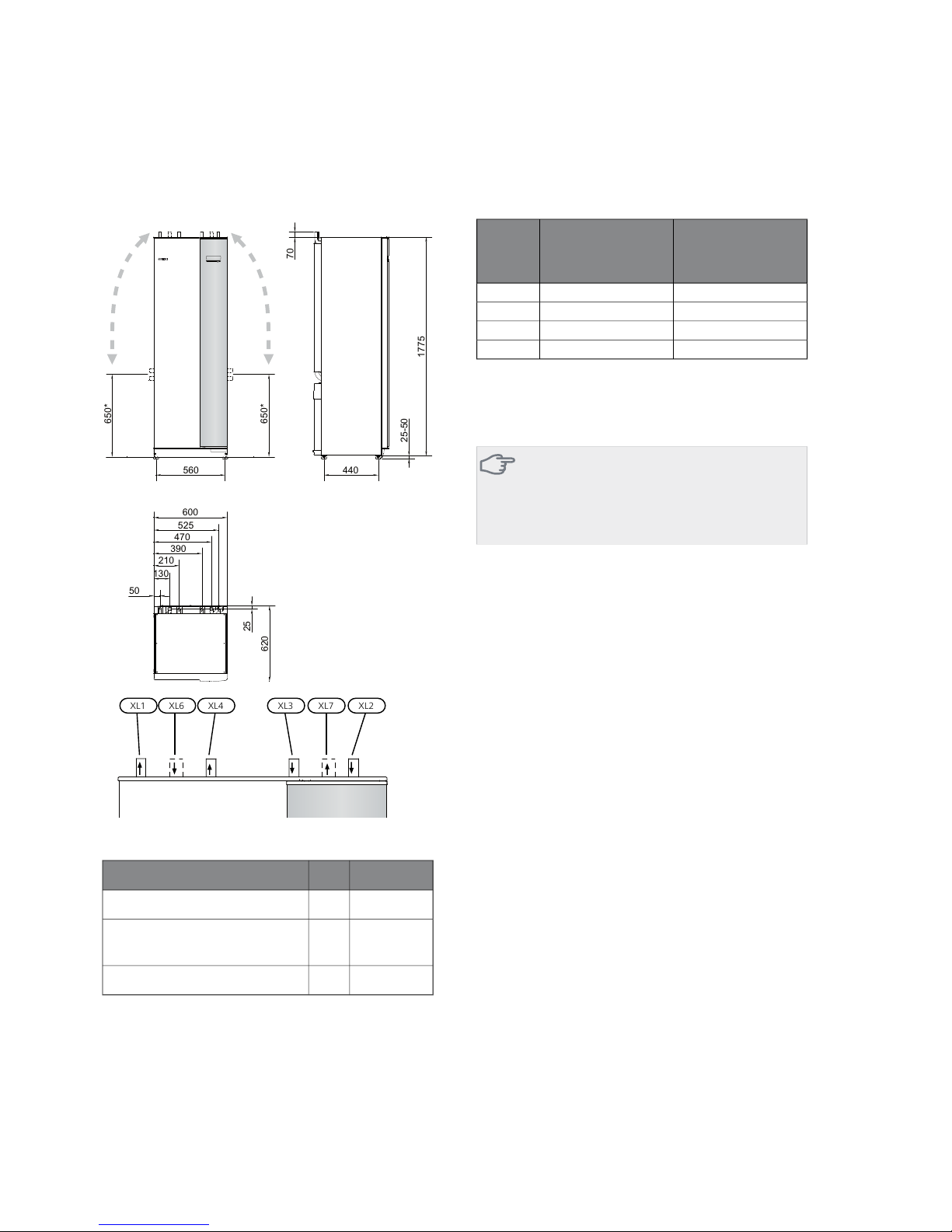

Dimensions and pipe
connections
620
600
560 440
70
1775
650*
25-50
25
50
130
210
390
470
525
650*
620
600
560 440
70
1775
650*
25-50
25
50
130
210
390
470
525
650*
XL1 XL6 XL7XL4 XL3 XL2
Pipe dimensions
5-10(kW)Connection
28(mm)(XL6)/(XL7) Brine in/out ext Ø
22(mm)(XL1)/(XL2) Heating medium
flow/return ext Ø
22(mm)(XL3)/(XL4) Cold/hot water Ø
Brine side
Collector
Rock heat, recom-
mended active
drilling depth (m)
Surface soil heat,
recommended col-
lector length (m)
Type
70-90200-3005 kW
90-110250-4006 kW
120-145325-2x2508 kW
150-180400-2x30010 kW
Applies to PEM hose 40x2.4 PN 6.3.
These are rough example values. At installation the
correct calculations must be made according to local
conditions.
Caution
The length of the collector hose varies depend-
ing on the rock/soil conditions, climate zone
and on the climate system (radiators or under-
floor heating).
Max length per coil for the collector should not exceed
400 m.
In those cases where it is necessary to have several
collectors, these should be connected in parallel with
the possibility for adjusting the flow of the relevant
coil.
For surface soil heat, the hose should be buried at a
depth determined by local conditions and the distance
between the hoses should be at least 1 metre.
For several bore holes, the distance between the holes
must be determined according to local conditions.
Ensure the collector hose rises constantly towards the
heat pump to avoid air pockets. If this is not possible,
airvents should be used.
As the temperature of brine system can fall below 0 °C
it must be protected against freezing down to -15 °C.
1 litre of ready mixed brine per meter of collector hose
(applies when using PEM-hose 40x 2.4 PN 6.3) is used
as a guide value when making the volume calculation.
Side connection
It is possible to angle the brine connections, for connec-
tion to the side instead of top connection.
To angle out a connection:
1. Disconnect the pipe at the top connection.
2. Angle the pipe in the desired direction.
3. If necessary, cut the pipe to the desired length.

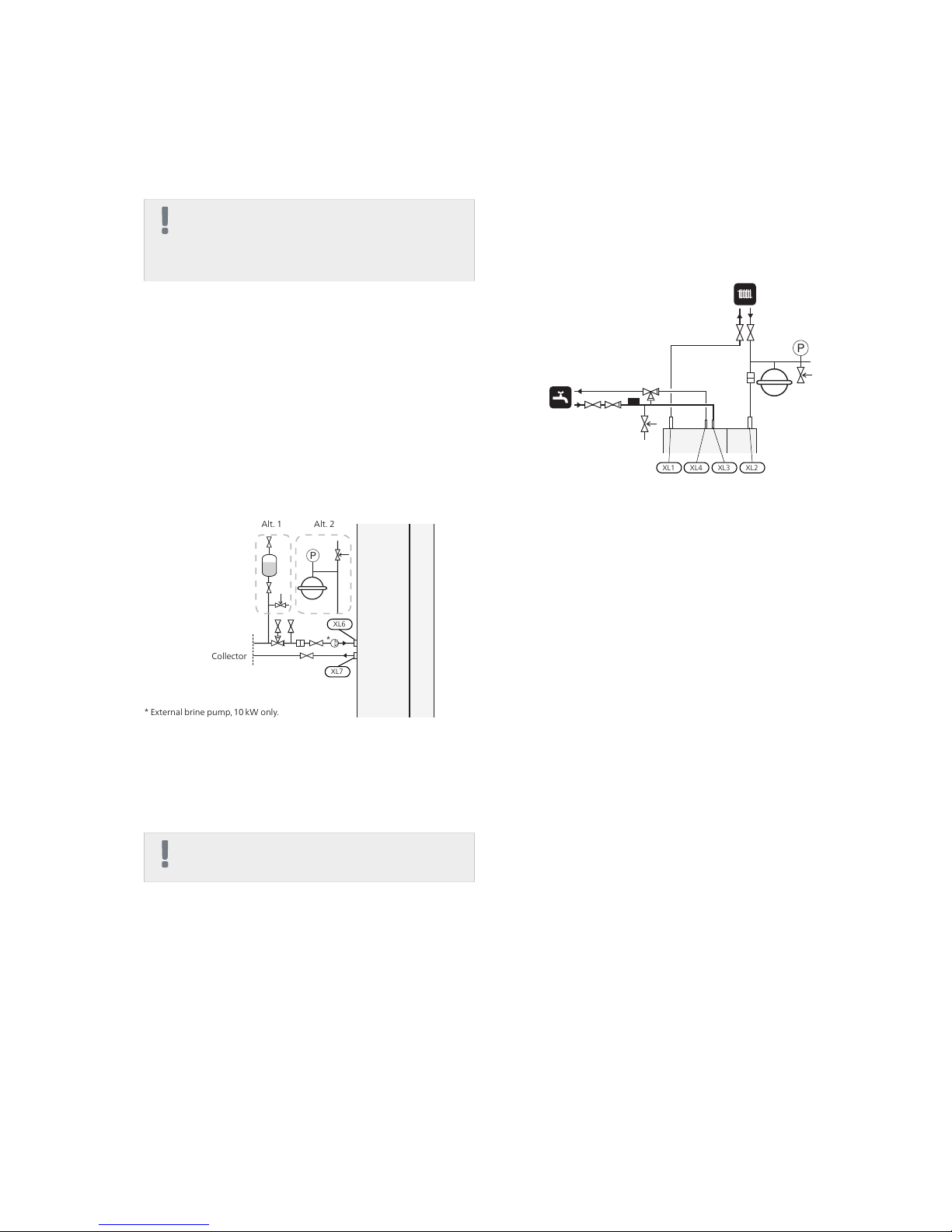

Connecting the brine side
■Insulate all indoor brine pipes against condensation.
■The level vessel must be installed as the highest point
in the brine system on the incoming pipe before the
brine pump (Alt. 1).
* Can be angled for side connection.
17Chapter 4 | Pipe connectionsNIBE™ F1245PC

If the level vessel cannot be placed at the highest
point an expansion vessel must be used (Alt. 2).
NOTE
Note that condensation may drip from the
level vessel. Position the vessel so that this does
not harm other equipment.
■Details of the antifreeze used must be shown on the
level vessel.
■Install the supplied safety valve under the level vessel
as illustrated. The entire length of the overflow water
pipe from the safety valves must be inclined to pre-
vent water pockets and must also be frost proof.
■Install shut off valves as close to the heat pump as
possible.
■Fit the supplied particle filter on the incoming pipe.
In the case of connection to an open groundwater
system, an intermediate frost-protected circuit must
be provided, because of the risk of dirt and freezing in
the evaporator. This requires an extra heat exchanger.
P
P
XL6
XL7
Collector
Alt. 1 Alt. 2
*
* External brine pump, 10 kW only.
Connecting external brine pump (10 kW
only)
Install the brine pump at the connection for incoming
brine (XL6) between F1245PC and the shutoff valve
(see illustration).
NOTE
Insulate the brine pump against condensation.
Heating medium side
Connecting the climate system
A climate system is a system that regulates indoor
comfort with the help of the control system in F1245PC
and for example radiators, underfloor heating/cooling,
fan convectors etc.
■Install all required safety devices, shut-off valves (as
close to the heat pump as possible), and supplied
particle filter.
■The safety valve must have a maximum 0.25 MPa (2.5
bar) opening pressure and be installed on the heating
medium return as illustrated. The entire length of
the overflow water pipe from the safety valves must
be inclined to prevent water pockets and must also
be frost proof.
■When connecting to a system with thermostats on
all radiators, a relief valve must be fitted, or some of
the thermostats must be removed to ensure sufficient
flow.
P
P
XL1 XL4 XL3 XL2
Water heater
Connecting the hot water heater
■The hot water heater in the heat pump must be
supplied with necessary set of valves.
■The mixing valve must be installed if the setting is
changed so that the temperature can exceed 60 °C.
■The setting for hot water is made in menu 5.1.1.
■The safety valve must have a maximum 1.0 MPa (10.0
bar) opening pressure and be installed on the incom-
ing domestic water line as illustrated. The entire
length of the overflow water pipe from the safety
valves must be inclined to prevent water pockets and
must also be frost proof.
Docking alternatives
F1245PC can be connected in several different ways,
some of which are shown below.
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the ac-
cessories used. See page 64 for a list of the accessories
that can be used with F1245PC.
NIBE™ F1245PCChapter 4 | Pipe connections18

Buffer vessel
If the climate system volume is too small for the heat
pump output, the radiator system can be supplemented
with a buffer vessel, for example NIBE UKV.
UKV
P
Extra electric hot water heater
The heat pump should be supplemented with an elec-
tric water heater, for example NIBE COMPACT, if a
whirlpool or other significant consumer of hot water
is installed.
■The valve connection on COMPACT can be separated.
The mixing valve remains on COMPACT and the re-
maining valve connector can be used for incoming
cold water in F1245PC.
VV
KV
COMPACT
CW
HW
Ground water system
An intermediate heat exchanger is used to protect the
heat pump's exchanger from dirt. The water is released
into a buried filtration unit or a drilled well. See page
29 for more information about connecting a ground
water pump.
If this docking alternative is used, "min. brine out" in
menu 5.1.7 "br pmp al set." must be changed to a
suitable value to prevent freezing in the heat ex-
changer.
Ventilation recovery
The installation can be supplemented with the exhaust
air module FLM to provide ventilation recovery.
■Pipes and other cold surfaces must be insulated with
diffusion-proof material to prevent condensation.
■The brine system must be supplied with a pressure
expansion vessel (CM3). If there is a level vessel (CM2)
this should be replaced.
Frånluft
Ø 160
Avluft
Ø 160
P
Extract air
Exhaust
air
FLM
19Chapter 4 | Pipe connectionsNIBE™ F1245PC

Under floor heating systems
The external circulation pump is dimensioned for the
under floor heating system’s demand.
If the climate system volume is too small for the heat
pump output, the underfloor heating system can be
supplemented with a buffer vessel, for example NIBE
UKV.
UKV
P
Two or more climate systems
When more than one climate system, with a lower
temperature, is to be heated up, the following connec-
tion can be used. The shunt valve lowers the temperat-
ure to, for example, the under floor heating system.
The ECS 40/ECS 41 accessory is required for this con-
nection.
Pool
Charging of the pool is controlled by the pool sensor.
In the case of low pool temperatures, the shuttle valve
reverses direction and opens towards the pool ex-
changer. The POOL 40 accessory is required for this
connection.
Pool
NIBE™ F1245PCChapter 4 | Pipe connections20
