Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given super-
vision or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2019.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should consider when installing
or servicing the installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold in
the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical equip-
ment.
IP21
Read the User Manual.
Read the Installer Manual.

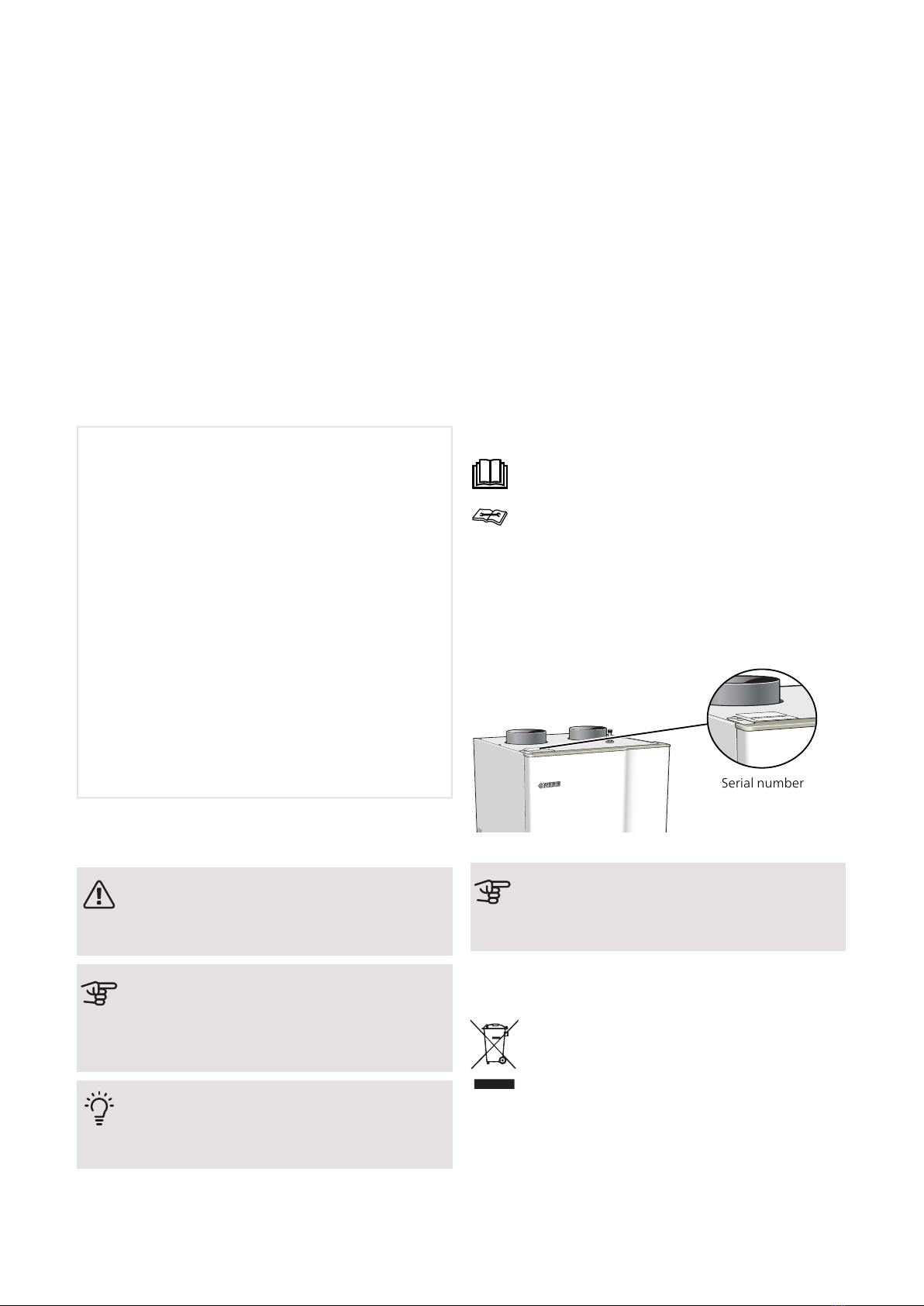

Serial number
The serial number can be found to the left, on top of
F130.
LEK
LEK
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current le-
gislation.
NIBE F130Chapter 1 | Important information4
1 Important information

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person.
DateSignatureNotesDescription
✔
Ventilation, exhaust air (page 15)
Setting the ventilation flow
Exhaust air filter
Ventilation, surrounding air (page 16)
Pressure drop in the system
Hot water
System vented
Electricity (page 19)
Supply connected 230 V
Circuit fuses
Earth circuit-breaker
Miscellaneous
Type of installation
5Chapter 1 | Important informationNIBE F130

Transport
F130 should be transported and stored vertically in a dry
place.
Assembly
•F130 is installed freestanding on brackets or a suitable
flat surface. Noise from the fan and compressor can
be transferred to the brackets or the surface that F130
is placed on. Use the product's adjustable feet to ob-
tain a horizontal and stable set-up.
Because water comes from F130, the floor coating is
important. A waterproof floor or floor membrane is
recommended.
30 - 50 mm
30 - 50 mm
15 - 40 mm
20-55 mm
•Because water comes from F130, it is good if the area
where the heating pump is located is provided with
floor drainage.
•F130 must be positioned with the back towards a wall.
Install the brackets or position F130 against an outside
wall, ideally in a room where noise does not matter,
in order to eliminate noise problems. If this is not
possible, avoid placing it against a wall behind a bed-
room or other room where noise may be a problem.
• Wherever the unit is located, walls to sound sensitive
rooms should be fitted with sound insulation.
• Route pipes so they are not fixed to an internal wall
that backs on to a bedroom or living room.

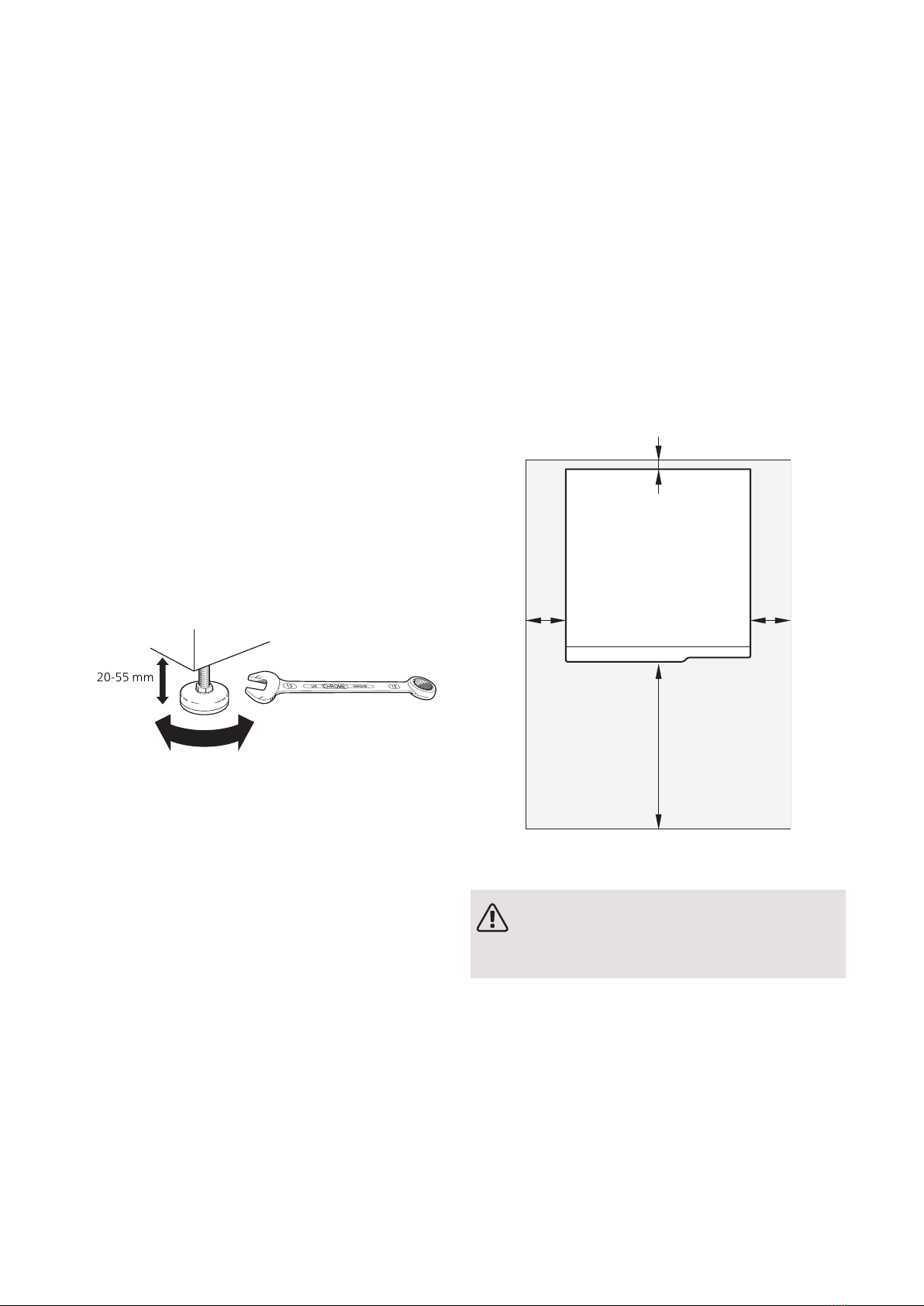

INSTALLATION AREA
Leave a free space of 800 mm in front of the product.
Leave free space between F130 and wall/other ma-
chinery/fittings/cables/pipes etc. It is recommended that
a space of at least 10 mm is left to reduce the risk of
noise and of any vibrations being propagated.
800
10-50*10-50*
* Depending on whether the panels can be removed or
not.
NOTE
Ensure that there is sufficient space (300 mm)
above F130 for installing ventilation hoses.
NIBE F130Chapter 2 | Delivery and handling6
2 Delivery and handling

Supplied components
Mora kniv
LEK
LEK
LEK
LEK
Filter cartridgeSilencer
Choke washer Ø 22 mmAir connection
LEK
6-pin sensor connector
LEK
4-pin terminal block
2 x sensors
LEK
Drain hose Ø 20 mm
Length 2200 mm
LEK
LEK
Display
6 x nuts
4 x washers
2 x bracket
6 x screws
LOCATION
The kit of supplied items is placed on top of the product.
7Chapter 2 | Delivery and handlingNIBE F130

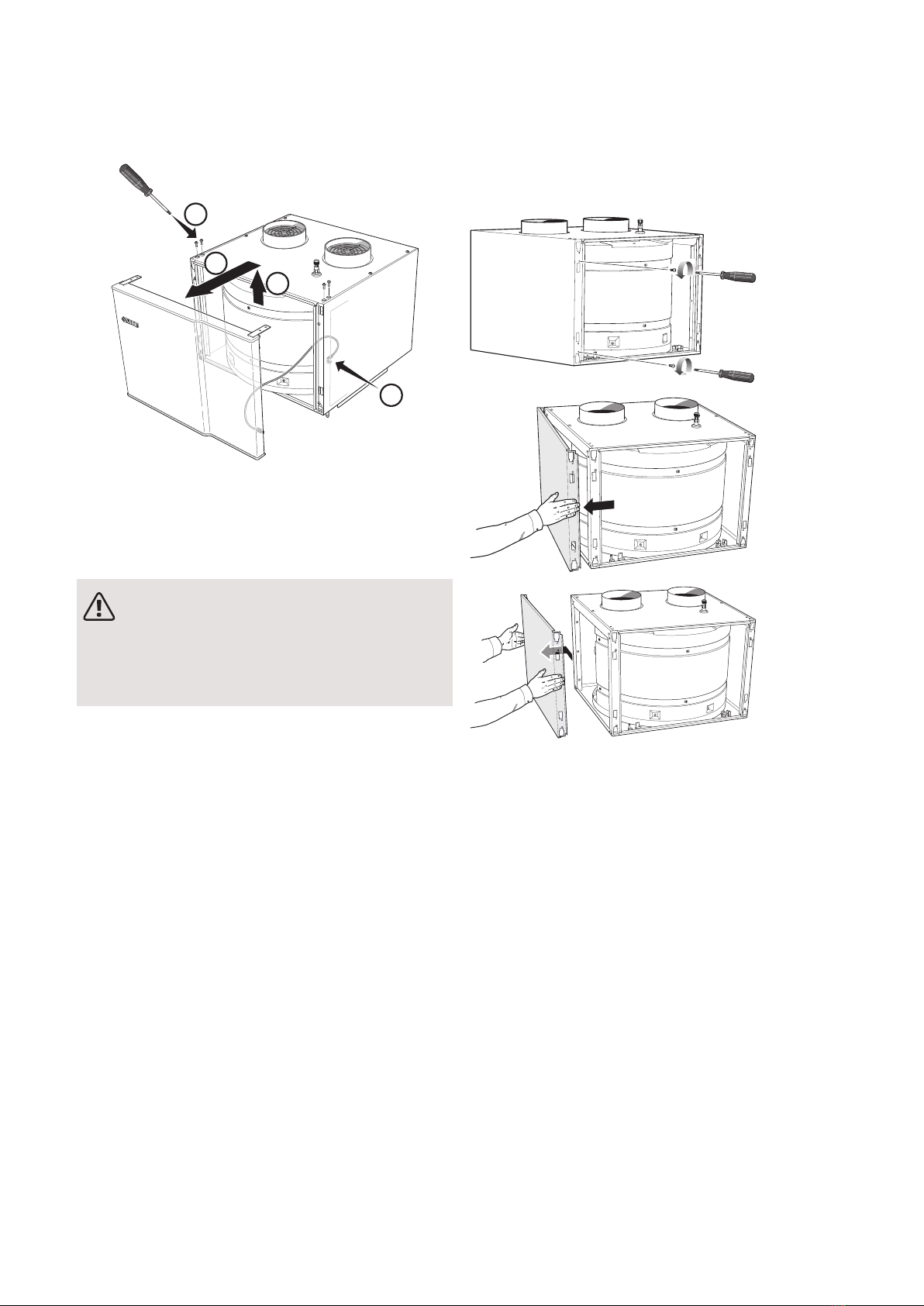

Removing the covers
FRONT HATCH
LEK
1
2
3
4
1. Slacken off the screws for the securing plate above
F130.
2. Slide the hatch upwards and pull it towards you.
3. Pull the hatch towards yourself.
NOTE
An earth cable is installed in the hatch, which
can therefore only be lifted out 35 cm. If the
hatch needs to be removed completely, the
cable must be disconnected.
SIDE PANELS
1. Undo the screws at the edge.
2. Twist the cover slightly outward.
3. Move the side cover outwards and backwards.
4. Assembly takes place in the reverse order.
LEK
LEK
LEK
NIBE F130Chapter 2 | Delivery and handling8

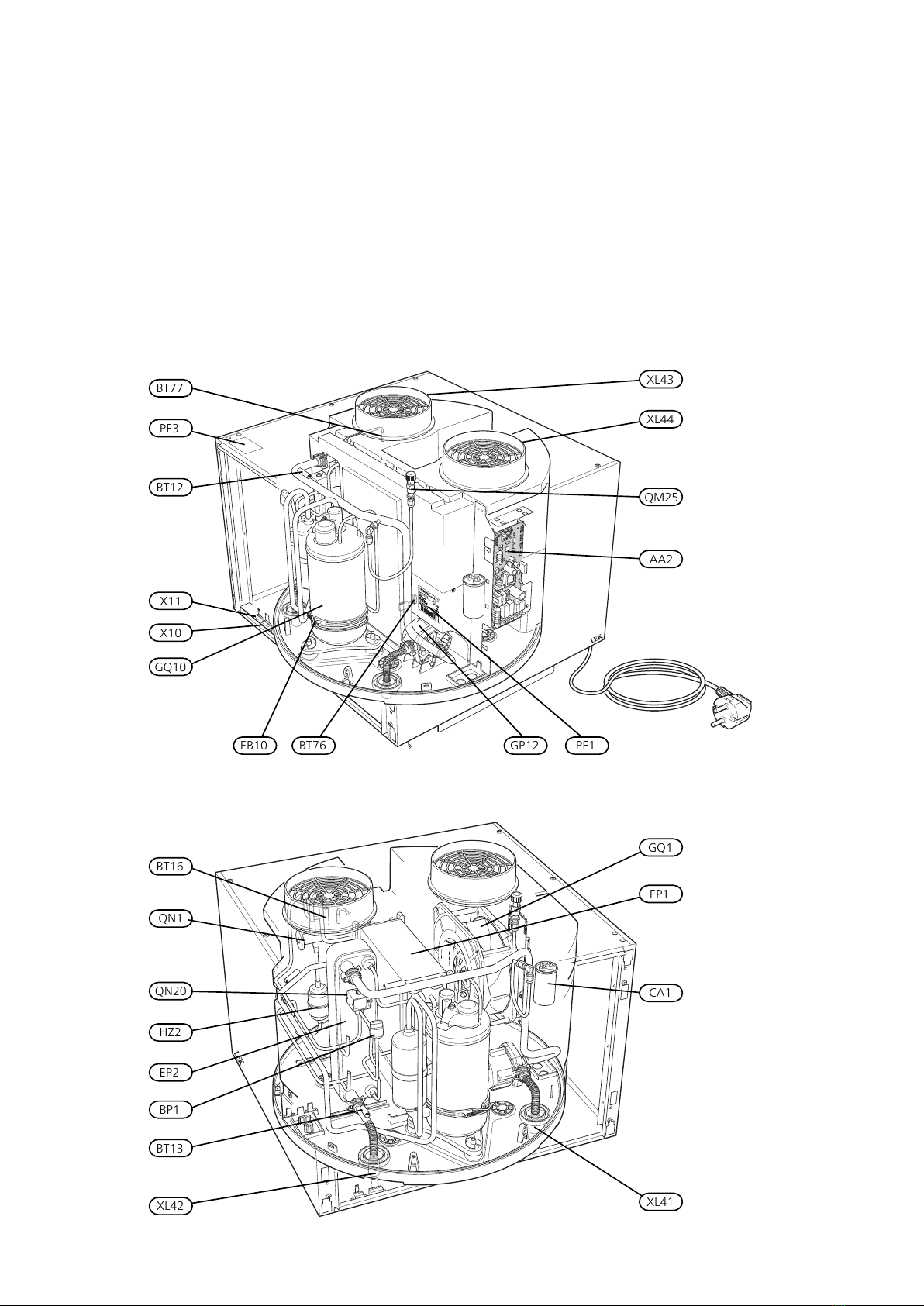

Component positions
LEK
LEK
LEK
LEK
QN1
BT76 GP12 PF1EB10
X11
X10
GQ10
AA2
QM25
XL44
XL43
BT77
BT16
QN20
HZ2
EP2
BP1
BT13
XL42
EP1
GQ1
XL41
BT12
CA1
PF3
9Chapter |NIBE F130

List of components
PIPE CONNECTIONS
Hot water connection, supplyXL41
Hot water connection, returnXL42
Connecting incoming airXL43
Connecting outgoing airXL44
Overflow water discharge1 WM2
HVAC COMPONENTS
Circulation pump, chargingGP12
Venting, hot waterQM25
SENSORS
High pressure pressostatBP1
Temperature sensor, hot water, control 1 BT6
Temperature sensor, hot water, display 1 BT7
Temperature sensor, condenser outBT12
Temperature sensor, heating medium return before
condenser
BT13
Temperature sensor, evaporatorBT16
Temperature sensor, defrostingBT76
Temperature sensor, incoming airBT77
ELECTRICAL COMPONENTS
Base cardAA2
CapacitorCA1
Compressor heaterEB10
Sensor switchXJ10-X10
Display switchXJ10-X11
COOLING COMPONENTS
EvaporatorEP1
CondenserEP2
CompressorGQ10
Drying filterHZ2
Expansion valveQN1
Solenoid valve, defrostingQN20
VENTILATION
FanGQ1
Air filter1 HQ12
MISCELLANEOUS
Rating platePF1
Serial number platePF3
1Not visible in the image
Designations according to standard EN 81346-2.
NIBE F130Chapter |10

General pipe
connections
Pipe installation must be carried out in accordance with
current norms and directives.
F130 is only designed for upright installation. All connec-
tions are equipped with smooth pipe for compression
ring couplings.

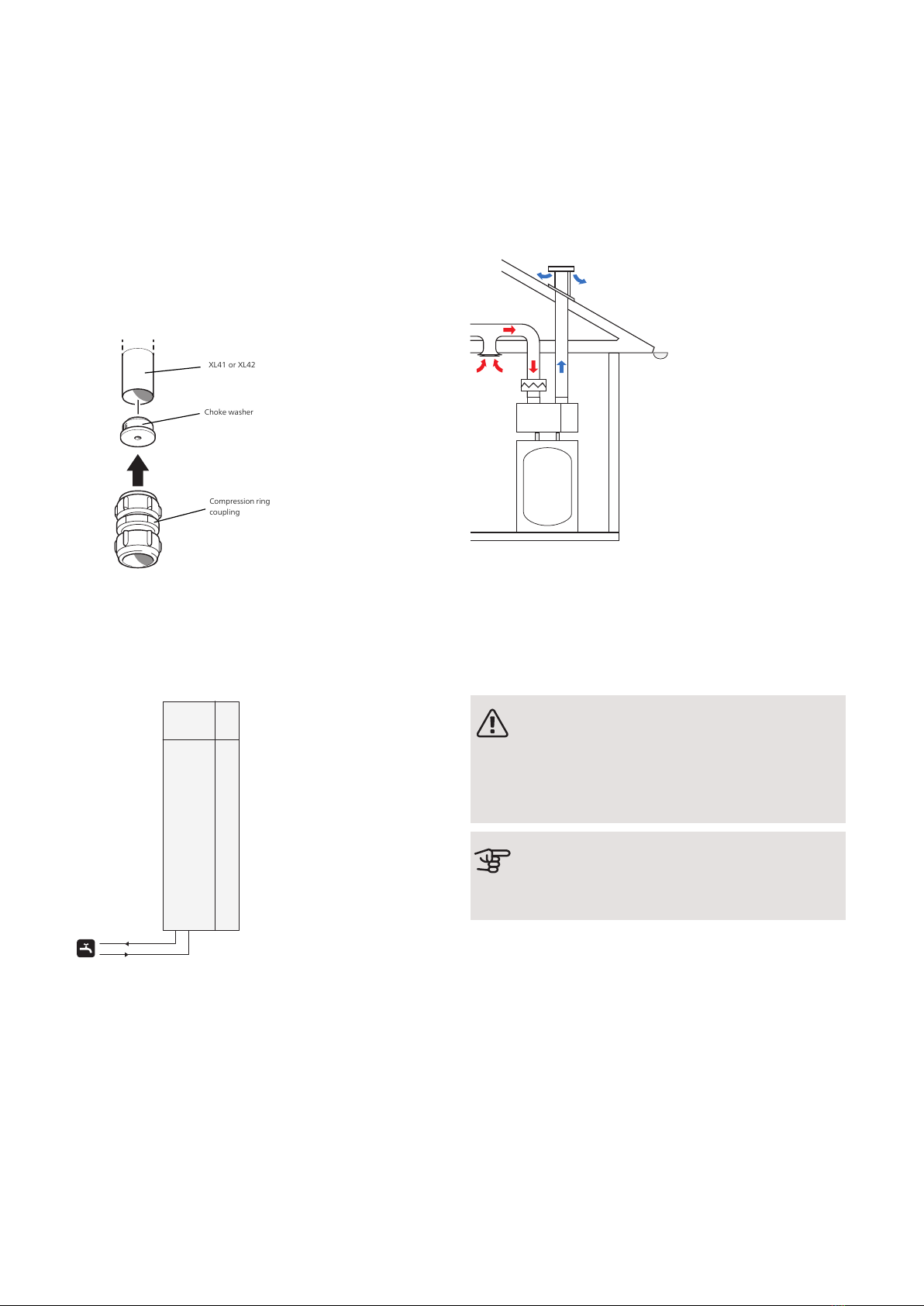

Overflow water from the evaporator's collect-
ing trough is routed via the supplied plastic
hose to a drain. Shape the hose into a water
seal (see image).
The entire length of the overflow water pipe
must be inclined to prevent water pockets and
must also be frost-proof.
To make the installation economical, NIBE recommends
that all pipes between F130 and the water heater are
insulated. The insulation should be at least 12 mm thick.
NOTE
The pipe systems need to be flushed out be-
fore F130 is connected so that any debris can-
not damage component parts.
SYMBOL KEY
MeaningSymbol
Shut-off valve
Circulation pump
Fan
Compressor
Heat exchanger
Domestic hot water
11Chapter 4 | Pipe and air connectionsNIBE F130
4 Pipe and air connections

SYSTEM DIAGRAM
F130 consists of heat pump module and control system.
When the air passes through the evaporator, the refri-
gerant evaporates because of its low boiling point. In
this way the energy in the air is transferred to the refri-
gerant.
The refrigerant is then compressed in a compressor,
causing the temperature to rise considerably.
The warm refrigerant is led to the condenser. Here, the
refrigerant gives off its energy to the hot water,
whereupon the refrigerant changes state from gas to
liquid.
The refrigerant then goes via filters to the expansion
valve, where the pressure and temperature are reduced.
The refrigerant has now completed its circulation and
returns to the evaporator.
XL41XL42
XL43 XL44
Hot water connection, supplyXL41
Hot water connection, returnXL42
Caution
This is a principle of operation, differences may
occur in the installation in question.
Dimensions and pipe
connections
460
135
115
300
45
475
XL41XL42 WM2
NIBE F130Chapter 4 | Pipe and air connections12

PIPE DIMENSIONS
Connection
22(mm)XL41 Hot water connection, supply ext Ø
22(mm)XL42 Hot water connection, return ext Ø
20(mm)WM2 Overflow water discharge int Ø
13Chapter 4 | Pipe and air connectionsNIBE F130

Mounting
The heat pump is wall-mounted using the brackets
supplied. The heat pump can also be positioned on a
suitable flat surface close to the water heater.
NOTE
Check that the mountings are located in their
applicable grooves on the heat pump.
Ensure that the heat pump is installed horizont-
ally.
INSTALLING ON BRACKETS
Installing brackets
1. Install the brackets together using the M6 screws
and nuts supplied.
567
425
2. Drill holes in the wall as illustrated.
567
425
3. Mount the brackets on the wall.
4. Screw F130 into place in the brackets using the M5
screws and nuts supplied.
LEK
LEK
LEK
LEK
NIBE F130Chapter 4 | Pipe and air connections14

Connecting cold and
hot water
For optimal hot water operation, install the supplied
choke washer.
The washer is installed in the connection for outgoing
hot water (XL41) or connection for incoming hot water
(XL42) before the compression connection is installed.
For more information about connection to water heater,
see its manual.
XL41 or XL42
Choke washer
Compression ring
coupling
The mixer valve must be installed if the factory setting
is changed so that the temperature can exceed 60 °C.
If the factory setting is changed, national regulations
must be observed. The setting is made in menu 5.1.1
(page 32).
Installation alternative
F130 must be connected according to the instructions
in this manual.
Installation must be carried out in accordance with cur-
rent standards and directives.
EXHAUST AIR
Connecting the exhaust air
With an exhaust air connection the heat in the building's
ventilation air is used to heat the hot water while the
house is ventilated.
The hot air is transferred from the rooms to the heat
pump via the house ventilation system.
NOTE
An air filter (HQ12) (enclosed), minimum classi-
fication G2, is required on the exhaust air duct
for this connection. The filter must be cleaned
regularly.
Caution
Noise from the fan can be transferred via the
ventilation ducts.
15Chapter 4 | Pipe and air connectionsNIBE F130

SURROUNDING AIR
Connecting surrounding air
With surrounding air connection the heat in the room air is
used to heat up the hot water. The outgoing air can be used
to cool a room.
In installations where air is taken from one room and released
into another, there can be over pressure if the room is not
ventilated correctly. This can lead to damp in the building.
Caution
Outgoing air from F130 is cold and can therefore
cool the room when it is released.
Take incoming air from one room and release
the outgoing air to the same room.
Take incoming air from one room and release the outgoing air to another room or outdoors.
NIBE F130Chapter 4 | Pipe and air connections16

General ventilation
connections
• Ventilation installation must be carried out in accord-
ance with current norms and directives.
• Connections must be made via flexible hoses, which
should be installed so that they are easy to replace.
• Provision must be made for inspection and cleaning
of the duct.
• Make sure that there are no reductions of cross-sec-
tional area in the form of creases, tight bends, etc.,
since this will reduce the ventilation capacity.
• The air duct system must be a minimum of air tight-
ness class B.
• To prevent fan noise being transferred to the ventila-
tion devices, silencers should be installed in the duct
system. In the event of ventilation devices in noise-
sensitive rooms, silencers must be installed.
• Ducts that may become cold must be insulated with
diffusion-proof material (at least PE30 or equivalent)
along their entire length.
• Ensure that the condensation insulation is fully sealed
at any joints and/or at lead-in nipples, silencers, roof
cowls or similar.
• A duct in a masonry chimney stack must not be used
for extract air.
• The heat pump must be provided with the enclosed
air filter (HQ12).
EXHAUST AIR DUCT /KITCHEN FAN
Exhaust air duct (kitchen fan) must not be connected to
F130.
To prevent food vapour being transferred to F130 the
distance between the kitchen fan and the exhaust air
device must be considered. The distance should not be
less than 1.5 m, but this can vary between different in-
stallations.
Always use a kitchen fan when cooking.
INSTALL THE FILTER CARTRIDGE
The filter cartridge has two sizes of connector, 125 mm
or 160 mm.
1. Check the diameter of the air channel for inlet air.
2. When the air duct has a large diameter (Ø 160 mm)
the inner ring must be cut out of the upper section
of the filter cartridge.
3. Cut just inside the inner edge of the outer ring using
a sharp knife. The plastic is prepared for easy cut-
ting.
4. Press the filter cartridge into place in the connection
for incoming air (XL43).
Mora kniv
LEK
LEK
LEK
LEK
INSTALL THE CONNECTOR
If a filter solution other than that enclosed is used, the
enclosed coupling must instead be mounted in the
connection for incoming air (XL43).
INSTALL THE SILENCER
1. Remove the plugs from the silencer enclosed.
2. Install the silencer in the connector for outgoing air
(XL44).
Dimension and
ventilation
connections
220
155
70
40
20
440
LEK
LEK
Air in
Air out
17Chapter 4 | Pipe and air connectionsNIBE F130

Ventilation flow
(exhaust air)
Connect F130 so that all the exhaust air, except kitchen
duct air (kitchen fan), passes through the evaporator
(EP1) in the heat pump.
The ventilation flow must comply with the applicable
national standards.
For optimum heat pump performance, the ventilation
flow must not be less than 20 l/s (72 m³/h) at normal
exhaust air temperature. At lower exhaust air temperat-
ures, a higher flow is required.
Set the ventilation capacity in the heat pump’s menu
system (menu 5.1.5).
Adjusting ventilation
(exhaust air)
To obtain the necessary air exchange in every room of
the house, the exhaust air devices must be correctly
positioned and adjusted and the fan in the heat pump
adjusted.
Immediately after installation adjust the ventilation so
that it is set according to the projected value of the
house.
Incorrect adjustment of the ventilation may lead to re-
duced installation efficiency and thus poorer operating
economy, and may cause moisture damage in the
building
NIBE F130Chapter 4 | Pipe and air connections18

General
Installation must be carried out in accordance with cur-
rent standards and directives.
When working behind screwed covers, the circuit fuse
must be removed or the connection plug pulled out.
Work behind screwed covers may only be carried out
under the supervision of a qualified electrician.
• Disconnect F130 before insulation testing the house
wiring.
• For electrical wiring diagram for F130, see page 40.
• Signal cables to external connections must not be laid
close to high current cables.
• Signal cables to external connections are four core, at
least 0.35 mm2.
• If the supply cable is damaged, it must be replaced
by qualified persons.
NOTE
The supply cable must not be connected until
the boiler has been filled. Internal components
can be damaged.
NOTE
Electrical installation and service must be car-
ried out under the supervision of a qualified
electrician. Electrical installation and wiring
must be carried out in accordance with the
stipulations in force.
Connections
POWER CONNECTION
NOTE
To prevent interference, unscreened commu-
nication and/or sensor cables to external con-
nections must not be laid closer than 20 cm
from high voltage cables.
F130 is connected to an earthed socket with the factory-
installed connection cable (length approx. 2.8 m), which
is fitted with a plug.
NOTE
The circulation pump must not be powered up
until F130 is activated in the indoor module.
INSTALLING DISPLAY
The display (AA4) cannot be installed directly against a
wall because the terminal block protrudes from the back.
Install the display either in a spare apparatus box or on
the plastic spacer supplied.
1.
LEK
Open the display by inserting a screwdriver in one
of the 4mm wide gaps in the edge. Press the
screwdriver straight in to open the clip. Repeat for
the other three clips.
19Chapter 5 | Electrical connectionsNIBE F130
5 Electrical connections

2.
LEK
Without plastic spacer: Place the rear panel in front
of the apparatus box and screw to the wall.
With plastic spacer: Screw the plastic spacer into
the wall. Then screw the the rear panel into the
plastic spacer with the two screws supplied.
3.
LEK
Connect according to section "Display".
4.
LEK
Angle the front panel approx. 30° and secure the
two clips on one side. Then close the unit and se-
cure the two clips on the other side.
DISPLAY
Connect the display (AA4) to the four pin display con-
nector X11:1 (A), X11:2 (B), X11:3 (GND) and X11:4
(+12V).
Use a 4 core cable of at least 0.5 mm² cable area.
NOTE
The cable to the display must be a maximum
of 15 m.
+12V GND B A
+12V GND B A
AA4
LEK
X11
LEK
4 3 2 1A
B GND +12V
X11
AA4
External
F130
LEK
2 3 41
X11
NIBE F130Chapter 5 | Electrical connections20
