Nibe F2040 Series User guide

Installer manual
LEK
LEK
LEK
NIBE™ F2040
8, 12, 16 kW
Air/water heat pump
IHB GB 1335-2
231844

Table of Contents
1 Important information 2
Safety information 2
2 Delivery and handling 6
Transport and storage 6
Assembly 6
Supplied components 8
Removing the covers 9
Removing the front panel 9
Removing the side panel 10
3 The heat pump design 11
General 11
Electrical connection 16
4 Pipe connections 19
General 19
Pipe coupling heating medium circuit 19
Docking alternatives 21
5 Electrical connections 22
General 22
Connections 24
6 Commissioning and adjusting 30
Preparations 30
Filling and venting the heating medium sys-
tem 30
Compressor heater 30
Start-up and inspection 31
Readjusting, heating medium side 32
Adjustment, charge flow 33
7 Disturbances in comfort 34
Troubleshooting 34
8 Accessories 38
9 Technical data 40
Dimensions and setting-out coordinates 40
Sound pressure levels 42
Technical specifications 43
Electrical circuit diagram 46
Item register 52
1Table of Contents |NIBE™ F2040

Safety information
This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2013.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
Serial number
The serial number for F2040 can be found on the side
of the foot.
F2040-8
LEK
DATA
Serial number
F2040-12
LEK
D ATA
Serial number
NIBE™ F2040Chapter 1 | Important information2
1 Important information

F2040-16
LEK
DATA
Serial number
Caution
Always give the product's serial number when
reporting a fault.
Country specific information
Installer manual
This installer manual must be left with the customer.
3Chapter 1 | Important informationNIBE™ F2040

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
System flushed
System vented
Particle filter
Shut-off and drain valve
Charge flow set
Fuses property
Safety breaker
Communication cable connected
F2040 addressed (only when cascade
connection)
Miscellaneous
NIBE™ F2040Chapter 1 | Important information4

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
AIT France, 10 rue des Moines, 67000 HaguenauFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
5Chapter 1 | Important informationNIBE™ F2040

Transport and storage
F2040 must be transported and stored vertically.
Assembly
႑Place F2040 outdoors on a solid level base that can
take the weight, preferably a concrete foundation.
If concrete slabs are used they must rest on asphalt
or shingle.
႑The concrete foundation or slabs must be posi-
tioned so that the lower edge of the evaporator is
at the level of the average local snow depth, al-
though a minimum of 300 mm.
႑The F2040 should not be positioned next to sensit-
ive walls, for example, next to a bedroom.
႑Also ensure that the placement does not inconveni-
ence the neighbours.
႑F2040 must not be placed so that recirculation of
the outdoor air can occur. This causes lower output
and impaired efficiency.
႑The evaporator should be sheltered from direct
wind. Place F2040 protected from wind against the
evaporator.
႑Large amounts of condensation water as well as
melt water from defrosting can be produced. Con-
densation water must be led off to a drain or similar
(see page 7).
႑Care must be exercised so that the heat pump is
not scratched during installation.
LEK
LEK
PLQ  PP
0LQ  PP
Do not place F2040 directly on the lawn or other non
solid surface.
If there is a risk of snow slip from roof, a protective roof
or cover must be erected to protect the heat pump,
pipes and wiring.
NIBE™ F2040Chapter 2 | Delivery and handling6
2 Delivery and handling

Condensation run off
Condensation water trough
The condensation water trough is used to collect and
lead away condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
NOTE
Pipe with heating cable for draining the con-
densation water trough are not included.
NOTE
To ensure this function the accessory KVR 10
should be used.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
NOTE
Self regulating heating cables must not be
connected.
Caution
If none of the recommended alternatives is
used good lead off of condensation water
must be assured.
႑The condensation water (up to 50 litres/day) collec-
ted in the trough should be routed by pipe to an
appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
႑The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
႑Route the pipe downward from F2040.
႑The outlet of the condensation water pipe must be
at a depth that is frost free or alternatively indoors
(with reservation for local ordinances and regula-
tions).
႑Use a water trap for installations where air circula-
tion may occur in the condensation water pipe.
႑The insulation must be tight against the bottom of
the condensation water trough.
Drain pan heater, control
The drain pan heater is supplied with power when one
of the following conditions is met:
1. Operating mode "Heating" or "Hot water" is activ-
ated.
2. The compressor has been in operation for at least
30 minutes after last start.
3. The ambient temperature is lower than 1 C.
Recommended alternatives
Stone caisson
LEK
Frostfrit
t
Frost proof depth
If the house has a cellar the stone caisson must be po-
sitioned so that condensation water does not affect
the house. Otherwise the stone caisson can be posi-
tioned directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
7Chapter 2 | Delivery and handlingNIBE™ F2040

Drain indoors
Water seal
The condensation water is lead to an indoor drain
(subject to local rules and regulations).
Route the pipe downward from F2040.
The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Gutter drainage
Frostfritt
djup
LEK
Frost proof depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from F2040.
The condensation water pipe must have a water seal
to prevent air circulation in the pipe.
Installation area
The distance between F2040 and the house wall must
be at least 150 mm. Clearance in front of F2040 should
be at least one metre.
3000 mm
400 mm
Minimalt
fritt utrymme
Minimalt
fritt utrymme
Fritt utrymme
framför
150 mm
Fritt
utrymme
bakom
600mm
Minimum
free space
Minimum
free space
Free
space
behind
400 mm 600 mm
150 mm
3000 mm
Free space
in front
Supplied components
LEK
Particle filter R25 (HQ1).
2 flexible hoses (R25) with
4 seals
NIBE™ F2040Chapter 2 | Delivery and handling8

Removing the covers
F2040-8
LEK
F2040-12/F2040-16
LEK
LEK
Removing the front panel
F2040-8
LEK
HQ1
9Chapter 2 | Delivery and handlingNIBE™ F2040

F2040-12
LEK
HQ1
F2040-16
LEK
Removing the side panel
F2040-12
LEK
F2040-16
D ATA
LEK
NIBE™ F2040Chapter 2 | Delivery and handling10

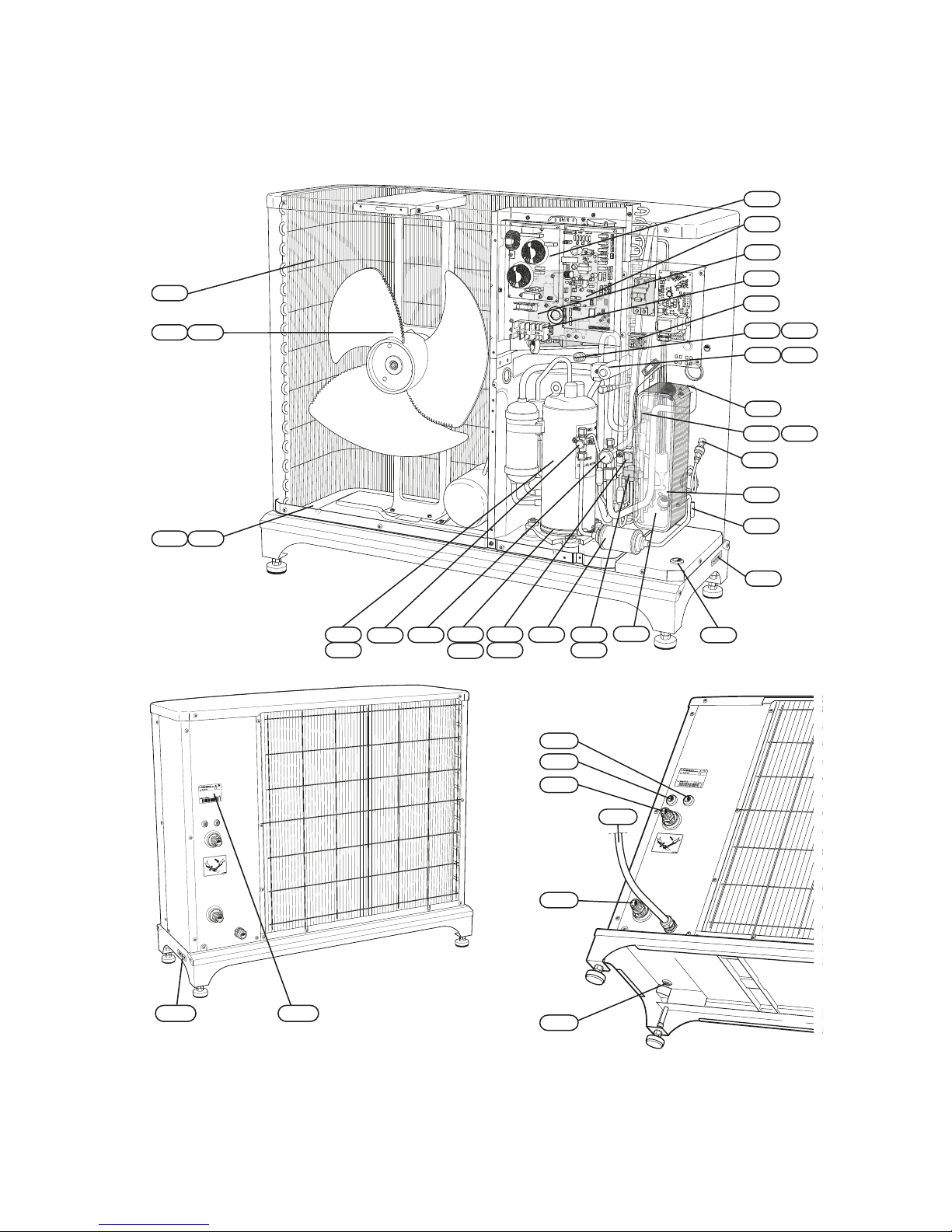

General
F2040-8
LEK
GQ1
F
DH
UB3
EP1
X1
EB11
CM
20S
63H1
LPT
SM2
SM1
FM01
PWB2 PWB3 PWB1
BT12
BT15
BP4
QN2
BT3
PF3
HS1
EP2
GQ10 QN1
BP2
QM35
QM36
BP1
QN3
CH
EB10
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
DAT
A
PF1PF3
11Chapter 3 | The heat pump designNIBE™ F2040
3 The heat pump design

F2040-12
LEK
QN1
GQ1
GQ10 QM35
QN3
QM36
TB
BP1
QN2
PWB1
PWB2
PWB3
DH
UB3
BT3
BP4
PF3
BT15
EP1
EP2
HS1
BP2
BT12
X1
EB11
CM
20S
63H1
LPT SM2
SM1
FM01
CH
EB10
LEK
DATA
XL2
UB1
UB2
W1
XL1
UB3
LEK
D ATA
PF3 PF1
NIBE™ F2040Chapter 3 | The heat pump design12

F2040-16
LEK
GQ1
DH
X1
CM
63H1
CH
SM2
SM1
FM01
PWB2 PWB3 PWB1
QN2 20S
BT12
TB
BP1
PF3
QN3
BP4
BT3
BT15
UB3
GQ10 HS1EB10
QN1
EP2
QM36
QM35
EB11
GQ2 FM02
EP1
F
LPT
BP2
13Chapter 3 | The heat pump designNIBE™ F2040

LEK
DATA
XL2
UB1
UB2
XL1
UB3
W1
LEK
DATA
PF3 PF1
NIBE™ F2040Chapter 3 | The heat pump design14

List of components F2040-8, -12, -16
Pipe connections
Service valve, liquid sideQM35
Service valve, gas sideQM36
Connection, heating medium out of F2040,
G3/4" (Ø22 mm)
XL1
Connection, heating medium in to F2040,
G3/4" (Ø22 mm)
XL2
Sensors etc.
High pressure pressostatBP1 (63H1)
Temperature sensor, heating medium return
line
BT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, fluid pipeBT15
Low pressure transmitterBP2 (LPT)
High pressure sensorBP4
Electrical components
Communication boardAA23
Dipswitch communication cardAA23-S2
Terminal block, incoming supplyAA23-X1
Terminal block, communicationAA23-X4
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
Fuse for external heating cable (250 mA),
max 45 W.
F3
FanGQ1 (FM01)
FanGQ2 (FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, electricity and communica-
tion
TB
Terminal block incomingX1
Cooling components
4-way valveQN2 (20S)
CompressorGQ10 (CM)
Expansion valve, coolingQN3 (SM1)
Expansion valve, heatingQN1 (SM2)
Evaporator (air coil, copper pipe with alumini-
um flange)
EP1
Condenser (ACH 30, copper/stainless steel)EP2
Drying filterHS1
Miscellaneous
Type platePF1
Serial numberPF3
Cable gland, incoming supplyUB1
Cable grommet, communicationUB2
Cable grommet, heating cable (EB14)UB3
Cable, incoming supplyW1
15Chapter 3 | The heat pump designNIBE™ F2040

Electrical connection
Electrical components
Communication boardAA23
Dipswitch communication cardAA23-S2
Terminal block, incoming supplyAA23-X1
Terminal block, communicationAA23-X4
Compressor heaterEB10 (CH)
Drip tray heaterEB11 (DH)
Main fuse compressor unitF
Fuse for external heating cable (250 mA),
max 45 W.
F3
FanGQ1 (FM01)
FanGQ2 (FM02)
Control boardPWB1
Inverter boardPWB2
Filter boardPWB3
Terminal block, electricity and communica-
tion
TB
Terminal block incomingX1
F2040-8
LEK
AA23
F3
AA23-X4
AA23-X1
AA23-S2
NIBE™ F2040Chapter 3 | The heat pump design16

F2040-12
LEK
EB11
PWB3 PWB1
EB10
AA23
FM01TB
F
F3
AA23-X4
AA23-X1
DH
CH
GQ1
AA23-S2
LEK
PWB2
17Chapter 3 | The heat pump designNIBE™ F2040

F2040-16
LEK
PWB3 PWB1
EB10
FM01
AA23-X4
DH
CH
GQ1
TB
AA23-X1 F3
EB11
F
AA23 AA23-S2
LEK
PWB2
NIBE™ F2040Chapter 3 | The heat pump design18
