Nibe PV 3031 3 kW User guide

Installer manual
PV Solar package
Accessories
IHB GB 1608-2
331737

Table of Contents
41 Important information
4Symbols
4Marking
4Recovery
4Copyright
5Contact information
62 Delivery and handling
6Delivery
6Handling
6Contents
7Supplied components
83 Installation
8General
9Installation and positioning
104 Mounting
165 Electrical connection
16Outline diagram
19
6 Commissioning and program-
ming
19Guided first commissioning
19Country setting
20Programming
227 Maintenance
22Service
238 Technical specifications
24Index
3Table of Contents |PV Solar package

This manual describes installation and service proced-
ures for implementation by specialists.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Chil-
dren shall not play with the appliance.
Cleaning and user maintenance shall
not be made by children without super-
vision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2016.
Symbols
NOTE
This symbol indicates danger to machine or
person.
Caution
This symbol indicates important information
about what you should observe when main-
taining your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE marking means that NIBE ensures that the
product meets all regulations that are placed on it
based on relevant EU directives. The CE mark is obligat-
ory for most products sold in the EU, regardless where
they are made.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type
of service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current
legislation.
Copyright
The manufacturer retains the copyright for this manual.
These instructions may only be distributed, translated
or copied with the written permission of the manufac-
turer. We reserve the right to make changes to the
specifications or illustrations in this manual without
prior notification.
PV Solar packageChapter 1 | Important information4
1 Important information

Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.knv.at
NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 AltishofenCH
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad JizerouCZ
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 VidebækDK
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
Puh: 09-274 697 0 Fax: [phone] E-mail: inf[email protected] www.nibe.fi
NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 ReyrieuxFR
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QGGB
Tel: [phone] Fax: [phone] E-mail: [email protected].uk www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP OosterhoutNL
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 OsloNO
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.se
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
5Chapter 1 | Important informationPV Solar package

Delivery
Together with the driver, check the delivery immedi-
ately for the following:
■Visible damage (compressed packaging etc.)
■That the correct number of packages have been de-
livered
■That the solar panels in particular are undamaged.
Handling
NOTE
Avoid knocks and mechanical damage to the
solar panel. Do not lift the solar panels by the
packaging or connectors. Do not place the
solar panels on objects that can damage them,
nor pull or drag them over anything that can
damage them.
Contents
PV 3093 9 kWPV 3063 6 kWPV 3031 3 kWMaterial
36 x22 x12 xPolycrystalline silicon cell panels
1 x1 x1 xInverter with wall mounting
96 x64 x32 xRoof mountings for tiled roofs, sheet metal roofs, seamed sheet
metal roofs or felt roofs
36 x22 x12 xAl rails, 2.1 metre
48 x32 x16 xMountings for solar panels (end clamps)
66 x44 x22 xMountings for solar panels (centre clamps)
12+12x8+8x4+4xConnectors for connection between the panels and inverter, male
and female, (electrical cable not included)
1 x1 x1 xConnector from inverter
3 x2 x1 xElectrical cable with pre-installed connectors14 metres
If the panels are installed in other formations, additional mounting materials may be required. To order additional
components or installation materials, contact:
NIBE AB Sweden
Box 14, Hannabadsvägen 5
SE-285 21 Markaryd
Tel: [phone]
[email protected]
PV Solar packageChapter 2 | Delivery and handling6
2 Delivery and handling

Supplied components
LEK
Mounting plate 300x100x12 mmRoof brackets with T bolts (M8x25 mm, stainless steel) and
self-locking nuts (M8, stainless steel)
Screw pin M10x250 mmSeam mounting plate 180x60x53 mm
LEK
Centre clampMounting rail
L profileJoint profile
LEK
End clamp
7Chapter 2 | Delivery and handlingPV Solar package

General
The installation must only be carried out by competent
personnel.
The supplied material is the minimum that is required
for use with normal installations, in special cases it may
need to be supplemented. If unsure, contact the sup-
plier. Before the installation and commissioning of the
solar panel system, information on the applicable
norms and regulations must be obtained. Only author-
ised installers may carry out installation of the solar
panels, and give notification to the mains electricity
provider. Note that the installation may not be put into
operation before the mains electricity provider has
given approval.
NOTE
Installation of a solar panel is an extensive in-
tervention on an existing roof. The roof cover-
ing, particularly on converted and inhabited
loft spaces or where the roof's minimum angle
is undersized (relative to the covering), may
require further measures against moisture
because of wind pressure and drifting snow,
this must be evaluated by the installer on a
case to case basis. The roof design must be
able to handle the wind and snow loading that
can occur in the region.
Static load
The installation may only be carried out on roof surfaces
or support constructions with sufficient carrying capa-
city and strength. The static load capacity of the roof
and roof construction must if necessary be examined
before the solar panels are installed. Great importance
should be placed on the condition of wood roof struc-
tures and the potential of screwing the mounting
devices for the solar panels to the structure. The roof
construction must be reinforced if necessary. Inspection
of the whole solar panel installation in accordance with
DIN 1055 part 4 and 5, or in accordance with country
specific regulations is required, in particular, in areas
with snow fall and strong winds. The characteristics of
the installation's location (prevailing wind direction,
whirl winds etc.) must also be included in the calcula-
tion/evaluation of whether these could mean increased
loads. The solar panels must be installed so that snow
drifts from snow guards or caused by special conditions
in the installation location cannot occur in the vicinity
of the solar panels.
The distance from the outer edge of the roof must be
at least 1 m at the sides of roofs and 0.2 m at ridges
and eaves, this is to reduce the risk of the wind ripping
the solar panels off.
The installation system according to DIN 1055 part 5
for snow zone II is intended for use up to 400 m above
sea level. If the installation is made on a tiled roof, it is
recommended that the snow is cleared if it reaches a
depth of more than 30 cm on the solar panels (NOTE!
If the snow has melted, been packed down and then
more snow has fallen and so the density has increased,
the snow may need to be cleared - even though it is
not 30 cm deep.)
If there is a risk that the snow will slide down onto the
panels and in particular behind the rear of raised pan-
els, snow guards must be installed to prevent this.
Ensure that the material under roofs with roof tiles is
sufficiently stable to support the roof mounting points.
Otherwise the roof must be reinforced. The installer
must evaluate this and make a decision, if uncertain a
structural engineer should be consulted. We recom-
mend that the roof tiles are cut down so that there are
no point loads between the roof and the roof brackets.
The minimum distance between roof tiles at overlap
points and the underside of the brackets is 3 mm, this
is in order to allow for any movements in the mounting
system in reaction to the loads that occur.
Lightning protection
If external lightning protection is installed, the solar
panels and the roof structure must be integrated so
that the solar panel field is protected from a direct
lightning strike. The combined solar panel area must
be located within the protective area provided by the
lightning protection. A safety distance of 0.5 m in all
directions from the solar panels to the periphery of the
protected area must be observed.
Safety instructions
■Applicable safety regulations for working on roofs
and similar constructions must be followed.
■Barriers to protect against falling parts must be in-
stalled. This is particularly important for high build-
ings and locations where a lot of people pass below
the roof/under the building.
■Personal safety equipment or scaffolding must be
used when working on roofs, according to the applic-
able.regulations.
■Adequate measures must be taken during the install-
ation so that the solar panel does not come loose
and fall.
■Observe the safety distance to the current conducting
cables.
PV Solar packageChapter 3 | Installation8
3 Installation

Installation and positioning
100
112
105
92
108
850
900
1000
1000
1000
1050
1050
900
900 950
950
950
800
800
850
88
South
The diagram above shows solar radiation in percentage
of global radiation in relation to some differently ori-
entated and angled surfaces.
The map shows lines with the same global radiation,
that is the solar radiation measured at horizontal sur-
faces. Source: SMHI.
Using the diagram and the map, one can estimate the
annual value of the solar radiation falling on those
surfaces where the solar panels are located.
100% is the solar radiation falling on a horizontal sur-
face, which in southern Sweden lies between 900 and
1050 kWh/year. The angle of inclined surfaces is 45°.
1. Calculate the annual solar radiation using the map.
The specific solar radiation for the installation is
obtained as a percentage, based on the location
of the solar panel according to the diagram.
2. Multiply the result by the installation's peak output
(3.12, 5.72, 9.36 kW).
3. Multiply the result 2 by a constant 0.9 to calculate
the energy production in kWh/year (with a reser-
vation for shade, dirt and snow coverage).
Example: Visby, 45°, installation south.
1050 x (112/100) x 3.12 x 0.9 = 3302 kWh/year
9Chapter 3 | InstallationPV Solar package

LEK

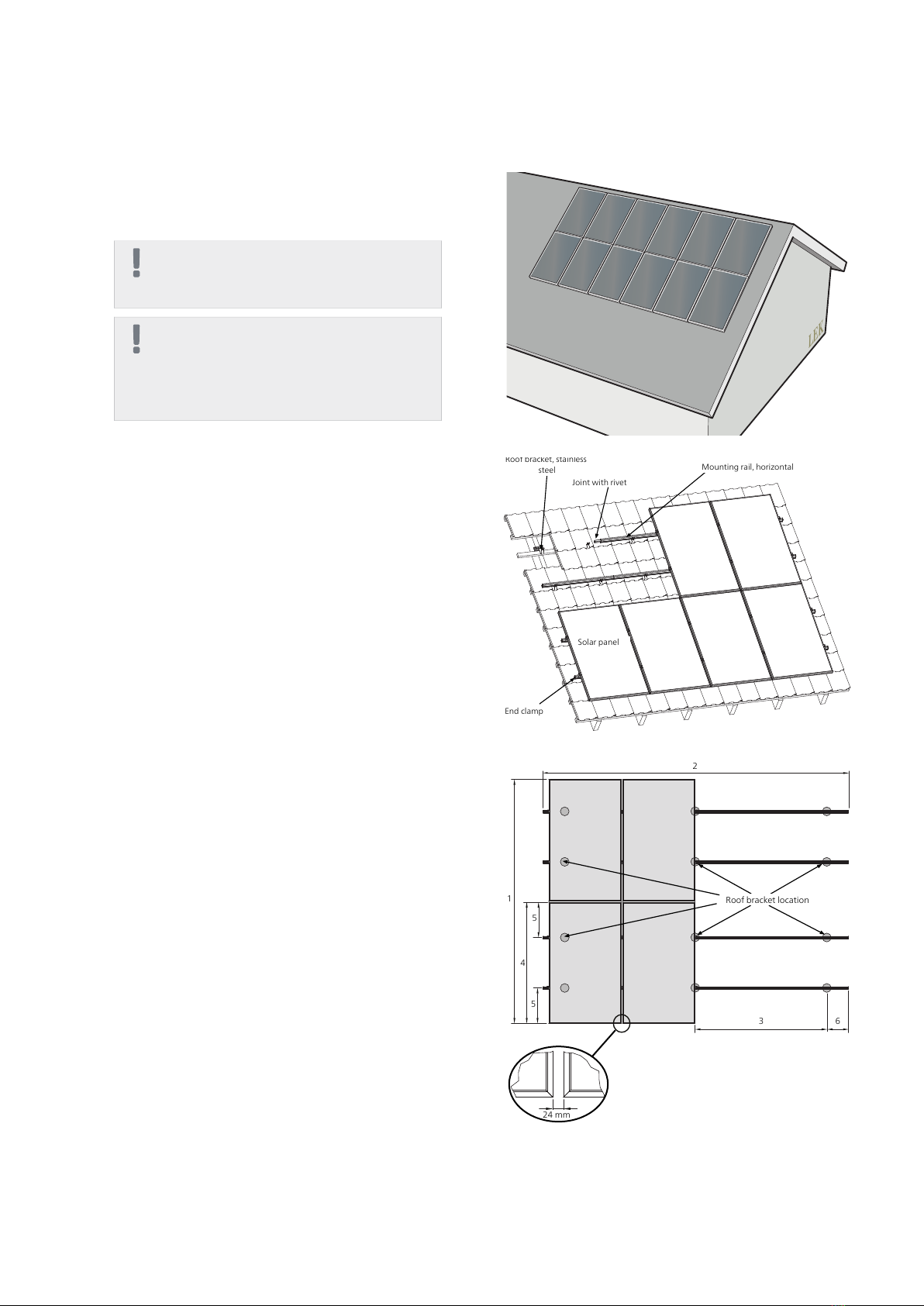

Overview
The adjacent image illustrates when PV Solar package
is installed on a house roof.
NOTE
Ensure that the strength and load capacity
of the roof structure are sufficient.
NOTE
If there is not a sufficiently stable substructure
such as tongue and groove or trusses to allow
a durable installation the roof must be rein-
forced.
Roof bracket, stainless
steel Mounting rail, horizontal
Joint with rivet
Solar panel
End clamp
System overview, installation components
1.
2.
3.
4.
5.
5.
6.
19 mm
Roof bracket location
1
4
5
5
2
36
24 mm
Before installing solar panels
1. Number of rows of installed solar panels x height
of solar panels (plus distance between the solar
panels where relevant).
2. Number of solar panels installed horizontally x
(solar panel's width + 24 mm) + 31 mm.
3. The horizontal distance between the mounting
points for the roof brackets.
4. Solar panel height
5. Mounting points' vertical location = 1/4 panel
length.
6. Max distance between the last roof bracket and
the end of the mounting rail = 200 mm
PV Solar packageChapter 4 | Mounting10
4 Mounting

Remove the roof tiles
Mark out the positions for the roof brackets using
chalk. Remove or slide up the marked roof tiles.
Upper groove
Lower groove
Roof bracket
Tongue
and
groove/
Truss
XX
Installing the roof brackets in the eaves
Secure each roof bracket in the eaves with 3 x wood
screws (6x80 mm). 2 x screws are located in the lower
groove and 1 x screws are located in the upper groove.
NOTE
The distance to the edge (X) must be the
same on both sides.
Installing the roof brackets in tongue and
groove
Secure each roof bracket with 6 x stainless steel con-
struction screws (6.5x50 mm), divided between both
grooves.
Spacer
plate
Batten
Wood
screw
Tongue
and
groove/
Truss
Roof tile Roof bracket
Installing the spacer plate
The roof bracket must not press directly into the roof
tile. Use a spacer plate!
The spacer plate must be made of a water and
weather resistant material.
11Chapter 4 | MountingPV Solar package

Adapting roof tiles
Use an angle grinder or hammer to make a cut out in
the part of the roof tile that covers the roof bracket,
so that the roof tile can lie flat against the roof base.
It may also be necessary to make a cut out in the roof
tile underneath.
3
2
1
Installing screw pins for mounting solar
panels on sheet metal roofs
1. Drill holes in the roof tile or use existing holes
2. Install the screw pin in the truss sufficiently deeply,
(all the threaded section must be screwed in), to
install a seal against the roof sheet. A bitumen
based roof and building sealant can be used - re-
quired for textured (sanded) surfaces
3. Install the L profile, adjust the height to the other
screw pins
LEK
Bolt M10
Washer
Mounting
L profile
Nut M10
Installing the mounting for installing
solar panels on seamed metal roofs
1. Install the mounting on the roof according to the
usual rules and practice
2. Install the L profile with M10 bolt, washer and
nut.
x 10
LEK
LEK
Screw
Coach bolt M10
Installing the mounting for installing
solar panels on felt roofs
1. Install the plate on the roof according to the usual
rules and practice.
PV Solar packageChapter 4 | Mounting12

x 10
LEK
LEK
Coach bolt M10
Flashing tape
Rubber washer
L profile
Nut M10
2. Install the L profile on the protruding coach bolt
with M10 nuts.
Caution
The coach bolt should be installed from un-
derneath before the plate is mounted on the
roof.
Caution
Never use the installed roof brackets as a
ladder!
Installing the mounting rails
Mounting rails are secured in the roof brackets with
T bolts and locking nuts (8 mm).
Caution
Check that the head of the T-bolt is vertical
in the mounting rail after tightening.
The rectangular hole in the roof bracket permits op-
timal height adjustment of the mounting rail.
Adjustment of the mounting rail height
Adjust the first mounting rails installed in relation to
each other and the roof cladding. Then fix the
mounting rail to the roof bracket by tightening the
nut. Tightening torque 12-15 Nm.
13Chapter 4 | MountingPV Solar package

Mounting rail
2 mm
Joint
Rivet
Join the mounting rails
Slide the joint section with rivets into the mounting
rails until it presses against the rivet (A). Slide the next
mounting rail in until that also presses the rivet (B).
Leave 2 mm space to compensate for linear expansion.
Caution
To allow for thermal expansion, a break in
the panel system is recommended every
14 m. The break must be at least 20 mm.
Connection box
Slide stop
Hex bolt
Hex
nut
Hex
nut
Hex bolt
Mounting rail
Roof bracket
Installing slide stops on solar panels in
the first (bottom) row
The steeper the roof, the more important it is to install
slide stop screws so that the panels hang against the
lowest rail.
Before installing the lowest solar panels, the panels in
the bottom row must be fitted with these slide stops.
1. Tighten the stainless steel screw M6x20 mm
(screws not supplied) in the panels' mounting
points (place the thread downwards, see image)
with the M6.
2. Position the panels in the bottom row so that the
slide stop lies against the mounting rail profile
NOTE
The slide stop can only be installed on
the panel with the mounting holes inten-
ded for this.
TIP
The slide stop can also be used as a
mounting aid to ensure that all the pan-
els in the bottom row are correctly
aligned vertically.
PV Solar packageChapter 4 | Mounting14

End clamp Centre clamp
Mounting rail
Installing solar panels in the first (bottom)
row
1. Position the first solar panel on the mounting rail.
2. Click the first (bottom) row end clamp into place
5 mm from the end of the mounting rail.
3. Secure the solar panel with the end clamp screw,
tighten to 8 Nm.
4. Click the centre clamp into the installation rail on
the right-hand side of the solar panel. Slide the
centre clamp towards the solar panel and connect.
5. Position the second solar panel on the mounting
rail and move the solar panel towards the centre
clamp. Connect the cable to the previous solar
panel. Secure the wiring between the solar panels.
6. Tighten the centre clamp, tighten to 12-15 Nm.
7. Install further solar panels according to point 4 to
6.
8. After the last solar panel in the row 1 has been
positioned on the mounting rail and connected,
the end clamp is clicked into the mounting rail
from the right. Minimum distance between the
end clamp and the end of the mounting rail is 5
mm.
9. Secure the solar panel with the end clamp screw,
tighten to 8 Nm.
Caution
Secure the wiring between the solar
panels.
Caution
Take the return cable when installing the
panels. See section Electrical connec-
tion/Cable routing
Install the following rows in the same way.
15Chapter 4 | MountingPV Solar package

Outline diagram
ESC SET
LEK
LEK
4 53
2
HB IJFJFHB 2 11 H1 IB 5L
1678910 11 2TR HK
AIA 566
LEK
*
Energy meter
Mains network
Electrical
distribution unit
Own use
230 V
Inverter
Solar panels
*Exception 3 kW single phase.
On the reverse of the solar panels there is a factory installed connection box prepared with wiring for positive and
negative connections. The cables are fitted with quick-release connectors.
The electrical cables between the panels and the inverter must be the double insulated and UV-/weather resistant
type (HD 605/A1) Photovoltaic cable 4 mm² up to 100 m length (not supplied).
Alternatively 3 kW: All panels are connected in series.
Alternatively 6 kW: All panels are connected in series.
Alternatively 9 kW: The panels are connected in two equally long series.
Installing connectors on DC wiring
DC connectors of the MC-4 type are supplied with the pack-
age.
1. First install the pin on the cable with crimping pliers. Strip
the cable approx. 10 mm.
2. Insert the pin in the connector until a distinct click is
heard.
3. Tighten the screwed connection.
12
3
4
Sunclix DC connectors are supplied for inverters in the 3 and
6 kW packages.
1. Insert the stripped cable into the connector. Strip the
cable approx. 10 mm.
2. Close the sprung quick release catch.
3. Insert the insert into the screwed connection.
4. Tighten the screwed connection.
Both connector types are opened using a screwdriver.
PV Solar packageChapter 5 | Electrical connection16
5 Electrical connection

Installing solar panels in several groups
Examples of possible combinations per twelve panels
To reduce the risk of damage to the electric cables between the groups of solar panels, these can be run underneath
the roof tiles or ceiling. To prevent moisture penetrating under the roof tiles or through the damp barrier at the
holes for the electrical cables, diffusion sealed lead-ins must be fitted.
NOTE
Additional connectors and mounting materials are required to install solar panels in groups.
17Chapter 5 | Electrical connectionPV Solar package

Connecting inverters
For installation, connection and operation of inverters, see the manual supplied.
Cable routing
Cable with pre-installed connectors (14 m) is supplied and can be used for roof installation.
Grounding solar panels
Solar panels should be earthed in the inverter or an external junction box.
Lightning protection
For information regarding lightning protection see page 8 under "Installation".
PV Solar packageChapter 5 | Electrical connection18

NOTE
For installation and connection of the inverter,
see the Installation manual and directions for
use for the relevant inverter.
Guided first commissioning
A commissioning wizard helps you to implement the
first commissioning. The following is set:
■Display language
■Date/time
■Country
Country setting
The following applies to country setting:
■Select the country where your inverter is installed.
The inverter then downloads the mains network
parameters that apply for that country, see the Install-
ation manual and directions for use for the relevant
inverter for more information.
■The country setting does not affect the language
shown in the display. The display language is set
separately.
NOTE
The country can only be set once! If the incor-
rect country has been set, contact your in-
staller!
If your country is not in the inverter, contact
your installer!
19Chapter 6 | Commissioning and programmingPV Solar package
6 Commissioning and programming

Programming
Start the first commissioning
The display shows the commissioning start page.
Long press. Following page is displayed.
Select language
1. Press to mark a language.
2. Short press.
3. Long press.
Set date
1. Press to mark a date format.
2. Short press. The date format is saved.
3. Long press.
4. Short press. The day flashes.
5. Press to change day.
6. Short press. The change is saved.
7. Press. The month is marked.
8. Repeat points 4 to 6 for the month.
9. Press. The year is marked.
10. Repeat points 4 to 6 for the year.
11. Long press.
Set time
1. Press to mark a time format.
2. Short press. The time format is saved.
3. Long press.
PV Solar packageChapter 6 | Commissioning and programming20
