This manual concerns the alternator which you have just purchased.
We wish to draw your attention to the contents of this maintenance manual.
SAFETY MEASURES
Before using your machine for the rst time,
it is important to read the whole of this
installation and maintenance manual.
All necessary operations and interventions
on this machine must be performed by a
qualied technician.
Our technical support service will be pleased
to provide any additional information you
may require.
The various operations described in this
manual are accompanied by
recommendations or symbols to alert the
user to potential risks of accidents. It is vital
that you understand and take notice of the
following warning symbols.
Warning symbolforanoperation capable
of damaging or destroying the machine
or surrounding equipment.
Warning symbol for general danger to
personnel.
Warning symbol for electrical danger to
personnel.
SAFETY INSTRUCTIONS
We wish to draw your attention to the
following 2 safety measures which must be
complied with:
a) During operation, do not allow anyone
to stand in front of the air outlet guards,
in case anything is ejected from them.
WARNING
b) Do not allow children younger than 14
to go near the air outlet guards.
A set of self-adhesive stickers depicting the
various warning symbols is included with
this maintenance manual. They should be
positioned as shown in the drawing below
once the machine has been fully installed.
Sets of self-adhesive stickers depicting the
various warning symbols are included with
this maintenance manual.
They should be positioned as shown in the
drawing below once the machine has been
fully installed.
WARNING
The alternators must not be put into
service until the machines in which they
are to be incorporated have been
declared compliant with EC Directives
plus any other directives that may be
applicable.
This manual is to be given to the end
user.
The range of electric alternators and
their derivatives, manufactured by us or
on our behalf, comply with the technical
requirements of the customs Union
directives.
The alternator is a sub-assembly
delivered without a system of protection
against short-circuits. The protection
must be provided by the circuit-breaker
of the generator, sized to interrupt the
fault current.
© 2022 Moteurs Leroy-Somer SAS
Share Capital: 38,679,664 €, RCS Angoulême
338 567 258.
We reserve the right to modify the characteristics
of this product at any time in order to incorporate
the latest technological developments. The
information contained in this document may
therefore be changed without notice.
This document may not be reproduced in any
form without prior authorization.
All brands and models have been registered and
patents applied for.

3
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
CONTENTS
1 - RECEIPT........................................................................................................................... 4
1.1 - Standards and safety measures............................................................................... 4
1.2 - Inspection ................................................................................................................. 4
1.3 - Identication ............................................................................................................. 4
1.4 - Storage ..................................................................................................................... 4
1.5 - Application ................................................................................................................ 4
1.6 - Usage restrictions..................................................................................................... 4
2 - TECHNICAL CHARACTERISTICS .................................................................................. 5
2.1 - Mechanical characteristics ....................................................................................... 5
2.2 - Cooling circuit characteristics ................................................................................... 5
2.3 - Electrical characteristics ........................................................................................... 5
3 - INSTALLATION ................................................................................................................ 7
3.1 - Assembly .................................................................................................................. 7
3.2 - Checks prior to rst use............................................................................................ 7
3.3 - Terminal connection.................................................................................................. 8
3.4 - Commissioning ......................................................................................................... 8
3.5 - Setting up ................................................................................................................. 8
4 - SERVICING - MAINTENANCE......................................................................................... 9
4.1 - Safety measures....................................................................................................... 9
4.2 - Routine maintenance................................................................................................ 9
4.3 - Bearings ................................................................................................................. 10
4.4 - Cooling circuit ......................................................................................................... 10
4.5 - Mechanical defects................................................................................................. 10
4.6 - Electrical faults ........................................................................................................11
4.7 - Dismantling, reassembly ........................................................................................ 13
4.8 - Table of characteristics ........................................................................................... 14
5 - SPARE PARTS ............................................................................................................... 15
5.1 - First maintenance parts .......................................................................................... 15
5.2 - Technical support service ....................................................................................... 15
5.3 - Accessories ........................................................................................................... 15
5.4 - Exploded view, parts list and tightening torque ...................................................... 16
Disposal and recycling instructions

4
2022.12 / b
Electric Power Generation
Model
S/N
Enclosure
Th. Class
Weight
AVR
Date
Protection
Altitude
PF
Excitation
Freq.
Speed
Voltage
Phase
V
min
-1
Hz
kVA
kW
A
kVA
kW
A
Connection
Cont.
BR
40°C
Std by.
PR
27°C
Made in Europe by Leroy-Somer
IEC 60034 - 1& 5
ISO 8528 - 3
NEMA MG1 - 32 & 33
MOTEURS LEROY-SOMER
2 BD MARCELLIN LEROY - 16000 ANGOULÊME - FRANCE
Excitation
415 v / 40°C
DE bearing
NDE bearing
No Load Full Load
www.leroy-somer.com
LSA 000-1-148 a
Scan the code or go to
GEN.LS1.DO
to check product data
12345678910
LSA IC Code: IC7A1W7
Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
1 - RECEIPT
1.1 - Standards and safety
measures
Our alternators comply with most
international standards.
1.2 - Inspection
On receipt of your alternator, check that it
has not su󰀨ered any damage in transit. If
there are obvious signs of knocks, contact
the transporter (you may be able to claim
on their insurance) and after a visual
check, turn the machine by hand to detect
any malfunction.
1.3 - Identication

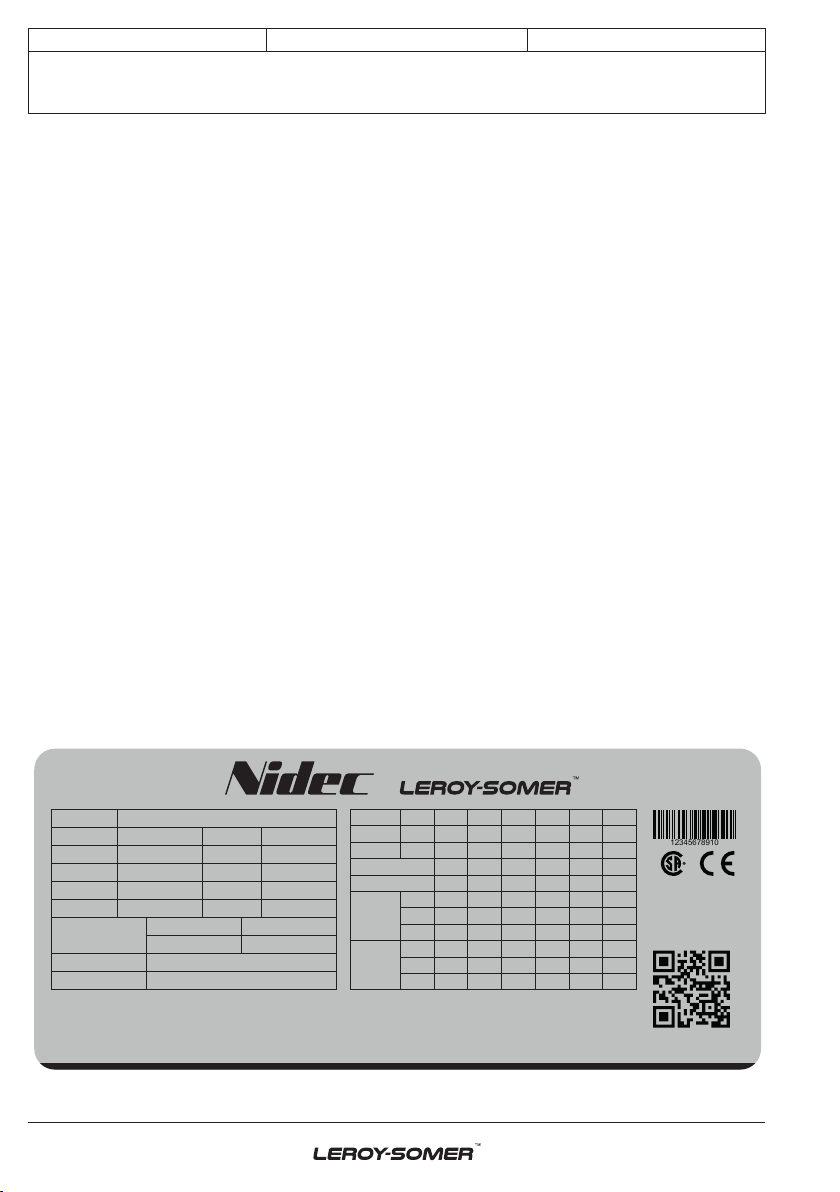

The alternator is identied by means of a
nameplate xed on the machine (see
drawing).
Make sure that the nameplate on the
machine conforms to your order.
So that you can identify your alternator
quickly and accurately, we suggest you ll in
its specications on the nameplate below.
1.4 - Storage
Prior to commissioning, machines should
be stored:
- away from humidity (< 90% non-
condensing); after a long period of storage,
check the machine insulation. To prevent
the bearings from becoming marked, do not
store in an environment with signicant
vibration.
1.5 - Application
This alternator is designed to produce
electricity of the on-board network of a
train.
1.6 - Usage restrictions
Use of the machine is restricted to operating
conditions (environment, speed, voltage,
power, etc) compatible with the characteri-
stics indicated on the nameplate.

5
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
2 - TECHNICAL
CHARACTERISTICS
2.1 - Mechanical characteristics
- Steel frame
- Cast iron end shields
- Protected ball bearings, greased for life
- Mounting arrangement: two-bearing with
Rotex coupling and cylindrical shaft
extension
- Enclosed machine cooled by heat transfer
uid
- Degree of protection: IP 6K9K
2.2 - Cooling circuit characteristics
- Cooling method: IC7A1W7
- Type of uid: water + additive
- Operating temperature: 85°C (±7°C)
- Permitted additives: Glycol-type antifreeze
- Maximum level of additives: 50%
- Operating pressure: 3 bar
- pH of water: 7<pH<8
Glycol (or Ethylene glycol) type
antifreeze is a hazardous product which
is harmful to health.
SGH07 SGH08 SIMDUT D2A NFPA 704
1
2 0
Risks:
- H302: Harmful if swallowed
- H373: May cause damage to organs
through prolonged or repeated exposure
Precautions:
- P260: Do not breathe fumes/mist/
vapours
- P301: If swallowed:
- P312: Call a poison centre or doctor/
physician if you feel unwell
- P330: Rinse mouth
Never use methanol or isopropanol-
type antifreeze.
2.3 - Electrical characteristics
This alternator isamachinewithoutsliprings
or revolving armature brushes, wound as
“mixed pitch”, 4-wire, with class H insulation
and a eld excitation system available in
Shunt version (see connection diagram on
next page and D550 AVR manual).
• Electrical accessories
- Stator temperature detection sensors

6
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -

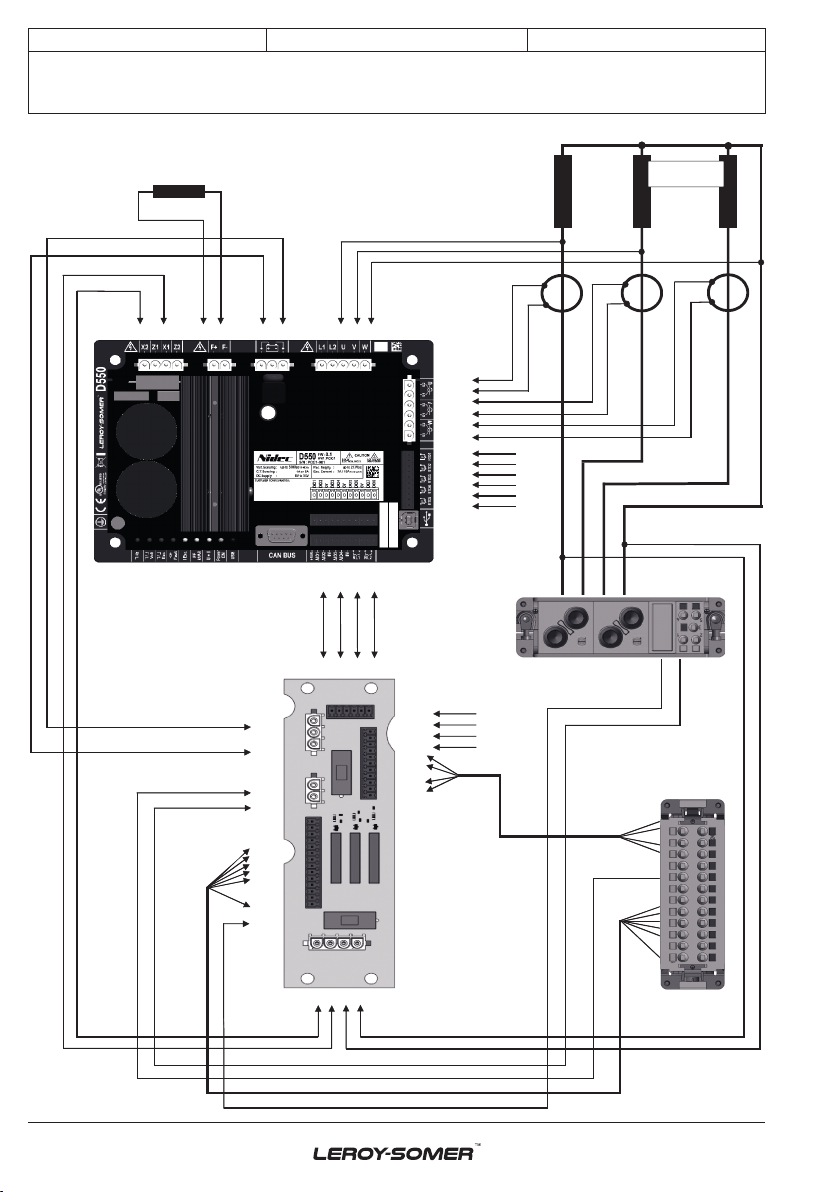

•SHUNT 4-wire
STATOR
7
8
18
17
28
27
S2U
S1U
S2V
S1V
S2W
S1W
UVWN
1 2 3
U V W
0V
DO1
DO2
DO3
48474546
14910
48474546
X1X2
14910
910
+
-
+ -
+ -
H1
H2
31
50
1
4
818 28
717 27
123
+
-
31
50
50
31
36
...
44
30
30
36
44
30
30
32
...
35
35
32
CTP 180°
CTP 190°
DCL
ALM
RTD1 PT100
F+ F-
5+ 6-
5+ 6-
RTD2 PT100
RTD3 PT100
103
104
113
114
123
124
143
144
133
134
Harting connector
Harting connector
Exciter field

7
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
3 - INSTALLATION
Personnel undertaking the various
operations indicated in this section must
wear personal protective equipment
appropriatefor mechanicalandelectrical
hazards.

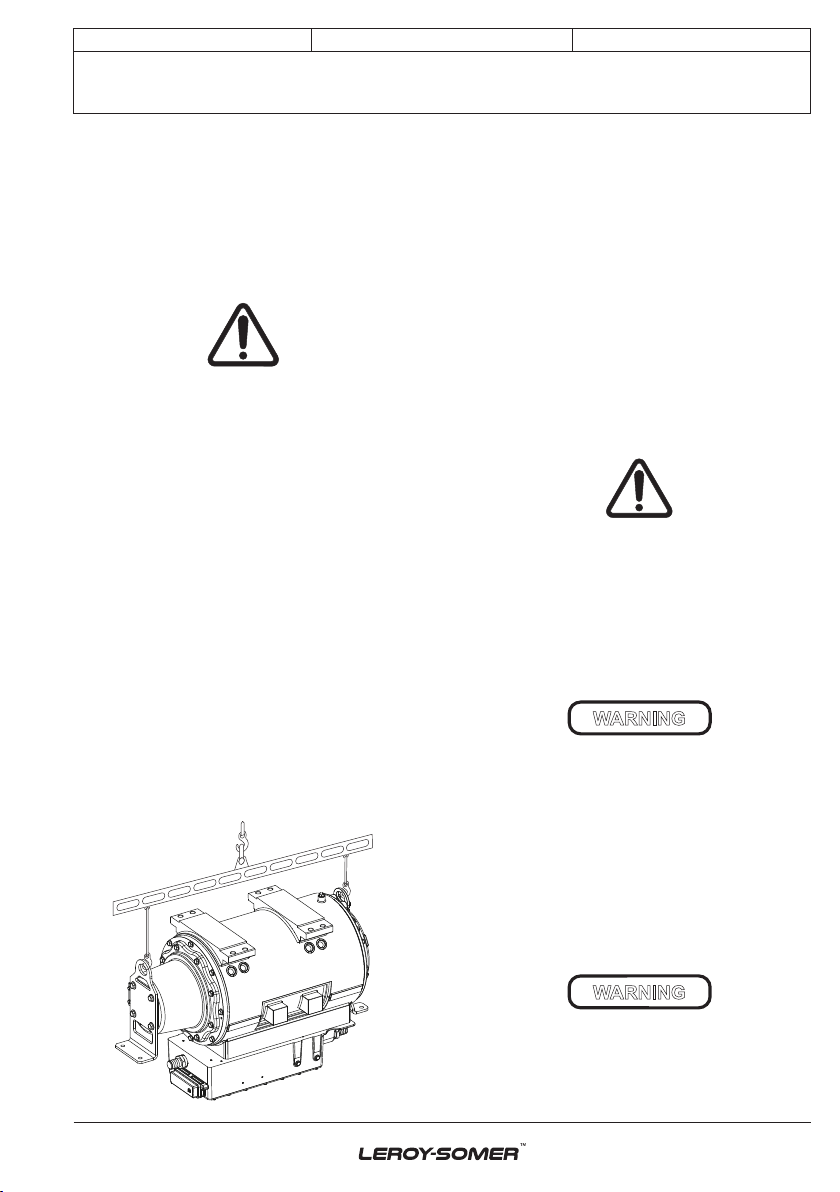

3.1 - Assembly
All mechanical handling operations
must be undertaken using suitable
equipment and the machine must be hor-
izontal. Check how much the machine
weighs before choosing the lifting tool.
During this operation, do not allow any-
one to stand under the load.

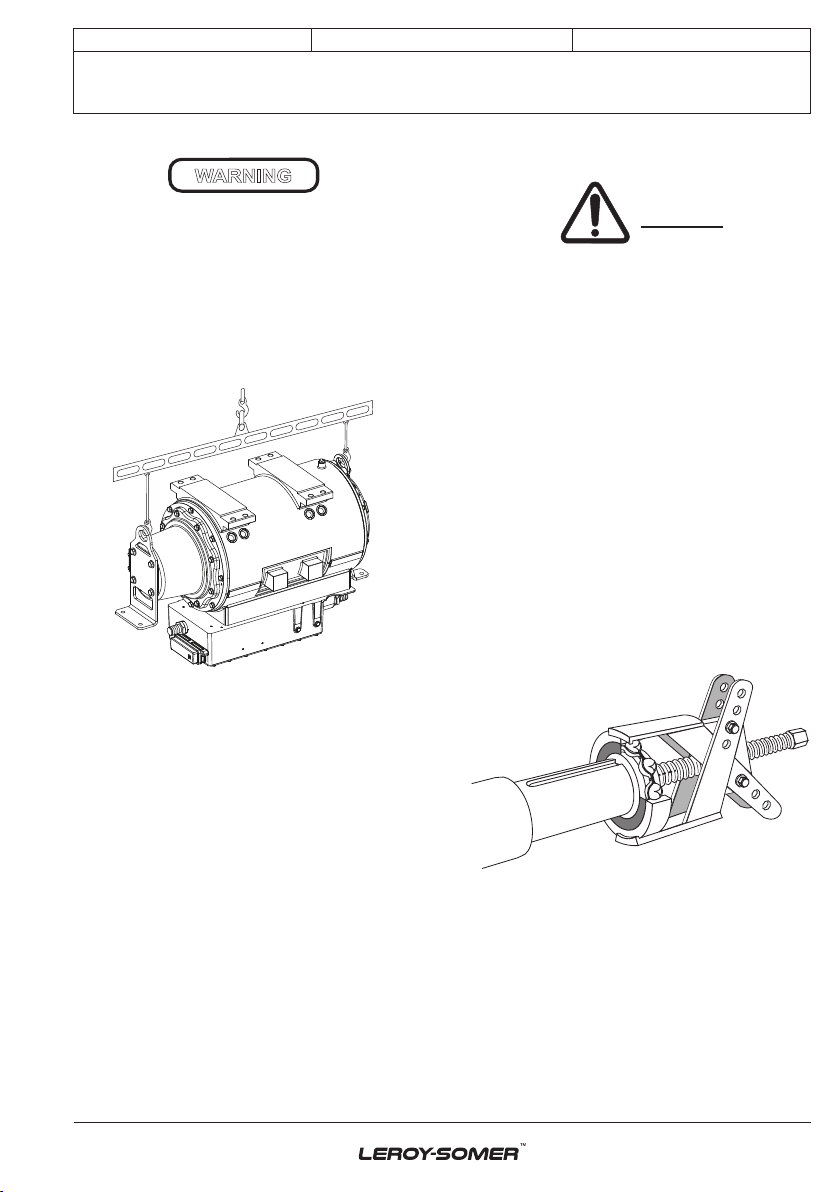

• Handling
The parts intended for lifting are largely
dimensioned and allow the manipulation of
the alternator alone. They must not be used
to lift the genset. The choice of lifting hooks
or handles should be determined by the
shape of the parts. Choose a lifting system
which respects the integrity and the
environment of the machine.
During this operation, do not allow
anyone to stand under the load.
• Double-bearing coupling
- Semi-exible coupling
Careful alignment of the machines is
recommended, checking that the lack of
concentricity and parallelism of both parts
of the coupling do not exceed 0.1 mm.
This alternator has been balanced with a
1/2 key.
• Location
The location where the alternator is placed
must be ventilated to ensure that the
ambient temperature cannot exceed 90°C.
3.2 - Checks prior to rst use
• Electrical checks
Under no circumstances should an
alternator, new or otherwise, be operated
if the insulation is less than 1 megohm
for the stator and 100,000 ohms for the
other windings.
There is possible method for restoring the
above minimum values, dry out the machine
for 24 hours in a drying oven at a temper-
ature of 110 °C.
WARNING
Ensure that the alternator has the degree
of protection matching the dened
environmental conditions.
• Mechanical checks
Before starting the machine for the rst time,
check that:
- the cooling circuit of water is done,
- all xing screws are tight, and that there are
no leaks on the water inlet and outlet,
- the length of screw and the tightening
torque are correct.
WARNING
At the rst start-up or after an extended
shutdown, allow the machine to be
purged.

8
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
3.3 - Terminal connection
Any intervention on the alternator
terminals during checks should be
performed with the machine stopped.
• Connection checks
Electrical installations must comply with
the current legislation in force in the
country of use.
Check that:
- the residual circuit-breaker conforms to
legislation on protection of personnel, in
force in the country of use, and has been
correctly installed on the alternator power
output as close as possible to the alternator,
- any protection devices in place have not
been tripped.
- The alternator earth terminal is located on
the frame of the machine.
- The earth terminal is connected to the
frame.
3.4 - Commissioning
The machine can only be started up and
used if the installation is in accordance
with the regulations and instructions
dened in this manual.
The machine is tested and set up at the
factory. When rst used with no load, make
sure that the drive speed is correct and
stable (see the nameplate).
On application of the load, the machine
should achieve its rated speed and voltage.
If the machine still operates incorrectly, the
cause of the malfunction must be located
(see section 4.5).
3.5 - Setting up
The various adjustments during tests
must be made by a qualied engineer.
Ensure that the drive speed specied on
the nameplate is reached before
commencing adjustment.

9
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
4 - SERVICING - MAINTENANCE
4.1 - Safety measures
Servicing or troubleshooting must be
carried out strictly in accordance with
instructions so as to avoid the risk of
accidents and to maintain the machine in
its original state.
All such operations performed on the
alternator should be undertaken by
personnel trained in the commissioning,
servicing and maintenance of electrical
and mechanical components, who must
wear personal protective equipment
appropriatefor mechanicalandelectrical
hazards.
Before any intervention on the machine,
ensure that it cannot be started by a manual
or automatic system and that you have
understood the operating principles of the
system.
Also check that no liquid is leaking from the
cooling circuit.
Warning : During and after running, the
alternator will reach temperatures hot
enough to cause injury, such as burns.
4.2 - Routine maintenance
• Checks after start-up
After approximately 20 hours of operation,
check that all xing screws on the machine
are still tight, plus the general state of the
machine and the various electrical
connections in the installation.
• Electrical servicing
Commercially-available volatile degreasing
agents can be used.
Do not use: trichlorethylene, perchlo-
rethylene,trichloroethane oranyalkaline
products.
These operations must be performed at a
cleaning station, equipped with a
vacuum system that collects and ushes
out the products used.
The insulating components and the
impregnation system are not at risk of
damage from solvents. Avoid letting the
cleaning product run into the slots.
Apply the product with a brush, sponging
frequently to avoid accumulation in the
housing. Dry the winding with a dry cloth. Let
any traces evaporate before reassembling
the machine.
• Mechanical servicing
Check regularly that no liquid is leaking from
the cooling circuit.
Degreasing: Use a brush and detergent
(suitable for paintwork).
Dusting: Use an air gun.
If the machine is tted with air inlet and outlet
lters, the maintenance personnel should
clean them routinely at regular intervals. In
the case of dry dust, the lter can be cleaned
using compressed air and/or replaced if it is
clogged.
After cleaning the alternator, it is essential to
check the winding insulation (see sections
3.2 and 4.5).
WARNING

10
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
4.3 - Bearings
The bearings are permanently greased Approximate life of the grease (depending on use) =
20,000 hours
4.4 - Cooling circuit
Composition Water, anticorrosion oxygen inhibitor, glycol-type antifreeze up
to 50%
Maintenance - Coolant change interval = 20,000 hours or 2 years maximum
(the rst of two who is reached)
- pH of water = 7<pH<8
4.5 - Mechanical defects
Fault Action
Bearing
Excessive overheating of one
or both bearings
(bearing temperature 80°C
above the ambient
temperature)
- If the bearing has turned blue or if the grease has turned black,
change the bearing.
- Bearing not fully locked (abnormal play in the bearing cage)
- End shields incorrectly aligned
Abnormal
temperature
Excessive overheating of
alternator frame (more than
40° C above the ambient
temperature)
- Alternator operating at too high a voltage
(>105% of Un on load)
- Alternator overloaded
Vibrations
Too much vibration
- Misalignment (coupling)
- Defective mounting or play in coupling
- Rotor balancing fault (Engine - Alternator)
Excessive vibration and
humming noise coming from
the machine
- Phase imbalance
- Stator short-circuit
Abnormal
noise
Alternator damaged by
a signicant impact,
followed by humming
and vibration
- System short-circuit
Possible consequences
- Broken or damaged coupling
- Broken or bent shaft end
- Shifting and short-circuit of main eld
- Fan fractured or coming loose on shaft
- Irreparable damage to rotating diodes/AVR, surge suppressor

11
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
4.6 - Electrical faults
Fault Action
No voltage at no load on start-up
- Connect a new battery of 4 to 12V to terminals E- and E+,
respecting the polarity, for 2 to 3 seconds.
Restart the system and check if the problem is xed. If the problem
is still present, follow the actions associated with the fault below.
- Voltage too low or too high
- Voltage disappears during operation
- Check the speed
- Check the presence of 24V on the AVR
- Check for the presence of an AVR fault (overload, overspeed or
overvoltage)
If none of the above actions corrected the problem, reset the AVR
by shutting down the machine and turning off the 24V supply to the
AVR for 20 seconds. Restart the system and check if the problem
is xed.
If the problem is still present:
- Check the fuses
- Check the wiring (see section 2.3)
- Measure the exciter winding, exciter armature, revolving eld
coil, stator resistances and check the insulation
- Check diodes and surge suppressor
If no cause of the failure is detected, contact us.

12
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
• Checking the winding
You can check the winding insulation by
performing a high voltage test. In this case,
you must disconnect all AVR wires.
WARNING
Damage caused to the AVR in such
conditions is not covered by our
warranty.
• Checking the windings and rotating
diodes using separate excitation
During this procedure, make sure that
the alternator is disconnected from any
external load and inspect the terminal
box to check that the connections are
fully tightened.
1) Stop the unit, disconnect and isolate the
AVR wires.

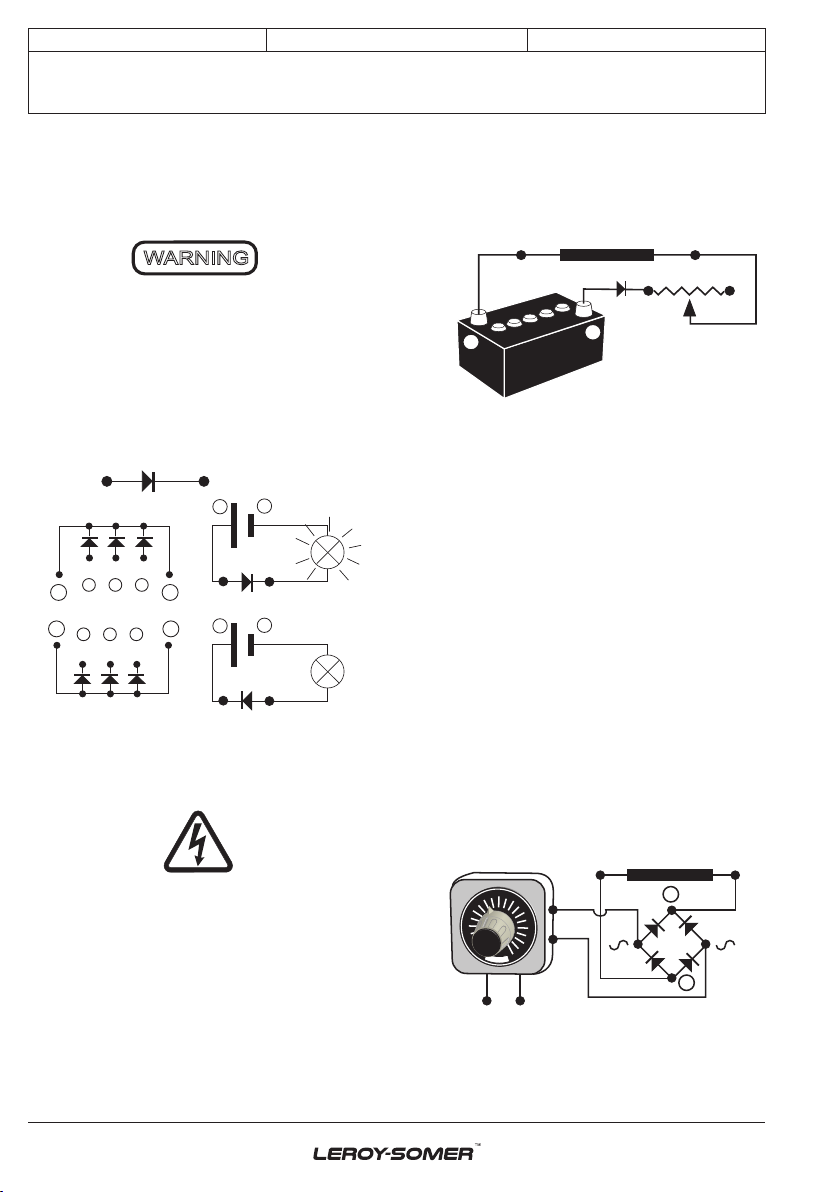

2) There are two ways of creating an
assembly with separate excitation.
Assembly A: Connect a 12 V battery in
series with a rheostat of approximately
50 ohms - 300 W and a diode on both exciter
eld wires (5+) and (6-).
6 - 5 +
1A diode
12V battery
Rh. 50 -300W
-
+
A
SSEMBLY A
Field
Assembly B: Connect a “Variac” variable
power supply and a diode bridge on both
exciter eld wires (5+) and (6-).
Both these systems should have
characteristics which are compatible with
the eld excitation power of the machine
(see the nameplate).
3) Run the unit at its rated speed.
4) Gradually increase the exciter eld
current by adjusting the rheostat or the
variac and measure the output voltages on
L1 - L2 - L3, checking the excitation voltage
and current at no load (see the machine
nameplate or ask for the factory test report).
When the output voltage is at its rated value
and balanced within 1% for the rated
excitation level, the machine is in good
working order. The fault therefore comes
from the AVR or its associated wiring (ie.
sensing, auxiliary windings).
1A diode
-
+
6 - 5 +
Variac AC
220V
DC
12V
50
60
70
80
90
100
40
30
20
10
0
ASSEMBLY BField
• Checking the diode bridge
A diode in good working order should allow
the current to ow only in the anode-to-
cathode direction.
C
A
- -
+ +
~ ~ ~
C C C
A A A
C C C
A A A
~ ~ ~
-
C
A
+
-
C
A
+
Anode Cathode

13
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
4.7 - Dismantling, reassembly
During the warranty period, this operation
should only be carried out in an approved
workshop or in our factory, otherwise the
warranty may be invalidated.
Whilst being handled, the machine
should remain horizontal (rotor not
locked when moved). Check how much
the machine weighs before choosing the
lifting method.
• Tools required
To fully dismantle the machine, we
recommend using the tools listed below:
- 1 ratchet spanner + extension
- 1 torque wrench
- 1 set of at spanners: 7, 8, 10, 12 mm
- 1 socket set: 8, 10, 13, 16, 18, 21, 22,
24 mm
- 1 Allen key: size 5 (eg. Facom: ET5), size 6
(ET6), size 10 (ET10, size 14 (ET14)
- 1 socket TORX bit T20 and T30
- 1 puller (U35)/(U32/350)
• Screw tightening torque
See section 5.4.
• Draining the cooling circuit
- Leave the machine stationary for 6 hours
before draining the cooling circuit (operating
temperature 85°C).
- The cooling circuit must be drained using a
uid recovery system.
Toxic risk
The coolant can contain up to 50%
glycol-type antifreeze, which represents
a risk to health.
• Access to diodes
- Place the machine vertically.
- Remove the coupling bell (31).
- Remove the washer (8).
- Remove the DE bracket (30) screws.
- Fix an M16 shackle on the shaft.
- Remove the rotor assembly (4).
- The diodes (110) are now accessible.
• Replacing the NDE bearing
Dismantling
- Remove the NDE bracket (36) screws.
- To remove the NDE bracket (36), use 2 M6
screws in the threaded hole provided.
- Remove the NDE bearing (70) using a
screw puller.
Reassembly
- Heat the inner slipring of a new bearing by
induction or in a drying oven at 110°C (do
not use an oil bath) and t it to the machine.
- Place the preloading wavy washer (79) in
the NDE bracket (36).
WARNING

14
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
When dismantling the brackets, you will
need to change the antifriction bearings
and the preloading (wavy) washer.
• Replacing the DE bearing
Dismantling
- Remove the Rotex coupling (16) with a
puller.
- Remove the gamma seal (7) that needs to
be replaced.
- Remove the inner bearing retainer (68)
screws.
- Remove the DE bracket (30) screws.
- To remove the DE bracket (30), use 2 M6
screws in the threaded hole provided.
- Remove the DE bearing (60) using a screw
puller.
Reassembly
- Heat the inner slipring of a new bearing by
induction or in a drying oven at 110°C (do not
use an oil bath) and t it to the machine.
• Accessing the revolving eld coil and
stator
Dismantling
- Follow the procedure for accessing the
diodes.
Reassembling the revolving eld coil
- Follow the dismantling procedure in
reverse order.
- Take care not to knock the windings when
retting the rotor in the stator.
- Use DowsilTM 7093 silicone to seal.
4.8 - Table of characteristics
Table of average values:
Alternator - 2 pole - 50 Hz - Standard winding
No. 6S (4-wire)
The voltage and current values are given for
no-load operation and operation at rated
load with separate eld excitation.
All values are given to within ± 10% and may
be changed without prior notication (for
exact values, consult the test report).
• Three-phase: 2 pole Shunt excitation
Resistances at 20 °C (Ω)
Type Stator L/N Rotor Exciter
eld
Exciter
armature
L7 0.0465 0.661 4.23 0.160
Field excitation current i exc (A)
400V - 50 Hz
“i exc”: excitation current of the exciter eld
Type No load At rated load
L7 0.49 2.4
• Table of weights
(values given for information only)
Type Total weight (kg) Rotor (kg)
L7 365 90
After operational testing, it is essential
to replace all access panels or covers.
WARNING

15
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
5 - SPARE PARTS
5.1 - First maintenance parts
Here is the list of parts:
Two-bearing kit 5324582
Drive end bearing 40062343
Non drive end bearing 40062340
Preloading (wavy) washer
Relay card kit 40062351
Complete crescents equipped
with diodes 4061237
Diodes: 3 direct + 3 reverse
Surge suppressor 4691056
AVR D550 5157122
5.3 - Accessories
• Temperature sensors with thermistors
(PTC)
These are thermistor triplets with a positive
temperature coe󰀩cient installed in the
stator winding (1 per phase). There are 2
triplets in the winding (at 2 levels: warning
and trip).
These sensors must be linked to adapted
sensing relays (supplied optionally).
Cold resistance of cold thermistor sensors:
100 to 250 Ω per sensor.
5.2 - Technical support service
Our technical support service will be
pleased to provide any additional
information you may require.
For all spare parts orders or technical
support requests, send your request to
[e-mail] or your
nearest contact, whom you will nd at
www.lrsm.co/support indicating the comp-
lete type of machine, its number and the
information indicated on the nameplate.
Part numbers should be identied from the
exploded views and their description from
the parts list.
To ensure that our products operate correctly
and safely, we recommend the use of
original manufacturer spare parts.
In the event of failure to comply with this
advice, the manufacturer cannot be held
responsible for any damage.
After operational testing, it is essential
to replace all access panels or covers.

16
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
5.4 - Exploded view, parts list and tightening torque

17
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
Ref. Qty Description Screw
ØTorque N.m Ref. Qty Description Screw ØTorque N.m
1 1 Stator assembly - - 67 1 Circlips - -
41Rotor assembly - - 68 1Inner bearing retainer M6 8
71Gamma seal - - 70 1Non drive end (NDE)
bearing - -
8 1 Washer M16 170 79 1Preloading (wavy)
washer - -
91 Washer M12 69 90 1Exciter eld (stator) M6 8
10 1 DE lifting support M12 69 100 1 Exciter armature
(rotor) - -
11 1 Handling support M10 40 107 1Diode bridge support M5 5
15 1 Fan - - 110 6 Diode 1/4” 4
16 1Rotex coupling - - 125 4Connection terminal M8 10
19 1 Spacer - - 132 1 Terminal box body M5 5
21 1 Lifting eye M10 40 136 1Terminal box cover M5 5
22 1 Shaft extension key - - 172 4 Isolator M8 20
28 1 Earth terminal M10 20 174 1 Support M6 8
30 1 Drive end (DE)
bracket M10 40 175 1 Cover M5 5
31 1 Coupling bell M10 40 176 1Current transformer - -
36 1Non drive end
(NDE) bracket M10 40 196 1Auxiliary circuit board M5 5
59 1Inspection door M6 8198 1Voltage regulator
(AVR) M6 8
60 1Drive end (DE)
bearing - - 343 3Diode bridge M6 8

18
2022.12 / b
Electric Power Generation Installation and maintenance
LSA 43.3 IC7 L7
Low Voltage Alternator - 2 pole
6102 en -
Disposal and recycling instructions
We are committed to limiting the
environmental impact of our activity. We
continuously monitor our production
processes, material sourcing and product
design to improve recyclability and minimise
our environmental footprint.
These instructions are for information
purposes only. It is the user’s responsibility
to comply with local legislation regarding
product disposal and recycling.
Recyclable materials
Our alternators are mainly constructed from
iron, steel and copper materials, which can
be reclaimed for recycling purposes.
These materials can be reclaimed through a
combination of manual dismantling,
mechanical separation and melting
processes. Our technical support depart-
ment can provide detailed directions on how
to dismantle products on request.
Waste & hazardous materials
The following components and materials
require special treatment and must be
separated from the alternator before the
recycling process:
- electronic materials found in the terminal
box, including the automatic voltage
regulator (198), current transformers (176),
interference suppression module and other
semi-conductors.
- diode bridge (343) and surge suppressor
(347), found on the alternator rotor.
- major plastic components, such as the
terminal box structure on some products.
These components are usually marked with
information concerning the type of plastic.
All materials listed above need special
treatment to separate waste from
reclaimable materials and should be
entrusted to specialist recycling companies.
The oil and grease from the lubrication
system should be treated as hazardous
waste and must be treated in accordance
with local legislation.
Our alternators have a specied lifetime of
20 years. After this period, the operation of
the product should be stopped, regardless
of its condition. Any further operation after
this period will be under the sole responsi-
bility of the user.
The coolant, oil and grease from the
lubrication system should be treated as
hazardous waste and must be treated in
accordance with local legislation.

[e-mail]
Design
Life Extension
Optimisation
Start-up
Operation
•Consulting & specication
•Maintenance
contracts
•Reconditioning
•System upgrade
•Monitoring
•System audit
•Commissioning
•Training
•Genuine spare parts
•Repair services
Our worldwide service network of over 80 facilities is at your service.
This local presence is our guarantee for fast and e󰀩cient repair, support and
maintenance services.
Trust your alternator maintenance and support to electric power generation experts.
Our eld personnel are 100% qualied and fully trained to operate in all environments
and on all machine types.
We have a deep understanding of alternator operation, providing the best value
service to optimise your cost of ownership.
Where we can help:
Contact us:
Americas: [phone]
EMEA: [phone]
Asia Pacic: [phone]
China: [phone]
India: [phone]
Scan the code or go to:
Service & Support
www.lrsm.co/support

www.emersonindustrial.com
- 2022.12 / b
www.leroy-somer.com/epg
6102 en
Connect with us at:
