Nidec PowerGear P54 User manual

www.graessner.de
gmb / BA PowerGear_EN Page 1 of 20
Spiral Bevel Gear
P
Po ow we er rG Ge ea ar r
Installation and operating instructions
PowerGear P54 to P450
X54 to X280
S75 to S170
Issue 2018-01
Ident-No. BA 21P00030 EN

www.graessner.de
gmb / BA PowerGear_EN Page 2 of 20
Table of contents
1. General notes
1.1 Use of the operating instructions
1.2 Significance of the warning notes
1.3 Exclusion of liability
1.4 Copyright
4
4
4
4
4
2. Intended use of Nidec Graessner Gear Units
5
3. Conversions and alterations / Modifications of the product
5
4. Set-up of gear unit / Technical data
4.1 Set-up of gear unit
4.2 Type designations
4.3 Performance tables PowerGear
4.4 Technical data PowerGear
4.5 Type plate
5
5
6
7
8
8
5. Safety notes
5.1 Basic duties
5.2 Qualified personnel
5.3 Environmental protection
9
9
9
9
6. Transport, storage, and long-term storage
6.1 Transport
6.2 Storage conditions
6.3 Long-term storage
6.4 To be noted before commissioning
10
10
10
10
10
7. Installation
7.1 General installation instructions
7.2 Gear unit installation in plant
7.3 Installation positions
7.4 Fitting of motors
7.5 Installation of the other fitted components
7.6 Finishing work
11
11
11
11
12
12
13
8. Commissioning
14
9. Operation of the PowerGear gear units
9.1 General notes on operation
9.2 To be watched out for during operation
9.3 Irregularities
15
15
15
15

www.graessner.de
gmb / BA PowerGear_EN Page 3 of 20
10. Faults, causes and remedies
10.1 General fault indications
10.2 Possible faults
16
16
16
11. Inspection and maintenance
11.1 General notes
11.2 Service intervals
11.3 Oil service life
11.4 Oil change
11.5 Checking the gear unit condition
17
17
17
17
17
18
12. Replacement parts, replacement part stocks and service
12.1 Replacement parts
12.2 Replacement part stocks
12.3 Service department
18
18
18
18
13. Index (alphabetical)
19

www.graessner.de
gmb / BA PowerGear_EN Page 4 of 20
1. General notes
1.1 Use of the operating instructions
These operating instructions are part of the product and must be read carefully before use and kept for future
reference. They contain important information on the operation and servicing of the PowerGear gear unit range.
These Operating Instructions are intended for all persons who perform assembly, installation, commissioning,
and service work on gear units from this gear unit series.
The gear units of the PowerGear series are components for installation in machines and are intended
exclusively for the transmission, distribution and multiplication of torque and are designed only for the area of
application described in section 2 "Technical Data". Other operating conditions must be agreed with Nidec
Graessner GmbH & Co.KG and regulated by contract.
The gear units are manufactured according to the latest technical standards and are delivered in a safe and
reliable condition. They correspond to the status of the description in these operating instructions.
We reserve the right to make technical modifications to components, while maintaining the performance and
safety of the gear units.
1.2 Significance of the warning notes
The warnings are mentioned in the context in which a hazard may occur and refer to it. They specify the
hazards and the possible consequences if the hazards are not eliminated. The notes on personal safety are
highlighted by warning triangles indicating the types of hazard. Depending on the hazard level, the warning
notices are shown as follows:
Note:
Useful note or information
Attention:
Material damage may occur on the drive system or the environment!
Caution:
Risk of physical injury!
(Danger of burns)
Warning:
Possible hazardous situation - death or serious injury may occur!
(Danger of crushing)
Danger:
Imminent danger, death or serious bodily injury as a consequence!
(Danger of bodily harm/crushing)
1.3 Exclusion of liability
Nidec Graessner GmbH & Co. KG does not assume any liability for damage and operating malfunctions
resulting from non-compliance with these instructions.
1.4 Copyright
The copyright relating to these instructions is retained by Nidec Graessner GmbH & Co. KG,
all rights reserved
These installation and operating instructions can be downloaded
from our website www.graessner.de

www.graessner.de
gmb / BA PowerGear_EN Page 5 of 20
Regarding all technical queries please contact our product management or our service department:
Nidec Graessner GmbH & Co. KG
THE GEAR COMPANY
Kuchenaecker 11
D-72135 Dettenhausen
Service Department
Product Management
Tel.: [phone]
Fax: [phone]
Fax: [phone]
[email protected]e
www.graessner.de
These operating instructions must be read carefully before use.
Store in a safe place for future reference.
If these operating instructions are not complied with, damage to the gear unit,
operating faults, material damage and personal injury may occur.
Nidec Graessner GmbH & Co. KG does not accept any liability for any resulting
damages or faults.
2. Intended use of Nidec Graessner Gear Units
PowerGear gearboxes are components for installation in machines and are intended exclusively for the
reversal, distribution, and multiplication of torque in the speed range up to 3500 min-1.
They comply with the Machinery Directive (EN 292) and EMC directives, insofar as they are applicable.
PowerGear gear units may only be used for the applications specified in the catalogue and in the associated
technical specifications.
Any other use and/or any use exceeding those cases described in the catalogue and/or associated technical
specifications is deemed not compliant with the intended use. The manufacturer does not accept any liability
whatsoever for any damage resulting therefrom. This risk shall be solely borne by users.
PowerGear gear units can be used in a wide range of different applications; therefore, the responsibility for the
specific application is transferred to the user at the time of use.
3. Conversions and alterations / Modifications of the product
PowerGear gearboxes may not be modified in terms of design or safety without our approval.
Any unauthorized modification within the meaning of this provision excludes any liability on our part.
4. Set-up of gear unit / Technical data
4.1 Set-up of gear unit
PowerGear are angular gears with case-hardened spiral bevel gear pairs, toothed according to the Gleason
system, for installation in machines and systems.
The gearbox housings are machined on all sides with threaded holes for mounting on all sides via 3 uniformly
toleranced centring fits. Shafts are supported by tapered roller bearings in a cantilevered support (input) and
fork mounting (output), shaft seals with dust lip, flange seals by laminar sealing discs.
Mathematically exact ratios from 1.00:1 to 5.00:1. Gearboxes in solid or hollow shaft design, for clutch
transmission or direct mounting of the motor.
PowerGear gearboxes are components for installation in machines and are intended exclusively for the
transmission, distribution, and multiplication of torque in the speed range up to 3500 min-1.
They comply with the Machinery Directive (EN 292) and EMC directives, insofar as they are applicable.

www.graessner.de
gmb / BA PowerGear_EN Page 6 of 20
4.2 Type designations
PowerGear P54 to P280
P version with type series L, H, FL, FH,
X version, reinforced, with type series L and H
Type: Series L
shown in ratio 2:1 and in Wa.2 (WA = shaft arrangement)
with 2 shaft ends on the output shaft.
Additional shaft arrangements are Wa.1 and Wa.3.
Fits on the shaft ends in k6
Type: Series H
shown in ratio 1:1, in Wa.2 (WA = shaft arrangement)
with fits in H7 on both shaft ends of the output shaft.
Fit on the drive shaft end in k6.
The bearings are designed with tapered roller bearings.The drive pinions are shrunk into the driven pinion gears on the
shaft. In case of the reinforced X version, the drive shafts are designed as pinion shafts.
PowerGear P360 to P450
P version with type series L and H
Type: Series L
Shown in ratio 1:1
The two bevel gears are connected to the shafts via feather
key, in addition there is a light shrink fitting.
For the ratio 2:1 the pinion is shrunk onto the drive shaft.
Type: Series L
Shown in ratio 3:1 (analogously 4:1 and 5:1)
complete with bevel gear on hub and pinion shaft.
The bevel gear is screwed and bolted with the hub,
this sits in a feather key connection on the output shaft.

www.graessner.de
gmb / BA PowerGear_EN Page 7 of 20
PowerGear HS S75 to S170
S version with type series L and KH
Type: Series L
Shown in ratio 1:1
Drive and output with solid shaft. Output (here) on both
sides, or on one side left or right.
Type: Series KH
Shown in ratio 1:1
Drive with coupling and lantern, output with hollow shaft
and key groove.
Shaft bearings with angular contact ball bearings, lubrication with synthetic gear oil ISO VG 150
4.3 Performance tables
PowerGear P Standard
Nominal torque
on output T2N
(Nm) at
P54
P75
P90
P110
P140
P170
P210
P240
P280
P360
P450
I=1:1
15
45
78
150
360
585
1300
2150
3200
3750
6600
I=1.5
15
45
78
150
360
585
1300
2150
3200
3550
7000
I=2:1
12
42
68
150
330
544
1220
2010
3050
3500
7000
I=3:1
12
33
54
120
270
450
1020
1650
2850
3350
7000
I=4:1
28
52
100
224
376
860
1410
2300
2900
6600
I=5:1
25
40
85
196
320
740
1210
2000
2600
6000
PowerGear X reinforced version
Nominal torque
on output T2N
(Nm) at
X54
X75
X90
X110
X140
X170
X210
X240
X280
I=1:1
24
87
135
290
625
1020
2050
3350
5200
PowerGear HS High Speed
Nominal torque
on output T2N
(Nm) at
S75
S90
S110
S140
S170
I=1:1
25
45
78
150
360
I=1.5:1
25
45
78
150
360
I=2:1
24
42
68
150
330
The braking as well as the emergency stop moments are shown in the performance table in the catalogue, down-
load at www.graessner.de. There you will also find the moments for the reinforced gear unit versions X54 to X280
as well as for the high-speed versions S90 to S170.

www.graessner.de
gmb / BA PowerGear_EN Page 8 of 20
4.4 Technical data
PowerGear P
P54
P75
P90
P110
P140
P170
P210
P240
P280
P360
P450
Running noise
at 1500min-1
Partial load in
dB(A)
70
70
74
76
77
78
80
82
83
85
85
Weight (kg)
1.8
4.5
8.0
13.0
22.0
38.5
71.0
103.5
155.0
240
400
Lubrication
Synthetic gear oil ISO VG 150, up to size P140 with filling
Average oil
quantity in l
0.05
0.10
0.20
0.30
0.40
1.00
2.20
2.60
3.0
9.0
22.0
PowerGear X
X54
X75
X90
X110
X140
X170
X210
X240
X280
Running noise
at 1500 min-1
Partial load in
dB(A)
70
70
74
76
77
78
80
82
83
Weight in (kg)
1.9
5.0
8.5
13.5
22.5
39.0
71.5
104.0
155.5
Lubrication
Synthetic gear oil ISO VG 150, up to size P140 with filling
Average oil
quantity in l
0.05
0.10
0.20
0.30
0.40
1.00
2.20
2.60
3.00
PowerGear HS
S75
S90
S110
S140
S170
Running noise at 1500 min-1
Partial load in dB(A)
< 70
< 70
< 74
< 76
< 77
Weight in kg
3.9
4.5
8.0
13.0
22.0
Lubrication
Synth. gear oil ISO VG 150
Average oil quantity in l
0.10
0.20
0.30
0.40
1.00
Operating temperatures PowerGear P and X respectively -30 to +90°C, PowerGear HS -30 to +100°C
Further technical data is shown in the catalogue
"PowerGear", download at www.graessner.de.

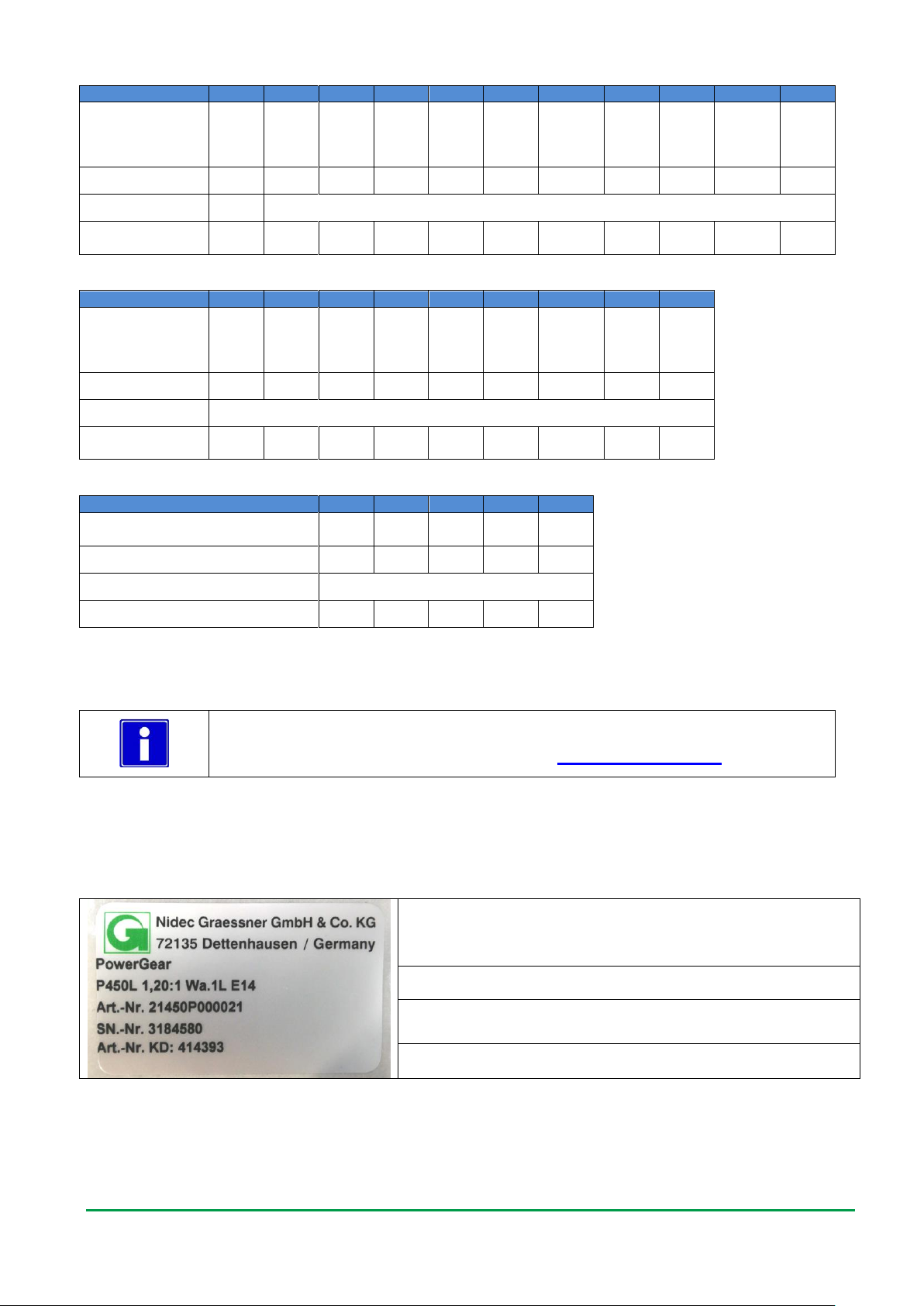

4.5 Type plate
The type plate comprises (example):
•The exact type designation P450L, the ratio 1,20:1,
the shaft arrangement Wa.1L (output on side 1) and
the special execution number E14
•The article number of the gearbox 21450P000021
•The serial number of the gearbox 3184580
•The customer number 414393

www.graessner.de
gmb / BA PowerGear_EN Page 9 of 20
5. Safety notes
5.1 Basic duties
The safety notes listed here are used to avoid personal injury and material damage and must always be
complied with and observed. For this purpose, persons with responsibility for the plant as well as qualified
personnel working on the gear unit under its own responsibility must have read and fully understood these
operating instructions, in order to:
▪prevent any hazards for life and limb of users and any third parties.
▪provide for the operational safety of the gear unit.
▪exclude downtime and environmental damage due to incorrect handling.
5.2 Qualified personnel
This refers to persons having relevant education and training and a professional qualification who can
detect risks in the handling of these products and avoid possible hazards.
Specialists within the meaning of these operating instructions are persons who are familiar with the set-up,
mechanical installation, fault removal and maintenance of the gear units and have the following qualifications:
▪Training in the field of mechanics with successfully completed professional training
▪(mechanic, machine fitter, mechatronics engineer, toolmaker)
▪Knowledge of these operating instructions
All specialists must wear protective clothing appropriate to their activity.
5.3 Environmental protection
▪All existing packaging material must be disposed of in accordance with regulations or recycled.
▪When changing the oil, the used oil must be caught in suitable vessels. Any pooled oil spills must be
removed immediately by means of a binding agent. Any pooled oil spills must be removed immediately
by means of a binding agent.
▪Used oil, oil binding agent or oil-contaminated cleaning cloths must be disposed of in accordance with
the relevant environmental protection regulations.
Disposal of the gear unit following the end of its service life:
▪Drain oil and preservation agents completely from the gear unit and dispose of as waste oil
in accordance with the applicable national regulations
▪Housing parts, shafts, roller bearings and geared parts must be disposed of or recycled
in accordance with applicable national regulations, depending on the relevant provisions also
separately.
Serious personal injury and material damage due to
•incorrect use of the gear unit
•incorrect installation or operation
Risk to life due to operational plant
When working on the gear unit, the gear unit must always be shut down.
The drive must have been secured against unintentional activation (key switch or removal of
fuses). At the point of switch-on, an information sign must be affixed indicating the shutdown.
The drive must have been secured against unintentional activation. (key switch or removal of
fuses). At the point of switch-on, an information sign must be affixed
indicating the shutdown.
The drive must have been secured against unintentional activation. (key switch or removal of
fuses). At the point of switch-on, an information sign must be affixed indicating the shutdown.

www.graessner.de
gmb / BA PowerGear_EN Page 10 of 20
Serious personal injury and material damage due to:
non-permissible removal of the necessary protective covers!
6. Transport, storage, and long-term storage
6.1 Transport
Any work regarding transportation, storage, siting, installation, commissioning, operation, service, and
maintenance must be carried out by qualified personnel only.
Any damage identified after delivery must be communicated immediately to the transport company,
if appropriate, commissioning/ activation must be excluded. The transportation of the gear unit must be carried
out in a manner where personal injury and damage to the gear unit are avoided.
Danger:
Imminent danger! May result to serious bodily injury.
(Danger of crushing bodies or body parts)
Transport may only be carried out using suitable and designated means of transport.
When lifting eyebolts, they may only be attached to the intended holes with approved, adequately dimensioned
lifting equipment. There must be no diagonal pull.
Installation-specific provisions and requirements must be complied with.
Relevant national and regional regulations for safety, accident prevention and environmental protection must be
complied with.
6.2 Storage conditions
PowerGear - gear units must only be stored in a closed condition, in a dry, dust-free, and low vibration
(to avoid bearing damage) environment, without direct sunlight and at a temperature between -25 and +50°C.
Series gear units can be stored for up to one (1) year.
Always check the oil level before taking the gear unit into service.
6.3 Long-term storage
If storage is planned for more than 1 year, the "long-term storage" version is recommended.
These gear units can be stored for up to 5 years maximum.
The external preservation is carried out by applying a permanent preservative agent.
The internal preservation is carried out with a synthetic gear oil based on PAO.
It is advisable to rotate the gear unit at regular intervals to prevent the bearings from sticking (jamming),
the rotation also counteracts standstill marks and the shaft seals do not stick or become brittle.
6.4 Commissioning
Drain the oil and replenish with fresh oil before commissioning. If taken into service before the 5 years have
elapsed, its function is guaranteed.
If commissioned later than 5 years after storage, the roller bearings, sealing elements and gear oil must all be
replaced.

www.graessner.de
gmb / BA PowerGear_EN Page 11 of 20
7. Installation
7.1 General installation instructions
The installation must only be carried out by qualified, authorized, and trained personnel.
The safety instructions in Section 3 must be complied with.
When transporting the gear unit, the notes in Section 6 must be complied with.
Suitable crane harness and lifting gear must be provided.
Before commissioning
▪Fill the gear unit to the correct oil level, unless the gear unit is provided with lifetime lubrication
▪Check if the transmission parts are correctly fitted before commissioning
▪Do not deactivate monitoring and protection devices, even in test operation
If an oil level indicator or sight glass is available, the markings on them or the centre of the oil inspection glass,
are considered the minimum
Oil inspection glass:
Oil level centre
Oil check screw:
The oil level affects
the thread in the
housing bore
Oil quantities (dependent on ratio, speed, shaft arrangement and installation position)
Build size
P54
P75 /
X75
P90 /
X90
P110 /
X110
P140 /
X140
P170 /
X170
P210 /
X210
P240 /
X240
P280 /
X280
P360
P450
average oil quantity
0.05
0.1 l
0.2 l
0.3 l
0.4 l
1.0 l
2.2 l
2.6 l
3.0 l
9.0
22.0
max. oil quantity
-
-
-
0.35 l
0.6 l
1.2 l
2.5 l
3.5 l
5.0 l
15.0
32.0
7.2 Gear unit installation in plant
During installation or assembly, pay attention and ensure the following:
▪An even support on a level, vibration-dampened and torsion-free substructure; stress and strain in the
housing must be avoided.
▪Proper lubrication and ventilation are only possible if the assembly is carried out in accordance with the
drawings and build type.
▪Tension-free assembly with combined flange or insertion mount attachment
▪Exact alignment of the gear unit on direct coupling, comply with the manufacturer's details
7.3 Installation positions (MP = mounting position)

www.graessner.de
gmb / BA PowerGear_EN Page 12 of 20
7.4 Fitting of motors
The gear unit types FL and FH are equipped with a hollow shaft with keyway on the input side. The bore fitting
is designed in quality H7. The motor shaft must always be positioned and fitted in alignment with the
motor shaft. Coat the shafts with assembly paste, then join up motor to the gear shaft. Do not drive in the
motor with a hammer but use the suitable holes and threads on the gear unit and motor to tighten the mounting
screws on the flange surfaces until the motor is tight. If there is stress on the bearings, the motor will spring
back easily. Repeat the procedure until the motor and gear unit rest against the flanges without distortion and
the shafts can be easily rotated.
Attention against damage to gear unit:
Driving the motor with a hammer can cause damage to the gearbox.
Any stress or tension on the bearings may cause them to overheat and lead to bearing
damage with blockage.
Drive with lantern and coupling
a. Preparation
The surfaces of the coupling bores and the shaft ends must be free from dirt, especially from grease and oil.
b. Installation of the coupling
The radially arranged clamping screw of the coupling half to be mounted is turned to the left until the screw
head rests against the cross pin mounted in the counterbore. By turning the screw further, the coupling bore is
elastically widened so that the coupling can easily be pushed onto the shaft. Proceed in the same way for
disassembly.
Clamp screw and cross pin:
Turn screw to the left until the
screw head rests against the
cross pin. Turning the screw
further to the left expands the
coupling.
ATTENTION: Only expand the
coupling sufficiently to allow it
to be mounted, otherwise
there is a risk of breakage.
Coupling widened
for fitting.
Coupling bores must be
free from dirt and grease.
After assembly, tighten
the clamping screw to the
required tightening
torque.
Tightening torques of the clamp screws
Screws: DIN 912, 10.9, galvanized
M4
M5
M6
M8
M10
5 Nm
10 Nm
14 Nm
35 Nm
65 Nm
7.5 Installation of the other fitted components
The drive and output elements (gears, belt wheels, jointed shafts etc.):
▪Must have been balanced with G 6.3
▪Must only be fitted using suitable fitting and withdrawal devices
▪Must be axially secured even if they have been shrunk on
When using suitable clamping elements, the tightening torques must be observed.
The components must be mounted on the shaft as far as specified in the dimension sheet for the article.
In the case of belt drive, the correct belt tension must be ensured, the manufacturer's instructions
must be observed. The permissible transverse forces for the shafts must not be exceeded (see catalogue).
Input and output elements must be covered with a contact protection.

www.graessner.de
gmb / BA PowerGear_EN Page 13 of 20
7.6 Finishing work
▪Before fitting protective covers check again the correct oil level in the gear unit.
▪Check for even running free from strains, stresses, and any faults.
▪Fit protective covers.
▪Carefully clear away all tools as well as any parts not fitted.
Attention:
Due to incorrect installation, the gear unit can be damaged and become
unusable. Such damage may be caused by falling objects, dumping, welding work
or insufficient attachment.
The operator must ensure:
▪The gear unit must be protected against any falling objects and dumping
▪Welding work must not be carried out on any part of the drive
▪The gear unit must not be used as a ground point for electric welding work
▪All mounting options assigned to the build type must be used.
▪Any screws that have become unusable during assembly and disassembly must be
replaced by new ones featuring the same design and strength class.
Attention against damage to gear unit:
Impacts or shocks during the mounting of the coupling may cause damage inside
the gear unit.
Fit couplings with pull-on devices.
The shaft seal rings and the running surfaces of the shafts must not be damaged
when fitting the coupling parts.

www.graessner.de
gmb / BA PowerGear_EN Page 14 of 20
8. Commissioning
The commissioning (taking up operation in accordance with the intended use) of the PowerGear gear unit is
prohibited until it has been determined that the machine or plant complies with the provisions of the EU machine
directive.
Before commissioning check the correct attachment of the transmission parts.
Check the oil level
Do not deactivate monitoring and protection devices, not even during test operation.
The use of an aeration and ventilation filter is not necessary for gear units up to P110 / X110,
for gear units from P140 / X140 or bigger, we recommend that it be used as soon as the gear units
exceed operating temperatures of 60°C.
The first start-ups must be carried out without load and at low speeds, until it is ensured that all roller bearings,
bevel gears and shaft seals are wetted with oil, then increase speed to approx. 500 min-1
After approx. 30 minutes, gradually increase speeds until the operational speed is reached, running-in time at
idle approx. 90 minutes.
During start-up and run-up pay attention to running noise and temperature development particularly at the
bearing points. In the case of unusual running noise, shut down machine and identify fault.
See Section 10: "Faults, causes and remedies."
Apparent leakage at the shaft seal rings
Grease emerging from the lubrication in the shaft seal rings is not an oil leak.
This is an apparent leakage, until the remaining lubricant has become regulated.
Wipe off apparent leakage and continue to observe.
Attention against damage to gear unit:
If the new gear unit is started up too quickly, the bearings may overheat,
and the tooth flanks may be insufficiently lubricated.
It is necessary to allow the gear unit to run-in in stages!
Warning:
Risk of burns!
Possibility of severe burns on hot surfaces (>55°C).
Wear suitable gloves and protective clothing.

www.graessner.de
gmb / BA PowerGear_EN Page 15 of 20
9. Operation of Power Gear
9.1 General notes on operation
The instructions in Section 1 "General safety notes", Section 10 "Faults, causes and remedies",
and Section 11 "Inspection and maintenance" must be complied with.
In order to achieve a perfect trouble-free operation of the gear unit, the operating factors defined in the
"Technical Data" must be complied with.
9.2 During operation monitor the following:
Operating temperature
When using mineral gear oils (CLP) the operating temperature should not exceed 80°C or only exceed this
limit for a short period. If synthetic gear oils (CLP) are used, an operating temperature must be set.
In combination with sealing rings made of FKM (fluororubber, Viton), a temperature of 110°C is permissible for
a short time.
Changing gear unit noises, vibrations
Oil leakage on the housing and the shaft seal rings
Oil level - to check the oil level, the gearbox must be stopped.
Check oil levels only with the gear unit in a cooled down condition:
•If there is an oil sight glass, the oil level must be in the middle of the oil sight glass
•If without an oil sight glass, the check is carried out at the lower screw plug of a vertical housing surface.
The oil level must touch the thread in the housing (see page 11, section 7.1)
Attention:
Insufficient lubrication due to a too low oil level can lead to damage to the gear
parts and the bearings.
Carry out a regular oil level check
Warning:
Possibility of severe burns on hot surfaces (>55°C).
Wear suitable gloves and protective clothing.
9.3 Irregularities
In case of changes compared to standard operation, e.g. increased temperatures, noises, vibrations, in case of
doubt the gearbox must be shut down to determine the cause. See section 10: "Faults, causes and remedies".
If necessary, consult our service department.

www.graessner.de
gmb / BA PowerGear_EN Page 16 of 20
10. Faults, causes, remedy
10.1 General fault indications
The Sections 5 "Safety notes" and 11 "Service and Maintenance" must be observed.
Faults occurring during the warranty period which require repair of the gear unit may only be repaired
by employees of the Nidec Graessner service department.
If, after the warranty period, faults occur whose causes cannot be clearly identified,
the Nidec Graessner service department must be contacted.
10.2 Possible faults
Faults
Causes
Remedy
Changed operating noise
Damage to gearings
Bearing play is increased.
Bearing is defective
Check geared components; if necessary,
replace any damaged components, adjust
bearing play, contact service department
Replace defective bearing, contact service
department
Increased temperature at
the bearing points
Oil level in the housing is too low or too
high
Oil is too old
Bearing is defective
Check oil level at room temperature,
if necessary replenish or drain oil.
Check when the last oil change has been
carried out. If necessary, change the oil
Check bearing condition; replace,
if necessary; contact service department
Gear unit is oily on the out-
side
Insufficient sealing of the bearing flanges
and gear unit covers
Seal bearing flanges and gear unit covers
Oil leak at the ventilation
filter
Oil foams
Oil level in the gear unit is too high
Incorrect execution of the ventilation
See fault "Oil foams in gear unit"
Decrease oil level in gear unit to the
pre-specified level
Prevent any direct oil injection by attaching
suitable extensions or angle pieces
Oil leaks from gear unit
Insufficient sealing of the bearing flanges
and gear unit covers
Radial shaft seal rings are defective
Check seals, replace if necessary
Check radial shaft seal rings, replace
if necessary.
Oil foams in gear unit
Water in oil
Oil too old (De-foaming agent used up).
Unsuitable oils mixed up
Examine oil condition for water ingress by
means of a test tube sample.
Have the oil sample analysed, change oil.
Examine oil, change oil
Examine oil, change oil
Water in oil
Water condensates in the gear unit by
external climatic conditions, sun, wind,
cold: Ambient temperatures change a
great deal.
Protect gear unit against temperature
influences
Increased operating tem-
perature
Oil level in the gear unit is too high.
Oil is too old
Oil is highly contaminated
Check oil level Correct if necessary.
Check when the most recent oil change was
carried out, change oil
Have the oil sample analysed, change oil.

www.graessner.de
gmb / BA PowerGear_EN Page 17 of 20
11. Inspection and maintenance
11.1 General notes
All maintenance and service work may only be carried out by qualified personnel.
See "Safety Instructions 3.2"
The gear unit must always be shut down for maintenance and repair work.
The drive unit must be secured against unintentional start-up (key switch, lock) and an information sign must be
attached indicating that work is being carried out on the gear unit.
Warning:
High risk of injury due to unintentional start-up of the drive!
Before commencing any maintenance work, secure gear unit against any start-up!
Warning:
High risk of injury from dismantling transmission parts (clutches, cardan shafts,
belts, etc.) while torsional forces are still acting on the gear shafts!
Secure gear shafts against torsional forces and disassemble transmission
elements.
11.2 Service intervals
Non-compliance with the maintenance intervals can cause severe damage to the gearbox and the plant.
Therefore, it must be ensured that these maintenance intervals are observed.
Measures
Service intervals
Remarks
Check running noise for any changes
daily
Check gear unit for leakage
daily
Check oil level
monthly
Carry out first oil change
500 operating hours after commissioning
Chapter 11.3
Carry out additional oil changes
mineral oil filling
Every 24 months or 10000 operating hours
Chapter 11.3
Carry out additional oil changes
synthetic oils
Every 4 years or 20000 operating hours
Chapter 11.3
Check gear unit condition
Every 2 years
Chapter 11.4
11.3 Oil service life
The oil service life at 80°C average oil temperature in the gear unit without serious changes in the oil qualities is
specified by the oil manufacturers as a minimum value:
•For mineral oils, biodegradable oils, and physiologically harmless oils: 2 years or 10,000 operating hours
•For synthetic oils (polyalphaolefins and polyglycols): 4 years or 20,000 operating hours
Note on oil service life
The actual oil service life may be longer, and at operating temperatures above 80°C also lower.
Here, the rule applies that a temperature increase of 10°C approximately halves the service life of the oil.

www.graessner.de
gmb / BA PowerGear_EN Page 18 of 20
11.4 Oil change
The oil should be drained immediately after shutdown while the oil is still warm.
Caution:
There is a risk of burns on the hot gear unit, and a risk of scalding when draining
the oil!
Provide for suitable protection measures!
Unscrew the ventilation filter or remove the upper screw plug on one side of the housing,
Open the oil drain plug and collect the oil in a suitable container.
Equip the drain plug with a new copper seal and screw it back into the housing.
Fill gear unit with oil, see also section 8.
Reinsert oil filler plug or breather filter.
Material damage
Possible damage to the gear unit due to insufficient lubrication caused by
incorrect or mixed oils.
When changing the oil, always refill with the same oil type previously used!
It is not permitted to mix different makes or mineral and synthetic oils.
Specifically, hydrocarbon oils must not be mixed with polyglycols.
The mixtures may be resinous or clump together and settle in the gear unit.
11.5 Checking the gear unit condition
This check may only be carried out by qualified operating personnel or by the service department of Nidec
Graessner. It must be possible to reliably assess what needs to be replaced on the gear unit or to determine
that all gear unit parts are in good order.
12. Replacement parts, replacement part stocks, service
12.1 Replacement parts
Wear part packs and replacement parts complete with replacement or repair instructions are available from our
service department. The designation and positioning of the individual parts are shown in the associated
dimension sheets and replacement part drawings.
12.2 Replacement part stocks
We recommend to keep a stock of the most important replacement parts and wear parts in the vicinity of the
place of use of the gear unit, so as to ensure the operational readiness of the gear unit in this way.
The parts are shown in the replacement part drawings
12.3 Service
Should you require help from our service department please provide the following details:
▪Gear unit type and size
▪All data printed on the type plate (see page 7).
▪If the type plate is missing, you will find the serial number stamped into the housing.
▪Type and scope of the fault
▪Suspected cause
▪Photographs of any damage (digital)
Note: Contact to Customer Service, see pages 4, 8 and 20 (bottom)

www.graessner.de
gmb / BA PowerGear_EN Page 19 of 20
13. Alphabetic index
Index keyword
Section
Page
Aeration and ventilation filter
8.
13
Basic duties
5.1.
9
Before commissioning
6.4
10
Checking gear unit condition
11.5.
18
Commissioning
8.
14
Conversions and alterations
3.
5
Copyright
1.4.
4
Disposal of the gear unit after use
5.3
9
Downloads - Notes
1.4, 4.5
4, 8
During operation monitor the following
9.2.
15
Environmental protection
5.3
9
Exclusion of liability
1.2.
4
Faults, causes, remedy
10.
16
Finishing work
7.6
13
Fitted components - Notes
7.5
12
Fitting of motors
7.4
12
Gear unit installation in plant
7.2.
11
General fault indications
10.1.
16
General installation instructions
7.1.
11
General notes on inspection and maintenance
11.1.
17
General notes on operation
9.1.
15
General notes on the operating instructions
1.
4
Inspection and maintenance
11.
17
Installation
7.
11
Installation of coupling
7.4
12
Installation position (see fitted positions)
7.3
11
Installation positions:
7.3.
11
Intended use of Nidec Graessner gear units
2.
5
Irregularities
9.3.
15
Long-term storage
6.3.
10
Maintenance
11.
17
Modifications of the product
3.
5
Oil change
11.4.
17

www.graessner.de
gmb / BA PowerGear_EN Page 20 of 20
Oil inspection glass
7.1.
11
Oil quantities
7.1.
11
Oil service life
11.3
17
Operating temperature
9.2.
15
Operation of the PowerGear units
9.
15
Performance tables PowerGear
4.3.
7
Possible faults
10.2
16
Qualified personnel
5.2.
9
Replacement part stocks
12.2.
18
Replacement parts.
12.1.
18
Replacement parts. Service
12.
18
Safety notes
5.
9
Service
12
18
Service intervals
11.2.
17
Set-up of gear unit
4.1.
5
Set-up of gear unit / Technical data
4.
5
Storage conditions
6.2.
10
Table of contents
0.
2
Technical data
4.4.
8
Transport
6.1.
10
Transport, storage, and long-term storage
6.
10
Type designations
4.2.
6
Type plate
4.5
8
Use of the operating instructions
1.1.
4
Warning notes
1.2
4
Note: Contact Information of our Service Department
NIDEC GRAESSNER GMBH & CO. KG Service Department: Tel. [phone] / 141
The Gear Company Fax [phone]
Kuchenäcker 11 E-mail: [email protected]
D-72135 Dettenhausen Website: www.graessner.de
Copyright © 2020 Nidec Graessner. All rights reserved.
