Nidek Medical ICE-1000 User manual

INTELLIGENT BLOCKER
Model ICE-1000
OPERATOR’S MANUAL

NIDEK CO., LTD. : 34-14, Maehama, Hiroishi-cho, Gamagori, Aichi 443-0038, Japan
(Manufacturer) Telephone: [phone]
Facsimile: (81-533) 67-6610
NIDEK CO., LTD : 3F Sumitomo Fudosan Hongo Bldg., 3-22-5, Hongo,
(Tokyo Office) Bunkyo-Ku, Tokyo 113-0033, Japan
Telephone: [phone]
Facsimile: (81-3) 5844-2642
NIDEK INCORPORATED : 47651 Westinghouse Drive, Fremont, California 94539, U. S. A.
(United States Agent) Telephone: [phone]
Facsimile: [phone]
NIDEK SOCIETE ANONYME : Europarc 13, rue Auguste Perret, 94042 CRETEIL, France
(Authorized Representative) Telephone: [phone]
Facsimile: (01) 49 80 32 08
August 2007
43801-P902A
Printed in JAPAN

I
:
Use this instrument properly and safely.
Safety precautions
BEFORE USE, READ THIS MANUAL.
This operator's manual includes operating procedures, safety precautions, and
specifications for the ICE-1000. IEC standards are applied in this manual.
For correct use, this manual is needed. Especially, the safety precautions and operating
procedures must be thoroughly understood before using the instrument.
Keep this manual handy for verification whenever necessary.
If you encounter any problems or have questions about the instrument, please contact
NIDEK or your authorized distributor.
In this manual, a Signal Word is used to designate the degree or level of safety alert. The defini-
tion is as follows.
CAUTION
• Indicates a potentially hazardous situation which may result in bodily injury or damage to
instrument.
Even situations that are labeled “ CAUTION” may result in serious injury under certain condi-
tions. Safety cautions must be followed strictly at all times.

II
:
Use precautions
Before Use
CAUTION
• Do not use the instrument for other than the intended purpose.
NIDEK is not responsible for accidents or malfunctions caused by careless use.
• Never disassemble nor touch the inside of the instrument.
This may result in electric shock or malfunction.
• Install the instrument in an environment that meets the following conditions. The
following conditions must be maintained during use.
Use conditions:
Temperature: +5 to +45 ºC
Humidity: Relative humidity must not exceed 50% at a maximum temperature of 40ºC
Atmospheric pressure: 700 to 1060 hPa
A place with low dust
A place with little external light
A place free of vibration and impact
• Do not store the instrument in an area that contains contaminants such as corrosive
gases, acid or salt.
Corrosion damage or malfunction of the instrument may result.
• Install the instrument in a location with an adequate operating area in front of the
instrument as illustrated on Page V.
• Be sure to use a wall outlet which meets the power specification requirements.
If the line voltage is too high or too low, the instrument may not perform properly. Mal-
function or fire may occur.
• Connect the power plug to a ground outlet. Or connect a grounding wire to a
ground terminal.
Electric shock or fire may occur in the event of malfunction or power leakage.
• Completely insert the power plug into the outlet as far as the prongs will go.
Fire may occur if the instrument is used with a loose connection.
• Do not place heavy objects on the power cord.
The damaged power cord may cause fire or electric shock.
• Before connecting the cable, turn the power switch off and disconnect the power
cord from an outlet.
Failure of the instrument may result.
• Hold the base with both hands when carrying the instrument to another location.
Accidental dropping of the instrument may cause damage to the instrument and/or
cause bodily injury.

III
:
During Use
CAUTION
• Use the special packing materials when transporting the instrument to protect from
impact of dropping.
Excessive vibration or impact to the instrument may cause malfunction.
CAUTION
• Connect the cable to the interface connector securely, maintaining the correct
orientation of the cable connector.
Data transmission is not performed properly.
• In the event of smoke or strange odors, immediately turn off the instrument and
disconnect the power plug from the outlet. After you are sure that the smoke has
stopped, then contact NIDEK or your authorized distributor.
Usage of the instrument under such abnormal conditions may cause fire or electric
shock. In case of fire, use a dry chemical (ABC) extinguisher to extinguish the fire.
• Immediately replace the power cord if the internal wires are exposed, the
instrument turns on or off when the power cord is moved, or the cord and/or plug
are too hot to be held with hands.
This may result in electric shock or fire.
In the event of malfunction, disconnect the power cord from the outlet. Never touch
the inside of the instrument and contact NIDEK or your authorized distributor.
• Be sure to select the material of a lens to be processed.
If an improper material is selected, the lens may break or lifetime of processing
wheels may be reduced substantially in lens processing with a lens edger.
• Do not press the Block button on the condition that no lens is placed on the
lens table.
Doing so could cause contact of the cup holder to pins of the lens table.
• Do not touch the touch screen with anything other than the tip of a touch pen. Keep
magnetic objects away from the LCD touch screen.
The instrument may be damaged.
• Do not operate the LCD touch screen with wet hands.
Water seeping may result in failure of the instrument.
• When connecting and disconnecting the USB flash drive, be sure not to touch the
terminal area directory and not to touched to metal.
The data may lost or corrupted as it is recorded by static.
• To protect data loss or corruption due to damage to a USB flash drive, back up data
onto other media.
NIDEK is not responsible for data loss or corruption due to lack of back-up.

IV
:
After Use
Maintenance
CAUTION
• If the instrument will not be used, turn the power off and close the tracing unit
cover.
Settled dust may affect the measurement accuracy.
• Do not yank the power cord to disconnect it from a wall outlet but hold the plug.
This can damage the metal core of the cord and may result in electric shock, short cir-
cuit, or fire.
• Occasionally clean the prongs of the power plug with a dry cloth.
If dust settles between the prongs, the dust will collect moisture, and short circuit or
fire may occur.
• If the instrument will not be used for a long time, disconnect the power cord from
the wall outlet.
Fire may occur.
• Maintain the surrounding temperature and humidity at the following range during
transport and storage of the packed instrument.
Environmental conditions:
Temperature: –25 to +70 ºC
Humidity: 10 to 95% (Non-condensing)
A place with low dust
A place not exposed to direct sunlight
• To transport the instrument, use the special packing materials to protect the
instrument from shock or impact.
Excessive vibration or impact to the instrument may cause malfunction.
CAUTION
• Be sure to perform check before and after use. It is recommended to have regular
checks every two years.
Regular checks must be performed by qualified personnel. Ask NIDEK or your autho-
rized distributor for details.
• When performing maintenance work, secure a sufficient maintenance space. (See
Page V.)
Maintenance work in an insufficient space may result in injury.
• Use the specified fuses to replace the old ones.
If not, fire may result.

V
:
[Operating area and maintenance work area]
Disposal
CAUTION
• Follow local governing ordinances and recycling plans regarding disposal or
recycling of the components.
It is recommended to commission the disposal to a designated industrial waste dis-
posal contractor.
• When disposing of packing materials, sort them by material and follow local
governing ordinances and recycling plans.
About 500 mm About 500 mm
About 500 mm
About 500 mm
About 1000 mm
Operating area
Maintenance work area

VI
:

Table of Contents
VII
1. BEFORE USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Outline of the Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.3 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.3.1 Layout screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.3.2 Blocking screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.3.3 Hole Edit screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
1.3.4 Shape Editor screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
1.4 Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
1.5 Checking Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
1.6 Before First Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.6.1 Tracing unit calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2. OPERATING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . 25
2.1 Operation Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
2.2 Start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
2.3 Operating Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
2.3.1 Operating the ICE-1000 in the Mini LAB system . . . . . . . . . . . . . . . . . . . . . . . . . .27
2.4 Tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
2.4.1 Frame tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
2.4.2 Pattern tracing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.4.3 Demo lens tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
2.4.4 Stopping tracing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
2.5 Setting Processing Conditions and Entering Layout Data. . . . . . . . . . . . . . . . .37
2.5.1 Setting processing conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
2.5.2 Entering layout data for single vision lenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
2.5.3 Entering layout data for bifocal lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
2.5.4 Entering layout data for progressive power lenses . . . . . . . . . . . . . . . . . . . . . . . . .49
2.5.5 Entering layout data for Manual-type lenses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
2.6 Shape Change Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
2.7 Grooving Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
2.8 Drilling Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
2.8.1 Reading from demo lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
2.8.2 Measuring demo lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
2.8.3 Setting input in the Hole Edit screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
2.9 Blocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
2.9.1 Blocking with frame change holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
2.9.2 Blocking demo lenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

:
VIII
2.10 Data control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
2.11 Check After Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
2.12 Initial Layout Screen Save Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
3. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
3.1 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
3.2 Replacing Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
3.3 Setting Time and Date. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
3.4 Adjusting the Cup Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
3.5 Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
3.6 List of Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
4. CONNECTION AND SETTINGS. . . . . . . . . . . . . . . . . . . . 89
4.1 Setting Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
4.2 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
4.2.1 Connection samples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
4.2.2 Setting the ICE-1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
5. SPECIFICATIONS AND ACCESSORIES . . . . . . . . . . . . 99
5.1 Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
5.2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
5.3 Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
5.3.1 Standard accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
5.3.2 Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
6. INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

1
1
1. BEFORE USE
1.1 Outline of the Instrument
NIDEK Intelligent blocker, ICE-1000 blocks the lens with a lens cup. The lens is blocked with a lens
cup properly at a detected position (the optical center, cylinder axis angle, segment position of bifocal
lenses, and marking). This ICE-1000 has the following features:
• The built-in tracing unit allows efficient processing of lenses, from tracing through blocking.
• The ICE-1000 is equipped with the Auto Lensmeter (ALM)*1 function. This function allows
the operator to block a single vision lens without marking the optical center of the lens,
which was necessary with previous lensmeters.
• Blocking of the lens with the lens cup is performed with the optimum blocking pressure with
a simple button operation.
• The motorized alignment function in the X-, Y- and θ-axis directions allows the operator to
accurately block the lens simply by placing the lens at the approximate center of the lens
table.
• An uncut lens outline obtained by the built-in CMOS camera and the lens shape image
obtained by the built-in tracing unit are displayed simultaneously on the LCD screen. This
diameter verification of the uncut lens allows the operator to check if the uncut lens diame-
ter is sufficient for the lens shape prior to processing. Then the operator can proceed with
blocking.
• Switching between active and passive modes can be performed easily by button operation
without moving the lens.
•The high resolution CMOS camera facilitating blocking by providing clear images of the
printed eye point for far vision of the progressive power lenses or lens markings.
*1. The Auto Lensmeter (ALM) function is for obtaining the optical center and cylinder axis required for blocking. Do not use
this function for measuring lenses since it is different from a lensmeter.

2
BEFORE USE: Configuration
1.2 Configuration

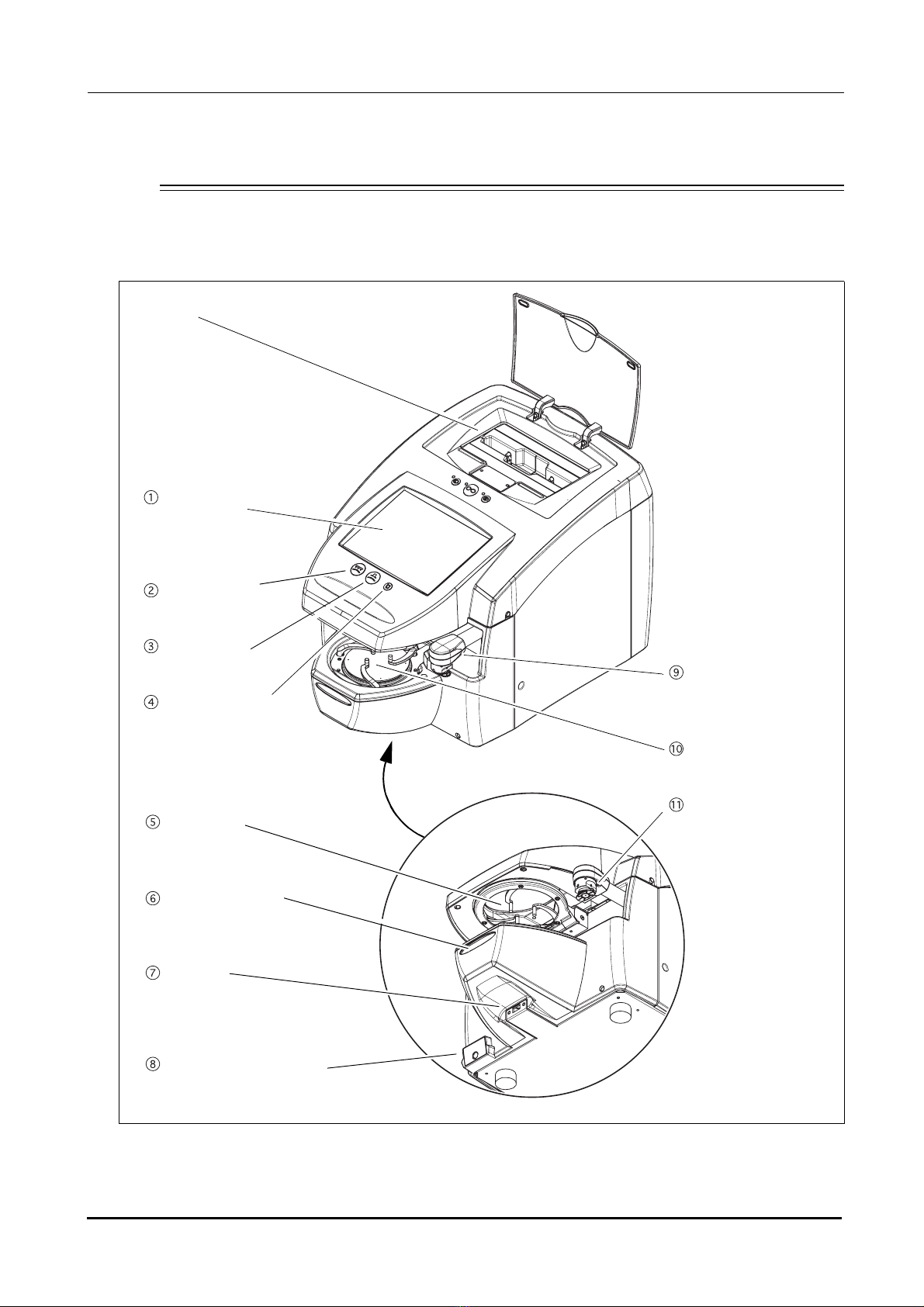

{Front view
Tracer
LCD touch screen
Lens clamp button
Block button
Screen switch button
Lens clamp
Barcode scanner
USB port
Pattern setting unit stand
Blocking arm
Lens table
Cup holder

3
BEFORE USE: Configuration
1
LCD touch screen
This 800 × 600 pixel color LCD touch screen displays various items that have been entered.
Lens clamp button
Lowers the lens clamp to hold the lens.
Press this button to lower the lens clamp and hold the lens temporary. Align the lens and press the button again to
fully tighten the lens for blocking.
Block button
Blocks the lens.
The necessary data for processing is saved in the USB flash drive during blocking.
According to the setting, the data can be transmitted to external instead of saving the data in the USB flash drive.
Screen switch button
Switches the Blocking screen and Layout screen.
Lens clamp
Holds the lens.
Barcode scanner (Optional)
Scans the barcode (JOB#) of job ticket.
USB port
Connects the USB flash drive saving the JOB data and PTN data.
USB device other than USB flash drive cannot be connected.
Pattern setting unit stand
Mounts the pattern setting unit while not in use.
Blocking arm
The blocking arm is moved to left, right, back, forth, up, and down to block a lens with a lens cup. In addition,
the arm rotates the cup holder for aligning the axis (AXIS) of the lens.
The blocking pressure is 3 kgf.
Lens table
This part holds the lens with the convex side facing up.
Cup holder
This part holds the lens cup.
The top mark on the lens cup should be in the back (instrument side). The lens cup must be inserted securely.

4
BEFORE USE: Configuration
{Tracing unit
Upper slider
Lower slider
Frames are fastened between these sliders.
Rim clips
Hold the rims of frames.
Each upper and lower slider has two clips.
Pattern tracing pin
Traces a pattern or demo lens to measure its shape.
Normally, this pin is stored in the tracing unit.
Stylus
Traces a frame groove to measure its shape.
Pattern setting unit support
Mounts the pattern setting unit set with a pattern or a demo lens.
Right-eye tracing button
Starts right-eye tracing.
Both-eye tracing button
Starts both-eye tracing.
Left-eye tracing button
Starts left-eye tracing.
Upper slider
Lower slider
Rim clips
Pattern tracing pin
Stylus
Pattern setting unit sup-
port
Left-eye tracing button
Both-eye tracing button
Right-eye tracing button

5
BEFORE USE: Configuration
1
{Rear view
Fuse holder
The fuse holder contains two fuses (T 1.6 A 250 V).
Inlet
This is for connecting the detachable power cord. The inlet incorporates the fuse holder.
Power switch
Used to turn on and off the instrument.
EDGER 1 port
Used to connect a lens edger.
LAN port
Used to connect a LAN cable when comprising the Blocker LAB system, Entry LAB system or Extended LAB
system on a LAN of ETHERNET*1. Use the LAN port when connecting three or more LEX-1000s in the Mini
LAB system configuration.
Inlet
Power switch
EDGER 1 port
LAN port
EDGER 2 port
BARCODE port
Fuse holder
*1. Ethernet: Standards on wirings, and access to the wirings to allow mutual accessing of various information processing
terminals to the LAN. The ICE-1000 transfers and receives data through the 10BASE-T.

6
BEFORE USE: Configuration
EDGER 2 port
Used to connect the second lens edger.
The system configuration for the EDGER 2 port can be set by the corresponding parameter.
BARCODE port
Used to connect an optional barcode scanner.

7
BEFORE USE: Display
1
1.3 Display
1.3.1 Layout screen
This is the screen to enter the each data of lens layout and processing conditions.
Screen change tab
Changes the screen from among Layout screen, Blocking screen, Hole Edit screen, and Shape Editor
screen.
Information bar
Displays current operation or next operation.
Menu button
Displays a pop-up menu selecting the Initial screen save, Data screen display, and Parameter screen
display.
Right/Left indication
This shows the left-eye or right-eye lens (Right/Left).
Information bar
Screen change tab
Menu button
Right/Left indication
Frame pupillary distance
(FPD)
Pupillary distance
Height of optical center
Cylinder axis angle (AXIS)
Size
Display button
Lens type button
Soft mode button
Save button
JOB/PTN button
Load button
Tracer button

8
BEFORE USE: Display
Frame pupillary distance (FPD)
This shows the distance between the right and left frame
centers.
The frame center is calculated by the boxing system.
Range: [30.00 to 99.50 mm (in increments of 0.01 mm)]
The width between the nasal ends of the left and right frames
(DBL) can be entered for the FPD value.
Range: [1.00 to 30.00 mm (in increments of 0.01 mm)]
Pupillary distance (PD)
This shows the prescribed pupillary distance, which is entered manually.
Range: [30.00 to 99.50 mm (in increments of 0.01 mm)]
The monocular PD (1/2PD) may be entered.
Range: [15.00 to 49.75 mm (in increments of 0.01 mm)]
Height of optical center ( )
This indicates the height of the optical center from the frame center (boxing center), which is entered manually.
Range: [-15.0 to +15.0 mm (in increments of 0.1 mm)]
PD and BT can also be entered for the height of the optical center.
Cylinder axis angle (AXIS)
This shows the prescribed cylinder axis angle, which is entered manually.
Range: [0 to 180º(in increment of 1º)]
Size
This shows the enlarged or reduced lateral size from an imported lens shape.
This is for enlarging or reducing the shape data of the pattern while maintaining a similar form.
Range: [-10.00 to +10.00 mm (in increments of 0.01 mm)]
Display button
Switches the layout value indication between on and off.
Lens type button
Specifies the lens type [Single (single vision lens), Multi (bifocal lens), Progressive (progressive power lens),
Manual].
Soft mode button
Switches soft mode processing ON (shown in blue: soft mode processing is ON) and OFF (shown in gray: soft
mode processing is OFF).
JOB/PTN button
A JOB code (JOB#) or pattern code (PTN#) for storing or loading data is displayed.
In addition to a numeric keypad (or keyboard), the code can be entered with an optional barcode scanner.
The JOB# and PTN# are made up of a 16-digit alphanumeric code.
Save button
Saves the entered JOB data (or PTN data) into the USB flash drive.
ÆÐÄ
ÄÂÌ

9
BEFORE USE: Display
1
Load button
Loads the JOB data (or PTN data) saved in the USB flash drive to display it on the LCD touch screen.
Tracer button
Displays data measured by the tracer on the LCD touch screen.
Optical center mark
This indicates the position of the optical center of the lens.
Frame center mark
This indicates the center of the lens shape (frame center).
In Active mode, this mark is displayed in red and in Passive mode, this mark is displayed in blue.
Circumference
Displays the circumference of the traced outline.
Lens material button
Specifies the lens material [Plastic, HiIndex, Polyca., Acrylic, Trivex, Glass].
Frame type button
Specifies the frame type [Metal, Plastic, TwoPoint, Nylor].
Optical center mark
Frame center mark
Circumference
Safety beveling button
Lens material button Layout mode
button
Polishing button
Frame type button
Processing mode button

10
BEFORE USE: Display
Processing mode button
Selects the processing conditions.
Polishing button
The selectable options depend on the connected lens edger. Set them with the Polish/S.B Setting parameter.
When the Polish/S.B Setting parameter is set to LEX:
The options are with polishing (Polish: polishing is on) and without polishing (None: polishing is off).
The Polish option can not be selected for glass lenses.
When the Polish/S.B Setting parameter is set to SE/ME:
The selectable options depend on whether safety beveling is on or off.
When safety beveling is on, the options are Polish, Pol (EDG), Pol (SB), and None (shown in gray).
When safety beveling is off, the options are Polish and Non-Pol (None).
The Polish option can not be selected for glass lenses.
Safety beveling button
The selectable options depend on the connected lens edger. Set them with the Polish/S.B Setting parameter.
When the Polish/S.B Setting parameter is set to LEX:
The options are with safety beveling (S.B.: safety beveling is on), or without safety beveling (None:
safety bevel is off).
When the Polish/S.B Setting parameter is set to SE/ME:
The options are Small, Middle, Large, Special, and None (safety beveling is off).
Layout mode button
Indicates the layout mode (Active or Passive).
The layout mode can be switched between Active and Passive without changing the lens layout data.
Metal, Plastic Guide/Auto Bevel guided processing mode ON/OFF
TwoPoint Hole/Flat Drilling ON/OFF
Nylor Groove/Flat Grooving ON/OFF
