Nieco Dual VELOCITY User manual

WARNING:
Improper installation, adjustment, alteration, maintenance can cause property damage, injury,
or death. Read the installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
FOR YOUR SAFETY:
 Donotstoreorusegasolineorotherammablevaporsorliquidsinthevicinityofthisorany
other appliance.
IMPORTANT: RETAIN THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
Toastermustbekeptfreeofcombustiblematerials,andtheowofventilationairmustnotbe
obstructed. Operating personnel must not perform any maintenance or repair functions.
Contact your Nieco Authorized Dealer for service or repair.
Dual VELOCITY
™Toaster
Owner’s Manual
Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
2
TABLE OF CONTENTS
General Information ........................................................................................ 3
Operating Instructions .................................................................................... 4
ProgrammingRecipesandManagerSettingsOverview ............................... 5
Cleaning and Maintenance, Equipment Use & Care ...................................... 6
Site Preparation and Installation, Clearance Requirements ............................ 7
Electrical Safety, Work Area Reminders, Service Information......................... 8
Wiring Diagram................................................................................................ 9
Warranty......................................................................................................... 10
Specications ................................................................................................ 12

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
3
Front Guard
Reector Tray
Output Tray
GENERAL INFORMATION
The Nieco Dual Velocitytm Rapid Forced-Air Toaster:
The Next Generation Of Toasting Technology
Touch Screen Controls
With all new Smarter Controller technology and Next Generation energy savings, the
VELOCITY™ is engineered to help you conserve and save 10–20% on energy use,
without sacricing rapid service.
FEATURES
• High speed—perfectly toasts bakery products like bagels, bread, croissants and
Englishmufnsinjustseconds,with10%lessenergyconsumption.
• Nieco’s programmable touch screen Smarter Controller technology supports easy
operationwithadvancedfeaturesthatsaveandmakeyoumoney.
• DualtoastbeltswithprecisionTouchScreencontrolsoffergreaterproduct
exibilitywithfeweradjustments.Easytouse,perfectproducttoastsettings.
• ProgrammableLowEnergyMode—reduceyourenergyuseduringoff-peakservice
hourswhilestillmaintainingtoastingoutputforanadditional10%energysavings
• Simpleclean-upofcrumbsandmeltedcheesewithremovableexitslide.
• Sturdyallstainless-steelconstruction;noquartzglasselementsmeansalonger-life
andfewerpartsforreplacement.
• Controlandvoltageindicatornotiesifwallvoltageisoutofspecfortheunit,
to ensure optimal operation performance and prevent damage.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
4
DO NOT UNPLUG THE TOASTER WHILE THE BLOWER IS ON, EXCEPT IN CASE OF EMERGENCY!
OPERATING INSTRUCTIONS
 •Toastersurfacesarehotwhileoperating.Touchinghotsurfacescancauseseriouspersonalinjuries
including burns. This toaster is designed to toast bread items only. It is not designed to heat or toast
protein-ladenorgrease/fat-ladenfoodproducts,suchasmeatsandwichesorbutteredtoasts.Failureto
followtheseguidelinesmayresultinre.
CAUTION
Power Menu
Touch Power symbol to
powertoasterblowerson
or off, and access Main
Menu Toast options.
Touch Help symbol to
access available Help
information options.
Touch Settings symbol to
accessManagerorFactory
setting options.
Main Menu
ShowscurrentToast
product and level
selections for Left and
Right Lane.
Touch Product Image in
toprowtoselectfrom
available menu of recipes
to cook on that lane.
Product Recipe Menu
Displays programmed
recipe options available for
Selected Toast Lane.
Default toast level for
a selected product is
Medium. Tap the lighter or
darker setting to adjust.
Timer indicates estimated
time remaining until
toaster is safe to clean.
Tap to access Power Menu Touch Power symbol to
turn off power to toaster
belts and cool for cleaning.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
5
SETTINGS
Edit Recipe
Select the product you
wish to edit or add a
new product
Edit Recipe Menu
Use arrows to select
parameters to edit.
Default parameters:
Name,
Image,
Speed, or
Delete Product
Edit Recipe Menu
Belt Select Menu
Tap Left or Right to
select belt for Recipe.
• Back arrow returns
user to Edit Recipe
Menu
• New selections are
always saved when
exiting.
Calibration Number
Calibration value in
seconds is added
to any active recipe,
after all other
features, including
Energy Mode.
Default setting is 0.
Edit Name Menu
Use arrows to select
parameters to edit.
• Tap Up and Down
arrows to select
alphabet/numbers
and change the
character above the
blinking cursor.
• Backspace clears last
character entered.
• Back arrow returns
user to Edit Recipe
Menu
• New selections are
always saved when
exiting.
Edit Recipe Image
Use arrows to select
Image.
• Tap Up and Down
arrows to scroll through
available image options
• Back arrow returns
user to Edit Recipe
Menu
• New selections are
always saved when
exiting.
Edit Toast Speed
Use arrows to select
parameters to edit.
• Choose Toast Shade
to Edit Speed
• Enter belt speed
• Back arrow returns
user to Edit Recipe
Menu
• New selections are
always saved when
exiting.
Tap the Gear icon
in the lower right to
access Settings.
Password: 1964

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
6

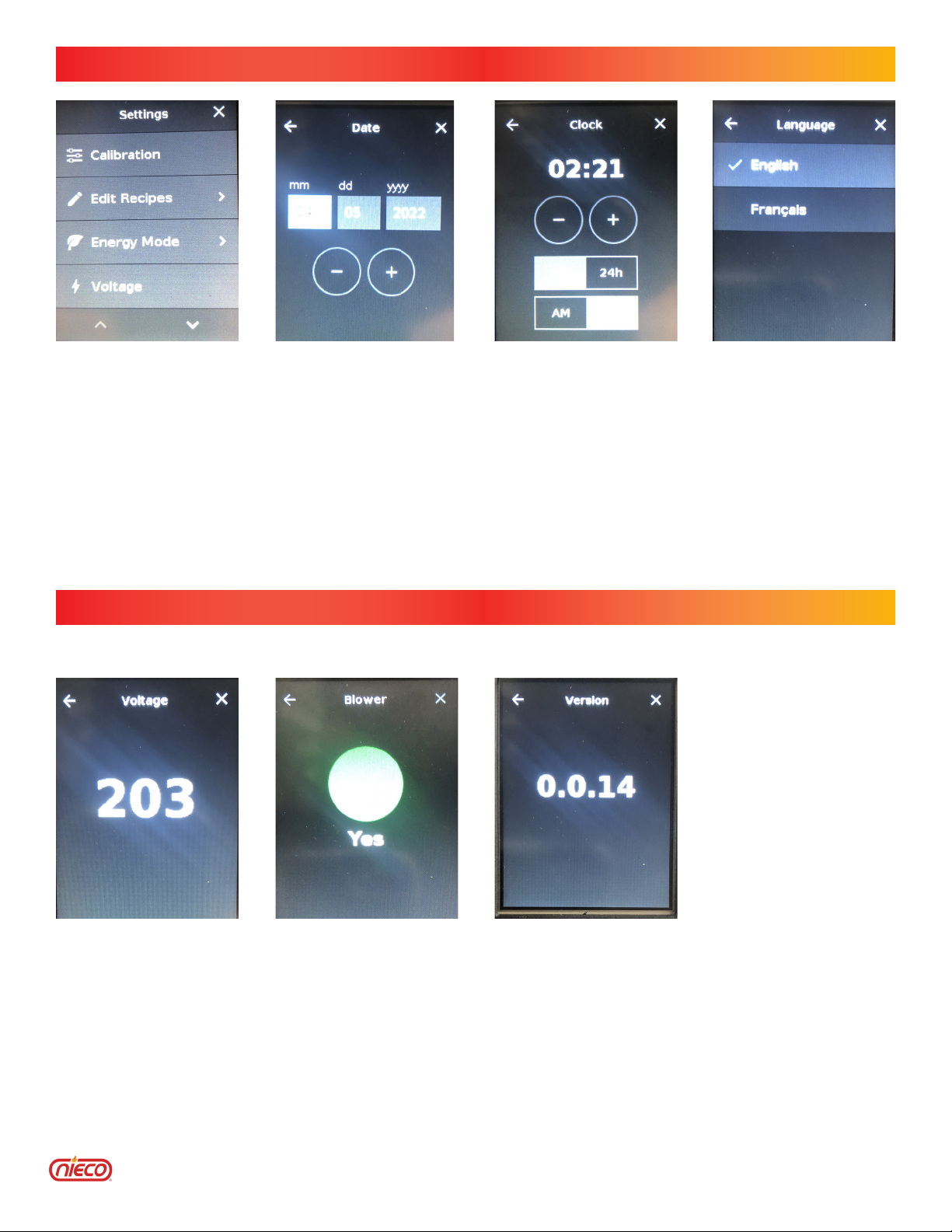

Set Time of Day
Use arrows to adjust
time
• Back arrow returns
user to Manager
Settings Screen
• New selections are
always saved after
exiting.
Set Language
Use arrows to select
language
• Back arrow returns
user to Manager
Settings Screen
• New selections are
always saved after
exiting.
Voltage
Displays the current
voltage incoming to
the toaster.
Voltage that is
substantially higher or
lower than the rated
208V may affect toaster
performance.
Blower
This screen displays
whether the toaster
blower is currently
on or off.
Note: this does not
allow the user to turn
the blower on or off.
Version
Displays current
software version.
These diagnostic screens access information that may be needed in troubleshooting or service.
Manager Setting Menu
Use arrows to adjust
settings
• Select setting to adjust
• Back arrow returns user
to Manager Settings
Screen
• New selections are
always saved after
exiting.
Set Current Date
Use arrows to adjust
month, day, or year
value.
Display Format may be
changed.
mm/dd/yyyy
dd/mm/yyyy
MANAGER SETTINGS
INFORMATIONAL SCREENS

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
7
Leaf is displayed
when Energy Mode
is on.
Tap the arrow
bottom center of
screen to access the
power screen.
Energy Mode
feature can be
turned off or on
from this screen.
When feature is
on,circle will light
green and leaf will
display on home
screen.
Enter password to
enter settings menu.
Password: 1964
Select the Energy
Mode menu.
From the Energy
Mode menu the
feature can be;
turned on or off,
times can be
scheduled, power
adjusted, belt
speeds adusted.
The Energy Mode
Time Menu allows
for three different
schedules to be
programed.
Each schedule can
be programmed
with up to two
intervals and
selection of days of
week.
Any combination of
days per week can
be selected.
The Power Menu
allows for decrease in
power while unit is in
Energy Mode.
The higher the number
the more power will
be decreased.
The maximum
decrease in power will
be at value 20.
Belt Speed Menu is
for the adjustment of
belt speed in Energy
Mode.
The higher the number
the more the belt
speed will slow.
The highest value is
40.
SETTINGS: ENERGY MODE
Tap the Gear icon
in the lower right to
access Settings.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
8
TheNiecoDualVELOCITYToasterisdesignedtoallowatechniciantochangethelocationofthetoaster
controls to best suit the position and operation of the toaster in the kitchen. This process should only be
performed by a trained technician.
Dual VELOCITY
™Toaster
Changing Toaster Control Location
Instructions
Remove side and back cover.
Unscrewboxwithtouchscreenfrombox
withelements.
Unscrewtouchscreenboxanddetach
electrical connections making note of
whichmotorcableplugsintowhichspot
on the control board.
Remove snap in plug from side and install
in front.
Removeextrabracketandstoredex
conduit from back of toaster.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
9
Dual VELOCITY
™Toaster
Changing Toaster Control Location
Installconduitttingintosideoftoasterand
backonelectricalbox.
Passwiresthoughconduitandre-attachto
control board.
R4
Assemblecontrolboxandinstalltofrontof
toaster.
Installanyremainingcoversthatwereremoved.
Powerunitonandcheckthatthebeltsare
controlled by the proper motor.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
10
CLEANING & MAINTENANCE
Allow toaster to cool completely. Then clean according to the steps below.
Remove the output tray. Wipe the cavity of the toaster.
 •Stayalert,watchwhatyouaredoingandusecommonsensewhenusingequipment.Donotuseequipmentwhile
youaretiredorundertheinuenceofdrugs,alcoholormedication.Amomentofinattentionwhileoperating
equipment may result in serious personal injury.
• Avoid touching hot metal parts. Do not stand or sit on equipment. This could result in serious personal injury
including burns.
 •Thisequipmentisnotintendedforusebypersonswithreducedphysical,sensoryormentalcapacities.Donot
allowpersonsunfamiliarwiththeequipmentortheseinstructionstooperate.Useofequipmentbysuchpersons
could result in a hazardous situation.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the equipment in
unexpectedconditions.
 •Donotusetheequipmentiftheswitchdoesnotturnitonoroff.Anyequipmentthatcannotbecontrolledwith
theon/offswitchandcontrolsisdangerousandmustberepaired.
 •Disconnecttheplugfromthepowersourcebeforemakinganyadjustmentorcleaningtheequipment.Thismay
result in increased risk of electric shock.
• Do not use any accessory or attachment not recommended by Nieco. Do not operate equipment on its side or
inverted. Do not introduce foreign objects into equipment. Use of equipment other than intended use could result
in a hazardous situation.
• Maintain the equipment. Check for breakage of cords, plugs and other parts that may affect the equipment’s
operation. If damaged, have the equipment repaired before use. Many accidents are caused by poorly maintained
equipment.
 •Usetheequipmentinaccordancewiththeseinstructionsandinthemannerintended,takingintoaccountthe
workingconditionsandworktobeperformed.Useoftheequipmentforoperationsdifferentfromthoseintended
could result in a hazardous situation.
EQUIPMENT USE & CARE
Remove the reector tray.Use the cleaning brush to clean wire belt.
As needed, lift belt to access other areas.
11
33
22
44
Screen will indicate when
Toaster is safe to clean.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
11
Thisequipmentisbuilttocomplywithapplicablestandardsformanufacturers,includingapprovalagencies,
suchasETL.Manylocalcodesexist,anditistheresponsibilityoftheownerandinstallertocomplywith
these codes.
Check the electrical rating label to ensure that the equipment is connected to the correct voltage, phase,
amperageandwattagethatarestatedontheequipment’sidenticationlabel.Theidenticationlabelis
located on the back plate of the equipment. A secondary label is included inside the equipment’s back plate.
Thisequipmentshouldbeconnectedtoapowersupplythatis208Volts,60Hz,AConly.Donotoperateon
directcurrent(DC).Asubstantialvoltagedropwillcausealossofpowerandmaydamagetheequipment.If
theequipmentdoesnotoperatewhenpluggedintoanoutlet,checkthepowersupply.
Observeallclearancerequirementstoprovideairsupplyforproperoperation,aswellassufcientclearance
for servicing. Keep the area around the equipment free and clear of combustibles. Dimensions and clearance
specicationsareshownunder“SpecicationsforDualVELOCITY™ToasterEx6350”and“Clearance
Requirements for Dual VELOCITY™ToasterEx6350”.
WARNING:Theinstallationandconnectionmustcomplywithnationalandlocalelectricalcodes.
Ensureelectricalsupplyconformswithelectricalcharacteristicsshownontheidenticationlabel.
Allservicesmustbeperformedbyaqualiedtechnician.
WARNING:Keepcordclearoftheworkingarea.Positiontheelectriccordsothatitwillnotgetcaught
onotherequipmentorinterfereinworkspace.Failuretodosocanresultinseriouspersonalinjury.
WARNING:Checkcordsbeforeeachuse.Ifdamaged,replaceimmediately.Neveruseequipmentwitha
damaged cord since touching the damaged area could cause electrical shock resulting in serious injury.
SITE PREPARATION AND INSTALLATION
This equipment must be
installed in accordance
withthefollowing
minimum clearances in
order to provide proper
operation and servicing
of the appliance.
Also, it is recommended
that the equipment be
installedwithsufcient
clearances to provide
proper cleaning and
maintenance.
CLEARANCE REQUIREMENTS for Nieco Dual VELOCITY™ Toaster Ex6350
BACK
2"
LEFT SIDE
1"
RIGHT SIDE
1"
FRONT
12"

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
12
•Equipmentsuppliedwithcord&plug(6-30P).Ensureplugmatchestheoutlet.Nevermodifytheplugin
anyway.Donotuseanyadapterplugs.Modiedplugsandnon-matchingoutletswillincreasetherisk
of electric shock.
 •Avoidbodycontactwithearthedorgroundedsurfacessuchaspipes,radiators,ranges,refrigerators
and other foodservice equipment. There is an increased risk of electric shock if your body is earthed or
grounded.
 •Donotexposeequipmenttowetconditions.Donotimmersecord,plugorequipmentinwateror
otherliquids.Waterorotherliquidsenteringequipmentwillincreasetheriskofelectricshock.
 •Donotabusethecord.Donotyankcordtodisconnectfrompoweroutlet.Neverusethecordfor
carrying,pullingorunpluggingtheequipment.Keepcordawayfromheat,oil,sharpedges,moving
parts or the end of table or counter. Damaged or entangled cords increase the risk of electric shock.
ELECTRICAL SAFETY
 •Haveequipmentservicedbyaqualiedrepairpersonusingonlyidenticalreplacementparts.Thiswill
ensure that the safety of the equipment is maintained.
 •Whenservicingequipment,useonlyauthenticOEMreplacementparts.Followinstructionsinthe
maintenancesectioninthismanual.Useofunauthorizedpartsorfailuretofollowmaintenance
instructions may create a risk of shock or injury.
SERVICE
 •Keepworkareacleanandwelllit.Clutteredordarkareascanincreasethelikelihoodofaccidents.
 •Donotsetliquidsonornearequipment.Liquidsenteringequipmentwillincreasetheriskof
electric shock.
• Do not cover equipment or stack other objects on top of equipment.
 •Unattendeditemsonequipmentcanincreasetheriskofre.
• Do not use equipment outdoors. Outdoor conditions can increase the risk of electrical shock.
• Do not place equipment on or near a hot gas or electric burner or in a heated oven.
Thiscreatesanincreasedriskofreandelectricshock.
WORK AREA
•Donotuseanextensioncordwiththisproduct.Useofanextensioncordcouldviolatelocal
codeandcreatearehazard.
EXTENSION CORD

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
13
WIRING DIAGRAM

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
14
ThiswarrantyiseffectiveforallNiecoToastersshippedafterNovember1,2021.
YournewNiecoDualVelocityToasterisguaranteedagainstoriginaldefectsinmanufactureofmachineand
componentparts.Thisguaranteeisasfollows:
•Allpartsandlaborareguaranteedfor2yearsexceptelementsasdenedbelow.
•Elementsareguaranteedfortwoyearsagainstanyfailure,whateverthecause.
• Elements replacement labor is included for one year, the second year is parts only.
•YourwarrantywillbegineitheronthedateyoureturntheNiecowarrantycardthatisshippedwithyour
machineorsubmitinstalldateon-linethrutheNiecowebsite.Ifnoregistrationissubmittedthewarranty
willexpire36monthsafterthemanufacturingdate.
Generally,yourguaranteeprovidesreplacementofallparts,whichfailduetodefectsinmanufactureforoneyears
afterinstallationofthetoasterandvalidationofthewarrantyasdescribedabove.TheNiecoServiceproviderin
yourareawillreplacepartsthatfail.Ifthepartisonelistedbelow,yourServicerwillprovidethelabortoreplaceit,
subjecttocertainconditions.Thepartsthatwillbereplacedaregenerallypartsthatrequireservicelevelinstallation
or adjustment. The parts that may be replaced are listed in the Warranty Parts schedule included. Alternately, at
Nieco’sdiscretion,yourmachinemaybeswappedforaneworfactoryreconditionedtoaster.
Nieco guarantees the correct mechanical operation of the equipment at the time of installation. Nieco makes no
warranty,expressedorimpliedoftoastingeffectorofexactcapacityassubjectivejudgments,productvariations
and or customer caused machine conditions beyond Nieco’s ability to predict or control may alter the toasting
performance of the machine.
Niecospecicallydoesnotwarrantorguaranteeorprovidecompensationforanylostproduction,lostproduct,
lost labor or lost sales or other consequential damages that may occur as a result of equipment malfunction or
failure.Thisdisclaimerofliabilityforconsequentialdamagesapplieswhetherthecauseofmalfunctionorfailure
isotherwisecoveredbyourwarrantyornot.Inanyevent,Nieco’sliabilityshallbelimitedtoreplacementofthe
equipment or return of the equipment and refund of the original purchase price.
TheNiecowarrantydoesnotcoverthefollowing:
1. Ordinarywearandtear,deteriorationordamage,exceptelementsthatarewarrantiedagainstanyfailure.
2. Defects in parts or performance caused by improper cleaning, maintenance or adjustment.
3. Adjustmentsarenotcoveredbywarrantyexceptwhenapartneedingsuchisreplacedunderwarrantybya
Nieco servicer.
4. Misuse or improper cleaning or assembly of the toaster and its components.
5. Externalcausesofdefectiveperformance.Thisincludeselectricalsupplyandhookupparts.
6. Machinesthathavebeenimproperlyrepairedbynon-Niecoservicers.
7. MachineswithpartsinstalledwhichNiecodoesnotapproveorsupply.Approvedpartsareavailablefrom
yourNiecoServiceCenterorotherwiseauthorizedNiecopartsseller.Nootherpartshavebeentestedor
approved by Nieco.
8. Damages caused in shipment.
9. Damage from moisture into electrical components.
10. Damagefromtamperingwithorremovalofanysafetydevice.
Warranty items, labor or parts, are available from your Nieco Service provider. Nieco parts may also be purchased
directly from Nieco’s United States or Canada master parts distributors.
NIECO DUAL VELOCITY™TOASTER WARRANTY
Nieco reserves the right to change specications and product design.
Such revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
IMPORTANT

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
15
NIECO DUAL VELOCITY™TOASTER WARRANTY
Laborwarrantyissubjecttotheselimitations:
• Laborwarrantyworkistobeperformedduringregularworkinghours.Off-hourlabormaybesubjectto
additional charge by the servicer.
• One-hourtravelineachdirectiontotherestaurantfromtheservicer’splaceofbusinessisincluded.
Restaurants in more distant or remote locations may be charged additional travel time or overnight
accommodation, if necessary.
YourNiecoServiceproviderwillmakewarrantydecisions.Niecohasprovidedourservicerswithguidelinesfor
warrantyworkandstandardsforrepairtime.IfyourNiecoservicerrejectsyourwarrantyclaim,youarerequiredto
paytheservicereventhoughyoudisputethecharge.Todisputeanywarrantydecision,rstcontacttheService
providerprincipals.Ifyouarenotsatised,contactNiecoServiceDepartmentoranyNiecoCustomerService
administrator.Niecowillimmediatelyinvestigateyourclaimandmakeawarrantydecision.Ifyouhavepaidyour
servicerandyourclaimishonored,yourmoneywillberefunded.Youareresponsibleforpayingtheservicerwhen
due,however,regardlessofthestatusofanyclaim.
Contact:[email protected]
Ifyouaresuppliedwarrantypartswithoutwarrantylabor,Niecooryourwarrantypartssuppliermayrequirethe
partstobereturnedtothefactoryasaconditionofreceivingthewarrantyparts.Thisisparticularlytrueofhigh
valueimportantcomponentsasmotorsandcontrols,oranypartsshowingapatternoffailure.Ifrequired,Niecowill
paythereturnfreightcostandgiveinstructionsviayourserviceronhowtoreturntheparts.
Ifrequired,Niecowillpaythereturnfreightcostandgiveinstructionsviayourserviceronhowtoreturntheparts.
WarrantypartsnotinstalledbytheservicerwillbeshippedbyyourservicerordirectlyfromPartsTown.Ifyou
requiremoreimmediateshipment,yourservicepartssuppliermaychargeadditionalforexpeditedfreightservice.
Ifyouhavequaliedmaintenanceemployeesorwishtouseaqualiednon-Niecoagencyforwarrantylabor
serviceotherwisecoveredunderthisNiecowarranty,youoryourservicermayapplytoNiecoforcerticationasan
alternate Nieco servicer. Such servicer shall be solely responsible to the using customer for all actions and liabilities.
IfNiecoqualiessuchservicer,Niecowillpayscheduledwarrantyallowancestotheservicerforwarrantywork
performed.Thispaymentwillnotincludeanytraveltime.Niecowillprovidethisscheduleandlimitationswhenthe
servicerisqualiedandaccepted.
Warranty Parts Schedules
These schedules list common parts that are covered as of November 1, 2021. Nieco may from time to time add,
alterordeletespecicpartsasthemachinespecicationorpartsavailabilitychanges.Acurrentschedulecanbe
obtainedfromNieco.AnyotherwarrantyworkisonanasrequiredbasisandwillbecoveredbyNiecoservicers.
ThiswarrantyisvalidforNorthAmericaandmostothercountries.Mandatedwarrantiesinsomecountriesmayvary
duetospecicwarrantylaws,requirementsorcommercialpracticesorcustomsinthesevariouscountries.Check
withthecountryNiecoServicerforvariationsfromthisbasicNiecowarranty.
ThepartsscheduleslistedarethosecommonpartsthatarewarrantedbyNieco.Ifthepartrequiresservice
replacement,yourNiecoServicerwilldoit,withinthetermsofthiswaranty.Ifyourrestaurantrequiresadditional
serviceortraveltime,yourServicerwillmakeanextrachargeforthoseservicesordistances.
P/N Description Standard Repair Time
15329 Solid State Relay, 50A 30 min.
29200 High Pressure Blower 30 min.
16034 Transformer, 100-115/230V Input, 24V Output 30 min.
21094 Brushless Motor 30 min.
30228 Paired Element 30 min.

Dual VELOCITY™Toaster © 2022 Nieco, LLC All Rights Reserved. Printed in the USA.
16
Revision History:
PN 99112
Construction
Type 430 Stainless Steel
Electric Power
208 Volts, 23A Single phase
Overall Dimensions
37"Hx30"Lx27"W
Weight
112 Lbs.
Load Slot Height
1.9"
7950 Cameron Drive
Windsor, CA 95492
Phone: [phone]
Fax: [phone]
[email protected]
SPECIFICATIONS
DATE NOTES REV
04.15.2022 Released A
