Nieco ExVection 6220 User manual

W A R N I N G :
Improper installation, adjustment, alteration, maintenance can cause property damage, injury, or death.
Read the installation, operating and maintenance instructions thoroughly before installing or servicing
this equipment.
F O R Y O U R S A F E T Y :
Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other
appliance.
I PORTANT: RETAIN THIS ANUAL IN A SAFE PLACE FOR FUTURE REFERENCE
Toaster must be kept free of combustible materials, and the flow of ventilation air must not be obstructed.
Operating personnel must not perform any maintenance or repair
functions. Contact your Nieco Authorized Dealer.
ExVection Toaster™6220
Owner’s Manual

2Nieco Corporation - ExVection Toaster 6220
ABLE OF CON EN S
General Information . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .3
Site Preparation and Installation, Operating Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . 5
Clearance Requirments, Operating Instructions and Settings . . . . . . . . . . . . . . . . . . . .6
Programming, Cleaning and aintenence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Troubleshooting Guide, Replacing Elements, Drive otor and Conveyor Belt. . . . . . . . 8
Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3
GENERAL INFORMA ION
Your Nieco ExVection™ high speed toaster features advanced technology which allows toast times unprecedented in the food service
industry. ExVection™ is Nieco’s exclusive patented technology that reclaims previously wasted heat and refocuses it on the product. The
result is a highly effective and efficient means of toasting product at speeds previously unheard of. Typically when the product is heated,
moisture escapes and forms a layer that acts as an insulator from the heat source. With ExVection technology™ the moisture barrier is
dispensed allowing better heat transfer and toasting. The efficiency obtained by utilizing an ExVection™ toaster adds up to big dollar sav-
ings as well as a better product and increased customer satisfaction. Boasting typical toast times ranging from 10 - 14 seconds, your cus-
tomers will never have to wait for a toasted product. Solid construction, high grade materials including metal sheathed heating elements,
contribute to an ultra-reliable toaster maximizing the return on your investment and providing years of trouble free service.
Nieco Corporation - ExVection Toaster 6220

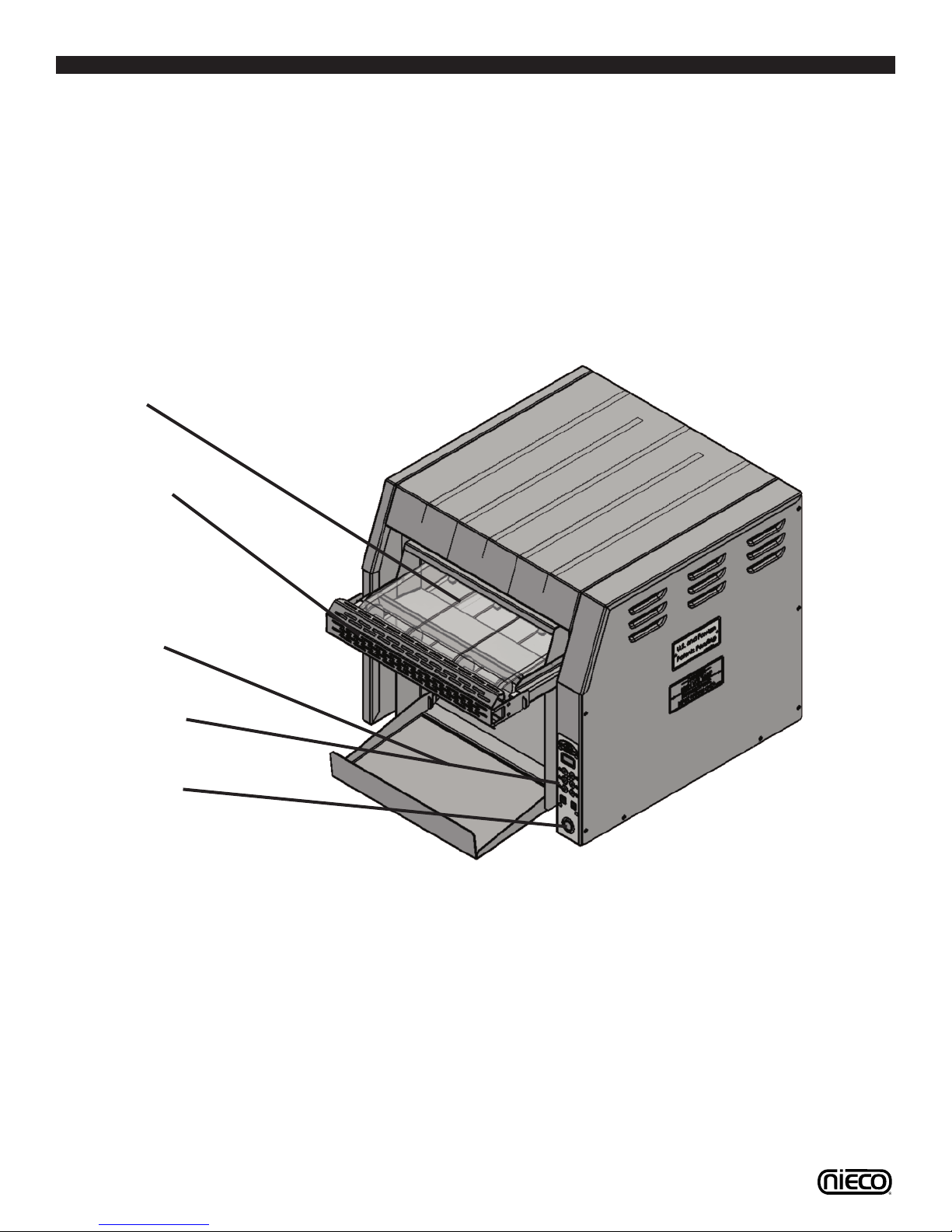

Control Panel
Power button
Crumb Pan
Front Guard
Load Slot

4Nieco Corporation - ExVection Toaster 6220
WARNING: Keep cord clear of the working area. Position the electric cord so that it will not get caught on other
equipment or interfere in work space. Failure to do so can result in serious personal injury.
WARNING: Check cords before each use. If damaged, replace immediately. Never use equipment with a dam-
aged cord since touching the damaged area could cause electrical shock resulting in serious injury.
SI E PREPARA ION and INS ALLA ION
This equipment is built to comply with applicable standards for manufacturers, including approval agencies, such as ETL. any local
codes exist, and it is the responsibility of the owner and installer to comply with these codes.
Check the electrical rating label to ensure that the equipment is connected to the correct voltage, phase, amperage and wattage that
are stated on the equipment’s identification label. The identification label is located on the back plate of the equipment. A secondary
label is included inside the equipment’s back plate. This equipment should be connected to a power supply that is 208-240 volts, 60
Hz, AC only. Do not operate on direct current (DC). A substantial voltage drop will cause a loss of power and may damage the equip-
ment. If the equipment does not operate when plugged into an outlet, check the power supply.
Observe all clearance requirements to provide air supply for proper operation, as well as sufficient clearance for servicing. Keep the
area around the equipment free and clear of combustibles. Dimensions and clearance specifications are shown under “Specifications
for ExVection Toaster 6220” and “Clearances Requirements for ExVection Toaster 6220”.
WARNING: The installation and connection must comply with national and local electrical codes. Ensure electrical
supply conforms with electrical characteristics shown on the identification label. All services must be performed by a
qualified technician.
IMPOR AN
he Nieco Corporation reserves the right to change specifications and product design. Such revisions do not
entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased
equipment.
OPERA ING SAFE Y
• Toaster hot surfaces. Do not touch hot surfaces of operating toaster that can cause serious burn injuries.
WORK AREA
• Keep work area clean and well lit. Cluttered or dark areas can increase the likelihood of accidents.
• Do not set liquids on or near equipment. Liquids entering equipment will increase the risk of electric shock.
• Do not cover equipment or stack other objects on top of equipment. Unattended items on equipment can increase the risk of
fire.
• Do not use equipment outdoors. Outdoor conditions can increase the risk of electrical shock.
• Do not place equipment on or near a hot gas or electric burner or in a heated oven. This creates an increased risk of fire
and electric shock.

5Nieco Corporation - ExVection Toaster 6220
EQUIPMEN USE AND CARE
• Stay alert, watch what you are doing and use common sense when using equipment. Do not use equipment while you are
tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating equipment may result in serious
personal injury.
• Avoid touching hot metal parts. Do not stand or sit on equipment. This could result in serious personal injury including
burns.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capacities. Do not allow persons
unfamiliar with the equipment or these instructions to operate. Use of equipment by such persons could result in hazardous situation.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the equipment in unexpected
conditions.
• Do not use the equipment if the switch does not turn it on or off. Any equipment that cannot be controlled with the on/off
switch and controls is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustment or cleaning the equipment. This may result in
increased risk of electric shock.
• Do not use any accessory or attachment not recommended by Nieco. Do not operate equipment on its side or inverted. Do
not introduce foreign objects into equipment. Use of equipment other than intended use could result in a hazardous situation.
• aintain the equipment. Check for breakage of cords, plugs and other parts that may affect the equipment’s operation. If
damaged, have the equipment repaired before use. any accidents are caused by poorly maintained equipment.
• Use the equipment in accordance with these instructions and in the manner intended, taking into account the working condi-
tions and work to be performed. Use of the equipment for operations different from those intended could result in a hazardous situa-
tion.
SERVICE
• Have equipment serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety
of the equipment is maintained.
• When servicing equipment, use only identical replacement parts. Follow instructions in the maintenance section in this man-
ual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury.
EX ENSION CORD
Do not use an extension cord with this product. Use of an extension cord could violate local code and create a firehazard.
• Equipment must be operated with crumb tray. Equipment is designed to toast bread items within a designed time specified
by the operator. To achieve a consistent toast time the equipment requires to be operated with the crumb tray.
• Equipment is designed to toast bread items only. It is not designed to heat or toast protein-laden or grease/fat-laden food
products, such as meat sandwiches or buttered toasts. Failure to follow these guidelines may result in fire.
FOOD SAFE Y
• Equipment supplied with cord & plug(6-30P). Ensure plug matches the outlet. Never modify the plug in any way. Do not use
any adapter plugs. odified plugs and non-matching outlets will increase the risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, refrigerators and other foodservice
equipment. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose equipment to wet conditions. Do not immerse cord, plug or equipment in water or other liquids. Water or
other liquids entering equipment will increase the risk of electric shock.
• Do not abuse the cord. Do not yank cord to disconnect from power outlet. Never use the cord for carrying, pulling or
unplugging the equipment. Keep cord away from heat, oil, sharp edges, moving parts or the end of table or counter. Damaged or
entangled cords increase the risk of electric shock.
ELEC RICAL SAFE Y

SE INGS
6Nieco Corporation - ExVection Toaster 6220
CLEARANCE REQUIREMEN S
BACK SIDE PANEL 2”
RIGH SIDE 1”
LEF SIDE 1”
FRON 12”
This equipment must be installed in accordance with the following clearances in order to provide proper operation and servicing of the
appliance. Also, it is recommended that the equipment be installed with sufficient clearances to provide proper cleaning and mainte-
nance.
OPERA ING INS RUC IONS
Turn the toaster on by pressing the power button. The control, blower and elements will turn on and the conveyor belt will
start moving.
Push the product selection button for the item you want to toast. The control will set the speed and heat level.
When you are done with the toaster push the power button to turn it off. The blower will continue continue to run for approxi-
mately 18 minutes to cool the toaster down.
DO NO UNPLUG
HE OAS ER
WHILE HE
BLOWER IS ON,
EXCEP IN
EMERGENCY

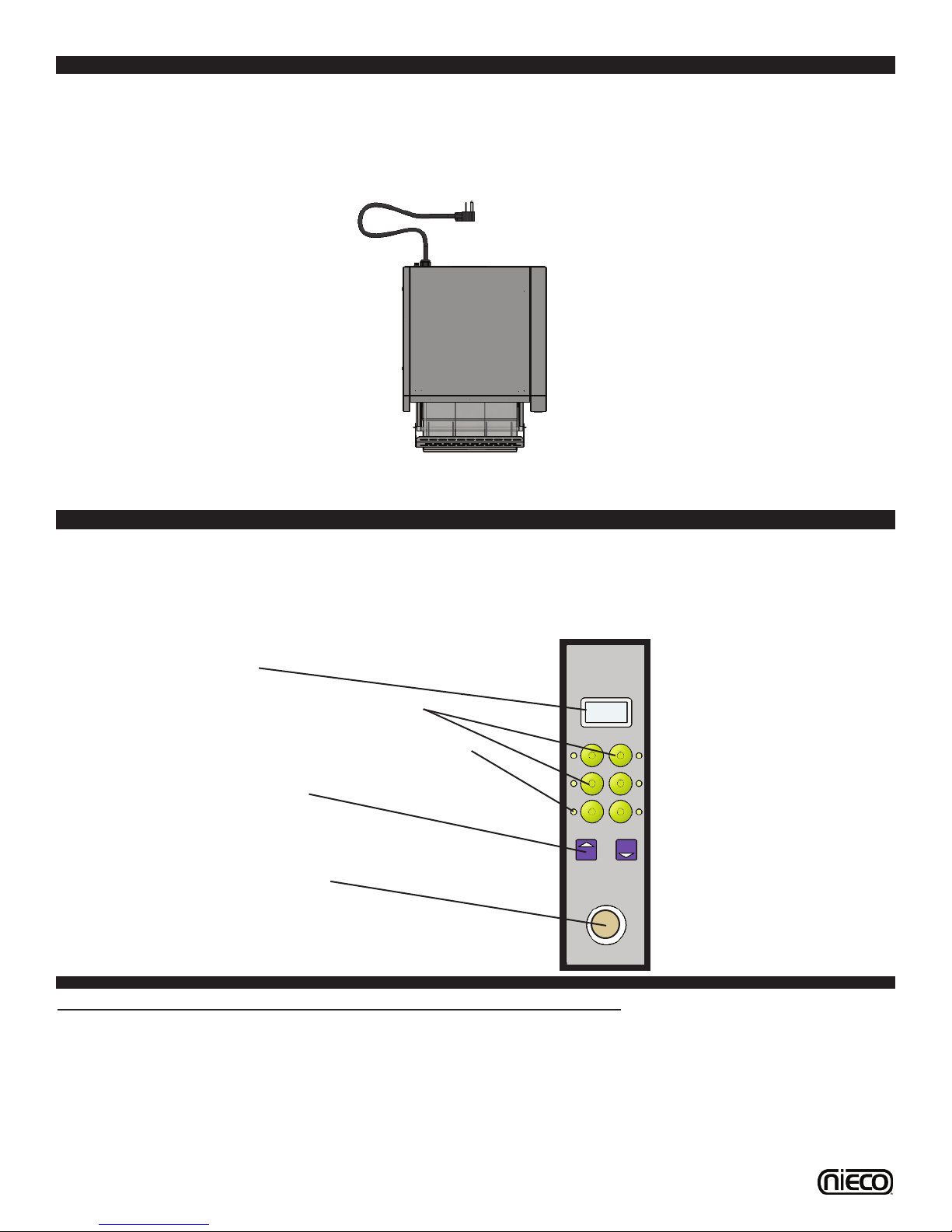

DISPLAY ( IME)
PRODUC SELEC ION BU ONS
LED LIGH S FOR SELEC ED PRODUC
UP/DOWN BU ONS
MAIN POWER SWI CH
All toasters should be programmed with the following settings:
BUON 1: Speed 15, Power 20 (100%)
BU ON 2: Speed 18, Power 20 (100%)
BU ON 3: Speed 10, Power 20 (100%)
BU ON 4: Speed 15, Power 20 (100%)
BU ON 5: Speed 22, Power 15 (75%)
BU ON 6: Speed 26, Power 15 (75%)

PROGRAMMING
7Nieco Corporation - ExVection Toaster 6220

PROGRAMMING
Use the buttons to change settings.
To program the time and heat, hold down the button you
wish to program for 3 seconds.
Push the button again to change the bottom heat.
Push the button again to change the speed.
Push and hold the button for 3 seconds to save changes.
42020


The display will show
This is the top heat setting, 0 is off and 20 is the
maximum setting. For most products, set to 20.
4The display will show 00


This is the bottom heat setting, 0 is off and 20 is the
maximum setting. For most products, set to 20.
Some toasters are top heat only, and do not have
bottom heaters.
41313


The display will show
This is the time, in seconds, that it takes to toast.
4>++<>++<
The display will show
This means the changes have been saved.
CLEANING AND MAIN ENENCE
2
3
4
5
Tools
Instructions
1. Wait for toaster to cool.
2. Remove the front guard.
3. Lift belt and brush the area between the belt.
4. Remove the crumb pan.
5. Wipe the cavity of the toaster.
Note: he speed can be
changed temporarily by
using the up or down
arrows but will default
to programmed settings
when a preset button is
pressed. Permanent
speed changes must be
done in programming
mode.

8Nieco Corporation - ExVection Toaster 6220

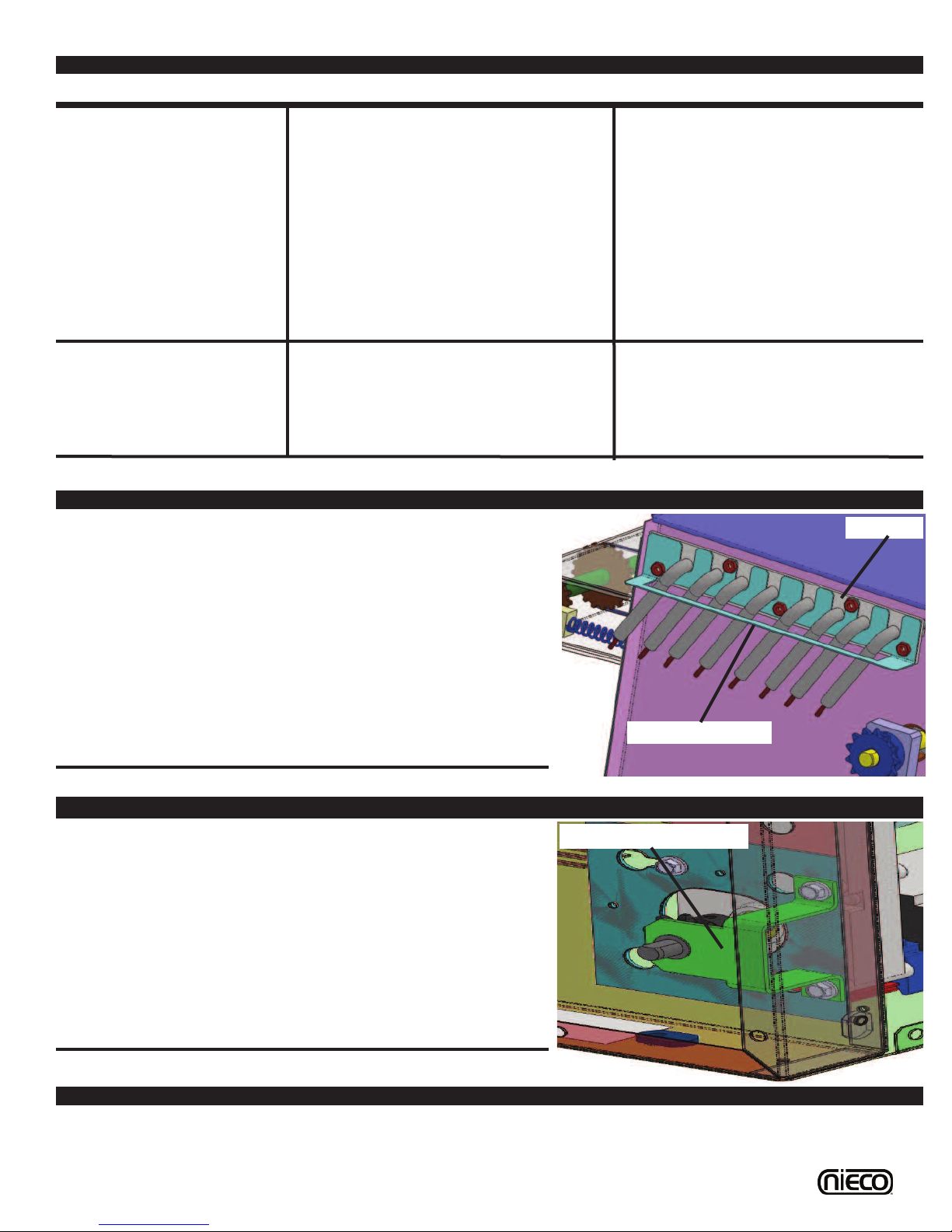

Replacing Heating Elements
Replacing Drive Motor
REPLACING CONVEYOR BEL
1. Unplug unit, remove right side and rear covers.
2. Remove 4 nuts holding element mounting bracket and
remove bracket and elements.
3. Disconect wiring of element to be replaced at terminal
block.
4. Pull element and wires through bracket.
5. Insert new element into bracket using a new insulator.
6. Install bracket, elements and insulator into toaster, tight-
en mounting bolts.
7. Connect element leads to terminal block, replace cov-
ers.
1. Unplug unit, remove right side and rear covers.
2. Unplug motor leads and pull wiring through side case.
3. Remove two bolts holding shaft support bracket and
remove bracket.
4. Loosen set screw on motor sprocket, remove 2 remain-
ing motor mounting bolts and remove motor.
5. Installation is the reverse of removal. Leave the motor
mounting bolts loose.
6. Adjust motor so there is 3/8” play in the chain at its
widest span. tighten bolts and replace covers.
Insulator
Element Bracket
Shaft Support Bracket
Refer to video at www.youtube.com/user/NiecoCorp
ROUBLESHOO ING GUIDE
PROBLEM PROBABLE CAUSE CORREC IVE AC ION
Equipment doesn’t operate No power: Power plug not plugged in. Plug in power plug
Wrong power source Check power source for proper
voltage. Check if power is provided
by power outlet.
Breaker switch tripped Reset breaker switch inside toaster
control area. If breaker continues
to trip, call service.
Broken on/off switch Call service
Excessive toast time Heating element failure Check heating elements. If one or
more heating elements stay dark,
call service.
Blower failure Call for service.

9Nieco Corporation - ExVection Toaster 6220

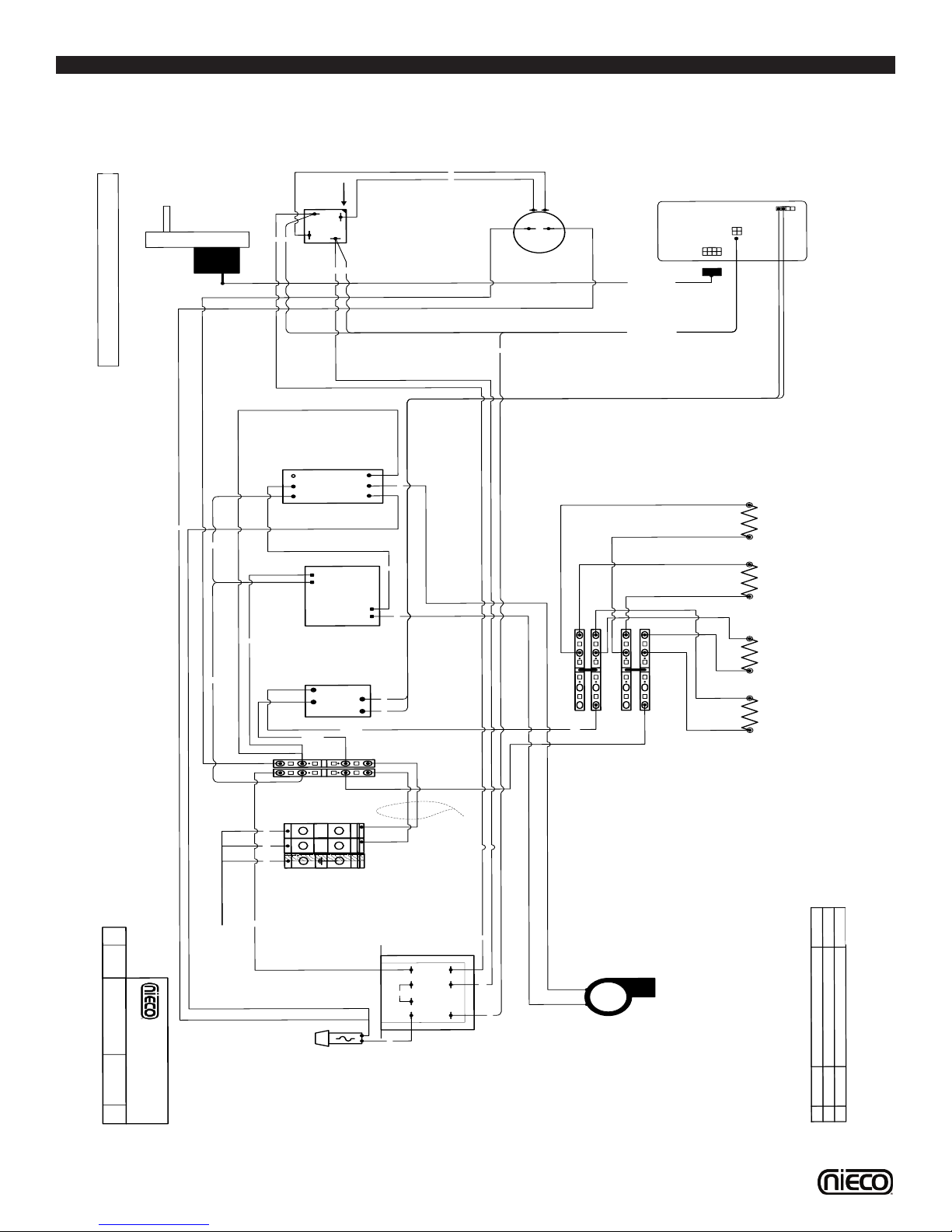

WIRING DIAGRAM
Electric Connection Information:208VAC, 1Ø, 23A, 60Hz 31-Oct-12 A
Model Rev.
Thisdocumentis the propertyofNieco
Corporation.Reproductionor releasewithout
expresspermissionisprohibited
Wiring Diagram Dwg No.
Drawn Date
KK ExVection Toaster
6220, 4 elements 23475
REV.DESCRIPTIONDATEBY
A InitialRelease31-Oct-12KK
L1L2
M ain
Term i
nal
Blocks
P/
N 4405-
16
Ground
Ter
m i
nal
Bl
ock
P/N
4405-
18
PRI230V
SEC36V/18V
R
B
#10
10 ga
R
B
B
B
W
B
R
W
M ot
or
Cabl
e
B
W
B
Heating Elements
P/N TBD
High Pressure Blower, 24VDC
P/N 18447
Main Power Switch
P/N 21455
Motor
P/N 21094
2A Fuse
Transformer
P/N 20371
Wires 10ga
220VAC
24VDC
MainControl
P/N21073
L1 T1
A2 A1
(-) (+)
FeedEnd
24VDC Power Supply
P/N 22845
50A Solid State
Relay
P/N 15329
+
-
~
~
notch
Bridge Rectifier
P/N 12725
R
B
B
W
+ -
B
W
Power
Cabl
e
B
W
G
Power Cord
B
Relay Cable
Notconnected
B
#10
B
A1 15 Y1
16 18 A2
W
R
TIMER
P/N 12309
FUNCTION: Dr
TIME: 3
RANGE: 0.1h
Terminal Block (4)
P/N 18686
Ter
m i
nal
Bl
ock
(
2)
P/N
18686

If the unit arrives damaged, contact the carrier immediately and file a damage claim with them. Save all packing materials when filing a
claim. Freight damage claims are the responsibility of the purchaser and ARE NO covered under warranty.
10 Nieco Corporation - ExVection Toaster 6220
WARRAN Y
This warranty is effective for all Nieco Toasters shipped after April 1, 2013
Your new Nieco ExVection™ Toaster is guaranteed against original defects in manufacture of machine and component parts. This
guarantee is as follows:
• All parts and labour are guaranteed for 2 years except elements as defined below.
• Elements are guaranteed for 2 years against any failure, whatever the cause.
• Elements replacement labour is included for 1 years, the second year is parts only.
Your warranty will begin either on the date you return the Nieco warranty card that is shipped with your machine, or 30 days after
shipment of the machine from the Nieco factory.
Generally, your guarantee provides replacement of all parts, which fail due to defects in manufacture for two years after installation of
the toaster and validation of the warranty as described above. The Nieco Service provider in your area will replace parts that fail. If
the part is one listed below, your Servicer will provide the labour to replace it, subject to certain conditions. The parts that will be
replaced are generally parts that require service level installation or adjustment. The parts that may be replaced are listed in the
Warranty Parts schedule included. Alternately, at Nieco’s discretion, your machine may be swapped for a new or factory recondi-
tioned toaster.
Nieco guarantees the correct mechanical operation of the equipment at the time of installation. Nieco makes no warranty, expressed
or implied of toasting effect or of exact capacity as subjective judgments, product variations and or customer caused machine condi-
tions beyond Nieco’s ability to predict or control may alter the toasting performance of the machine.
Nieco specifically does not warrant or guarantee or provide compensation for any lost production, lost product, lost labour or lost sales
or other consequential damages that may occur as a result of equipment malfunction or failure. This disclaimer of liability for conse-
quential damages applies whether the cause of malfunction or failure is otherwise covered by our warranty or not. In any event,
Nieco’s liability shall be limited to replacement of the equipment or return of the equipment and refund of the original purchase price.
The Nieco warranty does not cover the following:
Nieco ExVection™ oaster Warranty
Labour warranty is subject to these limitations:
1. Labour warranty work is to be performed during regular working hours. Off-hour labour may be subject to additional charge
by the servicer.
2. One-hour travel in each direction to the restaurant from the servicer’s place of business is included. Restaurants in more
distant or remote locations may be charged additional travel time or overnight accommodation, if necessary.
Your Nieco Service provider will make warranty decisions. Nieco has provided our servicers with guidelines for warranty work and
standards for repair time. If your Nieco servicer rejects your warranty claim, you are required to pay the servicer even though you dis-
pute the charge. To dispute any warranty decision, first contact the Service provider principals. If you are not satisfied, contact Nieco
Service Department or any Nieco Customer Service administrator. Nieco will immediately investigate your claim and make a warranty
decision. If you have paid your servicer and your claim is honored, your money will be refunded. You are responsible for paying the
servicer when due, however, regardless of the status of any claim. Go to: [email protected]
If you are supplied warranty parts without warranty labour, Nieco or your warranty parts supplier may require the parts to be returned
to the factory as a condition of receiving the warranty parts. This is particularly true of high value important components as motors
and controls, or any parts showing a pattern of failure. If required, Nieco will pay the return freight cost and give instructions via your
servicer on how to return the parts.
1. Ordinary wear and tear, deterioration or damage, except elements that are warrantied against any failure.
2. Defects in parts or performance caused by improper cleaning, maintenance or adjustment.
3. Adjustments are not covered by warranty except when a part needing such is replaced under warranty by a Nieco servicer.
4. isuse or improper cleaning or assembly of the toaster and its components.
5. External causes of defective performance. This includes electrical supply and hookup parts.
6. achines that have been improperly repaired by non-Nieco servicers.
7. achines with parts installed which Nieco does not approve or supply. Approved parts are available from your Nieco Service
Centre or otherwise authorized Nieco parts seller. No other parts have been tested or approved by Nieco.
8. Damages caused in shipment.
9. Damage from moisture into electrical components.
10. Damage from tampering with or removal of any safety device.
Warranty items, labour or parts, are available from your Nieco Service provider. Nieco parts may also be purchased directly from
Nieco’s United States or Canada master parts distributors.

11 Nieco Corporation - ExVection Toaster 6220
Warranty parts not installed by the servicer will be shipped by your servicer or directly from Parts Town. If you require more immedi-
ate shipment, your service parts supplier may charge additional for expedited freight service.
If you have qualified maintenance employees or wish to use a qualified non-Nieco agency for warranty labour service otherwise cov-
ered under this Nieco warranty, you or your servicer may apply to Nieco for certification as an alternate Nieco servicer. Such servicer
shall be solely responsible to the using customer for all actions and liabilities. If Nieco qualifies such servicer, Nieco will pay sched-
uled warranty allowances to the servicer for warranty work performed. This payment will not include any travel time. Nieco will pro-
vide this schedule and limitations when the servicer is qualified and accepted.
Warranty Parts Schedules
These schedules list common parts that are covered as of arch 25, 2013. Nieco may from time to time add, alter or delete specific
parts as the machine specification or parts availability changes. A current schedule can be obtained from Nieco. Any other warranty
work is on an as required basis and will be covered by Nieco servicers.
This warranty is valid for North America and most other countries. andated warranties in some countries may vary due to specific
warranty laws, requirements or commercial practices or customs in these various countries. Check with the country Nieco Servicer
for variations from this basic Nieco warranty.
The parts schedules listed are those common parts that are warranted by Nieco. If the part requires service replacement, your Nieco
Servicer will do it, within the terms of this warranty. If your restaurant requires additional service or travel time, your Servicer will
make an extra charge for those services or distances.
oaster Model: Ex6220
Nieco P/N Description Standard Repair ime
12725 Bridge Rectifier 30 min.
15329 Solid State Relay, 50A 30 min.
18447 High Pressure Blower 30 min.
20371 Transformer, 100-115/ 230V Input, 36V Output 30 min.
21073 ain Control Board 30 min.
21094 Brushless otor 30 min.
21455 ain Switch, Push Button 30 min.
23476 Element, 10.88”, 1200W, 208V 30 min.

12 Nieco Corporation - ExVection Toaster 6220
SPECIFICA IONS
Construction
Electric Power
Overall Dimensions
Weight
Load Slot Height
Type 304 Stainless Steel
4.7 KW, max 23 Amps, 208Volts, Single phase
16.8” H x 24.59” L x 18.54” W
96 Lbs.
1.75”
Revision History:
5-02-2013 Released A
Date Notes REV
Nieco Corporation
7950 Cameron Drive
Windsor, CA 95492
[phone] Office • [phone] Fax
www.nieco.com • e-mail: [email protected]
Printed in the USA © 2012 Nieco Corporation
All Rights Reserved P/N 99002
