Nikkei NMC 10 User manual

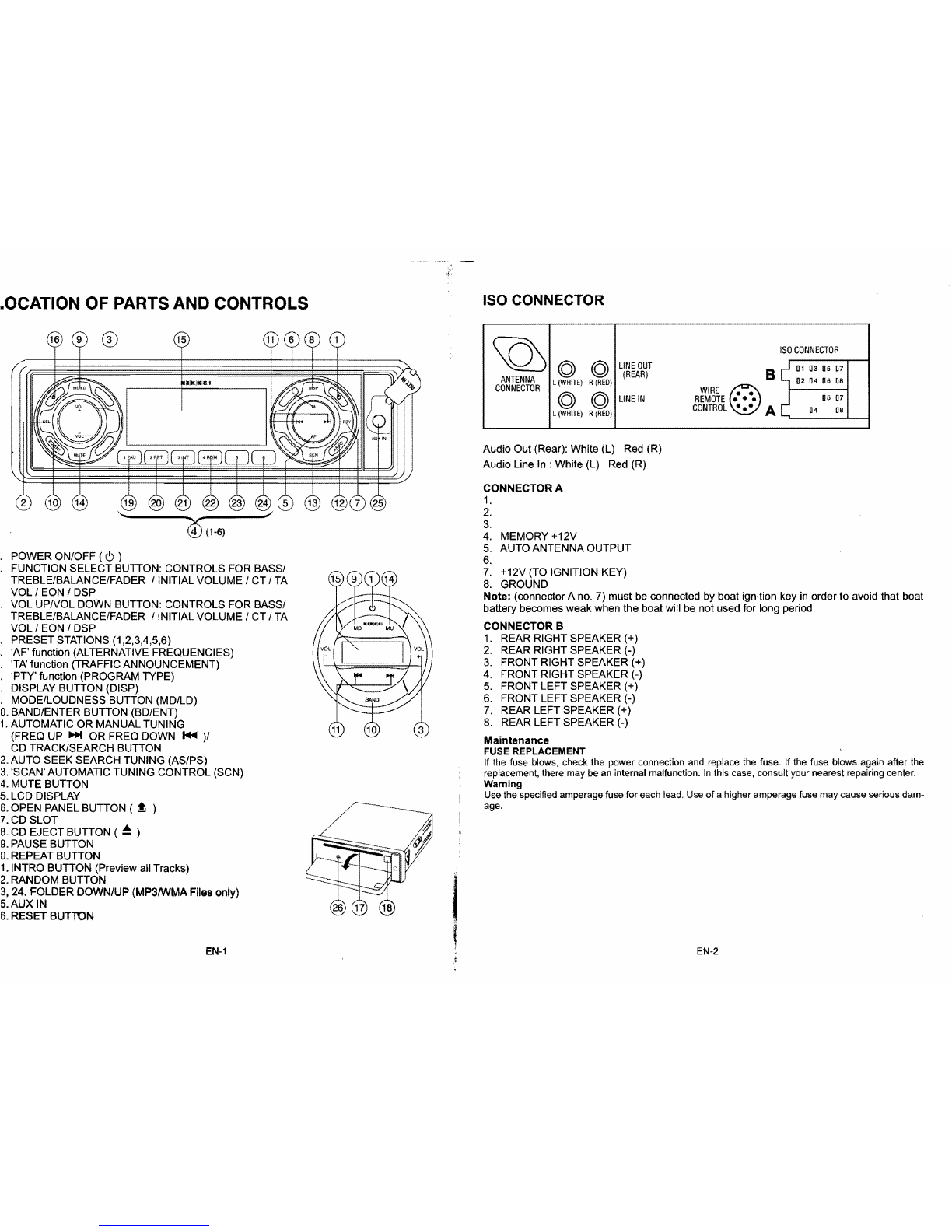

ISO CONNECTOR
.OCATION OF PARTS AND CONTROLS
A ....... '1.. ___ --1_;
© B
R(RED)
WIRE@.
REMOTE •••
© © I LINE IN
CONTROL •••
L (WHITE) R (RED)
Audio Out (Rear): White (L) Red (R)
Audio Line In : White (L) Red (R)
CONNECTOR A
1.
-,/
2.
3.
'" ®(1-6)
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
POWER ON/OFF ( 6 )
6.
FUNCTION SELECT BUTTON: CONTROLS FOR BASSI
7. +12V (TO IGNITION KEY)
TREBLEIBALANCE/FADER /INITIAL VOLUME I CT I TA 8. GROUND
VOL/EON/DSP
Note: (connector A no. 7) must be connected by boat ignition key in order to avoid that boat
VOL
UPNOL DOWN BUTTON: CONTROLS FOR BASSI battery becomes weak when the boat will
be not used for long period.
TREBLE/BALANCE/FADER I INITIAL VOLUME I CT I TA
VOL/EON/DSP
CONNECTOR B
PRESET STATIONS (1,2,3,4,5,6)
1. REAR RIGHT SPEAKER (+)
'AF' function (ALTERNATIVE FREQUENCIES)
2. REAR RIGHT SPEAKER (-)
'TA' function (TRAFFIC ANNOUNCEMENT)
3. FRONT RIGHT SPEAKER (+)
'PTY' function (PROGRAM TYPE) 4. FRONT RIGHT SPEAKER (-)
DISPLAY BUTTON (DISP)
5. FRONT LEFT SPEAKER (+)
MODE/LOUDNESS BUTTON (MD/LD)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
D. BAND/ENTER BUTTON (BD/ENT) 8. REAR LEFT SPEAKER (-)
(FREQ UP
~ OR FREQ DOWN 1+11 )1
1. AUTOMATIC OR MANUAL TUNING Maintenance
CD TRACK/SEARCH BUTTON FUSE REPLACEMENT
2. AUTO SEEK SEARCH TUNING (AS/PS) If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the
3. 'SCAN'AUTOMATIC TUNING CONTROL (SCN) replacement, there may be
an internal malfunction. In this case. consult your nearest repairing center.
4. MUTE BUTTON Warning
5. LCD DISPLAY Use the specified amperage fuse for each lead. Use
of a higher amperage fuse may cause serious dam-
age.
6. OPEN PANEL BUTTON ( ~ )
7.CD SLOT
8. CD EJECT BUTTON ( ~ )
9. PAUSE BUTTON
D. REPEAT BUTTON
1. INTRO BUTTON (Preview all Tracks)
2. RANDOM BUTTON
3, 24. FOLDER DOWN/UP (MP3IWMA Files only)
5.AUX IN ,
6. RESET BUTTON 1
,
EN-1
EN-2

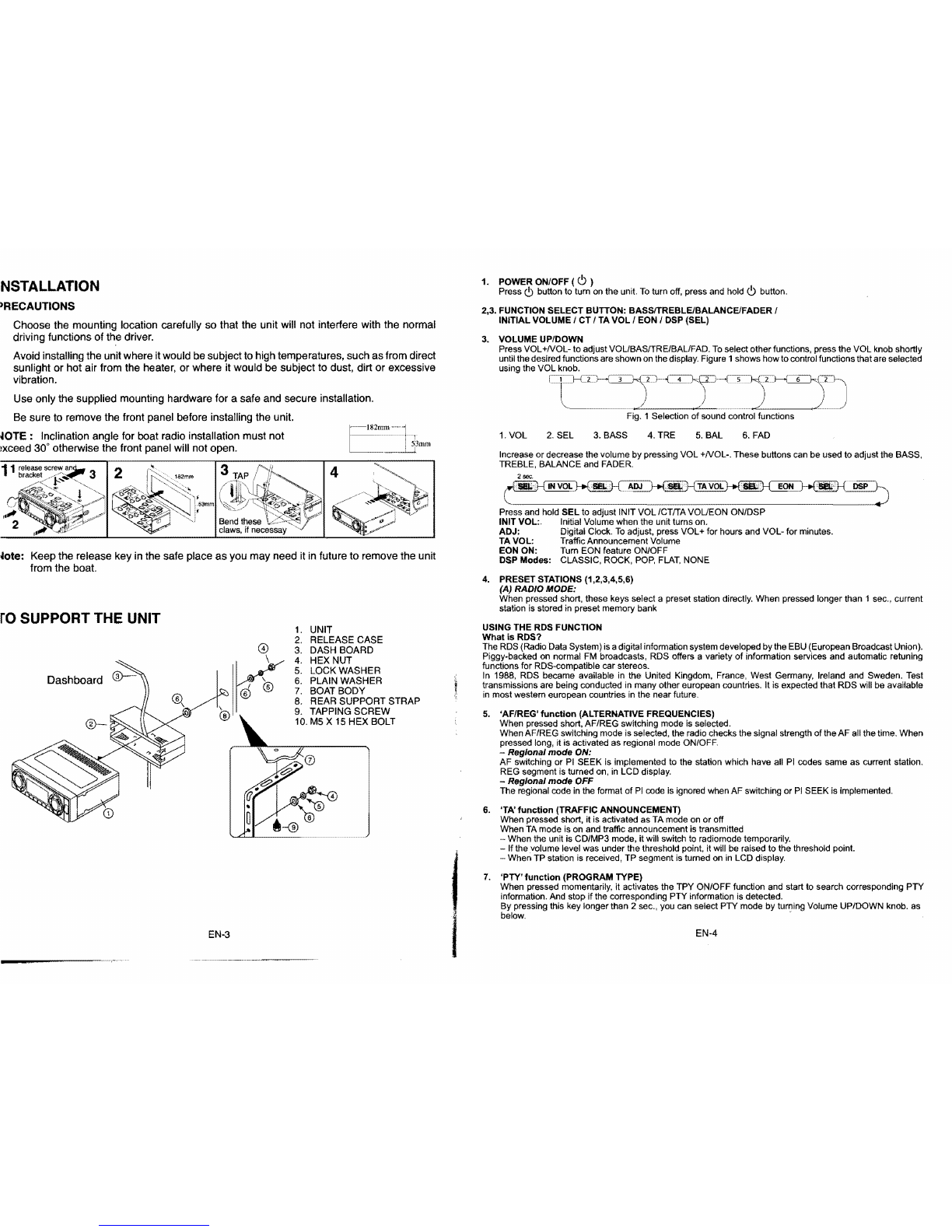

NSTALLATION
'RECAUTIONS
Choose the mounting location carefully so that the unit will not interfere with the normal
driving functions of the driver.
Avoid installing the unitwhere itwould be subject to high temperatures, such asfrom direct
sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive
vibration.
Use only the supplied mounting hardware for a safe and secure installation.
Be sure to remove the front panel before installing the unit.
~OTE: Inclination angle for boat radio installation must not [-182
Illrn
-]]>mm
!xceed 30' otherwise the front panel will not open.
11 release screw> 3
braCk~!/1-~""'~~
~t4."~, 1 ','"
~ote: Keep the release key in the safe place as you may need it in future to remove the unit
from the boat.
ro SUPPORT THE UNIT 1.
UNIT
2. RELEASE CASE
o 3.
DASH BOARD
\ 4.
HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. BOAT BODY
~
@II® ~
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT
EN-3
1. POWER ON/OFF ( 6 )
Press 6 button to tum on the unit. To tum off, press and hold 6 button.
2,3. FUNCTION SELECT BUTTON: BASSlTREBLEIBALANCEIFADER /
INITIAL VOLUME /
CT / TA VOL / EON / DSP (SEL)
3. VOLUME UP/DOWN
Press VOL
+NOL- to adjustVOLIBASITRE/BALIFAD. To select otherfunctions, press the VOL knob shortly
until thedesired functions are shown on the display. Figure 1shows howto control functions thatare selected
using the VOL knob.
Fig. 1 Selection
of sound control functions
1. VOL 2.SEL 3. BASS 4. TRE 5.BAL 6. FAD
Increase
or decrease the volume by pressing VOL +NOL-. These buttons can be used to adjust the BASS,
TREBLE, BALANCE and FADER
. ...,.
~
Press and hold SEL to adjust INIT VOL /CTITAVOLlEON ON/DSP
INITVOL: Initial Volume when the unit turns on.
ADJ: Digital Clock. To adjust, press VOL+ for hours and VOL- for minutes.
TA VOL: Traffic Announcement Volume
EON ON: Tum EON feature ON/OFF
DSP
Modes: CLASSIC, ROCK, POP, FLAT. NONE
4. PRESET STATIONS (1,2,3,4,5,6)
(A) RADIO MODE:
When pressed short, these keys select a preset station directly. When pressed longer than 1 sec., current
station is stored in preset memory bank
USING THE RDS FUNCTION
What is RDS?
The RDS (Radio Data System)is adigital information system developed by the EBU (European BroadcastUnion).
Piggy-backed on normal FM broadcasts, RDS offers a variety
of information services and automatic retuning
functions for RDS-compatible car stereos.
In 1988, RDS became available
in the United Kingdom. France, West Germany, Ireland and Sweden. Test
transmissions are being conducted in many othereuropean countries. It is expected that RDS will be available
in most western european countries in the near future.
5. 'AF/REG' function (ALTERNATIVE FREQUENCIES)
When pressed short. AF/REG switching mode is selected.
WhenAF/REG switching mode is selected, the radio checks the signal strength
of theAF all thetime. When
pressed long, it is activated as regional mode ON/OFF.
-Reg/anal mode ON:
AF switching or PI SEEK is implemented to the station which have all PI codes same as current station.
REG segment is turned on, in LCD display.
Reg/anal mode OFF
The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.
6. 'TA' function (TRAFFIC ANNOUNCEMENT)
When pressed short, it is activated asTA mode on
or off
When
TA mode is on and traffic announcement is transmitted
When the unit is CD/MP3 mode, it will switch to radiomode temporarily.
Ifthevolume level was under the threshold point, it will be raised to the threshold point.
When TP station
is received, TP segment is turned on in LCD display.
7. 'PTY'function (PROGRAM TYPE)
When pressed momentarily, it activates the TPY ON/OFF function and start to search corresponding PTY
information. And stop ifthe corresponding PTY information
is detected.
By pressing this key longerthan 2 sec., you can select PTY mode by turning Volume UP/DOWN
knOb. as
below. .
EN-4

NEWS--AFFAIRS--INFO--SPORT--EDUCATE--DRAMA--CULTURE--SCIENCE--VARIED--POP--ROCK-
-EASY M--LlGHT M--CLASSIC--OTHER M--WEATHER--FINANCE-CHILDREN--SOCIAL--RELIGION--
PHONE
IN- TRAVEL-LEISURE-JAZZ--COUNTRY--NATION. M-OLDIES--FOLKM--DOCUMENT--TEST-
-ALARM.
DISPLAY BUTTON (DISP)
Press DISP button to switch between informations such as radio frequencies, clock, track and other
informations depending on the playing
MODE/LOUDNESS BUTTON (LD/MD)
By pressing this key, user can select. AUXlTUNERlCD-MP3 mode.
LOUDNESS: Press and hold this button, you can select LOUDNESS mode.
~. BAND BUTTON (BD/ENT)
Each band is toggled cyclically by pressing this key FM1---FM2-··FM3---MW1---MW2.
I. AUTOMATIC OR MANUAL TUNING (FREQ UP Ii+I OR FREQ DOWN I+if )
(A) RADIO MODE
When pressed short, these keys operate as SEEK tuning mode.
Note: When press short using Remote Control, these keys operate as PRESETmemotytuning.
When pressed longer than 1 second. these keys operate as MANUAL tuning mode.
Note: When pressed longer than 1 second using Remote Control, these keys operate as SEEK tuning
mode.
(B) CDIMP3IWMA PLAYER MODE
When pressed short. they are operated as TRACK UP
or TRACK DOWN mode.
When pressed longer than 1 sec., they are operated as CUE or REVIEW mode.
2. AUTO SEEK SEARCH TUNING (AS/PS)
By pressing shortly. the radio searches for each preset station.
When field strength level is bigger than the threshold level
of stop level, the radio is holding at that preset
number for 5 sec. with releasing mute, and then searches again.
By pressing longerthan 1sec, and then 6 strongest stations are preset to the corresponding preset number.
When AS operation is finished, the radio executes the preset scan.
3. 'SCAN'AUTOMATIC TUNING CONTROL (SCN)
This key isoperated as RADIO SCAN. The operation
is similaras normal search but differentthing is holding
5 seconds on every station detected
in RADIO SCAN mode.
4. MUTE BUTTON (MUTE)
Press this button, audio will disappear. Press this button again in order to hear audio newly.
5. LCD DISPLAY
The Liquid Crystal Display will display the current state ofthe unit.
6. OPEN THE FRONT PANEL
Press
~ button and the front panel will open.
:O/MP3IWMACONTROL LOCATION OF PARTS
RACK/SEARCH BUTTON (11)
ORWARD AND REVERSE TRACK SEARCH
(or changing songs)
ress the SKIP button ( ... or..... ) during play to go to the desired track(song).
....... REVERSE ......... FORWARD
ress and hold the SKIP button (
... or..... ) during play to scan the disc at high speed. When the desired
lusic section
of the disc is found, release the button. Normal play will resume.
7. CD SLOT
8. CD EJECT lUTTON
Press the _ button to remove the CD.
9. PAUSE BUTTON
During "PLAY", press 'PAU' button to "PAUSE". Press it again
to resume play. t
~
,
EN-S'
20. REPEAT BUTTON
When this button is pressed, 'RPT' indication is displayed and playbackwill be continually repeated until the
repeat mode is cancelled by pressing 'RPT' button again.
Press RPT repeatedly to cycle between:
RPT ONE. Repeat the current playback track
RPT DIR· Repeat the entire directory/folder. (mp3 only)
RPT ALL· Repeat ALLfiles.
21. INTRO BUTTON (Preview
all
When this button is pressed, 'INT indication is displayed and the first several seconds of each track of the
disc are played. Press again to stop intro and listen to track.
22. RANDOM BUTTON
When this button is pressed, 'RDM' indication isdisplayed and each track ofthediscareplayed
in random instead
of normal progression.
To cancel RANDOM mode, press 'RDM' button (22) again.
23, 24. FOLDER DOWN/UP (In case
of MP3IWMAflies)
M5:
Folder down I M6: Folder up
HOW TO SELECT MP3IWMA FILES
1. Searching by Track:
Press "AS/PS", then search track is activated.
With
"VOL +NOL·" button, select first digit desired.
Press "SEL", then the first digit is fixed and second digit will flash.
With
"VOL+NOL-" button, select 2'nd 3'rd respectively.
Press "BD/ENT', the song selected will start.
2. Searching by Character:
Press "AS/PS" twice, then character search mode is activated.
With
"VOL+NOL-" button, you can select the desired letter.
Press "SEL". repeat steps above for 2'nd 3'rd character.
The songs with the same character that you selected is displayed.
• With
"VOL+NOL·" button, you can select the desired song.
Press "BD/ENT", then the song selected will start.
3. Searching
by File Name:
Press "AS/PS" 3 times, then folder search is activated.
With
"VOL+NOL-" button, you can select the desired folder.
Press "BD/ENT', then the folder
is fixed and the first file will be played.
Connecting it to Portable MP3 Player
25. FRONT AUX IN
Convenienteasy to use front "AUX IN" inputjack, allows easy connection
of Portable Media and digital MP3
Players.
More AUX input:
Additional Auxiliary RCA input jack on the back of the unit can be used to connect more external audio sources
such as a DVD player, Video game player and other portable audio devises.
CONNECTING WIRED REMOTE CONTROL
The unitcomes with wired remote control devicewhich allows the userto control the unit remotely. Simply connect
the device into the back
of head unit. The display of the head unit will be the same with the remote device. Now
you can control the unit through the remote device.
26 RESET
Reset button is placed on the q •
The reset button is to be activated for the following reason:
Initial installation of the unit when all wiring is completed.
All the function button do not operate.
Error symbol on the display.
EN-6

f' V"!"'r;:r;:;'!:I~"
Marine
met front
rECHNICAL SPECIFICATIONS
:O/MP3IWMA PLAYER SECTION
iignal to Noise Ratio
>60dB
;hannel Separation > 50 dB (1kHz)
'requency Response 20Hz -20 kHz
'UNER(FM)
'requency range 87.5-108
MHz
ltermediate frequency 10.7 MHz
,ensitivity 51lV
itereo separation 25 dB
iignal to noise ratio 50 dB
:hannel step
50kHz
'UNER(MW)
;requency range 522-1620 KHz
iensitivity 32 dB at SIN 20 dB
F. Frequency 450 KHz
.lNE-OUT
)utput 5V (max,)
llpedance
10k Ohm
teA LINE.JN I FRONT AUX IN
'requency Response 20 Hz -20 kHz
lensitivity
775mV
llpedance
20k Ohm
~ENERAL
'ower Supply 12V DC (10.B-15.6V allowable)
'ower consumption
i0A
ltandby power consumption under 10
mA
lpeaker impedance 4 orB Ohm
)utput power
40Wx4CH
'use
i0A
.ote: Corrosion, oxidation, battery-leakage and any other gradually acidic defect of this nature will invalidate
he guarantee.
lpecification and the design are subject to possible modification without notice due
to improvements.
Disposal of Used Electrical &Electronic Equipment
The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not
be treated as household waste, Please, dispose of this equipment at your applicable collection point for the
)t
-recycling ofelectrical & electronic equipments waste.
In the European Union and Other European countries
which there
are separate collection systems for used electrical and electronic product, By ensuring the
correct disposal of this product, you will help prevent potentially hazardous to the environment and to hu-
man health, which could otherwise be caused by unsuitable waste handling of this product. The recycling
of materials will help conserve natural resources. Please do not therefore dispose of your
old electrical
and electronic equipment with your household waste, For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or the shop where you
purchased the product. J
,
http://www.nlkkei.eu
EN-7
